Android 自定义键盘布局

本文已参与「新人创作礼」活动，一起开启掘金创作之路。

先上效果图

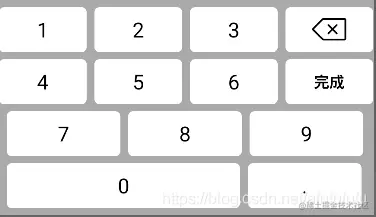

效果一

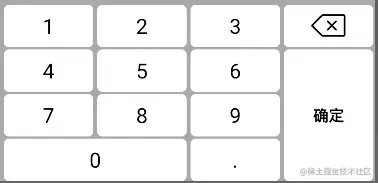

效果二

效果三

一：代码如下：

<Keyboard android:keyWidth="24.9%p"
    android:keyHeight="49dp"
    android:horizontalGap="1%p"
    android:verticalGap="5px"
    xmlns:android="http://schemas.android.com/apk/res/android">
    <Row android:keyWidth="23%p">
        <Key android:codes="49" android:keyEdgeFlags="left" android:keyLabel="1" />
        <Key android:codes="50" android:keyLabel="2" />
        <Key android:codes="51" android:keyLabel="3" />
        <Key android:codes="-5" android:keyIcon="@mipmap/ic_delete" android:isRepeatable="true"/>
    </Row>
    <Row android:keyWidth="23%p">
        <Key  android:codes="52" android:keyLabel="4"/>
        <Key android:codes="53" android:keyLabel="5" />
        <Key android:codes="54" android:keyLabel="6" />
        <Key android:codes="\u5b8c\u6210" android:keyHeight="19%p" android:keyLabel="确定" />
    </Row>
    <Row android:keyWidth="23%p" >
        <Key android:codes="55" android:keyEdgeFlags="left" android:keyLabel="7" />
        <Key android:codes="56" android:keyLabel="8" />
        <Key android:codes="57" android:keyLabel="9" />
    </Row>
    <Row>
        <Key android:codes="48" android:keyLabel="0" android:keyEdgeFlags="left" android:keyWidth="47%p" />
        <Key android:codes="46" android:keyLabel="." android:keyWidth="23%p" />
    </Row>
</Keyboard>

二：代码如下：

<Keyboard xmlns:android="http://schemas.android.com/apk/res/android"
   android:horizontalGap="0px"
   android:verticalGap="0px"
   android:keyHeight="6.5%p"
   android:keyWidth="29.2%p"
   >
   <Row android:verticalGap="1%p">
       <Key android:codes="49" android:keyLabel="1" android:horizontalGap="2%p"/>
       <Key android:codes="50" android:keyLabel="2" android:horizontalGap="2%p"/>
       <Key android:codes="51" android:keyLabel="3" android:horizontalGap="2%p"/>

   </Row>
   <Row android:verticalGap="1%p">
       <Key  android:codes="52" android:keyLabel="4" android:horizontalGap="2%p"/>
       <Key android:codes="53" android:keyLabel="5"  android:horizontalGap="2%p"/>
       <Key android:codes="54" android:keyLabel="6"  android:horizontalGap="2%p"/>
   </Row>
   <Row android:verticalGap="1%p" >
       <Key android:codes="55" android:keyLabel="7"  android:horizontalGap="2%p"/>
       <Key android:codes="56" android:keyLabel="8"  android:horizontalGap="2%p"/>
       <Key android:codes="57" android:keyLabel="9"  android:horizontalGap="2%p"/>
   </Row>
   <Row android:verticalGap="1%p" >
       <Key android:codes="48" android:keyLabel="0"  android:keyWidth="60%p" android:horizontalGap="2%p" />
       <Key android:codes="-5" android:isRepeatable="true" android:keyIcon="@mipmap/ic_delete" android:horizontalGap="2%p"/>
   </Row>
   </Keyboard>

三：代码如下：

<Keyboard xmlns:android="http://schemas.android.com/apk/res/android"
    android:horizontalGap="0px"
    android:verticalGap="0px"
    android:keyHeight="6.5%p"
    android:keyWidth="29.2%p"
    >

   <Row android:verticalGap="1%p">
        <Key android:codes="49" android:keyLabel="1" android:horizontalGap="2%p"/>
        <Key android:codes="50" android:keyLabel="2" android:horizontalGap="2%p"/>
        <Key android:codes="51" android:keyLabel="3" android:horizontalGap="2%p"/>
        <Key android:codes="-5" android:isRepeatable="true" android:keyIcon="@mipmap/ic_delete" android:horizontalGap="2%p"/>
    </Row>
    <Row android:verticalGap="1%p">
        <Key  android:codes="52" android:keyLabel="4" android:horizontalGap="2%p"/>
        <Key android:codes="53" android:keyLabel="5"  android:horizontalGap="2%p"/>
        <Key android:codes="54" android:keyLabel="6"  android:horizontalGap="2%p"/>
        <Key android:codes="-3" android:isRepeatable="true"  android:keyLabel="完成"  android:horizontalGap="2%p" />
        &lt;!&ndash;android:keyHeight="20%p"&ndash;&gt;
    </Row>
    <Row android:verticalGap="1%p">
        <Key android:codes="55" android:keyLabel="7"  android:horizontalGap="2%p"/>
        <Key android:codes="56" android:keyLabel="8"  android:horizontalGap="2%p"/>
        <Key android:codes="57" android:keyLabel="9"  android:horizontalGap="2%p"/>
    </Row>
    <Row android:verticalGap="1%p" >
        <Key android:codes="48" android:keyLabel="0"  android:keyWidth="60%p" android:horizontalGap="2%p" />
        <Key android:codes="46" android:keyLabel="."  android:horizontalGap="2%p"/>
    </Row>
    </Keyboard>

以上是自定义键盘的三种效果
