大纲

  • Nest
    • 安装@nestjs/cli
    • 创建nest项目
  • Mysql与typeorm
    • 安装mysql
    • 定义数据库实体
  • GraphQL
    • 安装graphql
    • 定义graphql 数据模型
    • graphql query实现
  • GraphQL 定义分页类型与实现
    • resful分页实现
    • graphql数据类型定义与分页实现

如看本文，默认你对nestjs有一定的了解了。

实例代码：github.com/wujian-xyz/…

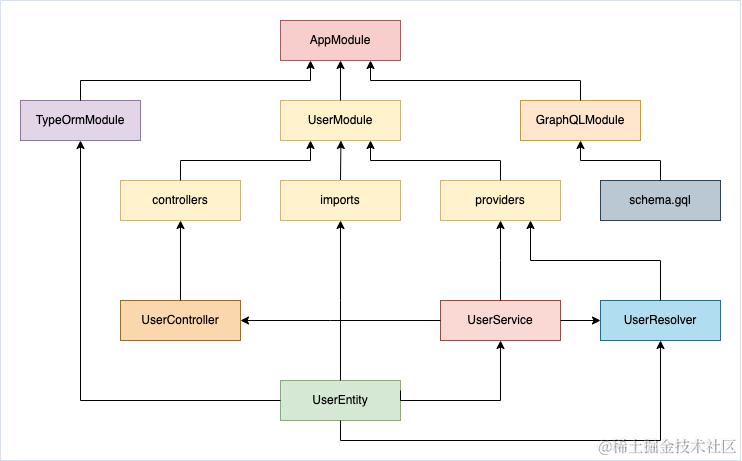

模块依赖关系


一、Nest

1、安装nestjs

pnpm i -g @nestjs/cli

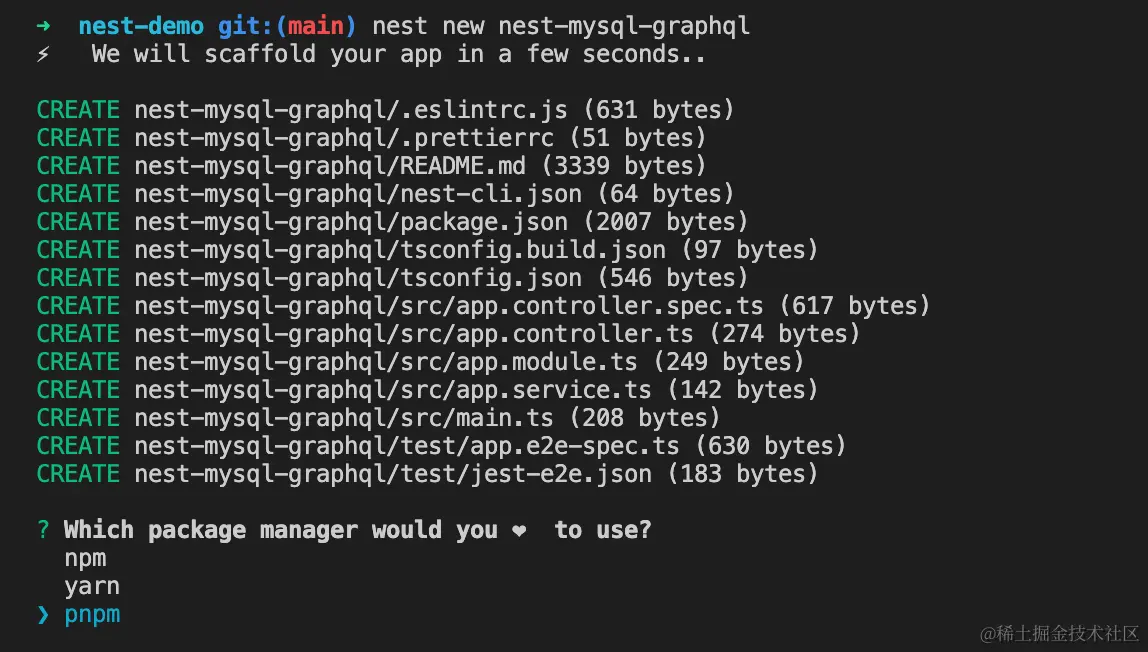

2、创建nest项目

nest new nest-mysql-graphql


3、nest入口加Logger，方便调试,src/main.ts
// src/main.ts
import { NestFactory } from '@nestjs/core';
import { AppModule } from './app.module';
import { Logger } from '@nestjs/common';

async function bootstrap() {
  const app = await NestFactory.create(AppModule);
  await app.listen(3000);
  Logger.log('http://127.0.0.1:3000', '项目启动成功');
}
bootstrap();

二、Nest与Mysql

1、安装mysql

pnpm install @nestjs/typeorm typeorm mysql2 --save

链接mysql数据，如没报错，那恭喜你链接成功！

// src/app.module.ts
import { Module } from '@nestjs/common';
import { AppController } from './app.controller';
import { AppService } from './app.service';
// 导出orm模块
import { TypeOrmModule } from '@nestjs/typeorm';

@Module({
  imports: [
    TypeOrmModule.forRoot({
      type: 'mysql',
      host: 'localhost',
      port: 3306,
      username: 'root',
      password: '123456', // 数据库密码，自己定义的
      database: 'nest-mysql-graphql', // 数据库名称，提前建好
      entities: [],
      synchronize: true,
    }),
  ],
  controllers: [AppController],
  providers: [AppService],
})
export class AppModule {}

2、使用 nest g resource 生成CRUD模块代码

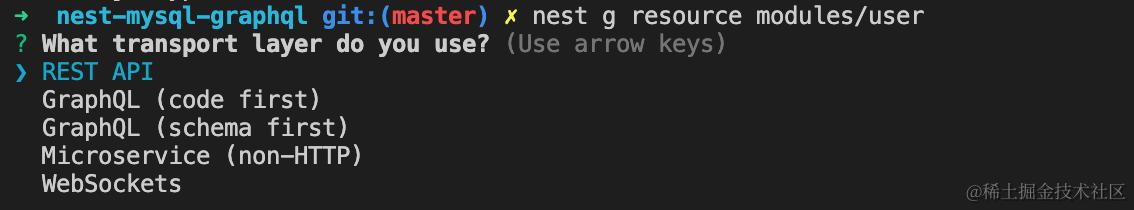

nest g resource modules/user

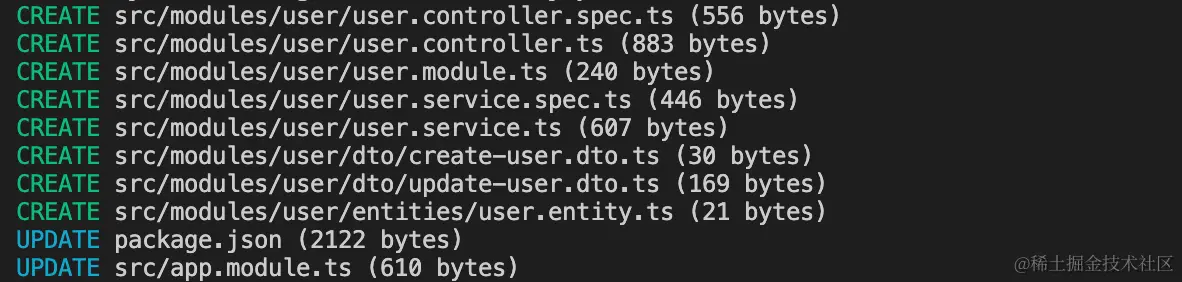

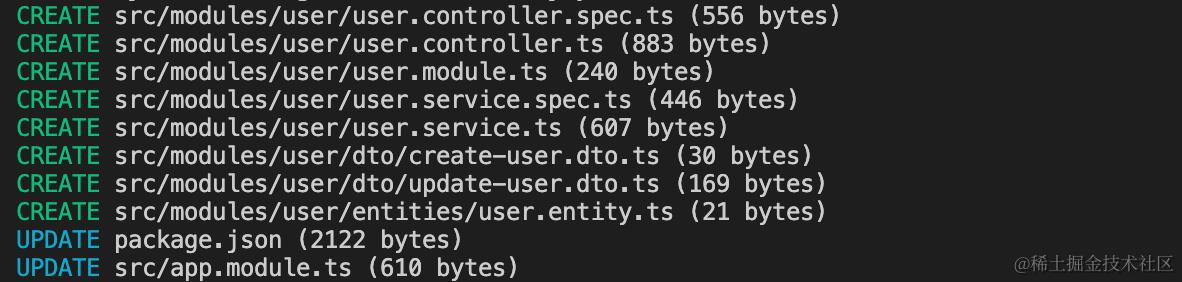

在src/modules下生成user模块 image.png


user模块，依赖@nestjs/mapped-types，继续安装

pnpm install @nestjs/mapped-types --save

3、定义user实体，src/modules/user/entities/user.entity.ts

// src/modules/user/entities/user.entity.ts
import {
  Entity,
  Column,
  PrimaryGeneratedColumn,
  UpdateDateColumn,
  CreateDateColumn,
} from 'typeorm';

@Entity('user')
export class UserEntity {
  @PrimaryGeneratedColumn({
    comment: '用户id',
  })
  id: number;

  @Column({
    type: 'varchar',
    width: 255,
    nullable: false,
    comment: '用户名',
  })
  username: string;

  @Column({
    type: 'varchar',
    width: 255,
    nullable: true,
    comment: '邮件',
  })
  email: string;

  @Column({
    type: 'varchar',
    width: 255,
    nullable: true,
    comment: '密码',
  })
  password: string;

  @CreateDateColumn({
    name: 'created_at',
    type: 'timestamp',
    nullable: true,
    comment: '添加时间',
  })
  createdAt: Date;

  @UpdateDateColumn({
    name: 'updated_at',
    type: 'timestamp',
    nullable: true,
    comment: '更新时间',
  })
  updatedAt: Date;
}

4、在配置中加载user实体

// src/app.module.ts
import { Module } from '@nestjs/common';
import { AppController } from './app.controller';
import { AppService } from './app.service';
import { TypeOrmModule } from '@nestjs/typeorm';
// nest g resource modules/user 命令自动注入
import { UserModule } from './modules/user/user.module';
// 导入实体到typeorm配置中，数据库自动创建user表
import { UserEntity } from './modules/user/entities/user.entity';

@Module({
  imports: [
    TypeOrmModule.forRoot({
      type: 'mysql',
      host: 'localhost',
      port: 3306,
      username: 'root',
      password: 'wujian798',
      database: 'nest-mysql-graphql',
      entities: [UserEntity],
      synchronize: true,
    }),
    UserModule,
  ],
  controllers: [AppController],
  providers: [AppService],
})
export class AppModule {}

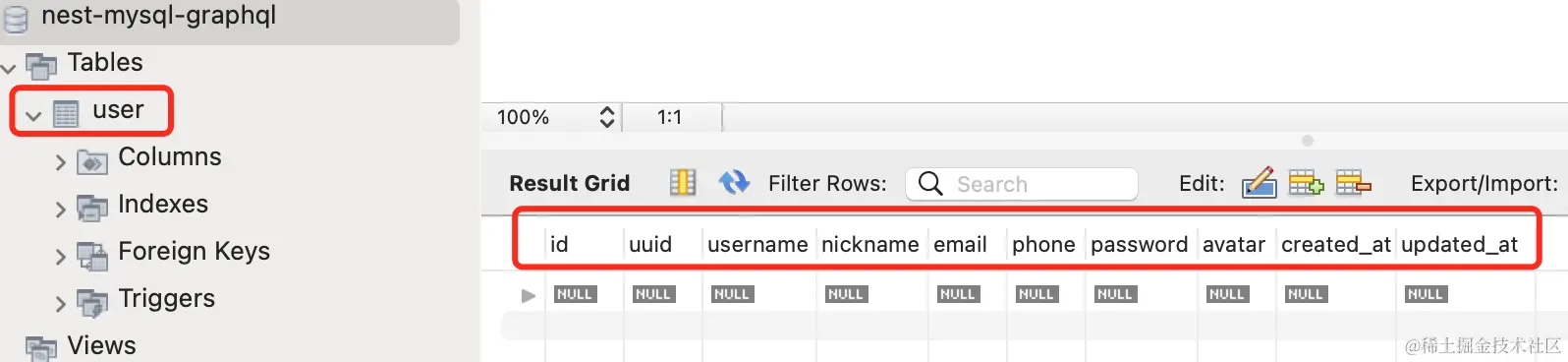

自动创建user表


5、TypeOrmModule.forFeature加载user实体到user模块中

// src/modules/user/user.module.ts
import { Module } from '@nestjs/common';
import { TypeOrmModule } from '@nestjs/typeorm';
import { UserService } from './user.service';
import { UserController } from './user.controller';
import { UserEntity } from './entities/user.entity';

@Module({
  imports: [TypeOrmModule.forFeature([UserEntity])],
  controllers: [UserController],
  providers: [UserService],
})
export class UserModule {}

6、user服务关联实体

// src/modules/user/user.service.ts
import { Injectable } from '@nestjs/common';
import { InjectRepository } from '@nestjs/typeorm';
import { Repository } from 'typeorm';
import { CreateUserDto } from './dto/create-user.dto';
import { UpdateUserDto } from './dto/update-user.dto';
import { UserEntity } from './entities/user.entity';

@Injectable()
export class UserService {
  constructor(
    @InjectRepository(UserEntity)
    private readonly userRepository: Repository<UserEntity>,
  ) {}
  create(createUserDto: CreateUserDto) {
    this.userRepository.create(createUserDto);
    return this.userRepository.save(createUserDto);
  }

  findAll() {
    return this.userRepository.find();
  }

  findOne(id: number) {
    return this.userRepository.findOne({
      where: { id },
    });
  }

  update(id: number, updateUserDto: UpdateUserDto) {
    return this.userRepository.update(id, updateUserDto);
  }

  remove(id: number) {
    return this.userRepository.delete(id);
  }
}

postman测试curd，结果如下：

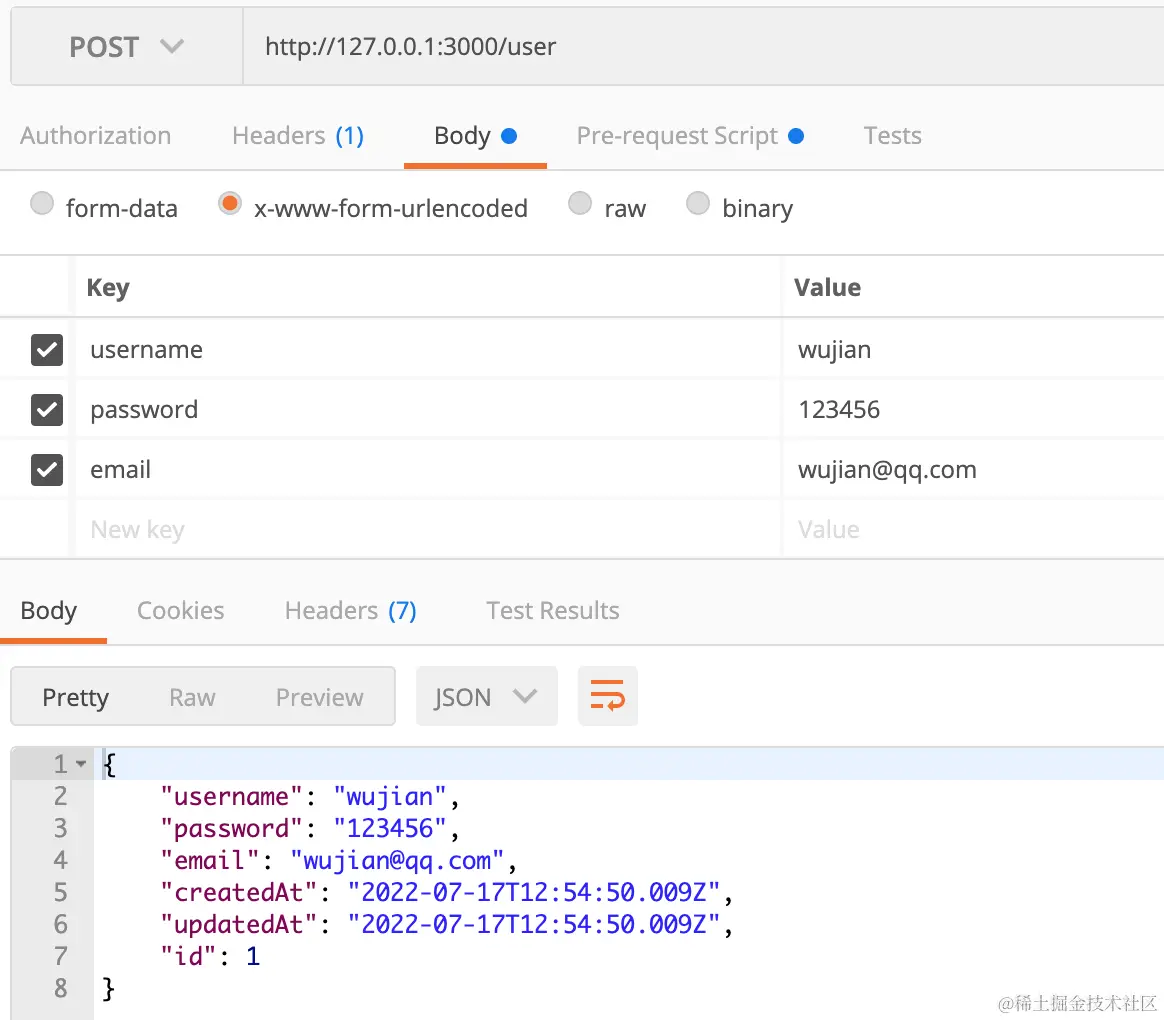

  • POST 创建 image.png

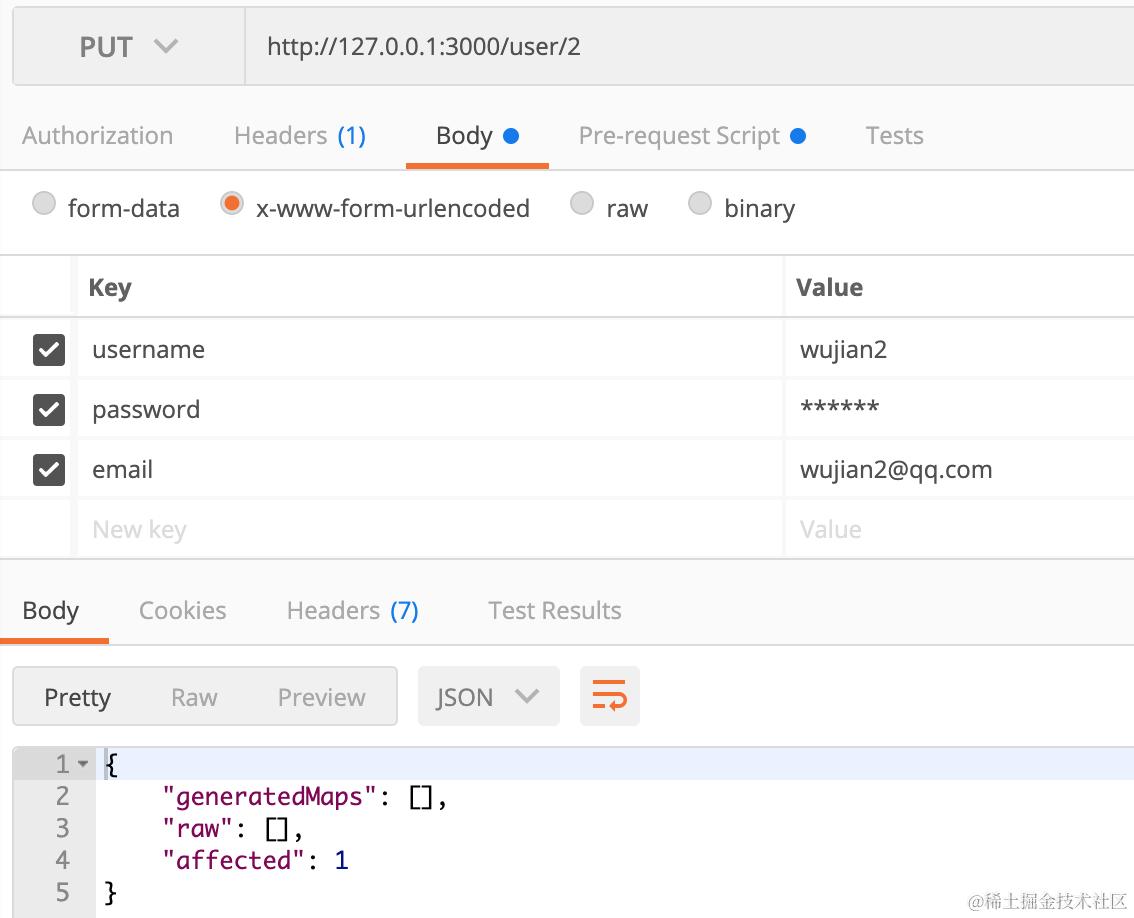

  • PUT 编辑 image.png

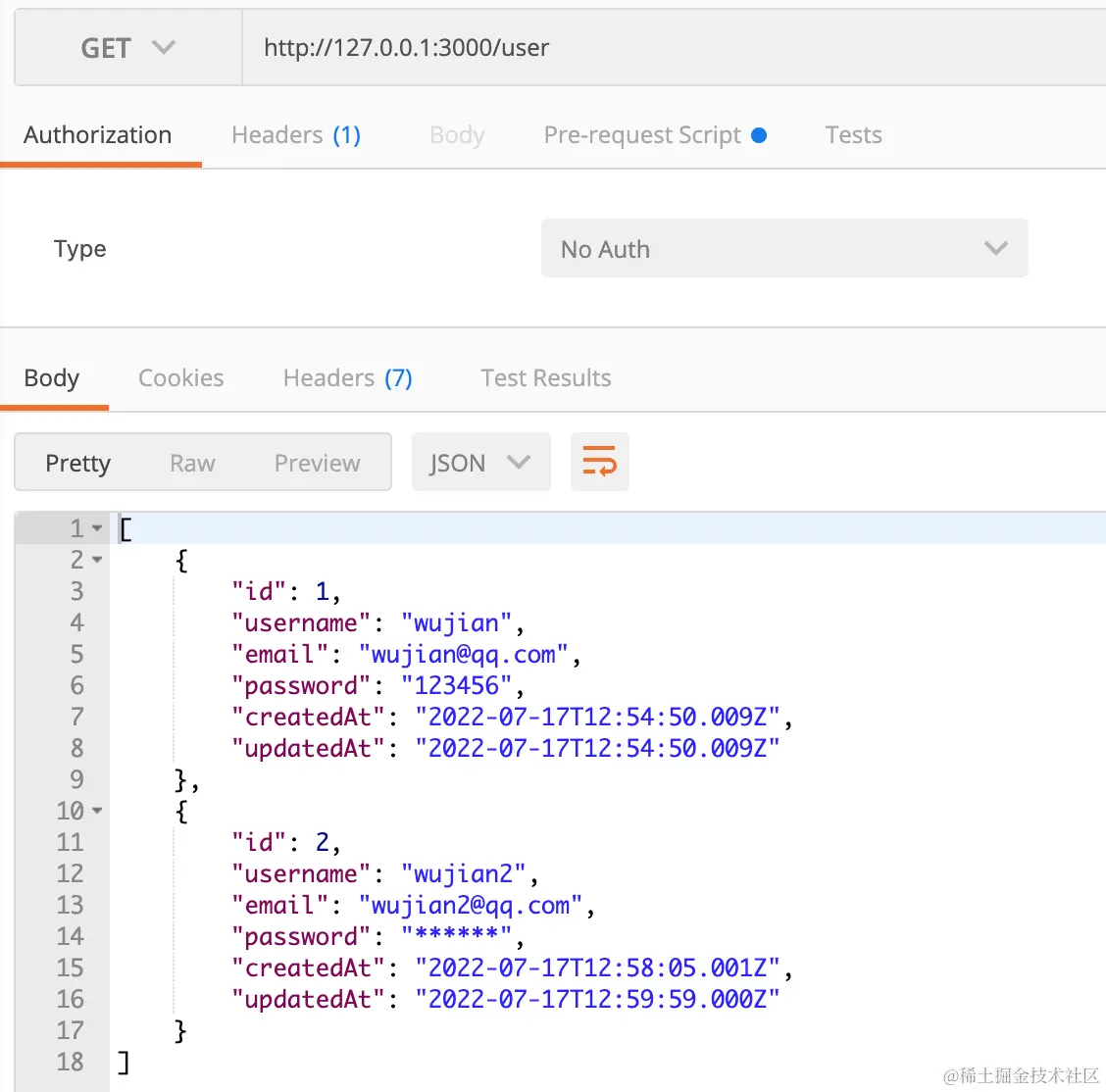

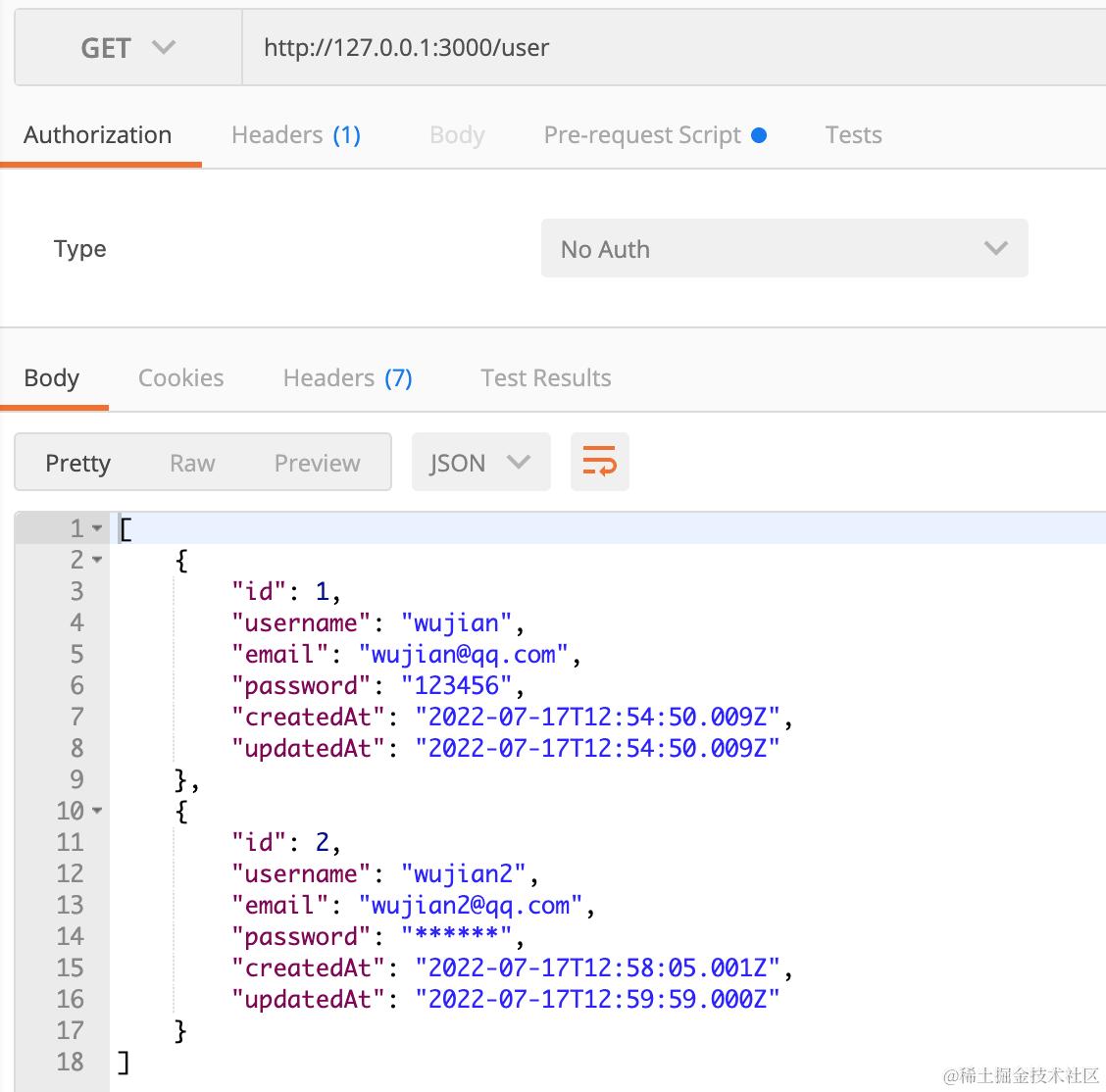

  • GET 列表 image.png

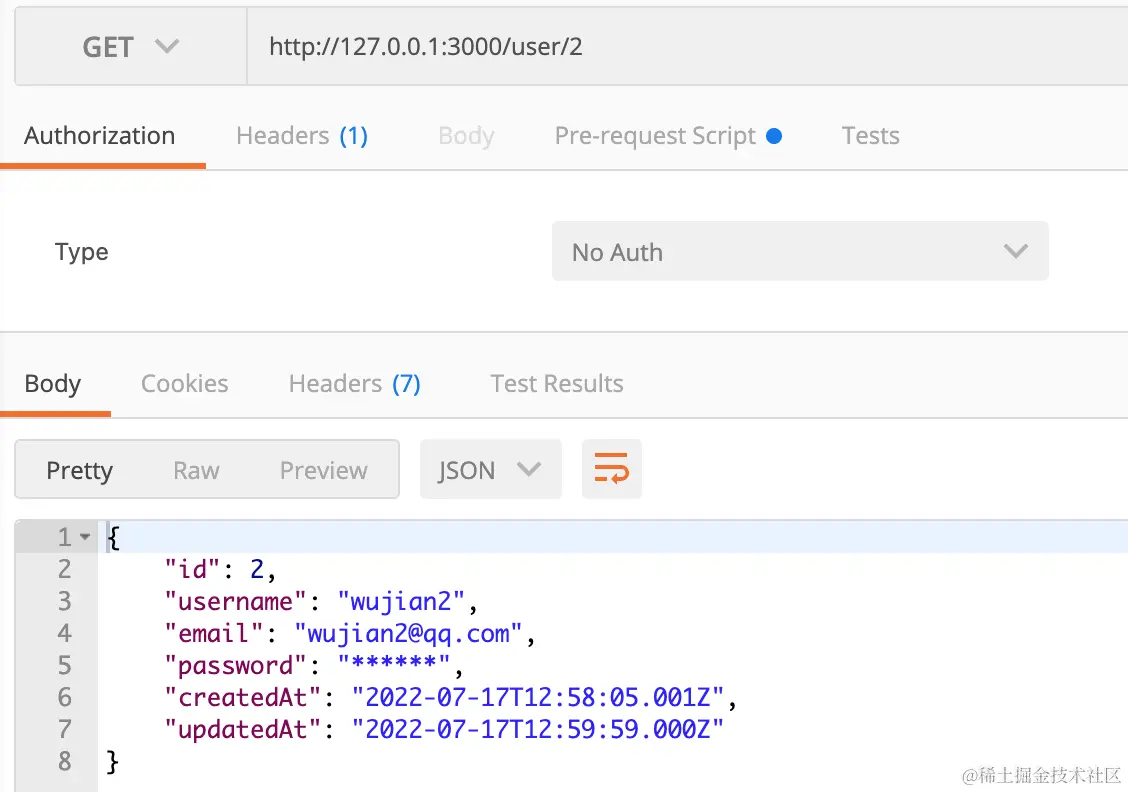

  • GET 列表项 image.png

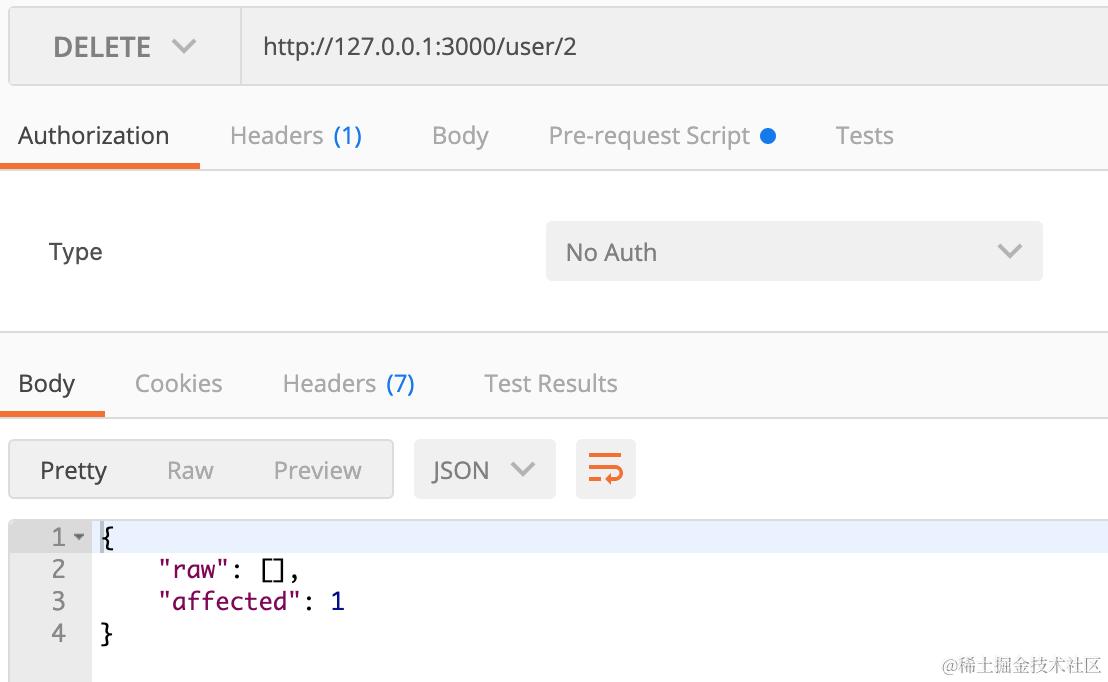

  • DELETE 删除 image.png

所有接口到正常，到这里nest框架mvp已完成，我们继续吧

三、nest与graphql

1、安装graphql

pnpm i @nestjs/graphql @nestjs/apollo graphql apollo-server-express

2、定义graphql 数据模型，可以与共用user实体类

// // src/modules/user/entities/user.entity.ts
import {
  Entity,
  Column,
  PrimaryGeneratedColumn,
  UpdateDateColumn,
  CreateDateColumn,
} from 'typeorm';
import { Field, Int, ObjectType } from '@nestjs/graphql';

@ObjectType()
@Entity('user')
export class UserEntity {
  @Field(() => Int)
  @PrimaryGeneratedColumn({
    comment: '用户id',
  })
  id: number;

  @Field()
  @Column({
    type: 'varchar',
    width: 255,
    nullable: false,
    comment: '用户名',
  })
  username: string;

  @Field()
  @Column({
    type: 'varchar',
    width: 255,
    nullable: true,
    comment: '邮件',
  })
  email: string;

  @Field()
  @Column({
    type: 'varchar',
    width: 255,
    nullable: true,
    comment: '密码',
  })
  password: string;

  @Field()
  @CreateDateColumn({
    name: 'created_at',
    type: 'timestamp',
    nullable: true,
    comment: '添加时间',
  })
  createdAt: Date;

  @Field()
  @UpdateDateColumn({
    name: 'updated_at',
    type: 'timestamp',
    nullable: true,
    comment: '更新时间',
  })
  updatedAt: Date;
}

3、在user文件夹新增graphql resolver

// src/modules/user/user.resolver.ts
import { UserEntity } from './entities/user.entity';
import { UserService } from './user.service';
import { Resolver, Query, Args } from '@nestjs/graphql';

@Resolver(() => UserEntity)
export class UserResolver {
  constructor(private readonly userService: UserService) {}

  @Query(() => [UserEntity], { name: 'users', nullable: true })
  users(): Promise<UserEntity[]> {
    return this.userService.findAll();
  }

  @Query(() => UserEntity, { nullable: true })
  user(@Args('id') id: number): Promise<UserEntity> {
    return this.userService.findOne(id);
  }
}

3、graphql resolver导入 module providers中

import { Module } from '@nestjs/common';
import { TypeOrmModule } from '@nestjs/typeorm';
import { UserService } from './user.service';
import { UserController } from './user.controller';
import { UserEntity } from './entities/user.entity';
import { UserResolver } from './user.resolver';

@Module({
  imports: [TypeOrmModule.forFeature([UserEntity])],
  controllers: [UserController],
  providers: [UserResolver, UserService],
})
export class UserModule {}

4、配置graphql

// src/app.module.ts
import { Module } from '@nestjs/common';
import { AppController } from './app.controller';
import { AppService } from './app.service';
import { TypeOrmModule } from '@nestjs/typeorm';
// nest g resource modules/user 命令自动注入
import { UserModule } from './modules/user/user.module';
// 导入实体到typeorm配置中，数据库自动创建user表
import { UserEntity } from './modules/user/entities/user.entity';
import { GraphQLModule } from '@nestjs/graphql';
import { ApolloDriver, ApolloDriverConfig } from '@nestjs/apollo';

@Module({
  imports: [
    TypeOrmModule.forRoot({
      type: 'mysql',
      host: 'localhost',
      port: 3306,
      username: 'root',
      password: 'wujian798',
      database: 'nest-mysql-graphql',
      entities: [UserEntity],
      synchronize: true,
    }),
    GraphQLModule.forRoot<ApolloDriverConfig>({
      driver: ApolloDriver,
      autoSchemaFile: join(process.cwd(), 'src/schema.gql'),
    }),
    UserModule,
  ],
  controllers: [AppController],
  providers: [AppService],
})
export class AppModule {}

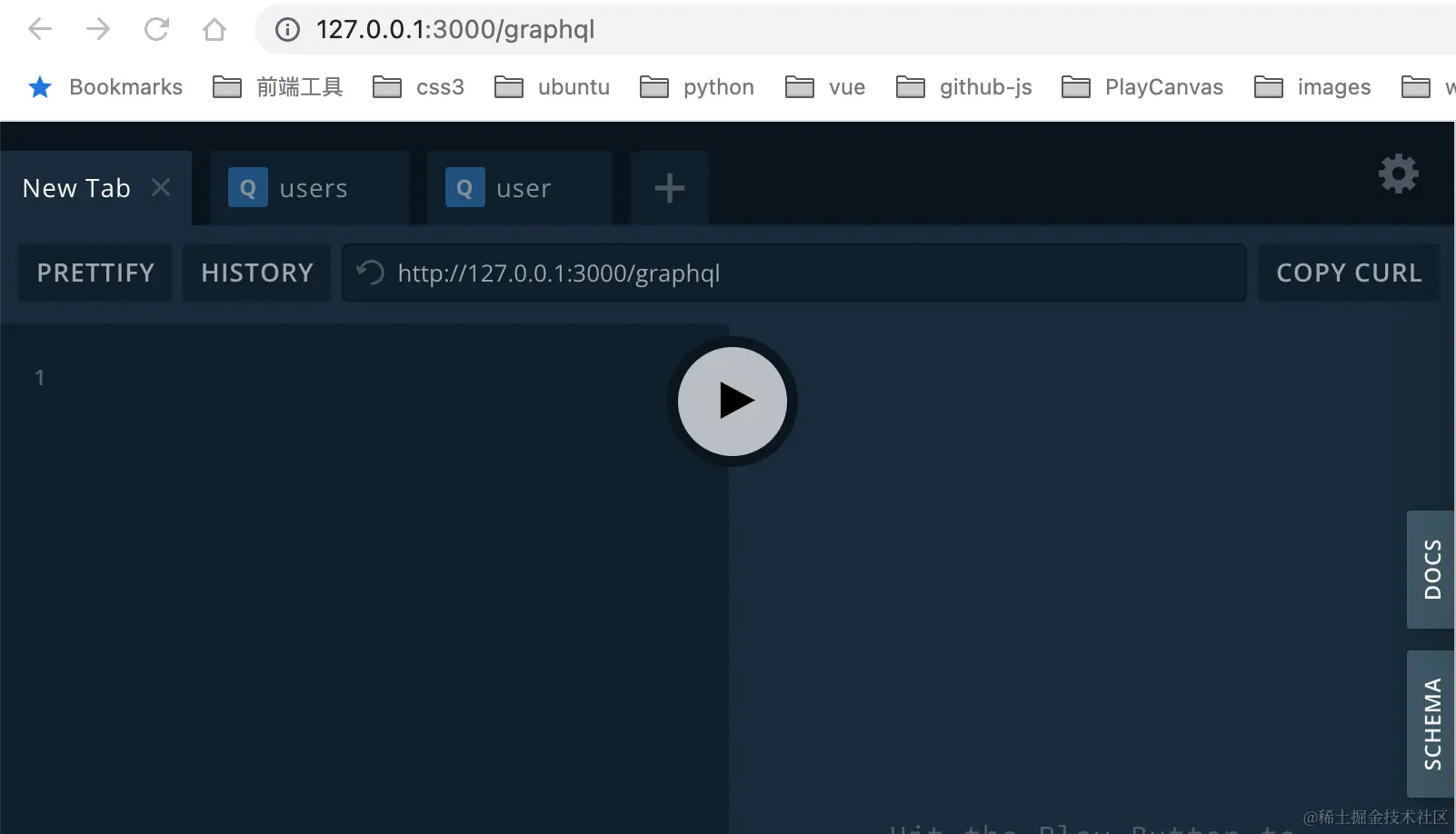

查看：http://127.0.0.1:3000/graphql 可以该可视化工具测试graphql


query {
  user(id: 3) {
    id,
    username,
    password,
    email,
  }
}

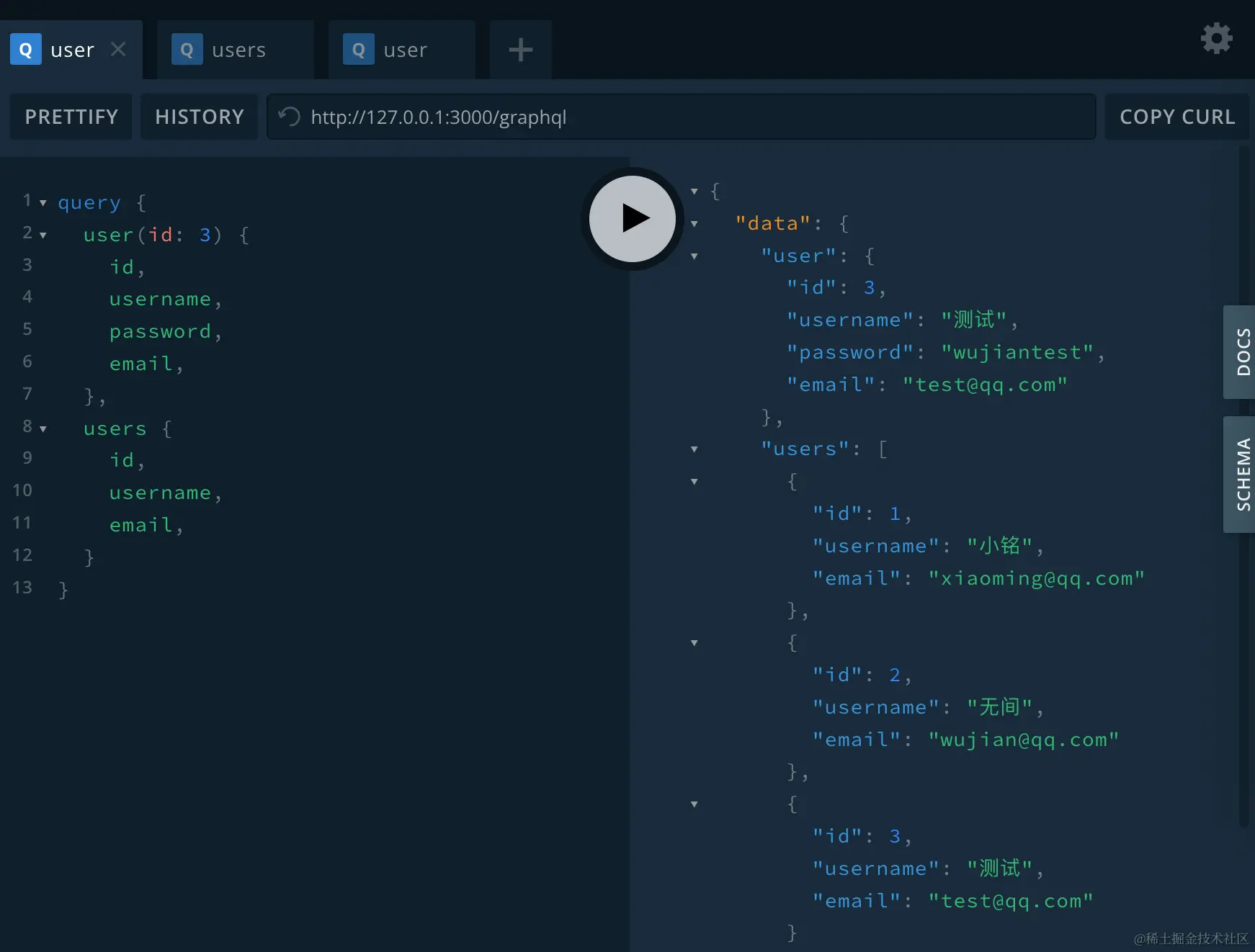

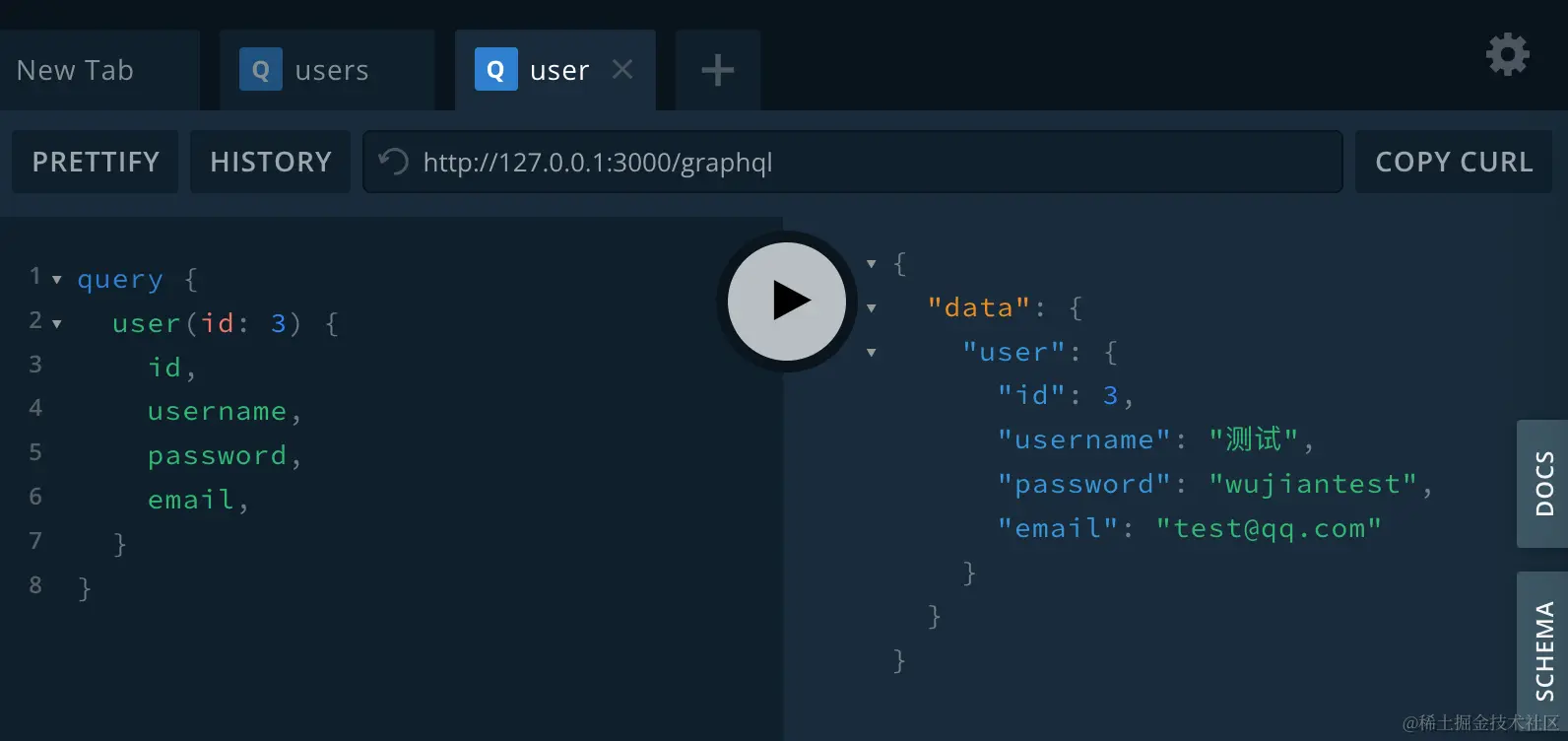

  • 测试一条数据

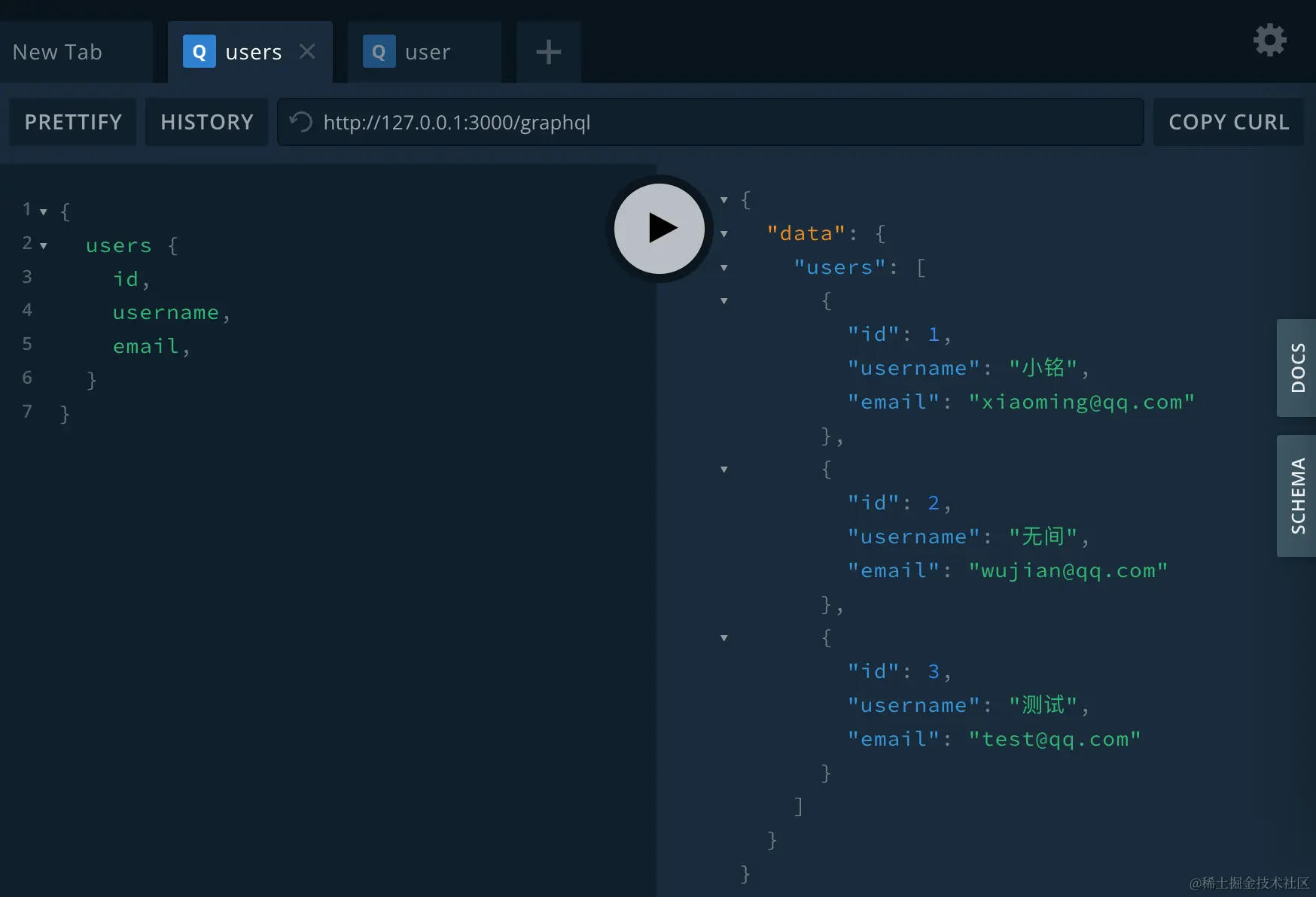

  • 测试多数据


  • 测试集合数据


写到这，mysql到grapql链路已完成，本想就此结束。再想想自己处理分页是，遇到了很多炕，在掘金、google、github找了很久，没找到满意的demo（解决方案），后来还是回到nest官网上找到解决方法。

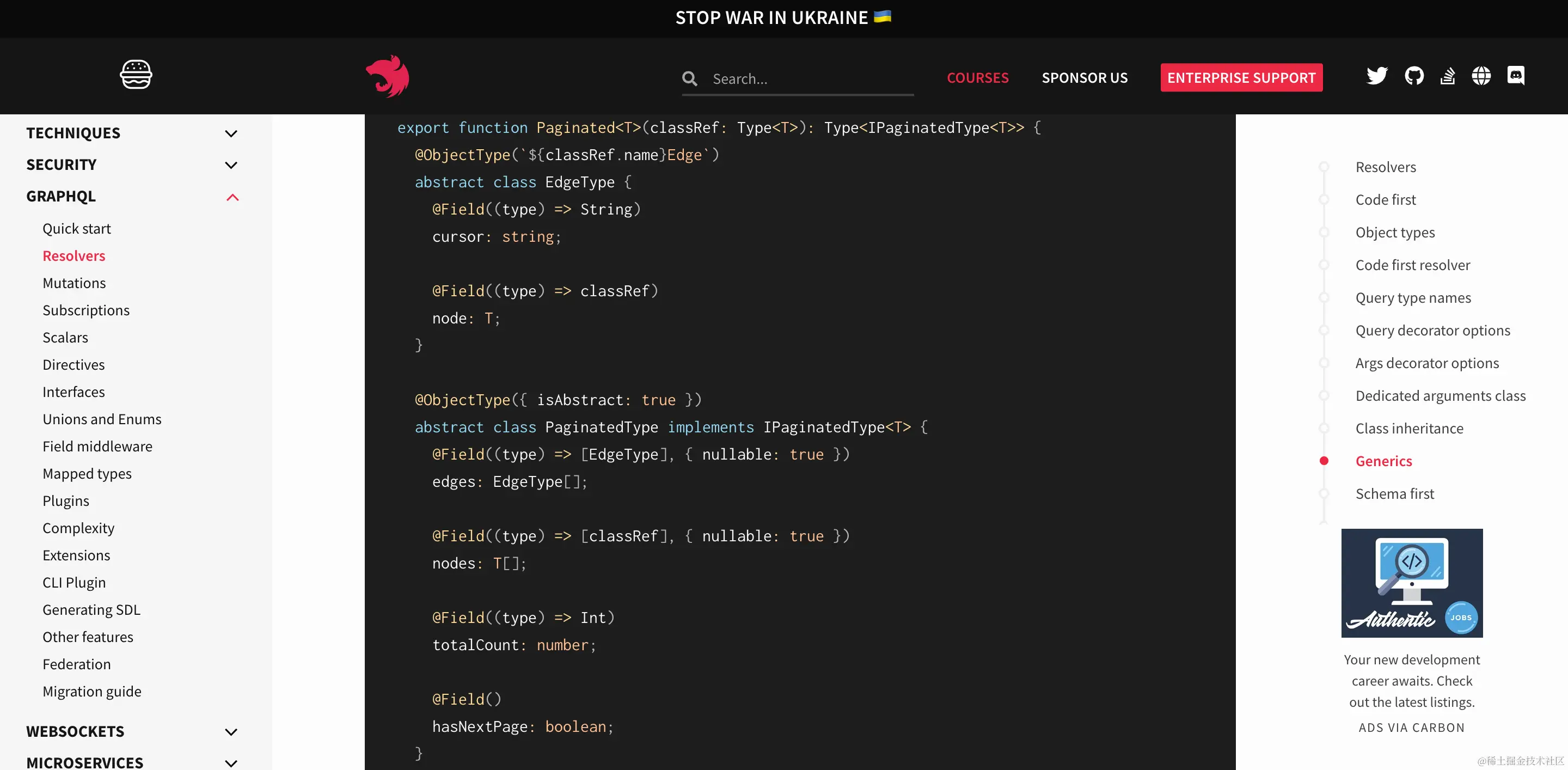

位置链接:docs.nestjs.com/graphql/res…


四、 GraphQL 定义分页类型与实现

1、RESTful分页实现，

在 user.service.ts 添加分页服务方法 findAndCount

// src/modules/user/user.service.ts
import { Injectable } from '@nestjs/common';
import { InjectRepository } from '@nestjs/typeorm';
import { Repository } from 'typeorm';
import { CreateUserDto } from './dto/create-user.dto';
import { UpdateUserDto } from './dto/update-user.dto';
import { UserEntity } from './entities/user.entity';
import { BaseService, IPaginationOptions } from '../../globals/base.service';

@Injectable()
export class UserService extends BaseService {
  constructor(
    @InjectRepository(UserEntity)
    private readonly userRepository: Repository<UserEntity>,
  ) {
    super(userRepository);
  }
  // 添加分页服务方法
  findAndCount(options?: IPaginationOptions) {
    return this.findListAndPage(options);
  }
}

分页方法提取到base.service.ts中，方便复用。

// src/globals/base.service.ts
import { Repository, FindOptionsRelations } from 'typeorm';

export interface IPagination {
  page?: number;
  size?: number;
}

// 分页返回体数据结构
export interface IPaginationResponse<T = any> {
  list: Array<T>;
  pagination: IPagination;
  total: number;
}

export interface IPaginationOptions {
  pagination?: IPagination;
  order?: object;
  where?: object;
  relations?: FindOptionsRelations<any>;
  select?: object;
}

export class BaseService {
  constructor(private readonly currentRepository: Repository<any>) {}
  async findListAndPage(
    options: IPaginationOptions,
  ): Promise<IPaginationResponse> {
    const DEFOULT_PAGE = 1;
    const DEFOULT_SIZE = 20;
    const {
      pagination = { page: DEFOULT_PAGE, size: DEFOULT_SIZE },
      order = {},
      where = {},
      relations = {},
      select = {},
    } = options || {};
    const { page = DEFOULT_PAGE, size = DEFOULT_SIZE } = pagination;
    const [list, total]: [Array<any>, number] =
      await this.currentRepository.findAndCount({
        take: size,
        skip: (page - 1) * size,
        order,
        where,
        relations,
        select,
      });
    return {
      list,
      pagination: {
        page,
        size,
      },
      total,
    };
  }
}

在user.controller.ts中添加分页方法 findAndCount

// src/modules/user/user.controller.ts
import {
  Controller,
  Get,
  Post,
  Body,
  Put,
  Param,
  Delete,
  Query,
} from '@nestjs/common';
import { UserService } from './user.service';
import { CreateUserDto } from './dto/create-user.dto';
import { UpdateUserDto } from './dto/update-user.dto';
import { getNumber } from '../../utils';

@Controller('user')
export class UserController {
  constructor(private readonly userService: UserService) {}
  @Get('page')
  findAndCount(@Query() query: { page?: number; size?: number } = {}) {
    const { page, size } = query;
    return this.userService.findAndCount({
      pagination: { page: getNumber(page), size: getNumber(size) },
    });
  }
}

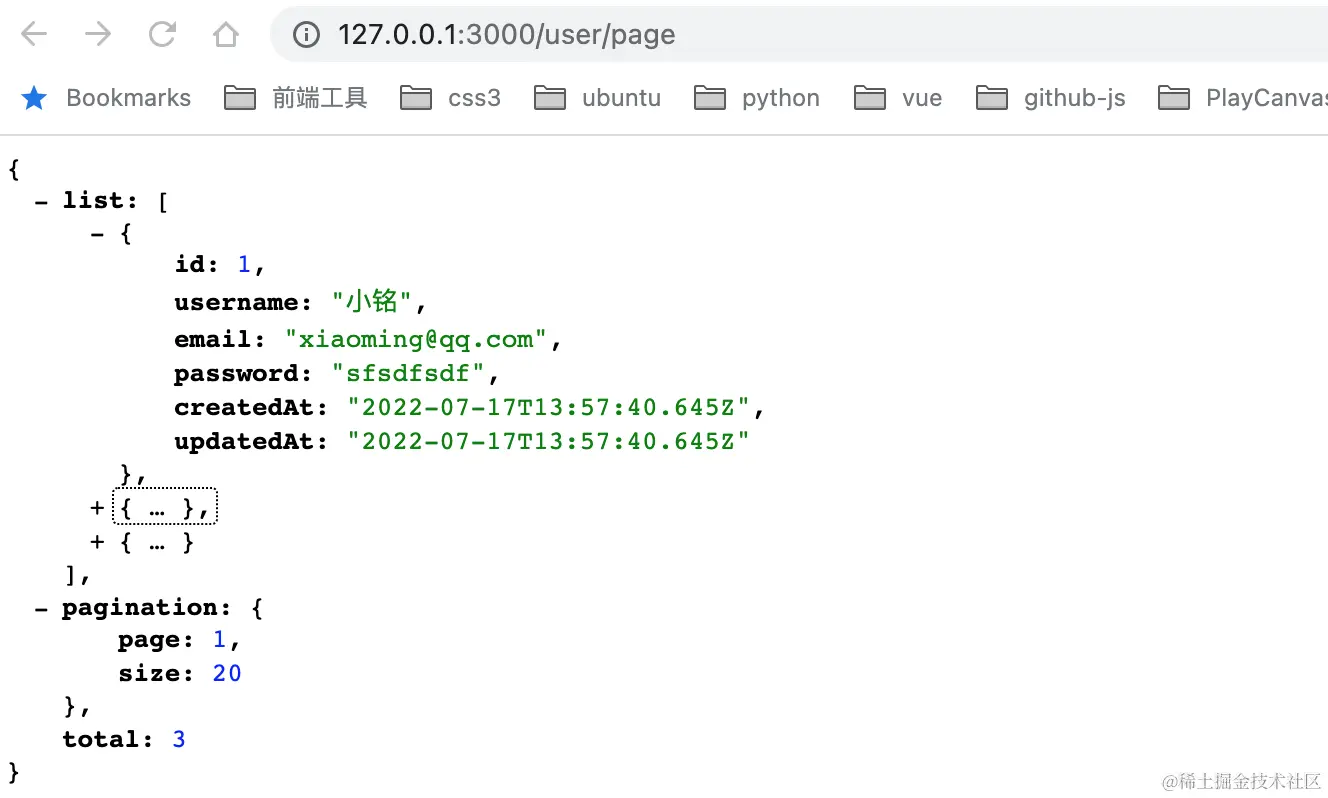

resful接口测试分页功能，如下图


2、GraphQL数据类型定义与分页实现

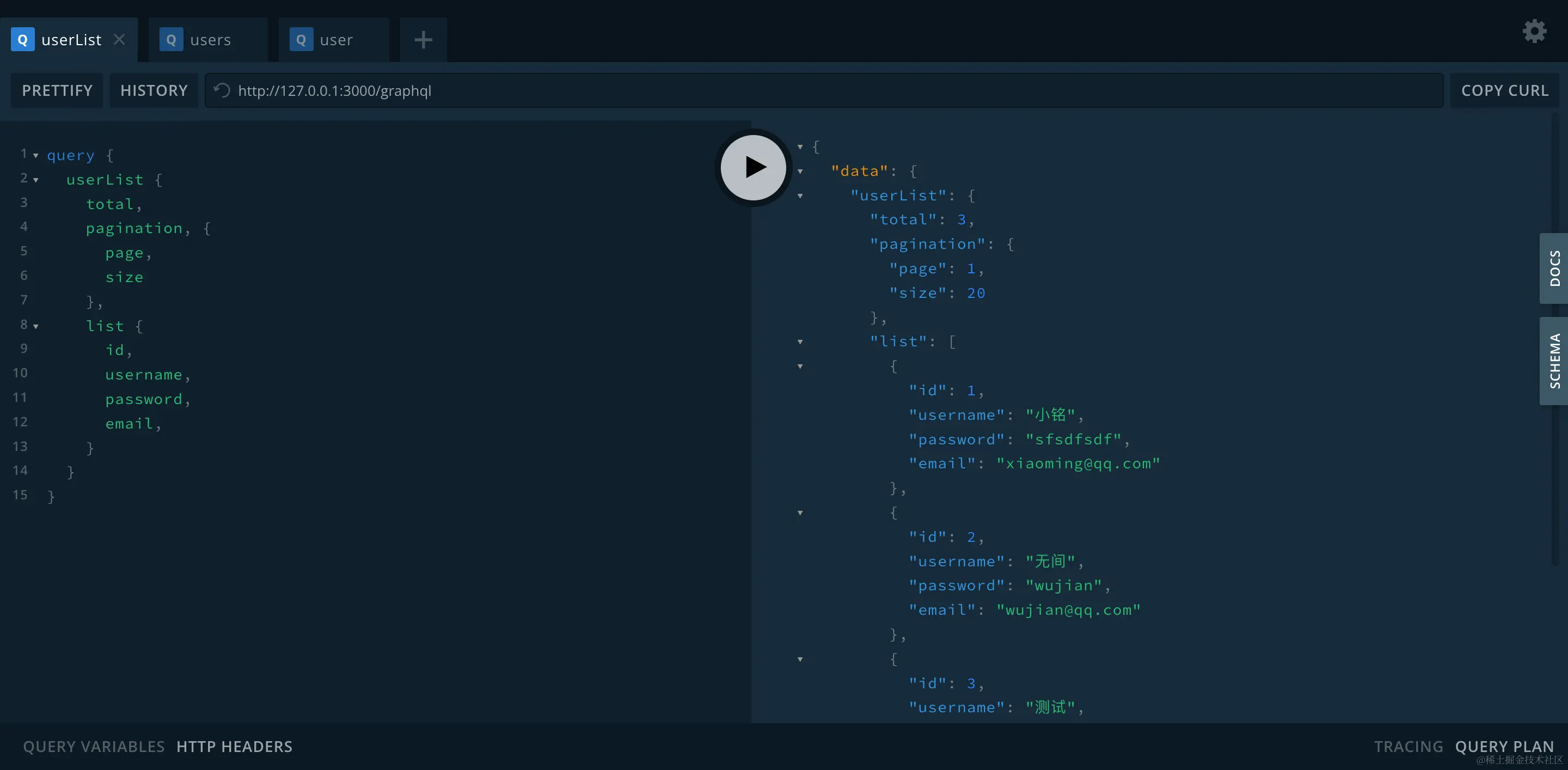

在user.resolver.ts中添加分页query userList

// src/modules/user/user.resolver.ts
import { UserEntity } from './entities/user.entity';
import { UserService } from './user.service';
import { Resolver, Query, Args } from '@nestjs/graphql';
// 定义分页数据结构
import { UserListPaginated } from './dto/userList.paginated.gql';

@Resolver(() => UserEntity)
export class UserResolver {
  constructor(private readonly userService: UserService) {}

  @Query(() => UserListPaginated, { name: 'userList', nullable: true })
  userList(
    @Args('page', {
      type: () => Int,
      defaultValue: 1,
    })
    page?: number,
    @Args('size', {
      type: () => Int,
      defaultValue: 20,
      nullable: true,
    })
    size?: number,
  ): Promise<UserListPaginated> {
    return this.userService.findListAndPage({
      pagination: {
        page,
        size,
      },
    });
  }
}

[重要] 定义分页数据结构

// src/modules/user/dto/userList.paginated.gql.ts
import { ObjectType } from '@nestjs/graphql';
import { UserEntity } from '../entities/user.entity';
import { Paginated } from '../../../globals/paginated.gql';

@ObjectType()
export class UserListPaginated extends Paginated<UserEntity>(UserEntity) {}

[重要]分页方法提取到paginated.gql.ts中，方便复用。

// src/globals/paginated.gql.ts
import { Field, ObjectType, Int } from '@nestjs/graphql';
import { Type } from '@nestjs/common';

interface IPagination {
  page?: number;
  size?: number;
}

export interface IPaginatedType<T> {
  list: T[];
  total: number;
  pagination: IPagination;
}

export function Paginated<T>(classRef: Type<T>): Type<IPaginatedType<T>> {
  @ObjectType(`${classRef.name}Pagination`)
  abstract class Pagination {
    @Field(() => Number)
    size: number;

    @Field(() => Number)
    page: number;
  }

  @ObjectType({ isAbstract: true })
  abstract class PaginatedType implements IPaginatedType<T> {
    @Field(() => Pagination, { nullable: true })
    pagination: Pagination;

    @Field(() => [classRef], { nullable: true })
    list: T[];

    @Field(() => Int)
    total: number;
  }
  return PaginatedType as Type<IPaginatedType<T>>;
}

测试：http://127.0.0.1:3000/graphql

  • 默认参数测试


  • 添加上参数（page：1，size：2）测试


五、 总结

个人还是比较Nestjs与GraphQL的，nestjs入门比较简单的，自己用nestjs写一个博客，就能入门，但是要精通它（特别是它的周边配套，服务端的知识，太多了）还是很难的。 最近自己在写一下小项目，一直在学习，希望能与jym交流，有问题留言。

实例代码：github.com/wujian-xyz/… ，希望能帮到大家。

avatar
文章
阅读
粉丝
