背景

Garfish 是字节跳动 web infra 团队推出的一款微前端框架

包含构建微前端系统时所需要的基本能力，任意前端框架均可使用。接入简单，可轻松将多个前端应用组合成内聚的单个产品

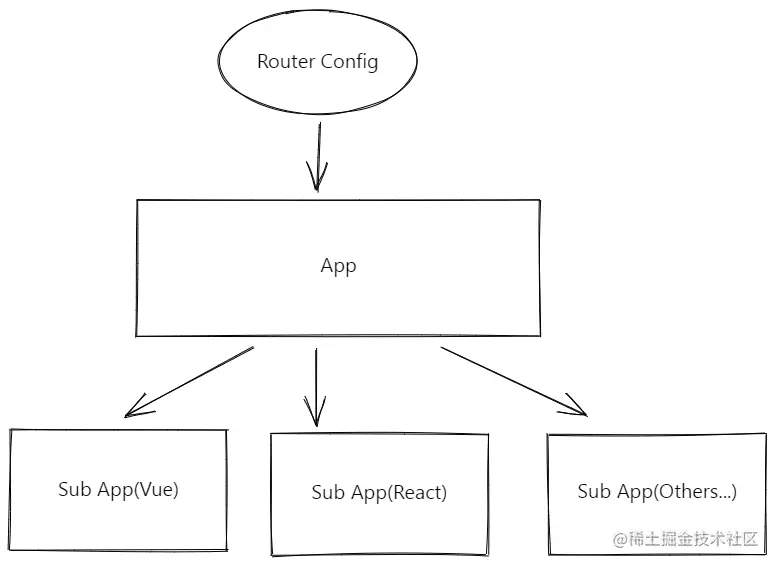

微前端基本架构

因为当前对 Garfish 的解读极少，而微前端又是现代前端领域相当重要的一环，因此写下本文，同时也是对学习源码的一个总结

本文基于 garfish#0d4cc0c82269bce8422b0e9105b7fe88c2efe42a 进行解读

学习源码

git clone https://github.com/modern-js-dev/garfish.git
cd garfish
pnpm install
pnpm build
pnpm dev

然后打开https://localhost:8090/ 即可看到演示项目

基本使用

主应用

export const GarfishInit = async () => {
  try {
    Garfish.run(Config);
  } catch (error) {
    console.log('garfish init error', error);
  }
};

其中关键点是 Config 参数, 其所有参数都是可选的，一般比较重要的几个参数为:

  • basename 子应用的基础路径，默认值为 /，整个微前端应用的 basename。设置后该值为所有子应用的默认值，若子应用 AppInfo 中也提供了该值会替换全局的 basename 值
  • domGetter 子应用挂载点。如'#submodule'
  • apps 需要主要参数如 name, entry, activeWhen(路由地址)

此函数运行之后，Garfish会自动进行路由劫持功能。根据路由变化

子应用

以react17为例:

import { reactBridge, AppInfo } from '@garfish/bridge-react';

export const provider = reactBridge({
  el: '#root', // 此处的root是子应用自己声明的root
  // a promise that resolves with the react component. Wait for it to resolve before mounting
  loadRootComponent: (appInfo: AppInfo) => {
    return Promise.resolve(() => <RootComponent {...appInfo} />);
  },
  errorBoundary: (e: any) => <ErrorBoundary />,
});

其中:

  • RootComponent 是子应用的主要逻辑
  • reactBridge 是garfish导出的一个封装函数。大概的逻辑就是把react的一些特有写法映射到garfish的通用生命周期，包含render和destroy

源码解读

那么简单了解了一些garfish的基本使用方案，我们就来看看garfish在此过程中到底做了什么。

从Garfish.run开始:

garfish/packages/core/src/garfish.ts

run(options: interfaces.Options = {}) {
  if (this.running) {
    /**
     * 重复运行检测
     */
    if (__DEV__) {
      warn('Garfish is already running now, Cannot run Garfish repeatedly.');
    }
    return this;
  }

  /**
   * 全局化配置
   */
  this.setOptions(options);

  /**
   * 载入插件
   */
  // Register plugins
  options.plugins?.forEach((plugin) => this.usePlugin(plugin));

  // Put the lifecycle plugin at the end, so that you can get the changes of other plugins
  this.usePlugin(GarfishOptionsLife(this.options, 'global-lifecycle'));

  // Emit hooks and register apps
  this.hooks.lifecycle.beforeBootstrap.emit(this.options); // 生命周期事件beforeBootstrap
  this.registerApp(this.options.apps || []); // 注册子应用
  this.running = true;
  this.hooks.lifecycle.bootstrap.emit(this.options); // bootstrap
  return this;
}

其中移除插件等内容，最重要的是registerApp调用，用于将配置注册到实例中

接下来的代码会移除无关紧要的代码，仅保留核心逻辑

registerApp(list: interfaces.AppInfo | Array<interfaces.AppInfo>) {
  if (!Array.isArray(list)) list = [list];

  for (const appInfo of list) {
    if (!this.appInfos[appInfo.name]) {
      this.appInfos[appInfo.name] = appInfo;
    }
  }

  return this;
}

看上去仅仅是一些配置设定，那么所谓的路由绑定是从哪里发生的呢？这一切其实早就暗中进行了处理。

export type { interfaces } from '@garfish/core';
export { default as Garfish } from '@garfish/core';
export { GarfishInstance as default } from './instance';
export { defineCustomElements } from './customElement';

当调用 import Garfish from 'garfish';时, 使用的是默认创建好的全局Garfish实例。该逻辑简化版大概如下:

import { GarfishRouter } from '@garfish/router';
import { GarfishBrowserVm } from '@garfish/browser-vm';
import { GarfishBrowserSnapshot } from '@garfish/browser-snapshot';

// Initialize the Garfish, currently existing environment to allow only one instance (export to is for test)
function createContext(): Garfish {
  // Existing garfish instance, direct return
  if (inBrowser() && window['__GARFISH__'] && window['Garfish']) {
    return window['Garfish'];
  }

  const GarfishInstance = new Garfish({
    plugins: [GarfishRouter(), GarfishBrowserVm(), GarfishBrowserSnapshot()],
  });

  type globalValue = boolean | Garfish | Record<string, unknown>;
  const set = (namespace: string, val: globalValue = GarfishInstance) => {
    // NOTE: 这里有一部分状态判定的逻辑，以及确保只读，这里是精简后的逻辑
    window[namespace] = val;
  };

  if (inBrowser()) {
    // Global flag
    set('Garfish');
    Object.defineProperty(window, '__GARFISH__', {
      get: () => true,
      configurable: __DEV__ ? true : false,
    });
  }

  return GarfishInstance;
}

export const GarfishInstance = createContext();

其中核心逻辑为:

  • 如果本地已经有Garfish实例，则直接从本地拿。（浏览器环境用于子应用，也可以从这边看出garfish并不支持其他的js环境
  • 创建Garfish实例，并安装插件:
    • GarfishRouter 路由劫持能力
    • GarfishBrowserVm js运行时沙盒隔离
    • GarfishBrowserSnapshot 浏览器状态快照
  • 在window上设置全局Garfish对象并标记__GARFISH__, 注意该变量为只读

其中安全和样式隔离的逻辑我们暂且不看，先看其核心插件 GarfishRouter 的实现

插件系统

Garfish 自己实现了一套插件协议，其本质是pubsub模型的变种(部分生命周期的emit阶段增加了异步操作的等待逻辑)。

我们以Garfish最核心的插件 @garfish/router 为学习例子，该代码的位置在: garfish/packages/router/src/index.ts

export function GarfishRouter(_args?: Options) {
  return function (Garfish: interfaces.Garfish): interfaces.Plugin {
    Garfish.apps = {};
    Garfish.router = router;

    return {
      name: 'router',
      version: __VERSION__,

      bootstrap(options: interfaces.Options) {
        let activeApp: null | string = null;
        const unmounts: Record<string, Function> = {};
        const { basename } = options;
        const { autoRefreshApp = true, onNotMatchRouter = () => null } =
          Garfish.options;

        async function active(
          appInfo: interfaces.AppInfo,
          rootPath: string = '/',
        ) {
          routerLog(`${appInfo.name} active`, {
            appInfo,
            rootPath,
            listening: RouterConfig.listening,
          });

          // In the listening state, trigger the rendering of the application
          if (!RouterConfig.listening) return;

          const { name, cache = true, active } = appInfo;
          if (active) return active(appInfo, rootPath);
          appInfo.rootPath = rootPath;

          const currentApp = (activeApp = createKey());
          const app = await Garfish.loadApp(appInfo.name, {
            basename: rootPath,
            entry: appInfo.entry,
            cache: true,
            domGetter: appInfo.domGetter,
          });

          if (app) {
            app.appInfo.basename = rootPath;

            const call = async (app: interfaces.App, isRender: boolean) => {
              if (!app) return;
              const isDes = cache && app.mounted;
              if (isRender) {
                return await app[isDes ? 'show' : 'mount']();
              } else {
                return app[isDes ? 'hide' : 'unmount']();
              }
            };

            Garfish.apps[name] = app;
            unmounts[name] = () => {
              // Destroy the application during rendering and discard the application instance
              if (app.mounting) {
                delete Garfish.cacheApps[name];
              }
              call(app, false);
            };

            if (currentApp === activeApp) {
              await call(app, true);
            }
          }
        }

        async function deactive(appInfo: interfaces.AppInfo, rootPath: string) {
          routerLog(`${appInfo.name} deactive`, {
            appInfo,
            rootPath,
          });

          activeApp = null;
          const { name, deactive } = appInfo;
          if (deactive) return deactive(appInfo, rootPath);

          const unmount = unmounts[name];
          unmount && unmount();
          delete Garfish.apps[name];

          // Nested scene to remove the current application of nested data
          // To avoid the main application prior to application
          const needToDeleteApps = router.routerConfig.apps.filter((app) => {
            if (appInfo.rootPath === app.basename) return true;
          });
          if (needToDeleteApps.length > 0) {
            needToDeleteApps.forEach((app) => {
              delete Garfish.appInfos[app.name];
              delete Garfish.cacheApps[app.name];
            });
            router.setRouterConfig({
              apps: router.routerConfig.apps.filter((app) => {
                return !needToDeleteApps.some(
                  (needDelete) => app.name === needDelete.name,
                );
              }),
            });
          }
        }

        const apps = Object.values(Garfish.appInfos);

        const appList = apps.filter((app) => {
          if (!app.basename) app.basename = basename;
          return !!app.activeWhen;
        }) as Array<Required<interfaces.AppInfo>>;

        const listenOptions = {
          basename,
          active,
          deactive,
          autoRefreshApp,
          notMatch: onNotMatchRouter,
          apps: appList,
          listening: true,
        };
        routerLog('listenRouterAndReDirect', listenOptions);
        listenRouterAndReDirect(listenOptions);
      },

      registerApp(appInfos) {
        const appList = Object.values(appInfos);
        // @ts-ignore
        router.registerRouter(appList.filter((app) => !!app.activeWhen));
        // After completion of the registration application, trigger application mount
        // Has been running after adding routing to trigger the redirection
        if (!Garfish.running) return;
        routerLog('registerApp initRedirect', appInfos);
        initRedirect();
      },
    };
  };
}

一个插件的结构形如 (context: Garfish) => Plugin

其中 Plugin 类型为一个对象，包含各个阶段的生命周期以及name/version等插件信息描述属性。

以 router 插件为例，其作用在bootstrap和registerApp两个生命周期阶段

生命周期定义可以在这里看到: garfish/packages/core/src/lifecycle.ts

以 Garfish.run 视角来看，执行顺序为: beforeBootstrap -> beforeRegisterApp -> registerApp -> bootstrap -> ... 因此我们先看registerApp的逻辑。

registerApp 阶段

this.hooks.lifecycle.registerApp.emit(currentAdds);

Garfish 执行 registerApp函数 完毕后触发 registerApp 生命周期hook, 将当前注册的子应用列表发送到事件回调

garfish/packages/router/src/index.ts

{
  name: 'router',
  registerApp(appInfos) {
    const appList = Object.values(appInfos);
    router.registerRouter(appList.filter((app) => !!app.activeWhen));
    // After completion of the registration application, trigger application mount
    // Has been running after adding routing to trigger the redirection
    if (!Garfish.running) return;
    routerLog('registerApp initRedirect', appInfos);
    initRedirect();
  },
}

插件接收到子应用列表, 将依次调用:

  • router.registerRouter 注册到路由列表，其中会把不存在activeWhen属性的子应用过滤
  • initRedirect 初始化重定向逻辑

garfish/packages/router/src/context.ts

export const RouterConfig: Options = {
  basename: '/',
  current: {
    fullPath: '/',
    path: '/',
    matched: [],
    query: {},
    state: {},
  },
  apps: [],
  beforeEach: (to, from, next) => next(),
  afterEach: (to, from, next) => next(),
  active: () => Promise.resolve(),
  deactive: () => Promise.resolve(),
  routerChange: () => {},
  autoRefreshApp: true,
  listening: true,
};

export const registerRouter = (Apps: Array<interfaces.AppInfo>) => {
  const unregisterApps = Apps.filter(
    (app) => !RouterConfig.apps.some((item) => app.name === item.name),
  );
  RouterConfig[apps] = RouterConfig.apps.concat(unregisterApps);
};

const Router: RouterInterface = {
  registerRouter,
};

export default Router;

在registerRouter阶段仅仅是将子应用注册

export const initRedirect = () => {
  linkTo({
    toRouterInfo: {
      fullPath: location.pathname,
      path: getPath(RouterConfig.basename!),
      query: parseQuery(location.search),
      state: history.state,
    },
    fromRouterInfo: {
      fullPath: '/',
      path: '/',
      query: {},
      state: {},
    },
    eventType: 'pushState',
  });
};

在initRedirect阶段则是调用linkTo函数去实现一个跳转，这里具体细节比较复杂。可以简单理解为子应用版页面跳转

// 重载指定路由
// 1. 当前的子应用需要销毁
// 2. 获取当前需要激活的应用
// 3. 获取新的需要激活应用
// 4. 触发函数beforeEach，在销毁所有应用之前触发
// 5. 触发需要销毁应用的deactive函数
// 6. 如果不需要激活应用，默认触发popstate应用组件view child更新
export const linkTo = async ({
  toRouterInfo,
  fromRouterInfo,
  eventType,
}: {
  toRouterInfo: RouterInfo;
  fromRouterInfo: RouterInfo;
  eventType: keyof History | 'popstate';
}) => Promise<void>

bootstrap 阶段

this.hooks.lifecycle.bootstrap.emit(this.options);

{
  name: 'router',
  bootstrap(options: interfaces.Options) {
    let activeApp: null | string = null;
    const unmounts: Record<string, Function> = {};
    const { basename } = options;
    const { autoRefreshApp = true, onNotMatchRouter = () => null } =
      Garfish.options;

    async function active(
      appInfo: interfaces.AppInfo,
      rootPath: string = '/',
    ) {
      routerLog(`${appInfo.name} active`, {
        appInfo,
        rootPath,
        listening: RouterConfig.listening,
      });

      // In the listening state, trigger the rendering of the application
      if (!RouterConfig.listening) return;

      const { name, cache = true, active } = appInfo;
      if (active) return active(appInfo, rootPath);
      appInfo.rootPath = rootPath;

      const currentApp = (activeApp = createKey());
      const app = await Garfish.loadApp(appInfo.name, {
        basename: rootPath,
        entry: appInfo.entry,
        cache: true,
        domGetter: appInfo.domGetter,
      });

      if (app) {
        app.appInfo.basename = rootPath;

        const call = async (app: interfaces.App, isRender: boolean) => {
          if (!app) return;
          const isDes = cache && app.mounted;
          if (isRender) {
            return await app[isDes ? 'show' : 'mount']();
          } else {
            return app[isDes ? 'hide' : 'unmount']();
          }
        };

        Garfish.apps[name] = app;
        unmounts[name] = () => {
          // Destroy the application during rendering and discard the application instance
          if (app.mounting) {
            delete Garfish.cacheApps[name];
          }
          call(app, false);
        };

        if (currentApp === activeApp) {
          await call(app, true);
        }
      }
    }

    async function deactive(appInfo: interfaces.AppInfo, rootPath: string) {
      routerLog(`${appInfo.name} deactive`, {
        appInfo,
        rootPath,
      });

      activeApp = null;
      const { name, deactive } = appInfo;
      if (deactive) return deactive(appInfo, rootPath);

      const unmount = unmounts[name];
      unmount && unmount();
      delete Garfish.apps[name];

      // Nested scene to remove the current application of nested data
      // To avoid the main application prior to application
      const needToDeleteApps = router.routerConfig.apps.filter((app) => {
        if (appInfo.rootPath === app.basename) return true;
      });
      if (needToDeleteApps.length > 0) {
        needToDeleteApps.forEach((app) => {
          delete Garfish.appInfos[app.name];
          delete Garfish.cacheApps[app.name];
        });
        router.setRouterConfig({
          apps: router.routerConfig.apps.filter((app) => {
            return !needToDeleteApps.some(
              (needDelete) => app.name === needDelete.name,
            );
          }),
        });
      }
    }

    const apps = Object.values(Garfish.appInfos);

    const appList = apps.filter((app) => {
      if (!app.basename) app.basename = basename;
      return !!app.activeWhen;
    }) as Array<Required<interfaces.AppInfo>>;

    const listenOptions = {
      basename,
      active,
      deactive,
      autoRefreshApp,
      notMatch: onNotMatchRouter,
      apps: appList,
      listening: true,
    };
    routerLog('listenRouterAndReDirect', listenOptions);
    listenRouterAndReDirect(listenOptions);
  },
}

bootstrap阶段主要构造路由配置，并调用listenRouterAndReDirect(listenOptions)来进行路由的代理/拦截 其中主要需要关心的active操作(即子应用挂载逻辑)做了以下事情:

  • 调用 Garfish.loadApp 将子应用挂载到子应用挂载节点上(Promise 同步加载)
  • 在 Garfish.apps 记录该app
  • 注册到 unmounts 记录销毁逻辑
/**
 * 1.注册子应用
 * 2.对应子应用激活，触发激活回调
 * @param Options
 */
export const listenRouterAndReDirect = ({
  apps,
  basename = '/',
  autoRefreshApp,
  active,
  deactive,
  notMatch,
  listening = true,
}: Options) => {
  // 注册子应用、注册激活、销毁钩子
  registerRouter(apps);

  // 初始化信息
  setRouterConfig({
    basename,
    autoRefreshApp,
    // supportProxy: !!window.Proxy,
    active,
    deactive,
    notMatch,
    listening,
  });

  // 开始监听路由变化触发、子应用更新。重载默认初始子应用
  listen();
};

export const registerRouter = (Apps: Array<interfaces.AppInfo>) => {
  const unregisterApps = Apps.filter(
    (app) => !RouterConfig.apps.some((item) => app.name === item.name),
  );
  RouterSet('apps', RouterConfig.apps.concat(unregisterApps));
};

registerRouter没有什么特殊的，仅仅管理路由状态

接下来看一下listen()函数做的事情:

export const listen = () => {
  normalAgent();
  initRedirect();
};

initRedirect我们之前看过了，现在我们主要看normalAgent的实现

garfish/packages/router/src/agentRouter.ts

export const normalAgent = () => {
  // By identifying whether have finished listening, if finished listening, listening to the routing changes do not need to hijack the original event
  // Support nested scene
  const addRouterListener = function () {
    window.addEventListener(__GARFISH_BEFORE_ROUTER_EVENT__, function (env) {
      RouterConfig.routerChange && RouterConfig.routerChange(location.pathname);
      linkTo((env as any).detail);
    });
  };

  if (!window[__GARFISH_ROUTER_FLAG__]) {
    // Listen for pushState and replaceState, call linkTo, processing, listen back
    // Rewrite the history API method, triggering events in the call

    const rewrite = function (type: keyof History) {
      const hapi = history[type];
      return function (this: History) {
        const urlBefore = window.location.pathname + window.location.hash;
        const stateBefore = history?.state;
        const res = hapi.apply(this, arguments);
        const urlAfter = window.location.pathname + window.location.hash;
        const stateAfter = history?.state;

        const e = createEvent(type);
        (e as any).arguments = arguments;

        if (
          urlBefore !== urlAfter ||
          JSON.stringify(stateBefore) !== JSON.stringify(stateAfter)
        ) {
          window.dispatchEvent(
            new CustomEvent(__GARFISH_BEFORE_ROUTER_EVENT__, {
              detail: {
                toRouterInfo: {
                  fullPath: urlAfter,
                  query: parseQuery(location.search),
                  path: getPath(RouterConfig.basename!, urlAfter),
                  state: stateAfter,
                },
                fromRouterInfo: {
                  fullPath: urlBefore,
                  query: parseQuery(location.search),
                  path: getPath(RouterConfig.basename!, urlBefore),
                  state: stateBefore,
                },
                eventType: type,
              },
            }),
          );
        }
        // window.dispatchEvent(e);
        return res;
      };
    };

    history.pushState = rewrite('pushState');
    history.replaceState = rewrite('replaceState');

    // Before the collection application sub routing, forward backward routing updates between child application
    window.addEventListener(
      'popstate',
      function (event) {
        // Stop trigger collection function, fire again match rendering
        if (event && typeof event === 'object' && (event as any).garfish)
          return;
        if (history.state && typeof history.state === 'object')
          delete history.state[__GARFISH_ROUTER_UPDATE_FLAG__];
        window.dispatchEvent(
          new CustomEvent(__GARFISH_BEFORE_ROUTER_EVENT__, {
            detail: {
              toRouterInfo: {
                fullPath: location.pathname,
                query: parseQuery(location.search),
                path: getPath(RouterConfig.basename!),
              },
              fromRouterInfo: {
                fullPath: RouterConfig.current!.fullPath,
                path: getPath(
                  RouterConfig.basename!,
                  RouterConfig.current!.path,
                ),
                query: RouterConfig.current!.query,
              },
              eventType: 'popstate',
            },
          }),
        );
      },
      false,
    );

    window[__GARFISH_ROUTER_FLAG__] = true;
  }
  addRouterListener();
};

normalAgent 做了以下事情:

  • 通过rewrite函数重写history.pushState和history.pushState
    • rewrite函数则是在调用以上方法的前后增加了一些当前情况的快照，如果url/state发生变化则触发__GARFISH_BEFORE_ROUTER_EVENT__事件
  • 对popstate事件增加监听
  • 调用 addRouterListener 增加路由监听回调。监听方法基于浏览器内置的事件系统，事件名: __GARFISH_BEFORE_ROUTER_EVENT__

综上, router 通过监听history的方法来执行副作用调用linkTo函数，而linkTo函数则通过一系列操作将匹配的路由调用active方法，将不匹配的路由调用deactive方法以实现类型切换

这时候我们再回过头来看一下active函数的实现

async function active(
  appInfo: interfaces.AppInfo,
  rootPath: string = '/',
) {
  routerLog(`${appInfo.name} active`, {
    appInfo,
    rootPath,
    listening: RouterConfig.listening,
  });

  // In the listening state, trigger the rendering of the application
  if (!RouterConfig.listening) return;

  const { name, cache = true, active } = appInfo;
  if (active) return active(appInfo, rootPath);
  appInfo.rootPath = rootPath;

  const currentApp = (activeApp = createKey());
  const app = await Garfish.loadApp(appInfo.name, {
    basename: rootPath,
    entry: appInfo.entry,
    cache: true,
    domGetter: appInfo.domGetter,
  });

  if (app) {
    app.appInfo.basename = rootPath;

    const call = async (app: interfaces.App, isRender: boolean) => {
      if (!app) return;
      const isDes = cache && app.mounted;
      if (isRender) {
        return await app[isDes ? 'show' : 'mount']();
      } else {
        return app[isDes ? 'hide' : 'unmount']();
      }
    };

    Garfish.apps[name] = app;
    unmounts[name] = () => {
      // Destroy the application during rendering and discard the application instance
      if (app.mounting) {
        delete Garfish.cacheApps[name];
      }
      call(app, false);
    };

    if (currentApp === activeApp) {
      await call(app, true);
    }
  }
}

其核心代码则是调用了Garfish.loadApp方法来执行加载操作。

应用加载

接下来我们看一下loadApp函数

garfish/packages/core/src/garfish.ts

loadApp(
  appName: string,
  options?: Partial<Omit<interfaces.AppInfo, 'name'>>,
): Promise<interfaces.App | null> {
  assert(appName, 'Miss appName.');

  let appInfo = generateAppOptions(appName, this, options);

  const asyncLoadProcess = async () => {
    // Return not undefined type data directly to end loading
    const stop = await this.hooks.lifecycle.beforeLoad.emit(appInfo);

    if (stop === false) {
      warn(`Load ${appName} application is terminated by beforeLoad.`);
      return null;
    }

    //merge configs again after beforeLoad for the reason of app may be re-registered during beforeLoad resulting in an incorrect information
    appInfo = generateAppOptions(appName, this, options);

    assert(
      appInfo.entry,
      `Can't load unexpected child app "${appName}", ` +
        'Please provide the entry parameters or registered in advance of the app.',
    );

    // Existing cache caching logic
    let appInstance: interfaces.App | null = null;
    const cacheApp = this.cacheApps[appName];

    if (appInfo.cache && cacheApp) {
      appInstance = cacheApp;
    } else {
      try {
        const [manager, resources, isHtmlMode] = await processAppResources(
          this.loader,
          appInfo,
        );

        appInstance = new App(
          this,
          appInfo,
          manager,
          resources,
          isHtmlMode,
          appInfo.customLoader,
        );

        // The registration hook will automatically remove the duplication
        for (const key in this.plugins) {
          appInstance.hooks.usePlugin(this.plugins[key]);
        }
        if (appInfo.cache) {
          this.cacheApps[appName] = appInstance;
        }
      } catch (e) {
        __DEV__ && warn(e);
        this.hooks.lifecycle.errorLoadApp.emit(e, appInfo);
      }
    }

    await this.hooks.lifecycle.afterLoad.emit(appInfo, appInstance);
    return appInstance;
  };

  if (!this.loading[appName]) {
    this.loading[appName] = asyncLoadProcess().finally(() => {
      delete this.loading[appName];
    });
  }
  return this.loading[appName];
}

该函数做了以下操作:

  • 首先执行asyncLoadProcess来异步加载app，如果app正在加载则返回该Promise
  • 使用generateAppOptions计算全局+本地的配置，并通过黑名单过滤掉一部分的无用参数(filterAppConfigKeys)
  • 如果当前app已加载则直接返回缓存后的内容
  • 如果是第一次加载，则执行 processAppResources 进行请求, 请求的地址为 entry 指定的地址。
  • 当请求完毕后创建new App对象，将其放到内存中
  • 应用插件/记录缓存/发布生命周期事件等

接下来我们看核心函数, processAppResources的实现

export async function processAppResources(loader: Loader, appInfo: AppInfo) {
  let isHtmlMode: Boolean = false,
    fakeEntryManager;
  const resources: any = { js: [], link: [], modules: [] }; // Default resources
  assert(appInfo.entry, `[${appInfo.name}] Entry is not specified.`);
  const { resourceManager: entryManager } = await loader.load({
    scope: appInfo.name,
    url: transformUrl(location.href, appInfo.entry),
  });

  // Html entry
  if (entryManager instanceof TemplateManager) {
    isHtmlMode = true;
    const [js, link, modules] = await fetchStaticResources(
      appInfo.name,
      loader,
      entryManager,
    );
    resources.js = js;
    resources.link = link;
    resources.modules = modules;
  } else if (entryManager instanceof JavaScriptManager) {
    // Js entry
    isHtmlMode = false;
    const mockTemplateCode = `<script src="${entryManager.url}"></script>`;
    fakeEntryManager = new TemplateManager(mockTemplateCode, entryManager.url);
    entryManager.setDep(fakeEntryManager.findAllJsNodes()[0]);
    resources.js = [entryManager];
  } else {
    error(`Entrance wrong type of resource of "${appInfo.name}".`);
  }

  return [fakeEntryManager || entryManager, resources, isHtmlMode];
}

首先根据appInfo.entry调用loader.load函数，生成一个entryManager。如果entry指向的是html地址则获取静态数据后拿取js,link,modules，如果entry指向的是一个js地址则伪造一个仅包含这段js的js资源。最后的返回值是一个 [resourceManager, resources, isHtmlMode] 的元组。

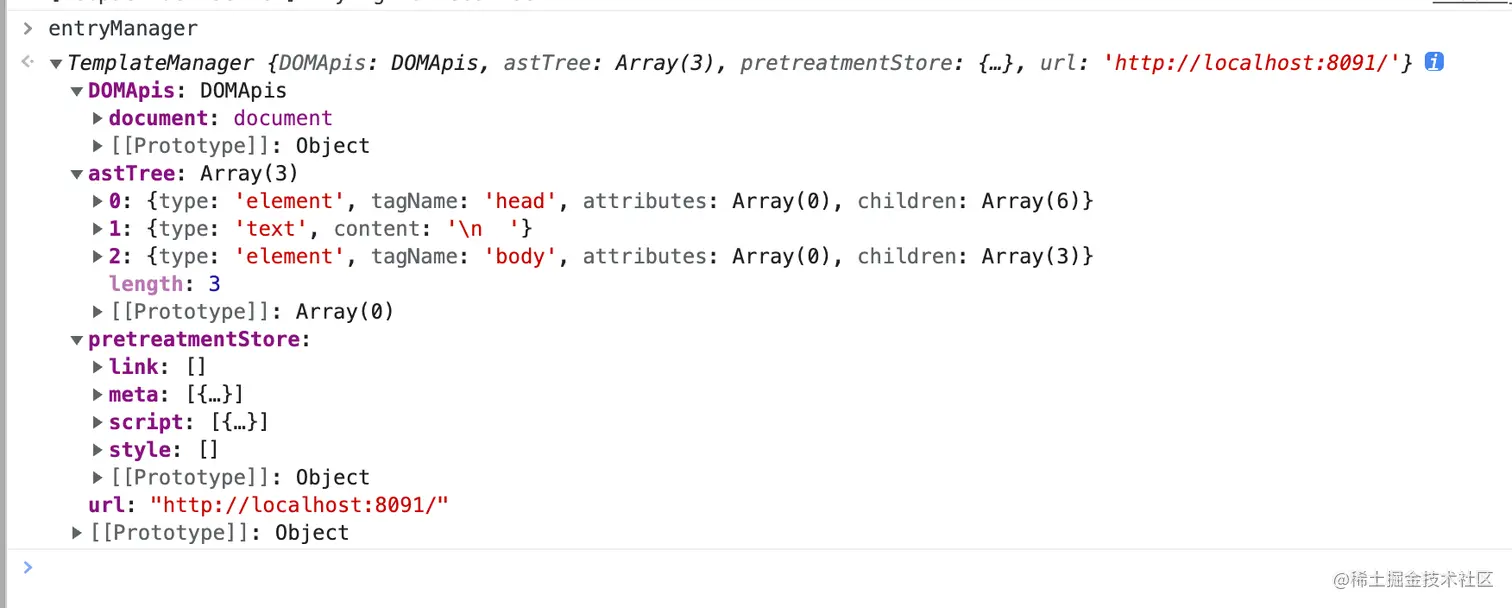

其中resourceManager的大概结构如下: resourceManager

loader.load的本质上就是发请求获取数据然后把请求到的纯文本转化成结构化，如果是html则对html声明的资源进行进一步的请求获取。这边就不再赘述。

我们回到loadApp函数的实现。

之后，代码根据processAppResources获取到的[resourceManager, resources, isHtmlMode]信息来创建一个new App;

appInstance = new App(
  this,
  appInfo,
  manager,
  resources,
  isHtmlMode,
  appInfo.customLoader,
);

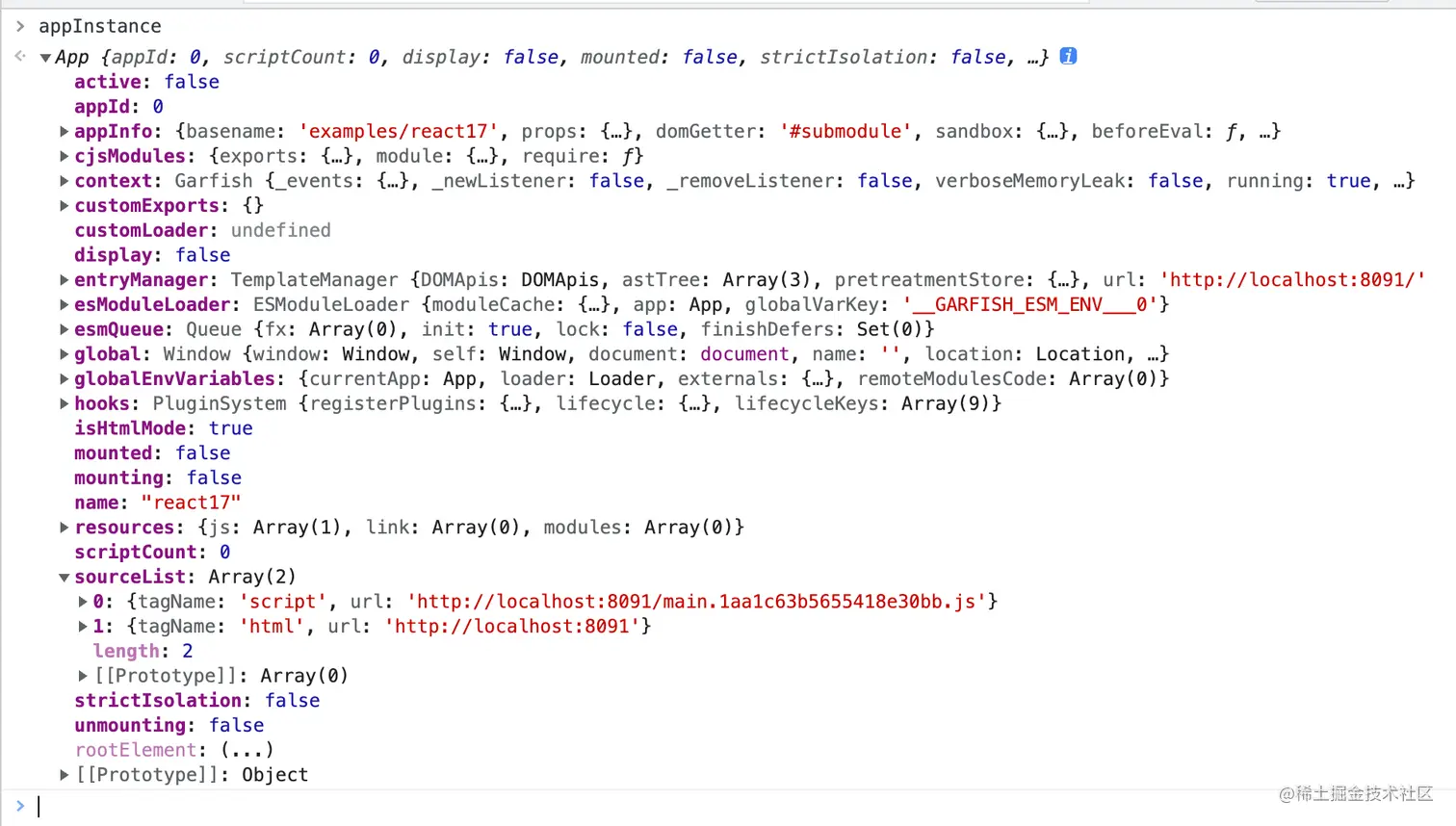

appInstance

new App的过程中没有任何逻辑，仅仅是一些变量的定义。值得注意的是在此过程中会对插件系统做一些初始化设定

garfish/packages/core/src/module/app.ts

export class App {
  constructor(
    context: Garfish,
    appInfo: AppInfo,
    entryManager: TemplateManager,
    resources: interfaces.ResourceModules,
    isHtmlMode: boolean,
    customLoader?: CustomerLoader,
  ) {
    // ...

    // Register hooks
    this.hooks = appLifecycle();
    this.hooks.usePlugin({
      ...appInfo,
      name: `${appInfo.name}-lifecycle`,
    });

    // ...
  }
}

到这一步为止，我们还在做一些准备工作:

  • 从远程获取资源
  • 将纯文本解析成结构化对象和AST
  • 进一步获取js/css的实际代码

接下来我们需要一个调用方能够帮助我们将获取到的资源执行并挂载到dom上。

这时候我们就需要回到我们的router插件。还记得我们的GarfishRouter.bootstrap.active里的代码么?

garfish/packages/router/src/index.ts

export function GarfishRouter(_args?: Options) {
  return function (Garfish: interfaces.Garfish): interfaces.Plugin {
    return {
      // ...

      bootstrap(options: interfaces.Options) {
        // ...

        async function active(
          appInfo: interfaces.AppInfo,
          rootPath: string = '/',
        ) {
          // ...
          const app = await Garfish.loadApp(appInfo.name, {
            basename: rootPath,
            entry: appInfo.entry,
            cache: true,
            domGetter: appInfo.domGetter,
          });

          if (app) {
            app.appInfo.basename = rootPath;

            const call = async (app: interfaces.App, isRender: boolean) => {
              if (!app) return;
              const isDes = cache && app.mounted;
              if (isRender) {
                return await app[isDes ? 'show' : 'mount']();
              } else {
                return app[isDes ? 'hide' : 'unmount']();
              }
            };

            Garfish.apps[name] = app;
            unmounts[name] = () => {
              // Destroy the application during rendering and discard the application instance
              if (app.mounting) {
                delete Garfish.cacheApps[name];
              }
              call(app, false);
            };

            if (currentApp === activeApp) {
              await call(app, true);
            }
          }
        }

        // ...
    };
  };
}

当我们第一次执行到call函数时，会执行app.mount()函数来实现应用的挂载。

我们看下app.mount()的实现:

garfish/packages/core/src/module/app.ts

export class App {
  async mount() {
    if (!this.canMount()) return false;
    this.hooks.lifecycle.beforeMount.emit(this.appInfo, this, false);

    this.active = true;
    this.mounting = true;
    try {
      this.context.activeApps.push(this);
      // add container and compile js with cjs
      const { asyncScripts } = await this.compileAndRenderContainer();
      if (!this.stopMountAndClearEffect()) return false;

      // Good provider is set at compile time
      const provider = await this.getProvider();
      // Existing asynchronous functions need to decide whether the application has been unloaded
      if (!this.stopMountAndClearEffect()) return false;

      this.callRender(provider, true);
      this.display = true;
      this.mounted = true;
      this.hooks.lifecycle.afterMount.emit(this.appInfo, this, false);

      await asyncScripts;
      if (!this.stopMountAndClearEffect()) return false;
    } catch (e) {
      this.entryManager.DOMApis.removeElement(this.appContainer);
      this.hooks.lifecycle.errorMountApp.emit(e, this.appInfo);
      return false;
    } finally {
      this.mounting = false;
    }
    return true;
  }

  // Performs js resources provided by the module, finally get the content of the export
  async compileAndRenderContainer() {
    // Render the application node
    // If you don't want to use the CJS export, at the entrance is not can not pass the module, the require
    await this.renderTemplate();

    // Execute asynchronous script
    return {
      asyncScripts: new Promise<void>((resolve) => {
        // Asynchronous script does not block the rendering process
        setTimeout(() => {
          if (this.stopMountAndClearEffect()) {
            for (const jsManager of this.resources.js) {
              if (jsManager.async) {
                try {
                  this.execScript(
                    jsManager.scriptCode,
                    {},
                    jsManager.url || this.appInfo.entry,
                    {
                      async: false,
                      noEntry: true,
                    },
                  );
                } catch (e) {
                  this.hooks.lifecycle.errorMountApp.emit(e, this.appInfo);
                }
              }
            }
          }
          resolve();
        });
      }),
    };
  }
}

mount主要实现以下操作:

  • 生命周期的分发: beforeMount, afterMount
  • 状态变更: this.active, this.mounting, this.display
  • 调用 this.compileAndRenderContainer 执行编译
    • 调用this.renderTemplate渲染同步代码片段
    • 返回 asyncScripts 函数用于在下一个宏任务(task) 执行异步js代码片段
  • 在每一个异步片段过程中都尝试执行 stopMountAndClearEffect 来判断当前状态，以确保状态的准确性(用于处理在异步代码执行过程中被取消的问题)

我们看一下renderTemplate的逻辑:

export class App {
  private async renderTemplate() {
    const { appInfo, entryManager, resources } = this;
    const { url: baseUrl, DOMApis } = entryManager;
    const { htmlNode, appContainer } = createAppContainer(appInfo);

    // Transformation relative path
    this.htmlNode = htmlNode;
    this.appContainer = appContainer;

    // To append to the document flow, recursive again create the contents of the HTML or execute the script
    await this.addContainer();

    const customRenderer: Parameters<typeof entryManager.createElements>[0] = {
      // ...
      body: (node) => {
        if (!this.strictIsolation) {
          node = entryManager.cloneNode(node);
          node.tagName = 'div';
          node.attributes.push({
            key: __MockBody__,
            value: null,
          });
        }
        return DOMApis.createElement(node);
      },
      script: (node) => {
        const mimeType = entryManager.findAttributeValue(node, 'type');
        const isModule = mimeType === 'module';

        if (mimeType) {
          // Other script template
          if (!isModule && !isJsType({ type: mimeType })) {
            return DOMApis.createElement(node);
          }
        }
        const jsManager = resources.js.find((manager) => {
          return !manager.async ? manager.isSameOrigin(node) : false;
        });

        if (jsManager) {
          const { url, scriptCode } = jsManager;
          this.execScript(scriptCode, {}, url || this.appInfo.entry, {
            isModule,
            async: false,
            isInline: jsManager.isInlineScript(),
            noEntry: toBoolean(
              entryManager.findAttributeValue(node, 'no-entry'),
            ),
          });
        } else if (__DEV__) {
          const async = entryManager.findAttributeValue(node, 'async');
          if (typeof async === 'undefined' || async === 'false') {
            const tipInfo = JSON.stringify(node, null, 2);
            warn(
              `Current js node cannot be found, the resource may not exist.\n\n ${tipInfo}`,
            );
          }
        }
        return DOMApis.createScriptCommentNode(node);
      },

      // ...
    };

    // Render dom tree and append to document.
    entryManager.createElements(customRenderer, htmlNode);
  }
}
  • 调用 createAppContainer 函数创建一些空白的容器dom, 注意此时还没有挂载到界面上:
    export function createAppContainer(appInfo: interfaces.AppInfo) {
  const name = appInfo.name;
  // Create a temporary node, which is destroyed by the module itself
  let htmlNode: HTMLDivElement | HTMLHtmlElement =
    document.createElement('div');
  const appContainer = document.createElement('div');

  if (appInfo.sandbox && appInfo.sandbox.strictIsolation) {
    htmlNode = document.createElement('html');
    const root = appContainer.attachShadow({ mode: 'open' });
    root.appendChild(htmlNode);
    // asyncNodeAttribute(htmlNode, document.body);
    dispatchEvents(root);
  } else {
    htmlNode.setAttribute(__MockHtml__, '');
    appContainer.appendChild(htmlNode);
  }
  appContainer.id = `${appContainerId}_${name}_${createKey()}`;

  return {
    htmlNode,
    appContainer,
  };
}
    • 如果开启了 sandbox 和 strictIsolation 配置则进行严格的隔离(使用appContainer.attachShadow)来创建ShadowDOM
  • 调用addContainer来将代码挂载容器组件到文档中, 通过执行domGetter来获取父容器节点
    private async addContainer() {
  // Initialize the mount point, support domGetter as promise, is advantageous for the compatibility
  const wrapperNode = await getRenderNode(this.appInfo.domGetter);
  if (typeof wrapperNode.appendChild === 'function') {
    wrapperNode.appendChild(this.appContainer);
  }
}
  • 调用entryManager.createElements(customRenderer, htmlNode); 来实际创建节点。
    // Render dom tree
createElements(renderer: Renderer, parent: Element) {
  const elements: Array<Element> = [];
  const traverse = (node: Node | Text, parentEl?: Element) => {
    let el: any;
    if (this.DOMApis.isCommentNode(node)) {
      // Filter comment node
    } else if (this.DOMApis.isText(node)) {
      el = this.DOMApis.createTextNode(node);
      parentEl && parentEl.appendChild(el);
    } else if (this.DOMApis.isNode(node)) {
      const { tagName, children } = node as Node;
      if (renderer[tagName]) {
        el = renderer[tagName](node as Node);
      } else {
        el = this.DOMApis.createElement(node as Node);
      }
      if (parentEl && el) parentEl.appendChild(el);

      if (el) {
        const { nodeType, _ignoreChildNodes } = el;
        // Filter "comment" and "document" node
        if (!_ignoreChildNodes && nodeType !== 8 && nodeType !== 10) {
          for (const child of children) {
            traverse(child, el);
          }
        }
      }
    }
    return el;
  };

  for (const node of this.astTree) {
    if (this.DOMApis.isNode(node) && node.tagName !== '!doctype') {
      const el = traverse(node, parent);
      el && elements.push(el);
    }
  }
  return elements;
}
    使用traverse函数对自身进行树节点遍历，将ast树转换为dom树并挂载到parent上
    • 注意有意思的一点是他是在遍历ast过程中的同时执行appendChild方法加载到dom树上而不是将节点生成完毕后一次性加载(也许是因为操作都是在一个task中所以浏览器会一次性执行？)

总结

综上，garfish完成了一次远程获取目标代码 => 解析成ast => 然后再从ast转换成dom树的过程。

将一段远程的页面/js加载到当前页面的固定位置

avatar
文章
阅读
粉丝
