1.DispatcherHandler
DefaultWebFilterChain
同ApplicationFilterChain (servlet协议下 过滤器链的包装对象)， DefaultWebFilterChain 这里也维护了 filters 和 handler（ApplicationFilterChain里是servlet）
public class DefaultWebFilterChain implements WebFilterChain {
private final List<WebFilter> allFilters;
private final WebHandler handler;
private final WebFilter currentFilter;
private final DefaultWebFilterChain chain;
public DefaultWebFilterChain(WebHandler handler, List<WebFilter> filters) {
this.allFilters = Collections.unmodifiableList(filters);
this.handler = handler;
DefaultWebFilterChain chain = initChain(filters, handler);
this.currentFilter = chain.currentFilter;
this.chain = chain.chain;
}
private static DefaultWebFilterChain initChain(List<WebFilter> filters, WebHandler handler) {
//这里的逻辑是逆序封装 比如 原过滤器链的顺序为 1,2,3,4 封装完毕后的 chain 一共有5层，currentFilter 分别为1,2,3,4,null ,这样就可以达到顺序执行的效果 ApplicationFilterChain是自身维护了两个下标，这里是chain维护了下一个执行对象
DefaultWebFilterChain chain = new DefaultWebFilterChain(filters, handler, (WebFilter)null, (DefaultWebFilterChain)null);
for(ListIterator iterator = filters.listIterator(filters.size()); iterator.hasPrevious(); chain = new DefaultWebFilterChain(filters, handler, (WebFilter)iterator.previous(), chain)) {
}
return chain;
}
private DefaultWebFilterChain(List<WebFilter> allFilters, WebHandler handler, @Nullable WebFilter currentFilter, @Nullable DefaultWebFilterChain chain) {
this.allFilters = allFilters;
this.currentFilter = currentFilter;
this.handler = handler;
this.chain = chain;
}
public Mono<Void> filter(ServerWebExchange exchange) {
return Mono.defer(() -> {
//顺序执行过滤器链 过滤器执行完毕后 调用handler.handle ,进入DispatcherHandler表演时间
return this.currentFilter != null && this.chain != null ? this.invokeFilter(this.currentFilter, this.chain, exchange) : this.handler.handle(exchange);
});
}
private Mono<Void> invokeFilter(WebFilter current, DefaultWebFilterChain chain, ServerWebExchange exchange) {
String currentName = current.getClass().getName();
return current.filter(exchange, chain).checkpoint(currentName + " [DefaultWebFilterChain]");
}
}
DispatcherHandler
同servlet协议下web工程，reactive web框架 ：webflux 的核心转发类 叫 DispatcherHandler ，一样的具备 handlerMappings，handlerAdapters 进行路由的匹配和调用
public class DispatcherHandler implements WebHandler, ApplicationContextAware {
private List<HandlerMapping> handlerMappings;
private List<HandlerAdapter> handlerAdapters;
private List<HandlerResultHandler> resultHandlers;
public void setApplicationContext(ApplicationContext applicationContext) {
//initializeBean 阶段 postProcessBeforeInitialization 触发 下方初始化
this.initStrategies(applicationContext);
}
protected void initStrategies(ApplicationContext context) {
//WebEndpointReactiveHandlerMapping
//ControllerEndpointHandlerMapping
//RequestMappingHandlerMapping
//RouterFunctionMapping
//ResourceHandlerMapping
//RoutePredicateHandlerMapping 作为网关 我们这里只关心这个HandlerMapping解析器
//WelcomePageRouterFunctionMapping
Map<String, HandlerMapping> mappingBeans = BeanFactoryUtils.beansOfTypeIncludingAncestors(context, HandlerMapping.class, true, false);
ArrayList<HandlerMapping> mappings = new ArrayList(mappingBeans.values());
AnnotationAwareOrderComparator.sort(mappings);
this.handlerMappings = Collections.unmodifiableList(mappings);
Map<String, HandlerAdapter> adapterBeans = BeanFactoryUtils.beansOfTypeIncludingAncestors(context, HandlerAdapter.class, true, false);
//RequestMappingHandlerAdapter
//HandlerFunctionAdapter
//SimpleHandlerAdapter
this.handlerAdapters = new ArrayList(adapterBeans.values());
AnnotationAwareOrderComparator.sort(this.handlerAdapters);
Map<String, HandlerResultHandler> beans = BeanFactoryUtils.beansOfTypeIncludingAncestors(context, HandlerResultHandler.class, true, false);
//ResponseEntityResultHandler
//ResponseBodyResultHandler
//ViewResolutionResultHandler
//ServerResponseResultHandler
this.resultHandlers = new ArrayList(beans.values());
AnnotationAwareOrderComparator.sort(this.resultHandlers);
}
//对标DispatchServlet 的 doDispatch方法
public Mono<Void> handle(ServerWebExchange exchange) {
return this.handlerMappings == null ? this.createNotFoundError() : Flux.fromIterable(this.handlerMappings).concatMap((mapping) -> {
//同DispatchServlet 遍历所有的HandlerMapping 找到合适的路由 从而找到对应的处理器，这里取第一个适配的handler
return mapping.getHandler(exchange);
}).next().switchIfEmpty(this.createNotFoundError()).flatMap((handler) -> {
return this.invokeHandler(exchange, handler);
}).flatMap((result) -> {
return this.handleResult(exchange, result);
});
}
//HandlerAdaptor 执行handler
private Mono<HandlerResult> invokeHandler(ServerWebExchange exchange, Object handler) {
if (this.handlerAdapters != null) {
Iterator var3 = this.handlerAdapters.iterator();
while(var3.hasNext()) {
//这里返回 FilteringWebHandler对象 由SimpleHandlerAdapter执行
HandlerAdapter handlerAdapter = (HandlerAdapter)var3.next();
if (handlerAdapter.supports(handler)) {
return handlerAdapter.handle(exchange, handler);
}
}
}
return Mono.error(new IllegalStateException("No HandlerAdapter: " + handler));
}
}
1.获取handler
AbstractHandlerMapping#getHandler
public Mono<Object> getHandler(ServerWebExchange exchange) {
//这里有各自的实现类 我们看RoutePredicateHandlerMapping 这里返回的是维护了List<GatewayFilter> globalFilters 全局过滤器 FilteringWebHandler 对象
return this.getHandlerInternal(exchange).map((handler) -> {
ServerHttpRequest request = exchange.getRequest();
return handler;
});
}
RoutePredicateHandlerMapping#getHandlerInternal
protected Mono<?> getHandlerInternal(ServerWebExchange exchange) {
if (this.managementPortType == RoutePredicateHandlerMapping.ManagementPortType.DIFFERENT && this.managementPort != null && exchange.getRequest().getURI().getPort() == this.managementPort) {
return Mono.empty();
} else {
exchange.getAttributes().put(ServerWebExchangeUtils.GATEWAY_HANDLER_MAPPER_ATTR, this.getSimpleName());
//寻找路由
return this.lookupRoute(exchange).flatMap((r) -> {
exchange.getAttributes().remove(ServerWebExchangeUtils.GATEWAY_PREDICATE_ROUTE_ATTR);
//这里将匹配中的Route对象 以 gatewayRoute 作key，存入了当前请求、返回对象，也就ServerWebExchange 的map(servlet下是request,这里包装到一起了)中
exchange.getAttributes().put(ServerWebExchangeUtils.GATEWAY_ROUTE_ATTR, r);
//返回 FilteringWebHandler webHandler，内部维护List<GatewayFilter> globalFilters 全局过滤器
return Mono.just(this.webHandler);
}).switchIfEmpty(Mono.empty().then(Mono.fromRunnable(() -> {
exchange.getAttributes().remove(ServerWebExchangeUtils.GATEWAY_PREDICATE_ROUTE_ATTR);
})));
}
}
RoutePredicateHandlerMapping#lookupRoute
protected Mono<Route> lookupRoute(ServerWebExchange exchange) {
//routeLocator -> CachingRouteLocator 基于缓存的路由定位器，包装了CompositeRouteLocator，而CompositeRouteLocator则组合了RouteDefinitionRouteLocator

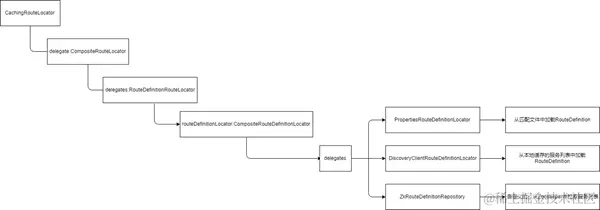

//详情见下图
return this.routeLocator.getRoutes().concatMap((route) -> {
return Mono.just(route).filterWhen((r) -> {
exchange.getAttributes().put(ServerWebExchangeUtils.GATEWAY_PREDICATE_ROUTE_ATTR, r.getId());
//根据Predicate循环进行匹配 这里是链条的形式调用
return (Publisher)r.getPredicate().apply(exchange);
}).doOnError((e) -> {
//打印
}).onErrorResume((e) -> {
return Mono.empty();
});
//返回第一个命中的
}).next().map((route) -> {
//空方法 没有实现
this.validateRoute(route, exchange);
return route;
});
}
RouteDefinitionRouteLocator#getRoutes
public Flux<Route> getRoutes() {
//RouteDefinition 转化为Route对象
Flux<Route> routes = this.routeDefinitionLocator.getRouteDefinitions().map(this::convertToRoute);
if (!this.gatewayProperties.isFailOnRouteDefinitionError()) {
routes = routes.onErrorContinue((error, obj) -> {
});
}
return routes.map((route) -> {
return route;
});
CompositeRouteDefinitionLocator#getRouteDefinitions
public Flux<RouteDefinition> getRouteDefinitions() {
//这里getRouteDefinitions是每个RouteDefinitionLocator各自的实现，在这里按顺序组装起来，id为空的话填充随机数
return this.delegates.flatMapSequential(RouteDefinitionLocator::getRouteDefinitions).flatMap((routeDefinition) -> {
return routeDefinition.getId() == null ? this.randomId().map((id) -> {
routeDefinition.setId(id);
return routeDefinition;
}) : Mono.just(routeDefinition);
});
}
PropertiesRouteDefinitionLocator#getRouteDefinitions
//PropertiesRouteDefinitionLocator的实现非常简单 直接从properties里读取到的集合中拿，只依赖了一个@ConfigurationProperties("spring.cloud.gateway")就搞定了
public Flux<RouteDefinition> getRouteDefinitions() {
return Flux.fromIterable(this.properties.getRoutes());
}
RouteDefinitionRouteLocator#convertToRoute
private Route convertToRoute(RouteDefinition routeDefinition) {
//组合Predicate
AsyncPredicate<ServerWebExchange> predicate = this.combinePredicates(routeDefinition);
//获取defaultFilters + 自身RouteDefinition 中定义的 FilterDefinition 对应的实例(同上也是从工厂获得) ，排序后返回
List<GatewayFilter> gatewayFilters = this.getFilters(routeDefinition);
return ((AsyncBuilder)Route.async(routeDefinition).asyncPredicate(predicate).replaceFilters(gatewayFilters)).build();
}
RouteDefinitionRouteLocator#combinePredicates
//这里组合Predicates比较有意思
private AsyncPredicate<ServerWebExchange> combinePredicates(RouteDefinition routeDefinition) {
List<PredicateDefinition> predicates = routeDefinition.getPredicates();
if (predicates != null && !predicates.isEmpty()) {
//取出第一个PredicateDefinition lookup方法是从对应工厂中找到 获取 Predicate对象 再封装成 DefaultAsyncPredicate，DefaultAsyncPredicate内部维护的就是Predicate，apply方法就是调用 Predicate.test 获取boolean返回
AsyncPredicate<ServerWebExchange> predicate = this.lookup(routeDefinition, (PredicateDefinition)predicates.get(0));
AsyncPredicate found;
//predicate.and(other) 是将自身，及两一个对象封装成 AndAsyncPredicate对象，内部维护了一个left ,right指针，自身作为新对象的left,other作为right
//这样 循环结束后，返回一个AndAsyncPredicate对象，this.left.left.left .... 可以追到第一个Predicate对象，右指针则是最后一个 Predicate对象
for(Iterator var4 = predicates.subList(1, predicates.size()).iterator(); var4.hasNext(); predicate = predicate.and(found)) {
PredicateDefinition andPredicate = (PredicateDefinition)var4.next();
found = this.lookup(routeDefinition, andPredicate);
}
return predicate;
} else {
return AsyncPredicate.from((exchange) -> {
return true;
});
}
}
AsyncPredicate.AndAsyncPredicate#apply
public Publisher<Boolean> apply(T t) {
return Mono.from((Publisher)this.left.apply(t)).flatMap((result) -> {
//有一个不通过就返回了 否则找右指针 执行完毕后 会上上一个节点的右指针继续执行
return !result ? Mono.just(false) : Mono.from((Publisher)this.right.apply(t));
});
}
2.执行handler
FilteringWebHandler#handle
public Mono<Void> handle(ServerWebExchange exchange) {
//获取之前存放的 Route对象
Route route = (Route)exchange.getRequiredAttribute(ServerWebExchangeUtils.GATEWAY_ROUTE_ATTR);
List<GatewayFilter> gatewayFilters = route.getFilters();
List<GatewayFilter> combined = new ArrayList(this.globalFilters);
//全局过滤器 + defaultFilters + GatewayFilter 组合 排序
combined.addAll(gatewayFilters);
AnnotationAwareOrderComparator.sort(combined);
return (new FilteringWebHandler.DefaultGatewayFilterChain(combined)).filter(exchange);
}

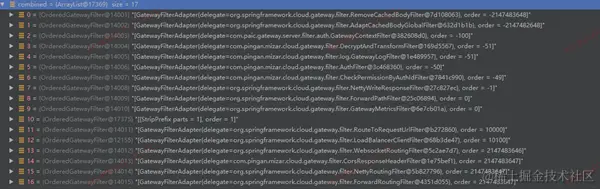

当前请求过滤器链
DefaultGatewayFilterChain#filter
public Mono<Void> filter(ServerWebExchange exchange) {
return Mono.defer(() -> {
//index 从0开始
if (this.index < this.filters.size()) {
GatewayFilter filter = (GatewayFilter)this.filters.get(this.index);
//传递this,实际上是把filters传过去了，下标+1, 后续的 return chain.filter(exchange); 就能找到下一个过滤器继续执行
FilteringWebHandler.DefaultGatewayFilterChain chain = new FilteringWebHandler.DefaultGatewayFilterChain(this, this.index + 1);
return filter.filter(exchange, chain);
} else {
return Mono.empty();
}
});
}
