1. 粘贴攻略

PackageManagerService(简称PMS)，是Android系统中核心服务之一，管理着所有跟package相关的工作，常见的比如安装、卸载应用。

2. 造火箭攻略

3. 拧螺丝攻略

3.1 PMS的创建

frameworks/base/services/java/com/android/server/SystemServer.java

Zygote进程启动SystemServer进程：

/**
 * The main entry point from zygote.
 * zygote进程启动系统服务
 */
public static void main(String[] args) {
    new SystemServer().run();
}

private void run() {
    try {
        ...
        // 创建消息Looper
         Looper.prepareMainLooper();
        // 加载动态库libandroid_servers.so
        System.loadLibrary("android_servers");
        performPendingShutdown();
        // 创建系统的Context
        createSystemContext();
        // 创建SystemServiceManager
        mSystemServiceManager = new SystemServiceManager(mSystemContext);
        mSystemServiceManager.setRuntimeRestarted(mRuntimeRestart);
        LocalServices.addService(SystemServiceManager.class, mSystemServiceManager);
        SystemServerInitThreadPool.get();
    } finally {
        traceEnd();
    }
    try {
        traceBeginAndSlog("StartServices");
        // 启动引导服务
        startBootstrapServices();
        // 启动核心服务
        startCoreServices();
        // 启动其它服务
        startOtherServices();
        SystemServerInitThreadPool.shutdown();
    } catch (Throwable ex) {
        Slog.e("System", "******************************************");
        Slog.e("System", "************ Failure starting system services", ex);
        throw ex;
    } finally {
        traceEnd();
    }
    ...
}

加载引导服务时，创建了PMS，包括AMS等。AMS、PMS都是运行在SystemServer进程中，是SystemServer进程中一个又一个的服务实例对象：

private void startBootstrapServices() {

    // 启动installer服务
    Installer installer = mSystemServiceManager.startService(Installer.class);

    // AMS
    mActivityManagerService = mSystemServiceManager.startService(
            ActivityManagerService.Lifecycle.class).getService();
    mActivityManagerService.setSystemServiceManager(mSystemServiceManager);
    mActivityManagerService.setInstaller(installer);

    // POWERMS
    mPowerManagerService = mSystemServiceManager.startService(PowerManagerService.class);
    Trace.traceBegin(Trace.TRACE_TAG_SYSTEM_SERVER, "InitPowerManagement");
    mActivityManagerService.initPowerManagement();
    Trace.traceEnd(Trace.TRACE_TAG_SYSTEM_SERVER);
    mSystemServiceManager.startService(LightsService.class);
    mDisplayManagerService = mSystemServiceManager.startService(DisplayManagerService.class);
    mSystemServiceManager.startBootPhase(SystemService.PHASE_WAIT_FOR_DEFAULT_DISPLAY);

    // Only run "core" apps if we're encrypting the device.
    // 表示加密了设备，这时mOnlyCore的值为true，表示只运行“核心”程序，创建一个极简的启动环境。
    String cryptState = SystemProperties.get("vold.decrypt");

    mIsAlarmBoot = SystemProperties.getBoolean("ro.alarm_boot", false);
    if (ENCRYPTING_STATE.equals(cryptState)) {
        Slog.w(TAG, "Detected encryption in progress - only parsing core apps");
        mOnlyCore = true;
    } else if (ENCRYPTED_STATE.equals(cryptState)) {
        Slog.w(TAG, "Device encrypted - only parsing core apps");
        mOnlyCore = true;
    } else if (mIsAlarmBoot) {
        mOnlyCore = true;
    }

    if (RegionalizationEnvironment.isSupported()) {
        Slog.i(TAG, "Regionalization Service");
        RegionalizationService regionalizationService = new RegionalizationService();
        ServiceManager.addService("regionalization", regionalizationService);
    }

    // Start the package manager.
    traceBeginAndSlog("StartPackageManagerService");
    // 创建PMS
    mPackageManagerService = PackageManagerService.main(mSystemContext, installer,
            mFactoryTestMode != FactoryTest.FACTORY_TEST_OFF, mOnlyCore);

    // 表示PMS是否首次被启动，这个参数会在WMS创建时使用
    mFirstBoot = mPackageManagerService.isFirstBoot();
    mPackageManager = mSystemContext.getPackageManager();
    Trace.traceEnd(Trace.TRACE_TAG_SYSTEM_SERVER);

    if (!mOnlyCore) {
        boolean disableOtaDexopt = SystemProperties.getBoolean("config.disable_otadexopt",
                false);
        if (!disableOtaDexopt) {
            traceBeginAndSlog("StartOtaDexOptService");
            try {
                OtaDexoptService.main(mSystemContext, mPackageManagerService);
            } catch (Throwable e) {
                reportWtf("starting OtaDexOptService", e);
            } finally {
                Trace.traceEnd(Trace.TRACE_TAG_SYSTEM_SERVER);
            }
        }
    }

    traceBeginAndSlog("StartUserManagerService");
    mSystemServiceManager.startService(UserManagerService.LifeCycle.class);
    Trace.traceEnd(Trace.TRACE_TAG_SYSTEM_SERVER);
    AttributeCache.init(mSystemContext);
    mActivityManagerService.setSystemProcess();
    startSensorService();
}

从上面可以看出，系统服务分为了三种类型，分别是引导服务、核心服务和其他服务，本文要了解的PMS属于引导服务：

引导服务	作用
Installer	系统安装apk时的一个服务类，启动完成Installer服务之后才能启动其他的系统服务
ActivityManagerService	负责四大组件的启动、切换、调度。
PowerManagerService	计算系统中和Power相关的计算，然后决策系统应该如何反应
LightsService	管理和显示背光LED
DisplayManagerService	用来管理所有显示设备
UserManagerService	多用户模式管理
SensorService	为系统提供各种感应器服务
PackageManagerService	用来对apk进行安装、解析、删除、卸载等等操作

3.2 PMS的构造方法

frameworks/base/services/core/java/com/android/server/pm/PackageManagerService.java

public static PackageManagerService main(Context context, Installer installer,
           boolean factoryTest, boolean onlyCore) {
       // Self-check for initial settings.
       PackageManagerServiceCompilerMapping.checkProperties();
       // 初始化PMS
       PackageManagerService m = new PackageManagerService(context, installer,
               factoryTest, onlyCore);
       m.enableSystemUserPackages();
       // 将package服务注册到ServiceManager大管家
       ServiceManager.addService("package", m);
       return m;
   }

PMS的构造方法一共有700多行，在代码中，将PMS的构造流程分为了5个阶段，每个阶段会使用EventLog.writeEvent打印系统日志。

1. BOOT_PROGRESS_PMS_START（开始阶段）
2. BOOT_PROGRESS_PMS_SYSTEM_SCAN_START（扫描系统阶段）
3. BOOT_PROGRESS_PMS_DATA_SCAN_START（扫描Data分区阶段）
4. BOOT_PROGRESS_PMS_SCAN_END（扫描结束阶段）
5. BOOT_PROGRESS_PMS_READY（准备阶段）

3.2.1 开始阶段

public PackageManagerService(Context context, Installer installer,
         boolean factoryTest, boolean onlyCore) {
     // 打印开始日志
     EventLog.writeEvent(EventLogTags.BOOT_PROGRESS_PMS_START,
             SystemClock.uptimeMillis());

     if (mSdkVersion <= 0) {
         Slog.w(TAG, "**** ro.build.version.sdk not set!");
     }

     mContext = context;

     mPermissionReviewRequired = context.getResources().getBoolean(
             R.bool.config_permissionReviewRequired);

     mFactoryTest = factoryTest;
     mOnlyCore = onlyCore;
     // 用于存储屏幕的相关信息
     mMetrics = new DisplayMetrics();
     // 创建Settings对象
     mSettings = new Settings(mPackages);
     // 添加system, phone, log, nfc, bluetooth, shell这六种shareUserId到mSettings
     mSettings.addSharedUserLPw("android.uid.system", Process.SYSTEM_UID,
             ApplicationInfo.FLAG_SYSTEM, ApplicationInfo.PRIVATE_FLAG_PRIVILEGED);
     mSettings.addSharedUserLPw("android.uid.phone", RADIO_UID,
             ApplicationInfo.FLAG_SYSTEM, ApplicationInfo.PRIVATE_FLAG_PRIVILEGED);
     mSettings.addSharedUserLPw("android.uid.log", LOG_UID,
             ApplicationInfo.FLAG_SYSTEM, ApplicationInfo.PRIVATE_FLAG_PRIVILEGED);
     mSettings.addSharedUserLPw("android.uid.nfc", NFC_UID,
             ApplicationInfo.FLAG_SYSTEM, ApplicationInfo.PRIVATE_FLAG_PRIVILEGED);
     mSettings.addSharedUserLPw("android.uid.bluetooth", BLUETOOTH_UID,
             ApplicationInfo.FLAG_SYSTEM, ApplicationInfo.PRIVATE_FLAG_PRIVILEGED);
     mSettings.addSharedUserLPw("android.uid.shell", SHELL_UID,
             ApplicationInfo.FLAG_SYSTEM, ApplicationInfo.PRIVATE_FLAG_PRIVILEGED);

    ...
    ...
    ...

     mInstaller = installer;
     // 创建Dex优化工具类
     mPackageDexOptimizer = new PackageDexOptimizer(installer, mInstallLock, context,
             "*dexopt*");
     mMoveCallbacks = new MoveCallbacks(FgThread.get().getLooper());

     mOnPermissionChangeListeners = new OnPermissionChangeListeners(
             FgThread.get().getLooper());

     getDefaultDisplayMetrics(context, mMetrics);
     // 得到全局系统配置信息
     SystemConfig systemConfig = SystemConfig.getInstance();
     // 获取全局的groupId
     mGlobalGids = systemConfig.getGlobalGids();
     // 获取系统权限
     mSystemPermissions = systemConfig.getSystemPermissions();
     mAvailableFeatures = systemConfig.getAvailableFeatures();

     mProtectedPackages = new ProtectedPackages(mContext);

     // 安装APK时需要的锁，保护所有对installd的访问。
     synchronized (mInstallLock) {
     // 更新APK时需要的锁，保护内存中已经解析的包信息等内容
     synchronized (mPackages) {
         // 创建后台线程ServiceThread
         mHandlerThread = new ServiceThread(TAG,
                 Process.THREAD_PRIORITY_BACKGROUND, true /*allowIo*/);
         mHandlerThread.start();
         // 创建PackageHandler绑定到ServiceThread的消息队列
         mHandler = new PackageHandler(mHandlerThread.getLooper());
         mProcessLoggingHandler = new ProcessLoggingHandler();
         // 将PackageHandler添加到Watchdog的检测集中
         Watchdog.getInstance().addThread(mHandler, WATCHDOG_TIMEOUT);

         mDefaultPermissionPolicy = new DefaultPermissionGrantPolicy(this);

         // 在Data分区创建一些目录
         File dataDir = Environment.getDataDirectory();
         mAppInstallDir = new File(dataDir, "app");
         mAppLib32InstallDir = new File(dataDir, "app-lib");
         mEphemeralInstallDir = new File(dataDir, "app-ephemeral");
         mAsecInternalPath = new File(dataDir, "app-asec").getPath();
         mDrmAppPrivateInstallDir = new File(dataDir, "app-private");
         mRegionalizationAppInstallDir = new File(dataDir, "app-regional");

         // 创建多用户管理服务
         sUserManager = new UserManagerService(context, this, mPackages);

         mFoundPolicyFile = SELinuxMMAC.readInstallPolicy();

       	// 解析packages.xml等文件的信息，保存到Settings的对应字段中。
        // packages.xml中记录系统中所有安装的应用信息，包括基本信息、签名和权限。
        // 如果packages.xml有安装的应用信息，readLPw方法会返回true，mFirstBoot的值为false，说明PMS不是首次被启动。
         mFirstBoot = !mSettings.readLPw(sUserManager.getUsers(false));

在开始阶段，创建了很多PMS中的关键对象并赋值给PMS中的成员变量。

3.2.1.1 mSettings

用于保存所有包的动态设置。

Settings(Object lock) {
    this(Environment.getDataDirectory(), lock);
}

Settings(File dataDir, Object lock) {
    mLock = lock;

    mRuntimePermissionsPersistence = new RuntimePermissionPersistence(mLock);

    mSystemDir = new File(dataDir, "system");
    mSystemDir.mkdirs(); //创建/data/system
    FileUtils.setPermissions(mSystemDir.toString(),
           FileUtils.S_IRWXU|FileUtils.S_IRWXG
           |FileUtils.S_IROTH|FileUtils.S_IXOTH,
           -1, -1);
    mSettingsFilename = new File(mSystemDir, "packages.xml");
    mBackupSettingsFilename = new File(mSystemDir, "packages-backup.xml");
    mPackageListFilename = new File(mSystemDir, "packages.list");
    FileUtils.setPermissions(mPackageListFilename, 0640, SYSTEM_UID, PACKAGE_INFO_GID);

    mStoppedPackagesFilename = new File(mSystemDir, "packages-stopped.xml");
    mBackupStoppedPackagesFilename = new File(mSystemDir, "packages-stopped-backup.xml");
}

此处mSystemDir是指目录/data/system，在该目录有以下5个文件：

文件	功能
packages.xml	记录所有安装app的信息
packages-backup.xml	备份文件
packages-stopped.xml	记录系统被强制停止的文件
packages-stopped-backup.xml	备份文件
packages.list	记录应用的数据信息

3.2.1.2 mInstaller

Installer继承自SystemService，和PMS、AMS一样是系统的服务(引导服务)，PMS很多的操作都是由Installer来完成的，比如APK的安装和卸载。在Installer内部，通过socket与installd通信，由位于nativie层的installd来完成具体的操作。

3.2.1.3 systemConfig

用于得到全局系统配置信息。比如系统的权限就可以通过SystemConfig来获取。

3.2.1.4 mPackageDexOptimizer

Dex优化的工具类。

3.2.1.5 mHandler（PackageHandler类型）

PackageHandler继承自Handler，PMS通过PackageHandler驱动APK的复制和安装工作。

PackageHandler处理的消息队列如果过于繁忙，有可能导致系统卡住， 因此将它添加到Watchdog的监测集中。

Watchdog主要有两个用途，一个是定时检测系统关键服务（AMS和WMS等）是否可能发生死锁，还有一个是定时检测线程的消息队列是否长时间处于工作状态（可能阻塞等待了很长时间）。如果出现上述问题，Watchdog会将日志保存起来，必要时还会杀掉自己所在的进程，也就是SystemServer进程。

3.2.1.6 sUserManager（UserManagerService类型）

多用户管理服务。

3.2.2 扫描系统阶段

// 打印扫描系统阶段日志
EventLog.writeEvent(EventLogTags.BOOT_PROGRESS_PMS_SYSTEM_SCAN_START,
                    startTime);

// Set flag to monitor and not change apk file paths when
// scanning install directories.
final int scanFlags = SCAN_NO_PATHS | SCAN_DEFER_DEX | SCAN_BOOTING | SCAN_INITIAL;

final String bootClassPath = System.getenv("BOOTCLASSPATH");
final String systemServerClassPath = System.getenv("SYSTEMSERVERCLASSPATH");

if (bootClassPath == null) {
  Slog.w(TAG, "No BOOTCLASSPATH found!");
}

if (systemServerClassPath == null) {
  Slog.w(TAG, "No SYSTEMSERVERCLASSPATH found!");
}

final List<String> allInstructionSets = InstructionSets.getAllInstructionSets();
final String[] dexCodeInstructionSets =
  getDexCodeInstructionSets(
  allInstructionSets.toArray(new String[allInstructionSets.size()]));

/**
  * Ensure all external libraries have had dexopt run on them.
  */
if (mSharedLibraries.size() > 0) {
  // NOTE: For now, we're compiling these system "shared libraries"
  // (and framework jars) into all available architectures. It's possible
  // to compile them only when we come across an app that uses them (there's
  // already logic for that in scanPackageLI) but that adds some complexity.
  for (String dexCodeInstructionSet : dexCodeInstructionSets) {
    for (SharedLibraryEntry libEntry : mSharedLibraries.values()) {
      final String lib = libEntry.path;
      if (lib == null) {
        continue;
      }

      try {
        // Shared libraries do not have profiles so we perform a full
        // AOT compilation (if needed).
        int dexoptNeeded = DexFile.getDexOptNeeded(
          lib, dexCodeInstructionSet,
          getCompilerFilterForReason(REASON_SHARED_APK),
          false /* newProfile */);
        if (dexoptNeeded != DexFile.NO_DEXOPT_NEEDED) {
          mInstaller.dexopt(lib, Process.SYSTEM_UID, dexCodeInstructionSet,
                            dexoptNeeded, DEXOPT_PUBLIC /*dexFlags*/,
                            getCompilerFilterForReason(REASON_SHARED_APK),
                            StorageManager.UUID_PRIVATE_INTERNAL,
                            SKIP_SHARED_LIBRARY_CHECK);
        }
      } catch (FileNotFoundException e) {
        Slog.w(TAG, "Library not found: " + lib);
      } catch (IOException | InstallerException e) {
        Slog.w(TAG, "Cannot dexopt " + lib + "; is it an APK or JAR? "
               + e.getMessage());
      }
    }
  }
}

// 在/system中创建framework目录
File frameworkDir = new File(Environment.getRootDirectory(), "framework");

final VersionInfo ver = mSettings.getInternalVersion();
mIsUpgrade = !Build.FINGERPRINT.equals(ver.fingerprint);

// when upgrading from pre-M, promote system app permissions from install to runtime
mPromoteSystemApps =
  mIsUpgrade && ver.sdkVersion <= Build.VERSION_CODES.LOLLIPOP_MR1;

// When upgrading from pre-N, we need to handle package extraction like first boot,
// as there is no profiling data available.
mIsPreNUpgrade = mIsUpgrade && ver.sdkVersion < Build.VERSION_CODES.N;

mIsPreNMR1Upgrade = mIsUpgrade && ver.sdkVersion < Build.VERSION_CODES.N_MR1;

// save off the names of pre-existing system packages prior to scanning; we don't
// want to automatically grant runtime permissions for new system apps
if (mPromoteSystemApps) {
  Iterator<PackageSetting> pkgSettingIter = mSettings.mPackages.values().iterator();
  while (pkgSettingIter.hasNext()) {
    PackageSetting ps = pkgSettingIter.next();
    if (isSystemApp(ps)) {
      mExistingSystemPackages.add(ps.name);
    }
  }
}

// Collect vendor overlay packages. (Do this before scanning any apps.)
// For security and version matching reason, only consider
// overlay packages if they reside in the right directory.
String overlayThemeDir = SystemProperties.get(VENDOR_OVERLAY_THEME_PROPERTY);
 // 扫描/vendor/overlay目录下的文件
if (!overlayThemeDir.isEmpty()) {
  scanDirTracedLI(new File(VENDOR_OVERLAY_DIR, overlayThemeDir), mDefParseFlags
                  | PackageParser.PARSE_IS_SYSTEM
                  | PackageParser.PARSE_IS_SYSTEM_DIR
                  | PackageParser.PARSE_TRUSTED_OVERLAY, scanFlags | SCAN_TRUSTED_OVERLAY, 0);
}
scanDirTracedLI(new File(VENDOR_OVERLAY_DIR), mDefParseFlags
                | PackageParser.PARSE_IS_SYSTEM
                | PackageParser.PARSE_IS_SYSTEM_DIR
                | PackageParser.PARSE_TRUSTED_OVERLAY, scanFlags | SCAN_TRUSTED_OVERLAY, 0);

// Find base frameworks (resource packages without code).
// 收集包名：/system/framework
scanDirTracedLI(frameworkDir, mDefParseFlags
                | PackageParser.PARSE_IS_SYSTEM
                | PackageParser.PARSE_IS_SYSTEM_DIR
                | PackageParser.PARSE_IS_PRIVILEGED,
                scanFlags | SCAN_NO_DEX, 0);

// Collected privileged system packages.
// 收集私有的系统包名：/system/priv-app
final File privilegedAppDir = new File(Environment.getRootDirectory(), "priv-app");
scanDirTracedLI(privilegedAppDir, mDefParseFlags
                | PackageParser.PARSE_IS_SYSTEM
                | PackageParser.PARSE_IS_SYSTEM_DIR
                | PackageParser.PARSE_IS_PRIVILEGED, scanFlags, 0);

// Collect ordinary system packages.
// 收集一般的系统包名：/system/app
final File systemAppDir = new File(Environment.getRootDirectory(), "app");
scanDirTracedLI(systemAppDir, mDefParseFlags
                | PackageParser.PARSE_IS_SYSTEM
                | PackageParser.PARSE_IS_SYSTEM_DIR, scanFlags, 0);

// Collect all vendor packages.
// 收集所有的供应商包名：/vendor/app
File vendorAppDir = new File("/vendor/app");
try {
  vendorAppDir = vendorAppDir.getCanonicalFile();
} catch (IOException e) {
  // failed to look up canonical path, continue with original one
}
scanDirTracedLI(vendorAppDir, mDefParseFlags
                | PackageParser.PARSE_IS_SYSTEM
                | PackageParser.PARSE_IS_SYSTEM_DIR, scanFlags, 0);

// Collect all OEM packages.
// 收集所有OEM包名：/oem/app
final File oemAppDir = new File(Environment.getOemDirectory(), "app");
scanDirTracedLI(oemAppDir, mDefParseFlags
                | PackageParser.PARSE_IS_SYSTEM
                | PackageParser.PARSE_IS_SYSTEM_DIR, scanFlags, 0);

// Collect all Regionalization packages form Carrier's res packages.
if (RegionalizationEnvironment.isSupported()) {
  Log.d(TAG, "Load Regionalization vendor apks");
  final List<File> RegionalizationDirs =
    RegionalizationEnvironment.getAllPackageDirectories();
  for (File f : RegionalizationDirs) {
    File RegionalizationSystemDir = new File(f, "system");
    // Collect packages in <Package>/system/priv-app
    scanDirLI(new File(RegionalizationSystemDir, "priv-app"),
              PackageParser.PARSE_IS_SYSTEM | PackageParser.PARSE_IS_SYSTEM_DIR
              | PackageParser.PARSE_IS_PRIVILEGED, scanFlags, 0);
    // Collect packages in <Package>/system/app
    scanDirLI(new File(RegionalizationSystemDir, "app"),
              PackageParser.PARSE_IS_SYSTEM | PackageParser.PARSE_IS_SYSTEM_DIR,
              scanFlags, 0);
    // Collect overlay in <Package>/system/vendor
    scanDirLI(new File(RegionalizationSystemDir, "vendor/overlay"),
              PackageParser.PARSE_IS_SYSTEM | PackageParser.PARSE_IS_SYSTEM_DIR,
              scanFlags | SCAN_TRUSTED_OVERLAY, 0);
  }
}

// Prune any system packages that no longer exist.
// 这个列表代表有可能有升级包的系统App
final List<String> possiblyDeletedUpdatedSystemApps = new ArrayList<String>();
if (!mOnlyCore) {
  Iterator<PackageSetting> psit = mSettings.mPackages.values().iterator();
  while (psit.hasNext()) {
    PackageSetting ps = psit.next();

    /*
    * If this is not a system app, it can't be a
    * disable system app.
    */
    if ((ps.pkgFlags & ApplicationInfo.FLAG_SYSTEM) == 0) {
      continue;
    }

    /*
    * If the package is scanned, it's not erased.
    */
    final PackageParser.Package scannedPkg = mPackages.get(ps.name);
    if (scannedPkg != null) {
      /*
      * If the system app is both scanned and in the
      * disabled packages list, then it must have been
      * added via OTA. Remove it from the currently
      * scanned package so the previously user-installed
      * application can be scanned.
      */
      if (mSettings.isDisabledSystemPackageLPr(ps.name)) {  //1
        logCriticalInfo(Log.WARN, "Expecting better updated system app for "
                        + ps.name + "; removing system app.  Last known codePath="
                        + ps.codePathString + ", installStatus=" + ps.installStatus
                        + ", versionCode=" + ps.versionCode + "; scanned versionCode="
                        + scannedPkg.mVersionCode);
        //将这个系统App的PackageSetting从PMS的mPackages中移除
        removePackageLI(scannedPkg, true);
        //将升级包的路径添加到mExpectingBetter列表中
        mExpectingBetter.put(ps.name, ps.codePath);
      }

      continue;
    }

    if (!mSettings.isDisabledSystemPackageLPr(ps.name)) {
      psit.remove();
      logCriticalInfo(Log.WARN, "System package " + ps.name
                      + " no longer exists; it's data will be wiped");
      // Actual deletion of code and data will be handled by later
      // reconciliation step
    } else {
      final PackageSetting disabledPs = mSettings.getDisabledSystemPkgLPr(ps.name);
      //这个系统App升级包信息在mDisabledSysPackages中,但是没有发现这个升级包存在
      if (disabledPs.codePath == null || !disabledPs.codePath.exists()) {//2
        possiblyDeletedUpdatedSystemApps.add(ps.name);
      }
    }
  }
}

// look for any incomplete package installations
// 清理所有安装不完整的包
ArrayList<PackageSetting> deletePkgsList = mSettings.getListOfIncompleteInstallPackagesLPr();
for (int i = 0; i < deletePkgsList.size(); i++) {
  // Actual deletion of code and data will be handled by later
  // reconciliation step
  final String packageName = deletePkgsList.get(i).name;
  logCriticalInfo(Log.WARN, "Cleaning up incompletely installed app: " + packageName);
  synchronized (mPackages) {
    mSettings.removePackageLPw(packageName);
  }
}

//delete tmp files
//删除临时文件
deleteTempPackageFiles();

// Remove any shared userIDs that have no associated packages
mSettings.pruneSharedUsersLPw();

系统扫描阶段的主要工作有以下3点：

1. 创建/system的子目录，比如/system/framework、/system/priv-app和/system/app等等
2. 扫描系统文件，比如/vendor/overlay、/system/framework、/system/app等等目录下的文件。
3. 对扫描到的系统文件做后续处理。

主要来说第3点，一次OTA升级对于一个系统App会有三种情况：

• 这个系统APP无更新。
• 这个系统APP有更新。
• 新的OTA版本中，这个系统APP已经被删除。

当系统App升级，PMS会将该系统App的升级包设置数据（PackageSetting）存储到Settings的mDisabledSysPackages列表中（具体见PMS的replaceSystemPackageLIF方法），mDisabledSysPackages的类型为ArrayMap<String, PackageSetting>。mDisabledSysPackages中的信息会被PMS保存到packages.xml中的<updated-package>标签下（具体见Settings的writeDisabledSysPackageLPr方法）。

注释1处说明这个系统App有升级包，那么就将该系统App的PackageSetting从mDisabledSysPackages列表中移除，并将系统App的升级包的路径添加到mExpectingBetter列表中，mExpectingBetter的类型为ArrayMap<String, File>等待后续处理。

注释2处如果这个系统App的升级包信息存储在mDisabledSysPackages列表中，但是没有发现这个升级包存在，则将它加入到possiblyDeletedUpdatedSystemApps列表中，意为“系统App的升级包可能被删除”，之所以是“可能”，是因为系统还没有扫描Data分区，只能暂放到possiblyDeletedUpdatedSystemApps列表中，等到扫描完Data分区后再做处理。

3.2.3 扫描Data分区阶段

//如果设备没有加密，那么就开始扫描Data分区
if (!mOnlyCore) {
    //打印扫描Data分区阶段日志
    EventLog.writeEvent(EventLogTags.BOOT_PROGRESS_PMS_DATA_SCAN_START,
                        SystemClock.uptimeMillis());
    //扫描/data/app目录下的文件
    scanDirTracedLI(mAppInstallDir, 0, scanFlags | SCAN_REQUIRE_KNOWN, 0);
    //扫描/data/app-private目录下的文件
    scanDirTracedLI(mDrmAppPrivateInstallDir, mDefParseFlags
                    | PackageParser.PARSE_FORWARD_LOCK,
                    scanFlags | SCAN_REQUIRE_KNOWN, 0);
    //扫描/data/app-ephemeral目录下的文件
    scanDirLI(mEphemeralInstallDir, mDefParseFlags
              | PackageParser.PARSE_IS_EPHEMERAL,
              scanFlags | SCAN_REQUIRE_KNOWN, 0);

    /**
    * Remove disable package settings for any updated system
    * apps that were removed via an OTA. If they're not a
    * previously-updated app, remove them completely.
    * Otherwise, just revoke their system-level permissions.
    * 处理possiblyDeletedUpdatedSystemApps列表
    *
    */
    for (String deletedAppName : possiblyDeletedUpdatedSystemApps) {
      PackageParser.Package deletedPkg = mPackages.get(deletedAppName);
      mSettings.removeDisabledSystemPackageLPw(deletedAppName);

      String msg;
      if (deletedPkg == null) {
        //1 如果这个系统App的包信息不在PMS的变量mPackages中，说明是残留的App信息，后续会删除它的数据
        msg = "Updated system package " + deletedAppName
          + " no longer exists; it's data will be wiped";
        // Actual deletion of code and data will be handled by later
        // reconciliation step
      } else {
        //2 如果这个系统App在mPackages中，说明是存在于Data分区，不属于系统App，那么移除其系统权限。
        msg = "Updated system app + " + deletedAppName
          + " no longer present; removing system privileges for "
          + deletedAppName;

        deletedPkg.applicationInfo.flags &= ~ApplicationInfo.FLAG_SYSTEM;

        PackageSetting deletedPs = mSettings.mPackages.get(deletedAppName);
        deletedPs.pkgFlags &= ~ApplicationInfo.FLAG_SYSTEM;
      }
      logCriticalInfo(Log.WARN, msg);
    }

    /**
    * Make sure all system apps that we expected to appear on
    * the userdata partition actually showed up. If they never
    * appeared, crawl back and revive the system version.
    */
     //遍历mExpectingBetter列表
    for (int i = 0; i < mExpectingBetter.size(); i++) {
      final String packageName = mExpectingBetter.keyAt(i);
      if (!mPackages.containsKey(packageName)) {
        //得到系统App的升级包路径
        final File scanFile = mExpectingBetter.valueAt(i);

        logCriticalInfo(Log.WARN, "Expected better " + packageName
                        + " but never showed up; reverting to system");


        //3 根据系统App所在的目录设置扫描的解析参数
        int reparseFlags = mDefParseFlags;
        if (FileUtils.contains(privilegedAppDir, scanFile)) {
          reparseFlags = PackageParser.PARSE_IS_SYSTEM
            | PackageParser.PARSE_IS_SYSTEM_DIR
            | PackageParser.PARSE_IS_PRIVILEGED;
        } else if (FileUtils.contains(systemAppDir, scanFile)) {
          reparseFlags = PackageParser.PARSE_IS_SYSTEM
            | PackageParser.PARSE_IS_SYSTEM_DIR;
        } else if (FileUtils.contains(vendorAppDir, scanFile)) {
          reparseFlags = PackageParser.PARSE_IS_SYSTEM
            | PackageParser.PARSE_IS_SYSTEM_DIR;
        } else if (FileUtils.contains(oemAppDir, scanFile)) {
          reparseFlags = PackageParser.PARSE_IS_SYSTEM
            | PackageParser.PARSE_IS_SYSTEM_DIR;
        } else {
          Slog.e(TAG, "Ignoring unexpected fallback path " + scanFile);
          continue;
        }

        //4 将packageName对应的包设置数据（PackageSetting）添加到mSettings的mPackages中
        mSettings.enableSystemPackageLPw(packageName);

        try {
          //5 扫描系统App的升级包
          scanPackageTracedLI(scanFile, reparseFlags, scanFlags, 0, null);
        } catch (PackageManagerException e) {
          Slog.e(TAG, "Failed to parse original system package: "
                 + e.getMessage());
        }
      }
    }
  }
 //清除mExpectingBetter列表
  mExpectingBetter.clear();

扫描Data分区阶段主要做了以下几件事：

1. 扫描/data/app和/data/app-private目录下的文件。
2. 遍历possiblyDeletedUpdatedSystemApps列表，注释1处如果这个系统App的包信息不在PMS的变量mPackages中，说明是残留的App信息，后续会删除它的数据。注释2处如果这个系统App的包信息在mPackages中，说明是存在于Data分区，不属于系统App，那么移除其系统权限。
3. 遍历mExpectingBetter列表，注释3处根据系统App所在的目录设置扫描的解析参数，注释4处的方法内部会将packageName对应的包设置数据（PackageSetting）添加到mSettings的mPackages中。注释5处扫描系统App的升级包，最后清除mExpectingBetter列表。

3.2.4 扫描结束阶段

//打印扫描结束阶段日志
EventLog.writeEvent(EventLogTags.BOOT_PROGRESS_PMS_SCAN_END,
                    SystemClock.uptimeMillis());

            // If the platform SDK has changed since the last time we booted,
            // we need to re-grant app permission to catch any new ones that
            // appear.  This is really a hack, and means that apps can in some
            // cases get permissions that the user didn't initially explicitly
            // allow...  it would be nice to have some better way to handle
            // this situation.
            //当sdk版本不一致时，需要更新权限
            int updateFlags = UPDATE_PERMISSIONS_ALL;
            if (ver.sdkVersion != mSdkVersion) {
                Slog.i(TAG, "Platform changed from " + ver.sdkVersion + " to "
                        + mSdkVersion + "; regranting permissions for internal storage");
                updateFlags |= UPDATE_PERMISSIONS_REPLACE_PKG | UPDATE_PERMISSIONS_REPLACE_ALL;
            }
            updatePermissionsLPw(null, null, StorageManager.UUID_PRIVATE_INTERNAL, updateFlags);
            ver.sdkVersion = mSdkVersion;

            // If this is the first boot or an update from pre-M, and it is a normal
            // boot, then we need to initialize the default preferred apps across
            // all defined users.
   					//如果是第一次启动或者是Android M升级后的第一次启动，需要初始化所有用户定义的默认首选App
            if (!onlyCore && (mPromoteSystemApps || mFirstBoot)) {
                for (UserInfo user : sUserManager.getUsers(true)) {
                    mSettings.applyDefaultPreferredAppsLPw(this, user.id);
                    applyFactoryDefaultBrowserLPw(user.id);
                    primeDomainVerificationsLPw(user.id);
                }
            }

            //在引导过程中尽早为系统用户准备存储，
            //因为核心系统应用程序，如设置Provider和SystemUI无法等待用户启动
            final int storageFlags;
            if (StorageManager.isFileEncryptedNativeOrEmulated()) {
                storageFlags = StorageManager.FLAG_STORAGE_DE;
            } else {
                storageFlags = StorageManager.FLAG_STORAGE_DE | StorageManager.FLAG_STORAGE_CE;
            }
            reconcileAppsDataLI(StorageManager.UUID_PRIVATE_INTERNAL, UserHandle.USER_SYSTEM,
                    storageFlags);

            // If this is first boot after an OTA, and a normal boot, then
            // we need to clear code cache directories.
            // Note that we do *not* clear the application profiles. These remain valid
            // across OTAs and are used to drive profile verification (post OTA) and
            // profile compilation (without waiting to collect a fresh set of profiles).
 						// OTA后的第一次启动，会清除代码缓存目录
            if (mIsUpgrade && !onlyCore) {
                Slog.i(TAG, "Build fingerprint changed; clearing code caches");
                for (int i = 0; i < mSettings.mPackages.size(); i++) {
                    final PackageSetting ps = mSettings.mPackages.valueAt(i);
                    if (Objects.equals(StorageManager.UUID_PRIVATE_INTERNAL, ps.volumeUuid)) {
                        // No apps are running this early, so no need to freeze
                        clearAppDataLIF(ps.pkg, UserHandle.USER_ALL,
                                StorageManager.FLAG_STORAGE_DE | StorageManager.FLAG_STORAGE_CE
                                        | Installer.FLAG_CLEAR_CODE_CACHE_ONLY);
                    }
                }
                ver.fingerprint = Build.FINGERPRINT;
            }

            checkDefaultBrowser();

            //当权限和其他默认项都完成更新，则清理相关信息
            mExistingSystemPackages.clear();
            mPromoteSystemApps = false;

            // All the changes are done during package scanning.
            ver.databaseVersion = Settings.CURRENT_DATABASE_VERSION;

            // 把Settings的内容保存到packages.xml中
            mSettings.writeLPr();

扫描结束结束阶段主要做了以下几件事：

1. 如果当前平台SDK版本和上次启动时的SDK版本不同，重新更新APK的授权。
2. 如果是第一次启动或者是Android M升级后的第一次启动，需要初始化所有用户定义的默认首选App。
3. OTA升级后的第一次启动，会清除代码缓存目录。
4. 把Settings的内容保存到packages.xml中，这样此后PMS再次创建时会读到此前保存的Settings的内容。

3.2.5 准备阶段

//打印准备阶段日志
EventLog.writeEvent(EventLogTags.BOOT_PROGRESS_PMS_READY,
                    SystemClock.uptimeMillis());

if (!mOnlyCore) {
  	mRequiredVerifierPackage = getRequiredButNotReallyRequiredVerifierLPr();
  	mRequiredInstallerPackage = getRequiredInstallerLPr();
    mRequiredUninstallerPackage = getRequiredUninstallerLPr();
    mIntentFilterVerifierComponent = getIntentFilterVerifierComponentNameLPr();
    mIntentFilterVerifier = new IntentVerifierProxy(mContext,
                                                    mIntentFilterVerifierComponent);
    mServicesSystemSharedLibraryPackageName = getRequiredSharedLibraryLPr(
      PackageManager.SYSTEM_SHARED_LIBRARY_SERVICES);
    mSharedSystemSharedLibraryPackageName = getRequiredSharedLibraryLPr(
      PackageManager.SYSTEM_SHARED_LIBRARY_SHARED);
} else {
    mRequiredVerifierPackage = null;
    if (mOnlyPowerOffAlarm) {
      mRequiredInstallerPackage = getRequiredInstallerLPr();
    } else {
      mRequiredInstallerPackage = null;
    }
    mRequiredUninstallerPackage = null;
    mIntentFilterVerifierComponent = null;
    mIntentFilterVerifier = null;
    mServicesSystemSharedLibraryPackageName = null;
    mSharedSystemSharedLibraryPackageName = null;
}

//创建PackageInstallerService，用于管理安装会话的服务，它会为每次安装过程分配一个SessionId
mInstallerService = new PackageInstallerService(context, this);

//进行一次垃圾收集
untime.getRuntime().gc();

// The initial scanning above does many calls into installd while
// holding the mPackages lock, but we're mostly interested in yelling
// once we have a booted system.
mInstaller.setWarnIfHeld(mPackages);

// 将PackageManagerInternalImpl（PackageManager的本地服务）添加到LocalServices中，LocalServices用于存储运行在当前的进程中的本地服务
LocalServices.addService(PackageManagerInternal.class, new PackageManagerInternalImpl());

3.2.6 总结

PMS属于引导服务，由SyetemServer进程加载。

PMS启动又分为5个阶段：

1. BOOT_PROGRESS_PMS_START（开始阶段）
2. BOOT_PROGRESS_PMS_SYSTEM_SCAN_START（扫描系统阶段）
3. BOOT_PROGRESS_PMS_DATA_SCAN_START（扫描Data分区阶段）
4. BOOT_PROGRESS_PMS_SCAN_END（扫描结束阶段）
5. BOOT_PROGRESS_PMS_READY（准备阶段）

3.3 APK的解析

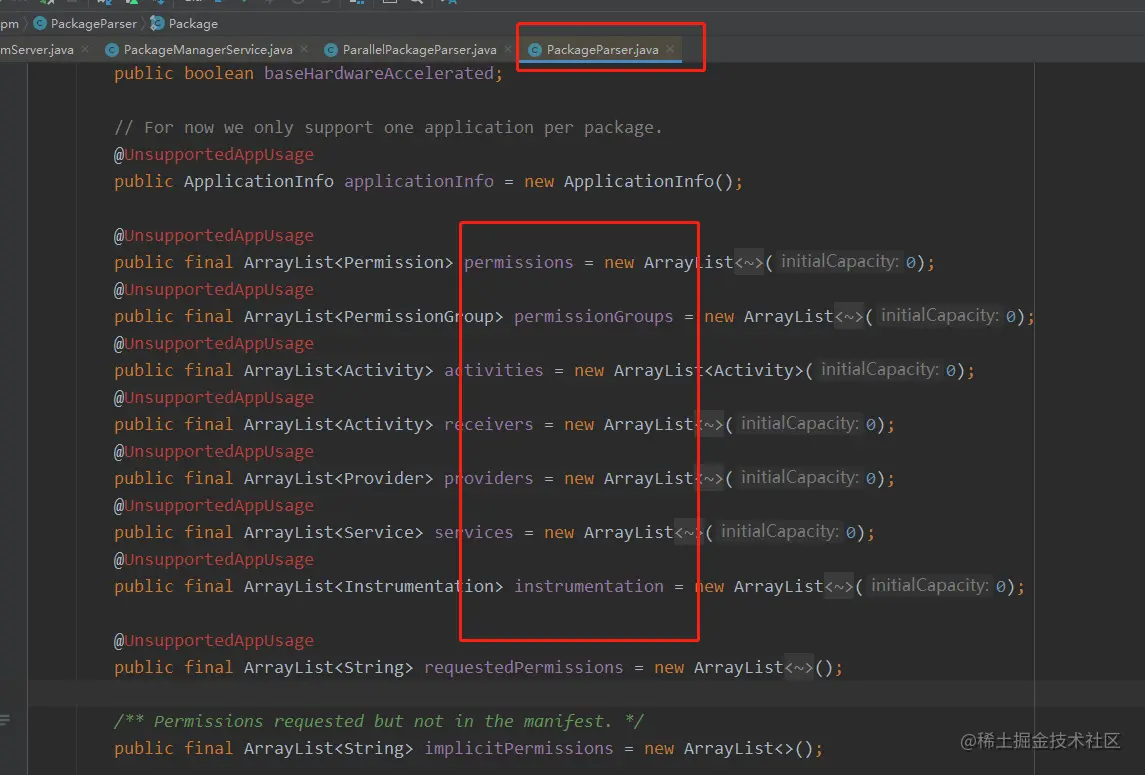

PMS最终会通过PackageParser对apk文件进行解析，尤其是其中的AndroidManifest.xml,如将解析出的四大组件相关信息存到Package实例对象的相应的集合中，最终将代表apk解析结果的package实例返回。

注意，此处的Acitivity、Receiver等只是一种JavaBean结构体，是用来存储解析xml文件的文件，不是我们所常说的组件类。

3.3.1 scanDIrTracedLI()

private void scanDirTracedLI(File scanDir, final int parseFlags, int scanFlags,
        long currentTime, PackageParser2 packageParser, ExecutorService executorService) {
    // 记录扫描性能
    Trace.traceBegin(TRACE_TAG_PACKAGE_MANAGER, "scanDir [" + scanDir.getAbsolutePath() + "]");
    try {
        scanDirLI(scanDir, parseFlags, scanFlags, currentTime, packageParser, executorService);
    } finally {
        Trace.traceEnd(TRACE_TAG_PACKAGE_MANAGER);
    }
}


/**
 * 扫描并处理指定路径下的文件
 *
 * @param scanDir
 * @param parseFlags
 * @param scanFlags
 * @param currentTime
 * @param packageParser
 * @param executorService
 */
private void scanDirLI(File scanDir, int parseFlags, int scanFlags, long currentTime,
        PackageParser2 packageParser, ExecutorService executorService) {
    final File[] files = scanDir.listFiles();

    ...

    ParallelPackageParser parallelPackageParser =
            new ParallelPackageParser(packageParser, executorService);

    // 提交文件以并行解析
    int fileCount = 0;
    for (File file : files) {
        final boolean isPackage = (isApkFile(file) || file.isDirectory())
                && !PackageInstallerService.isStageName(file.getName());
        if (!isPackage) {
            // Ignore entries which are not packages
            continue;
        }
        // 提交解析任务到线程池中
        parallelPackageParser.submit(file, parseFlags);
        fileCount++;
    }

    // Process results one by one

    ...

}

3.3.2 ParallelPackageParser.submit()

/**
 * Submits the file for parsing
 * @param scanFile file to scan
 * @param parseFlags parse falgs
 */
public void submit(File scanFile, int parseFlags) {
    // 交由固定线程数的线程池调度
    mService.submit(() -> {
        // 解析结果
        ParseResult pr = new ParseResult();
        Trace.traceBegin(TRACE_TAG_PACKAGE_MANAGER, "parallel parsePackage [" + scanFile + "]");
        try {
            // 实例化PackageParser解析工具类
            PackageParser pp = new PackageParser();
            pp.setSeparateProcesses(mSeparateProcesses);
            pp.setOnlyCoreApps(mOnlyCore);
            pp.setDisplayMetrics(mMetrics);
            pp.setCacheDir(mCacheDir);
            pp.setCallback(mPackageParserCallback);
            pr.scanFile = scanFile;
            pr.pkg = parsePackage(pp, scanFile, parseFlags);
        } catch (Throwable e) {
            pr.throwable = e;
        } finally {
            Trace.traceEnd(TRACE_TAG_PACKAGE_MANAGER);
        }
        try {
            // 解析结果存入队列中
            mQueue.put(pr);
        } catch (InterruptedException e) {
            Thread.currentThread().interrupt();
            // Propagate result to callers of take().
            // This is helpful to prevent main thread from getting stuck waiting on
            // ParallelPackageParser to finish in case of interruption
            mInterruptedInThread = Thread.currentThread().getName();
        }
    });
}

3.3.3 PackagePaser.parsePackage()

/**
 * P屁股包在给定的位置。
 * 自动检测包是单体样式（单个 APK 文件）还是集群样式（APK 目录）。
 * <p> 这会对集群样式的包执行完整性检查，例如要求相同的包名称和版本代码、单个基本 APK 和唯一的拆分名称。
 * <p> 注意这个<em>不<em>进行签名验证；必须在 {@link collectCertificates(Package, int)} 中单独完成。
 * 如果 {@code useCaches} 为真，则包解析器可能会从具有相同 {@code flags} 的相同 {@code packageFile} 的先前解析返回缓存结果。
 * 请注意，此方法不会检查 {@code packageFile} 自上次解析以来是否发生了变化，这取决于调用者。
 *
 * @see #parsePackageLite(File, int)
 */
@UnsupportedAppUsage
public Package parsePackage(File packageFile, int flags, boolean useCaches)
        throws PackageParserException {
    // 是否使用缓存
    Package parsed = useCaches ? getCachedResult(packageFile, flags) : null;
    if (parsed != null) {
        return parsed;
    }

    long parseTime = LOG_PARSE_TIMINGS ? SystemClock.uptimeMillis() : 0;
    if (packageFile.isDirectory()) {
        parsed = parseClusterPackage(packageFile, flags);
    } else {
        // 解析文件
        parsed = parseMonolithicPackage(packageFile, flags);
    }

    long cacheTime = LOG_PARSE_TIMINGS ? SystemClock.uptimeMillis() : 0;
    // 解析结果加入缓存中
    cacheResult(packageFile, flags, parsed);
    if (LOG_PARSE_TIMINGS) {
        parseTime = cacheTime - parseTime;
        cacheTime = SystemClock.uptimeMillis() - cacheTime;
        if (parseTime + cacheTime > LOG_PARSE_TIMINGS_THRESHOLD_MS) {
            Slog.i(TAG, "Parse times for '" + packageFile + "': parse=" + parseTime
                    + "ms, update_cache=" + cacheTime + " ms");
        }
    }
    // 返回解析结果
    return parsed;
}

parseMonolithicPackage():

/**
 * 解析给定的 APK 文件，将其视为单个整体包。
 * <p> 注意这个<em>不<em>进行签名验证；必须在 {@link collectCertificates(Package, int)} 中单独完成。
 *
 * @deprecated external callers should move to
 *             {@link #parsePackage(File, int)}. Eventually this method will
 *             be marked private.
 */
@Deprecated
@UnsupportedAppUsage
public Package parseMonolithicPackage(File apkFile, int flags) throws PackageParserException {
    // 检索有关单个 APK 文件的轻量级详细信息的实用方法，包括包名称、拆分名称和安装位置
    final PackageLite lite = parseMonolithicPackageLite(apkFile, flags);
    if (mOnlyCoreApps) {
        if (!lite.coreApp) {
            throw new PackageParserException(INSTALL_PARSE_FAILED_MANIFEST_MALFORMED,
                    "Not a coreApp: " + apkFile);
        }
    }

    final SplitAssetLoader assetLoader = new DefaultSplitAssetLoader(lite, flags);
    try {
        final Package pkg = parseBaseApk(apkFile, assetLoader.getBaseAssetManager(), flags);
        pkg.setCodePath(apkFile.getCanonicalPath());
        pkg.setUse32bitAbi(lite.use32bitAbi);
        return pkg;
    } catch (IOException e) {
        throw new PackageParserException(INSTALL_PARSE_FAILED_UNEXPECTED_EXCEPTION,
                "Failed to get path: " + apkFile, e);
    } finally {
        IoUtils.closeQuietly(assetLoader);
    }
}

parseBaseApk():

/**
 * 解析 <em>基础 APK<em> 的清单。
 * 添加新功能时，您需要考虑拆分 APK 和子包是否应支持它们。
 *
 * @param apkPath The package apk file path
 * @param res The resources from which to resolve values
 * @param parser The manifest parser
 * @param flags Flags how to parse
 * @param outError Human readable error message
 * @return Parsed package or null on error.
 *
 * @throws XmlPullParserException
 * @throws IOException
 */
@UnsupportedAppUsage(maxTargetSdk = Build.VERSION_CODES.P, trackingBug = 115609023)
private Package parseBaseApk(String apkPath, Resources res, XmlResourceParser parser, int flags,
        String[] outError) throws XmlPullParserException, IOException {
    final String splitName;
    final String pkgName;

    try {
        Pair<String, String> packageSplit = parsePackageSplitNames(parser, parser);
        pkgName = packageSplit.first;
        splitName = packageSplit.second;

        if (!TextUtils.isEmpty(splitName)) {
            outError[0] = "Expected base APK, but found split " + splitName;
            mParseError = PackageManager.INSTALL_PARSE_FAILED_BAD_PACKAGE_NAME;
            return null;
        }
    } catch (PackageParserException e) {
        mParseError = PackageManager.INSTALL_PARSE_FAILED_BAD_PACKAGE_NAME;
        return null;
    }

    if (mCallback != null) {
        String[] overlayPaths = mCallback.getOverlayPaths(pkgName, apkPath);
        if (overlayPaths != null && overlayPaths.length > 0) {
            for (String overlayPath : overlayPaths) {
                res.getAssets().addOverlayPath(overlayPath);
            }
        }
    }

    final Package pkg = new Package(pkgName);

    TypedArray sa = res.obtainAttributes(parser,
            com.android.internal.R.styleable.AndroidManifest);

    pkg.mVersionCode = sa.getInteger(
            com.android.internal.R.styleable.AndroidManifest_versionCode, 0);
    pkg.mVersionCodeMajor = sa.getInteger(
            com.android.internal.R.styleable.AndroidManifest_versionCodeMajor, 0);
    pkg.applicationInfo.setVersionCode(pkg.getLongVersionCode());
    pkg.baseRevisionCode = sa.getInteger(
            com.android.internal.R.styleable.AndroidManifest_revisionCode, 0);
    pkg.mVersionName = sa.getNonConfigurationString(
            com.android.internal.R.styleable.AndroidManifest_versionName, 0);
    if (pkg.mVersionName != null) {
        pkg.mVersionName = pkg.mVersionName.intern();
    }

    pkg.coreApp = parser.getAttributeBooleanValue(null, "coreApp", false);

    pkg.mCompileSdkVersion = sa.getInteger(
            com.android.internal.R.styleable.AndroidManifest_compileSdkVersion, 0);
    pkg.applicationInfo.compileSdkVersion = pkg.mCompileSdkVersion;
    pkg.mCompileSdkVersionCodename = sa.getNonConfigurationString(
            com.android.internal.R.styleable.AndroidManifest_compileSdkVersionCodename, 0);
    if (pkg.mCompileSdkVersionCodename != null) {
        pkg.mCompileSdkVersionCodename = pkg.mCompileSdkVersionCodename.intern();
    }
    pkg.applicationInfo.compileSdkVersionCodename = pkg.mCompileSdkVersionCodename;

    sa.recycle();

    return parseBaseApkCommon(pkg, null, res, parser, flags, outError);
}

parseBaseApkCommon():

if (tagName.equals(TAG_APPLICATION)) {
    if (foundApp) {
        if (RIGID_PARSER) {
            outError[0] = "<manifest> has more than one <application>";
            mParseError = PackageManager.INSTALL_PARSE_FAILED_MANIFEST_MALFORMED;
            return null;
        } else {
            Slog.w(TAG, "<manifest> has more than one <application>");
            XmlUtils.skipCurrentTag(parser);
            continue;
        }
    }

    foundApp = true;
    if (!parseBaseApplication(pkg, res, parser, flags, outError)) {
        return null;
    }
}

parseBaseApplication():

...
...
...

while ((type = parser.next()) != XmlPullParser.END_DOCUMENT
        && (type != XmlPullParser.END_TAG || parser.getDepth() > innerDepth)) {
    if (type == XmlPullParser.END_TAG || type == XmlPullParser.TEXT) {
        continue;
    }

    // 解析四大组件标签
    // 根据不同组件调用不同的组件方法
    // activityv标签与receiver的属性大致相同，所以调用了同样的解析方法

    String tagName = parser.getName();
    if (tagName.equals("activity")) {
        Activity a = parseActivity(owner, res, parser, flags, outError, cachedArgs, false,
                owner.baseHardwareAccelerated);
        if (a == null) {
            mParseError = PackageManager.INSTALL_PARSE_FAILED_MANIFEST_MALFORMED;
            return false;
        }

        hasActivityOrder |= (a.order != 0);
        // 加入对应集合中
        owner.activities.add(a);

    } else if (tagName.equals("receiver")) {
        Activity a = parseActivity(owner, res, parser, flags, outError, cachedArgs,
                true, false);
        if (a == null) {
            mParseError = PackageManager.INSTALL_PARSE_FAILED_MANIFEST_MALFORMED;
            return false;
        }

        hasReceiverOrder |= (a.order != 0);
        // 加入对应集合中
        owner.receivers.add(a);

    } else if (tagName.equals("service")) {
        Service s = parseService(owner, res, parser, flags, outError, cachedArgs);
        if (s == null) {
            mParseError = PackageManager.INSTALL_PARSE_FAILED_MANIFEST_MALFORMED;
            return false;
        }

        hasServiceOrder |= (s.order != 0);
        // 加入对应集合中
        owner.services.add(s);

    } else if (tagName.equals("provider")) {
        Provider p = parseProvider(owner, res, parser, flags, outError, cachedArgs);
        if (p == null) {
            mParseError = PackageManager.INSTALL_PARSE_FAILED_MANIFEST_MALFORMED;
            return false;
        }
        // 加入对应集合中
        owner.providers.add(p);

    }
    ...
    ...
    ...
}

3.3.4 Package

PMS对APK文件的解析结果结构体，描述了一个apk所含有的各种信息，如包名、权限、四大组件等。

/**
 * 从磁盘上的 APK 文件解析的完整包的表示。
 * 一个包由一个基础 APK 和零个或多个拆分 APK 组成。
 */
public final static class Package implements Parcelable {

    @UnsupportedAppUsage
    public String packageName;

    // The package name declared in the manifest as the package can be
    // renamed, for example static shared libs use synthetic package names.
    public String manifestPackageName;

    /** Names of any split APKs, ordered by parsed splitName */
    public String[] splitNames;

    // TODO: work towards making these paths invariant

    public String volumeUuid;

    /**
     * Path where this package was found on disk. For monolithic packages
     * this is path to single base APK file; for cluster packages this is
     * path to the cluster directory.
     */
    public String codePath;

    /** Path of base APK */
    public String baseCodePath;
    /** Paths of any split APKs, ordered by parsed splitName */
    public String[] splitCodePaths;

    /** Revision code of base APK */
    public int baseRevisionCode;
    /** Revision codes of any split APKs, ordered by parsed splitName */
    public int[] splitRevisionCodes;

    /** Flags of any split APKs; ordered by parsed splitName */
    public int[] splitFlags;

    /**
     * Private flags of any split APKs; ordered by parsed splitName.
     *
     * {@hide}
     */
    public int[] splitPrivateFlags;

    public boolean baseHardwareAccelerated;

    // For now we only support one application per package.
    @UnsupportedAppUsage
    public ApplicationInfo applicationInfo = new ApplicationInfo();

    @UnsupportedAppUsage
    public final ArrayList<Permission> permissions = new ArrayList<Permission>(0);
    @UnsupportedAppUsage
    public final ArrayList<PermissionGroup> permissionGroups = new ArrayList<PermissionGroup>(0);
    @UnsupportedAppUsage
    public final ArrayList<Activity> activities = new ArrayList<Activity>(0);
    @UnsupportedAppUsage
    public final ArrayList<Activity> receivers = new ArrayList<Activity>(0);
    @UnsupportedAppUsage
    public final ArrayList<Provider> providers = new ArrayList<Provider>(0);
    @UnsupportedAppUsage
    public final ArrayList<Service> services = new ArrayList<Service>(0);
    @UnsupportedAppUsage
    public final ArrayList<Instrumentation> instrumentation = new ArrayList<Instrumentation>(0);

    @UnsupportedAppUsage
    public final ArrayList<String> requestedPermissions = new ArrayList<String>();

    ...
    ...
    ...

}

4. 复制攻略
