@[TOC](第二十四章 ansible自动化运维工具 (3)Playbook进阶使用-roles)
示例：迭代嵌套子变量
ansible主机
[root@ansible playbook]# pwd
/data/playbook
[root@ansible playbook]# vim items2.yml #创建三个组、在和三个用户组合起来
---
- hosts: websrvs
remote_user: root
tasks:
- name: add some groups
group: name={{ item }} state=present
with_items:
- group1
- group2
- group3
- name: add some users
user: name={{ item.name }} group={{ item.group }} state=present
with_items:
- { name: 'user1', group: 'group1' }
- { name: 'user2', group: 'group2' }
- { name: 'user3', group: 'group3' }
[root@ansible playbook]# ansible-playbook -C items2.yml
[root@ansible playbook]# ansible-playbook items2.yml
6/18
#查看用户创建情况[user1.user2.user3]
[root@centos6 ~]$ getent passwd
...
user1:x:501:501::/home/user1:/bin/bash
user2:x:502:502::/home/user2:/bin/bash
user3:x:503:503::/home/user3:/bin/bash
#查看用户是否有对应的组、如：'user1'用户'group1'组
[root@centos6 ~]$ id user1
uid=501(user1) gid=501(group1) groups=501(group1)
[root@centos6 ~]$ id user2
uid=502(user2) gid=502(group2) groups=502(group2)
[root@centos6 ~]$ id user3
uid=503(user3) gid=503(group3) groups=503(group3)
#查看用户创建情况[user1.user2.user3]
[root@centos7-1 ~]# getent passwd
...
user1:x:1001:1001::/home/user1:/bin/bash
user2:x:1002:1002::/home/user2:/bin/bash
user3:x:1003:1003::/home/user3:/bin/bash
#查看用户是否有对应的组、如：'user1'用户'group1'组
[root@centos7-1 ~]# id user1
uid=1001(user1) gid=1001(group1) groups=1001(group1)
[root@centos7-1 ~]# id user2
uid=1002(user2) gid=1002(group2) groups=1002(group2)
[root@centos7-1 ~]# id user3
uid=1003(user3) gid=1003(group3) groups=1003(group3)
Playbook中template for if（for循环）
- 示例1
ansible主机
[root@ansible playbook]# vim for1.yml
---
- hosts: appsrvs <--针对哪些主机
remote_user: root
vars: <--变量值
ports: <--变量值由'ports'生成，由来：因为此处定义为'ports'。
- 81 <--变量中存的元素
- 82
- 83
tasks:
- name: config
template: src=server.conf.j2 dest=/data/server.conf
下图中的'ports'由来
*[ports]: 是从上图中定义的。
[root@ansible playbook]# vim templates/server.conf.j2
{% for port in ports %} <--for循环定义变量值为'ports'、是从上面文件定义的'ports'中取值
server {
listen {{ port }}
}
{% endfor %}
[root@ansible playbook]# ansible-playbook -C for1.yml
[root@ansible playbook]# ansible-playbook for1.yml
18/28主机
#显示结果18/28一致、此处以18为例
[root@centos7-1 ~]# cat /data/server.conf
server {
listen 81
}
server {
listen 82
}
server {
listen 83
}
- 示例2：变量赋值
ansible主机
[root@ansible playbook]# cp for1.yml for2.yml
[root@ansible playbook]# vim for2.yml
---
- hosts: appsrvs
remote_user: root
vars:
ports:
- listen_port: 81 <--变量赋值：如'listen_port'表示变量、'81'表示值
- listen_port: 82
- listen_port: 83
tasks:
- name: config
template: src=server2.conf.j2 dest=/data/server2.conf
[root@ansible playbook]# cp templates/server.conf.j2 templates/server2.conf.j2
[root@ansible playbook]# vim templates/server2.conf.j2
{% for port in ports %}
server {
listen {{ port.listen_port }}
}
{% endfor %}
[root@ansible playbook]# ansible-playbook for2.yml
18/28主机
#显示结果
[root@centos7-1 ~]# cat /data/server2.conf
server {
listen 81
}
server {
listen 82
}
server {
listen 83
}
- 示例3：字典
ansible主机
[root@ansible playbook]# cp for2.yml for3.yml
[root@ansible playbook]# vim for3.yml #嵌入字典、如：'web1'字典内我们定义了3个值。
---
- hosts: appsrvs
remote_user: root
vars:
ports:
- web1: <--字典
listen_port: 81 <--值
name: web1.mgdu.com <--值
dir: /data/web1 <--值
- web2:
listen_port: 82
name: web2.mgdu.com
dir: /data/web2
- web3:
listen_port: 83
name: web3.mgdu.com
dir: /data/web3
tasks:
- name: config
template: src=server3.conf.j2 dest=/data/server3.conf
[root@ansible playbook]# cp templates/server2.conf.j2 templates/server3.conf.j2
[root@ansible playbook]# vim templates/server3.conf.j2
{% for port in ports %}
server {
listen {{ port.listen_port }} <--对应上面文件的'listen_port'
server_name {{ port.name }} <--对应上面文件的'name'
root {{ port.dir }} <--对应上面文件的'dir'
}
{% endfor %}
[root@ansible playbook]# ansible-playbook -C for3.yml
[root@ansible playbook]# ansible-playbook for3.yml
18/28主机
#显示结果
[root@centos7-1 ~]# cat /data/server3.conf
server {
listen 81
server_name web1.mgdu.com
root /data/web1
}
server {
listen 82
server_name web2.mgdu.com
root /data/web2
}
server {
listen 83
server_name web3.mgdu.com
root /data/web3
}
- 示例4：条件判断
[root@ansible playbook]# cp for3.yml for4.yml
[root@ansible playbook]# vim for4.yml #条件判断、没有name条件就不生成
---
- hosts: appsrvs
remote_user: root
vars:
ports:
- web1:
listen_port: 81
#name: web1.mgdu.com <--注释掉此行
dir: /data/web1
- web2:
listen_port: 82
name: web2.mgdu.com
dir: /data/web2
- web3:
listen_port: 83
#name: web3.mgdu.com <--注释掉此行
dir: /data/web3
tasks:
- name: config
template: src=server4.conf.j2 dest=/data/server4.conf
[root@ansible playbook]# cp templates/server3.conf.j2 templates/server4.conf.j2
[root@ansible playbook]# vim templates/server4.conf.j2
{% for port in ports %}
server {
listen {{ port.listen_port }}
{% if port.name is defined %} <--if条件判断
server_name {{ port.name }} <--判断'port.name'是否存在、不存在就不生成
{% endif %} <--判断结束
root {{ port.dir }}
}
{% endfor %}
[root@ansible playbook]# ansible-playbook for4.yml -C
[root@ansible playbook]# ansible-playbook for4.yml
18/28主机
#显示结果、发现刚刚注释掉的两行内容没有生成
[root@centos7-1 ~]# cat /data/server4.conf
server {
listen 81
root /data/web1
}
server {
listen 82
server_name web2.mgdu.com
root /data/web2
}
server {
listen 83
root /data/web3
}
roles(角色)模块
roles
- ansible自1.2版本引入的新特性，用于层次性、结构化地组织playbook。roles能够根据层次型结构自动装载变量文件、tasks以及handlers等。要使用roles只需要在playbook中使用include指令即可。简单来讲，roles就是通过分别将变量、文件、任务、模板及处理器放置于单独的目录中，并可以便捷地include它们的一种机制。角色一般用于基于主机构建服务的场景中，但也可以是用于构建守护进程等场景中
复杂场景：建议使用roles，代码复用度高
- 变更指定主机或主机组
- 如命名不规范维护和传承成本大
- 某些功能需多个Playbook，通过includes即可实现
roles目录结构、
官方推荐目录 /etc/ansible/roles
- 每个角色，以特定的层级目录结构进行组织
- roles目录结构：
(playbook.yml和roles/平级目录)playbook.yml roles/ ├── project/ ├── tasks/ ├── files/ ├── vars ├── templates/ ├── handlers/ ├── default/ └──meta/
ansible主机
#创建目录
[root@ansible playbook]# mkdir -pv /data/playbook/roles/{mysql,nginx}/{tasks,files}
#查看目录结构
[root@ansible playbook]# tree /data/playbook/roles/
/data/playbook/roles/
├── mysql
│ ├── files
│ └── tasks
└── nginx
├── files
└── tasks
6 directories, 0 files
1. roles(角色)模块：nginx搭建
- 创建账户
[root@ansible playbook]# cd roles/nginx/tasks/
[root@ansible tasks]# pwd
/data/playbook/roles/nginx/tasks
[root@ansible tasks]# touch user.yml install.yml config.yml service.yml
#第一步：创建账户和组
[root@ansible tasks]# vim user.yml
- name: create user
user: name=nginx shell=/sbin/nologin system=yes create_home=no #创建用户nginx、shell类型、系统账号、不创建家目录
- 安装软件包
[root@ansible tasks]# vim install.yml
- name: install
yum: name=nginx
- 写配置文件
[root@ansible tasks]# cd ../files/
[root@ansible files]# pwd
/data/playbook/roles/nginx/files
#把配置文件拷贝到当前目录
[root@ansible files]# cp /etc/nginx/nginx.conf .
#修改配置文件
[root@ansible files]# vim nginx.conf
...
server {
listen 9527; <--ipv4端口号
listen [::]:9527; <--ipv6端口号
...
[root@ansible files]# cd ../tasks/
[root@ansible tasks]# pwd
/data/playbook/roles/nginx/tasks
#配置文件
[root@ansible tasks]# vim config.yml
- name: config
copy: src=nginx.conf dest=/etc/nginx/
- 启动服务
#启动服务
[root@ansible tasks]# vim service.yml
- name: service
service: name=nginx state=started enabled=yes
[root@ansible tasks]# vim main.yml #执行次序
- include: user.yml <--1. 创建账户
- include: install.yml <--2. 安装软件包
- include: config.yml <--3. 配置文件
- include: service.yml <--4. 启动服务
[root@ansible tasks]# cd ..
[root@ansible nginx]# pwd
/data/playbook/roles/nginx
#查看一下nginx目录结构、可以看到刚刚写过、改过的文件
[root@ansible nginx]# tree
.
├── files
│ └── nginx.conf
└── tasks
├── config.yml
├── install.yml
├── main.yml
├── service.yml
└── user.yml
2 directories, 6 files
#进到与roles同级的目录里
[root@ansible nginx]# cd ../..
[root@ansible playbook]# pwd
/data/playbook #与roles同级的目录里
[root@ansible playbook]# ll #查看一下是否同级
...
drwxr-xr-x 4 root root 32 Jun 27 00:30 roles <--
drwxr-xr-x 2 root root 183 Jun 26 23:56 templates
...
#调用nginx角色
[root@ansible playbook]# vim nginx_role.yml
- hosts: appsrvs #那些主机【appsrvs】、调用‘nginx’角色
roles: #角色
- role: nginx #nginx
18/28主机 快照（初始化）
连接外网： 方法1： 虚拟机设置-->添加NAT网卡-->systemctl restart network-->ping 1.1.1.1 方法2： 网卡配置文件中-->添加'GATEWAY=192.168.37.2,DNS1=114.114.114.114'-->systemctl restart network-->ping 1.1.1.1
[root@centos7-1 ~]# rpm -q nginx
package nginx is not installed #未安装nginx
#添加epel源
[root@centos7-1 ~]# vim /etc/yum.repos.d/base.repo
[base]
name=cdrom base
baseurl=file:///misc/cd
gpgcheck=0
[epel]
name=aliyun epel
#baseurl=https://mirrors.aliyun.com/epel/$releasever/$basearch/
baseurl=https://mirrors.aliyun.com/epel/$releasever/$basearch/
gpgcheck=0
enabled=1
ansible主机
#ansible key验证（18/28主机初始化后需要重新做key验证）
[root@ansible playbook]# ssh-copy-id 192.168.37.18
[root@ansible playbook]# ssh-copy-id 192.168.37.28
[root@ansible playbook]# ansible-playbook nginx_role.yml
18/28主机
#发现nginx的ipv4和ipv6端口号都为'9527'、
[root@centos7-1 ~]# ss -ntlp|grep 9527
LISTEN 0 128 *:9527 *:* users:(("nginx",pid=20511,fd=6),("nginx",pid=20510,fd=6),("nginx",pid=20509,fd=6),("nginx",pid=20508,fd=6),("nginx",pid=20507,fd=6))
LISTEN 0 128 :::9527 :::* users:(("nginx",pid=20511,fd=7),("nginx",pid=20510,fd=7),("nginx",pid=20509,fd=7),("nginx",pid=20508,fd=7),("nginx",pid=20507,fd=7))
#如果需要更改端口、怎么办？ ansible主机
#更改nginx端口号
[root@ansible playbook]# vim roles/nginx/files/nginx.conf
...
server {
listen 80; <--
listen [::]:80; <--
...
[root@ansible playbook]# cd roles/nginx/
[root@ansible nginx]# pwd
/data/playbook/roles/nginx
[root@ansible nginx]# mkdir handlers
[root@ansible nginx]# vim handlers/main.yml #触发重启服务
- name: restart service <--名称要一致
service: name=nginx state=restarted
[root@ansible nginx]# cd tasks/
[root@ansible tasks]# vim config.yml
- name: config
copy: src=nginx.conf dest=/etc/nginx/
notify: restart service <--触发重启、名称要和上面一致
#目录结构
[root@ansible nginx]# tree
.
├── files
│ └── nginx.conf
├── handlers
│ └── main.yml
└── tasks
├── config.yml
├── install.yml
├── main.yml
├── service.yml
└── user.yml
3 directories, 7 files
[root@ansible tasks]# cd /data/playbook/ #回到与roles/文件同级目录中
[root@ansible playbook]# ansible-playbook -C nginx_role.yml
[root@ansible playbook]# ansible-playbook nginx_role.yml
18/28主机
#nginx端口号为80
[root@centos7-1 ~]# ss -ntlp|grep 80
LISTEN 0 128 *:80 *:* users:(("nginx",pid=21745,fd=6),("nginx",pid=21744,fd=6),("nginx",pid=21743,fd=6),("nginx",pid=21742,fd=6),("nginx",pid=21741,fd=6))
LISTEN 0 128 :::80 :::* users:(("nginx",pid=21745,fd=7),("nginx",pid=21744,fd=7),("nginx",pid=21743,fd=7),("nginx",pid=21742,fd=7),("nginx",pid=21741,fd=7))

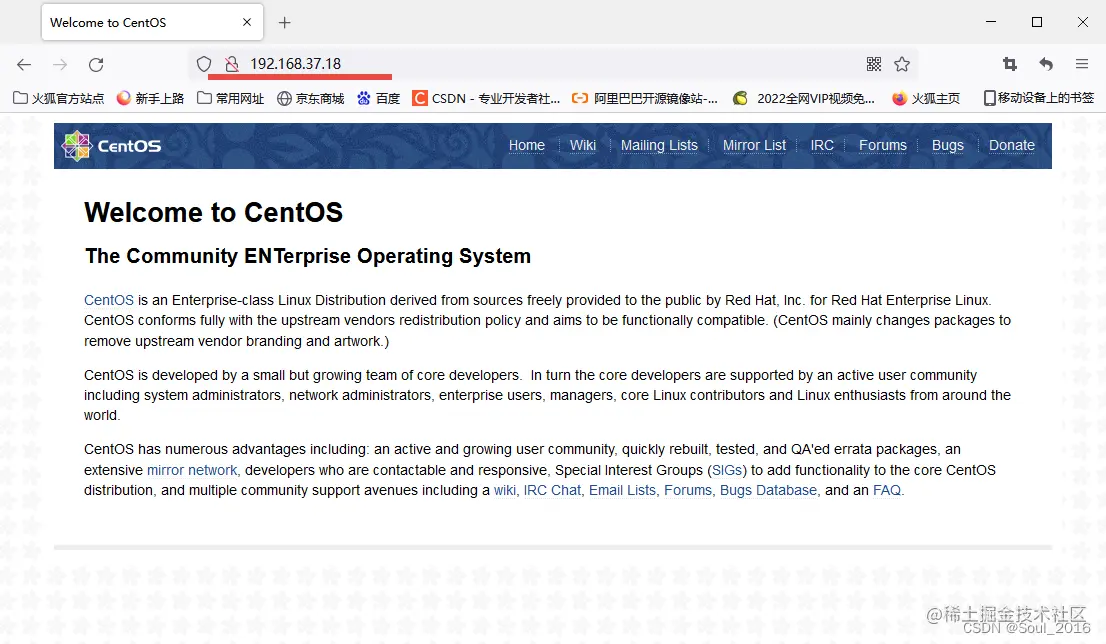

浏览器打开"192.168.37.18"、默认端口为80
#nginx页面文件
[root@centos7-1 ~]# cd /usr/share/nginx/html/
#备份页面文件
[root@centos7-1 html]# cp index.html{,.bak}
#修改页面文件内容
[root@centos7-1 html]# vim index.html
<h1>hello world</h1>

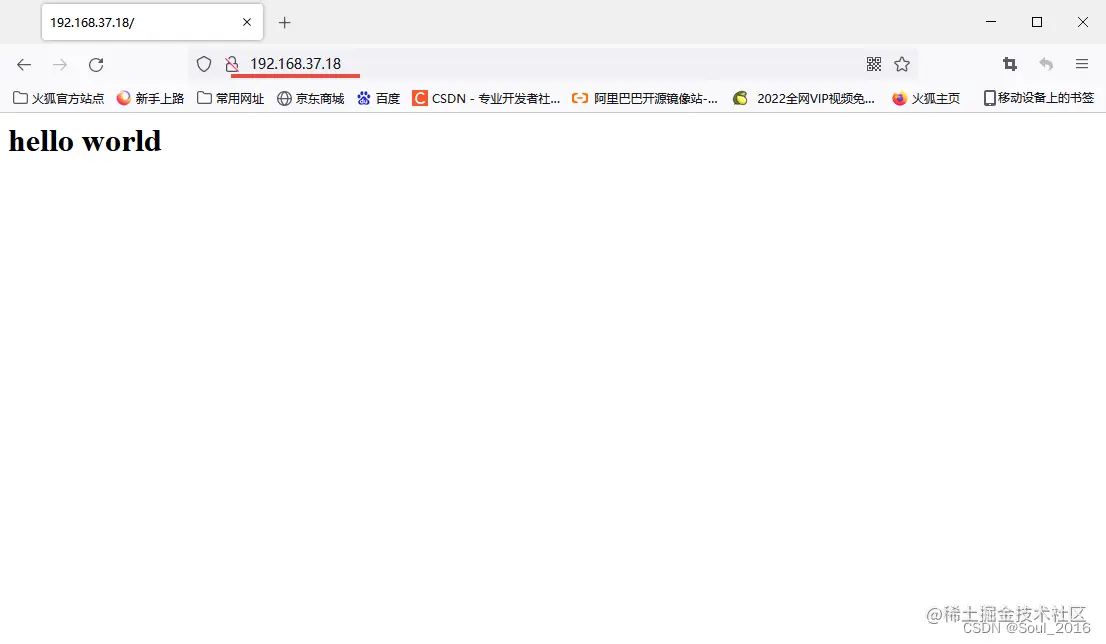

页面内容发生变化
ansible主机
#nginx测试页面写到nginx角色files的index.html中
[root@ansible playbook]# cd roles/nginx/files/
[root@ansible files]# vim index.html
<h1>hello world！</h1>
#进到nginx角色目录
[root@ansible files]# pwd
/data/playbook/roles/nginx/files
[root@ansible files]# cd ..
[root@ansible nginx]# ls
files handlers tasks
#准备网页文件
[root@ansible nginx]# vim tasks/data.yml
- name: data file
copy: src=index.html dest=/usr/share/nginx/html/
[root@ansible nginx]# vim tasks/main.yml #执行次序
- include: user.yml
- include: install.yml
- include: config.yml
- include: data.yml <--html网页文件
- include: service.yml
#回到roles同级目录中
[root@ansible nginx]# cd ../../
[root@ansible playbook]# ansible-playbook -C nginx_role.yml
[root@ansible playbook]# ansible-playbook nginx_role.yml
18/28主机：浏览器页面发生变化
2. roles(角色)模块：apache搭建
- 安装apache
[root@ansible playbook]# pwd
/data/playbook
[root@ansible playbook]# mkdir -pv roles/httpd/{tasks,files,templates,var}
[root@ansible playbook]# cd roles/httpd/tasks/
[root@ansible tasks]# touch install.yml config.yml data.yml service.yml
[root@ansible tasks]# ls > main.yml #把刚刚创建4个文件、生成到main.yml里
#安装apache
[root@ansible tasks]# vim install.yml
- name: install.yml
yum: name=httpd
[root@ansible tasks]# vim config.yml
- name: config file
template: src=httpd.conf.j2 dest=/etc/httpd/conf/httpd.conf
- 配置文件
[root@ansible tasks]# pwd
/data/playbook/roles/httpd/tasks
[root@ansible tasks]# cd ..
#拷贝文件
[root@ansible httpd]# cp /etc/httpd/conf/httpd.conf templates/httpd.conf.j2
#修改配置文件内容
[root@ansible httpd]# vim templates/httpd.conf.j2
...
Listen {{ httpd_port }} <--监听端口
User {{ username }} <--用户账号
Group {{ groupname }} <--用户组
...
#vars/变量文件夹、专门放变量
[root@ansible httpd]# vim vars/main.yml
username: daemon
groupname: daemon
- 数据文件
#数据文件
[root@ansible httpd]# cd tasks/
[root@ansible tasks]# vim data.yml
- name: data file
copy: src=roles/nginx/files/index.html dest=/var/www/html #此处'roles/nginx/files/index.html'为相对路径、从roles开始描述。调用nginx的网页文件。
- 启动服务
#启动服务
[root@ansible tasks]# vim service.yml
- name: service
service: name=httpd state=started enabled=yes
[root@ansible tasks]# vim main.yml #启动次序
- include: install.yml <--安装软件包
- include: config.yml <--配置文件
- include: data.yml <--数据文件
- include: service.yml <--启动服务
[root@ansible tasks]# cd ..
#查看apache目录结构
[root@ansible httpd]# tree
.
├── files
├── tasks
│ ├── config.yml
│ ├── data.yml
│ ├── install.yml
│ ├── main.yml
│ └── service.yml
├── templates
│ └── httpd.conf.j2 <--模板文件、写了用户的变量名
└── vars
└── main.yml <--专门放变量
4 directories, 7 files
#回到roles平级目录
[root@ansible httpd]# cd ../../
[root@ansible playbook]# vim httpd_role.yml
- hosts: appsrvs <--针对主机
roles: <--角色
- httpd <--什么角色?如'httpd'角色
#注意：如果配置文件中、下面还有针对[appsrvs]组中主机的端口变量、此处将被下面端口变量覆盖
[root@ansible playbook]# vim /etc/ansible/hosts
...
[appsrvs]
192.168.37.18 httpd_port=8018 <--端口变量'8018'
192.168.37.28 httpd_port=8028 <--端口变量'8028'
...
[root@ansible playbook]# ansible-playbook -C httpd_role.yml
[root@ansible playbook]# ansible-playbook httpd_role.yml
18/28主机：查看httpd端口情况
[root@centos7-1 ~]# ss -ntlp|grep 8018 #18主机：端口情况8018
LISTEN 0 128 :::8018 :::* users:(("httpd",pid=75083,fd=4),("httpd",pid=75082,fd=4),("httpd",pid=75081,fd=4),("httpd",pid=75080,fd=4),("httpd",pid=75079,fd=4),("httpd",pid=75076,fd=4))
[root@centos7-2 ~]# ss -ntlp|grep 8028 #28主机：端口情况8028
LISTEN 0 128 :::8028 :::* users:(("httpd",pid=24193,fd=4),("httpd",pid=24192,fd=4),("httpd",pid=24190,fd=4),("httpd",pid=24189,fd=4),("httpd",pid=24188,fd=4),("httpd",pid=24185,fd=4))

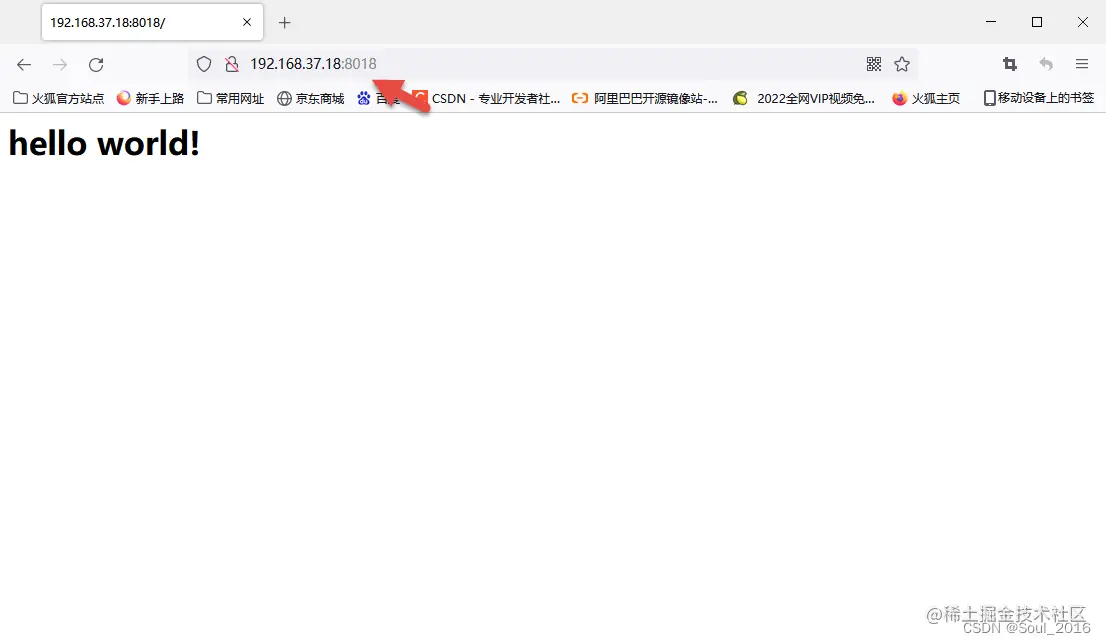

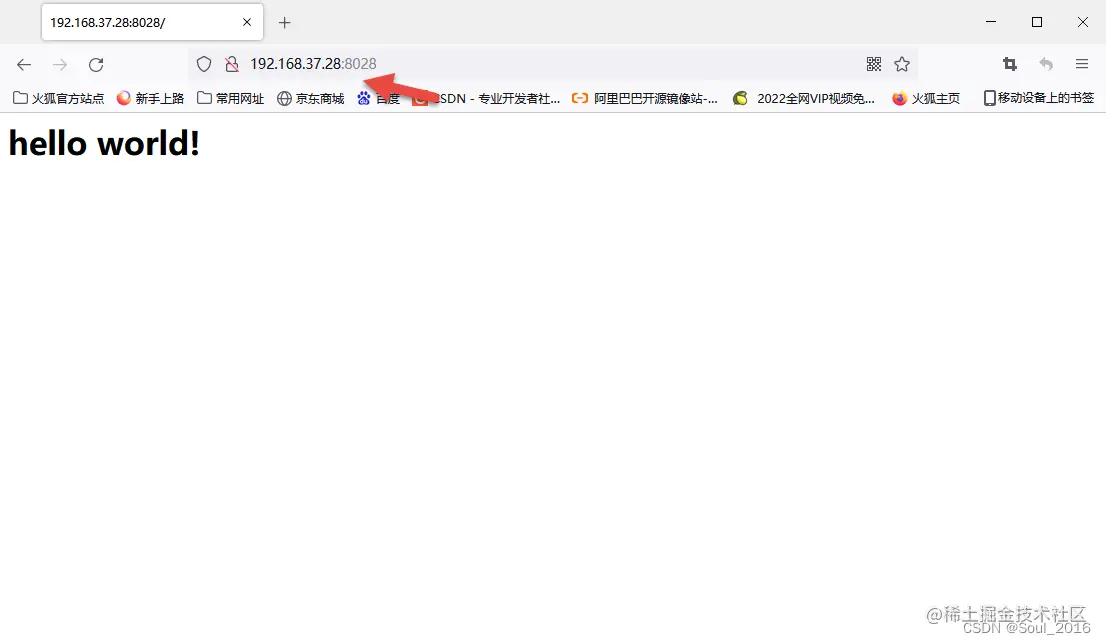

浏览器测试
3. roles(角色)模块：mariadb搭建
#可参考、之前的mariadb模板文件、内容如下
[root@ansible playbook]# cat install_mariadb.yml
---
- hosts: 192.168.37.6
remote_user: root
tasks:
- name: user
user: name=mysql system=yes home=/data/mysql create_home=no shell=/sbin/nologin
- name: unarchive
unarchive: src=/data/playbook/mariadb-10.2.25-linux-x86_64.tar.gz dest=/usr/local/ owner=root group=root
- name: mysql link
file: src=/usr/local/mariadb-10.2.25-linux-x86_64 dest=/usr/local/mysql state=link
- name: mysql datadir
file: path=/data/mysql state=directory
- name: mysql datadir owner group
file: path=/data/mysql state=directory owner=mysql group=mysql
- name: mysql database
shell: chdir=/usr/local/mysql/ scripts/mysql_install_db --datadir=/data/mysql --user=mysql
- name: path var
copy: content='PATH=/usr/local/mysql/bin:$PATH' dest=/etc/profile.d/mysql.sh
- name: config
copy: src=/data/playbook/my-huge.cnf dest=/etc/my.cnf
- name: service file
shell: cp /usr/local/mysql/support-files/mysql.server /etc/init.d/mysqld
- name: start service
shell: /etc/init.d/mysqld start
[root@ansible playbook]# cd roles/mysql/tasks/
#创建文件（用户账号、解压缩、软连接、文件夹、数据库、变量、配置文件、脚本、服务）
[root@ansible tasks]# touch user.yml unarchive.yml link.yml datadir.yml database.yml var.yml config.yml script.yml service.yml
#创建用户账号
[root@ansible tasks]# cat > user.yml
- name: user
user: name=mysql system=yes home=/data/mysql create_home=no shell=/sbin/nologin
^C
#解压缩
[root@ansible tasks]# vim unarchive.yml
- name: unarchive
unarchive: src=mariadb-10.2.25-linux-x86_64.tar.gz dest=/usr/local/ owner=root group=root
^C
#软连接
[root@ansible tasks]# cat > link.yml
- name: mysql link
file: src=/usr/local/mariadb-10.2.25-linux-x86_64 dest=/usr/local/mysql state=link
^C
#文件夹
[root@ansible tasks]# cat > datadir.yml
- name: mysql datadir owner group
file: path=/data/mysql state=directory owner=mysql group=mysql
^C
#数据库
[root@ansible tasks]# cat > database.yml
- name: mysql database
shell: chdir=/usr/local/mysql/ scripts/mysql_install_db --datadir=/data/mysql --user=mysql
^C
#变量
[root@ansible tasks]# cat > var.yml
- name: path var
copy: content='PATH=/usr/local/mysql/bin:$PATH' dest=/etc/profile.d/mysql.sh
^C
#配置文件
[root@ansible tasks]# cat > config.yml
- name: config
shell: cp /usr/local/mysql/support-files/my-huge.cnf /etc/my.cnf
^C
#配置文件2、修改mysql配置文件、指定路径
[root@ansible tasks]# vim config2.yml
- name: config file2
shell: sed -i '/\[mysqld\]/a datadir=/data/mysql' /etc/my.cnf
#脚本
[root@ansible tasks]# cat > script.yml
- name: service file
shell: cp /usr/local/mysql/support-files/mysql.server /etc/init.d/mysqld
^C
#服务
[root@ansible tasks]# cat > service.yml
- name: start service
shell: /etc/init.d/mysqld start
^C
[root@ansible tasks]# for file in *;do echo "- include: $file" >> main.yml;done
[root@ansible tasks]# vim main.yml #调顺序
- include: user.yml
- include: unarchive.yml
- include: link.yml
- include: datadir.yml
- include: database.yml
- include: var.yml
- include: config.yml
- include: config2.yml
- include: script.yml
- include: service.yml
[root@ansible tasks]# cd ../files/
[root@ansible files]# rz -E #上传文件
[root@ansible files]# ls
mariadb-10.2.25-linux-x86_64.tar.gz
[root@ansible files]# cd ../../../
[root@ansible playbook]# pwd
/data/playbook
#查看目录结构
[root@ansible playbook]# tree roles/mysql/
roles/mysql/
├── files
│ └── mariadb-10.2.25-linux-x86_64.tar.gz
└── tasks
├── config2.yml
├── config.yml
├── database.yml
├── datadir.yml
├── link.yml
├── main.yml
├── script.yml
├── service.yml
├── unarchive.yml
├── user.yml
└── var.yml
2 directories, 12 files
[root@ansible playbook]# vim mysql_role.yml
- hosts: appsrvs
roles:
- mysql
[root@ansible playbook]# ansible-playbook mysql_role.yml
18/28主机
#可以端口发现、mysql端口号'3306'开启
[root@centos7-1 ~]# ss -ntlp |grep mysql
LISTEN 0 80 :::3306 :::* users:(("mysqld",pid=28243,fd=21))
[root@centos7-1 ~]# mysql
bash: mysql: command not found...
[root@centos7-1~]# . /etc/profile.d/mysql.sh #运行完此步骤、使变量生效或退出此主机(37.18)远程窗口重新登录、即可进入mysql
[root@centos7-1 ~]# mysql
Welcome to the MariaDB monitor. Commands end with ; or \g.
Your MariaDB connection id is 11
Server version: 10.2.25-MariaDB-log MariaDB Server
Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
MariaDB [(none)]>
针对不同版本应用不同角色：CentOS6装httpd、CentOS7装nginx
前提
ansible主机
#卸载ansible所有主机httpd、nginx服务。（工作中慎用、此处为实验需要）
[root@ansible ~]# ansible all -m yum -a 'name=httpd,nginx state=absent'
6/18/28主机
#查看是否nginx和httpd卸载
[root@centos6 ~]$ rpm -q nginx httpd
package nginx is not installed <--未安装软件包 nginx
package httpd is not installed <--未安装软件包 httpd
[root@centos7-1 ~]# rpm -q nginx httpd
package nginx is not installed
package httpd is not installed
[root@centos7-2 ~]# rpm -q nginx httpd
package nginx is not installed
package httpd is not installed
实验开始 ansible主机
[root@ansible ~]# cd /data/playbook/
[root@ansible playbook]# vim httpd_nginx_role.yml #判断脚本
- hosts: all <--针对所有主机
roles:
- { role: httpd, when: ansible_distribution_major_version=="6" } <--版本6、运行httpd
- { role: nginx, when: ansible_distribution_major_version=="7" } <--版本7、运行nginx
6主机[需要用centos6的httpd模板、拷贝到37.7主机中] 方法1：
[root@centos6 ~]$ yum install -y httpd
#把httpd.conf配置文件传过去
[root@centos6 ~]$ scp /etc/httpd/conf/httpd.conf 192.168.37.7:/data/playbook/roles/httpd/templates/httpd.conf.j2
方法2： 点此下载：CentOS6版本的httpd.conf模板文件 保存到：192.168.37.7主机‘/data/playbook/roles/httpd/templates/’目录下、改名’httpd.conf.j2‘
ansible主机
[root@ansible playbook]# ansible-playbook httpd_nginx_role.yml
6主机
#6版本、有httpd端口80
[root@centos6 ~]$ ss -ntlp|grep httpd
LISTEN 0 128 :::80 :::* users:(("httpd",8411,5),("httpd",8415,5),("httpd",8416,5),("httpd",8417,5),("httpd",8418,5),("httpd",8419,5),("httpd",8420,5),("httpd",8421,5),("httpd",8422,5))
18/28主机
#7版本、有nginx端口80
[root@centos7-1 ~]# ss -tnlp |grep nginx
LISTEN 0 128 *:80 *:* users:(("nginx",pid=33578,fd=6),("nginx",pid=33577,fd=6),("nginx",pid=33576,fd=6),("nginx",pid=33575,fd=6),("nginx",pid=33574,fd=6))
LISTEN 0 128 :::80 :::* users:(("nginx",pid=33578,fd=7),("nginx",pid=33577,fd=7),("nginx",pid=33576,fd=7),("nginx",pid=33575,fd=7),("nginx",pid=33574,fd=7))
角色里面还可以用变量
ansible主机
#修改6版本httpd配置文件
[root@ansible playbook]# vim roles/httpd/templates/httpd.conf.j2
...
Listen {{ httpd_port }} <--端口号改为变量
...
[root@ansible playbook]# vim httpd_nginx_role.yml
- hosts: all
roles:
- {role: httpd, httpd_port: 1234, when: ansible_distribution_major_version=="6"} <--添加变量httpd_port: 1234
- {role: nginx, when: ansible_distribution_major_version=="7"}
[root@ansible playbook]# cd roles/httpd/tasks/
[root@ansible tasks]# vim config.yml
- name: config file
template: src=httpd.conf.j2 dest=/etc/httpd/conf/httpd.conf
notify: restart <--触发重启服务
[root@ansible tasks]# cd ..
[root@ansible httpd]# mkdir handlers
[root@ansible httpd]# vim handlers/main.yml
- name: restart <--触发重启服务
service: name=httpd state=restarted
[root@ansible httpd]# cd ../../
[root@ansible playbook]# ansible-playbook httpd_nginx_role.yml
6主机
#httpd服务重启了、并且端口变成了1234
[root@centos6 ~]$ ss -ntlp|grep httpd
LISTEN 0 128 :::1234 :::* users:(("httpd",9780,6),("httpd",9783,6),("httpd",9784,6),("httpd",9785,6),("httpd",9786,6),("httpd",9787,6),("httpd",9788,6),("httpd",9789,6),("httpd",9790,6))
roles playbook tags标签使用[定义角色时候加标签]
#添加标签
[root@ansible playbook]# vim httpd_nginx_role.yml
- hosts: all
roles:
- {role: httpd, httpd_port: 1234, when: ansible_distribution_major_version=="6"}
- {role: nginx, when: ansible_distribution_major_version=="7", tags: web} <---标签tags: web、以后这个7版本的nginx就有标签了
#以后就可以挑着标签执行、而不是全部执行
[root@ansible playbook]# ansible-playbook -t web httpd_nginx_role.yml
#也可添加多个标签
[root@ansible playbook]# vim httpd_nginx_role.yml
- hosts: all
roles:
- {role: httpd, httpd_port: 1234, when: ansible_distribution_major_version=="6"}
- {role: nginx, when: ansible_distribution_major_version=="7", tags: ["web","nginx"]}<---以后这个7版本的nginx就有2个标签了
[root@ansible playbook]# ansible-playbook -t nginx httpd_nginx_role.yml
memcached提供缓存服务
[root@ansible playbook]# pwd
/data/playbook
[root@ansible playbook]# cd roles/
[root@ansible roles]# mkdir -pv memcached/{tasks,files,templates}
[root@ansible roles]# yum install -y memcached
[root@ansible roles]# cat /etc/sysconfig/memcached
PORT="11211" #Memcached用来运行的端口
USER="memcached" #Memcached服务的启动守护程序。
MAXCONN="1024" #用于将最大同时连接数设置为1024的值。对于繁忙的Web服务器，您可以根据需要增加任何数量。
CACHESIZE="64" #缓存大小
OPTIONS="" #选项：设置服务器的IP地址，以便Apache或Nginx Web服务器可以连接到它。
[root@ansible roles]# cd memcached/
[root@ansible memcached]# cp /etc/sysconfig/memcached templates/memcached.j2
[root@ansible memcached]# vim templates/memcached.j2
PORT="11211"
USER="memcached"
MAXCONN="1024"
CACHESIZE="{{ ansible_memtotal_mb//4 }}" <--内存总大小除4、取整数
OPTIONS=""
[root@ansible memcached]# cd tasks/
[root@ansible tasks]# touch {install,config,service}.yml
[root@ansible tasks]# vim install.yml #安装包
- name: install
yum: name=memcached
[root@ansible tasks]# vim config.yml #配置文件
- name: config
template: src=memcached.j2 dest=/etc/sysconfig/memcached
[root@ansible tasks]# vim service.yml #启动服务
- name: service
service: name=memcached state=started enabled=yes
[root@ansible tasks]# for file in * ;do echo "- include: $file" >> main.yml ;done
[root@ansible tasks]# vim main.yml #启动顺序
- include: install.yml
- include: config.yml
- include: service.yml
[root@ansible memcached]# cd ../..
[root@ansible playbook]# vim memcached_role.yml
- hosts: appsrvs
roles:
- memcached
18/28主机：把内存大小调一下【18:2G、28:4G】看内存大小
[root@centos7-1 ~]# free -h
total used free shared buff/cache available
Mem: 1.8G 351M 1.1G 12M 387M 1.2G
Swap: 4.0G 0B 4.0G
[root@centos7-2 ~]# free -h
total used free shared buff/cache available
Mem: 3.7G 360M 2.9G 14M 452M 3.1G
Swap: 4.0G 0B 4.0G
ansible主机
[root@ansible playbook]# ansible-playbook -C memcached_role.yml
[root@ansible playbook]# ansible-playbook memcached_role.yml
18/28主机：缓存大小发生变化
[root@centos7-1 ~]# cat /etc/sysconfig/memcached
PORT="11211"
USER="memcached"
MAXCONN="1024"
CACHESIZE="454" <--
OPTIONS=""
[root@centos7-2 ~]# cat /etc/sysconfig/memcached
PORT="11211"
USER="memcached"
MAXCONN="1024"
CACHESIZE="942" <--
OPTIONS=""
查看memcached端口、端口号'11211'
[root@centos7-1 ~]# ss -ntlp
...
LISTEN 0 128 *:11211 *:* users:(("memcached",pid=9454,fd=26))
LISTEN 0 128 :::11211 :::* users:(("memcached",pid=9454,fd=27))
...
[root@centos7-2 ~]# ss -ntlp |grep memcached
LISTEN 0 128 *:11211 *:* users:(("memcached",pid=20594,fd=26))
LISTEN 0 128 :::11211 :::* users:(("memcached",pid=20594,fd=27))
推荐资料
galaxy.ansible.com/ galaxy.ansible.com/not-found github.com/ ansible.com.cn/ 中文 github.com/ansible/ans… github.com/ansible/ans…
