项目介绍

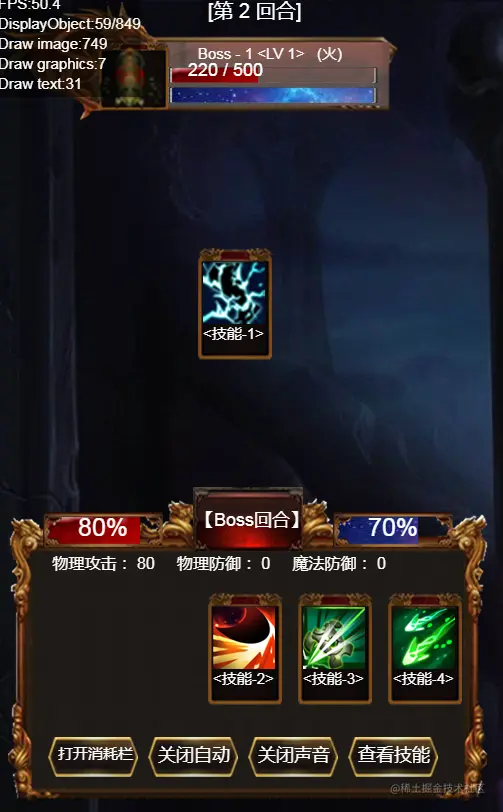

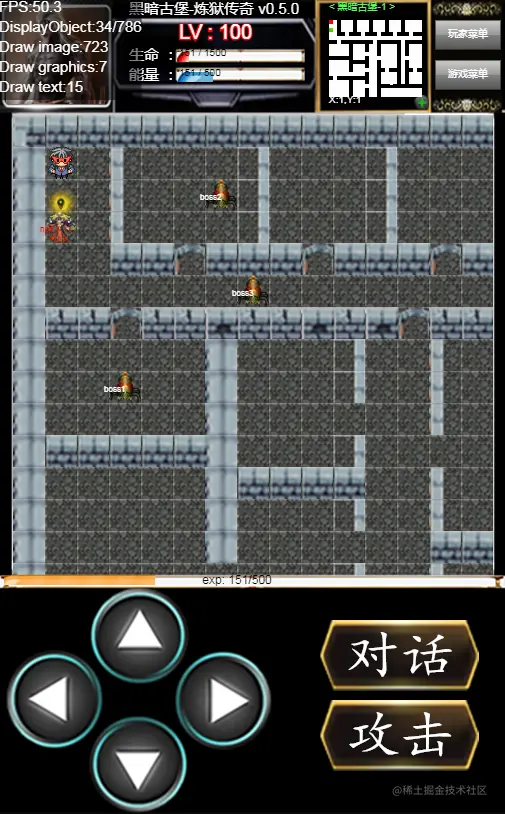

使用JS lufylegend框架编写RPG游戏练手项目，首先展示几项目的效果图：

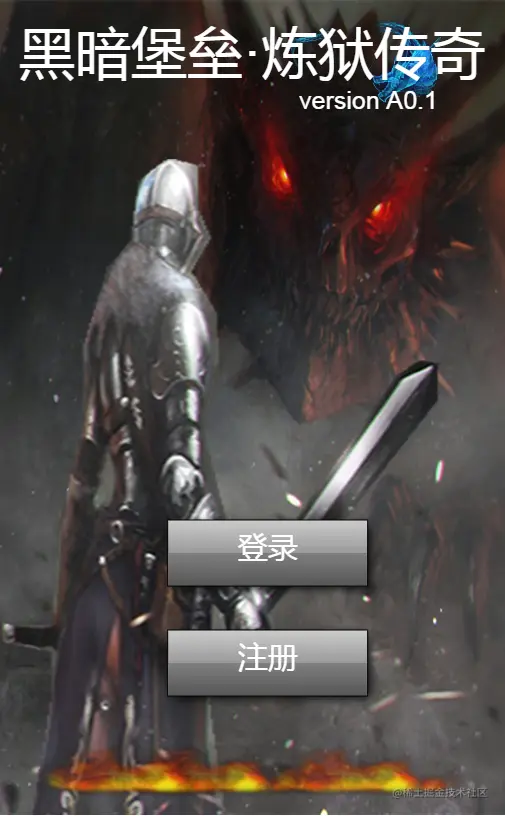

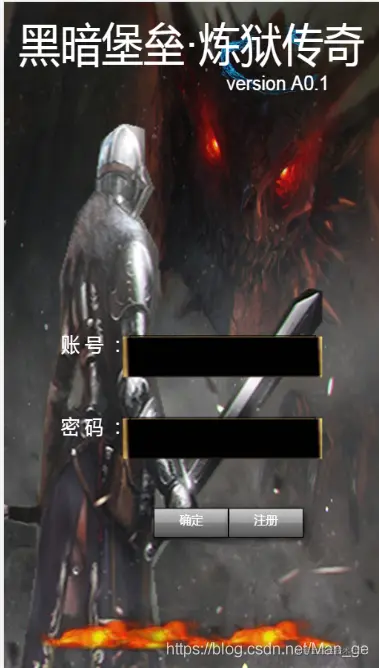

登陆页面在这里插入图片描述

项目地址

https://github.com/mangenotwork/HABL-H5

介绍 lufylegend

lufylegend 框架官网 ：  http://www.lufylegend.com/
lufylegend是一个兼容性极高，功能极多，使用方便的HTML5游戏引擎。

创建目录结构

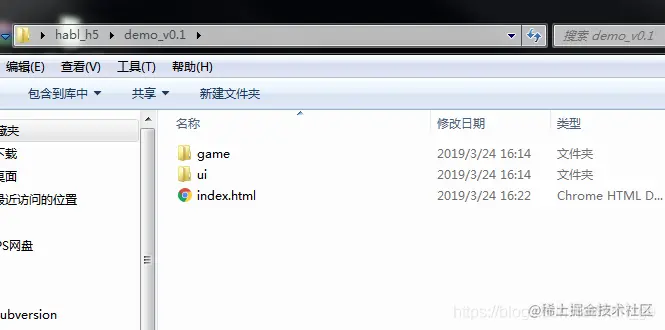

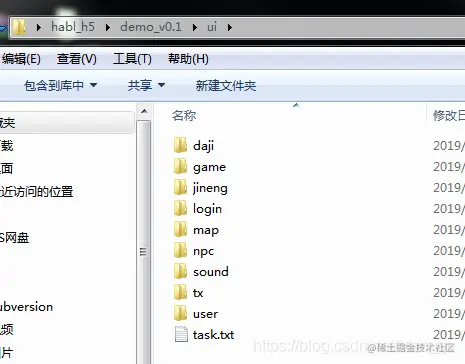

game: 游戏的代码 ui: 游戏用到的素材 index.html 执行游戏在这里插入图片描述 ./ui/daji: 打击效果素材 ./ui/game : 游戏界面素材 ./ui/jineng : 游戏技能素材 ./ui/login : 游戏登陆素材 ./ui/map : 游戏地图素材 ...

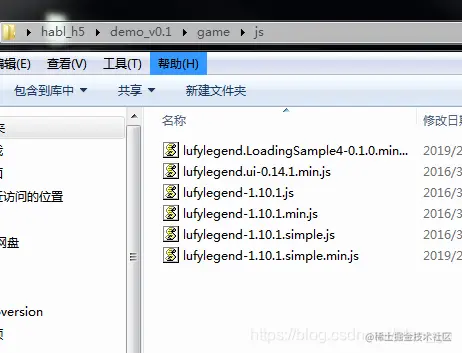

./game/js : 放lufylegend框架包在这里插入图片描述

游戏登陆页面开发

//声明变量
//游戏主层，进度条显示层，背景层，障碍层
var backLayer,loadingLayer,background,stageLayer,login_button;

var main_sound;
var button_sound;

//保存图像资源
var imglist = {};
//输入框
var input_bk_show;

//资源
var imgData = new Array(
		{name:"background_image",path:"../ui/login/login_back_1.png"},
		{name:"hore",path:"../ui/login/login_hore_1.png"},
		{name:"input_bk",path:"../ui/login/input_bk.png"},
		//tx 1
		{name:"bk_tx1_1",path:"../ui/tx/login_1/1.png"},
		{name:"bk_tx1_2",path:"../ui/tx/login_1/2.png"},
		{name:"bk_tx1_3",path:"../ui/tx/login_1/3.png"},
		{name:"bk_tx1_4",path:"../ui/tx/login_1/4.png"},
		{name:"bk_tx1_5",path:"../ui/tx/login_1/5.png"},
		{name:"bk_tx1_6",path:"../ui/tx/login_1/6.png"},
		{name:"bk_tx1_7",path:"../ui/tx/login_1/7.png"},
		// tx 2
		{name:"bk_tx2_1",path:"../ui/tx/login_2/1.png"},
		{name:"bk_tx2_2",path:"../ui/tx/login_2/2.png"},
		{name:"bk_tx2_3",path:"../ui/tx/login_2/3.png"},
		{name:"bk_tx2_4",path:"../ui/tx/login_2/4.png"},
		{name:"bk_tx2_5",path:"../ui/tx/login_2/5.png"},
		{name:"bk_tx2_6",path:"../ui/tx/login_2/6.png"},
		{name:"bk_tx2_7",path:"../ui/tx/login_2/7.png"},
		{name:"bk_tx2_8",path:"../ui/tx/login_2/8.png"},
		{name:"bk_tx2_9",path:"../ui/tx/login_2/9.png"},
		{name:"bk_tx2_10",path:"../ui/tx/login_2/10.png"},
		{name:"bk_tx2_11",path:"../ui/tx/login_2/11.png"},
		{name:"bk_tx2_12",path:"../ui/tx/login_2/12.png"}
		);

//声明显示
var showList = new Array();

function main(){
	if(LGlobal.canTouch){
		LGlobal.stageScale = LStageScaleMode.EXACT_FIT;
		LSystem.screen(LStage.FULL_SCREEN);
	}else{
		LGlobal.stageScale = LStageScaleMode.NO_SCALE;
		LSystem.screen(LStage.FULL_SCREEN);
	}
	loadingLayer = new LoadingSample4();
	addChild(loadingLayer);

	var title = new LTextField();
	title.x = 50;
	title.y = 100;
	title.size = 56;
	title.color = "#ffffff";
	title.text = "加载中,请等待";
	loadingLayer.addChild(title);



	/**读取图片*/
	LLoadManage.load(imgData,
		function(progress){
			loadingLayer.setProgress(progress);
		},gameInit);
}

//读取完所有图片，进行游戏标题画面的初始化工作
function gameInit(result){
	dataList = result;
	removeChild(loadingLayer);
	loadingLayer = null;
	//定义游戏背景层
	backLayer = new LSprite();
	addChild(backLayer);

	//主音乐
	main_sound = new LSound();
    main_sound.load("../ui/sound/login_sound_C32kbps.mp3");
	main_sound.addEventListener(LEvent.COMPLETE,function(e){
		if(main_sound){
            main_sound.play();
        }
		console.log(main_sound);
	});
	//按钮声音
	button_sound = new LSound();
	button_sound.load("../ui/sound/login_button_C32kbps.mp3");

	//显示游戏背景
	background_show();
	//显示游戏登录按钮
	login_button_pg();
	//显示游戏注册按钮
	register_show_pg();

	//backLayer.removeChild(login_button);

}

/*
function main_sound_play(e){

}
*/


//定义游戏背景
function background_show(){
	background = new LSprite();
	backLayer.addChild(background);
	//背景图片显示
	var bitmap = new LBitmap(new LBitmapData(dataList["background_image"]));
	background.addChild(bitmap);

	//背景图片显示
	var hore_bitmap = new LBitmap(new LBitmapData(dataList["hore"]));
	hore_bitmap.x = -10;
	hore_bitmap.y = 150;
	background.addChild(hore_bitmap);


	LTweenLite.to(hore_bitmap,1,{x:0,y:160,loop:true,ease:LEasing.Sine.easeInOut,tweenTimeline:LTweenLite.TYPE_FRAME})
				.to(hore_bitmap,1,{x:-10,y:150,ease:LEasing.Quad.easeInOut});

	//显示特效
	//特效光环
	var datas = [];
	var listChild = [];
	for (var i = 0; i < 7; i++) {
		datas.push(new LBitmapData(dataList["bk_tx1_" + (i + 1)]));
		listChild.push({dataIndex : i, x : 0, y : 0, width : 240, height : 80, sx : 0, sy : 0});
	}
	var playerRight = new LAnimationTimeline(datas, [listChild]);
	playerRight.speed = 8;
	playerRight.x = 100;
	playerRight.y = 720;
	backLayer.addChild(playerRight);

	var tx_1_show = playerRight.clone();
	tx_1_show.x = 250;
	tx_1_show.y = 720;
	backLayer.addChild(tx_1_show);
	var tx_2_show = playerRight.clone();
	tx_2_show.x = 20;
	tx_2_show.y = 720;
	backLayer.addChild(tx_2_show);

	var datas2 = [];
	var listChild2 = [];
	for (var i = 0; i <12 ; i++) {
		datas2.push(new LBitmapData(dataList["bk_tx2_" + (i + 1)]));
		listChild2.push({dataIndex : i, x : 0, y : 0, width : 240, height : 140, sx : 0, sy : 0});
	}
	var tx2_temp = new LAnimationTimeline(datas2, [listChild2]);
	tx2_temp.speed = 8;
	tx2_temp.x = 280;
	tx2_temp.y = 10;
	backLayer.addChild(tx2_temp);

	//显示游戏标题
	var title = new LTextField();
	title.x = 20;
	title.y = 30;
	title.size = 56;
	title.color = "#ffffff";
	title.text = "黑暗堡垒·炼狱传奇";
	backLayer.addChild(title);

	var version_number = new LTextField();
	version_number.x = 300;
	version_number.y = 90;
	version_number.size = 25;
	version_number.color = "#ffffff";
	version_number.text = "version A0.1";
	backLayer.addChild(version_number);

	//input bk show
	input_bk_show = new LBitmap(new LBitmapData(dataList["input_bk"]));
	//background.addChild(bitmap);
}
//定义游戏登录button
function login_button_pg(){
	login_button = new LSprite();
	backLayer.addChild(login_button);
	var login_show = new LButtonSample1("   登录   ",30);
	login_show.backgroundColor = "#000";
	login_show.width = 200;
	login_show.height = 50;
	login_show.x = LGlobal.width/3;
	login_show.y = 520;
	login_button.addChild(login_show);
	login_button.addEventListener(LMouseEvent.MOUSE_UP,function(e){

            button_play(e);

            login_ui();
        });

}

//定义游戏注册button
function register_show_pg(){
	register_button = new LSprite();
	backLayer.addChild(register_button);
	var register_show = new LButtonSample1("   注册   ",30);
	register_show.backgroundColor = "#000";
	register_show.width = 200;
	register_show.height = 50;
	register_show.x = LGlobal.width/3;
	register_show.y = 630;
	register_button.addChild(register_show);
	register_button.addEventListener(LMouseEvent.MOUSE_UP,function(e){
		button_play(e);
		register_ui();
	});
}

//定义游戏登录界面
function login_pg(){
	//定义登录界面
	login = new LSprite();
	backLayer.addChild(login);
	//账号 Lable
	var nameLabel = new LTextField();
	nameLabel.text = " 账 号 ： ";
	nameLabel.size = 25;
	nameLabel.color = "#ffffff";
	nameLabel.x = 70;
	nameLabel.y = 400+10;
	login.addChild(nameLabel);
	var zhanghao_bk_show = input_bk_show.clone();
	zhanghao_bk_show.x = 160;
	zhanghao_bk_show.y = 410;
	login.addChild(zhanghao_bk_show);
	//账号 输入框
	var name = new LTextField();
	name.size = 30;
	name.width = 250;
	name.color = "#ffffff";
	name.x = 170;
	name.y = 400+20;
	name.setWordWrap(true);
	name.setType(LTextFieldType.INPUT);

	login.addChild(name);
	name.focus();
	//密码 Lable
	var passLabel = new LTextField();
	passLabel.text = " 密 码 ： ";
	passLabel.size = 25;
	passLabel.color = "#ffffff";
	passLabel.x = 70;
	passLabel.y = 500+10;
	login.addChild(passLabel);

	var zhanghao_bk_show = input_bk_show.clone();
	zhanghao_bk_show.x = 160;
	zhanghao_bk_show.y = 510;
	login.addChild(zhanghao_bk_show);

	//密码 输入框
	var pass = new LTextField();
	pass.size = 30;
	pass.width = 250;
	pass.color = "#ffffff";
	pass.x = 170;
	pass.y = 500+20;
	pass.displayAsPassword = true;
	pass.setType(LTextFieldType.INPUT);

	login.addChild(pass);


	//login_ok 确认登录
	var login_ok = new LButtonSample1("确定");
	login_ok.width = 100;
	login_ok.height = 30;
	login_ok.size = 30;
	login_ok.x = LGlobal.width/5*2;
	login_ok.y = 620;
	login.addChild(login_ok);

	login_ok.addEventListener(LMouseEvent.MOUSE_UP,function(){
		button_play();

		//获取输入的账号
		var name_data = name.text;
		//获取输入的密码
		var pass_data = pass.text;
		var params= [];
		params.push(name_data);
		params.push(pass_data);

		var json = JSON.stringify(params);
		//alert(json);

		LMessageBox.show({
			title:"message",
			message:json
		});
		window.location.href="../game/home_v0.5.html";
	});

	//注册 register_ok
	var register_ok = new LButtonSample1("注册");
	register_ok.width = 100;
	register_ok.height = 30;
	register_ok.size = 30;
	register_ok.x = LGlobal.width/5*3;
	register_ok.y = 620;
	login.addChild(register_ok);
	register_ok.addEventListener(LMouseEvent.MOUSE_UP,function(){
		button_play();
		register_ok_event();
	});

}


//定义游戏注册界面
function register_pg(){
	//定义登录界面
	register = new LSprite();
	backLayer.addChild(register);
	//游戏注册
	var titleLabel = new LTextField();
	titleLabel.text = " 游 戏 账 户 注 册 ";
	titleLabel.size = 20;
	titleLabel.color = "#ffffff";
	titleLabel.x = 180;
	titleLabel.y = 150;
	register.addChild(titleLabel);

	//账号 Lable
	var nameLabel = new LTextField();
	nameLabel.text = "账 号* ：";
	nameLabel.size = 25;
	nameLabel.color = "#ffffff";
	nameLabel.x = 30;
	nameLabel.y = 300;
	register.addChild(nameLabel);

	var zhanghao_bk_show = input_bk_show.clone();
	zhanghao_bk_show.x = 140;
	zhanghao_bk_show.y = 290;
	register.addChild(zhanghao_bk_show);
	//账号 输入框
	var name = new LTextField();
	name.size = 30;
	name.width = 250;
	name.color = "#ffffff";
	name.x = 150;
	name.y = 300;
	name.setWordWrap(true);
	name.setType(LTextFieldType.INPUT);
	register.addChild(name);
	name.focus();
	//密码 Lable
	var passLabel = new LTextField();
	passLabel.text = "密 码* ：";
	passLabel.size = 25;
	passLabel.color = "#ffffff";
	passLabel.x = 30;
	passLabel.y = 360;
	register.addChild(passLabel);

	var zhanghao_bk_show = input_bk_show.clone();
	zhanghao_bk_show.x = 140;
	zhanghao_bk_show.y = 350;
	register.addChild(zhanghao_bk_show);
	//密码 输入框
	var pass = new LTextField();
	pass.size = 30;
	pass.width = 250;
	pass.color = "#ffffff";
	pass.x = 150;
	pass.y = 360;
	pass.displayAsPassword = true;
	pass.setType(LTextFieldType.INPUT);
	register.addChild(pass);

	//密码 Lable
	var passLabel = new LTextField();
	passLabel.text = "确认密码*：";
	passLabel.size = 25;
	passLabel.color = "#ffffff";
	passLabel.x = 30;
	passLabel.y = 420;
	register.addChild(passLabel);

	var zhanghao_bk_show = input_bk_show.clone();
	zhanghao_bk_show.x = 140;
	zhanghao_bk_show.y = 410;
	register.addChild(zhanghao_bk_show);
	//密码 输入框
	var pass = new LTextField();
	pass.size = 30;
	pass.width = 250;
	pass.color = "#ffffff";
	pass.x = 150;
	pass.y = 420;
	pass.displayAsPassword = true;
	pass.setType(LTextFieldType.INPUT);
	register.addChild(pass);


	//密码 Lable
	var passLabel = new LTextField();
	passLabel.text = "手机号码 ：";
	passLabel.size = 25;
	passLabel.color = "#ffffff";
	passLabel.x = 30;
	passLabel.y = 480;
	register.addChild(passLabel);

	var zhanghao_bk_show = input_bk_show.clone();
	zhanghao_bk_show.x = 140;
	zhanghao_bk_show.y = 470;
	register.addChild(zhanghao_bk_show);
	//密码 输入框
	var pass = new LTextField();
	pass.size = 30;
	pass.width = 250;
	pass.color = "#ffffff";
	pass.x = 150;
	pass.y = 480;
	pass.setType(LTextFieldType.INPUT);
	register.addChild(pass);



	//login_ok 确认登录
	var login_ok = new LButtonSample1("确定");
	login_ok.width = 100;
	login_ok.height = 30;
	login_ok.size = 30;
	login_ok.x = LGlobal.width/5*2;
	login_ok.y = 580;
	register.addChild(login_ok);
	login_ok.addEventListener(LMouseEvent.MOUSE_UP,function(){
		button_play();
		LMessageBox.show({
			title:"message",
			message:"点击了登陆按钮"
		});
	});

	//注册 return_ok
	var return_ok = new LButtonSample1("返回");
	return_ok.width = 100;
	return_ok.height = 30;
	return_ok.size = 30;
	return_ok.x = LGlobal.width/5*3;
	return_ok.y = 580;
	register.addChild(return_ok);
	return_ok.addEventListener(LMouseEvent.MOUSE_UP,function(){
		button_play();
		return_event();
	});

}

//游戏按钮事件
function login_ui(event){
	login_button.remove();
	register_button.remove();
	login_pg();
}


function register_ui(event){
	login_button.remove();
	register_button.remove();
	register_pg();
}

function register_ok_event(event){
	login.remove();
	register_pg();
}

function return_event(event){
	register.remove();
	//显示游戏登录按钮
	login_button_pg();
	//显示游戏注册按钮
	register_show_pg();
}

//按键声音1播放
function button_play(e){

    if(button_sound.playing){
            button_sound.stop();
    }
    else{
            button_sound.playTo(0,10,1);
    }

    console.log(main_sound);
    console.log(button_sound);
}

HTML部分

<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>黑暗堡垒·炼狱传奇</title>
<meta name="viewport" content="width=device-width,initial-scale=1.0,minimum-scale=1.0,maximum-scale=1.0,user-scalable=no">

<!-- UC强制全屏 -->
<meta name="full-screen" content="yes">
<!-- QQ强制全屏 -->
<meta name="x5-fullscreen" content="true">
<!-- IOS启用 WebApp 全屏模式 -->
<meta name="apple-mobile-web-app-capable" content="yes" />

<script type="text/javascript" src="./js/lufylegend-1.10.1.min.js"></script>
<!--<script type="text/javascript" src="./js/lufylegend-1.10.1.simple.min.js"></script> -->
<script type="text/javascript" src="./js/lufylegend.LoadingSample4-0.1.0.min.js"></script>
<script type="text/javascript" src="./js/lufylegend.ui-0.14.1.min.js"></script>


<script type="text/javascript" src="./login_v0.2.js"></script>

<style>
		body{
			margin:0;padding:0;
		}
		div{
			margin:0;padding:0;
		}
		canvas{
			margin:0;padding:0;
		}
	</style>
<script>
function doScroll() {
	//pageXOffset 和 pageYOffset 属性返回文档在窗口左上角水平和垂直方向滚动的像素。
	if(window.pageYOffset === 0) {
		//scrollTo() 方法可把内容滚动到指定的坐标。
		window.scrollTo(0, 1);
	}
}
window.onload = function() {
	//0.1秒（100 毫秒）后更新 init()
	setTimeout(doScroll, 100);
	//游戏入口
	//初始化 LEvent.INIT 事件对象的 type 属性值，当引擎初始化是在window.onload事件之后，需要使用此属性


	init(20,"mylegend",506,815,main,LEvent.INIT);
}
// iPhone  html5屏幕旋转事件 onorientationchange
window.onorientationchange = function() {
	setTimeout(doScroll, 100);
};
//浏览器尺寸变化响应事件 ：
//window.onresize = function(){....}
//这里须要注意的是，onresize响应事件处理中。获取到的页面尺寸參数是变更后的參数。
// Android  html5屏幕旋转事件
window.onresize = function() {
	setTimeout(doScroll, 100);
}
</script>
</head>
<body style="margin:0px 0px 0px 0px;padding:0px 0px 0px 0px;">
<div id="mylegend">loading……</div>
</body>
</html>

效果图

在这里插入图片描述

本文已参与「新人创作礼」活动，一起开启掘金创作之路。

开发H5游戏练手， 黑暗堡垒-炼狱传奇H5 (一) 登陆界面开发
