简介

Ansible是新出现的自动化运维工具，基于Python开发，集合了众多运维工具（puppet、cfengine、chef、func、fabric）的优点。实现了批量系统配置、批量程序部署、批量运行命令等功能。Ansible是基于模块工作的，本身没有批量部署的能力。真正具有批量部署的是Ansible所运行的模块，Ansible只是提供一种框架

Ansible是基于 paramiko 开发的,并且基于模块化工作，本身没有批量部署的能力。真正具有批量部署的是ansible所运行的模块，ansible只是提供一种框架。ansible不需要在远程主机上安装client/agents，因为它们是基于ssh来和远程主机通讯的。ansible目前已经已经被红帽官方收购，是自动化运维工具中大家认可度最高的，并且上手容易，学习简单。是每位运维工程师必须掌握的技能之一

Ansible的架构

Ansible的优缺点

1、优点

1、Agentless：去中心化
2、Stupied Simple ，上手简单，学习曲线平滑
3、SSH by default ，安全，无需安装客户端
4、配置简单、功能强大、扩展性强
5、支持API及自定义模块，可通过Python轻松扩展
6、通过Playbooks来定制强大的配置、状态管理
7、提供一个功能强大、操作性强的Web管理界面和REST API接口——AWX平台
8、幂等性：一种操作重复多次结果相同

2、缺点

1、对windows系统的排斥（服务端无法安装在windows）
2、运行效率较低（task任务是串行运行；多台设备同时运行一个task，有并发数限制）

一、Ansible的安装及使用

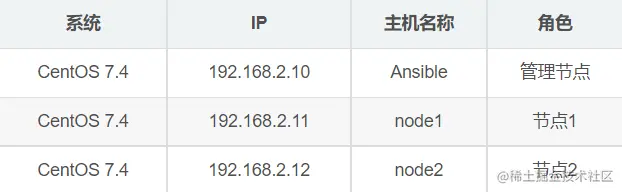

准备环境

1.1、安装Ansible

下载ansible源码包：[Ansible.rar] 下载完成后先在自己电脑里面解压在上传


[root@Ansible ~]# vim /etc/yum.repos.d/centOS7.repo     修改yum源
.......
...

[ansibe]                        #添加内容
baseurl=file:///root/ansible
enabled=1
gpgcheck=0

保存


[root@Ansible ~]# yum -y install ansible
................
.....
..

1.2、lnventory内置参数


   ansible_ssh_host:               #定义hosts ssh地址

   ansible_ssh_port:               #定义hosts ssh端口

   ansible_ssh_user:               #定义hosts ssh认证用户

   ansible_ssh_pass:               #定义hosts ssh认证密码

   ansible_sudo:                   #定义hosts sudo用户

   ansible_sudo_pass:              #定义hosts sudo密码

   ansible_sudo_exe:               #定义host sudo路径;sudo 命令路径(适用于1.8及以上版本)

   ansible_connection:             #定义hosts连接方式
                                   #与主机的连接类型(比如:local, ssh 或者 paramiko):
                                   #Ansible 1.2 以前默认使用 paramiko.1.2 以后默认使用 'smart'
                                   #'smart' 方式会根据是否支持 ControlPersist, 来判断'ssh' 方式是否可行

  ansible_ssh_private_key_file:    #定义hosts私钥

  ansible_shell_type:              #定义hosts shell类型
                                   #目标系统的shell类型.默认情况下,
                                   #命令的执行使用 'sh' 语法,可设置为 'csh' 或 'fish'

  ansible_python_interpreter:      #定义hosts 任务执行python路径

  ansible_*_interpreter:           #定义hosts其他语言解析路径

  ansible_ssh_private_key_file：   #ssh 使用的私钥文件;适用于有多个密钥,而不使用 SSH 代理的情况

  ansible_python_interpreter       #目标主机的 python 路径
                                   #适用于的情况: 系统中有多个 Python, 或者命令路径不是"/usr/bin/python"
                                   #比如  \*BSD, 或者 /usr/bin/python 不是 2.X 版本的 Python
                                   #不使用 "/usr/bin/env" 机制,因为这要求远程用户的路径设置正确
                                   #且要求 "python" 可执行程序名不可为 python以外的名字(实际有可能名为python26).
                                   #与 ansible_python_interpreter 的工作方式相同,可设定如 ruby 或 perl 的路径....

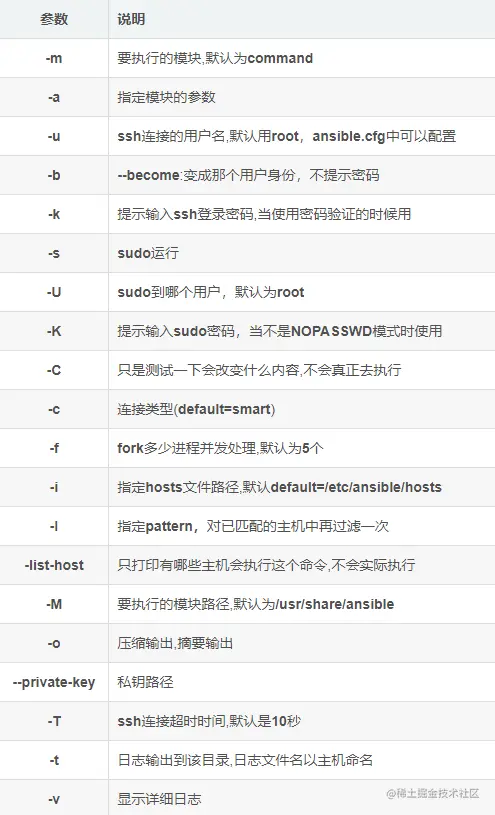

1.3、ansible的常用参数

1.4、lnventory文件的配置

1.4.1、密码连接

            第一次连接需要输入yes，执行以下操作，如不操作会报错
[root@Ansible ~]# vi /etc/ansible/ansible.cfg
............
     62 host_key_checking = False                #让该命令生效删除#号
............

保存


   方式一：
[root@Ansible ~]# vim /etc/ansible/hosts
..............
...........
[node1]
192.168.2.11 ansible_ssh_port=22 ansible_ssh_user=root ansible_ssh_pass=123.com

[node2]
192.168.2.12 ansible_ssh_port=22 ansible_ssh_user=root ansible_ssh_pass=123.com

保存


   方式二：

[node]
192.168.2.11 ansible_ssh_port=22 ansible_ssh_user=root ansible_ssh_pass=123.com
192.168.2.12 ansible_ssh_port=22 ansible_ssh_user=root ansible_ssh_pass=123.com


   方式三：

[node]
192.168.2.[11:12] ansible_ssh_port=22 ansible_ssh_user=root ansible_ssh_pass=123.com

   方式四：  需要配置秘钥才能实现

[node1]
192.168.2.11

[node2]
192.168.2.12
[node:children]      #[名称:children（固定的）]
node1
node2

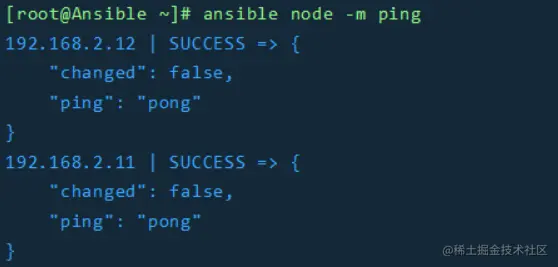

[root@Ansible ~]# ansible node1 -m ping
192.168.2.11 | SUCCESS => {
    "changed": false,
    "ping": "pong"
}

1.4.2、秘钥连接

生成秘钥并传输给node1，node2

[root@Ansible ~]# ssh-keygen
Generating public/private rsa key pair.
Enter file in which to save the key (/root/.ssh/id_rsa):
/root/.ssh/id_rsa already exists.
Overwrite (y/n)? y
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /root/.ssh/id_rsa.
Your public key has been saved in /root/.ssh/id_rsa.pub.
The key fingerprint is:
SHA256:qfRxoDOzgmuHxg9WHPGAMcSCrzgJM6uQJaB5kiTlIeI root@Ansible
The key's randomart image is:
+---[RSA 2048]----+
|++*oo            |
|B+oo +           |
|=E. . . .        |
|X +. . . o       |
|o%  o * S .      |
|O  o . B o       |
|oo+.. o .        |
|..=o..           |
| o.o.            |
+----[SHA256]-----+

[root@Ansible ~]# ssh-copy-id -i 192.168.2.11
...........
[root@Ansible ~]# ssh-copy-id -i 192.168.2.12
...........

1.4.3、输出的颜色进行判断

ansible.cfg配置文件官方详介


[root@Ansible ~]# vi /etc/ansible/ansible.cfg
................
........
[colors]
#highlight = white
#verbose = blue             #详细消息
#warn = bright purple       #警告消息
#error = red                #错误消息
#debug = dark gray          #调试消息
#deprecate = purple         #弃用消息
#skip = cyan                #已跳过任务状态
#unreachable = red          #无法到达
#ok = green                 #正常任务状态
#changed = yellow           #已更改任务状态
#diff_add = green
#diff_remove = red
#diff_lines = cyan
..............
.....

——————————————————————————————

           可以自定义设置颜色 官方已经给很多的颜色可以选择 ；修改完后去掉注释

1.5、Ansible命令格式

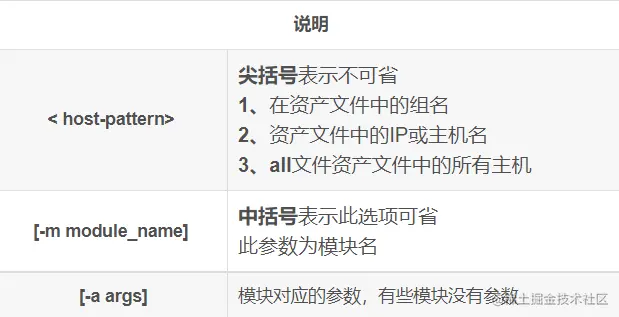

命令语法：ansible < host-pattern > [-m module_name] [-a args]

1.5.1、主机与组的格式

单台主机或组


   -----组
[root@Ansible ~]# ansible node1 -m ping
192.168.2.11 | SUCCESS => {
    "changed": false,
    "ping": "pong"
}

  -------主机
[root@Ansible ~]# ansible 192.168.2.11 -m ping
192.168.2.11 | SUCCESS => {
    "changed": false,
    "ping": "pong"
}

多台主机或组


   -----组
[root@Ansible ~]# ansible node1,node2 -m ping
192.168.2.12 | SUCCESS => {
    "changed": false,
    "ping": "pong"
}
192.168.2.11 | SUCCESS => {
    "changed": false,
    "ping": "pong"
}

   -----主机
[root@Ansible ~]# ansible 192.168.2.11,192.168.2.12 -m ping
192.168.2.11 | SUCCESS => {
    "changed": false,
    "ping": "pong"
}
192.168.2.12 | SUCCESS => {
    "changed": false,
    "ping": "pong"
}

所有目标


[root@Ansible ~]# ansible all -m ping
192.168.2.11 | SUCCESS => {
    "changed": false,
    "ping": "pong"
}
192.168.2.12 | SUCCESS => {
    "changed": false,
    "ping": "pong"
}

1.5.2、组匹配

查看组信息


  --------查询单个组的主机
[root@Ansible ~]# ansible node1 --list
  hosts (1):
    192.168.2.11

  --------查询全部组的主机
[root@Ansible ~]# ansible all --list
  hosts (2):
    192.168.2.12
    192.168.2.11

匹配node1组中有的，但是node2组中没有的所有主机


[root@Ansible ~]# vim /etc/ansible/hosts
.............
[node1]
192.168.2.11
[node2]
192.168.2.12

保存

[root@Ansible ~]# ansible 'node1:!node2' -m ping -o
192.168.2.11 | SUCCESS => {"changed": false, "ping": "pong"}

匹配node1组和node 2组都有的主机(交集)


[root@Ansible ~]# vim /etc/ansible/hosts
...........
.....
[node1]
192.168.2.11
192.168.2.12
[node2]
192.168.2.12

保存

[root@Ansible ~]# ansible 'node1:&node2' -m ping -o
192.168.2.12 | SUCCESS => {"changed": false, "ping": "pong"}

匹配node1与node2两个组的所有主机（并集）


[root@Ansible ~]# ansible 'node1:node2' -m ping -o
192.168.2.11 | SUCCESS => {"changed": false, "ping": "pong"}
192.168.2.12 | SUCCESS => {"changed": false, "ping": "pong"}

  ——————————     同

[root@Ansible ~]# ansible node1,node2 -m ping
192.168.2.12 | SUCCESS => {
    "changed": false,
    "ping": "pong"
}
192.168.2.11 | SUCCESS => {
    "changed": false,
    "ping": "pong"
}

二、Ansible 的常用模块

2.1、Ansible-doc命令

Ansible-doc用来查询ansible模块文档的说明，类似于man命令，针对每个模块都有详细的用法说明及应用案例介绍
格式：ansible-doc [options] [module……]


[root@Ansible ~]# ansible-doc -l         #列出支持的模块
.........
....

[root@Ansible ~]# ansible-doc -l| wc -l
1852

[root@Ansible ~]# ansible-doc ping      #查询ping模块的说明信息
....
....           # q 退出

2.2、执行命令相关模块

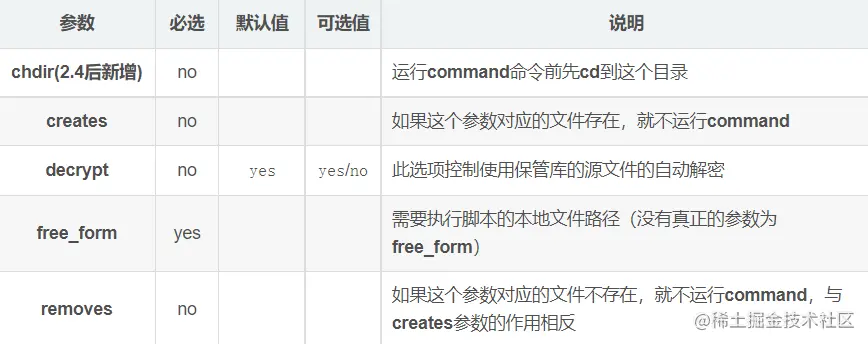

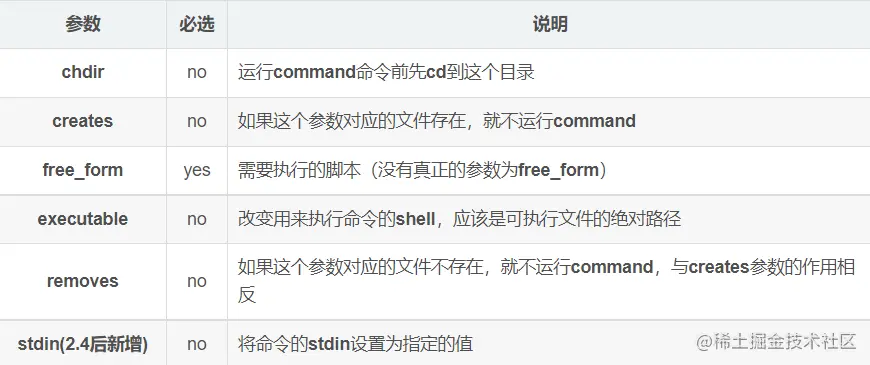

2.2.1、command模块

command模块是默认的，用于在给的的节点上运行系统命令，比如echo hello
它不会通过shell处理命令，因此不支持像 $HOME这样的变量和，以及 <、>、|、;、& 等都是无效的。也就是在command模块中无法使用特殊符号

例：在node1上执行ls命令，默认是在当前用户的家目录 /root 进行执行


[root@Ansible ~]# ansible node1 -a 'ls'
192.168.2.11 | SUCCESS | rc=0 >>
anaconda-ks.cfg
name.sh
yum.sh

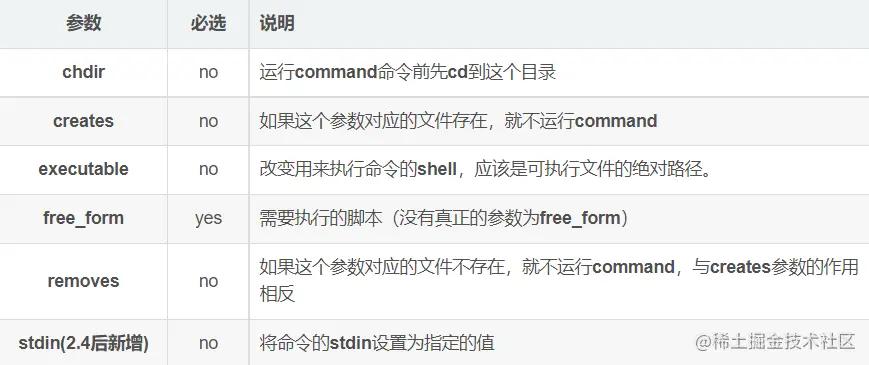

chdir参数
切换工作目录，在执行命令，一般在编译时使用

 例：
[root@Ansible ~]# ansible node1 -a 'chdir=/opt pwd'
192.168.2.11 | SUCCESS | rc=0 >>
/opt

creates参数
如果creates指定的文件存在，则不执行后面的操作

 例： opt文件存在所以不执行ls命令
[root@Ansible ~]# ansible node1 -a 'creates=/opt ls /etc/passwd'
192.168.2.11 | SUCCESS | rc=0 >>
skipped, since /opt exists

例：a文件不存在 执行了ls命令
[root@Ansible ~]# ansible node1 -a 'creates=/a ls /etc/passwd'
192.168.2.11 | SUCCESS | rc=0 >>
/etc/passwd

removes参数
如果这个参数对应的文件不存在，就不运行command，与creates参数的作用相反

例：
[root@Ansible ~]# ansible node1 -a 'removes=/a ls /etc/passwd'
192.168.2.11 | SUCCESS | rc=0 >>
skipped, since /a does not exist

[root@Ansible ~]# ansible node1 -a 'removes=/opt ls /etc/passwd'
192.168.2.11 | SUCCESS | rc=0 >>
/etc/passwd

2.2.2、shell模块

让远程主机在shell进程下执行命令，从而支持shell的特性，如： |、$、<、>、 的特殊符号等。与**command**模块几乎相同，但在执行命令的时候使用的是 /bin/sh


   例：
[root@Ansible ~]# ansible node1 -m shell -a 'mkdir /opt/aaa'
 [WARNING]: Consider using the file module with state=directory rather than running mkdir.  If you need to
use command because file is insufficient you can add warn=False to this command task or set
command_warnings=False in ansible.cfg to get rid of this message.

192.168.2.11 | SUCCESS | rc=0 >>

  例：
[root@Ansible ~]# ansible node1 -m shell -a 'ls /opt/'
192.168.2.11 | SUCCESS | rc=0 >>
aaa

每次执行都会更新文件的时间戳


[root@Ansible ~]# ansible node1 -m shell -a 'cd /opt/aaa && touch a.txt && ls'
192.168.2.11 | SUCCESS | rc=0 >>
a.txt

creates参数

例：
[root@Ansible ~]# ansible node1 -m shell -a 'creates=/opt/aaa/a.txt cd /otp/aaa/ && touch a.txt && ls'
192.168.2.11 | SUCCESS | rc=0 >>
skipped, since /opt/aaa/a.txt exists

2.2.3、script模块

script模块的作用是将本地script传送到远程主机之后执行
给定的脚本将通过远程节点上的shell环境进行处理
script模块在远程系统上不需要python的支持

编写a.sh脚本


[root@Ansible ~]# vim a.sh

#!/bin/bash
echo 'hello'
echo $?

在所有主机上执行脚本\


[root@Ansible ~]# ansible all -m script -a '/root/a.sh'
192.168.2.11 | SUCCESS => {
    "changed": true,
    "rc": 0,
    "stderr": "Shared connection to 192.168.2.11 closed.\r\n",
    "stderr_lines": [
        "Shared connection to 192.168.2.11 closed."
    ],
    "stdout": "hello\r\n0\r\n",
    "stdout_lines": [
        "hello",
        "0"
    ]
}
192.168.2.12 | SUCCESS => {
    "changed": true,
    "rc": 0,
    "stderr": "Shared connection to 192.168.2.12 closed.\r\n",
    "stderr_lines": [
        "Shared connection to 192.168.2.12 closed."
    ],
    "stdout": "hello\r\n0\r\n",
    "stdout_lines": [
        "hello",
        "0"
    ]
}

注意事项
通常来说，使用Ansible模块比推送脚本更好
当脚本执行时，ssh连接插件将通过-tt强制为tty分配。伪ttys没有stderr通道，所有stderr被发送到标准输出。如果需要标准输出和标准错误分离，请使用到copy**模块

2.3、文件相关模块

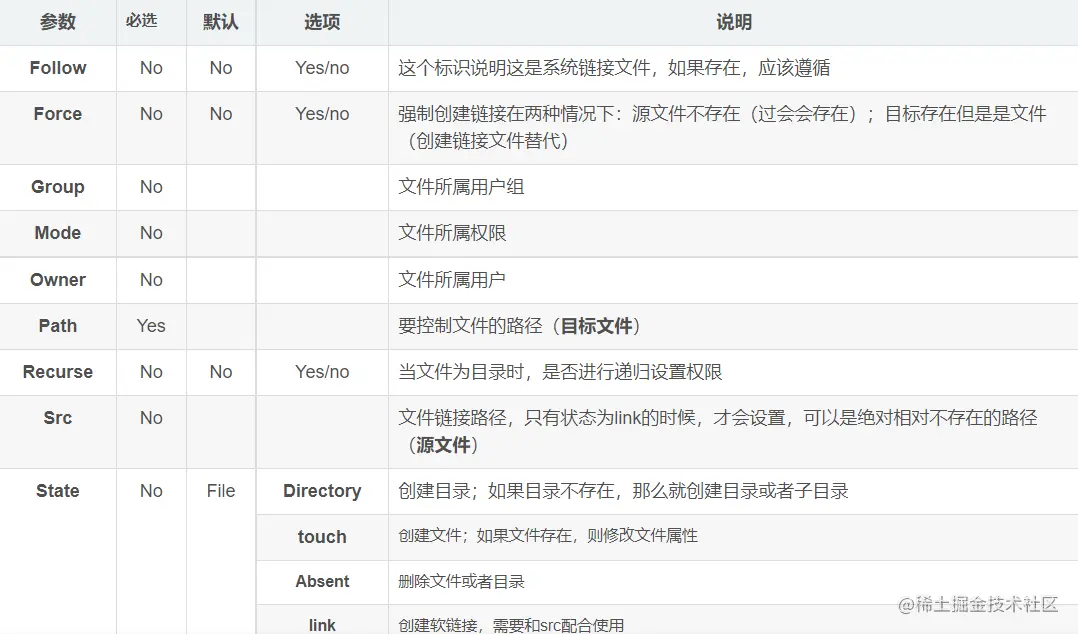

2.3.1、file模块

主要用来设置文件、链接、目录的属性，或者移除文件、链接、目录，很多其他的模块也会包含这种作用，例如copy，assemble和template

案例
创建目录

例：
[root@Ansible ~]# ansible node -m file -a 'path=/opt/a1 state=directory'
192.168.2.12 | SUCCESS => {
    "changed": true,
    "gid": 0,
    "group": "root",
    "mode": "0755",
    "owner": "root",
    "path": "/opt/a1",
    "size": 6,
    "state": "directory",
    "uid": 0
}
192.168.2.11 | SUCCESS => {
    "changed": true,
    "gid": 0,
    "group": "root",
    "mode": "0755",
    "owner": "root",
    "path": "/opt/a1",
    "size": 6,
    "state": "directory",
    "uid": 0
}

创建文件


[root@Ansible ~]# ansible node -m file -a 'path=/opt/a1/b.txt state=touch'
192.168.2.12 | SUCCESS => {
    "changed": true,
    "dest": "/opt/a1/b.txt",
    "gid": 0,
    "group": "root",
    "mode": "0644",
    "owner": "root",
    "size": 0,
    "state": "file",
    "uid": 0
}
192.168.2.11 | SUCCESS => {
    "changed": true,
    "dest": "/opt/a1/b.txt",
    "gid": 0,
    "group": "root",
    "mode": "0644",
    "owner": "root",
    "size": 0,
    "state": "file",
    "uid": 0
}

创建软连接


[root@Ansible ~]# ansible node -m file -a 'src=/opt/a1 path=/opt/a2 state=link'
192.168.2.12 | SUCCESS => {
    "changed": true,
    "dest": "/opt/a2",
    "gid": 0,
    "group": "root",
    "mode": "0777",
    "owner": "root",
    "size": 7,
    "src": "/opt/a1",
    "state": "link",
    "uid": 0
}
192.168.2.11 | SUCCESS => {
    "changed": true,
    "dest": "/opt/a2",
    "gid": 0,
    "group": "root",
    "mode": "0777",
    "owner": "root",
    "size": 7,
    "src": "/opt/a1",
    "state": "link",
    "uid": 0
}

删除文件


[root@Ansible ~]# ansible node -m file -a 'path=/opt/a1/b.txt state=absent'
192.168.2.12 | SUCCESS => {
    "changed": true,
    "path": "/opt/a1/b.txt",
    "state": "absent"
}
192.168.2.11 | SUCCESS => {
    "changed": true,
    "path": "/opt/a1/b.txt",
    "state": "absent"
}

创建文件的同时设置权限、属主及属组

创建目录时可以加 Recurse=yes 递归权限

[root@Ansible ~]# ansible node -m file -a 'path=/opt/a3 state=directory mode=0700 owner=root group=root'
192.168.2.11 | SUCCESS => {
    "changed": true,
    "gid": 0,
    "group": "root",
    "mode": "0700",
    "owner": "root",
    "path": "/opt/a3",
    "size": 6,
    "state": "directory",
    "uid": 0
}
192.168.2.12 | SUCCESS => {
    "changed": true,
    "gid": 0,
    "group": "root",
    "mode": "0700",
    "owner": "root",
    "path": "/opt/a3",
    "size": 6,
    "state": "directory",
    "uid": 0
}

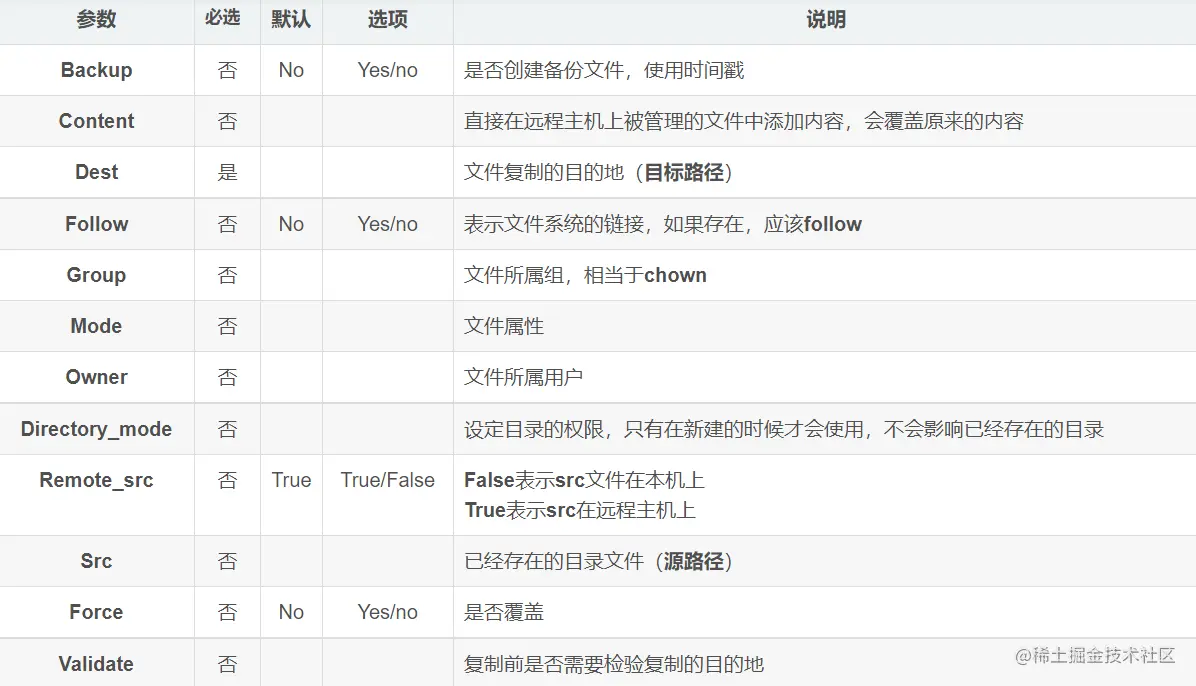

2.3.2、copy模块

copy模块是将本机中的文件复制到远程主机当中

案例
复制文件到node全部主机上并且更改名称


[root@Ansible ~]# ansible node -m copy -a 'src=/root/a.sh dest=/opt/111.sh'
192.168.2.12 | SUCCESS => {
    "changed": true,
    "checksum": "49ad15c79d5ff1bf72fa35791afcd5d20c473145",
    "dest": "/opt/111.sh",
    "gid": 0,
    "group": "root",
    "md5sum": "292f4beb94c0ebfea3fc9a09946b5146",
    "mode": "0644",
    "owner": "root",
    "size": 34,
    "src": "/root/.ansible/tmp/ansible-tmp-1642237704.23-9108012616361/source",
    "state": "file",
    "uid": 0
}
192.168.2.11 | SUCCESS => {
    "changed": true,
    "checksum": "49ad15c79d5ff1bf72fa35791afcd5d20c473145",
    "dest": "/opt/111.sh",
    "gid": 0,
    "group": "root",
    "md5sum": "292f4beb94c0ebfea3fc9a09946b5146",
    "mode": "0644",
    "owner": "root",
    "size": 34,
    "src": "/root/.ansible/tmp/ansible-tmp-1642237704.22-21993743293326/source",
    "state": "file",
    "uid": 0
}

复制文件到node全部主机上，并备份远程文件，安装时间信息备份文件（当更新文件内容后，重新copy时会用到）


[root@Ansible ~]# ansible node -m copy -a 'src=/root/a.sh dest=/opt/b.sh backup=yes'
192.168.2.12 | SUCCESS => {
    "changed": true,
    "checksum": "49ad15c79d5ff1bf72fa35791afcd5d20c473145",
    "dest": "/opt/b.sh",
    "gid": 0,
    "group": "root",
    "md5sum": "292f4beb94c0ebfea3fc9a09946b5146",
    "mode": "0644",
    "owner": "root",
    "size": 34,
    "src": "/root/.ansible/tmp/ansible-tmp-1642238178.85-258091301983785/source",
    "state": "file",
    "uid": 0
}
192.168.2.11 | SUCCESS => {
    "changed": true,
    "checksum": "49ad15c79d5ff1bf72fa35791afcd5d20c473145",
    "dest": "/opt/b.sh",
    "gid": 0,
    "group": "root",
    "md5sum": "292f4beb94c0ebfea3fc9a09946b5146",
    "mode": "0644",
    "owner": "root",
    "size": 34,
    "src": "/root/.ansible/tmp/ansible-tmp-1642238178.83-217262058785903/source",
    "state": "file",
    "uid": 0
}

远程node全部主机给b.sh输入内容


[root@Ansible ~]# ansible node -m copy -a 'content="#!/bin/bash\n echo `cat /etc/redhat-release`" dest=/opt/b.sh'
192.168.2.12 | SUCCESS => {
    "changed": true,
    "checksum": "5b1fc0719f1dd663fd4f272e1cfc35746354523b",
    "dest": "/opt/b.sh",
    "gid": 0,
    "group": "root",
    "md5sum": "def73fc62dda729e82b048762a6db9bf",
    "mode": "0644",
    "owner": "root",
    "size": 43,
    "src": "/root/.ansible/tmp/ansible-tmp-1642239607.91-135818175194165/source",
    "state": "file",
    "uid": 0
}
192.168.2.11 | SUCCESS => {
    "changed": true,
    "checksum": "5b1fc0719f1dd663fd4f272e1cfc35746354523b",
    "dest": "/opt/b.sh",
    "gid": 0,
    "group": "root",
    "md5sum": "def73fc62dda729e82b048762a6db9bf",
    "mode": "0644",
    "owner": "root",
    "size": 43,
    "src": "/root/.ansible/tmp/ansible-tmp-1642239607.9-236477129545120/source",
    "state": "file",
    "uid": 0
}

复制文件到node使用主机上并设置属主、属组和权限


[root@Ansible ~]# ansible node -m copy -a 'src=/root/a.sh dest=/opt/ccc mode=007 owner=root group=root'
192.168.2.11 | SUCCESS => {
    "changed": true,
    "checksum": "49ad15c79d5ff1bf72fa35791afcd5d20c473145",
    "dest": "/opt/ccc",
    "gid": 0,
    "group": "root",
    "md5sum": "292f4beb94c0ebfea3fc9a09946b5146",
    "mode": "0007",
    "owner": "root",
    "size": 34,
    "src": "/root/.ansible/tmp/ansible-tmp-1642240690.0-124480262597952/source",
    "state": "file",
    "uid": 0
}
192.168.2.12 | SUCCESS => {
    "changed": true,
    "checksum": "49ad15c79d5ff1bf72fa35791afcd5d20c473145",
    "dest": "/opt/ccc",
    "gid": 0,
    "group": "root",
    "md5sum": "292f4beb94c0ebfea3fc9a09946b5146",
    "mode": "0007",
    "owner": "root",
    "size": 34,
    "src": "/root/.ansible/tmp/ansible-tmp-1642240690.01-20937994286590/source",
    "state": "file",
    "uid": 0
}

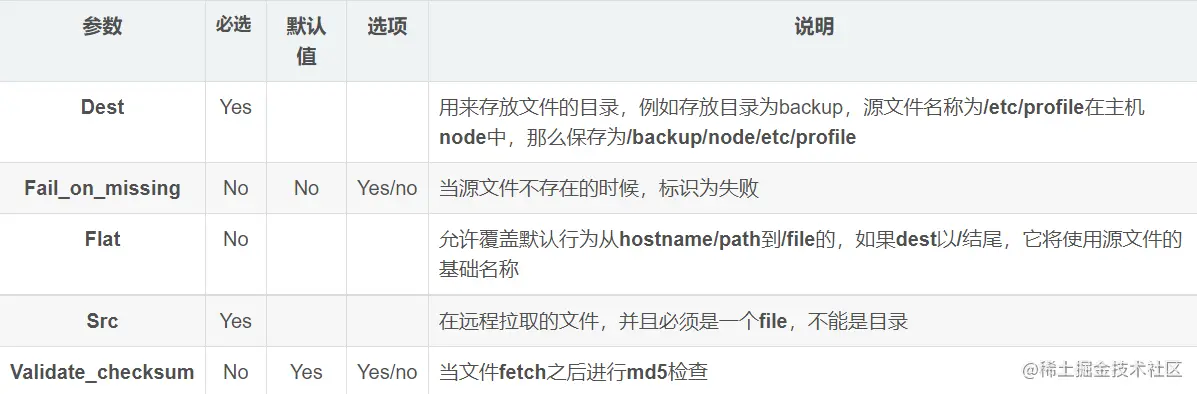

2.3.3、fetch模块

文件拉取模块主要是将远程主机中的文件拷贝到本机中，和copy模块的作用恰恰相反，并且在保存的时候使用hostname来进行保存，当文件不存在的时候，会出现错误，除非设置了选项fail_on_missing为yes

案例
从node全部主机上下载cron日志文件，默认会在Ansible服务器上创建一个目录，并存放


[root@Ansible ~]# ansible node -m fetch -a 'src=/var/log/cron dest=/opt'
192.168.2.11 | SUCCESS => {
    "changed": true,
    "checksum": "cf3981c767e6bd503cb313cbb16147cb437bf8bc",
    "dest": "/opt/192.168.2.11/var/log/cron",
    "md5sum": "6d7dcd7e36a11ba487c6789305779e4b",
    "remote_checksum": "cf3981c767e6bd503cb313cbb16147cb437bf8bc",
    "remote_md5sum": null
}
192.168.2.12 | SUCCESS => {
    "changed": true,
    "checksum": "5fdda945c6052ac5f8b0ab92a05adf782119d4e1",
    "dest": "/opt/192.168.2.12/var/log/cron",
    "md5sum": "8e65148c438e45345fd437ed8c4fb704",
    "remote_checksum": "5fdda945c6052ac5f8b0ab92a05adf782119d4e1",
    "remote_md5sum": null
}


[root@Ansible ~]# yum -y install tree
[root@Ansible ~]# tree /opt/192.168.2.1*
/opt/192.168.2.11
└── var
    └── log
        └── cron
/opt/192.168.2.12
└── var
    └── log
        └── cron

4 directories, 2 files

2.4、用户相关模块

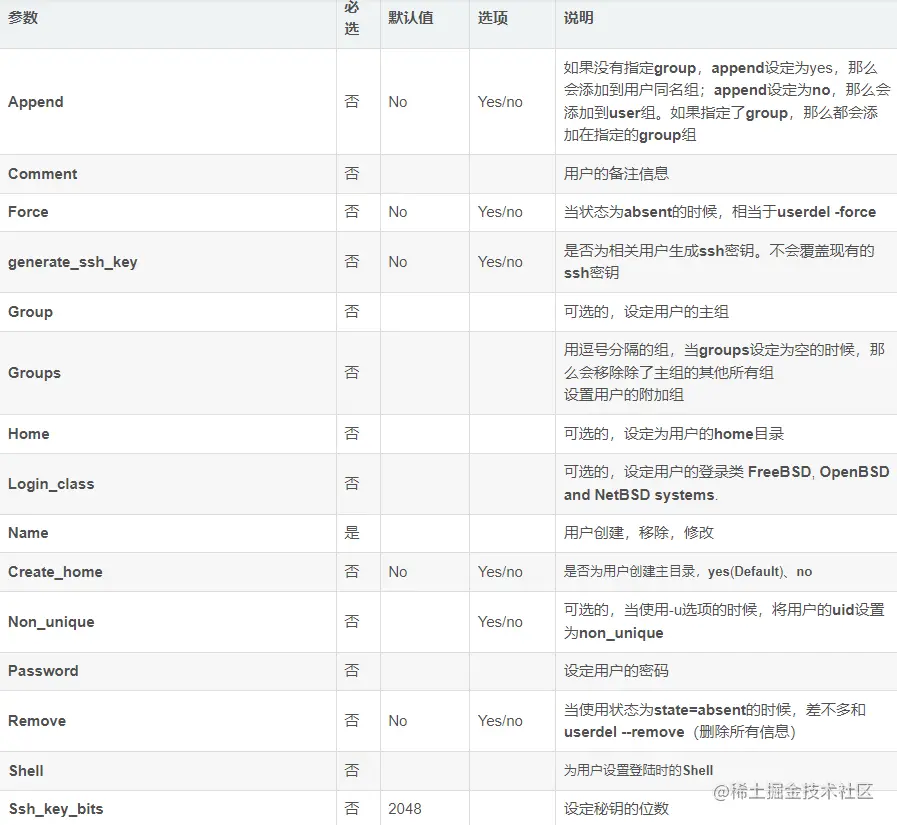

2.4.1、user模块

管理被控端用户

案例

创建用户


[root@Ansible ~]# ansible node -m user -a 'name=admin home=/home/admin uid=1007 group=root'
192.168.2.12 | SUCCESS => {
    "changed": true,
    "comment": "",
    "create_home": true,
    "group": 0,
    "home": "/home/admin",
    "name": "admin",
    "shell": "/bin/bash",
    "state": "present",
    "system": false,
    "uid": 1007
}
192.168.2.11 | SUCCESS => {
    "changed": true,
    "comment": "",
    "create_home": true,
    "group": 0,
    "home": "/home/admin",
    "name": "admin",
    "shell": "/bin/bash",
    "state": "present",
    "system": false,
    "uid": 1007
}


[root@Ansible ~]# ansible node -m shell -a 'id admin && ls -l /home'
192.168.2.11 | SUCCESS | rc=0 >>
uid=1007(admin) gid=0(root) 组=0(root)
总用量 0
drwx------ 2 admin root 62 1月  15 19:53 admin

192.168.2.12 | SUCCESS | rc=0 >>
uid=1007(admin) gid=0(root) 组=0(root)
总用量 0
drwx------ 2 admin root 62 1月  15 19:53 admin

创建用户，不创建家目录以及不让登录


[root@Ansible ~]# ansible node -m user -a 'name=aaa  uid=1007 shell=/bin/nologin uid=1008 create_home=no'
192.168.2.12 | SUCCESS => {
    "changed": true,
    "comment": "",
    "create_home": false,
    "group": 1008,
    "home": "/home/aaa",
    "name": "aaa",
    "shell": "/bin/nologin",
    "state": "present",
    "system": false,
    "uid": 1008
}
192.168.2.11 | SUCCESS => {
    "changed": true,
    "comment": "",
    "create_home": false,
    "group": 1008,
    "home": "/home/aaa",
    "name": "aaa",
    "shell": "/bin/nologin",
    "state": "present",
    "system": false,
    "uid": 1008
}

[root@Ansible ~]# ansible node -m shell -a 'id aaa && tail -1 /etc/passwd'
192.168.2.12 | SUCCESS | rc=0 >>
uid=1008(aaa) gid=1008(aaa) 组=1008(aaa)
aaa:x:1008:1008::/home/aaa:/bin/nologin

192.168.2.11 | SUCCESS | rc=0 >>
uid=1008(aaa) gid=1008(aaa) 组=1008(aaa)
aaa:x:1008:1008::/home/aaa:/bin/nologin

删除用户


[root@Ansible ~]# ansible node -m user -a 'name=aaa state=absent'
192.168.2.11 | SUCCESS => {
    "changed": true,
    "force": false,
    "name": "aaa",
    "remove": false,
    "state": "absent"
}
192.168.2.12 | SUCCESS => {
    "changed": true,
    "force": false,
    "name": "aaa",
    "remove": false,
    "state": "absent"
}

删除用户及家目录


[root@Ansible ~]# ansible node -m user -a 'name=admin state=absent remove=yes'
192.168.2.11 | SUCCESS => {
    "changed": true,
    "force": false,
    "name": "admin",
    "remove": true,
    "state": "absent"
}
192.168.2.12 | SUCCESS => {
    "changed": true,
    "force": false,
    "name": "admin",
    "remove": true,
    "state": "absent"
}

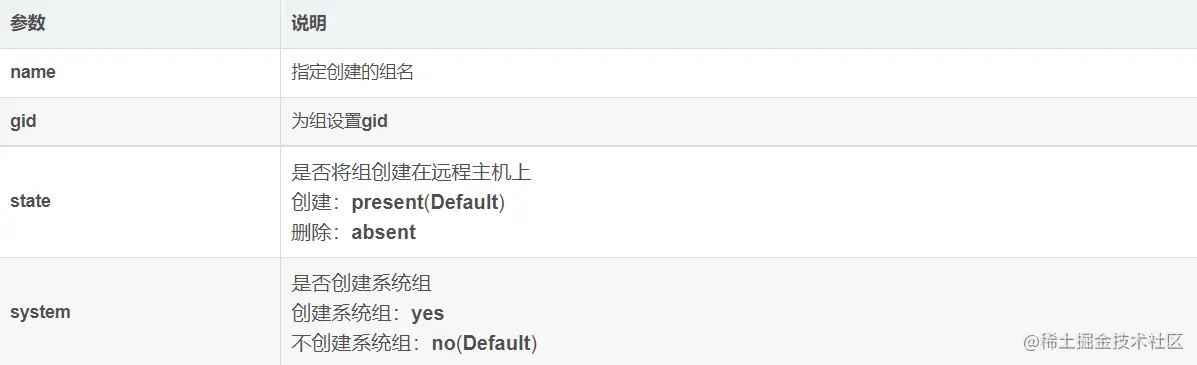

2.4.2、group模块

管理被控端用户组

案例
创建组


[root@Ansible ~]# ansible node -m group -a 'name=admin'
192.168.2.11 | SUCCESS => {
    "changed": true,
    "gid": 1000,
    "name": "admin",
    "state": "present",
    "system": false
}
192.168.2.12 | SUCCESS => {
    "changed": true,
    "gid": 1000,
    "name": "admin",
    "state": "present",
    "system": false
}

创建组并指定gid


[root@Ansible ~]# ansible node -m group -a 'name=aaa gid=1007'
192.168.2.12 | SUCCESS => {
    "changed": true,
    "gid": 1007,
    "name": "aaa",
    "state": "present",
    "system": false
}
192.168.2.11 | SUCCESS => {
    "changed": true,
    "gid": 1007,
    "name": "aaa",
    "state": "present",
    "system": false
}

删除组


[root@Ansible ~]# ansible node -m group -a 'name=aaa state=absent'
192.168.2.11 | SUCCESS => {
    "changed": true,
    "name": "aaa",
    "state": "absent"
}
192.168.2.12 | SUCCESS => {
    "changed": true,
    "name": "aaa",
    "state": "absent"
}

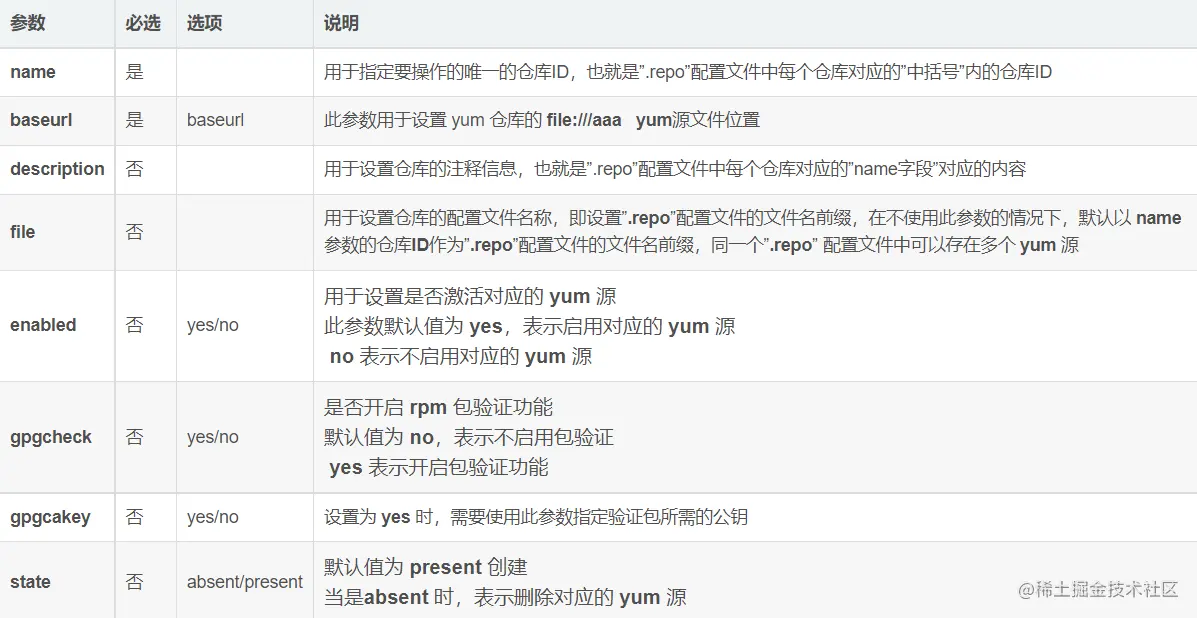

2.5、yum_repository模块

yum_repository 模块可以帮助我们管理远程主机上的 yum 仓库

案例
在node主机上设置ID为 node 的yum源


[root@Ansible ~]# ansible node -m yum_repository -a 'name=node description="node" baseurl=file:///node enabled=1 gpgcheck=no file=node'
192.168.2.12 | SUCCESS => {
    "changed": true,
    "repo": "node",
    "state": "present"
}
192.168.2.11 | SUCCESS => {
    "changed": true,
    "repo": "node",
    "state": "present"
}


——————————————————————————————————————————————

[root@node1 ~]# cat  /etc/yum.repos.d/node.repo
[node]
baseurl = file:///node
enabled = 1
gpgcheck = 0
name = node

设置自动挂载重启后生效；需要创建文件夹node


[root@Ansible ~]# ansible node -m mount -a "src=/dev/cdrom path=/node fstype=iso9660 state=present"
192.168.2.11 | SUCCESS => {
    "changed": true,
    "dump": "0",
    "fstab": "/etc/fstab",
    "fstype": "iso9660",
    "name": "/node",
    "opts": "defaults",
    "passno": "0",
    "src": "/dev/cdrom"
}
192.168.2.12 | SUCCESS => {
    "changed": true,
    "dump": "0",
    "fstab": "/etc/fstab",
    "fstype": "iso9660",
    "name": "/node",
    "opts": "defaults",
    "passno": "0",
    "src": "/dev/cdrom"
}

[root@node2 ~]# cat /etc/fstab
.......
................
/dev/mapper/centos-swap swap                    swap    defaults        0 0
/dev/sr0 /media/cdrom iso9660 defaults 0 0
/dev/cdrom /node iso9660 defaults 0 0

删除yum仓库及自动挂载


[root@Ansible ~]# ansible node -m yum_repository -a "file=node name=node state=absent"
192.168.2.11 | SUCCESS => {
    "changed": true,
    "repo": "node",
    "state": "absent"
}
192.168.2.12 | SUCCESS => {
    "changed": true,
    "repo": "node",
    "state": "absent"
}
——————————————————————————————————————————
[root@Ansible ~]# ansible node -m mount -a "src=/dev/cdrom path=/node fstype=iso9660 state=absent"
192.168.2.11 | SUCCESS => {
    "changed": true,
    "dump": "0",
    "fstab": "/etc/fstab",
    "fstype": "iso9660",
    "name": "/node",
    "opts": "defaults",
    "passno": "0",
    "src": "/dev/cdrom"
}
192.168.2.12 | SUCCESS => {
    "changed": true,
    "dump": "0",
    "fstab": "/etc/fstab",
    "fstype": "iso9660",
    "name": "/node",
    "opts": "defaults",
    "passno": "0",
    "src": "/dev/cdrom"
}

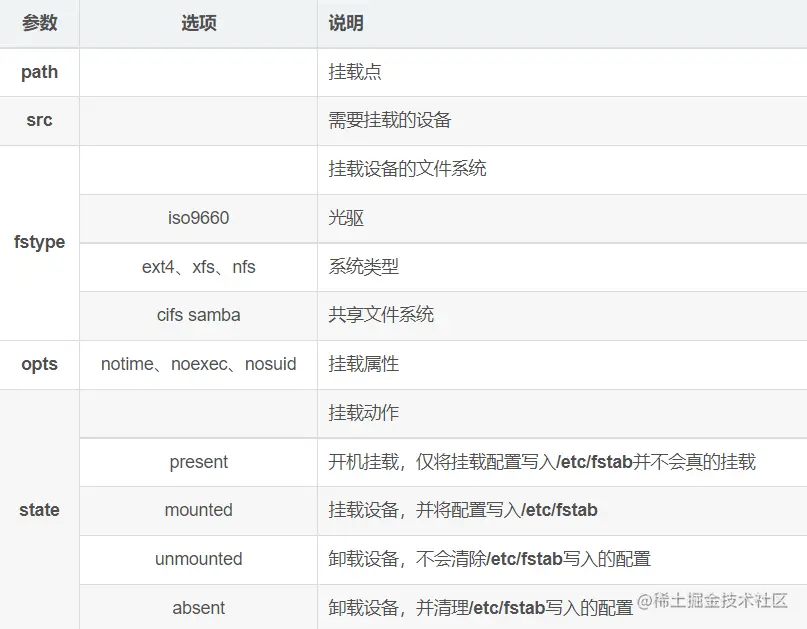

2.6、mount 模板

 语法：
ansible 主机组 -m mount -a "src=设备路径 path=挂载点 fstype=文件系统 state=挂载类型"

2.7、软件包相关模块

2.7.1、yum模块

yum模块可以在远程主机上通过yum源管理软件包的下载、安装、卸载、升级等操作

案例
列出所有已经安装的软件包


[root@Ansible ~]# ansible node1 -m yum -a 'list=installed'
192.168.2.11 | SUCCESS => {
    "changed": false,
    "results": [
        {
            "arch": "x86_64",
            "envra": "0:GeoIP-1.5.0-11.el7.x86_64",
            "epoch": "0",
            "name": "GeoIP",
            "release": "11.el7",
            "repo": "installed",
            "version": "1.5.0",
            "yumstate": "installed"
        },
        {
            "arch": "x86_64",
            "envra": "1:NetworkManager-libnm-1.8.0-9.el7.x86_64",
            "epoch": "1",
            "name": "NetworkManager-libnm",
            "release": "9.el7",
            "repo": "installed",
            "version": "1.8.0",
            "yumstate": "installed"
        },
..............................
.....................

列出所有的yum仓库


[root@Ansible ~]# ansible node1 -m yum -a 'list=repos'
192.168.2.11 | SUCCESS => {
    "changed": false,
    "results": [
        {
            "repoid": "aaa",
            "state": "enabled"
        }
    ]
}

安装httpd


[root@Ansible ~]# ansible node1 -m yum -a 'name=httpd state=installed'
192.168.2.11 | SUCCESS => {
    "changed": true,
    "msg": "",
    "rc": 0,
    "results": [
..................................
................
.........
————————————————————————————————————————————————————

[root@node1 ~]# netstat -anput| grep 80
tcp6       0      0 :::80                   :::*                    LISTEN      120725/httpd

卸载httpd


[root@Ansible ~]# ansible node1 -m yum -a 'name=httpd state=removed'
192.168.2.11 | SUCCESS => {
    "changed": true,
    "msg": "",
    "rc": 0,
    "results": [
.............................
...................
........
....

安装包组


[root@Ansible ~]# ansible node1 -m yum -a 'name="@Development Tools" state=installed'
192.168.2.11 | SUCCESS => {
    "changed": false,
    "msg": "Warning: Group development does not have any packages to install.\n",
    "rc": 0,
    "results": [
        "Loaded plugins: fastestmirror\nLoading mirror speeds from cached hostfile\nNothing to do\n"
    ]
}

2.7.2、Service systemd模块

服务模块，用于对服务的管理，进行启动、停止、重启以及设置开机自启等等

案例
启动crond服务，设置开机自启


[root@Ansible ~]# ansible node -m service -a 'name=crond state=started enabled=yes'
192.168.2.11 | SUCCESS => {
    "changed": false,
    "enabled": true,
    "name": "crond",
    "state": "started",
    "status": {
        "ActiveEnterTimestamp": "六 2022-01-15 00:37:32 CST",
        "ActiveEnterTimestampMonotonic": "2781295",
        "ActiveExitTimestampMonotonic": "0",
        "ActiveState": "active",
...................
..........
...

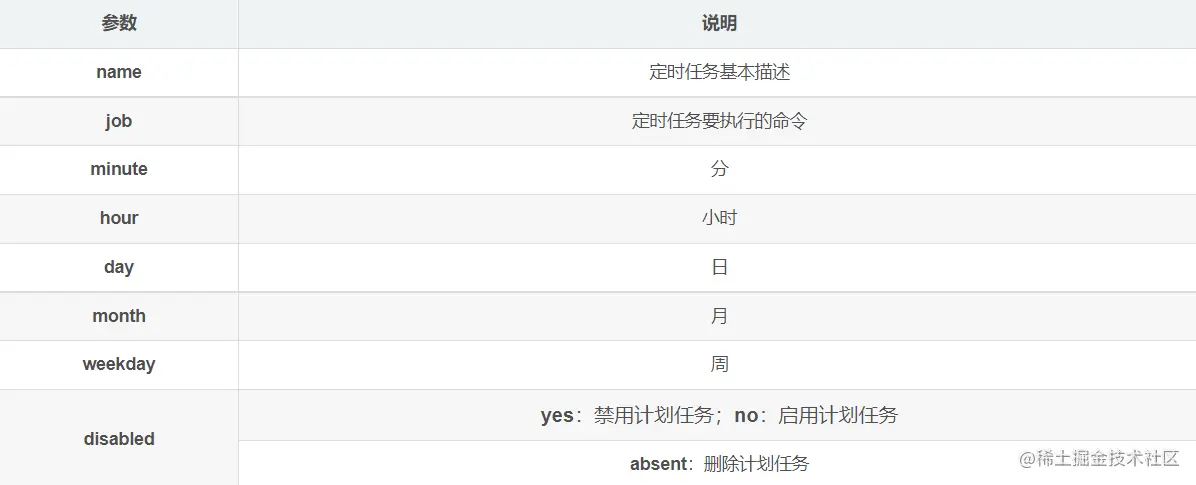

2.8、计划任务相关模块

管理被控端计划任务

创建计划任务添加描述


[root@Ansible ~]# ansible node -m cron -a 'name="测试" minute=* hour=* day=* month=* weekday=* job="/bin/bash/root/a.sh"'
192.168.2.11 | SUCCESS => {
    "changed": true,
    "envs": [],
    "jobs": [
        "测试"
    ]
}
192.168.2.12 | SUCCESS => {
    "changed": true,
    "envs": [],
    "jobs": [
        "测试"
    ]
}
————————————————————————————————————————————————————————————————
[root@Ansible ~]# ansible node -m shell -a 'crontab -l'
192.168.2.11 | SUCCESS | rc=0 >>
#Ansible: 测试
* * * * * /bin/bash/root/a.sh

192.168.2.12 | SUCCESS | rc=0 >>
#Ansible: 测试
* * * * * /bin/bash/root/a.sh

创建没有描述的计划任务


[root@Ansible ~]# ansible node -m cron -a 'job="/bin/bash/root/a.sh"'
192.168.2.11 | SUCCESS => {
    "changed": true,
    "envs": [],
    "jobs": [
        "测试",
        "None"
    ]
}
192.168.2.12 | SUCCESS => {
    "changed": true,
    "envs": [],
    "jobs": [
        "测试",
        "None"
    ]
}

删除计划任务


[root@Ansible ~]# ansible node -m cron -a 'name=None job="/bin/bash/root/b.sh" state=absent'
192.168.2.12 | SUCCESS => {
    "changed": true,
    "envs": [],
    "jobs": [
        "测试"
    ]
}
192.168.2.11 | SUCCESS => {
    "changed": true,
    "envs": [],
    "jobs": [
        "测试"
    ]
}

2.8、系统信息相关模块

setup模块
获取系统信
案例
查看系统所有的信息


[root@Ansible ~]# ansible node -m setup
192.168.2.11 | SUCCESS => {
    "ansible_facts": {
        "ansible_all_ipv4_addresses": [
            "192.168.2.11"
        ],
        "ansible_all_ipv6_addresses": [
            "fe80::d989:a794:f391:8d68"
        ],
        "ansible_apparmor": {
            "status": "disabled"
        },
........................
................
..........

使用参数 filter 进行过滤


[root@Ansible ~]# ansible node -m setup -a 'filter=ansible_all_ipv4_addresses'
192.168.2.11 | SUCCESS => {
    "ansible_facts": {
        "ansible_all_ipv4_addresses": [
            "192.168.2.11"
        ]
    },
    "changed": false
}
192.168.2.12 | SUCCESS => {
    "ansible_facts": {
        "ansible_all_ipv4_addresses": [
            "192.168.2.12"
        ]
    },
    "changed": false
}

————————————————————       常用过滤参数

ansible_all_ipv4_addresses            #仅显示ipv4的信息
ansible_date_time                     #系统时间
ansible_devices                       #仅显示磁盘设备信息
ansible_distribution                  #显示是什么系统，例：centos,suse等
ansible_distribution_major_version    #显示是系统主版本
ansible_distribution_version          #仅显示系统版本
ansible_machine                       #显示系统类型，例：32位，还是64位
ansible_eth33                         #仅显示eth0的信息
ansible_domain                        #系统所在域
ansible_fqdn                          #系统的主机名
ansible_hostname                      #显示主机名，简写
ansible_kernel                        #仅显示内核版本
ansible_lvm                           #显示lvm相关信息
ansible_memtotal_mb                   #显示系统总内存
ansible_memfree_mb                    #显示可用系统内存
ansible_memory_mb                     #详细显示内存情况
ansible_swaptotal_mb                  #显示总的swap内存
ansible_swapfree_mb                   #显示swap内存的可用内存
ansible_mounts                        #显示系统磁盘挂载情况
ansible_processor                     #显示cpu个数(具体显示每个cpu的型号)
ansible_processor_count               #cpu的颗数
ansible_processor_vcpus               #显示cpu个数(只显示总的个数)
ansible_python_version                #显示python版本

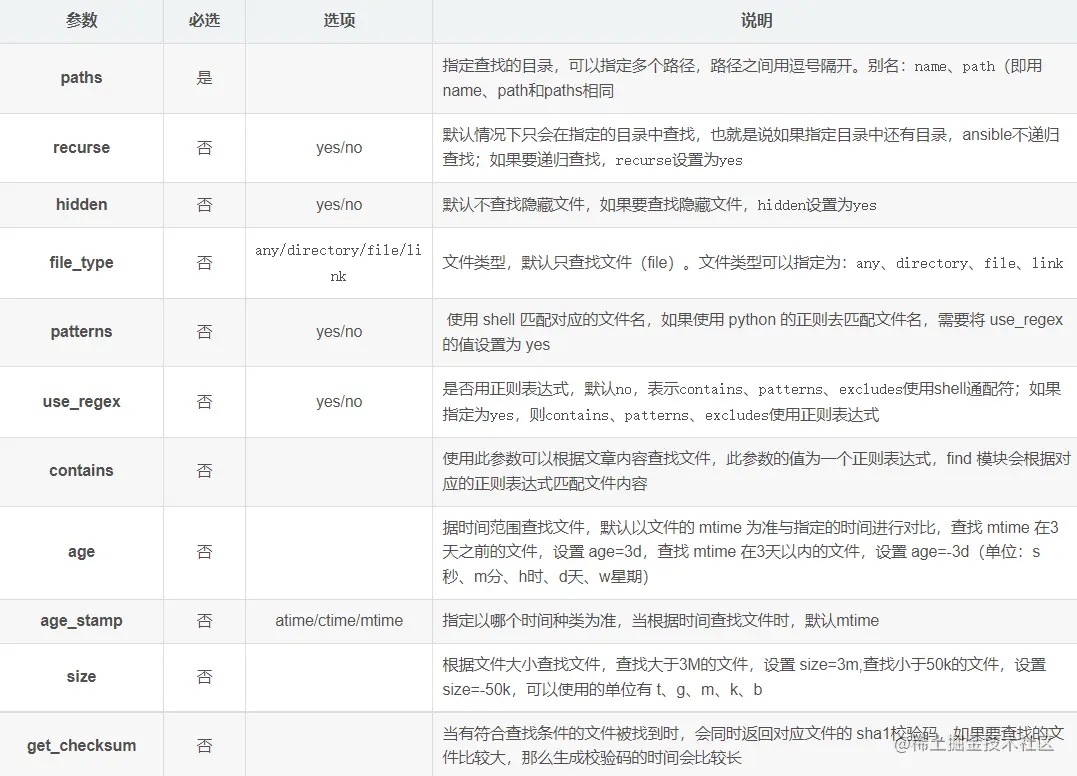

2.9、find模块

find 模块在被管理主机中查找符合条件的文件

案例
查找 /etc 目录中进行查找文件内容包含 abc 字符串的文件（隐藏文件会被忽略，不进行递归查询）


[root@Ansible ~]# ansible node -m find -a 'paths=/etc contains=".*abc.*"'
192.168.2.11 | SUCCESS => {
    "changed": false,
    "examined": 186,
    "files": [
        {
            "atime": 1642316881.60291,
            "ctime": 1635178093.345999,
            "dev": 64768,
..................
..........
.....

查找 /etc 目录以及子目录中进行查找文件内容包含 abc 字符串的文件（隐藏文件会被忽略）


[root@Ansible ~]# ansible node -m find -a 'paths=/etc contains=".*abc.*" recurse=yes'
192.168.2.11 | SUCCESS => {
    "changed": false,
    "examined": 2366,
    "files": [
        {
            "atime": 1642316881.60291,
            "ctime": 1635178093.345999,
            "dev": 64768,
            "gid": 0,
            "gr_name": "root",
            "inode": 67161041,
            "isblk": false,
            "ischr": false,
            "isdir": false,
................................
.........................
............
..

在node主机的 /root 目录在查找以 .sh 结尾的，包含隐藏文件，不包含目录和其他文件类型，不进行递归查询


[root@Ansible ~]# ansible node -m find -a 'paths=/root/ patterns="*.sh" hidden=yes'
192.168.2.11 | SUCCESS => {
    "changed": false,
    "examined": 13,
    "files": [
        {
            "atime": 1635178467.2444892,
            "ctime": 1635178467.2424893,
            "dev": 64768,
            "gid": 0,
            "gr_name": "root",
            "inode": 100663377,
            "isblk": false,
            "ischr": false,
            "isdir": false,
            "isfifo": false,
            "isgid": false,
            "islnk": false,
..............................
.................
........
...

在node主机的 /root 目录在查找以 .sh 结尾的，包含隐藏文件，包含目录和其他文件类型，不进行递归查询


[root@Ansible ~]# ansible node -m find -a 'paths=/root/ patterns="*.sh" hidden=yes file_type=any'
192.168.2.12 | SUCCESS => {
    "changed": false,
    "examined": 13,
    "files": [
        {
            "atime": 1635178606.2782254,
            "ctime": 1635178606.2772255,
            "dev": 64768,
            "gid": 0,
            "gr_name": "root",
            "inode": 100663377,
            "isblk": false,
            "ischr": false,
            "isdir": false,
            "isfifo": false,
            "isgid": false,
..........................
.............
.......

在node主机的 /root 目录中以及子目录中进行查找 Mtime 在1天以内的文件，不包含隐藏文件，不包含目录或软连接等文件类型


[root@Ansible ~]# ansible node -m find -a 'paths=/root/ age=-1d recurse=yes'
192.168.2.11 | SUCCESS => {
    "changed": false,
    "examined": 37,
    "files": [
        {
            "atime": 1642240588.4289799,
            "ctime": 1642240588.39398,
            "dev": 64768,
            "gid": 0,
            "gr_name": "root",
            "inode": 67554039,
            "isblk": false,
            "ischr": false,
            "isdir": false,
            "isfifo": false,
................................
....................
...........

在node主机的 / 目录中以及子目录中进行查找大于 2g 的文件，不包含隐藏文件，不包含目录或软连接等文件类型


[root@Ansible ~]# ansible node -m find -a 'paths=/ size=2g recurse=yes'
192.168.2.11 | SUCCESS => {
    "changed": false,
    "examined": 137218,
    "files": [
        {
            "atime": 1642323085.108872,
            "ctime": 1642323085.108872,
            "dev": 3,
            "gid": 0,
            "gr_name": "root",
            "inode": 4026532033,
            "isblk": false,
            "ischr": false,
            "isdir": false,
            "isfifo": false,
            "isgid": false,
            "islnk": false,
            "isreg": true,
            "issock": false,
            "isuid": false,
......................
.................
.........

在node主机的 /root 目录中以及子目录中进行查找以 .sh 结尾的文件，并且返回符合条件的shal 校验码，包含隐藏文件


[root@Ansible ~]# ansible node -m find -a 'paths=/root patterns=*.sh get_checksum=yes hidden=yes recurse=yes'
192.168.2.11 | SUCCESS => {
    "changed": false,
    "examined": 37,
    "files": [
        {
            "atime": 1635178467.2444892,
            "checksum": "6cc4f696bdc8ff528688cc945b9b50634cf37073",
            "ctime": 1635178467.2424893,
            "dev": 64768,
            "gid": 0,
            "gr_name": "root",
            "inode": 100663377,
            "isblk": false,
            "ischr": false,
            "isdir": false,
            "isfifo": false,
            "isgid": false,
            "islnk": false,
            "isreg": true,
            "issock": false,
............................................
........................
..........

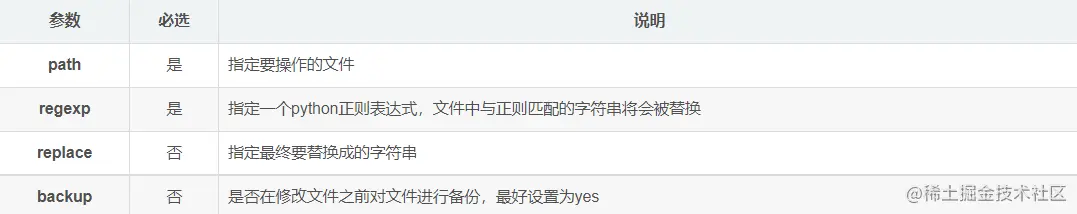

2.10、replace模块

replace模块可以根据我们指定的正则表达式替换文件中的字符串，文件中所有被正则匹配到的字符串都会被替换

案例

  在节点 创建文件
[root@node1 ~]# vim aaa.txt
ccc aaa bbb
abc abc abc
aaa ccc bbb
123456789abc

保存

在node 主机中 /root/aaa.txt 文件中的 abc 全部替换成 ABC


[root@Ansible ~]# ansible node -m replace -a 'path=/root/aaa.txt regexp="abc" replace="ABC"'
192.168.2.11 | SUCCESS => {
    "changed": true,
    "msg": "4 replacements made"
}
192.168.2.12 | SUCCESS => {
    "changed": true,
    "msg": "4 replacements made"
}
————————————————————————————————————————————
[root@node1 ~]# cat aaa.txt
ccc aaa bbb
ABC ABC ABC
aaa ccc bbb
123456789ABC

在node 主机中 /root/aaa.txt 文件中的 ABC 全部替换成 abc ，在操作前进行备份


[root@Ansible ~]# ansible node -m replace -a 'path=/root/aaa.txt regexp="ABC" replace="abc" backup=yes'
192.168.2.12 | SUCCESS => {
    "backup_file": "/root/aaa.txt.34904.2022-01-16@17:21:42~",
    "changed": true,
    "msg": "4 replacements made"
}
192.168.2.11 | SUCCESS => {
    "backup_file": "/root/aaa.txt.40720.2022-01-16@17:21:42~",
    "changed": true,
    "msg": "4 replacements made"
}
————————————————————————————————————————————————————————
[root@node1 ~]# ls aaa*
aaa.txt  aaa.txt.40720.2022-01-16@17:21:42~
[root@node1 ~]# cat aaa*
ccc aaa bbb
abc abc abc
aaa ccc bbb
123456789abc
ccc aaa bbb
ABC ABC ABC
aaa ccc bbb
123456789ABC

2.11、script模块

script 模块可以帮助我们在远程主机上执行 ansible 管理主机上的脚本，也就是说，脚本一直存在于 ansible 管理主机本地，不需要手动拷贝到远程主机后再执行

ansible 的脚本在 node 主机上进行执行，在执行前先进入 /opt 目录中


[root@Ansible ~]# ansible node -m script -a 'chdir=/opt /root/a.sh'
192.168.2.11 | SUCCESS => {
    "changed": true,
    "rc": 0,
    "stderr": "Shared connection to 192.168.2.11 closed.\r\n",
    "stderr_lines": [
        "Shared connection to 192.168.2.11 closed."
    ],
    "stdout": "hello\r\n0\r\n",
    "stdout_lines": [
        "hello",
        "0"
    ]
}
192.168.2.12 | SUCCESS => {
    "changed": true,
    "rc": 0,
    "stderr": "Shared connection to 192.168.2.12 closed.\r\n",
    "stderr_lines": [
        "Shared connection to 192.168.2.12 closed."
    ],
    "stdout": "hello\r\n0\r\n",
    "stdout_lines": [
        "hello",
        "0"
    ]
}

在node主机中 /root/aaa.txt 文件如果已经存在，ansible主机的 /root/a.sh 脚本就不会执行，不存在就执行


[root@Ansible ~]# ansible node -m script -a 'creates=/root/aaa.txt /root/a.sh'
192.168.2.11 | SKIPPED
192.168.2.12 | SUCCESS => {
    "changed": true,
    "rc": 0,
    "stderr": "Shared connection to 192.168.2.12 closed.\r\n",
    "stderr_lines": [
        "Shared connection to 192.168.2.12 closed."
    ],
    "stdout": "hello\r\n0\r\n",
    "stdout_lines": [
        "hello",
        "0"
    ]
}

在node主机中 /root/aaa.txt 文件如果存在，ansible主机的 /root/a.sh 脚本就会执行，不存在就不执行


[root@Ansible ~]# ansible node -m script -a 'removes=/root/aaa.txt /root/a.sh'
192.168.2.12 | SKIPPED
192.168.2.11 | SUCCESS => {
    "changed": true,
    "rc": 0,
    "stderr": "Shared connection to 192.168.2.11 closed.\r\n",
    "stderr_lines": [
        "Shared connection to 192.168.2.11 closed."
    ],
    "stdout": "hello\r\n0\r\n",
    "stdout_lines": [
        "hello",
        "0"
    ]
}

Ansible自动化运维工具

简介
