记录一次WebRTC iOS的源码编译过程1. Install depot_tools Clone the /depot

1. Install depot_tools

Clone the /depot_tools/ repository:

$ git clone https://chromium.googlesource.com/chromium/tools/depot_tools.git

2. Add path

$ export PATH=/path/to/depot_tools:$PATH

Cmd+ Shift+ .在Finder中显示隐藏的文件,找到~/.zshrc,如果没有的话新建一个如果depot_tools位于~/depot_tools

export PATH=$HOME/depot_tools:$PATH

3. 修改Python3 BIN

修改~/depot_tools/bootstrap_python3:

-BOOTSTRAP_PYTHON_BIN="${BOOTSTRAP_PATH}/python3/bin/python3"
+BOOTSTRAP_PYTHON_BIN="$/usr/bin/python3"

4. Get source code

fetch —nohooks webrtc_ios

如果terminal没有反应可能是在下载中

5. vpython3报错

错误：找不到.cipd_bin/vpython3文件 :

❯ fetch --nohooks webrtc_ios
/Users/admin/Projects/depot_tools/vpython3: line 52: /Users/admin/Projects/depot_tools/.cipd_bin/vpython3: No such file or directory
/Users/admin/Projects/depot_tools/vpython3: line 52: exec: /Users/admin/Projects/depot_tools/.cipd_bin/vpython3: cannot execute: No such file or directory

解决方案: 在终端执行update_depot_tools命令如果遇到update也报错：

fatal: unable to access 'https://chromium.googlesource.com/chromium/tools/depot_tools.git/': Failed to connect to chromium.googlesource.com port 443 after 75080 ms: Operation timed out

说明网络不通，ping下chromium.googlesource.com看看，需要科学上网工具

基本上折腾到这里，应该是可以进入gclient sync阶段了

6. GN Project files生成

# debug build for 64-bit iOS
gn gen out/ios_64 --args='target_os="ios" target_cpu="arm64"'

# debug build for simulator
gn gen out/ios_sim --args='target_os="ios" target_cpu="x64"'

根据文档选择自己的目标架构编译，源码可能无法编译通过，可能会报这个错：

ERROR at //webrtc.gni:504:32: Assignment had no effect.
        xctest_module_target = "//test:google_test_runner_objc"
                               ^-------------------------------
You set the variable "xctest_module_target" here and it was unused before it went
out of scope.
See //testing/test.gni:706:5: whence it was called.
    target(ios_test_target_type, _test_target) {
    ^-------------------------------------------
See //webrtc.gni:463:3: whence it was called.
  test(target_name) {
  ^------------------
See //BUILD.gn:550:3: whence it was called.
  rtc_test("rtc_unittests") {
  ^--------------------------

解决方案：

暴力注释

注释掉webrtc.gni第504行：

- xctest_module_target = "//test:google_test_runner_objc"
+# xctest_module_target = "//test:google_test_runner_objc"

加上`rtc_include_tests=false`再compile：(注意要写到单引号前面)

#debug build for 64-bit iOS
gn gen out/ios_64 --args='target_os="ios" target_cpu="arm64" rtc_include_tests=false'

# debug build for simulator
gn gen out/ios_sim --args='target_os="ios" target_cpu="x64" rtc_include_tests=false'

基本上折腾到这里是能compile通过了：

❯ gn gen out/ios_sim --args='target_os="ios" target_cpu="x64"'                                                                                                  ⏎
Done. Made 1958 targets from 278 files in 2348ms

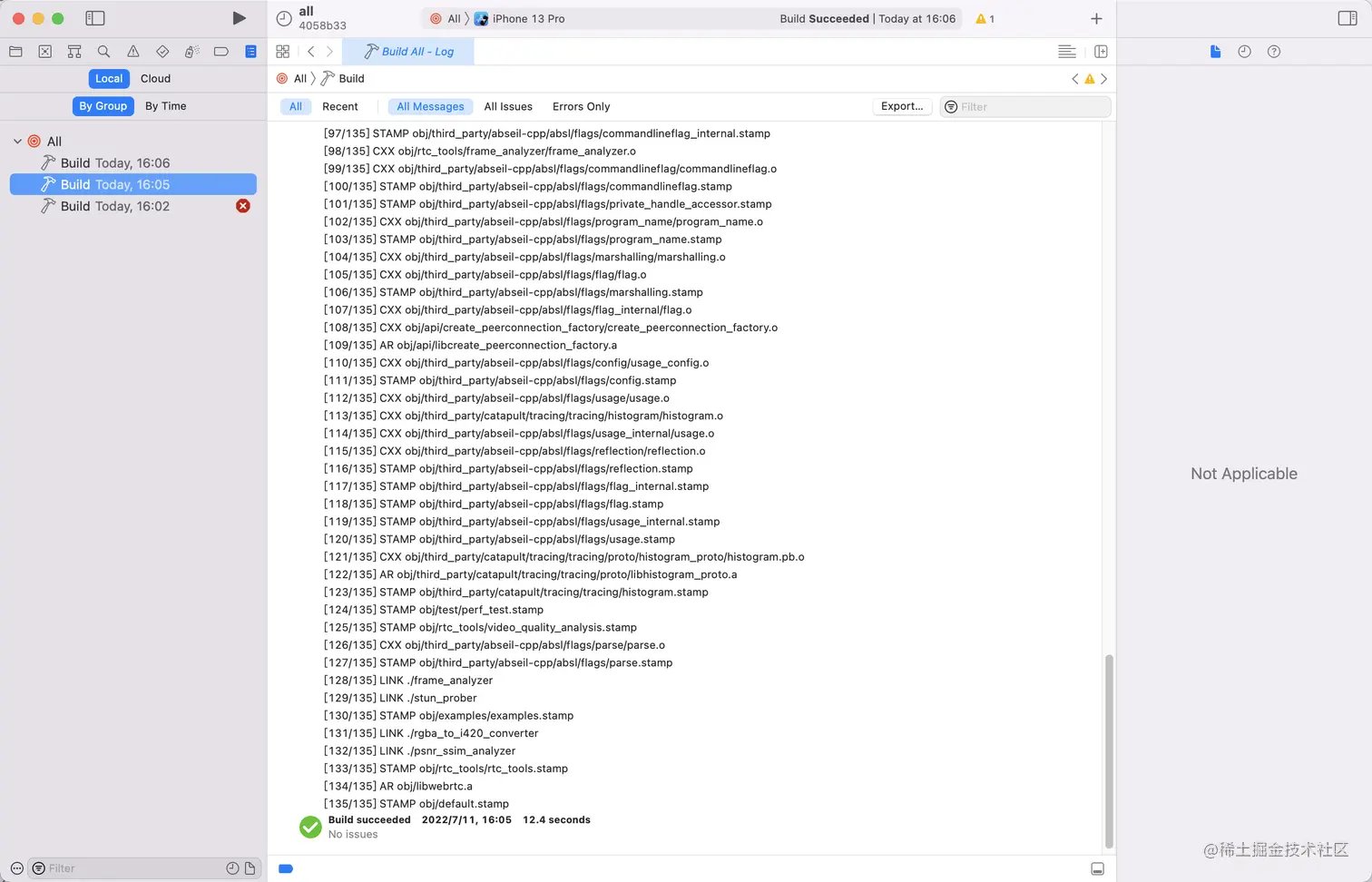

8.Ninja comple

ninja -C out/ios_sim AppRTCMobile

这一步基本上没啥问题，4000多个文件，其实还是算少的，编下来挺快hhh(别问我问什么4000多个文件还觉得少)，但是我发现我需要的是在xcode中运行，所以……

9.通过Xcode运行

最后发现自己遗漏了一个问题，就是我还是希望使用xcode运行的，所以得用以下方式，整体上是在上面的gn compile命令里加了一个--ide=xcode :

gn gen out/ios_sim --args='target_os="ios" target_cpu="x64" rtc_include_tests=false' --ide=xcode
open -a Xcode.app out/ios_sim/all.xcworkspace

经过前面的折腾，这一步非常顺利：

❯ gn gen out/ios_sim --args='target_os="ios" target_cpu="x64" rtc_include_tests=false' --ide=xcode
open -a Xcode.app out/ios/all.xcworkspace
Generating Xcode projects took 82ms
Done. Made 1315 targets from 253 files in 1574ms
The file /Users/admin/src/out/ios_sim/all.xcworkspace does not exist.

工程找不到，看了下可能是工程结构有所改变，.xcworkspace在out中估计已经被移除了，改成.xcodeproj是合理的

gn gen out/ios_sim --args='target_os="ios" target_cpu="x64" rtc_include_tests=false' --ide=xcode
open -a Xcode.app out/ios_sim/all.xcodeproj

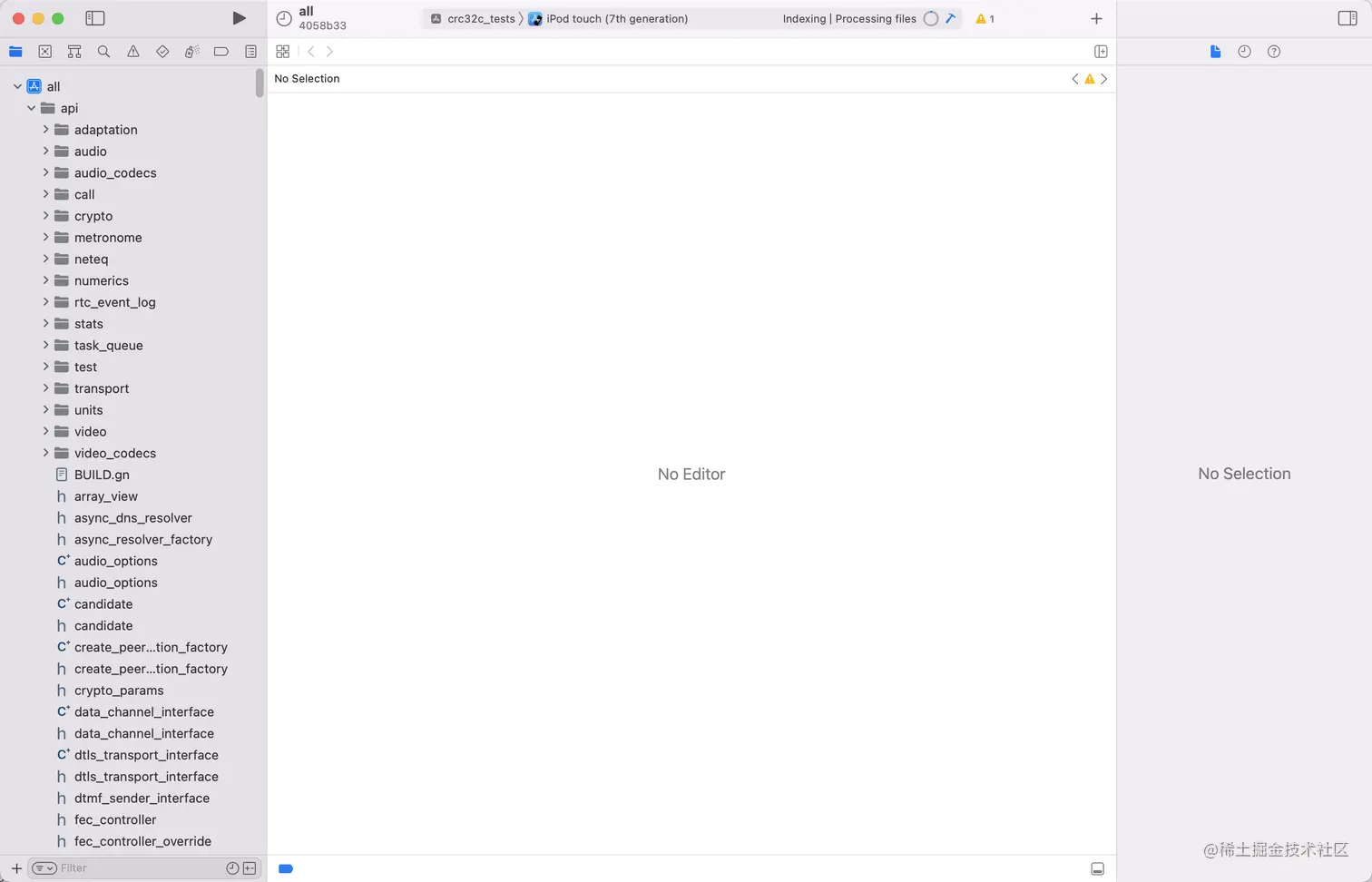

加上这两行很快就可以打开工程了：

10.运行

第一次run有一个Legacy Build System的error，这个问题很好解决，我就不说了，改完以后运行了一下成功了

问题不大，接下来研究下demo怎么运行
