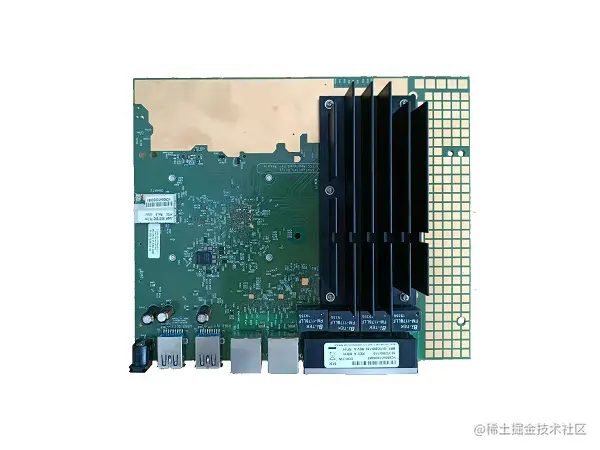

wallys//Support WiFi 6E Card,802.11ax,QCN9074 IPQ8072 4x4 2.4G & 5G

wallys//Support WiFi 6E Card,802.11ax,QCN9074 IPQ8072 4x4 2.4G & 5G ■ Qualcomm Atheros [IPQ8072A]AR Quad Core CPU

■ On-board 5GHz radio, up to 2475 Mbps physical data rate 8 MB NOR Flash, 256MB NAND Flash

■ On-board 2.4GHz radio, up to 1147Mbps physical data rate

■ Support 802.11ac TX Beamforming

■ Support 802.11ac/[802.11ax] MU-MIMO DL and UL

■ Support OFDMA DL and UL

■ Tri-band support with 5G SBS (4x4/5GHz ) + 4x4/2.4GHz

■ Supports Dynamic Frequency Selection (DFS)

• \

• Symbol****	Parameter****
  CPU	Qualcomm Atheros Quad Core ARM Cortex 64-bit A53 Processor IPQ8072A 2.2GHz CPU
  CPU Frequency	Derived from Qualcomm Atheros AP.HK09
  System Memory	1x 512MB, DDR4 2400MHz 16-bit interface
  Frequency Range	2.4122.472GHz, 5.1505.825GHz
  MiniPCIe Slot	1x MiniPCIe Slot with PCIe 3.0
  Modulation Techniques	OFDMA: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
  Environmental Temperature	Operating: -20ºC to 70ºC, Storage: -40ºC to 90ºC
  Flash	NOR Flash: 8 MB NAND Flash: 256MB
  Wireless	On-board 4x4 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 17dBm per chain On-board 4x4 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 17dBm per chain 8x U.FL Connectors
  Reset Buttons	1x S/W Reset Button
  DC Jack Input	1x DC Jack Connector: 12V
  Interface	4x 1Gbps Ethernet Port, 2x 2.5Gbps Ethernet Port 2x USB 3.0 Port 1x JTAG 20 Pin Connector 1x Serial Port 4 Pin Connector
  LED	2x RGB LED Indicators
  Power Consumption	TBD

• \

• \
