前端监控1：分析对标项目源码

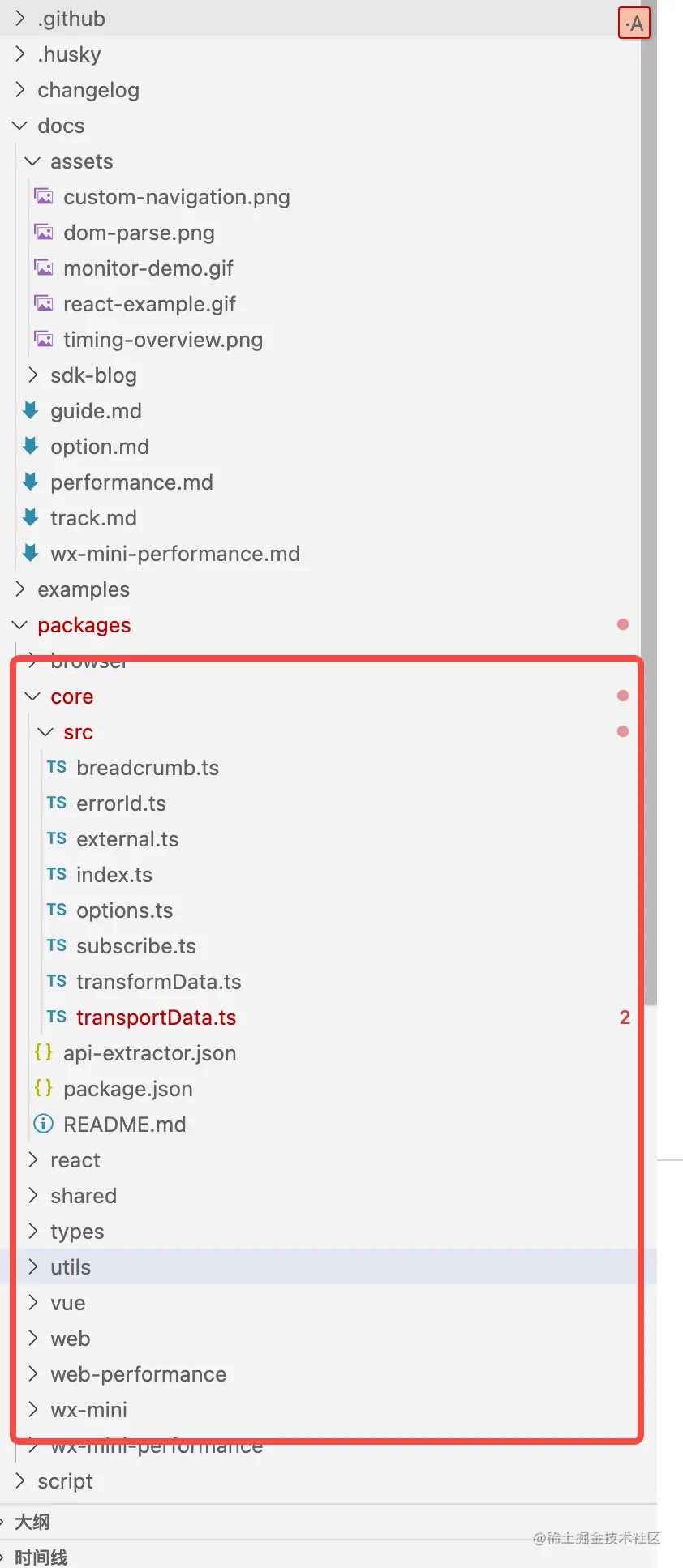

文件结构

项目地址：github.com/clouDr-f2e/…

Core 部分是主要的代码逻辑

代码

拦截错误信息

1. Web错误信息

通过重写原生js事件拿到错误信息，重写 XMLHttpRequest 的 open，send 以及 fetch 事件来截取借口信息。

/**
 *
 * 重写对象上面的某个属性
 * ../param source 需要被重写的对象
 * ../param name 需要被重写对象的key
 * ../param replacement 以原有的函数作为参数，执行并重写原有函数
 * ../param isForced 是否强制重写（可能原先没有该属性）
 * ../returns void
 */
export function replaceOld(source: IAnyObject, name: string, replacement: (...args: any[]) => any, isForced = false): void {
  if (source === undefined) return
  if (name in source || isForced) {
    const original = source[name]
    const wrapped = replacement(original)
    if (typeof wrapped === 'function') {
      source[name] = wrapped
    }
  }
}

open

  const originalXhrProto = XMLHttpRequest.prototype
  replaceOld(originalXhrProto, 'open', (originalOpen: voidFun): voidFun => {
    return function (this: MITOXMLHttpRequest, ...args: any[]): void {
      this.mito_xhr = {
        method: variableTypeDetection.isString(args[0]) ? args[0].toUpperCase() : args[0],
        url: args[1],
        sTime: getTimestamp(),
        type: HTTPTYPE.XHR
      }
      originalOpen.apply(this, args)
    }
  })

send

replaceOld(originalXhrProto, 'send', (originalSend: voidFun): voidFun => {
    return function (this: MITOXMLHttpRequest, ...args: any[]): void {
      const { method, url } = this.mito_xhr
      setTraceId(url, (headerFieldName: string, traceId: string) => {
        this.mito_xhr.traceId = traceId
        this.setRequestHeader(headerFieldName, traceId)
      })
      options.beforeAppAjaxSend && options.beforeAppAjaxSend({ method, url }, this)
      on(this, 'loadend', function (this: MITOXMLHttpRequest) {
        if ((method === EMethods.Post && transportData.isSdkTransportUrl(url)) || isFilterHttpUrl(url)) return
        const { responseType, response, status } = this
        this.mito_xhr.reqData = args[0]
        const eTime = getTimestamp()
        this.mito_xhr.time = this.mito_xhr.sTime
        this.mito_xhr.status = status
        if (['', 'json', 'text'].indexOf(responseType) !== -1) {
          this.mito_xhr.responseText = typeof response === 'object' ? JSON.stringify(response) : response
        }
        this.mito_xhr.elapsedTime = eTime - this.mito_xhr.sTime
        triggerHandlers(EVENTTYPES.XHR, this.mito_xhr)
      })
      originalSend.apply(this, args)
    }
  })

fetch

replaceOld(_global, EVENTTYPES.FETCH, (originalFetch: voidFun) => {
    return function (url: string, config: Partial<Request> = {}): void {
      const sTime = getTimestamp()
      const method = (config && config.method) || 'GET'
      let handlerData: MITOHttp = {
        type: HTTPTYPE.FETCH,
        method,
        reqData: config && config.body,
        url
      }
      const headers = new Headers(config.headers || {})
      Object.assign(headers, {
        setRequestHeader: headers.set
      })
      setTraceId(url, (headerFieldName: string, traceId: string) => {
        handlerData.traceId = traceId
        headers.set(headerFieldName, traceId)
      })
      options.beforeAppAjaxSend && options.beforeAppAjaxSend({ method, url }, headers)
      config = {
        ...config,
        headers
      }

      return originalFetch.apply(_global, [url, config]).then(
        (res: Response) => {
          const tempRes = res.clone()
          const eTime = getTimestamp()
          handlerData = {
            ...handlerData,
            elapsedTime: eTime - sTime,
            status: tempRes.status,
            // statusText: tempRes.statusText,
            time: sTime
          }
          tempRes.text().then((data) => {
            if (method === EMethods.Post && transportData.isSdkTransportUrl(url)) return
            if (isFilterHttpUrl(url)) return
            handlerData.responseText = tempRes.status > HTTP_CODE.UNAUTHORIZED && data
            triggerHandlers(EVENTTYPES.FETCH, handlerData)
          })
          return res
        },
        (err: Error) => {
          const eTime = getTimestamp()
          if (method === EMethods.Post && transportData.isSdkTransportUrl(url)) return
          if (isFilterHttpUrl(url)) return
          handlerData = {
            ...handlerData,
            elapsedTime: eTime - sTime,
            status: 0,
            // statusText: err.name + err.message,
            time: sTime
          }
          triggerHandlers(EVENTTYPES.FETCH, handlerData)
          throw err
        }
      )
    }
  })

2. js代码错误 && 资源错误

当Promise 被 reject 且没有 reject 处理器的时候，会触发 unhandledrejection 事件

/**
   * 处理window的error的监听回到
   */
  handleError(errorEvent: ErrorEvent) {
    const target = errorEvent.target as ResourceErrorTarget
    if (target.localName) {
      // 资源加载错误 提取有用数据
      const data = resourceTransform(errorEvent.target as ResourceErrorTarget)
      breadcrumb.push({
        type: BREADCRUMBTYPES.RESOURCE,
        category: breadcrumb.getCategory(BREADCRUMBTYPES.RESOURCE),
        data,
        level: Severity.Error
      })
      return transportData.send(data)
    }
    // code error
    const { message, filename, lineno, colno, error } = errorEvent
    let result: ReportDataType
    if (error && isError(error)) {
      result = extractErrorStack(error, Severity.Normal)
    }
    // 处理SyntaxError，stack没有lineno、colno
    result || (result = HandleEvents.handleNotErrorInstance(message, filename, lineno, colno))
    result.type = ERRORTYPES.JAVASCRIPT_ERROR
    breadcrumb.push({
      type: BREADCRUMBTYPES.CODE_ERROR,
      category: breadcrumb.getCategory(BREADCRUMBTYPES.CODE_ERROR),
      data: { ...result },
      level: Severity.Error
    })
    transportData.send(result)
  },
  handleNotErrorInstance(message: string, filename: string, lineno: number, colno: number) {
    let name: string | ERRORTYPES = ERRORTYPES.UNKNOWN
    const url = filename || getLocationHref()
    let msg = message
    const matches = message.match(ERROR_TYPE_RE)
    if (matches[1]) {
      name = matches[1]
      msg = matches[2]
    }
    const element = {
      url,
      func: ERRORTYPES.UNKNOWN_FUNCTION,
      args: ERRORTYPES.UNKNOWN,
      line: lineno,
      col: colno
    }
    return {
      url,
      name,
      message: msg,
      level: Severity.Normal,
      time: getTimestamp(),
      stack: [element]
    }
  },
  handleHistory(data: Replace.IRouter): void {
    const { from, to } = data
    const { relative: parsedFrom } = parseUrlToObj(from)
    const { relative: parsedTo } = parseUrlToObj(to)
    breadcrumb.push({
      type: BREADCRUMBTYPES.ROUTE,
      category: breadcrumb.getCategory(BREADCRUMBTYPES.ROUTE),
      data: {
        from: parsedFrom ? parsedFrom : '/',
        to: parsedTo ? parsedTo : '/'
      },
      level: Severity.Info
    })
    const { onRouteChange } = options;
    if (onRouteChange) {
      onRouteChange(from, to)
    }
  },
  handleHashchange(data: HashChangeEvent): void {
    const { oldURL, newURL } = data
    const { relative: from } = parseUrlToObj(oldURL)
    const { relative: to } = parseUrlToObj(newURL)
    breadcrumb.push({
      type: BREADCRUMBTYPES.ROUTE,
      category: breadcrumb.getCategory(BREADCRUMBTYPES.ROUTE),
      data: {
        from,
        to
      },
      level: Severity.Info
    })
    const { onRouteChange } = options;
    if (onRouteChange) {
      onRouteChange(from, to)
    }
  },
  handleUnhandleRejection(ev: PromiseRejectionEvent): void {
    let data: ReportDataType = {
      type: ERRORTYPES.PROMISE_ERROR,
      message: unknownToString(ev.reason),
      url: getLocationHref(),
      name: ev.type,
      time: getTimestamp(),
      level: Severity.Low
    }
    if (isError(ev.reason)) {
      data = {
        ...data,
        ...extractErrorStack(ev.reason, Severity.Low)
      }
    }
    breadcrumb.push({
      type: BREADCRUMBTYPES.UNHANDLEDREJECTION,
      category: breadcrumb.getCategory(BREADCRUMBTYPES.UNHANDLEDREJECTION),
      data: { ...data },
      level: Severity.Error
    })
    transportData.send(data)
  }

4. 监听 Promise 错误

function unhandledrejectionReplace(): void {
  on(_global, EVENTTYPES.UNHANDLEDREJECTION, function (ev: PromiseRejectionEvent) {
    // ev.preventDefault() 阻止默认行为后，控制台就不会再报红色错误
    triggerHandlers(EVENTTYPES.UNHANDLEDREJECTION, ev)
  })
}

triggerHandlers

export function triggerHandlers(type: EVENTTYPES | WxEvents, data: any): void {
  if (!type || !handlers[type]) return
  handlers[type].forEach((callback) => {
    nativeTryCatch(
      () => {
        callback(data)
      },
      (e: Error) => {
        logger.error(`重写事件triggerHandlers的回调函数发生错误\nType:${type}\nName: ${getFunctionName(callback)}\nError: ${e}`)
      }
    )
  })
}

5. vue错误信息

通过Vue 提供的Vue.config.errorHandler和Vue.config.warnHandler两个api来获取。

const MitoVue = {
  install(Vue: VueInstance): void {
    if (getFlag(EVENTTYPES.VUE) || !Vue || !Vue.config) return
    setFlag(EVENTTYPES.VUE, true)
    // vue 提供 warnHandler errorHandler报错信息
    Vue.config.errorHandler = function (err: Error, vm: ViewModel, info: string): void {
      handleVueError.apply(null, [err, vm, info, Severity.Normal, Severity.Error, Vue])
      if (hasConsole && !Vue.config.silent) {
        slientConsoleScope(() => {
          console.error('Error in ' + info + ': "' + err.toString() + '"', vm)
          console.error(err)
        })
      }
    }
  }
}

6. react错误信息

暴露一个全局函数 errorBoundaryReport， 用户需要 在 componentDidCatch内获取。

/**
 * 收集react ErrorBoundary中的错误对象
 * 需要用户手动在componentDidCatch中设置
 * @param ex ErrorBoundary中的componentDidCatch的一个参数error
 */
export function errorBoundaryReport(ex: any): void {
  if (!isError(ex)) {
    console.warn('传入的react error不是一个object Error')
    return
  }
  const error = extractErrorStack(ex, Severity.Normal) as ReportDataType
  error.type = ERRORTYPES.REACT_ERROR
  breadcrumb.push({
    type: BREADCRUMBTYPES.REACT,
    category: breadcrumb.getCategory(BREADCRUMBTYPES.REACT),
    data: `${error.name}: ${error.message}`,
    level: Severity.fromString(error.level)
  })
  transportData.send(error)
}

收集用户行为

收集到错误信息后，添加breadcrumb.push(data)把数据传递到breadcrumb里保存用户的轨迹。

export class Breadcrumb {
  maxBreadcrumbs = 10
  beforePushBreadcrumb: unknown = null
  stack: BreadcrumbPushData[] = []
  constructor() {}
  /**
   * 添加用户行为栈
   *
   * ../param {BreadcrumbPushData} data
   * ../memberof Breadcrumb
   */
  push(data: BreadcrumbPushData): void {
    if (typeof this.beforePushBreadcrumb === 'function') {
      let result: BreadcrumbPushData = null
      // 如果用户输入console，并且logger是打开的会造成无限递归，
      // 应该加入一个开关，执行这个函数前，把监听console的行为关掉
      const beforePushBreadcrumb = this.beforePushBreadcrumb
      slientConsoleScope(() => {
        result = beforePushBreadcrumb(this, data)
      })
      if (!result) return
      this.immediatePush(result)
      return
    }
    this.immediatePush(data)
  }
  immediatePush(data: BreadcrumbPushData): void {
    data.time || (data.time = getTimestamp())
    if (this.stack.length >= this.maxBreadcrumbs) {
      this.shift()
    }
    this.stack.push(data)
    // make sure xhr fetch is behind button click
    this.stack.sort((a, b) => a.time - b.time)
    logger.log(this.stack)
  }
  shift(): boolean {
    return this.stack.shift() !== undefined
  }
  clear(): void {
    this.stack = []
  }
  getStack(): BreadcrumbPushData[] {
    return this.stack
  }
  getCategory(type: BREADCRUMBTYPES) {
    switch (type) {
      case BREADCRUMBTYPES.XHR: //
      case BREADCRUMBTYPES.FETCH:
        return BREADCRUMBCATEGORYS.HTTP
      case BREADCRUMBTYPES.CLICK:
      case BREADCRUMBTYPES.ROUTE:
      case BREADCRUMBTYPES.TAP:
      case BREADCRUMBTYPES.TOUCHMOVE:
        return BREADCRUMBCATEGORYS.USER
      case BREADCRUMBTYPES.CUSTOMER:
      case BREADCRUMBTYPES.CONSOLE:
        return BREADCRUMBCATEGORYS.DEBUG
      case BREADCRUMBTYPES.APP_ON_LAUNCH:
      case BREADCRUMBTYPES.APP_ON_SHOW:
      case BREADCRUMBTYPES.APP_ON_HIDE:
      case BREADCRUMBTYPES.PAGE_ON_SHOW:
      case BREADCRUMBTYPES.PAGE_ON_HIDE:
      case BREADCRUMBTYPES.PAGE_ON_SHARE_APP_MESSAGE:
      case BREADCRUMBTYPES.PAGE_ON_SHARE_TIMELINE:
      case BREADCRUMBTYPES.PAGE_ON_TAB_ITEM_TAP:
        return BREADCRUMBCATEGORYS.LIFECYCLE
      case BREADCRUMBTYPES.UNHANDLEDREJECTION:
      case BREADCRUMBTYPES.CODE_ERROR:
      case BREADCRUMBTYPES.RESOURCE:
      case BREADCRUMBTYPES.VUE:
      case BREADCRUMBTYPES.REACT:
      default:
        return BREADCRUMBCATEGORYS.EXCEPTION
    }
  }
  bindOptions(options: InitOptions = {}): void {
    const { maxBreadcrumbs, beforePushBreadcrumb } = options
    validateOption(maxBreadcrumbs, 'maxBreadcrumbs', 'number') && (this.maxBreadcrumbs = maxBreadcrumbs)
    validateOption(beforePushBreadcrumb, 'beforePushBreadcrumb', 'function') && (this.beforePushBreadcrumb = beforePushBreadcrumb)
  }
}
const breadcrumb = _support.breadcrumb || (_support.breadcrumb = new Breadcrumb())

生成错误id的规则

const allErrorNumber: unknown = {}
/**
 * generate error unique Id
 * @param data
 */
export function createErrorId(data: ReportDataType, apikey: string): number | null {
  let id: any
  switch (data.type) {
    case ERRORTYPES.FETCH_ERROR:
      id = data.type + data.request.method + data.response.status + getRealPath(data.request.url) + apikey
      break
    case ERRORTYPES.JAVASCRIPT_ERROR:
    case ERRORTYPES.VUE_ERROR:
    case ERRORTYPES.REACT_ERROR:
      id = data.type + data.name + data.message + apikey
      break
    case ERRORTYPES.LOG_ERROR:
      id = data.customTag + data.type + data.name + apikey
      break
    case ERRORTYPES.PROMISE_ERROR:
      id = generatePromiseErrorId(data, apikey)
      break
    default:
      id = data.type + data.message + apikey
      break
  }
  id = hashCode(id)
  if (allErrorNumber[id] >= options.maxDuplicateCount) {
    return null
  }
  if (typeof allErrorNumber[id] === 'number') {
    allErrorNumber[id]++
  } else {
    allErrorNumber[id] = 1
  }

  return id
}
/**
 * 如果是UNHANDLEDREJECTION，则按照项目主域名来生成
 * 如果是其他的，按照当前页面来生成
 * @param data
 * @param originUrl
 */
function generatePromiseErrorId(data: ReportDataType, apikey: string) {
  const locationUrl = getRealPath(data.url)
  if (data.name === EVENTTYPES.UNHANDLEDREJECTION) {
    return data.type + objectOrder(data.message) + apikey
  }
  return data.type + data.name + objectOrder(data.message) + locationUrl
}

/**
 * sort object keys
 * ../param reason promise.reject
 */
function objectOrder(reason: any) {
  const sortFn = (obj: any) => {
    return Object.keys(obj)
      .sort()
      .reduce((total, key) => {
        if (variableTypeDetection.isObject(obj[key])) {
          total[key] = sortFn(obj[key])
        } else {
          total[key] = obj[key]
        }
        return total
      }, {})
  }
  try {
    if (/\{.*\}/.test(reason)) {
      let obj = JSON.parse(reason)
      obj = sortFn(obj)
      return JSON.stringify(obj)
    }
  } catch (error) {
    return reason
  }
}

/**
 * http://.../project?id=1#a => http://.../project
 * http://.../id/123=> http://.../id/{param}
 *
 * @param url
 */
export function getRealPath(url: string): string {
  return url.replace(/[\?#].*$/, '').replace(/\/\d+([\/]*$)/, '{param}$1')
}

/**
 *
 * @param url
 */
export function getFlutterRealOrigin(url: string): string {
  // for apple
  return removeHashPath(getFlutterRealPath(url))
}

/**
 * 获取flutter的原始地址：每个用户的文件夹hash不同
 * @param url
 */
export function getFlutterRealPath(url: string): string {
  // for apple
  return url.replace(/(\S+)(\/Documents\/)(\S*)/, `$3`)
}
/**
 * http://a.b.com/#/project?id=1 => a.b.com
 * wx => appId
 * @param url
 */
export function getRealPageOrigin(url: string): string {
  const fileStartReg = /^file:\/\//
  if (fileStartReg.test(url)) {
    return getFlutterRealOrigin(url)
  }
  if (isWxMiniEnv) {
    return getAppId()
  }
  return getRealPath(removeHashPath(url).replace(/(\S*)(\/\/)(\S+)/, '$3'))
}

export function removeHashPath(url: string): string {
  return url.replace(/(\S+)(\/#\/)(\S*)/, `$1`)
}

export function hashCode(str: string): number {
  let hash = 0
  if (str.length == 0) return hash
  for (let i = 0; i < str.length; i++) {
    const char = str.charCodeAt(i)
    hash = (hash << 5) - hash + char
    hash = hash & hash
  }
  return hash
}

发布订阅策略

export interface ReplaceHandler {
  type: EVENTTYPES | WxEvents
  callback: ReplaceCallback
}

type ReplaceCallback = (data: any) => void

const handlers: { [key in EVENTTYPES]?: ReplaceCallback[] } = {}

export function subscribeEvent(handler: ReplaceHandler): boolean {
  if (!handler || getFlag(handler.type)) return false
  setFlag(handler.type, true)
  handlers[handler.type] = handlers[handler.type] || []
  handlers[handler.type].push(handler.callback)
  return true
}

export function triggerHandlers(type: EVENTTYPES | WxEvents, data: any): void {
  if (!type || !handlers[type]) return
  handlers[type].forEach((callback) => {
    nativeTryCatch(
      () => {
        callback(data)
      },
      (e: Error) => {
        logger.error(`重写事件triggerHandlers的回调函数发生错误\nType:${type}\nName: ${getFunctionName(callback)}\nError: ${e}`)
      }
    )
  })
}

配置项与钩子函数的绑定

export class Options {
  beforeAppAjaxSend: Function = () => {}
  enableTraceId: Boolean
  filterXhrUrlRegExp: RegExp
  includeHttpUrlTraceIdRegExp: RegExp
  traceIdFieldName = 'Trace-Id'
  throttleDelayTime = 0
  maxDuplicateCount = 2
  // wx-mini
  appOnLaunch: Function = () => {}
  appOnShow: Function = () => {}
  onPageNotFound: Function = () => {}
  appOnHide: Function = () => {}
  pageOnUnload: Function = () => {}
  pageOnShow: Function = () => {}
  pageOnHide: Function = () => {}
  onShareAppMessage: Function = () => {}
  onShareTimeline: Function = () => {}
  onTabItemTap: Function = () => {}
  // need return opitons，so defaul value is undefined
  wxNavigateToMiniProgram: Function
  triggerWxEvent: Function = () => {}
  onRouteChange?: Function

  constructor() {
    this.enableTraceId = false
  }
  bindOptions(options: InitOptions = {}): void {
    const {
      beforeAppAjaxSend,
      enableTraceId,
      filterXhrUrlRegExp,
      traceIdFieldName,
      throttleDelayTime,
      includeHttpUrlTraceIdRegExp,
      appOnLaunch,
      appOnShow,
      appOnHide,
      pageOnUnload,
      pageOnShow,
      pageOnHide,
      onPageNotFound,
      onShareAppMessage,
      onShareTimeline,
      onTabItemTap,
      wxNavigateToMiniProgram,
      triggerWxEvent,
      maxDuplicateCount,
      onRouteChange
    } = options
    validateOption(beforeAppAjaxSend, 'beforeAppAjaxSend', 'function') && (this.beforeAppAjaxSend = beforeAppAjaxSend)
    // wx-mini hooks
    validateOption(appOnLaunch, 'appOnLaunch', 'function') && (this.appOnLaunch = appOnLaunch)
    validateOption(appOnShow, 'appOnShow', 'function') && (this.appOnShow = appOnShow)
    validateOption(appOnHide, 'appOnHide', 'function') && (this.appOnHide = appOnHide)
    validateOption(pageOnUnload, 'pageOnUnload', 'function') && (this.pageOnUnload = pageOnUnload)
    validateOption(pageOnShow, 'pageOnShow', 'function') && (this.pageOnShow = pageOnShow)
    validateOption(pageOnHide, 'pageOnHide', 'function') && (this.pageOnHide = pageOnHide)
    validateOption(onPageNotFound, 'onPageNotFound', 'function') && (this.onPageNotFound = onPageNotFound)
    validateOption(onShareAppMessage, 'onShareAppMessage', 'function') && (this.onShareAppMessage = onShareAppMessage)
    validateOption(onShareTimeline, 'onShareTimeline', 'function') && (this.onShareTimeline = onShareTimeline)
    validateOption(onTabItemTap, 'onTabItemTap', 'function') && (this.onTabItemTap = onTabItemTap)
    validateOption(wxNavigateToMiniProgram, 'wxNavigateToMiniProgram', 'function') &&
      (this.wxNavigateToMiniProgram = wxNavigateToMiniProgram)
    validateOption(triggerWxEvent, 'triggerWxEvent', 'function') && (this.triggerWxEvent = triggerWxEvent)
    // browser hooks
    validateOption(onRouteChange, 'onRouteChange', 'function') && (this.onRouteChange = onRouteChange)

    validateOption(enableTraceId, 'enableTraceId', 'boolean') && (this.enableTraceId = enableTraceId)
    validateOption(traceIdFieldName, 'traceIdFieldName', 'string') && (this.traceIdFieldName = traceIdFieldName)
    validateOption(throttleDelayTime, 'throttleDelayTime', 'number') && (this.throttleDelayTime = throttleDelayTime)
    validateOption(maxDuplicateCount, 'maxDuplicateCount', 'number') && (this.maxDuplicateCount = maxDuplicateCount)
    toStringValidateOption(filterXhrUrlRegExp, 'filterXhrUrlRegExp', '[object RegExp]') && (this.filterXhrUrlRegExp = filterXhrUrlRegExp)
    toStringValidateOption(includeHttpUrlTraceIdRegExp, 'includeHttpUrlTraceIdRegExp', '[object RegExp]') &&
      (this.includeHttpUrlTraceIdRegExp = includeHttpUrlTraceIdRegExp)
  }
}

const options = _support.options || (_support.options = new Options())

export function setTraceId(httpUrl: string, callback: (headerFieldName: string, traceId: string) => void) {
  const { includeHttpUrlTraceIdRegExp, enableTraceId } = options
  if (enableTraceId && includeHttpUrlTraceIdRegExp && includeHttpUrlTraceIdRegExp.test(httpUrl)) {
    const traceId = generateUUID()
    callback(options.traceIdFieldName, traceId)
  }
}

/**
 * init core methods
 * @param paramOptions
 */
export function initOptions(paramOptions: InitOptions = {}) {
  setSilentFlag(paramOptions)
  breadcrumb.bindOptions(paramOptions)
  logger.bindOptions(paramOptions.debug)
  transportData.bindOptions(paramOptions)
  options.bindOptions(paramOptions)
}

export { options }

手动上报错误

/**
 *
 * 自定义上报事件
 * @export
 * @param {LogTypes} { message = 'emptyMsg', tag = '', level = Severity.Critical, ex = '' }
 */
export function log({ message = 'emptyMsg', tag = '', level = Severity.Critical, ex = '', type = ERRORTYPES.LOG_ERROR }: LogTypes): void {
  let errorInfo = {}
  if (isError(ex)) {
    errorInfo = extractErrorStack(ex, level)
  }
  const error = {
    type,
    level,
    message: unknownToString(message),
    name: 'MITO.log',
    customTag: unknownToString(tag),
    time: getTimestamp(),
    url: isWxMiniEnv ? getCurrentRoute() : getLocationHref(),
    ...errorInfo
  }
  breadcrumb.push({
    type: BREADCRUMBTYPES.CUSTOMER,
    category: breadcrumb.getCategory(BREADCRUMBTYPES.CUSTOMER),
    data: message,
    level: Severity.fromString(level.toString())
  })
  transportData.send(error);
}

公共的格式转换函数

export function httpTransform(data: MITOHttp): ReportDataType {
  let message = ''
  const { elapsedTime, time, method, traceId, type, status } = data
  const name = `${type}--${method}`
  if (status === 0) {
    message =
      elapsedTime <= globalVar.crossOriginThreshold ? 'http请求失败，失败原因：跨域限制或域名不存在' : 'http请求失败，失败原因：超时'
  } else {
    message = fromHttpStatus(status)
  }
  message = message === SpanStatus.Ok ? message : `${message} ${getRealPath(data.url)}`
  return {
    type: ERRORTYPES.FETCH_ERROR,
    url: getLocationHref(),
    time,
    elapsedTime,
    level: Severity.Low,
    message,
    name,
    request: {
      httpType: type,
      traceId,
      method,
      url: data.url,
      data: data.reqData || ''
    },
    response: {
      status,
      data: data.responseText
    }
  }
}

const resourceMap = {
  img: '图片',
  script: 'js脚本'
}

export function resourceTransform(target: ResourceErrorTarget): ReportDataType {
  return {
    type: ERRORTYPES.RESOURCE_ERROR,
    url: getLocationHref(),
    message: '资源地址: ' + (interceptStr(target.src, 120) || interceptStr(target.href, 120)),
    level: Severity.Low,
    time: getTimestamp(),
    name: `${resourceMap[target.localName] || target.localName}加载失败`
  }
}

export function handleConsole(data: Replace.TriggerConsole): void {
  if (globalVar.isLogAddBreadcrumb) {
    breadcrumb.push({
      type: BREADCRUMBTYPES.CONSOLE,
      category: breadcrumb.getCategory(BREADCRUMBTYPES.CONSOLE),
      data,
      level: Severity.fromString(data.level)
    })
  }
}

日志上报类

/**
 * 用来传输数据类，包含img标签、xhr请求
 * 功能：支持img请求和xhr请求、可以断点续存（保存在localstorage），
 * 待开发：目前不需要断点续存，因为接口不是很多，只有错误时才触发，如果接口太多可以考虑合并接口、
 *
 * ../class Transport
 */
export class TransportData {
  queue: Queue
  beforeDataReport: unknown = null
  backTrackerId: unknown = null
  configReportXhr: unknown = null
  configReportUrl: unknown = null
  configReportWxRequest: unknown = null
  useImgUpload = false
  apikey = ''
  trackKey = ''
  errorDsn = ''
  trackDsn = ''
  constructor() {
    this.queue = new Queue()
  }
  imgRequest(data: any, url: string): void {
    const requestFun = () => {
      let img = new Image()
      const spliceStr = url.indexOf('?') === -1 ? '?' : '&'
      img.src = `${url}${spliceStr}data=${encodeURIComponent(JSON.stringify(data))}`
      img = null
    }
    this.queue.addFn(requestFun)
  }
  getRecord(): any[] {
    const recordData = _support.record
    if (recordData && variableTypeDetection.isArray(recordData) && recordData.length > 2) {
      return recordData
    }
    return []
  }
  getDeviceInfo(): DeviceInfo | any {
    return _support.deviceInfo || {}
  }
  async beforePost(data: FinalReportType) {
    if (isReportDataType(data)) {
      const errorId = createErrorId(data, this.apikey)
      if (!errorId) return false
      data.errorId = errorId
    }
    let transportData = this.getTransportData(data)
    if (typeof this.beforeDataReport === 'function') {
      transportData = await this.beforeDataReport(transportData)
      if (!transportData) return false
    }
    return transportData
  }
  async xhrPost(data: any, url: string) {
    const requestFun = (): void => {
      const xhr = new XMLHttpRequest()
      xhr.open(EMethods.Post, url)
      xhr.setRequestHeader('Content-Type', 'application/json;charset=UTF-8')
      xhr.withCredentials = true
      if (typeof this.configReportXhr === 'function') {
        this.configReportXhr(xhr, data)
      }
      xhr.send(JSON.stringify(data))
    }
    this.queue.addFn(requestFun)
  }
  async wxPost(data: any, url: string) {
    const requestFun = (): void => {
      let requestOptions = { method: 'POST' } as WechatMiniprogram.RequestOption
      if (typeof this.configReportWxRequest === 'function') {
        const params = this.configReportWxRequest(data)
        // default method
        requestOptions = { ...requestOptions, ...params }
      }
      requestOptions = {
        ...requestOptions,
        data: JSON.stringify(data),
        url
      }
      wx.request(requestOptions)
    }
    this.queue.addFn(requestFun)
  }
  getAuthInfo(): AuthInfo {
    const trackerId = this.getTrackerId()
    const result: AuthInfo = {
      trackerId: String(trackerId),
      sdkVersion: SDK_VERSION,
      sdkName: SDK_NAME
    }
    this.apikey && (result.apikey = this.apikey)
    this.trackKey && (result.trackKey = this.trackKey)
    return result
  }
  getApikey() {
    return this.apikey
  }
  getTrackKey() {
    return this.trackKey
  }
  getTrackerId(): string | number {
    if (typeof this.backTrackerId === 'function') {
      const trackerId = this.backTrackerId()
      if (typeof trackerId === 'string' || typeof trackerId === 'number') {
        return trackerId
      } else {
        logger.error(`trackerId:${trackerId} 期望 string 或 number 类型，但是传入 ${typeof trackerId}`)
      }
    }
    return ''
  }
  getTransportData(data: FinalReportType): TransportDataType {
    return {
      authInfo: this.getAuthInfo(),
      breadcrumb: breadcrumb.getStack(),
      data,
      record: this.getRecord(),
      deviceInfo: this.getDeviceInfo()
    }
  }
  isSdkTransportUrl(targetUrl: string): boolean {
    let isSdkDsn = false
    if (this.errorDsn && targetUrl.indexOf(this.errorDsn) !== -1) {
      isSdkDsn = true
    }
    if (this.trackDsn && targetUrl.indexOf(this.trackDsn) !== -1) {
      isSdkDsn = true
    }
    return isSdkDsn
  }

  bindOptions(options: InitOptions = {}): void {
    const {
      dsn,
      beforeDataReport,
      apikey,
      configReportXhr,
      backTrackerId,
      trackDsn,
      trackKey,
      configReportUrl,
      useImgUpload,
      configReportWxRequest
    } = options
    validateOption(apikey, 'apikey', 'string') && (this.apikey = apikey)
    validateOption(trackKey, 'trackKey', 'string') && (this.trackKey = trackKey)
    validateOption(dsn, 'dsn', 'string') && (this.errorDsn = dsn)
    validateOption(trackDsn, 'trackDsn', 'string') && (this.trackDsn = trackDsn)
    validateOption(useImgUpload, 'useImgUpload', 'boolean') && (this.useImgUpload = useImgUpload)
    validateOption(beforeDataReport, 'beforeDataReport', 'function') && (this.beforeDataReport = beforeDataReport)
    validateOption(configReportXhr, 'configReportXhr', 'function') && (this.configReportXhr = configReportXhr)
    validateOption(backTrackerId, 'backTrackerId', 'function') && (this.backTrackerId = backTrackerId)
    validateOption(configReportUrl, 'configReportUrl', 'function') && (this.configReportUrl = configReportUrl)
    validateOption(configReportWxRequest, 'configReportWxRequest', 'function') && (this.configReportWxRequest = configReportWxRequest)
  }
  /**
   * 监控错误上报的请求函数
   * @param data 错误上报数据格式
   * @returns
   */
  async send(data: FinalReportType) {
    let dsn = ''
    if (isReportDataType(data)) {
      dsn = this.errorDsn
      if (isEmpty(dsn)) {
        logger.error('dsn为空，没有传入监控错误上报的dsn地址，请在init中传入')
        return
      }
    } else {
      dsn = this.trackDsn
      if (isEmpty(dsn)) {
        logger.error('trackDsn为空，没有传入埋点上报的dsn地址，请在init中传入')
        return
      }
    }
    const result = await this.beforePost(data)
    if (!result) return
    if (typeof this.configReportUrl === 'function') {
      dsn = this.configReportUrl(result, dsn)
      if (!dsn) return
    }

    if (isBrowserEnv) {
      return this.useImgUpload ? this.imgRequest(result, dsn) : this.xhrPost(result, dsn)
    }
    if (isWxMiniEnv) {
      return this.wxPost(result, dsn)
    }
  }
}
const transportData = _support.transportData || (_support.transportData = new TransportData())

参考文章：# 前端监控平台系列：JS SDK（已开源）
