使用Mybatis逆向工具生成mapper和pojo

注：文章原地址：blog.csdn.net/weixin_5237…

Mybatis 逆向工程（自动生成pojo和mapper）

Mybatis逆向生成工具可以通过数据库映射生成对应的 mapper 接口、mapper.xml 文件和 pojo 类

逆向生成工具的制作如下：（💕文末附下载链接）

创建一个 maven 项目

配置 pom.xml 文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.jingchao</groupId>
    <artifactId>mybatis-generator-for-jingchao</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>
        <!--项目对版本号要求严格-->

        <!-- 引入log4j日志依赖 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-log4j</artifactId>
            <version>1.3.8.RELEASE</version>
        </dependency>
        <!-- 阿里开源数据源 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.1.0</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.0</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.27</version>
        </dependency>
        <!--mybatis-->
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>1.3.1</version>
        </dependency>
        <!--mapper-->
        <dependency>
            <groupId>tk.mybatis</groupId>
            <artifactId>mapper-spring-boot-starter</artifactId>
            <version>1.2.4</version>
        </dependency>
        <!--pagehelper-->
        <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper-spring-boot-starter</artifactId>
            <version>1.2.3</version>
        </dependency>
        <!-- mybatis 逆向生成工具  -->
        <dependency>
            <groupId>org.mybatis.generator</groupId>
            <artifactId>mybatis-generator-core</artifactId>
            <version>1.3.2</version>
            <scope>compile</scope>
            <optional>true</optional>
        </dependency>
    </dependencies>
</project>

配置 generatorConfig.xml 文件

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">

<generatorConfiguration>
    <context id="MysqlContext" targetRuntime="MyBatis3Simple" defaultModelType="flat">
        <property name="beginningDelimiter" value="`"/>
        <property name="endingDelimiter" value="`"/>

        <plugin type="tk.mybatis.mapper.generator.MapperPlugin">
            <property name="mappers" value="com.jingchao.my.mapper.MyMapper"/>
        </plugin>

        <jdbcConnection driverClass="com.mysql.cj.jdbc.Driver"
                        connectionURL="jdbc:mysql://localhost:3306/part-time-platform"
                        userId="root"
                        password="root">
        </jdbcConnection>

        <!-- 对于生成的pojo所在包 -->
        <javaModelGenerator targetPackage="com.jingchao.pojo" targetProject="src/main/java"/>

        <!-- 对于生成的mapper所在目录 -->
        <sqlMapGenerator targetPackage="mapper" targetProject="src/main/resources"/>

        <!-- 配置mapper对应的java映射 -->
        <javaClientGenerator targetPackage="com.jingchao.mapper" targetProject="src/main/java" type="XMLMAPPER"/>

        <!--数据库表-->
        <table tableName="user"></table>

    </context>
</generatorConfiguration>

注意：一定要提前创建好数据库 （本文的数据库表为 part-time-platform）

创建一个 GeneratorDisplay 类

package com.jingchao.mybatis.utils;

import org.mybatis.generator.api.MyBatisGenerator;
import org.mybatis.generator.config.Configuration;
import org.mybatis.generator.config.xml.ConfigurationParser;
import org.mybatis.generator.internal.DefaultShellCallback;
import java.io.File;
import java.util.ArrayList;
import java.util.List;

public class GeneratorDisplay {
	public void generator() throws Exception{
		List<String> warnings = new ArrayList<String>();
		boolean overwrite = true;
		//指定 逆向工程配置文件
		File configFile = new File("generatorConfig.xml");
		ConfigurationParser cp = new ConfigurationParser(warnings);
		Configuration config = cp.parseConfiguration(configFile);
		DefaultShellCallback callback = new DefaultShellCallback(overwrite);
		MyBatisGenerator myBatisGenerator = new MyBatisGenerator(config,
				callback, warnings);
		myBatisGenerator.generate(null);
	}
	public static void main(String[] args) throws Exception {
		try {
			GeneratorDisplay generatorSqlmap = new GeneratorDisplay();
			generatorSqlmap.generator();
		} catch (Exception e) {
			e.printStackTrace();
		}
	}
}

创建 MyMapper 类

package com.jingchao.my.mapper;

import tk.mybatis.mapper.common.Mapper;
import tk.mybatis.mapper.common.MySqlMapper;

//继承自己的MyMapper
public interface MyMapper<T> extends Mapper<T>, MySqlMapper<T> {
}

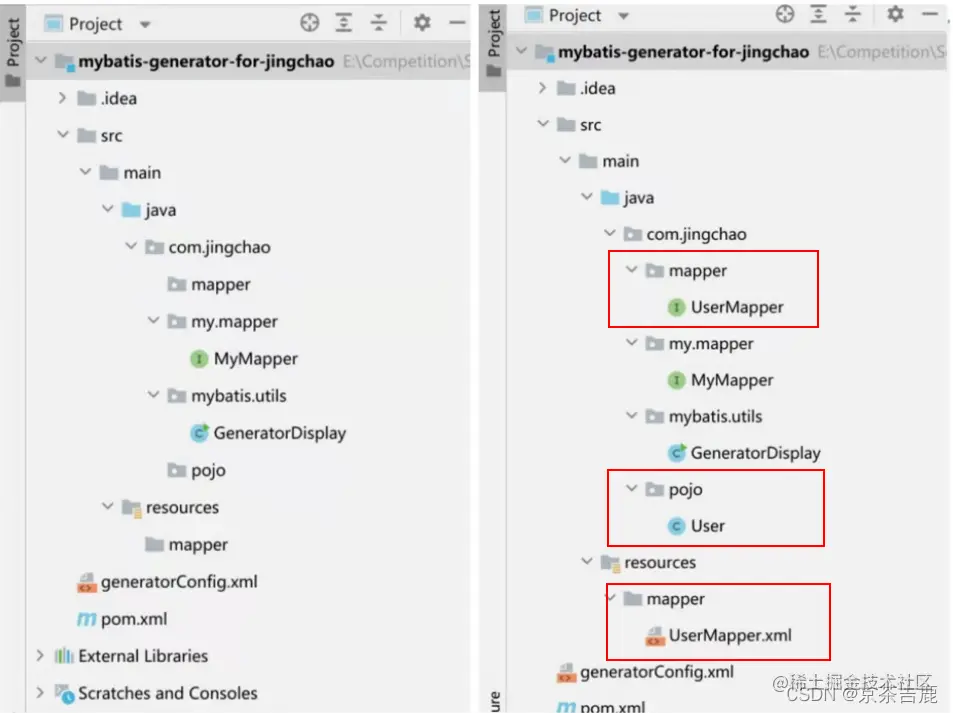

-----------------------------项目完成后如下图所示 ----------------------------------------------------------- 项目运行后如下图所示-----------------------------

点击获取源代码 链接：pan.baidu.com/s/1cKULt2ae… 提取码：jc86
