HMI-58-【多媒体】重构底部菜单

今天的这个没有新的内容，就是计划重新构建下底部菜单，开始是在每个界面里面都做了底部菜单，开始我以为每个界面都不一样，和面我研究了一下发现，每个界面的底部菜单都是一样的呀，那我们就好所了，开始重构。把底部菜单移到他的父页面中。

当前进度

今天主要内容就是重构了底部菜单。效果和原来基本一致。只不过现在不用一个一个页面的重复实现了，开始一直以为认为每个页面对应的底部菜单不一样，现在看来基本是一样的，所以这里我就按照一样处理了。

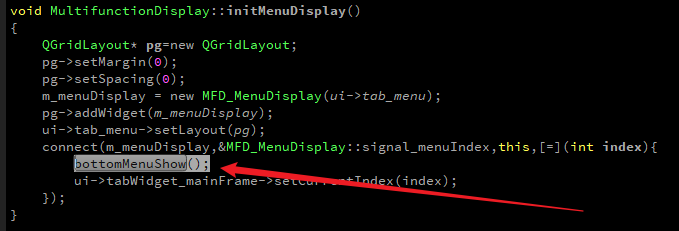

HMI-58-【多媒体】重构底部菜单当前进度Bottom菜单实现头文件源文件逻辑控制initBottombottomMenuShow启动Bottom菜单第三阶段成果展示第二阶段成果展示第一阶段成果展示

关键字： HMI、Multifunction、Qt、QMediaPlayer、Music

Bottom菜单实现

因为这个版本的代码里面我感觉是挺讨巧的，使用了信号槽，和菜单功能对应起来了，所以这里直接贴上两个的的代码。

头文件

#ifndef MFD_BOTTOM_H
#define MFD_BOTTOM_H
​
#include <QWidget>
#include "MultifunctionDisplay/MFD_MenuDisplay/mfd_menudisplay.h"
namespace Ui {
class MFD_Bottom;
}
​
class MFD_Bottom : public QWidget
{
    Q_OBJECT
​
public:
    explicit MFD_Bottom(QWidget *parent = nullptr);
    ~MFD_Bottom();
signals:
​
    void signal_menuIndex(int index);
​
    void signal_return();
public slots:
​
    void slot_MainFrameIndexChanged(int index);
private slots:
    void on_pushButton_menu_clicked();
​
    void on_pushButton_navigation_clicked();
​
    void on_pushButton_multimedia_clicked();
​
    void on_pushButton_radio_clicked();
​
    void on_pushButton_phone_clicked();
​
    void on_pushButton_return_clicked();
​
private:
    /**
     * @brief paintEvent
     * @param event
     * 重绘事件，用于绘制背景
     */
    void paintEvent(QPaintEvent* event);
​
    void initButton();
private:
    Ui::MFD_Bottom *ui;
};
​
#endif // MFD_BOTTOM_H
​

源文件

#include "mfd_bottom.h"
#include "ui_mfd_bottom.h"
#include <QPainter>
​
​
MFD_Bottom::MFD_Bottom(QWidget *parent) :
    QWidget(parent),
    ui(new Ui::MFD_Bottom)
{
    ui->setupUi(this);
}
​
MFD_Bottom::~MFD_Bottom()
{
    delete ui;
}
​
void MFD_Bottom::slot_MainFrameIndexChanged(int index)
{
    switch (index) {
    case MainType::menu:
        this->hide();
        break;
    case MainType::airConditioner:
    {
        ui->pushButton_menu->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/menu.png);}"
                                           "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/menu_1.png);}");
​
        ui->pushButton_return->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/return.png);}"
                                             "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/return_1.png);}");
​
        ui->pushButton_multimedia->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/multimedia_2.png);}"
                                                 "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/multimedia_1.png);}");
​
        ui->pushButton_navigation->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/navigation_2.png);}"
                                                 "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/navigation_1.png);}");
​
        ui->pushButton_radio->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/radio_2.png);}"
                                            "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/radio_1.png);}");
​
        ui->pushButton_phone->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/phone_2.png);}"
                                            "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/phone_1.png);}");
        break;
    }
    case MainType::drivingRecorder:
    {
        ui->pushButton_menu->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/menu.png);}"
                                           "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/menu_1.png);}");
​
        ui->pushButton_return->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/return.png);}"
                                             "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/return_1.png);}");
​
        ui->pushButton_multimedia->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/multimedia_2.png);}"
                                                 "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/multimedia_1.png);}");
​
        ui->pushButton_navigation->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/navigation_2.png);}"
                                                 "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/navigation_1.png);}");
​
        ui->pushButton_radio->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/radio_2.png);}"
                                            "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/radio_1.png);}");
​
        ui->pushButton_phone->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/phone_2.png);}"
                                            "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/phone_1.png);}");
        break;
    }
    case MainType::radio:
    {
        ui->pushButton_menu->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/menu.png);}"
                                           "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/menu_1.png);}");
​
        ui->pushButton_return->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/return.png);}"
                                             "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/return_1.png);}");
​
        ui->pushButton_multimedia->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/multimedia_2.png);}"
                                                 "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/multimedia_1.png);}");
​
        ui->pushButton_navigation->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/navigation_2.png);}"
                                                 "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/navigation_1.png);}");
​
        ui->pushButton_radio->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/radio.png);}"
                                            "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/radio_1.png);}");
​
        ui->pushButton_phone->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/phone_2.png);}"
                                            "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/phone_1.png);}");
        break;
    }
    case MainType::multimedia:
    {
        ui->pushButton_menu->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/menu.png);}"
                                           "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/menu_1.png);}");
​
        ui->pushButton_return->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/return.png);}"
                                             "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/return_1.png);}");
​
        ui->pushButton_multimedia->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/multimedia.png);}"
                                                 "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/multimedia_1.png);}");
​
        ui->pushButton_navigation->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/navigation_2.png);}"
                                                 "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/navigation_1.png);}");
​
        ui->pushButton_radio->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/radio_2.png);}"
                                            "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/radio_1.png);}");
​
        ui->pushButton_phone->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/phone_2.png);}"
                                            "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/phone_1.png);}");
        break;
    }
    case MainType::navigation:
    {
        ui->pushButton_menu->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/menu.png);}"
                                           "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/menu_1.png);}");
​
        ui->pushButton_return->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/return.png);}"
                                             "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/return_1.png);}");
​
        ui->pushButton_multimedia->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/multimedia_2.png);}"
                                                 "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/multimedia_1.png);}");
​
        ui->pushButton_navigation->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/navigation.png);}"
                                                 "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/navigation_1.png);}");
​
        ui->pushButton_radio->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/radio_2.png);}"
                                            "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/radio_1.png);}");
​
        ui->pushButton_phone->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/phone_2.png);}"
                                            "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/phone_1.png);}");
        break;
    }
    case MainType::phone:
    {
        ui->pushButton_menu->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/menu.png);}"
                                           "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/menu_1.png);}");
​
        ui->pushButton_return->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/return.png);}"
                                             "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/return_1.png);}");
​
        ui->pushButton_multimedia->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/multimedia_2.png);}"
                                                 "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/multimedia_1.png);}");
​
        ui->pushButton_navigation->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/navigation_2.png);}"
                                                 "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/navigation_1.png);}");
​
        ui->pushButton_radio->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/radio_2.png);}"
                                            "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/radio_1.png);}");
​
        ui->pushButton_phone->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/phone.png);}"
                                            "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/phone_1.png);}");
        break;
    }
    case MainType::m360Panorama:
    {
        ui->pushButton_menu->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/menu.png);}"
                                           "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/menu_1.png);}");
​
        ui->pushButton_return->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/return.png);}"
                                             "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/return_1.png);}");
​
        ui->pushButton_multimedia->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/multimedia_2.png);}"
                                                 "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/multimedia_1.png);}");
​
        ui->pushButton_navigation->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/navigation_2.png);}"
                                                 "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/navigation_1.png);}");
​
        ui->pushButton_radio->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/radio_2.png);}"
                                            "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/radio_1.png);}");
​
        ui->pushButton_phone->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/phone_2.png);}"
                                            "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/phone_1.png);}");
        break;
    }
    case MainType::mobileConnect:
​
    {
        ui->pushButton_menu->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/menu.png);}"
                                           "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/menu_1.png);}");
​
        ui->pushButton_return->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/return.png);}"
                                             "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/return_1.png);}");
​
        ui->pushButton_multimedia->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/multimedia_2.png);}"
                                                 "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/multimedia_1.png);}");
​
        ui->pushButton_navigation->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/navigation_2.png);}"
                                                 "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/navigation_1.png);}");
​
        ui->pushButton_radio->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/radio_2.png);}"
                                            "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/radio_1.png);}");
​
        ui->pushButton_phone->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/phone_2.png);}"
                                            "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/phone_1.png);}");
        break;
    }
    case MainType::internetofVehicles:
    {
        ui->pushButton_menu->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/menu.png);}"
                                           "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/menu_1.png);}");
​
        ui->pushButton_return->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/return.png);}"
                                             "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/return_1.png);}");
​
        ui->pushButton_multimedia->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/multimedia_2.png);}"
                                                 "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/multimedia_1.png);}");
​
        ui->pushButton_navigation->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/navigation_2.png);}"
                                                 "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/navigation_1.png);}");
​
        ui->pushButton_radio->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/radio_2.png);}"
                                            "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/radio_1.png);}");
​
        ui->pushButton_phone->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/phone_2.png);}"
                                            "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/phone_1.png);}");
        break;
    }
    case MainType::setUp:
    {
        ui->pushButton_menu->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/menu.png);}"
                                           "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/menu_1.png);}");
​
        ui->pushButton_return->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/return.png);}"
                                             "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/return_1.png);}");
​
        ui->pushButton_multimedia->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/multimedia_2.png);}"
                                                 "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/multimedia_1.png);}");
​
        ui->pushButton_navigation->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/navigation_2.png);}"
                                                 "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/navigation_1.png);}");
​
        ui->pushButton_radio->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/radio_2.png);}"
                                            "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/radio_1.png);}");
​
        ui->pushButton_phone->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/phone_2.png);}"
                                            "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/phone_1.png);}");
        break;
    }
    default:
        break;
    }
}
​
void MFD_Bottom::paintEvent(QPaintEvent *event)
{
    Q_UNUSED(event)
    QPainter painter;
    painter.begin(this);
    painter.drawPixmap(0,0,width(),height(), QPixmap(":/Bottom/Resources/MultifunctionDisplay/Bottom/mainback.png"));               // 绘制背景
    painter.end();
}
​
void MFD_Bottom::initButton()
{
    ui->pushButton_menu->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/menu.png);}"
                                       "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/menu_1.png);}");
​
    ui->pushButton_return->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/return.png);}"
                                         "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/return_1.png);}");
​
    ui->pushButton_multimedia->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/multimedia_2.png);}"
                                             "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/multimedia_1.png);}");
​
    ui->pushButton_navigation->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/navigation_2.png);}"
                                             "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/navigation_1.png);}");
​
    ui->pushButton_radio->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/radio_2.png);}"
                                        "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/radio_1.png);}");
​
    ui->pushButton_phone->setStyleSheet("QPushButton{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/phone_2.png);}"
                                        "QPushButton:pressed{border-image: url(:/Bottom/Resources/MultifunctionDisplay/Bottom/phone_1.png);}");
}
​
​
void MFD_Bottom::on_pushButton_menu_clicked()
{
    emit signal_menuIndex(MainType::menu);
}
​
​
void MFD_Bottom::on_pushButton_navigation_clicked()
{
    emit signal_menuIndex(MainType::navigation);
}
​
​
void MFD_Bottom::on_pushButton_multimedia_clicked()
{
    emit signal_menuIndex(MainType::multimedia);
}
​
​
void MFD_Bottom::on_pushButton_radio_clicked()
{
    emit signal_menuIndex(MainType::radio);
}
​
​
void MFD_Bottom::on_pushButton_phone_clicked()
{
    emit signal_menuIndex(MainType::phone);
}
​
​
void MFD_Bottom::on_pushButton_return_clicked()
{
​
}
​
​

逻辑控制

initBottom

这个函数主要功能就是初始化底部菜单，这里有两个函数，一个是接受主界面索引改变时的信号，一个是发送按钮按下的信号，在对应到改变主界面的值。

void MultifunctionDisplay::initBottom()
{
​
    m_Bottom = new MFD_Bottom(this);
    connect(ui->tabWidget_mainFrame,&QTabWidget::currentChanged,m_Bottom,&MFD_Bottom::slot_MainFrameIndexChanged);
    connect(m_Bottom,&MFD_Bottom::signal_menuIndex,this,[=](int index){ui->tabWidget_mainFrame->setCurrentIndex(index);});
    m_Bottom->setGeometry(0,940,1920,140);
    m_Bottom->hide();
}

bottomMenuShow

这个函数就是控制控制底部菜单显示和隐藏的动画。

void MultifunctionDisplay::bottomMenuShow(bool temp)
{
​
    QPropertyAnimation* bottomShow = new QPropertyAnimation(m_Bottom,"geometry",this);
​
    if(temp)
    {
        m_Bottom->show();
        bottomShow->setStartValue(QRect(0,1081,1920,140));
        bottomShow->setEndValue(QRect(0,940,1920,140));
        bottomShow->setDirection(QPropertyAnimation::Forward);
        bottomShow->setDuration(300);
        bottomShow->start();
    }
    else
    {
        bottomShow->setStartValue(QRect(0,940,1920,140));
        bottomShow->setEndValue(QRect(0,1081,1920,140));
        bottomShow->setDirection(QPropertyAnimation::Forward);
        bottomShow->setDuration(200);
        bottomShow->start();
    }
}

启动Bottom菜单

当我们通过菜单进入到子页面的时候，就需要打开底部菜单，所以这里在初始化菜单界面需要增加显示下方界面的代码

void MultifunctionDisplay::initMenuDisplay()
{
    QGridLayout* pg=new QGridLayout;
    pg->setMargin(0);
    pg->setSpacing(0);
    m_menuDisplay = new MFD_MenuDisplay(ui->tab_menu);
    pg->addWidget(m_menuDisplay);
    ui->tab_menu->setLayout(pg);
    connect(m_menuDisplay,&MFD_MenuDisplay::signal_menuIndex,this,[=](int index){
        bottomMenuShow();
        ui->tabWidget_mainFrame->setCurrentIndex(index);
    });
}

这样就可以启动了。

image-20220427230026478

今天就先更到这里。

第三阶段成果展示

目前已完成液晶仪表三种模式的初步显示，小模块后期根据精力更新了，主要还得找美术来搞资源，自己能力不够。暂未跟新计划。展示如下：

[video(video-yznBr6e3-1648369267384)(type-bilibili)(url-player.bilibili.com/player.html…img-blog.csdnimg.cn/img_convert…基于Qt的汽车仪表模拟 3.0)]

B站链接：www.bilibili.com/video/BV1WS…

第二阶段成果展示

目前以完成HUD界面及接口开发，液晶仪表舒适模式和运动模式的开发。展示如下：

[video(video-2AqJ88TY-1645273728489)(type-bilibili)(url-player.bilibili.com/player.html…img-blog.csdnimg.cn/img_convert…基于Qt的汽车仪表模拟 2.0)]

B站链接：www.bilibili.com/video/BV1aq…

第一阶段成果展示

目前以完成HUD界面及接口开发，液晶仪表舒适模式开发。展示如下：

[video(video-ArCvRvBQ-1642664938100)(type-bilibili)(url-player.bilibili.com/player.html…img-blog.csdnimg.cn/img_convert…基于Qt的汽车仪表模拟 1.0))]

B站链接：www.bilibili.com/video/BV1qJ…

说明：

本项目中所使借鉴原型来自：[吉利] 博瑞GE | 仪表HMI设计、吉利汽车HMI项目。

多媒体部分是来自吉利博瑞2017旗舰版界面所有权和解释权都归吉利汽车所有。

设计图的所有权和解释权都归吉利汽车所有。

本项目所有资源文件均由**打不死的小海**复刻制作。

本项目代码暂时不会开源，有需要的源码的可与我联系，左上角二维码加微信。

本项目仅限学习交流、禁止商业使用。

我正在参与掘金技术社区创作者签约计划招募活动，点击链接报名投稿。

avatar
文章
阅读
粉丝
