ILI9488,ILI9486,ILI9481,ST7796S,HX8357D 3W-SPI读ID

用户6123590569085
710 阅读1分钟

一、HX8357D:

先下指令：

write_cmd(0xB9);

write_para(0xFF);

write_para(0x83);

write_para(0x57);

write_cmd(0xFE );

write_para(0xD0);

read_data(0xFF,one_byte_return);

//Read HX8357-D ID=99h  读0XFF返回0x99刚是HX8357D

二、 ****ILI9488与ILI9486读ID流程一样

\

void DispRegValue(void)
{
unsigned char i=0;
unsigned char id1,id2,id3,id4;

SPI_CS=0;

SPI_RES=1;
Delay(160);      // delay 40 ms
SPI_RES=0;
Delay(160);        // delay 40 ms

 SPI_RES=1;

Delay(480);        // delay 120 ms

\

 //Adjust Control 3
SPI_WriteComm(0XF7);
SPI_WriteData(0xA9);
SPI_WriteData(0x51);
SPI_WriteData(0x2C);
SPI_WriteData(0x82);

//3W-SDA read id

 SPI_WriteComm(0XB0);
SPI_WriteData(0X80); //byte1

SPI_WriteComm(0XFB);
SPI_WriteData(0X80);

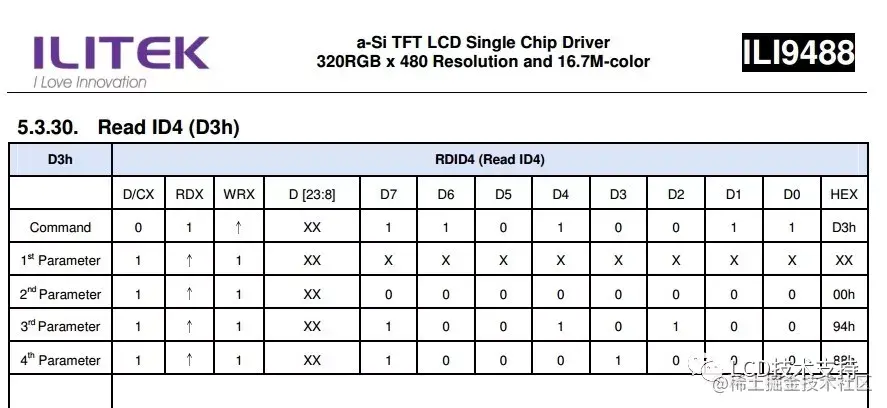

id1=Read_chipID(0xd3);    //Parameter1=DUMMY 无效

SPI_WriteComm(0X2E);
SPI_WriteData(0X81); //Parameter2=0X88 无效
id2=Read_chipID(0xd3);

SPI_WriteComm(0XFB);
SPI_WriteData(0X82); //Parameter3=0X94 有用

id3=Read_chipID(0xd3);

SPI_WriteComm(0XFB);
SPI_WriteData(0X83);//Parameter4=0X88 ,9486为0X86
id4=Read_chipID(0xd3);
}

unsigned int Read_chipID(unsigned char regist)
{
unsigned char i,dat=0x00;
DIR=0; //MCU send data to driver ic
SPI_CS=0;
SPI_DI=0;
SPI_CLK=0;
SPI_CLK=1; //写0XD3
for(i=8;i>0;i--)
{
regist<<=1;
SPI_DI=CY;
SPI_CLK=0;
nop();nop();nop();nop();
SPI_CLK=1;
}
SPI_DI=1;    //读之前将SDA拉高
Delay(80);    //延时20ms
for(i=8;i>0;i--)
{
SPI_CLK=0;
Delay(4); //1ms
SPI_CLK=1;
dat<<=1;   //MCU read data from driver ic
if(SPI_DI)
{
dat++;
}
}
DIR=0;     //MCU send data to driver ic
CS0=1;
DIR=0;
return dat;
}

\

三、ILI9481读BF寄存器，可以读到ID，第四，第五个字节为需要的ID\

复位过后写C6H再去读BFH

\

void DispRegValue(void)
{

unsigned char i=0, id1,id2,id3,id4;
SPI_CS=0;\

SPI_RES=1;
Delay(160);         // delay 40 ms
SPI_RES=0;
Delay(160);        // delay 40 ms

 SPI_RES=1;

\

Delay(480);        // delay 120 ms

//3W-SDA read id

SPI_WriteComm(0xC6);

SPI_WriteData(0X80);        //SDA读使能

id1=Read_chipID(0XBF);    //byte1=0X02

id2=Read_chipID(0XBF);    //byte2=0x04有用

id3=Read_chipID(0XBF);  //byte3=0X94 有用

id4=Read_chipID(0XBF);    //byte4=0X81 有用

id5=Read_chipID(0XBF);    //byte5=0XFF 有用

}

unsigned int Read_chipID(unsigned char regist)
{
unsigned char i,dat=0x00;

DIR=0;         //MCU send data to driver ic

SPI_CS=0;
SPI_DI=0;
SPI_CLK=0;
SPI_CLK=1;     //写0XBF
for(i=8;i>0;i--)
{
regist<<=1;
SPI_DI=CY;
SPI_CLK=0;
nop();nop();nop();nop();
SPI_CLK=1;
}
SPI_DI=1;    //读之前将SDA拉高
Delay(80);    //延时20ms
for(i=8;i>0;i--)
{
SPI_CLK=0;
Delay(4); //1ms
SPI_CLK=1;
dat<<=1;

DIR=1;    //MCU read data from driver ic

    if(SPI_DI)
{
dat++;
}
}
DIR=0;     //MCU send data to driver ic
CS0=1;
DIR=0;
return dat;
}

送完初始化后先下以下指令

write_cmd(0xc6);

write_dat(0x82);

\

四、 ST7796S读BF寄存器，可以读到ID，第三，第四个字节为需要的ID值

复位过后：FBH送偏移量，再读D3H

\

void DispRegValue(void)
{\

unsigned char i=0;
unsigned char id1,id2,id3,id4;
SPI_CS=0;

SPI_RES=1;
Delay(160);          // delay 40 ms
SPI_RES=0;
Delay(160);        // delay 40 ms

 SPI_RES=1;

Delay(480);        // delay 120 ms

\

SPI_WriteComm(0XFB);
SPI_WriteData(0X10);
id1=Read_chipID(0xd3);    //Parameter1=0x00无效

SPI_WriteComm(0XFB);
SPI_WriteData(0X11); //Parameter2=0X77 有用
id2=Read_chipID(0xd3);

SPI_WriteComm(0XFB);
SPI_WriteData(0X12); //Parameter3=0X96 有用

id3=Read_chipID(0xd3);

\

SPI_WriteComm(0XFB);
SPI_WriteData(0X13); //Parameter3=0X00 有用

id3=Read_chipID(0xd3);

}

unsigned int Read_chipID(unsigned char regist)
{
unsigned char i,dat=0x00;
DIR=0;         //MCU send data to driver ic

SPI_CS=0;
SPI_DI=0;
SPI_CLK=0;
SPI_CLK=1; //写0xd3
for(i=8;i>0;i--)
{
regist<<=1;
SPI_DI=CY;
SPI_CLK=0;
nop();nop();nop();nop();
SPI_CLK=1;
}
SPI_DI=1;//读之前将SDA拉高
Delay(80);//延时20ms
for(i=8;i>0;i--)
{
SPI_CLK=0;
Delay(4); //1ms
SPI_CLK=1;
dat<<=1;

DIR=1;    //MCU read data from driver ic

    if(SPI_DI)
{
dat++;
}
}
DIR=0; //MCU send data to driver ic
CS0=1;
DIR=0;
return dat;
}weibo.com/7767434148/Lztj8txTe weibo.com/7767434148/LzYluD7hc weibo.com/7767434148/LzYg0dMDg weibo.com/7767434148/LzYe7wGAF weibo.com/7767434148/LzYe1Eghm weibo.com/7767434148/LzYdY4rHJ weibo.com/7767434148/LzYdT5fGj weibo.com/7767434148/LzYdPgU5v weibo.com/7767434148/LzYdKrCwr weibo.com/7767434148/LzYdFvIdp weibo.com/7767434148/LzYdBFbat weibo.com/7767434148/LzYdx9V7C weibo.com/7767434148/LzYdokaWs weibo.com/7767434148/LzYdjgAob weibo.com/7767434148/LzYapEb4E weibo.com/7767434148/LzYaj73BG weibo.com/7767434148/LzYafy5Ni weibo.com/7767434148/LzYa9rmWb weibo.com/7767434148/LzYa6blxg weibo.com/7767434148/LzYa2DuAK weibo.com/7767434148/LzY9YqXqp weibo.com/7767434148/LzY9vtqpy weibo.com/7767434148/LzY9pzU7k weibo.com/7767434148/LzY9lrL11 weibo.com/7767434148/LzY9iuqG1 weibo.com/7767434148/LzY9elbkK weibo.com/7767434148/LzY9awPTl weibo.com/7767434148/LzY94A018 weibo.com/7767434148/LzY8ZBUJe weibo.com/7767434148/LzY8W3c2n weibo.com/7767434148/LzY467HGO weibo.com/7767434148/LzY3Zn7xb weibo.com/7767434148/LzY3VsbfD weibo.com/7767434148/LzY3Hjqjx weibo.com/7767434148/LzY3zBdrM weibo.com/7767434148/LzXvB3IG3 weibo.com/7767434148/LzXvwDIjK weibo.com/7767434148/LzXvq6A06 weibo.com/7767434148/LzXvl45tc weibo.com/7767434148/LzXvhzwSU weibo.com/7767434148/LzXvelIit weibo.com/7767434148/LzXv7aKCT weibo.com/7767434148/LzXuWwkqy weibo.com/7767434148/LzXuTkIsC weibo.com/7767434148/LzXuPwniT weibo.com/7767434148/LzXuMffxu weibo.com/7767434148/LzXuICZky weibo.com/7767434148/LzXuEAl4m weibo.com/7767434148/LzXtY2r2D weibo.com/7767434148/LzXmHpPVo weibo.com/7767434148/LzXmxkQTF weibo.com/7767434148/LzXmtww2f weibo.com/7767434148/LzXm7EsFV weibo.com/7767434148/LzXlFAbtk weibo.com/7767434148/LzXlBFf1A weibo.com/7767434148/LzXhIAcIy weibo.com/7767434148/LzXhEt90P weibo.com/7767434148/LzXhfmc4O weibo.com/7767434148/LzXhb9DRl weibo.com/7767434148/LzXh5C66n weibo.com/7767434148/LzXh1rKqg weibo.com/7767434148/LzXgYbK0T weibo.com/7767434148/LzXgTu9Ba weibo.com/7767434148/LzXgPCut0 weibo.com/7767434148/LzXgDaK84 weibo.com/7767434148/LzXgycDsq weibo.com/7767434148/LzXggsKAz weibo.com/7767434148/LzXcq2laA weibo.com/7767434148/LzXclhqVS weibo.com/7767434148/LzXaGc5me weibo.com/7767434148/LzXaDeLYc weibo.com/7767434148/LzXazDCxA weibo.com/7767434148/LzXar6OKf weibo.com/7767434148/LzXa7erIT weibo.com/7767434148/LzXa41JjZ weibo.com/7767434148/LzXa0a4FY weibo.com/7767434148/LzX9UBrOp weibo.com/7767434148/LzX9PvEUl weibo.com/7767434148/LzX9FtY6i weibo.com/7767434148/LzX9B7x4L weibo.com/7767434148/LzX9vtoyu weibo.com/7767434148/LzX9qFdtE weibo.com/7767434148/LzX9mhElc weibo.com/7767434148/LzX90qI1X weibo.com/7767434148/LzWIYcEh5 weibo.com/7767434148/LzWIzmbOt weibo.com/7767434148/LzWHWBhzV weibo.com/7767434148/LzWHegTKe weibo.com/7767434148/LzWH8nmCS weibo.com/7767434148/LzWFG0vKG weibo.com/7767434148/LzWFyg7bw weibo.com/7767434148/LzWwbBrCm weibo.com/7767434148/LzWvUvnQh weibo.com/7767434148/LzWvyCfJL weibo.com/7767434148/LzWvf9pXY weibo.com/7767434148/LzWv1g4Uz weibo.com/7767434148/LzWuRx6yJ weibo.com/7767434148/LzWuesoLX weibo.com/7767434148/LzWu6dd50 weibo.com/7767434148/LzWu0Aaqs weibo.com/7767434148/LzWtUEqXd weibo.com/7767434148/LzWtOr7sA weibo.com/7767434148/LzWtFkRjF weibo.com/7767434148/LzWtytGIW weibo.com/7767434148/LzWtgdTYB weibo.com/7767434148/LzWt1FCSo weibo.com/7767434148/LzWnuk4Gu weibo.com/7767434148/LzWnjrmFr weibo.com/7767434148/LzWn3bfFf weibo.com/7767434148/LzWiVA8Be weibo.com/7767434148/LzWiQ1JQo weibo.com/7767434148/LzWiI1X5m weibo.com/7767434148/LzWimEHve weibo.com/7767434148/LzWifm1vG weibo.com/7767434148/LzWi8ems1 weibo.com/7767434148/LzWhRD6Eu weibo.com/7767434148/LzWeDlWfr weibo.com/7767434148/LzWef61G2 weibo.com/7767434148/LzWe1cGK8 weibo.com/7767434148/LzWa06K7I weibo.com/7767434148/LzW9PcUBI weibo.com/7767434148/LzW9zcdgW weibo.com/7767434148/LzW9pawv2 weibo.com/7767434148/LzW5Kd6WL weibo.com/7767434148/LzW4bjZCu weibo.com/7767434148/LzW35mcwb weibo.com/7767434148/LzW120Vl5 weibo.com/7767434148/LzVZvaNeo weibo.com/7767434148/LzVZbCdIL weibo.com/7767434148/LzVYlE1Wr weibo.com/7767434148/LzVUjl2Fo weibo.com/7767434148/LzVKp4OHa weibo.com/7767434148/LzVJMzk7R weibo.com/7767434148/LzVJxxkWA weibo.com/7767434148/LzVIUx2C4 weibo.com/7767434148/LzVIKcEwD weibo.com/7767434148/LzVIbijSn weibo.com/7767434148/LzVHpaGfk weibo.com/7767434148/LzVGWvSxm weibo.com/7767434148/LzVFKDr6X weibo.com/7767434148/LzUOAbi0x weibo.com/7767434148/LzUOaENt7 weibo.com/7767434148/LzUNy42CG weibo.com/7767434148/LzULLsA5y weibo.com/7767434148/LzSMLsnlz weibo.com/7767434148/LzSM7dWHq weibo.com/7767434148/LzSLTjvfj weibo.com/7767434148/LzSKY2jRe weibo.com/7767434148/LzSKDl78m weibo.com/7767434148/LzSKoyxnQ weibo.com/7767434148/LzSJD3DJU weibo.com/7767434148/LzSHEnwBR weibo.com/7767434148/LzSHh32NM weibo.com/7767434148/LzSEeuiqv weibo.com/7767434148/LzxYcEuA7 weibo.com/7767434148/Lzw6FzPIJ dezhou.liebiao.com/wuliu/598177911.html dongying.liebiao.com/wuliu/598177894.html dongguan.liebiao.com/wuliu/598177857.html daqing.liebiao.com/wuliu/598177817.html chengmai.liebiao.com/wuliu/598177369.html changji.liebiao.com/wuliu/598177346.html chengde.liebiao.com/wuliu/598177171.html changzhi.liebiao.com/wuliu/598177153.html chifeng.liebiao.com/wuliu/598177090.html chaoyang.liebiao.com/wuliu/598174359.html chuzhou.liebiao.com/wuliu/598174181.html chaohu.liebiao.com/wuliu/598174079.html chenzhou.liebiao.com/wuliu/598173953.html chaozhou.liebiao.com/wuliu/598173829.html changdu.liebiao.com/wuliu/598173806.html chongzuo.liebiao.com/wuliu/598173768.html chuxiong.liebiao.com/wuliu/598173745.html changde.liebiao.com/wuliu/598173568.html cangzhou.liebiao.com/wuliu/598173548.html changzhou.liebiao.com/wuliu/598173501.html baoting.liebiao.com/wuliu/598173388.html baisha.liebiao.com/wuliu/598169783.html bozhou.liebiao.com/wuliu/598169388.html baise.liebiao.com/wuliu/598169356.html baishan.liebiao.com/wuliu/598169226.html baiyin.liebiao.com/wuliu/598168731.html baoji.liebiao.com/wuliu/598168660.html baoshan.liebiao.com/wuliu/598168202.html bayannaoer.liebiao.com/wuliu/598167719.html bayinguoleng.liebiao.com/wuliu/598167350.html beihai.liebiao.com/wuliu/598160136.html bazhong.liebiao.com/wuliu/598161835.html boertala.liebiao.com/wuliu/598159983.html bijie.liebiao.com/wuliu/598159960.html benxi.liebiao.com/wuliu/598159932.html bengbu.liebiao.com/wuliu/598159406.html baicheng.liebiao.com/wuliu/598137584.html binzhou.liebiao.com/wuliu/598135197.html baotou.liebiao.com/wuliu/598133353.html baoding.liebiao.com/wuliu/598131900.html aba.liebiao.com/wuliu/598131562.html akesu.liebiao.com/wuliu/598127803.html alaer.liebiao.com/wuliu/598124848.html alashan.liebiao.com/wuliu/598124710.html aletai.liebiao.com/wuliu/598122175.html ali.liebiao.com/wuliu/598122112.html ankang.liebiao.com/wuliu/598118260.html anqing.liebiao.com/wuliu/598118235.html anshun.liebiao.com/wuliu/598118137.html anyang.liebiao.com/wuliu/598118088.html anshan.liebiao.com/wuliu/598118063.html zhuhai.liebiao.com/wuliu/598118010.html zhengzhou.liebiao.com/wuliu/598117982.html yantai.liebiao.com/wuliu/598117900.html yinchuan.liebiao.com/wuliu/598117458.html xiamen.liebiao.com/wuliu/598117389.html xian.liebiao.com/wuliu/598117342.html weifang.liebiao.com/wuliu/598105459.html weihai.liebiao.com/wuliu/598105379.html wuxi.liebiao.com/wuliu/598105158.html wenzhou.liebiao.com/wuliu/598105146.html wulumuqi.liebiao.com/wuliu/598104934.html wuhan.liebiao.com/wuliu/598104862.html tangshan.liebiao.com/wuliu/598104845.html beijing.liebiao.com/wuliu/598090533.html taiyuan.liebiao.com/wuliu/598104827.html shaoxing.liebiao.com/wuliu/598104805.html shijiazhuang.liebiao.com/wuliu/598104760.html shenyang.liebiao.com/wuliu/598104749.html suzhou.liebiao.com/wuliu/598104735.html quanzhou.liebiao.com/wuliu/598104694.html qingdao.liebiao.com/wuliu/598104684.html ningbo.liebiao.com/wuliu/598104596.html nanning.liebiao.com/wuliu/598104569.html lasa.liebiao.com/wuliu/598104442.html lanzhou.liebiao.com/wuliu/598104424.html kunming.liebiao.com/wuliu/598104360.html jinan.liebiao.com/wuliu/598104340.html haikou.liebiao.com/wuliu/598104325.html hefei.liebiao.com/wuliu/598103682.html haerbin.liebiao.com/wuliu/598103673.html hangzhou.liebiao.com/wuliu/598103664.html guiyang.liebiao.com/wuliu/598103628.html guangzhou.liebiao.com/wuliu/598103604.html foshan.liebiao.com/wuliu/598102914.html fuzhou.liebiao.com/wuliu/598102903.html dalian.liebiao.com/wuliu/598099892.html changsha.liebiao.com/wuliu/598099850.html changchun.liebiao.com/wuliu/598099812.html chongqing.liebiao.com/wuliu/598099793.html nanjing.liebiao.com/wuliu/598099512.html tianjin.liebiao.com/wuliu/598096975.html chengdu.liebiao.com/wuliu/598095619.html hangzhou.liebiao.com/wuliu/598094594.html shenzhen.liebiao.com/wuliu/598094430.html shanghai.liebiao.com/wuliu/598091284.html beijing.liebiao.com/wuliu/598089925.html guangzhou.liebiao.com/wuliu/598085922.html guangzhou.liebiao.com/wuliu/598077159.html chaozhou.baixing.com/kuaidi/a2584557581.html beijing.baixing.com/kuaidi/a2584921495.html shanghai.baixing.com/kuaidi/a2584922113.html beijing.baixing.com/kuaidi/a2584928993.html beijing.baixing.com/kuaidi/a2584932737.html beijing.baixing.com/kuaidi/a2584932868.html beijing.baixing.com/kuaidi/a2584933459.html beijing.baixing.com/kuaidi/a2584933724.html weibo.com/7767434148/LAssZ5RSI weibo.com/7767434148/LAsqD5hmP weibo.com/7767434148/LAsqt7YuB weibo.com/7767434148/LAsqcxOVV weibo.com/7767434148/LAsq5aLu5 weibo.com/7767434148/LAri7BMeb weibo.com/7767434148/LArhB4suz weibo.com/7767434148/LAqIynyOY weibo.com/7767434148/LAqz63UB5 weibo.com/7767434148/LAqmIE4aK weibo.com/7767434148/LApWycZN5 weibo.com/7767434148/LAp3ivbv3 weibo.com/7767434148/LAoYk0FPx weibo.com/7767434148/LAoY188Zb weibo.com/7767434148/LAoAGkYkF weibo.com/7767434148/LAoA59mCx weibo.com/7767434148/LAqC05BgB weibo.com/7767434148/LALxCd1V6 weibo.com/7767434148/LALxxulQJ weibo.com/7767434148/LALwtzvsf weibo.com/7767434148/LALvDBkdt weibo.com/7767434148/LALvdyUKt weibo.com/7767434148/LALv6cXvl weibo.com/7767434148/LAL74DlJG weibo.com/7767434148/LAL4QkY2j weibo.com/7767434148/LAL479wQH weibo.com/7767434148/LAL42CWmj weibo.com/7767434148/LAL3VwmIY weibo.com/7767434148/LAGDzwnRo weibo.com/7767434148/LAGDvpjP6 weibo.com/7767434148/LAGyCwv3d weibo.com/7767434148/LAGsYlZbx weibo.com/7767434148/LAGsT5c9d weibo.com/7767434148/LAGsNvtlq weibo.com/7767434148/LAGsKgy1v weibo.com/7767434148/LAG9Td2wn weibo.com/7767434148/LAG9K6NVL weibo.com/7767434148/LADwv9yX7 weibo.com/7767434148/LADwr2vp1 weibo.com/7767434148/LADsP4CvM weibo.com/7767434148/LADsK28kA weibo.com/7767434148/LADsAxrxD weibo.com/7767434148/LADswpi6A weibo.com/7767434148/LADsrsiwC weibo.com/7767434148/LADsnfK8k weibo.com/7767434148/LADnFiX3Y weibo.com/7767434148/LADnBtvde weibo.com/7767434148/LADnxlln3 weibo.com/7767434148/LADnr97Pd weibo.com/7767434148/LADnleuSW weibo.com/7767434148/LADjn84kn weibo.com/7767434148/LADjb1cH3 weibo.com/7767434148/LADj6z0CK weibo.com/7767434148/LADj01SkH weibo.com/7767434148/LADiU8lzA weibo.com/7767434148/LADeku3TF weibo.com/7767434148/LADe2rtu4 weibo.com/7767434148/LADcteyS6 weibo.com/7767434148/LACIm400n weibo.com/7767434148/LACHIt9L1 weibo.com/7767434148/LACHyCupE weibo.com/7767434148/LABTGoF2m beijing.baixing.com/kuaidi/a2585294011.html weibo.com/7767434148/LARnKy7D9 weibo.com/7767434148/LARnF0P6f weibo.com/7767434148/LARllkOgO weibo.com/7767434148/LARik0rQV weibo.com/7767434148/LARik0rQV weibo.com/7767434148/LARieF19j weibo.com/7767434148/LARcy9UKK weibo.com/7767434148/LARcu2SmC weibo.com/7767434148/LARcopQd4 weibo.com/7767434148/LARc4yzDM weibo.com/7767434148/LARc139XS weibo.com/7767434148/LARbXcBPa weibo.com/7767434148/LARbSevpD weibo.com/7767434148/LARbO6ml3 weibo.com/7767434148/LAQIqmC5v weibo.com/7767434148/LAQIlmkJZ weibo.com/7767434148/LAQIhrnb4 weibo.com/7767434148/LAQIcvumb weibo.com/7767434148/LAQI8l8qE weibo.com/7767434148/LAQFR6wcF weibo.com/7767434148/LAQyNv8jK weibo.com/7767434148/LAQrTfDs6 weibo.com/7767434148/LAQrOeeN3 weibo.com/7767434148/LAQr9daVO weibo.com/7767434148/LAQr27Ibt weibo.com/7767434148/LAQqU6Nsz weibo.com/7767434148/LAQqun6Lq weibo.com/7767434148/LAQqhFGYn weibo.com/7767434148/LAQq2Bxpj
