我们正在使用AWS CloudFormation创建一个安装了Ruby的EC2实例。
什么是AWS CloudFormation？
AWS CloudFormation是一项服务，它为开发人员和企业提供了一种简单的方法来创建相关的AWS和第三方资源的集合，并以有序和可预测的方式配置和管理它们。我们将在这个项目中使用映射、资源和输出。
下面是我们要创建的核心组件。
- 网络服务器安全组
- 带有Ubuntu 20.04镜像和8Gb Ebs卷和Ruby安装的EC2实例。
关于创建VPC和子网，请查看下面的文章，在这篇文章中我们将创建一个带有Ruby安装的EC2实例。
使用CloudFormation创建一个带有私有和公共子网的VPC
映射。
Mappings部分基本上是一个使用键：值关系的查找表。在这个模板中，亚马逊机器图像被映射到其各自的区域。我在这个项目中只使用了一个区域的映射，所以模板被限制在这一个区域内，如果在这些区域之外启动会失败。
"Mappings": {
"RegionMap": {
"ap-northeast-1": {
"AMI": "ami-0a3eb6ca097b78895"
}
}
}
参数。
使用可选的参数部分来定制你的模板。参数使你能够在每次创建或更新堆栈时向你的模板输入自定义值。
"Parameters": {
"KeyName": {
"Description" : "The name of an existing EC2 keypair for this instance",
"Type": "AWS::EC2::KeyPair::KeyName",
"MinLength": "1",
"MaxLength": "255",
"AllowedPattern" : "[\\x20-\\x7E]*",
"ConstraintDescription" : "can contain only ASCII characters.",
"Default": "First_EC2"
},
"SSHLocation" : {
"Description" : "The IP address range that can be used to SSH to the EC2 instances",
"Type": "String",
"MinLength": "9",
"MaxLength": "18",
"Default": "0.0.0.0/0",
"AllowedPattern": "(\\d{1,3})\\.(\\d{1,3})\\.(\\d{1,3})\\.(\\d{1,3})/(\\d{1,2})",
"ConstraintDescription": "must be a valid IP CIDR range of the form x.x.x.x/x."
}
}
改变你的键名。
资源。
资源部分包括你想在堆栈中创建的所有AWS资源。
- 对于WebserverSecurityGroup，模板正在创建一个安全组，其入站规则允许HTTP上的所有流量。
"WebServerSecurityGroup": {
"Type": "AWS::EC2::SecurityGroup",
"Properties": {
"GroupName": "WebServerSecurityGroup",
"SecurityGroupIngress": [
{
"IpProtocol": "tcp",
"FromPort": 22,
"ToPort": 22,
"CidrIp": {
"Ref": "SSHLocation"
},
"Description": "For EC2 connection with SSH"
},
{
"IpProtocol": "tcp",
"FromPort": 80,
"ToPort": 80,
"CidrIp": {
"Ref": "SSHLocation"
},
"Description": "For traffic from Internet Http"
}
],
"GroupDescription": "Security Group for demo server",
"VpcId": {
"Ref": "VPC"
}
}
}
2.对于EC2Instance，该模板正在创建一个具有以下属性的EC2实例。
- ImageID: 你可以直接为这个属性输入AMI-Id，但是由于我们希望能够在一个区域内使用这个模板，我们使用FindInMap函数来引用我们的Mappings。
- UserData。这一部分用于使用CloudFormation::Init来安装Ruby
**AWS::CloudFormation::Init
**使用AWS::CloudFormation::Init类型来包含亚马逊EC2实例上的元数据
EC实例模板
"EC2Instance": {
"Type": "AWS::EC2::Instance",
"Metadata" : {
"Comment" : "Install Ruby On EC2 using CloudFormation::Init",
"AWS::CloudFormation::Init" : {
"configSets" : {
"full_install" : [ "install_cfn", "install_ruby_3" ]
},
"install_cfn" : {
"files" : {
"/etc/cfn/cfn-hup.conf" : {
"content" : { "Fn::Join" : ["", [
"[main]\n",
"stack=", { "Ref" : "AWS::StackId" }, "\n",
"region=", { "Ref" : "AWS::Region" }, "\n"
]]},
"mode" : "000400",
"owner" : "root",
"group" : "root"
},
"/etc/cfn/hooks.d/cfn-auto-reloader.conf" : {
"content": { "Fn::Join" : ["", [
"[cfn-auto-reloader-hook]\n",
"triggers=post.update\n",
"path=Resources.EC2Instance.Metadata.AWS::CloudFormation::Init\n",
"action=/opt/aws/bin/cfn-init -v ",
" --stack ", { "Ref" : "AWS::StackName" },
" --resource EC2Instance ",
" --configsets full_install ",
" --region ", { "Ref" : "AWS::Region" }, "\n",
"runas=root\n"
]]},
"mode" : "000400",
"owner" : "root",
"group" : "root"
},
"/lib/systemd/system/cfn-hup.service" : {
"content": { "Fn::Join" : ["", [
"[Unit]\n",
"Description=cfn-hup daemon\n",
"[Service]\n",
"Type=simple\n",
"ExecStart=/opt/aws/bin/cfn-hup\n",
"Restart=always\n",
"[Install]\n",
"WantedBy=multi-user.target\n"
]]}
}
},
"commands": {
"01enable_cfn_hup": {
"command": "systemctl enable cfn-hup.service"
},
"02start_cfn_hup": {
"command": "systemctl start cfn-hup.service"
}
}
},
"install_ruby_3": {
"files": {
"/tmp/install_ruby": {
"content": {
"Fn::Join": [
"\n",
[
"#!/bin/bash",
"curl -sSL https://rvm.io/mpapis.asc | sudo gpg --import -",
"curl -sSL https://rvm.io/pkuczynski.asc | sudo gpg --import -",
"curl -sSL https://get.rvm.io | sudo bash -s stable --ruby",
"source /usr/local/rvm/scripts/rvm",
"rvm gemset create own_gemset_name"
]
]
},
"mode": "000500",
"owner": "root",
"group": "root"
}
},
"commands": {
"01_install_ruby": {
"command": "/tmp/install_ruby > /var/log/install_ruby.log"
}
}
}
}
},
"Properties": {
"ImageId": { "Fn::FindInMap" : [ "RegionMap", { "Ref" : "AWS::Region" }, "AMI" ]},
"InstanceType": { "Ref" : "InstanceType" },
"SubnetId" : { "Ref" : "PublicSubnet" },
"KeyName": { "Ref" : "KeyName" },
"SecurityGroupIds" : [ { "Ref": "WebServerSecurityGroup" } ],
"Tags": [
{ "Key" : "EC-2", "Value" : { "Fn::Sub": "${AWS::StackName}-EC2" } }
],
"BlockDeviceMappings": [
{
"DeviceName": "/dev/sda1",
"Ebs": {
"DeleteOnTermination": "true",
"VolumeSize": "8",
"VolumeType": "gp2"
}
}
],
"UserData": {
"Fn::Base64": {
"Fn::Join": [
"",
[
"#!/bin/bash\n",
"apt-get update\n",
"apt-get install -y python-setuptools\n",
"mkdir -p /opt/aws/bin\n",
"apt-get install -y wget\n",
"wget https://s3.amazonaws.com/cloudformation-examples/aws-cfn-bootstrap-py3-latest.tar.gz\n",
"python3 -m easy_install --script-dir /opt/aws/bin aws-cfn-bootstrap-py3-latest.tar.gz\n",
"/opt/aws/bin/cfn-init -v ",
" --stack ", { "Ref" : "AWS::StackId" },
" --resource EC2Instance ",
" --configsets full_install ",
" --region ", { "Ref" : "AWS::Region" }, "\n",
"/opt/aws/bin/cfn-signal -e $? ",
" --stack ", { "Ref" : "AWS::StackId" },
" --resource EC2Instance ",
" --region ", { "Ref" : "AWS::Region" }, "\n"
]
]
}
}
}
}

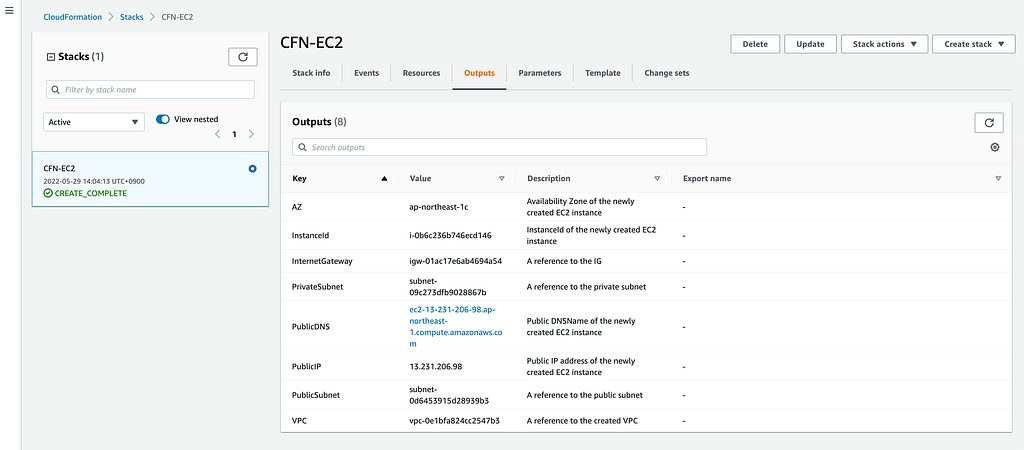

输出。
输出部分在堆栈创建后将信息打印到CloudFormation中的Outputs标签，也可以用来将信息导入到其他堆栈。
"Outputs" : {
"InstanceId" : {
"Description" : "InstanceId of the newly created EC2 instance",
"Value" : { "Ref" : "EC2Instance" }
},
"AZ" : {
"Description" : "Availability Zone of the newly created EC2 instance",
"Value" : { "Fn::GetAtt" : [ "EC2Instance", "AvailabilityZone" ] }
},
"PublicDNS" : {
"Description" : "Public DNSName of the newly created EC2 instance",
"Value" : { "Fn::GetAtt" : [ "EC2Instance", "PublicDnsName" ] }
},
"PublicIP" : {
"Description" : "Public IP address of the newly created EC2 instance",
"Value" : { "Fn::GetAtt" : [ "EC2Instance", "PublicIp" ] }
}
}
完整的CloudFormation模板。
{
"AWSTemplateFormatVersion": "2010-09-09",
"Description": "This template deploys EC2 with a VPC and pair of public and private subnets. It deploys an Internet Gateway, with a default route on the public subnets and NAT gateway and route for private subnet.\n",
"Parameters": {
"InstanceType" : {
"Description" : "The EC2 instance type",
"Type" : "String",
"Default" : "t2.micro",
"AllowedValues" : [ "t2.nano","t2.micro","t2.small","t2.medium","m1.small","m1.medium","m1.large","m1.xlarge","m2.xlarge","m2.2xlarge","m2.4xlarge","m3.medium","m3.large","m3.xlarge","m3.2xlarge","c1.medium","c1.xlarge","cc1.4xlarge","cc2.8xlarge","cg1.4xlarge"],
"ConstraintDescription" : "Must be a valid EC2 instance type."
},
"VPCCIDR" : {
"Type" : "String",
"Description" : "Please enter the IP range (CIDR notation) for this VPC",
"MinLength": "9",
"MaxLength": "18",
"Default": "10.22.0.0/16",
"AllowedPattern": "(\\d{1,3})\\.(\\d{1,3})\\.(\\d{1,3})\\.(\\d{1,3})/(\\d{1,2})",
"ConstraintDescription": "must be a valid IP CIDR range of the form x.x.x.x/x."
},
"PublicSubnetCIDR" : {
"Type" : "String",
"Description" : "Please enter the IP address range for the VPC subnet",
"MinLength": "9",
"MaxLength": "18",
"Default": "10.22.0.0/24",
"AllowedPattern": "(\\d{1,3})\\.(\\d{1,3})\\.(\\d{1,3})\\.(\\d{1,3})/(\\d{1,2})",
"ConstraintDescription": "must be a valid IP CIDR range of the form x.x.x.x/x."
},
"PrivateSubnetCIDR" : {
"Type" : "String",
"Description" : "Please enter the IP address range for the VPC subnet",
"MinLength": "9",
"MaxLength": "18",
"Default": "10.22.1.0/24",
"AllowedPattern": "(\\d{1,3})\\.(\\d{1,3})\\.(\\d{1,3})\\.(\\d{1,3})/(\\d{1,2})",
"ConstraintDescription": "must be a valid IP CIDR range of the form x.x.x.x/x."
},
"KeyName": {
"Description" : "The name of an existing EC2 keypair for this instance",
"Type": "AWS::EC2::KeyPair::KeyName",
"MinLength": "1",
"MaxLength": "255",
"AllowedPattern" : "[\\x20-\\x7E]*",
"ConstraintDescription" : "can contain only ASCII characters.",
"Default": "First_EC2"
},
"SSHLocation" : {
"Description" : "The IP address range that can be used to SSH to the EC2 instances",
"Type": "String",
"MinLength": "9",
"MaxLength": "18",
"Default": "0.0.0.0/0",
"AllowedPattern": "(\\d{1,3})\\.(\\d{1,3})\\.(\\d{1,3})\\.(\\d{1,3})/(\\d{1,2})",
"ConstraintDescription": "must be a valid IP CIDR range of the form x.x.x.x/x."
}
},
"Mappings": {
"RegionMap": {
"ap-northeast-1": { "AMI" : "ami-0a3eb6ca097b78895" }
}
},
"Resources": {
"VPC": {
"Type": "AWS::EC2::VPC",
"Properties": {
"CidrBlock": { "Ref" : "VPCCIDR" },
"EnableDnsSupport": true,
"EnableDnsHostnames": true,
"InstanceTenancy": "default",
"Tags": [
{ "Key" : "Name", "Value" : { "Fn::Sub": "${AWS::StackName}-VPC" } }
]
}
},
"InternetGateway": {
"Type": "AWS::EC2::InternetGateway",
"Properties": {
"Tags": [
{ "Key" : "Name", "Value" : { "Fn::Sub": "${AWS::StackName}-IG" } }
]
}
},
"GatewayToInternet": {
"Type": "AWS::EC2::VPCGatewayAttachment",
"Properties": {
"InternetGatewayId": { "Ref": "InternetGateway" },
"VpcId": { "Ref": "VPC" }
}
},
"PublicSubnetRouteTable": {
"Type": "AWS::EC2::RouteTable",
"Properties": {
"VpcId": { "Ref": "VPC" },
"Tags": [
{ "Key" : "Name", "Value" : { "Fn::Sub": "${AWS::StackName}-public" } }
]
}
},
"PublicSubnetRoute": {
"Type": "AWS::EC2::Route",
"DependsOn": "GatewayToInternet",
"Properties": {
"RouteTableId": { "Ref": "PublicSubnetRouteTable" },
"DestinationCidrBlock": "0.0.0.0/0",
"GatewayId": { "Ref": "InternetGateway" }
}
},
"PublicSubnet": {
"Type": "AWS::EC2::Subnet",
"Properties": {
"VpcId": { "Ref": "VPC" },
"CidrBlock": { "Ref" : "PublicSubnetCIDR" },
"MapPublicIpOnLaunch": true,
"Tags": [
{ "Key" : "Name", "Value" : { "Fn::Sub": "${AWS::StackName}-public-subnet" } }
]
}
},
"PublicSubnetRouteTableAssociation": {
"Type": "AWS::EC2::SubnetRouteTableAssociation",
"Properties": {
"RouteTableId": { "Ref" : "PublicSubnetRouteTable" },
"SubnetId": { "Ref" : "PublicSubnet" }
}
},
"PrivateSubnetRouteTable": {
"Type": "AWS::EC2::RouteTable",
"Properties": {
"VpcId": { "Ref": "VPC" },
"Tags": [
{ "Key" : "Name", "Value" : { "Fn::Sub": "${AWS::StackName}-private" } }
]
}
},
"PrivateSubnet": {
"Type": "AWS::EC2::Subnet",
"Properties": {
"VpcId": { "Ref": "VPC" },
"CidrBlock": { "Ref" : "PrivateSubnetCIDR" },
"MapPublicIpOnLaunch": false,
"Tags": [
{ "Key" : "Name", "Value" : { "Fn::Sub": "${AWS::StackName}-private-subnet" } }
]
}
},
"PrivateSubnetRouteTableAssociation": {
"Type": "AWS::EC2::SubnetRouteTableAssociation",
"Properties": {
"RouteTableId": { "Ref" : "PrivateSubnetRouteTable" },
"SubnetId": { "Ref" : "PrivateSubnet" }
}
},
"WebServerSecurityGroup": {
"Type": "AWS::EC2::SecurityGroup",
"Properties": {
"GroupName": "WebServerSecurityGroup",
"SecurityGroupIngress": [
{
"IpProtocol": "tcp",
"FromPort": 22,
"ToPort": 22,
"CidrIp": { "Ref" : "SSHLocation"},
"Description": "For traffic from Internet"
},
{
"IpProtocol": "tcp",
"FromPort": 80,
"ToPort": 80,
"CidrIp": { "Ref" : "SSHLocation"},
"Description": "For traffic from Internet Http"
}
],
"GroupDescription": "Security Group for demo server",
"VpcId": { "Ref": "VPC" }
}
},
"EC2Instance": {
"Type": "AWS::EC2::Instance",
"Metadata" : {
"Comment" : "Install Ruby On EC2 using CloudFormation::Init",
"AWS::CloudFormation::Init" : {
"configSets" : {
"full_install" : [ "install_cfn", "install_ruby_3" ]
},
"install_cfn" : {
"files" : {
"/etc/cfn/cfn-hup.conf" : {
"content" : { "Fn::Join" : ["", [
"[main]\n",
"stack=", { "Ref" : "AWS::StackId" }, "\n",
"region=", { "Ref" : "AWS::Region" }, "\n"
]]},
"mode" : "000400",
"owner" : "root",
"group" : "root"
},
"/etc/cfn/hooks.d/cfn-auto-reloader.conf" : {
"content": { "Fn::Join" : ["", [
"[cfn-auto-reloader-hook]\n",
"triggers=post.update\n",
"path=Resources.EC2Instance.Metadata.AWS::CloudFormation::Init\n",
"action=/opt/aws/bin/cfn-init -v ",
" --stack ", { "Ref" : "AWS::StackName" },
" --resource EC2Instance ",
" --configsets full_install ",
" --region ", { "Ref" : "AWS::Region" }, "\n",
"runas=root\n"
]]},
"mode" : "000400",
"owner" : "root",
"group" : "root"
},
"/lib/systemd/system/cfn-hup.service" : {
"content": { "Fn::Join" : ["", [
"[Unit]\n",
"Description=cfn-hup daemon\n",
"[Service]\n",
"Type=simple\n",
"ExecStart=/opt/aws/bin/cfn-hup\n",
"Restart=always\n",
"[Install]\n",
"WantedBy=multi-user.target\n"
]]}
}
},
"commands": {
"01enable_cfn_hup": {
"command": "systemctl enable cfn-hup.service"
},
"02start_cfn_hup": {
"command": "systemctl start cfn-hup.service"
}
}
},
"install_ruby_3": {
"files": {
"/tmp/install_ruby": {
"content": {
"Fn::Join": [
"\n",
[
"#!/bin/bash",
"curl -sSL https://rvm.io/mpapis.asc | sudo gpg --import -",
"curl -sSL https://rvm.io/pkuczynski.asc | sudo gpg --import -",
"curl -sSL https://get.rvm.io | sudo bash -s stable --ruby",
"source /usr/local/rvm/scripts/rvm",
"rvm gemset create own_gemset_name"
]
]
},
"mode": "000500",
"owner": "root",
"group": "root"
}
},
"commands": {
"01_install_ruby": {
"command": "/tmp/install_ruby > /var/log/install_ruby.log"
}
}
}
}
},
"Properties": {
"ImageId": { "Fn::FindInMap" : [ "RegionMap", { "Ref" : "AWS::Region" }, "AMI" ]},
"InstanceType": { "Ref" : "InstanceType" },
"SubnetId" : { "Ref" : "PublicSubnet" },
"KeyName": { "Ref" : "KeyName" },
"SecurityGroupIds" : [ { "Ref": "WebServerSecurityGroup" } ],
"Tags": [
{ "Key" : "EC-2", "Value" : { "Fn::Sub": "${AWS::StackName}-EC2" } }
],
"BlockDeviceMappings": [
{
"DeviceName": "/dev/sda1",
"Ebs": {
"DeleteOnTermination": "true",
"VolumeSize": "8",
"VolumeType": "gp2"
}
}
],
"UserData": {
"Fn::Base64": {
"Fn::Join": [
"",
[
"#!/bin/bash\n",
"apt-get update\n",
"apt-get install -y python-setuptools\n",
"mkdir -p /opt/aws/bin\n",
"apt-get install -y wget\n",
"wget https://s3.amazonaws.com/cloudformation-examples/aws-cfn-bootstrap-py3-latest.tar.gz\n",
"python3 -m easy_install --script-dir /opt/aws/bin aws-cfn-bootstrap-py3-latest.tar.gz\n",
"/opt/aws/bin/cfn-init -v ",
" --stack ", { "Ref" : "AWS::StackId" },
" --resource EC2Instance ",
" --configsets full_install ",
" --region ", { "Ref" : "AWS::Region" }, "\n",
"/opt/aws/bin/cfn-signal -e $? ",
" --stack ", { "Ref" : "AWS::StackId" },
" --resource EC2Instance ",
" --region ", { "Ref" : "AWS::Region" }, "\n"
]
]
}
}
}
}
},
"Outputs" : {
"InternetGateway" : {
"Description" : "A reference to the IG",
"Value" : { "Ref" : "InternetGateway" }
},
"VPC" : {
"Description" : "A reference to the created VPC",
"Value" : { "Ref" : "VPC" }
},
"PublicSubnet" : {
"Description" : "A reference to the public subnet",
"Value" : { "Ref" : "PublicSubnet" }
},
"PrivateSubnet" : {
"Description" : "A reference to the private subnet",
"Value" : { "Ref" : "PrivateSubnet" }
},
"InstanceId" : {
"Description" : "InstanceId of the newly created EC2 instance",
"Value" : { "Ref" : "EC2Instance" }
},
"AZ" : {
"Description" : "Availability Zone of the newly created EC2 instance",
"Value" : { "Fn::GetAtt" : [ "EC2Instance", "AvailabilityZone" ] }
},
"PublicDNS" : {
"Description" : "Public DNSName of the newly created EC2 instance",
"Value" : { "Fn::GetAtt" : [ "EC2Instance", "PublicDnsName" ] }
},
"PublicIP" : {
"Description" : "Public IP address of the newly created EC2 instance",
"Value" : { "Fn::GetAtt" : [ "EC2Instance", "PublicIp" ] }
}
}
}

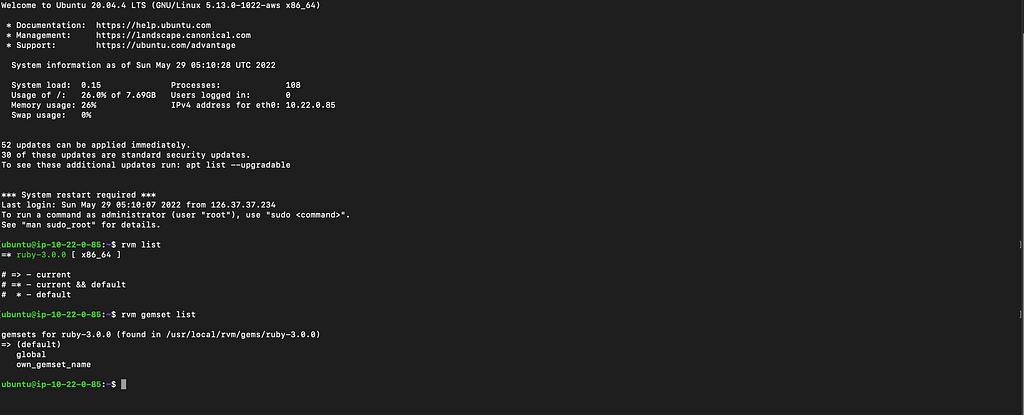

最终输出
RVM和Ruby默认安装输出。
注意，通过 DeletionPolicy这个属性，你可以保留，在某些情况下，当资源的堆栈被删除时，还可以备份。你 为每个你想控制的资源 指定一个 DeletionPolicy属性。如果一个资源没有 DeletionPolicy属性，Amazon CloudFormation默认会删除该资源。如果你想保留你的所有资源，那么添加 *DeletionPolicy。保留
更多细节。
*AWS文档
结论
使用这个模板，你可以使用AWS CloudFormation创建具有公共和私人子网的VPC，Web服务器安全组，并启动具有Ruby安装的EC2实例。它建立了一个私有的网络环境，你可以在其中安全地运行AWS资源，以及相关的网络资源。
