seata原理
seata的设计思路可以理解为分治思想，将整个分布式事务分到每个微服务自身去治理。整个请求在每个微服务上，每次写库各自走自己的本地事务逻辑，当整个请求success，则全局事务自动success；当某个节点失败，则全局事务通知之前已commit的数据进行反向回滚，而对本地db来说，回滚不是利用db回滚，是一次新的commit，把之前的数据重新更改回去。

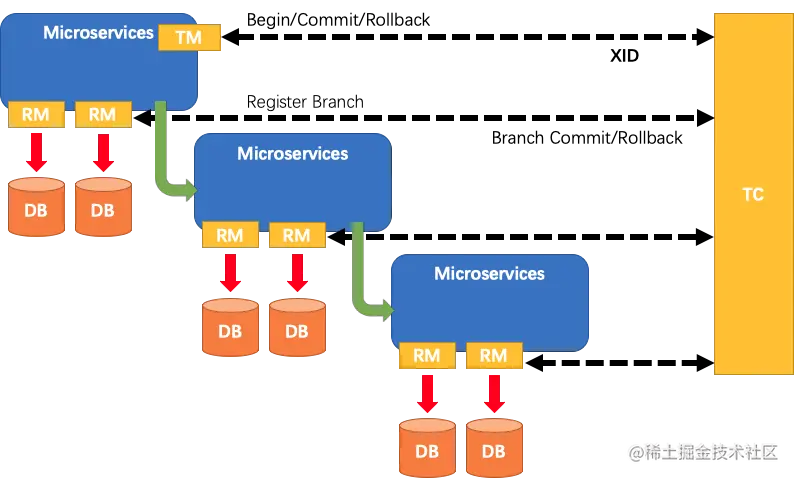

Seata 内部定义了 3个模块来处理全局事务和分支事务的关系和处理过程，这三个组件分别是：
- Transaction Coordinator (TC)：事务协调器，维护全局事务的运行状态，负责协调并驱动全局事务的提交或回滚。
- Transaction Manager (TM)：控制全局事务的边界，负责开启一个全局事务，并最终发起全局提交或全局回滚的决议。
- Resource Manager (RM)：控制分支事务，负责分支注册、状态汇报，并接收事务协调器的指令，驱动分支（本地）事务的提交和回滚。
整个全局事务的执行步骤：
- TM 向 TC 申请开启一个全局事务，TC 创建全局事务后返回全局唯一的 XID，XID 会在全局事务的上下文中传播；
- RM 向 TC 注册分支事务，该分支事务归属于拥有相同 XID 的全局事务；
- TM 向 TC 发起全局提交或回滚；
- TC 调度 XID 下的分支事务完成提交或者回滚。
TM相关源码
TM如何管理一个全局事务
public interface GlobalTransaction {
// 开始一个全局事务
void begin() throws TransactionException;
void begin(int timeout) throws TransactionException;
void begin(int timeout, String name) throws TransactionException;
/**
* Commit the global transaction.
*/
void commit() throws TransactionException;
/**
* Rollback the global transaction.
*/
void rollback() throws TransactionException;
.......
GlobalStatus getStatus() throws TransactionException;
/**
* Get XID.
*/
String getXid();
}
实现类为
public class DefaultGlobalTransaction implements GlobalTransaction {
private static final Logger LOGGER = LoggerFactory.getLogger(DefaultGlobalTransaction.class);
private static final int DEFAULT_GLOBAL_TX_TIMEOUT = 60000;
private static final String DEFAULT_GLOBAL_TX_NAME = "default";
private TransactionManager transactionManager;
private String xid;
private GlobalStatus status;
private GlobalTransactionRole role;
private static final int COMMIT_RETRY_COUNT = ConfigurationFactory.getInstance().getInt(
ConfigurationKeys.CLIENT_TM_COMMIT_RETRY_COUNT, DEFAULT_TM_COMMIT_RETRY_COUNT);
private static final int ROLLBACK_RETRY_COUNT = ConfigurationFactory.getInstance().getInt(
ConfigurationKeys.CLIENT_TM_ROLLBACK_RETRY_COUNT, DEFAULT_TM_ROLLBACK_RETRY_COUNT);
/**
* Instantiates a new Default global transaction.
*/
DefaultGlobalTransaction() {
this(null, GlobalStatus.UnKnown, GlobalTransactionRole.Launcher);
}
/**
* Instantiates a new Default global transaction.
*
* @param xid the xid
* @param status the status
* @param role the role
*/
DefaultGlobalTransaction(String xid, GlobalStatus status, GlobalTransactionRole role) {
this.transactionManager = TransactionManagerHolder.get();
this.xid = xid;
this.status = status;
this.role = role;
}
@Override
public void begin() throws TransactionException {
begin(DEFAULT_GLOBAL_TX_TIMEOUT);
}
@Override
public void begin(int timeout) throws TransactionException {
begin(timeout, DEFAULT_GLOBAL_TX_NAME);
}
@Override
public void begin(int timeout, String name) throws TransactionException {
if (role != GlobalTransactionRole.Launcher) {
assertXIDNotNull();
if (LOGGER.isDebugEnabled()) {
LOGGER.debug("Ignore Begin(): just involved in global transaction [{}]", xid);
}
return;
}
assertXIDNull();
String currentXid = RootContext.getXID();
if (currentXid != null) {
throw new IllegalStateException("Global transaction already exists," +
" can't begin a new global transaction, currentXid = " + currentXid);
}
xid = transactionManager.begin(null, null, name, timeout);
status = GlobalStatus.Begin;
RootContext.bind(xid);
if (LOGGER.isInfoEnabled()) {
LOGGER.info("Begin new global transaction [{}]", xid);
}
}
@Override
public void commit() throws TransactionException {
if (role == GlobalTransactionRole.Participant) {
// Participant has no responsibility of committing
if (LOGGER.isDebugEnabled()) {
LOGGER.debug("Ignore Commit(): just involved in global transaction [{}]", xid);
}
return;
}
assertXIDNotNull();
int retry = COMMIT_RETRY_COUNT <= 0 ? DEFAULT_TM_COMMIT_RETRY_COUNT : COMMIT_RETRY_COUNT;
try {
while (retry > 0) {
try {
status = transactionManager.commit(xid);
break;
} catch (Throwable ex) {
LOGGER.error("Failed to report global commit [{}],Retry Countdown: {}, reason: {}", this.getXid(), retry, ex.getMessage());
retry--;
if (retry == 0) {
throw new TransactionException("Failed to report global commit", ex);
}
}
}
} finally {
if (xid.equals(RootContext.getXID())) {
suspend();
}
}
if (LOGGER.isInfoEnabled()) {
LOGGER.info("[{}] commit status: {}", xid, status);
}
}
@Override
public void rollback() throws TransactionException {
if (role == GlobalTransactionRole.Participant) {
// Participant has no responsibility of rollback
if (LOGGER.isDebugEnabled()) {
LOGGER.debug("Ignore Rollback(): just involved in global transaction [{}]", xid);
}
return;
}
assertXIDNotNull();
int retry = ROLLBACK_RETRY_COUNT <= 0 ? DEFAULT_TM_ROLLBACK_RETRY_COUNT : ROLLBACK_RETRY_COUNT;
try {
while (retry > 0) {
try {
status = transactionManager.rollback(xid);
break;
} catch (Throwable ex) {
LOGGER.error("Failed to report global rollback [{}],Retry Countdown: {}, reason: {}", this.getXid(), retry, ex.getMessage());
retry--;
if (retry == 0) {
throw new TransactionException("Failed to report global rollback", ex);
}
}
}
} finally {
if (xid.equals(RootContext.getXID())) {
suspend();
}
}
if (LOGGER.isInfoEnabled()) {
LOGGER.info("[{}] rollback status: {}", xid, status);
}
}
......
@Override
public GlobalStatus getStatus() throws TransactionException {
if (xid == null) {
return GlobalStatus.UnKnown;
}
status = transactionManager.getStatus(xid);
return status;
}
@Override
public String getXid() {
return xid;
}
}
实际就是调用了
public class DefaultTransactionManager implements TransactionManager {
@Override
public String begin(String applicationId, String transactionServiceGroup, String name, int timeout)
throws TransactionException {
GlobalBeginRequest request = new GlobalBeginRequest();
request.setTransactionName(name);
request.setTimeout(timeout);
GlobalBeginResponse response = (GlobalBeginResponse) syncCall(request);
if (response.getResultCode() == ResultCode.Failed) {
throw new TmTransactionException(TransactionExceptionCode.BeginFailed, response.getMsg());
}
return response.getXid();
}
@Override
public GlobalStatus commit(String xid) throws TransactionException {
GlobalCommitRequest globalCommit = new GlobalCommitRequest();
globalCommit.setXid(xid);
GlobalCommitResponse response = (GlobalCommitResponse) syncCall(globalCommit);
return response.getGlobalStatus();
}
@Override
public GlobalStatus rollback(String xid) throws TransactionException {
GlobalRollbackRequest globalRollback = new GlobalRollbackRequest();
globalRollback.setXid(xid);
GlobalRollbackResponse response = (GlobalRollbackResponse) syncCall(globalRollback);
return response.getGlobalStatus();
}
@Override
public GlobalStatus getStatus(String xid) throws TransactionException {
GlobalStatusRequest queryGlobalStatus = new GlobalStatusRequest();
queryGlobalStatus.setXid(xid);
GlobalStatusResponse response = (GlobalStatusResponse) syncCall(queryGlobalStatus);
return response.getGlobalStatus();
}
@Override
public GlobalStatus globalReport(String xid, GlobalStatus globalStatus) throws TransactionException {
GlobalReportRequest globalReport = new GlobalReportRequest();
globalReport.setXid(xid);
globalReport.setGlobalStatus(globalStatus);
GlobalReportResponse response = (GlobalReportResponse) syncCall(globalReport);
return response.getGlobalStatus();
}
private AbstractTransactionResponse syncCall(AbstractTransactionRequest request) throws TransactionException {
try {
return (AbstractTransactionResponse) TmNettyRemotingClient.getInstance().sendSyncRequest(request);
} catch (TimeoutException toe) {
throw new TmTransactionException(TransactionExceptionCode.IO, "RPC timeout", toe);
}
}
}
这里就是通过netty实例进行远程调用，调用TC服务
所以TM简单使用就是如下代码
GlobalTransaction tx = GlobalTransactionContext.getCurrentOrCreate();
try {
tx.begin();
// ...
tx.commit();
} catch (Exception exx) {
tx.rollback();
throw exx;
}
即可完成全局事务的整体开始、提交、回滚。
RM源码
RM需要向TC注册分支事务，以及分支提交、分支回滚等操作
public interface ResourceManager extends ResourceManagerInbound, ResourceManagerOutbound {
/**
* Register a Resource to be managed by Resource Manager.
*/
void registerResource(Resource resource);
/**
* Unregister a Resource from the Resource Manager.
*/
void unregisterResource(Resource resource);
/**
* Get all resources managed by this manager.
*/
Map<String, Resource> getManagedResources();
/**
* Get the BranchType.
*/
BranchType getBranchType();
}
public interface ResourceManagerInbound {
// 分支（本地事务）提交
BranchStatus branchCommit(BranchType branchType, String xid, long branchId, String resourceId, String applicationData) throws TransactionException;
// 分支（本地事务）回滚
BranchStatus branchRollback(BranchType branchType, String xid, long branchId, String resourceId, String applicationData) throws TransactionException;
}
branchType是什么呢,从源码可以看到，就是seata所要实现的4个模式，我们今天主要看AT模式
public enum BranchType {
AT,
TCC,
SAGA,
XA;
}
那么实现AT模式的RM接口为
public class DataSourceManager extends AbstractResourceManager implements Initialize {
private static final Logger LOGGER = LoggerFactory.getLogger(DataSourceManager.class);
private ResourceManagerInbound asyncWorker;
private Map<String, Resource> dataSourceCache = new ConcurrentHashMap<>();
......
@Override
public void init() {
AsyncWorker asyncWorker = new AsyncWorker();
asyncWorker.init();
initAsyncWorker(asyncWorker);
}
@Override
public void registerResource(Resource resource) {
DataSourceProxy dataSourceProxy = (DataSourceProxy) resource;
dataSourceCache.put(dataSourceProxy.getResourceId(), dataSourceProxy);
super.registerResource(dataSourceProxy);
}
@Override
public void unregisterResource(Resource resource) {
throw new NotSupportYetException("unregister a resource");
}
@Override
public BranchStatus branchCommit(BranchType branchType, String xid, long branchId, String resourceId,
String applicationData) throws TransactionException {
return asyncWorker.branchCommit(branchType, xid, branchId, resourceId, applicationData);
}
@Override
public BranchStatus branchRollback(BranchType branchType, String xid, long branchId, String resourceId,
String applicationData) throws TransactionException {
DataSourceProxy dataSourceProxy = get(resourceId);
if (dataSourceProxy == null) {
throw new ShouldNeverHappenException();
}
try {
UndoLogManagerFactory.getUndoLogManager(dataSourceProxy.getDbType()).undo(dataSourceProxy, xid, branchId);
} catch (TransactionException te) {
StackTraceLogger.info(LOGGER, te,
"branchRollback failed. branchType:[{}], xid:[{}], branchId:[{}], resourceId:[{}], applicationData:[{}]. reason:[{}]",
new Object[]{branchType, xid, branchId, resourceId, applicationData, te.getMessage()});
if (te.getCode() == TransactionExceptionCode.BranchRollbackFailed_Unretriable) {
return BranchStatus.PhaseTwo_RollbackFailed_Unretryable;
} else {
return BranchStatus.PhaseTwo_RollbackFailed_Retryable;
}
}
return BranchStatus.PhaseTwo_Rollbacked;
}
@Override
public Map<String, Resource> getManagedResources() {
return dataSourceCache;
}
@Override
public BranchType getBranchType() {
return BranchType.AT;
}
}

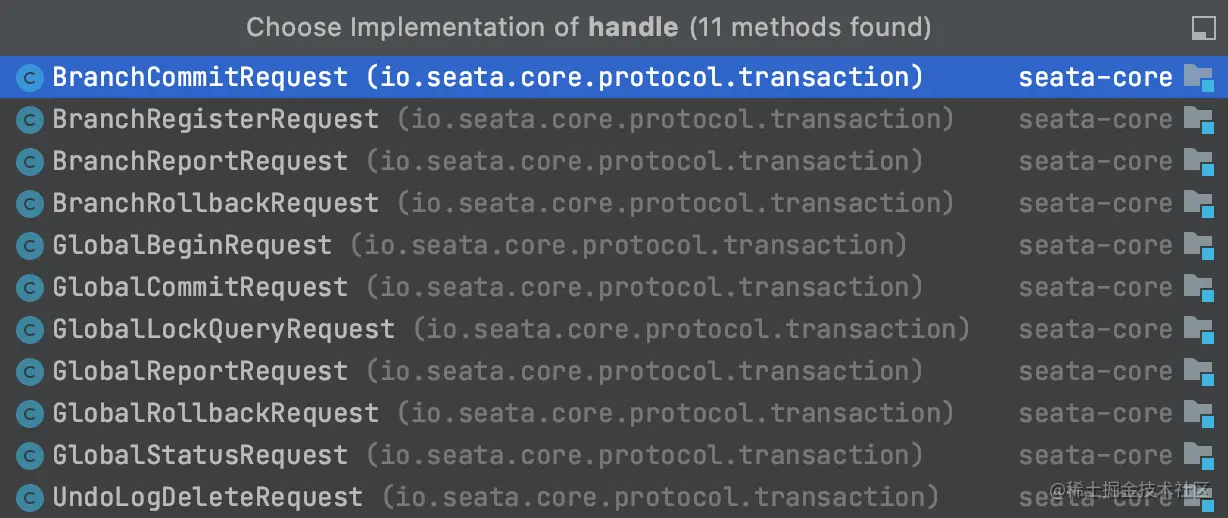

另外RM的branchCommit、branchRollback等操作是需要TC通知才执行的，具体接收通知并处理的方法在
public class GlobalTransactionalInterceptor implements ConfigurationChangeListener, MethodInterceptor {
......
Object handleGlobalTransaction(final MethodInvocation methodInvocation,
final GlobalTransactional globalTrxAnno) throws Throwable {
boolean succeed = true;
try {
return transactionalTemplate.execute(new TransactionalExecutor() {
@Override
public Object execute() throws Throwable {
return methodInvocation.proceed();
}
public String name() {
String name = globalTrxAnno.name();
if (!StringUtils.isNullOrEmpty(name)) {
return name;
}
return formatMethod(methodInvocation.getMethod());
}
@Override
public TransactionInfo getTransactionInfo() {
// reset the value of timeout
int timeout = globalTrxAnno.timeoutMills();
if (timeout <= 0 || timeout == DEFAULT_GLOBAL_TRANSACTION_TIMEOUT) {
timeout = defaultGlobalTransactionTimeout;
}
TransactionInfo transactionInfo = new TransactionInfo();
transactionInfo.setTimeOut(timeout);
transactionInfo.setName(name());
transactionInfo.setPropagation(globalTrxAnno.propagation());
transactionInfo.setLockRetryInternal(globalTrxAnno.lockRetryInternal());
transactionInfo.setLockRetryTimes(globalTrxAnno.lockRetryTimes());
Set<RollbackRule> rollbackRules = new LinkedHashSet<>();
for (Class<?> rbRule : globalTrxAnno.rollbackFor()) {
rollbackRules.add(new RollbackRule(rbRule));
}
for (String rbRule : globalTrxAnno.rollbackForClassName()) {
rollbackRules.add(new RollbackRule(rbRule));
}
for (Class<?> rbRule : globalTrxAnno.noRollbackFor()) {
rollbackRules.add(new NoRollbackRule(rbRule));
}
for (String rbRule : globalTrxAnno.noRollbackForClassName()) {
rollbackRules.add(new NoRollbackRule(rbRule));
}
transactionInfo.setRollbackRules(rollbackRules);
return transactionInfo;
}
});
} catch (TransactionalExecutor.ExecutionException e) {
TransactionalExecutor.Code code = e.getCode();
switch (code) {
case RollbackDone:
throw e.getOriginalException();
case BeginFailure:
succeed = false;
failureHandler.onBeginFailure(e.getTransaction(), e.getCause());
throw e.getCause();
case CommitFailure:
succeed = false;
failureHandler.onCommitFailure(e.getTransaction(), e.getCause());
throw e.getCause();
case RollbackFailure:
failureHandler.onRollbackFailure(e.getTransaction(), e.getOriginalException());
throw e.getOriginalException();
case RollbackRetrying:
failureHandler.onRollbackRetrying(e.getTransaction(), e.getOriginalException());
throw e.getOriginalException();
default:
throw new ShouldNeverHappenException(String.format("Unknown TransactionalExecutor.Code: %s", code));
}
} finally {
if (degradeCheck) {
EVENT_BUS.post(new DegradeCheckEvent(succeed));
}
}
}
其中execute方法，就是把业务方法前后包裹了beginTransaction和commitTransaction
public Object execute(TransactionalExecutor business) throws Throwable {
// 1. Get transactionInfo
TransactionInfo txInfo = business.getTransactionInfo();
if (txInfo == null) {
throw new ShouldNeverHappenException("transactionInfo does not exist");
}
// 1.1 Get current transaction, if not null, the tx role is 'GlobalTransactionRole.Participant'.
GlobalTransaction tx = GlobalTransactionContext.getCurrent();
// 1.2 Handle the transaction propagation.
Propagation propagation = txInfo.getPropagation();
SuspendedResourcesHolder suspendedResourcesHolder = null;
try {
......
// 1.3 If null, create new transaction with role 'GlobalTransactionRole.Launcher'.
if (tx == null) {
tx = GlobalTransactionContext.createNew();
}
// set current tx config to holder
GlobalLockConfig previousConfig = replaceGlobalLockConfig(txInfo);
try {
// 2. If the tx role is 'GlobalTransactionRole.Launcher', send the request of beginTransaction to TC,
// else do nothing. Of course, the hooks will still be triggered.
beginTransaction(txInfo, tx);
Object rs;
try {
// Do Your Business
rs = business.execute();
} catch (Throwable ex) {
// 3. The needed business exception to rollback.
completeTransactionAfterThrowing(txInfo, tx, ex);
throw ex;
}
// 4. everything is fine, commit.
commitTransaction(tx);
return rs;
} finally {
//5. clear
resumeGlobalLockConfig(previousConfig);
triggerAfterCompletion();
cleanUp();
}
} finally {
// If the transaction is suspended, resume it.
if (suspendedResourcesHolder != null) {
tx.resume(suspendedResourcesHolder);
}
}
}
TC源码
TC需要处理TM和RM注册或上报的事件
public interface ServerMessageListener {
// 事务处理、分支事务注册、分支提交等
void onTrxMessage(RpcMessage request, ChannelHandlerContext ctx);
// rm注册连接
void onRegRmMessage(RpcMessage request, ChannelHandlerContext ctx, RegisterCheckAuthHandler checkAuthHandler);
// tm注册连接
void onRegTmMessage(RpcMessage request, ChannelHandlerContext ctx, RegisterCheckAuthHandler checkAuthHandler);
// 心跳，状态
void onCheckMessage(RpcMessage request, ChannelHandlerContext ctx);
}
对事务处理的接口onTrxMessage实现代码如下
@Override
public void onTrxMessage(RpcMessage request, ChannelHandlerContext ctx) {
Object message = request.getBody();
RpcContext rpcContext = ChannelManager.getContextFromIdentified(ctx.channel());
if (LOGGER.isDebugEnabled()) {
LOGGER.debug("server received:{},clientIp:{},vgroup:{}", message,
NetUtil.toIpAddress(ctx.channel().remoteAddress()), rpcContext.getTransactionServiceGroup());
} else {
try {
logQueue.put(message + ",clientIp:" + NetUtil.toIpAddress(ctx.channel().remoteAddress()) + ",vgroup:"
+ rpcContext.getTransactionServiceGroup());
} catch (InterruptedException e) {
LOGGER.error("put message to logQueue error: {}", e.getMessage(), e);
}
}
if (!(message instanceof AbstractMessage)) {
return;
}
if (message instanceof MergedWarpMessage) {
AbstractResultMessage[] results = new AbstractResultMessage[((MergedWarpMessage) message).msgs.size()];
for (int i = 0; i < results.length; i++) {
final AbstractMessage subMessage = ((MergedWarpMessage) message).msgs.get(i);
results[i] = transactionMessageHandler.onRequest(subMessage, rpcContext);
}
MergeResultMessage resultMessage = new MergeResultMessage();
resultMessage.setMsgs(results);
getServerMessageSender().sendAsyncResponse(request, ctx.channel(), resultMessage);
} else if (message instanceof AbstractResultMessage) {
transactionMessageHandler.onResponse((AbstractResultMessage) message, rpcContext);
} else {
// the single send request message
final AbstractMessage msg = (AbstractMessage) message;
AbstractResultMessage result = transactionMessageHandler.onRequest(msg, rpcContext);
getServerMessageSender().sendAsyncResponse(request, ctx.channel(), result);
}
}
其中onRequest对每种消息（例如branchCommit、branchRollback）都会有实现。
@Override
public AbstractResultMessage onRequest(AbstractMessage request, RpcContext context) {
if (!(request instanceof AbstractTransactionRequestToTC)) {
throw new IllegalArgumentException();
}
AbstractTransactionRequestToTC transactionRequest = (AbstractTransactionRequestToTC) request;
transactionRequest.setTCInboundHandler(this);
return transactionRequest.handle(context);
}
从这里可以跟踪看下globalrollback的实现
@Override
public boolean doGlobalRollback(GlobalSession globalSession, boolean retrying) throws TransactionException {
boolean success = true;
// start rollback event
eventBus.post(new GlobalTransactionEvent(globalSession.getTransactionId(), GlobalTransactionEvent.ROLE_TC,
globalSession.getTransactionName(), globalSession.getBeginTime(), null, globalSession.getStatus()));
if (globalSession.isSaga()) {
success = getCore(BranchType.SAGA).doGlobalRollback(globalSession, retrying);
} else {
for (BranchSession branchSession : globalSession.getReverseSortedBranches()) {
BranchStatus currentBranchStatus = branchSession.getStatus();
if (currentBranchStatus == BranchStatus.PhaseOne_Failed) {
globalSession.removeBranch(branchSession);
continue;
}
try {
BranchStatus branchStatus = branchRollback(globalSession, branchSession);
switch (branchStatus) {
......
}
} catch (Exception ex) {
......
}
}
}
主要的代码逻辑其实就是for循环遍历，倒序提交的本地事务，依次调用branchRollback回滚。
总结
综上，本文算是抛砖引玉，从入口处写了seata的源码分析，针对TM,RM,TC三大模块的功能，接口的定义，接口的实现类进行分析。
