接下来看案例2

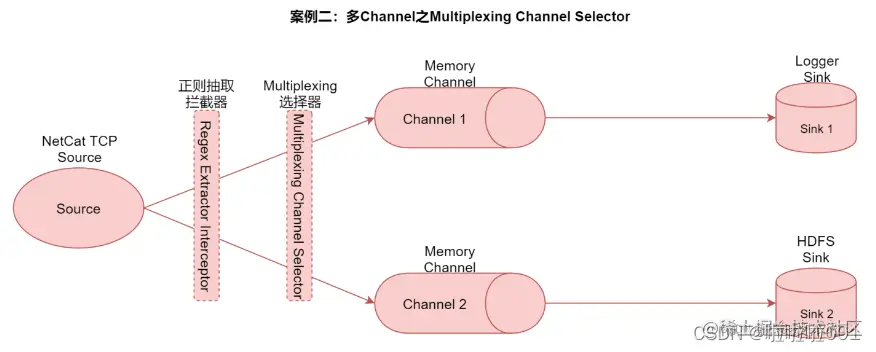

一、多Channel之Multiplexing Channel Selector
在这个案例中我们使用Multiplexing选择器，将source采集到的数据按照一定规则发送给两个channle，最终再把不同channel中的数据存储到不同介质中。
在这里面我们需要用到正则抽取拦截器在Event的header中生成key-value 作为Multiplexing选择器的规则
假设我们的原始数据格式为
{"name":"jack","age":19,"city":"bj"}
{"name":"tom","age":26,"city":"sh"}
下面来配置Agent，复制tcp-to-replicatingchannel.conf的内容， 主要增加source拦截器和修改channel选择器，以及hdfsink中的path路径 在bigdata04上创建新文件tcp-to-multiplexingchannel.conf
[root@bigdata04 conf]# vi tcp-to-multiplexingchannel.conf
# agent的名称是a1
# 指定source组件、channel组件和Sink组件的名称
a1.sources = r1
a1.channels = c1 c2
a1.sinks = k1 k2
# 配置source组件
a1.sources.r1.type = netcat
a1.sources.r1.bind = 0.0.0.0
a1.sources.r1.port = 44444
# 配置source拦截器
a1.sources.r1.interceptors = i1
a1.sources.r1.interceptors.i1.type = regex_extractor
a1.sources.r1.interceptors.i1.regex = "city":"(\\w+)"
a1.sources.r1.interceptors.i1.serializers = s1
a1.sources.r1.interceptors.i1.serializers.s1.name = city
# 配置channle选择器
a1.sources.r1.selector.type = multiplexing
a1.sources.r1.selector.header = city
a1.sources.r1.selector.mapping.bj = c1
a1.sources.r1.selector.default = c2
# 配置channel组件
a1.channels.c1.type = memory
a1.channels.c1.capacity = 1000
a1.channels.c1.transactionCapacity = 100
a1.channels.c2.type = memory
a1.channels.c2.capacity = 1000
a1.channels.c2.transactionCapacity = 100
# 配置sink组件
a1.sinks.k1.type = logger
a1.sinks.k2.type = hdfs
a1.sinks.k2.hdfs.path = hdfs://192.168.182.100:9000/multiplexing
a1.sinks.k2.hdfs.fileType = DataStream
a1.sinks.k2.hdfs.writeFormat = Text
a1.sinks.k2.hdfs.rollInterval = 3600
a1.sinks.k2.hdfs.rollSize = 134217728
a1.sinks.k2.hdfs.rollCount = 0
a1.sinks.k2.hdfs.useLocalTimeStamp = true
a1.sinks.k2.hdfs.filePrefix = data
a1.sinks.k2.hdfs.fileSuffix = .log
# 把组件连接起来
a1.sources.r1.channels = c1 c2
a1.sinks.k1.channel = c1
a1.sinks.k2.channel = c2
启动Agent
[root@bigdata04 apache-flume-1.9.0-bin]# bin/flume-ng agent --name a1 --conf conf --conf-file conf/tcp-to-multiplexingchannel.conf -Dflume.root.logger=INFO,console
