部署主从复制
所有节点操作
mkdir /mnt/data/redis/data -p
主节点操作
vim /mnt/data/redis/redis.conf
protected-mode no
port 6380
tcp-backlog 511
timeout 0
tcp-keepalive 300
daemonize no
supervised no
pidfile /var/run/redis_6380.pid
loglevel notice
logfile "/data/redis.log"
databases 16
always-show-logo yes
save 900 1
save 300 10
save 60 10000
stop-writes-on-bgsave-error yes
rdbcompression yes
rdbchecksum yes
dbfilename dump.rdb
rdb-del-sync-files no
dir ./
replica-serve-stale-data yes
replica-read-only yes
repl-diskless-sync no
repl-diskless-sync-delay 5
repl-diskless-load disabled
repl-disable-tcp-nodelay no
replica-priority 100
acllog-max-len 128
lazyfree-lazy-eviction no
lazyfree-lazy-expire no
lazyfree-lazy-server-del no
replica-lazy-flush no
lazyfree-lazy-user-del no
oom-score-adj no
oom-score-adj-values 0 200 800
appendonly no
appendfilename "appendonly.aof"
appendfsync everysec
no-appendfsync-on-rewrite no
auto-aof-rewrite-percentage 100
auto-aof-rewrite-min-size 64mb
aof-load-truncated yes
aof-use-rdb-preamble yes
lua-time-limit 5000
slowlog-log-slower-than 10000
slowlog-max-len 128
latency-monitor-threshold 0
notify-keyspace-events ""
hash-max-ziplist-entries 512
hash-max-ziplist-value 64
list-max-ziplist-size -2
list-compress-depth 0
set-max-intset-entries 512
zset-max-ziplist-entries 128
zset-max-ziplist-value 64
hll-sparse-max-bytes 3000
stream-node-max-bytes 4096
stream-node-max-entries 100
activerehashing yes
client-output-buffer-limit normal 0 0 0
client-output-buffer-limit replica 256mb 64mb 60
client-output-buffer-limit pubsub 32mb 8mb 60
hz 10
dynamic-hz yes
aof-rewrite-incremental-fsync yes
rdb-save-incremental-fsync yes
jemalloc-bg-thread yes
vim redis.yml
version: '3.9'
services:
master:
restart: always
image: redis
container_name: redis
command: redis-server /etc/redis/redis.conf --requirepass "密码" --masterauth "密码"
ports:
- "6380:6380"
volumes:
- /mnt/data/redis/redis.conf:/etc/redis/redis.conf
- /mnt/data/redis/data:/data
docker-compose -f redis.yml up -d
从节点操作
配置文件准备
vim /mnt/data/redis/redis.conf
修改 replicaof ip地址及端口
protected-mode no
port 6380
tcp-backlog 511
timeout 0
tcp-keepalive 300
daemonize no
supervised no
pidfile /var/run/redis_6380.pid
loglevel notice
logfile "/data/redis.log"
databases 16
always-show-logo yes
save 900 1
save 300 10
save 60 10000
stop-writes-on-bgsave-error yes
rdbcompression yes
rdbchecksum yes
dbfilename dump.rdb
rdb-del-sync-files no
dir ./
replicaof 192.168.1.151 6380
replica-serve-stale-data yes
replica-read-only yes
repl-diskless-sync no
repl-diskless-sync-delay 5
repl-diskless-load disabled
repl-disable-tcp-nodelay no
replica-priority 100
acllog-max-len 128
lazyfree-lazy-eviction no
lazyfree-lazy-expire no
lazyfree-lazy-server-del no
replica-lazy-flush no
lazyfree-lazy-user-del no
oom-score-adj no
oom-score-adj-values 0 200 800
appendonly no
appendfilename "appendonly.aof"
appendfsync everysec
no-appendfsync-on-rewrite no
auto-aof-rewrite-percentage 100
auto-aof-rewrite-min-size 64mb
aof-load-truncated yes
aof-use-rdb-preamble yes
lua-time-limit 5000
slowlog-log-slower-than 10000
slowlog-max-len 128
latency-monitor-threshold 0
notify-keyspace-events ""
hash-max-ziplist-entries 512
hash-max-ziplist-value 64
list-max-ziplist-size -2
list-compress-depth 0
set-max-intset-entries 512
zset-max-ziplist-entries 128
zset-max-ziplist-value 64
hll-sparse-max-bytes 3000
stream-node-max-bytes 4096
stream-node-max-entries 100
activerehashing yes
client-output-buffer-limit normal 0 0 0
client-output-buffer-limit replica 256mb 64mb 60
client-output-buffer-limit pubsub 32mb 8mb 60
hz 10
dynamic-hz yes
aof-rewrite-incremental-fsync yes
rdb-save-incremental-fsync yes
jemalloc-bg-thread yes
vim redis.yml
version: '3.9'
services:
slave1:
restart: always
image: redis
container_name: redis
command: redis-server /etc/redis/redis.conf --requirepass "密码" --masterauth "密码"
ports:
- "6380:6380"
volumes:
- /mnt/data/redis/redis.conf:/etc/redis/redis.conf
- /mnt/data/redis/data:/data
docker-compose -f redis.yml up -d
查看主从状态
进入master 查看
docker exec -it 容器名称或容器id bash
redis-cli -p 端口 -h ip地址 -a 密码

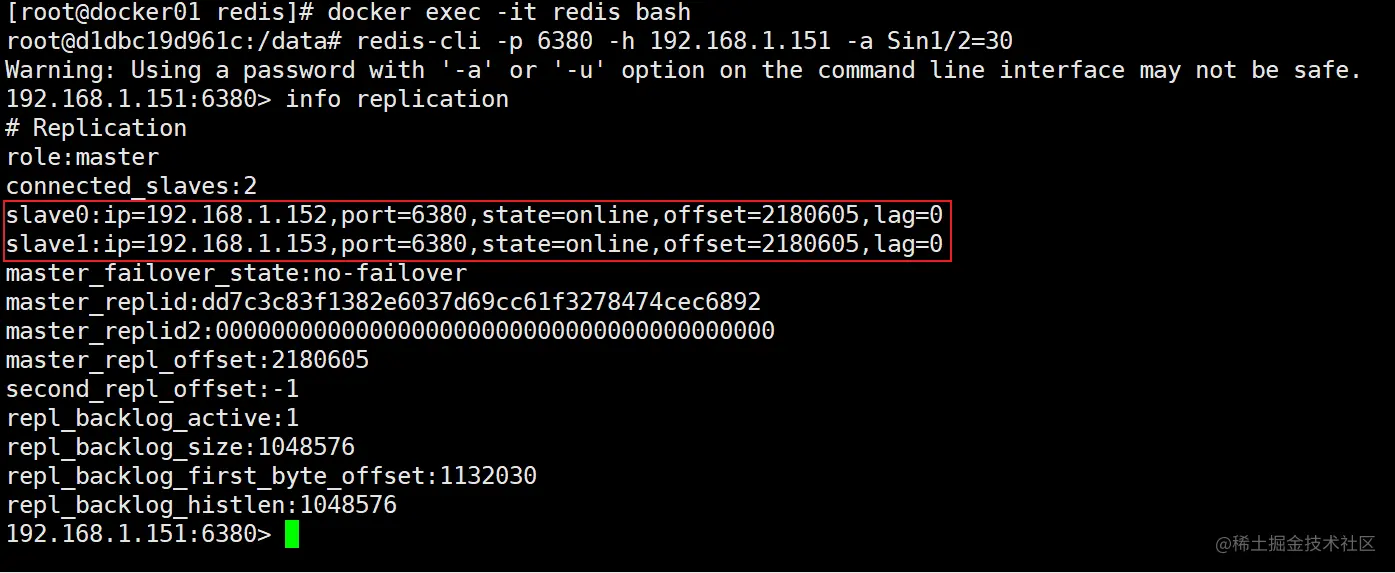

info replication 查看主从信息
这里可以看到 当前角色是master 有2个slave ip信息都能看到
这样我们的redis主从就搭建完了
部署哨兵节点
每个节点都需要操作
修改 ip地址为master的宿主机ip
vim /mnt/data/redis/sentinel.conf
port 26380
daemonize no
pidfile /var/run/redis-sentinel.pid
logfile "/data/sentinel.log"
dir /tmp
sentinel monitor mymaster (master对于的宿主机地址) 6380 2
sentinel auth-pass mymaster 密码
sentinel down-after-milliseconds mymaster 30000
sentinel parallel-syncs mymaster 1
sentinel failover-timeout mymaster 180000
sentinel deny-scripts-reconfig yes
sentinel.yml
version: '3.9'
services:
sentinel:
restart: always
image: "redis:6.0.9"
container_name: sentinel
ports:
- "26380:26380"
volumes:
- /mnt/data/redis/sentinel.conf:/etc/redis/sentinel.conf
- /mnt/data/redis/data:/data
command:
redis-sentinel /etc/redis/sentinel.conf
docker-compose -f sentinel.yml up -d
验证哨兵
启动三台sentinel容器后,随便进入一台容器
docker exec -it 哨兵容器 bash
redis-cli -p 端口

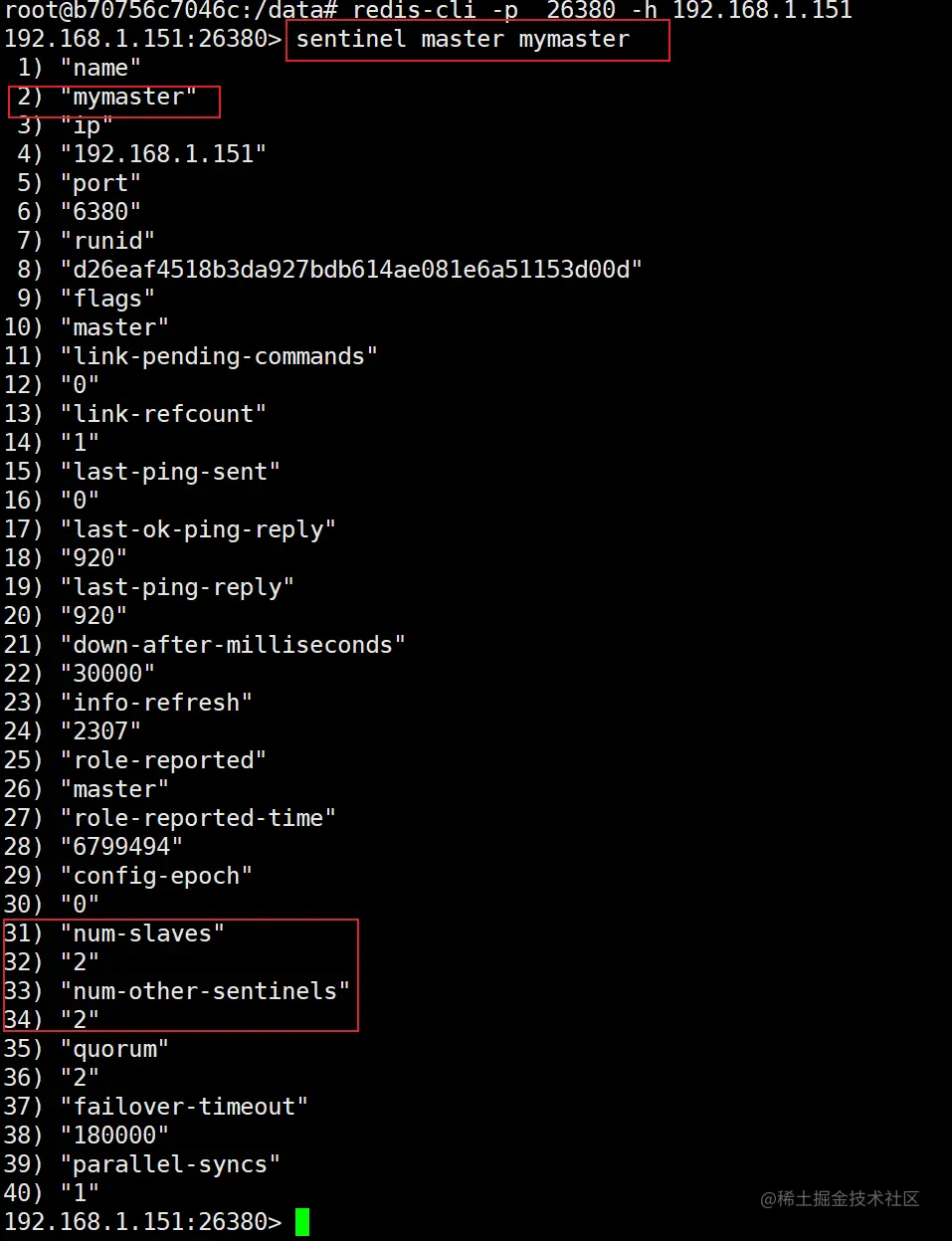

sentinel master (集群名)
sentinel master mymaster
故障测试

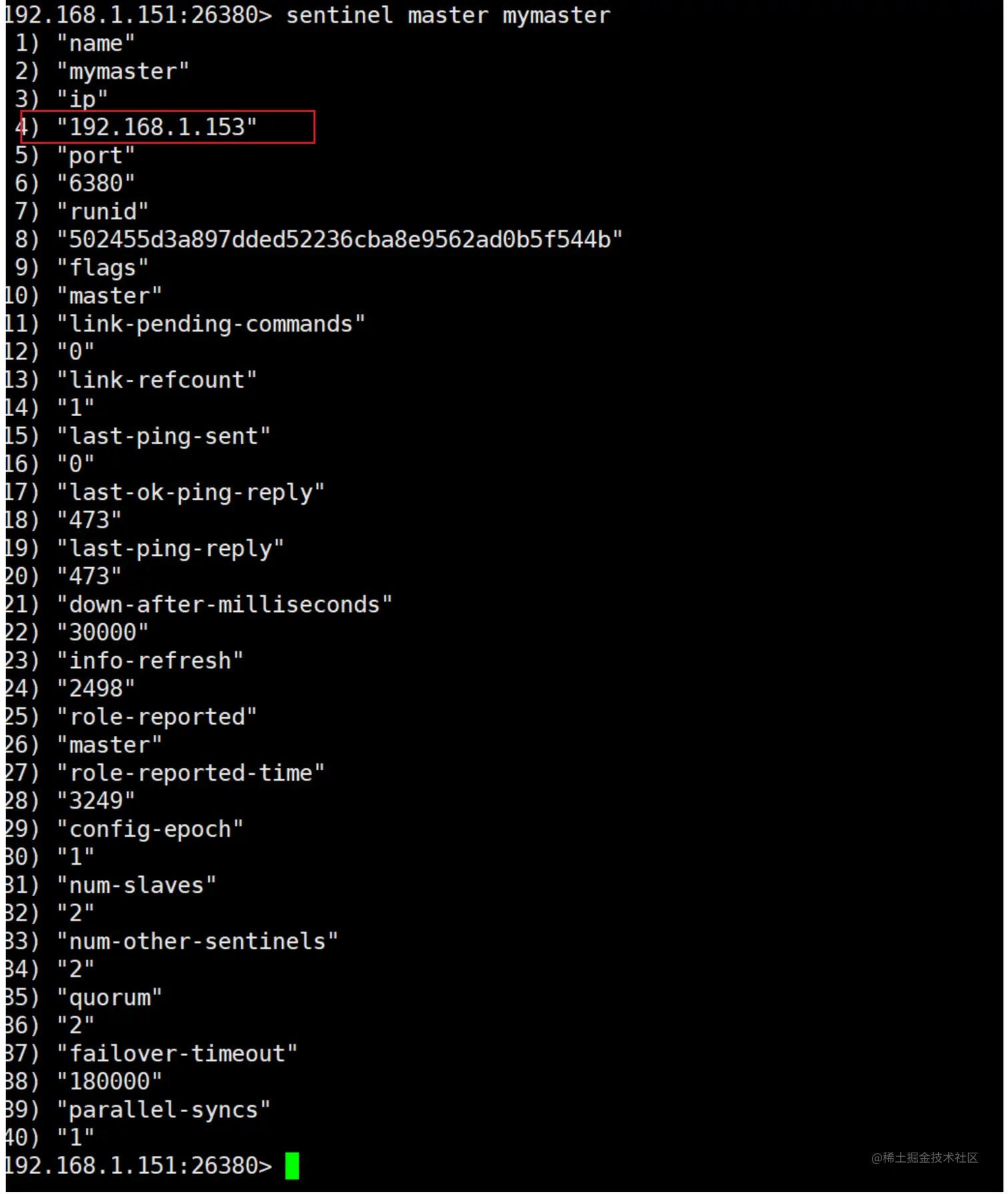

将master节点的redis关闭
可以看到ip跳动到其他节点了
开启master节点的redis变为从节点了
