vue3 封装echarts组件、以及调用相同多个echarts、页面自适应

安装echarts

    npm install echarts --save

直接上代码

myBar.vue

<template>
    <div ref="rootRef" :id="props.id" :style="{ width: '50%', height: '400px' }"></div>
</template>
<script name="checkReport" lang="ts" setup>
    import { ref, onMounted } from 'vue';
// Echarts 为init（dom元素后的类型）
// EChartsOption 为 option 的类型
import { ECharts, EChartsOption, init } from 'echarts';
const props = defineProps<{ id: any }>();
const rootRef = ref();
onMounted(() => {
    // 这里是由于图表渲染快于父元素导致图表比例溢出，做的一个延缓操作
    setTimeout(() => {
        line();
    }, 1500);
});
const line = () => {
    const charEle = document.getElementById(props.id) as HTMLElement;
    console.log();
    const charEch: ECharts = init(charEle);
    const option: EChartsOption = {
        legend: {},
        tooltip: {},
        dataset: {
            source: [
                ['product', '2015', '2016'],
                ['Matcha Latte', 43.3, 85.8],
                ['Milk Tea', 83.1, 73.4],
                ['Cheese Cocoa', 86.4, 65.2],
                ['Walnut Brownie', 72.4, 53.9],
            ],
        },
        xAxis: { type: 'category' },
        yAxis: {},
        // Declare several bar series, each will be mapped
        // to a column of dataset.source by default.
        series: [{ type: 'bar' }, { type: 'bar' }],
    };
    charEch.setOption(option);
    // 监听窗口变化 - 只刷新最后一个图表
    window.onresize = () => {
        charEch.resize();
    };

    // 监听窗口变化 - 多个图表同时刷新
    window.addEventListener('resize', () => {
        charEch.resize();
    });
};
</script>
<style scoped lang="scss"></style>

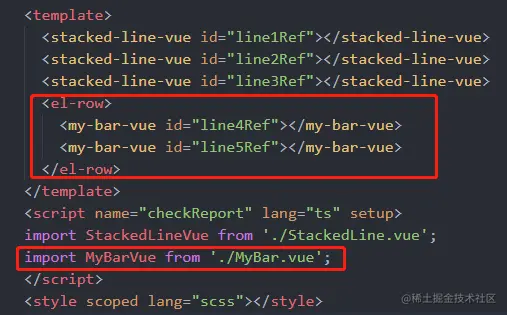

问题：这里直接调用两个前一个的缩放功能失效

经过百度需要将document.getElementById(props.id) as HTMLElement;方法替换

    // const charEle = document.getElementById(props.id) as HTMLElement;
    console.log();
    const charEch: ECharts = init(rootRef.value);
