二、Hadoop集群配置192.168.0.192.168.0....官网下载太慢了，这里提供 hadoop-2.7.

准备工作

jdk环境配置

关闭防火墙

配置ssh免密登录

两台以上服务器：

192.168.0.109 master

192.168.0.111 slave01

...

配置好host和hostname

下载

官网下载太慢了，这里提供 hadoop-2.7.6 版本

链接：pan.baidu.com/s/1jNDvFCuM…
提取码：se67

安装

创建目录

mkdir /usr/local/hadoop

将下载的文件放到该目录中

解压到当前目录

tar -zxvf hadoop-2.7.6.tar.gz

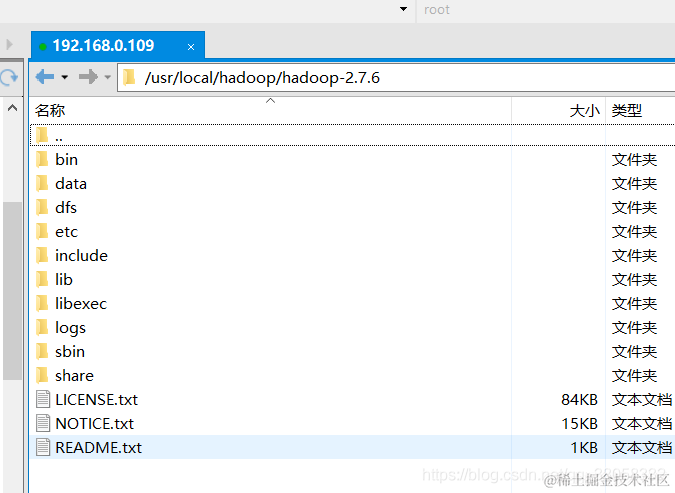

这里介绍几个主要的目录所存放的文件

bin：存放的是我们用来实现管理脚本和使用的脚本的目录，我们对hadoop文件系统操作的时候用的就是这个目录下的脚本

sbin: 存放的是我们管理脚本的所在目录，重要是对hdfs和yarn的各种开启和关闭和单线程开启和守护

etc:存放一些hadoop的配置文件

lib:该目录下存放的是Hadoop运行时依赖的jar包，Hadoop在执行时会把lib目录下面的jar全部加到classpath中。

logs 该目录存放的是Hadoop运行的日志

share Hadoop各个模块编译后的jar包所在的目录

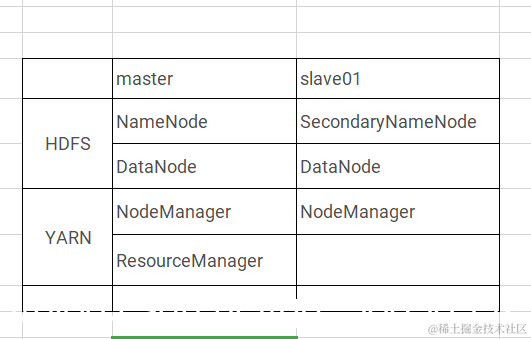

部署规划和配置文件

配置hadoop环境变量

vi /etc/profile

##HADOOP_HOME

export HADOOP_HOME=/usr/local/hadoop/hadoop-2.9.0

export PATH=$PATH:$HADOOP_HOME/bin

export PATH=$PATH:$HADOOP_HOME/sbin

core-site.xml

<?xml version="1.0" encoding="UTF-8"?>
<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>
<!--
  Licensed under the Apache License, Version 2.0 (the "License");
  you may not use this file except in compliance with the License.
  You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

  Unless required by applicable law or agreed to in writing, software
  distributed under the License is distributed on an "AS IS" BASIS,
  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  See the License for the specific language governing permissions and
  limitations under the License. See accompanying LICENSE file.
-->

<!-- Put site-specific property overrides in this file. -->

<configuration>
        <!-- 指定hadoop运行时产生文件的存储目录 -->
        <property>
                <name>hadoop.tmp.dir</name>
                <value>/usr/local/hadoop/hadoop-2.7.6/data/tmp</value>
        </property>
<!-- 指定HDFS中NameNode的地址 -->
        <property>
                <name>fs.default.name</name>
                <value>hdfs://master:9000</value>
        </property>
</configuration>

hadoop-env.sh

# Licensed to the Apache Software Foundation (ASF) under one
# or more contributor license agreements.  See the NOTICE file
# distributed with this work for additional information
# regarding copyright ownership.  The ASF licenses this file
# to you under the Apache License, Version 2.0 (the
# "License"); you may not use this file except in compliance
# with the License.  You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

# Set Hadoop-specific environment variables here.

# The only required environment variable is JAVA_HOME.  All others are
# optional.  When running a distributed configuration it is best to
# set JAVA_HOME in this file, so that it is correctly defined on
# remote nodes.

# The java implementation to use.
export JAVA_HOME=/usr/local/java/jdk1.8.0_161

# The jsvc implementation to use. Jsvc is required to run secure datanodes
# that bind to privileged ports to provide authentication of data transfer
# protocol.  Jsvc is not required if SASL is configured for authentication of
# data transfer protocol using non-privileged ports.
#export JSVC_HOME=${JSVC_HOME}

export HADOOP_CONF_DIR=${HADOOP_CONF_DIR:-"/etc/hadoop"}

# Extra Java CLASSPATH elements.  Automatically insert capacity-scheduler.
for f in $HADOOP_HOME/contrib/capacity-scheduler/*.jar; do
  if [ "$HADOOP_CLASSPATH" ]; then
    export HADOOP_CLASSPATH=$HADOOP_CLASSPATH:$f
  else
    export HADOOP_CLASSPATH=$f
  fi
done

# The maximum amount of heap to use, in MB. Default is 1000.
#export HADOOP_HEAPSIZE=
#export HADOOP_NAMENODE_INIT_HEAPSIZE=""

# Extra Java runtime options.  Empty by default.
export HADOOP_OPTS="$HADOOP_OPTS -Djava.net.preferIPv4Stack=true"

# Command specific options appended to HADOOP_OPTS when specified
export HADOOP_NAMENODE_OPTS="-Dhadoop.security.logger=${HADOOP_SECURITY_LOGGER:-INFO,RFAS} -Dhdfs.audit.logger=${HDFS_AUDIT_LOGGER:-INFO,NullAppender} $HADOOP_NAMENODE_OPTS"
export HADOOP_DATANODE_OPTS="-Dhadoop.security.logger=ERROR,RFAS $HADOOP_DATANODE_OPTS"

export HADOOP_SECONDARYNAMENODE_OPTS="-Dhadoop.security.logger=${HADOOP_SECURITY_LOGGER:-INFO,RFAS} -Dhdfs.audit.logger=${HDFS_AUDIT_LOGGER:-INFO,NullAppender} $HADOOP_SECONDARYNAMENODE_OPTS"

export HADOOP_NFS3_OPTS="$HADOOP_NFS3_OPTS"
export HADOOP_PORTMAP_OPTS="-Xmx512m $HADOOP_PORTMAP_OPTS"

# The following applies to multiple commands (fs, dfs, fsck, distcp etc)
export HADOOP_CLIENT_OPTS="-Xmx512m $HADOOP_CLIENT_OPTS"
#HADOOP_JAVA_PLATFORM_OPTS="-XX:-UsePerfData $HADOOP_JAVA_PLATFORM_OPTS"

# On secure datanodes, user to run the datanode as after dropping privileges.
# This **MUST** be uncommented to enable secure HDFS if using privileged ports
# to provide authentication of data transfer protocol.  This **MUST NOT** be
# defined if SASL is configured for authentication of data transfer protocol
# using non-privileged ports.
export HADOOP_SECURE_DN_USER=${HADOOP_SECURE_DN_USER}

# Where log files are stored.  $HADOOP_HOME/logs by default.
#export HADOOP_LOG_DIR=${HADOOP_LOG_DIR}/$USER

# Where log files are stored in the secure data environment.
export HADOOP_SECURE_DN_LOG_DIR=${HADOOP_LOG_DIR}/${HADOOP_HDFS_USER}

###
# HDFS Mover specific parameters
###
# Specify the JVM options to be used when starting the HDFS Mover.
# These options will be appended to the options specified as HADOOP_OPTS
# and therefore may override any similar flags set in HADOOP_OPTS
#
# export HADOOP_MOVER_OPTS=""

###
# Advanced Users Only!
###

# The directory where pid files are stored. /tmp by default.
# NOTE: this should be set to a directory that can only be written to by
#       the user that will run the hadoop daemons.  Otherwise there is the
#       potential for a symlink attack.
export HADOOP_PID_DIR=${HADOOP_PID_DIR}
export HADOOP_SECURE_DN_PID_DIR=${HADOOP_PID_DIR}

# A string representing this instance of hadoop. $USER by default.
export HADOOP_IDENT_STRING=$USER

hdfs-site.xml

<?xml version="1.0" encoding="UTF-8"?>
<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>
<!--
  Licensed under the Apache License, Version 2.0 (the "License");
  you may not use this file except in compliance with the License.
  You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

  Unless required by applicable law or agreed to in writing, software
  distributed under the License is distributed on an "AS IS" BASIS,
  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  See the License for the specific language governing permissions and
  limitations under the License. See accompanying LICENSE file.
-->
<configuration>
<!-- Put site-specific property overrides in this file. -->
<property>
   <name>dfs.name.dir</name>
   <value>/usr/local/hadoop/hadoop-2.7.6/dfs/name</value>
   <description>Path on the local filesystem where theNameNode stores the namespace and transactions logs persistently.</description>
</property>
<property>
   <name>dfs.data.dir</name>
   <value>/usr/local/hadoop/hadoop-2.7.6/dfs/data</value>
   <description>Comma separated list of paths on the localfilesystem of a DataNode where it should store its blocks.</description>
</property>
<property>
   <name>dfs.replication</name>
   <value>2</value>
</property>
<property>
      <name>dfs.permissions</name>
      <value>false</value>
      <description>need not permissions</description>
</property>
<property>
	<name>dfs.secondary.http.address</name>
	<value>salve01:50090</value>
</property>
</configuration>

yarn-env.sh

# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements.  See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License.  You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

# User for YARN daemons
export HADOOP_YARN_USER=${HADOOP_YARN_USER:-yarn}

# resolve links - $0 may be a softlink
export YARN_CONF_DIR="${YARN_CONF_DIR:-$HADOOP_YARN_HOME/conf}"

# some Java parameters
export JAVA_HOME=/usr/local/java/jdk1.8.0_161
if [ "$JAVA_HOME" != "" ]; then
  #echo "run java in $JAVA_HOME"
  JAVA_HOME=$JAVA_HOME
fi

if [ "$JAVA_HOME" = "" ]; then
  echo "Error: JAVA_HOME is not set."
  exit 1
fi

JAVA=$JAVA_HOME/bin/java
JAVA_HEAP_MAX=-Xmx1000m

# For setting YARN specific HEAP sizes please use this
# Parameter and set appropriately
# YARN_HEAPSIZE=1000

# check envvars which might override default args
if [ "$YARN_HEAPSIZE" != "" ]; then
  JAVA_HEAP_MAX="-Xmx""$YARN_HEAPSIZE""m"
fi

# Resource Manager specific parameters

# Specify the max Heapsize for the ResourceManager using a numerical value
# in the scale of MB. For example, to specify an jvm option of -Xmx1000m, set
# the value to 1000.
# This value will be overridden by an Xmx setting specified in either YARN_OPTS
# and/or YARN_RESOURCEMANAGER_OPTS.
# If not specified, the default value will be picked from either YARN_HEAPMAX
# or JAVA_HEAP_MAX with YARN_HEAPMAX as the preferred option of the two.
#export YARN_RESOURCEMANAGER_HEAPSIZE=1000

# Specify the max Heapsize for the timeline server using a numerical value
# in the scale of MB. For example, to specify an jvm option of -Xmx1000m, set
# the value to 1000.
# This value will be overridden by an Xmx setting specified in either YARN_OPTS
# and/or YARN_TIMELINESERVER_OPTS.
# If not specified, the default value will be picked from either YARN_HEAPMAX
# or JAVA_HEAP_MAX with YARN_HEAPMAX as the preferred option of the two.
#export YARN_TIMELINESERVER_HEAPSIZE=1000

# Specify the JVM options to be used when starting the ResourceManager.
# These options will be appended to the options specified as YARN_OPTS
# and therefore may override any similar flags set in YARN_OPTS
#export YARN_RESOURCEMANAGER_OPTS=

# Node Manager specific parameters

# Specify the max Heapsize for the NodeManager using a numerical value
# in the scale of MB. For example, to specify an jvm option of -Xmx1000m, set
# the value to 1000.
# This value will be overridden by an Xmx setting specified in either YARN_OPTS
# and/or YARN_NODEMANAGER_OPTS.
# If not specified, the default value will be picked from either YARN_HEAPMAX
# or JAVA_HEAP_MAX with YARN_HEAPMAX as the preferred option of the two.
#export YARN_NODEMANAGER_HEAPSIZE=1000

# Specify the JVM options to be used when starting the NodeManager.
# These options will be appended to the options specified as YARN_OPTS
# and therefore may override any similar flags set in YARN_OPTS
#export YARN_NODEMANAGER_OPTS=

# so that filenames w/ spaces are handled correctly in loops below
IFS=


# default log directory & file
if [ "$YARN_LOG_DIR" = "" ]; then
  YARN_LOG_DIR="$HADOOP_YARN_HOME/logs"
fi
if [ "$YARN_LOGFILE" = "" ]; then
  YARN_LOGFILE='yarn.log'
fi

# default policy file for service-level authorization
if [ "$YARN_POLICYFILE" = "" ]; then
  YARN_POLICYFILE="hadoop-policy.xml"
fi

# restore ordinary behaviour
unset IFS


YARN_OPTS="$YARN_OPTS -Dhadoop.log.dir=$YARN_LOG_DIR"
YARN_OPTS="$YARN_OPTS -Dyarn.log.dir=$YARN_LOG_DIR"
YARN_OPTS="$YARN_OPTS -Dhadoop.log.file=$YARN_LOGFILE"
YARN_OPTS="$YARN_OPTS -Dyarn.log.file=$YARN_LOGFILE"
YARN_OPTS="$YARN_OPTS -Dyarn.home.dir=$YARN_COMMON_HOME"
YARN_OPTS="$YARN_OPTS -Dyarn.id.str=$YARN_IDENT_STRING"
YARN_OPTS="$YARN_OPTS -Dhadoop.root.logger=${YARN_ROOT_LOGGER:-INFO,console}"
YARN_OPTS="$YARN_OPTS -Dyarn.root.logger=${YARN_ROOT_LOGGER:-INFO,console}"
if [ "x$JAVA_LIBRARY_PATH" != "x" ]; then
  YARN_OPTS="$YARN_OPTS -Djava.library.path=$JAVA_LIBRARY_PATH"
fi
YARN_OPTS="$YARN_OPTS -Dyarn.policy.file=$YARN_POLICYFILE"

yarn-site.xml

<?xml version="1.0"?>
<!--
  Licensed under the Apache License, Version 2.0 (the "License");
  you may not use this file except in compliance with the License.
  You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

  Unless required by applicable law or agreed to in writing, software
  distributed under the License is distributed on an "AS IS" BASIS,
  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  See the License for the specific language governing permissions and
  limitations under the License. See accompanying LICENSE file.
-->
<configuration>
     <property>
        <name>yarn.resourcemanager.hostname</name>
        <value>master</value>
   </property>
   <property>
        <description>The address of the applications manager interface in the RM.</description>
        <name>yarn.resourcemanager.address</name>
        <value>${yarn.resourcemanager.hostname}:8032</value>
   </property>
   <property>
        <description>The address of the scheduler interface.</description>
        <name>yarn.resourcemanager.scheduler.address</name>
        <value>${yarn.resourcemanager.hostname}:8030</value>
   </property>
   <property>
        <description>The http address of the RM web application.</description>
        <name>yarn.resourcemanager.webapp.address</name>
        <value>${yarn.resourcemanager.hostname}:8088</value>
   </property>
   <property>
        <description>The https adddress of the RM web application.</description>
        <name>yarn.resourcemanager.webapp.https.address</name>
        <value>${yarn.resourcemanager.hostname}:8090</value>
   </property>
   <property>
        <name>yarn.resourcemanager.resource-tracker.address</name>
        <value>${yarn.resourcemanager.hostname}:8031</value>
   </property>
   <property>
        <description>The address of the RM admin interface.</description>
        <name>yarn.resourcemanager.admin.address</name>
        <value>${yarn.resourcemanager.hostname}:8033</value>
   </property>
   <property>
        <name>yarn.nodemanager.aux-services</name>
        <value>mapreduce_shuffle</value>
   </property>
   <property>
        <name>yarn.scheduler.maximum-allocation-mb</name>
        <value>2048</value>
        <discription>每个节点可用内存,单位MB,默认8182MB</discription>
   </property>
   <property>
        <name>yarn.nodemanager.vmem-pmem-ratio</name>
        <value>2.1</value>
   </property>
   <property>
        <name>yarn.nodemanager.resource.memory-mb</name>
        <value>2048</value>
</property>
   <property>
        <name>yarn.nodemanager.vmem-check-enabled</name>
        <value>false</value>
</property>
</configuration>

mapred-env.sh

# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements.  See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License.  You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
export JAVA_HOME=/usr/local/java/jdk1.8.0_161
export HADOOP_JOB_HISTORYSERVER_HEAPSIZE=1000
export HADOOP_MAPRED_ROOT_LOGGER=INFO,RFA
#export HADOOP_JOB_HISTORYSERVER_OPTS=
#export HADOOP_MAPRED_LOG_DIR="" # Where log files are stored.  $HADOOP_MAPRED_HOME/logs by default.
#export HADOOP_JHS_LOGGER=INFO,RFA # Hadoop JobSummary logger.
#export HADOOP_MAPRED_PID_DIR= # The pid files are stored. /tmp by default.
#export HADOOP_MAPRED_IDENT_STRING= #A string representing this instance of hadoop. $USER by default
#export HADOOP_MAPRED_NICENESS= #The scheduling priority for daemons. Defaults to 0.

mapred-site.xml

<?xml version="1.0"?>
<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>
<!--
  Licensed under the Apache License, Version 2.0 (the "License");
  you may not use this file except in compliance with the License.
  You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

  Unless required by applicable law or agreed to in writing, software
  distributed under the License is distributed on an "AS IS" BASIS,
  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  See the License for the specific language governing permissions and
  limitations under the License. See accompanying LICENSE file.
-->

<!-- Put site-specific property overrides in this file. -->

<configuration>
  <property>
   <name>mapred.job.tracker</name>
   <value>master:49001</value>
</property>
<property>
      <name>mapred.local.dir</name>
       <value>/usr/local/hadoop/hadoop-2.7.6/var</value>
</property>
<property>
       <name>mapreduce.framework.name</name>
       <value>yarn</value>
</property>
</configuration>
