Mybatis逆向工具生成mapper和pojo
开发工具IDEA 新建一个Maven工程 pom文件配置如下：
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>org.example</groupId>
<artifactId>photo-generator</artifactId>
<version>1.0-SNAPSHOT</version>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-log4j</artifactId>
<version>1.3.8.RELEASE</version>
</dependency>
<!--mysql数据库连接依赖-->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>8.0.28</version>
</dependency>
<!--管理我们的mysql连接-->
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid</artifactId>
<version>1.1.12</version>
</dependency>
<!-- 整合Mybatis -->
<dependency>
<groupId>org.mybatis.spring.boot</groupId>
<artifactId>mybatis-spring-boot-starter</artifactId>
<version>2.1.0</version>
</dependency>
<!-- 通用mapper工具 -->
<dependency>
<groupId>tk.mybatis</groupId>
<artifactId>mapper-spring-boot-starter</artifactId>
<version>2.1.5</version>
</dependency>
<!-- tk.mybatis.mapper插件 -->
<dependency>
<groupId>tk.mybatis</groupId>
<artifactId>mapper</artifactId>
<version>4.1.5</version>
</dependency>
<!-- pageHelper分页的助手类 -->
<dependency>
<groupId>com.github.pagehelper</groupId>
<artifactId>pagehelper-spring-boot-starter</artifactId>
<version>1.2.12</version>
</dependency>
<!-- mybatis 逆向生成工具 -->
<dependency>
<groupId>org.mybatis.generator</groupId>
<artifactId>mybatis-generator-core</artifactId>
<version>1.3.2</version>
<scope>compile</scope>
<optional>true</optional>
</dependency>
</dependencies>
<properties>
<maven.compiler.source>8</maven.compiler.source>
<maven.compiler.target>8</maven.compiler.target>
</properties>
<build>
<plugins>
<!--反向生成插件-->
<plugin>
<groupId>org.mybatis.generator</groupId>
<artifactId>mybatis-generator-maven-plugin</artifactId>
<version>1.3.7</version>
<configuration>
<!--配置文件的路径-->
<configurationFile>src/main/resources/generatorConfig.xml</configurationFile>
<verbose>true</verbose>
<overwrite>true</overwrite>
</configuration>
<dependencies>
<dependency>
<groupId>org.mybatis.generator</groupId>
<artifactId>mybatis-generator-core</artifactId>
<version>1.3.7</version>
<scope>compile</scope>
<optional>true</optional>
</dependency>
<dependency>
<groupId>tk.mybatis</groupId>
<artifactId>mapper</artifactId>
<version>4.1.5</version>
</dependency>
</dependencies>
</plugin>
</plugins>
</build>
</project>
新建generatorConfig.xml，内容如下：
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
"http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<generatorConfiguration>
<!-- 数据库驱动 -->
<classPathEntry location="/Users/imac/.m2/repository/mysql/mysql-connector-java/8.0.28/mysql-connector-java-8.0.28.jar"/>
<context id="MySqlContext" targetRuntime="MyBatis3Simple" defaultModelType="flat">
<property name="beginningDelimiter" value="'"/>
<property name="endingDelimiter" value="'"/>
<!--生成mapper.xml时覆盖原文件-->
<plugin type="org.mybatis.generator.plugins.UnmergeableXmlMappersPlugin"/>
<!-- 配置 tk.mybatis 插件 -->
<plugin type="tk.mybatis.mapper.generator.MapperPlugin">
<property name="mappers" value="com.dream.my.mapper.MyMapper"/>
</plugin>
<commentGenerator>
<property name="suppressDate" value="true"/>
<!-- 是否去除自动生成的注释 true：是 ： false:否 -->
<property name="suppressAllComments" value="false"/>
</commentGenerator>
<!--数据库链接URL，用户名、密码 -->
<jdbcConnection driverClass="com.mysql.cj.jdbc.Driver"
connectionURL="jdbc:mysql://localhost:3306/onPhoto?useSSL=false&serverTimezone=UTC&allowPublicKeyRetrieval=true"
userId="root"
password="ps_112324">
</jdbcConnection>
<javaTypeResolver>
<property name="forceBigDecimals" value="false"/>
</javaTypeResolver>
<!-- 生成模型的包名和位置-->
<javaModelGenerator targetPackage="com.dream.pojo" targetProject="src/main/java">
<property name="enableSubPackages" value="true"/>
<property name="trimStrings" value="true"/>
</javaModelGenerator>
<!-- 生成映射文件的包名和位置-->
<sqlMapGenerator targetPackage="mapper" targetProject="src/main/resources">
<property name="enableSubPackages" value="true"/>
</sqlMapGenerator>
<!-- 生成DAO的包名和位置-->
<javaClientGenerator type="XMLMAPPER" targetPackage="com.dream.mapper" targetProject="src/main/java">
<property name="enableSubPackages" value="true"/>
</javaClientGenerator>
<!-- 要生成的表 tableName是数据库中的表名或视图名 domainObjectName是实体类名-->
<table tableName="user" domainObjectName="UserEntity" enableCountByExample="false" enableUpdateByExample="false"
enableDeleteByExample="false" enableSelectByExample="false" selectByExampleQueryId="false"></table>
</context>
</generatorConfiguration>
新建application.properties文件，内容如下：
# 应用名称
spring.application.name=photo-generator
# 指定Mybatis的Mapper文件
mybatis.mapper-locations=classpath:mapper/*xml
# 指定Mybatis的实体目录
mybatis.type-aliases-package=com.dream.pojo
# 数据库驱动
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
# 数据源名称
spring.datasource.name=defaultDataSource
# 连接数据库的地址
spring.datasource.url=jdbc:mysql://localhost:3306/onPhoto?useSSL=false&serverTimezone=UTC&allowPublicKeyRetrieval=true
# 数据库用户名和密钥
spring.datasource.username=root
spring.datasource.password=ps_112324
在src/main/com/dream路径下新建目录:my/mapper，在下边新建MyMapper.class，内容如下：
package com.dream.my.mapper;
import tk.mybatis.mapper.common.Mapper;
import tk.mybatis.mapper.common.MySqlMapper;
public interface MyMapper<T> extends Mapper<T>, MySqlMapper<T> {
}
在src/main/com/dream路径下新建目录:mybatis/utils，在下边新建GeneratorDisplay.class，内容如下：
package com.dream.mybatis.utils;
import org.mybatis.generator.api.MyBatisGenerator;
import org.mybatis.generator.config.Configuration;
import org.mybatis.generator.config.xml.ConfigurationParser;
import org.mybatis.generator.internal.DefaultShellCallback;
import java.io.File;
import java.util.ArrayList;
import java.util.List;
public class GeneratorDisplay {
public void generator() throws Exception {
List<String> warnings = new ArrayList<>();
boolean overwrite = true;
//指定 逆向工程配置文件
File configFile = new File("src/main/resources/generatorConfig.xml");
ConfigurationParser cp = new ConfigurationParser(warnings);
Configuration config = cp.parseConfiguration(configFile);
DefaultShellCallback callback = new DefaultShellCallback(overwrite);
MyBatisGenerator myBatisGenerator = new MyBatisGenerator(config, callback, warnings);
myBatisGenerator.generate(null);
}
public static void main(String[] args) {
try {
GeneratorDisplay generatorSqlmap = new GeneratorDisplay();
System.out.println("==> 执行生成代码");
generatorSqlmap.generator();
} catch (Exception e) {
e.printStackTrace();
}
}
}

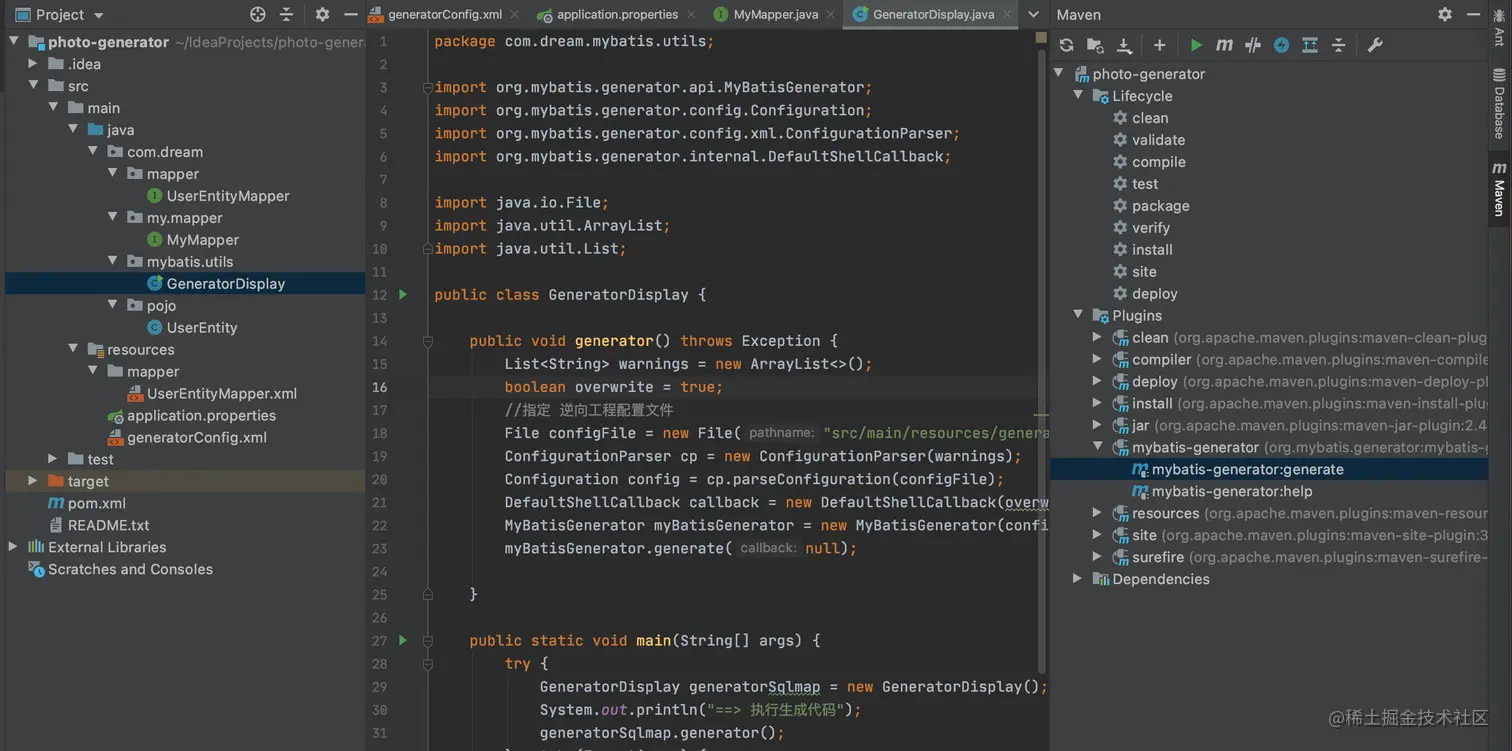

最后在maven菜单栏执行插件：mybatis-generator:generate，生成mapper映射文件和实体类。 工程目录结构如下：
