需求

要求实现用户上传身份证照片，自定义上传画面，自动截取身份证图片，并获取身份证上面的信息。
如果机型不支持则留有保底手段：相册上传图片，获取身份证上的信息。

大概思路

自定义上传画面

主要依赖 navigator.mediaDevices.getUserMedia API

自动截取身份证图片

根据 canvas.drawImage 去生成画布，随后进行 canvas.toDataURL 获取base64格式的图片

获取身份证上面的信息

这个先将base64图片上传oss，获取到图片url，再根据百度ocr身份证识别，获取到对应正反面的信息。

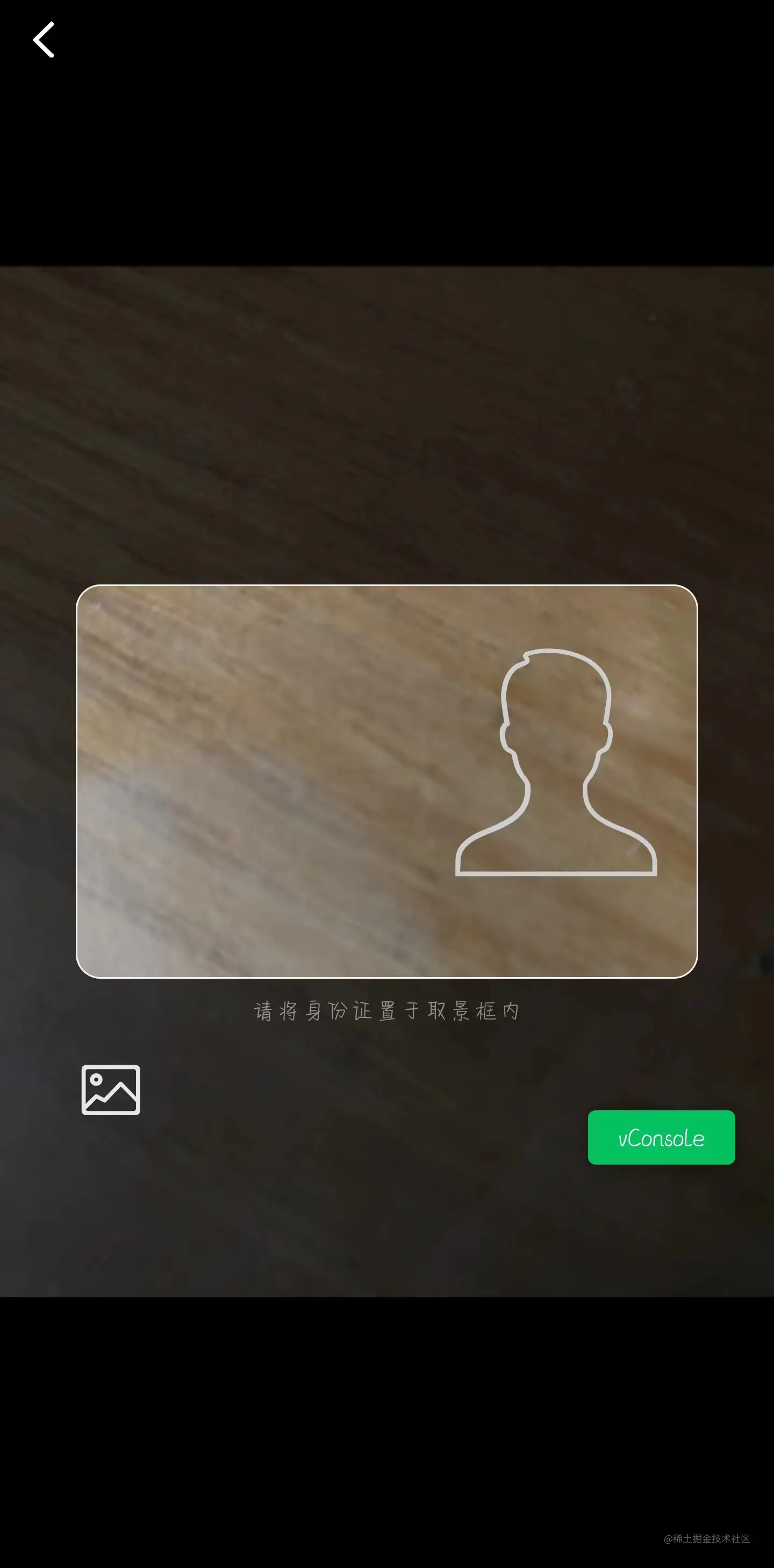

效果

实现

此功能为组件形式注入到上传图片的页面中，为保存一些数据
一些utils内的方法，redux中的操作也都在下面展示。

核心代码

import React, { memo, useEffect, useRef, useState } from 'react'
import PropsType from 'prop-types'
import styled from 'styled-components'
import { withRouter } from 'react-router-dom'
import { detectDeviceType } from 'zzy-javascript-devtools'
import { connect } from 'react-redux'

import globalSty from '../../api/global-style'
import { getUserMedia, getXYRatio, cameraErrorMsg } from '../../api/utils'
import { getIdCardMsg, setCameraType } from './store/actionCreators'
import HeaderBar from '../../components/HeaderBar'
import Toast from '../../components/Toast'
import { uploadFileBase64Req } from '../../api'

let captrueTimer
let getStreamTimer
let isStart = false
let videoStreams
let pageTimer

const Camera = (props) => {
  const { type, close } = props
  const {
    setCameraTypeDispatch,
    getIdCardMsgDispatch,
    changeIdCardMsg,
    uploadFile
  } = props
  // photo这个值是用来开发测试时在截取区域上方黑色地方展示当前截取base64图片的。
  // const [photo, setPhoto] = useState('')
  // 1-正面 2-反面
  const [idCardType, setIdCardType] = useState(1)
  useEffect(() => {
    // 页面进入时，正反面状态以父组件传值为准
    setIdCardType(type)
    // 开始计时,超过指定时间就关闭页面，保证不会长期在此页面调用接口
    startTimeing()
    return () => {
      clearTimeout(pageTimer)
    }
  }, [])
  const videoRef = useRef()
  // 截取区域 ref
  const rectangle = useRef()
  // 弹窗组件ref，下面的方法都为弹窗提示组件方法，可忽略。
  const toastRef = useRef()
  useEffect(() => {
    if (videoRef.current && !isStart) {
      isStart = true
      // 获取视频流
      getUserMediaStream(videoRef.current).then(() => {
        getStreamTimer = setTimeout(() => {
          // 成功后延迟500ms开始进行图片截取
          startCaptrue()
          clearTimeout(getStreamTimer)
        }, 500)
      })
    }
    return () => {
      clearInterval(captrueTimer)
      // 页面销毁时进行整体销毁
      destoryStates()
    }
  }, [videoRef])

  // 备用方案，相册icon，点击后销毁当前页
  const clickUploadFileHandle = () => {
    uploadFile()
    destoryStates()
    close()
  }

  // 必须在https下才可以使用，否则直接报错
  // 开始获取用户媒体流
  const getUserMediaStream = (videoNode) => {
    const params1 = {
      video: { facingMode: { exact: 'environment' } } // 设置true为获取前置，{ facingMode: { exact: 'environment' } } 为后置摄像头
    }
    const params2 = {
      video: {
        facingMode: 'user'
      }
    }

    return getUserMedia({
      audio: false,
      // 判断为移动端还是pc端
      ...(detectDeviceType() === 'Mobile' ? params1 : params2)
    })
      .then((res) => {
        videoStreams = res
        return getStreamRes(res, videoNode)
      })
      .catch((error) => {
        console.log('访问用户媒体设备失败：', error.name, error.message, error)
        toastRef.current.warnToast({
          // cameraErrorMsg 为错误信息
          title: `${cameraErrorMsg(error.name)},请返回上级页面重新拍照上传`,
          cancel: '返回',
          confirm: '确认',
          onFinally() {
            // 失败后状态管理器内设置当前上传方式为图片上传，再次点击上传不进入此处，并销毁当前页面
            setCameraTypeDispatch('upload')
            destoryStates()
            close()
          }
        })
        return Promise.reject()
      })
  }
  // 调用成功
  const getStreamRes = (stream, video) => {
    return new Promise((resolve) => {
      video.srcObject = stream
      // 在指定视频/音频（audio/video）的元数据加载后触发
      video.onloadedmetadata = () => {
        // 获取成功之后等待元数据加载后进行播放
        video.play()
        resolve()
      }
    })
  }
  // 截取裁剪框
  const startCaptrue = () => {
    const _canvas = document.createElement('canvas')
    _canvas.style.display = 'block'

    // 根据video的xy比率，并提供外部比率进行换算
    const { YRatio, XRatio } = getXYRatio(videoRef.current)
    // 获取到截图面的数据
    const { left, top, width, height } =
      rectangle.current.getBoundingClientRect()
    _canvas.height = height
    _canvas.width = width

    const context = _canvas.getContext('2d')

    captrue()
    function captrue() {
      // 这里 drawImage 的参数有点问题，不是很严丝合缝，待后期调试，目前够用
      captrueTimer = setInterval(async () => {
        // 微信下沿偏多，但是其余浏览器中正好，保留参数
        // left,top 各扩展20px，width，height翻倍
        // top,height各累加20px 降低
        context.drawImage(
          videoRef.current,
          XRatio(left + window.scrollX - 20),
          YRatio(top + window.scrollY - 20) - 20,
          XRatio(width + 40),
          height + 40 + 20,
          0,
          0,
          width,
          height
        )
        // 获取当前截图的base64编码
        const base64 = _canvas.toDataURL('image/jpeg')
        console.log(base64, 'base64')
        clearTimeout(captrueTimer)
        // 上传base64获取oss地址
        const { url } = await uploadFileBase64Req(base64, true)
        // 从ocr中获取身份证信息，getIdCardMsgDispatch 方法里面就已经包含了数据的校验
        const idCardsMsg = await getIdCardMsgDispatch(url, true)
        if (idCardsMsg.type === type) {
          // 校对成功，属于正确的一面
          close()
          changeIdCardMsg(idCardsMsg)
        } else {
          // 否则继续校验
          captrue()
        }
        // setPhoto(base64)
      }, 1500)
    }
  }

  const startTimeing = () => {
    pageTimer = setTimeout(() => {
      destoryStates()
      toastRef.current.warnToast({
        title: '页面停留过久,请返回上级页面重新拍照上传',
        cancel: '返回',
        confirm: '确认',
        onFinally() {
          close()
        }
      })
    }, 3 * 60 * 1000) // 三分钟
  }

  // 关闭流
  const closeCameras = () => {
    videoStreams && videoStreams.getTracks()[0].stop()
  }
  // 销毁页面数据
  const destoryStates = () => {
    closeCameras()
    isStart = false
    clearTimeout(getStreamTimer)
    getStreamTimer = null
    clearInterval(captrueTimer)
    captrueTimer = null
    videoStreams = null
  }

  return (
    <CameraContainer id="Camera_component_Container">
      <HeaderBar clickArrow={() => close()} />
      <video id="video" ref={videoRef} autoPlay muted playsInline></video>
      <div className="shadowView">
        <div className="rectangle" ref={rectangle}>
          {idCardType === 1 && (
            <img
              src={require('./image/renxiang.svg')}
              alt=""
              className="renxiang"
            />
          )}
          {idCardType === 2 && (
            <img
              src={require('./image/guohui.svg')}
              alt=""
              className="guohui"
            />
          )}
          <span className="say">请将身份证置于取景框内</span>
          <div className="handleBar">
            <img
              src={require('@/static/image/photo.svg')}
              alt=""
              className="photoIcon"
              onClick={clickUploadFileHandle}
            />
          </div>
        </div>
        {/* <img
          className="photo"
          src={photo}
          style={{ position: 'absolute', top: 0 }}
        ></img> */}
      </div>
      <Toast ref={toastRef} />
    </CameraContainer>
  )
}

Camera.propTypes = {
  type: PropsType.number,
  close: PropsType.func,
  changeIdCardMsg: PropsType.func,
  uploadFile: PropsType.func,
  setCameraTypeDispatch: PropsType.func,
  getIdCardMsgDispatch: PropsType.func
}

const mapDispatchToProps = (dispatch) => ({
  setCameraTypeDispatch(type) {
    dispatch(setCameraType(type))
  },
  async getIdCardMsgDispatch(url, isCamera) {
    const data = await dispatch(getIdCardMsg(url, isCamera))
    return data
  }
})
export default connect(null, mapDispatchToProps)(withRouter(memo(Camera)))

const CameraContainer = styled.div`
  position: fixed;
  left: 0;
  right: 0;
  top: 0;
  bottom: 0;
  z-index: 11;
  overflow: hidden;
  background-color: #000;
  #video {
    position: absolute;
    left: 0;
    top: 0;
    width: 100%;
    height: 100%;
    z-index: 1;
  }
  .shadowView {
    /* ${globalSty.positionCenter()}; */
    position: absolute;
    left: 0;
    right: 0;
    top: 0;
    bottom: 0;
    z-index: 2;
    /* background-color: rgba(0, 0, 0, 0.4); */
    display: flex;
    align-items: center;
    justify-content: center;
    .rectangle {
      width: 80vw;
      /* 身份证件长宽比例 1.58:1 */
      height: calc(80vw / 1.58);
      border-radius: 1.5rem;
      border: 0.1rem solid rgba(243, 243, 243, 1);
      box-shadow: 0 0 0 2000rem rgba(0, 0, 0, 0.7);
      position: relative;
      .renxiang {
        position: absolute;
        right: 1rem;
        top: 45%;
        transform: translate(0, -50%);
        width: 15rem;
      }
      .guohui {
        position: absolute;
        top: 1.5rem;
        left: 2rem;
        width: 7.5rem;
      }
      .say {
        position: absolute;
        font-size: 1.5rem;
        font-family: PingFangSC-Regular, PingFang SC;
        font-weight: 400;
        color: rgba(255, 255, 255, 0.5);
        left: 50%;
        bottom: -3.5rem;
        transform: translate(-50%, -50%);
      }
      .handleBar {
        position: absolute;
        left: 0;
        right: 0;
        bottom: -9rem;
        .photoIcon {
          width: 4rem;
          height: 4rem;
        }
      }
    }
  }
`

utils.js

//访问用户媒体设备的兼容方法
const getUserMedia = (constrains) => {
  if (navigator.mediaDevices?.getUserMedia) {
    //最新标准API
    return navigator.mediaDevices.getUserMedia(constrains)
  } else if (navigator.webkitGetUserMedia) {
    //webkit内核浏览器
    return navigator.webkitGetUserMedia(constrains)
  } else if (navigator.mozGetUserMedia) {
    //Firefox浏览器
    return navigator.mozGetUserMedia(constrains)
  } else if (navigator.getUserMedia) {
    //旧版API
    return navigator.getUserMedia(constrains)
  }
}

const hasUserMedia = () => {
  if (navigator.mediaDevices?.getUserMedia) {
    //最新标准API
    return true
  } else if (navigator.webkitGetUserMedia) {
    //webkit内核浏览器
    return true
  } else if (navigator.mozGetUserMedia) {
    //Firefox浏览器
    return true
  } else if (navigator.getUserMedia) {
    //旧版API
    return true
  }
  return false
}

const cameraErrorMsg = (name) => {
  if (name === 'AbortError') {
    return '操作被终止'
  } else if (name === 'NotAllowedError') {
    return '权限被拒绝'
  } else if (name === 'NotFoundError') {
    return '无法满足操作'
  } else if (name === 'NotReadableError') {
    return '读取失败'
  } else if (name === 'OverconstrainedError') {
    return '设备无法被满足'
  } else if (name === 'SecurityError') {
    return '权限被禁止'
  } else if (name === 'TypeError') {
    return '传值错误'
  } else {
    return '操作失败'
  }
}

// 获取video的xy比率，并提供外部比率进行换算
function getXYRatio(video) {
  // videoHeight为video 真实高度
  // offsetHeight为video css高度
  const {
    videoHeight: vh,
    videoWidth: vw,
    offsetHeight: oh,
    offsetWidth: ow
  } = video

  return {
    YRatio: (height) => {
      return (vh / oh) * height
    },
    XRatio: (width) => {
      return (vw / ow) * width
    }
  }
}

// 判断身份证信息来自正/反
const isIdCardType = (msg) => {
  if (msg.name && msg.sex && msg.idcard) {
    return 1
  } else if (msg.authority && msg.validDate) {
    return 2
  } else return 0
}

store

store中使用了immutable格式，不清楚的朋友可以先看一下文档，只是改变数据结构，其余的没什么变化。

reducer.js

import { fromJS } from 'immutable'
import {
  CHANGE_IDCARD_MSG,
  SET_CAMERA_TYPE,
} from './constants'

const defaultState = fromJS({
  cameraType: 'camera', // upload-拍照上传 camera-实时传输
  idCardMsg: {}
})

const reducer = (state = defaultState, action) => {
  switch (action.type) {
    case SET_CAMERA_TYPE:
      return state.set('cameraType', action.data)
    case CHANGE_IDCARD_MSG:
      return state.set('idCardMsg', action.data)
    default:
      return state
  }
}

export default reducer

actionCreators.js

import { Toast } from 'antd-mobile'
import { fromJS } from 'immutable'
import { isIdCard, isName } from 'zzy-javascript-devtools'
import { idCardAndlysisReq } from '../../../api'
import { getAge, isIdCardType } from '../../../api/utils'
import { CHANGE_IDCARD_MSG, SET_CAMERA_TYPE } from './constants'

export const setCameraType = (data) => ({
  type: SET_CAMERA_TYPE,
  data: fromJS(data)
})

const changeIdCardMsg = (data) => ({
  type: CHANGE_IDCARD_MSG,
  data: fromJS(data)
})

export const getIdCardMsg = (url, isCamera = false) => {
  return async (dispatch) => {
    const res = await idCardAndlysisReq(url, isCamera)
    const type = isIdCardType(res)
    const { name, idcard, sex, authority, validDate } = res
    if (type === 1) {
      if (isName(name) && isIdCard(idcard)) {
        const age = getAge(idcard)
        const obj = { name, idcard, sex, age, type: 1, url }
        dispatch(changeIdCardMsg(obj))
        return obj
      } else {
        return isCamera ? '' : Toast.offline('信息获取错误，请重新上传！', 3)
      }
    } else if (type === 2) {
      const obj = { authority, validDate, type: 2, url }
      dispatch(changeIdCardMsg(obj))
      return obj
    } else {
      return isCamera ? '' : Toast.offline('信息获取错误，请重新上传！', 3)
    }
  }
}

export const clearIdCardMsg = () => {
  return (dispatch) => {
    dispatch(changeIdCardMsg({}))
  }
}

插件版本

{
  "devDependencies": {
    "react-redux": "^7.2.4",
    "redux": "^4.1.0",
    "zzy-javascript-devtools": "^1.5.2"
  },
  "dependencies": {
    "html2canvas": "^1.4.1",
    "immutable": "^4.0.0",
    "redux-immutable": "^4.0.0",
    "redux-thunk": "^2.4.1",
    "styled-components": "^5.3.5"
  }
}

想法

在之后用了一次html2canvas的节点截图，感觉可以将canvas.drawImage步骤改为html2canvas会更好一些，但是没有进行尝试，觉得可行。
