前言

早上翻犀牛书的时候在多媒体和图形编程的章节偶尔发现有关于用`SVG`实现一个动态时钟，感觉挺有意思，记录一下。

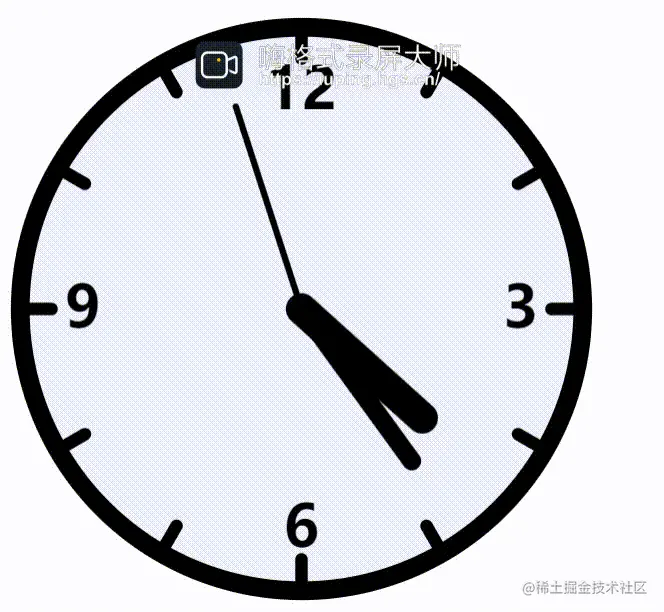

效果图

先看一下效果图吧 , 代码贴在下面了 , 有兴趣的可以看一下~

代码实现

`html`

<body onload="updateTime()">
  <!-- viewBox是坐标系,width和height是指屏幕大小 -->
  <svg id="clock" viewBox="0 0 100 100" width="500" height="500">
  <defs>
    <filter id="shadow" x="-50%" y="-50%" width="200%" height="200%">
        <feGaussianBlur in="sourceAlpha" stDeviation="1" result="blur"/>
        <feOffset in="blur" dx="1" dy="1" result="shadow" />
        <feMerge>
          <feMergeMode in="SourceGraphic"/>
          <feMergeMode in="shadow"/>
        </feMerge>
    </filter>
  </defs>
  <circle id="face" cx="50" cy="50" r="45"/>
  <g id="ticks">
    <line x1="50" y1="5.000" x2="50.00" y2="10.00"/>
    <line x1="72.50" y1="11.03" x2="70.00" y2="15.36"/>
    <line x1="88.97" y1="27.50" x2="84.64" y2="30.00"/>
    <line x1="95.00" y1="50.00" x2="90.00" y2="50.00"/>
    <line x1="88.97" y1="72.50" x2="84.64" y2="70.00"/>
    <line x1="72.50" y1="88.97" x2="70.00" y2="84.64"/>
    <line x1="50.00" y1="95.00" x2="50.00" y2="90.00"/>
    <line x1="27.50" y1="88.97" x2="30.00" y2="84.64"/>
    <line x1="11.03" y1="72.50" x2="15.36" y2="70.00"/>
    <line x1="5.000" y1="50.00" x2="10.00" y2="50.00"/>
    <line x1="11.03" y1="27.50" x2="15.36" y2="30.00"/>
    <line x1="27.50" y1="11.03" x2="30.00" y2="15.36"/>
  </g>
  <g id="numbers">
    <text x="50" y="18">12</text><text x="85" y="53">3</text>
    <text x="50" y="88">6</text><text x="15" y="53">9</text>
  </g>
  <g id="hands" >
    <line id="hourHand" x1="50" y1="50" x2="50" y2="24" />
    <line id="minHand" x1="50" y1="50" x2="50" y2="20" />
    <line id="secHand" x1="50" y1="50" x2="50" y2="16" />
  </g>
  </svg>
</body>

`css`

#clock{
      stroke: black;
      stroke-linecap: round;
      fill: #eef;
    }
    #face{
      stroke-width: 3px;
    }
    #ticks{
      stroke-width: 2;
    }
    #hourHand{
      stroke-width: 5px;
    }
    #minHand{
      stroke-width: 3px;
    }
    #secHand{
      stroke-width: 1px;
    }
    #numbers{
      font-family: sans-serif;
      font-size: 7pt;
      font-weight: bold;
      text-anchor: middle;
      stroke: none;
      fill: black;
    }

`js`

 //更新SVG始终来显示当前时间
    function updateTime(){
     let now = new Date();                        //当前时间
     let min = now.getMinutes();                  //分钟
     let sec = now.getSeconds();                  //秒
     let hour = (now.getHours() % 12) + min / 60; //转换成可以在时钟上显示的时间
     let minAngle = min * 6;                      //每6°表示一分钟
     let secAngle = sec * 6;                      //每6°表示一秒
     let hourAngle = hour * 30;                   //每30°表示一个小时

     //获取表示时钟和分针的svg元素
     let minHand = document.getElementById("minHand");
     let hourHand = document.getElementById("hourHand");
     let secHand = document.getElementById("secHand");

     //设置这些元素的SVG属性,将他们移动到钟面上
     minHand.setAttribute("transform" , "rotate(" + minAngle + ",50,50)");
     hourHand.setAttribute("transform" , "rotate(" + hourAngle + ",50,50)");
     secHand.setAttribute("transform" , "rotate(" + secAngle + ",50,50)");

     //每一分钟更新下时钟的时间
      setTimeout(updateTime , 1000);
    }
