并发编程-原理-共享模型之工具

samjustin
152 阅读6分钟


线程池

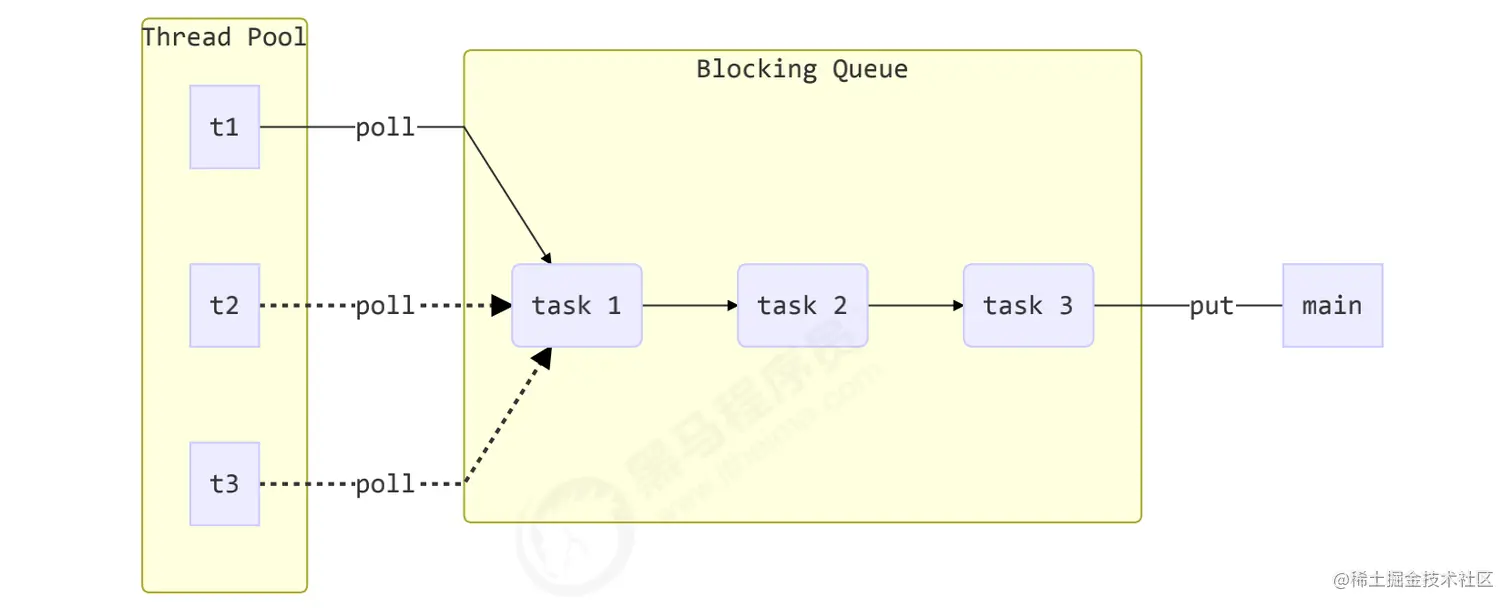

自定义线程池


自定义拒绝策略接口

@FunctionalInterface // 拒绝策略
interface RejectPolicy<T> {
    void reject(BlockingQueue<T> queue, T task);
}

自定义任务队列


@Slf4j(topic = "c.BlockingQueue")
class BlockingQueue<T> {
    // 1. 任务队列
    private Deque<T> queue = new ArrayDeque<>();

    // 2. 锁
    private ReentrantLock lock = new ReentrantLock();

    // 3. 生产者条件变量
    private Condition fullWaitSet = lock.newCondition();

    // 4. 消费者条件变量
    private Condition emptyWaitSet = lock.newCondition();

    // 5. 容量
    private int capcity;

    public BlockingQueue(int capcity) {
        this.capcity = capcity;
    }

    // 带超时阻塞获取
    public T poll(long timeout, TimeUnit unit) {
        lock.lock();
        try {
            // 将 timeout 统一转换为 纳秒
            long nanos = unit.toNanos(timeout);
            while (queue.isEmpty()) {
                try {
                    // 返回值是剩余时间
                    if (nanos <= 0) {
                        return null;
                    }
                    nanos = emptyWaitSet.awaitNanos(nanos);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
            }
            T t = queue.removeFirst();
            fullWaitSet.signal();
            return t;
        } finally {
            lock.unlock();
        }
    }

    // 阻塞获取
    public T take() {
        lock.lock();
        try {
            while (queue.isEmpty()) {
                try {
                    emptyWaitSet.await();
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
            }
            T t = queue.removeFirst();
            fullWaitSet.signal();
            return t;
        } finally {
            lock.unlock();
        }
    }

    // 阻塞添加
    public void put(T task) {
        lock.lock();
        try {
            while (queue.size() == capcity) {
                try {
                    log.debug("等待加入任务队列 {} ...", task);
                    fullWaitSet.await();
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
            }
            log.debug("加入任务队列 {}", task);
            queue.addLast(task);
            emptyWaitSet.signal();
        } finally {
            lock.unlock();
        }
    }

    // 带超时时间阻塞添加
    public boolean offer(T task, long timeout, TimeUnit timeUnit) {
        lock.lock();
        try {
            long nanos = timeUnit.toNanos(timeout);
            while (queue.size() == capcity) {
                try {
                    if(nanos <= 0) {
                        return false;
                    }
                    log.debug("等待加入任务队列 {} ...", task);
                    nanos = fullWaitSet.awaitNanos(nanos);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
            }
            log.debug("加入任务队列 {}", task);
            queue.addLast(task);
            emptyWaitSet.signal();
            return true;
        } finally {
            lock.unlock();
        }
    }

    public int size() {
        lock.lock();
        try {
            return queue.size();
        } finally {
            lock.unlock();
        }
    }

    public void tryPut(RejectPolicy<T> rejectPolicy, T task) {
        lock.lock();
        try {
            // 判断队列是否满
            if(queue.size() == capcity) {
                rejectPolicy.reject(this, task);
            } else {  // 有空闲
                log.debug("加入任务队列 {}", task);
                queue.addLast(task);
                emptyWaitSet.signal();
            }
        } finally {
            lock.unlock();
        }
    }
}

自定义线程池

@Slf4j(topic = "c.ThreadPool")
class ThreadPool {
    // 任务队列
    private BlockingQueue<Runnable> taskQueue;

    // 线程集合
    private HashSet<Worker> workers = new HashSet<>();

    // 核心线程数
    private int coreSize;

    // 获取任务时的超时时间
    private long timeout;

    private TimeUnit timeUnit;

    private RejectPolicy<Runnable> rejectPolicy;

    // 执行任务
    public void execute(Runnable task) {
        // 当任务数没有超过 coreSize 时，直接交给 worker 对象执行
        // 如果任务数超过 coreSize 时，加入任务队列暂存
        synchronized (workers) {
            if(workers.size() < coreSize) {
                Worker worker = new Worker(task);
                log.debug("新增 worker{}, {}", worker, task);
                workers.add(worker);
                worker.start();
            } else {
//                taskQueue.put(task);
                // 1) 死等
                // 2) 带超时等待
                // 3) 让调用者放弃任务执行
                // 4) 让调用者抛出异常
                // 5) 让调用者自己执行任务
                taskQueue.tryPut(rejectPolicy, task);
            }
        }
    }

    public ThreadPool(int coreSize, long timeout, TimeUnit timeUnit, int queueCapcity, RejectPolicy<Runnable> rejectPolicy) {
        this.coreSize = coreSize;
        this.timeout = timeout;
        this.timeUnit = timeUnit;
        this.taskQueue = new BlockingQueue<>(queueCapcity);
        this.rejectPolicy = rejectPolicy;
    }

    class Worker extends Thread{
        private Runnable task;

        public Worker(Runnable task) {
            this.task = task;
        }

        @Override
        public void run() {
            // 执行任务
            // 1) 当 task 不为空，执行任务
            // 2) 当 task 执行完毕，再接着从任务队列获取任务并执行
//            while(task != null || (task = taskQueue.take()) != null) {
            while(task != null || (task = taskQueue.poll(timeout, timeUnit)) != null) {
                try {
                    log.debug("正在执行...{}", task);
                    task.run();
                } catch (Exception e) {
                    e.printStackTrace();
                } finally {
                    task = null;
                }
            }
            synchronized (workers) {
                log.debug("worker 被移除{}", this);
                workers.remove(this);
            }
        }
    }
}

测试


@Slf4j(topic = "c.TestPool")
public class TestPool {
    public static void main(String[] args) {
        ThreadPool threadPool = new ThreadPool(1,
                1000, TimeUnit.MILLISECONDS, 1, (queue, task)->{
            // 1. 死等
//            queue.put(task);
            // 2) 带超时等待
//            queue.offer(task, 1500, TimeUnit.MILLISECONDS);
            // 3) 让调用者放弃任务执行
//            log.debug("放弃{}", task);
            // 4) 让调用者抛出异常
//            throw new RuntimeException("任务执行失败 " + task);
            // 5) 让调用者自己执行任务
            task.run();
        });
        for (int i = 0; i < 4; i++) {
            int j = i;
            threadPool.execute(() -> {
                try {
                    Thread.sleep(1000L);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
                log.debug("{}", j);
            });
        }
    }
}

结果：

/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/bin/java -javaagent:/Applications/IntelliJ IDEA.app/Contents/lib/idea_rt.jar=60483:/Applications/IntelliJ IDEA.app/Contents/bin -Dfile.encoding=UTF-8 -classpath /Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/jre/lib/charsets.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/jre/lib/deploy.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/jre/lib/ext/cldrdata.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/jre/lib/ext/dnsns.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/jre/lib/ext/jaccess.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/jre/lib/ext/jfxrt.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/jre/lib/ext/localedata.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/jre/lib/ext/nashorn.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/jre/lib/ext/sunec.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/jre/lib/ext/sunjce_provider.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/jre/lib/ext/sunpkcs11.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/jre/lib/ext/zipfs.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/jre/lib/javaws.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/jre/lib/jce.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/jre/lib/jfr.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/jre/lib/jfxswt.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/jre/lib/jsse.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/jre/lib/management-agent.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/jre/lib/plugin.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/jre/lib/resources.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/jre/lib/rt.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/lib/ant-javafx.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/lib/dt.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/lib/javafx-mx.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/lib/jconsole.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/lib/packager.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/lib/sa-jdi.jar:/Library/Java/JavaVirtualMachines/jdk1.8.0_181.jdk/Contents/Home/lib/tools.jar:/Users/simer/Downloads/百度网盘/资料-并发编程/concurrent/case_java8/target/classes:/Users/simer/.m2/repository/com/fasterxml/jackson/core/jackson-databind/2.10.0/jackson-databind-2.10.0.jar:/Users/simer/.m2/repository/com/fasterxml/jackson/core/jackson-annotations/2.10.0/jackson-annotations-2.10.0.jar:/Users/simer/.m2/repository/com/fasterxml/jackson/core/jackson-core/2.10.0/jackson-core-2.10.0.jar:/Users/simer/.m2/repository/org/projectlombok/lombok/1.18.10/lombok-1.18.10.jar:/Users/simer/.m2/repository/org/springframework/spring-context/5.2.0.RELEASE/spring-context-5.2.0.RELEASE.jar:/Users/simer/.m2/repository/org/springframework/spring-aop/5.2.0.RELEASE/spring-aop-5.2.0.RELEASE.jar:/Users/simer/.m2/repository/org/springframework/spring-beans/5.2.0.RELEASE/spring-beans-5.2.0.RELEASE.jar:/Users/simer/.m2/repository/org/springframework/spring-core/5.2.0.RELEASE/spring-core-5.2.0.RELEASE.jar:/Users/simer/.m2/repository/org/springframework/spring-jcl/5.2.0.RELEASE/spring-jcl-5.2.0.RELEASE.jar:/Users/simer/.m2/repository/org/springframework/spring-expression/5.2.0.RELEASE/spring-expression-5.2.0.RELEASE.jar:/Users/simer/.m2/repository/org/springframework/spring-webmvc/5.2.0.RELEASE/spring-webmvc-5.2.0.RELEASE.jar:/Users/simer/.m2/repository/org/springframework/spring-web/5.2.0.RELEASE/spring-web-5.2.0.RELEASE.jar:/Users/simer/.m2/repository/ch/qos/logback/logback-classic/1.2.3/logback-classic-1.2.3.jar:/Users/simer/.m2/repository/ch/qos/logback/logback-core/1.2.3/logback-core-1.2.3.jar:/Users/simer/.m2/repository/org/slf4j/slf4j-api/1.7.25/slf4j-api-1.7.25.jar:/Users/simer/.m2/repository/mysql/mysql-connector-java/5.1.48/mysql-connector-java-5.1.48.jar cn.itcast.n8.TestPool
14:36:23.483 c.ThreadPool [main] - 新增 workerThread[Thread-0,5,main], cn.itcast.n8.TestPool$$Lambda$2/2109957412@6bdf28bb
14:36:23.487 c.BlockingQueue [main] - 加入任务队列 cn.itcast.n8.TestPool$$Lambda$2/2109957412@49e4cb85
14:36:23.488 c.ThreadPool [Thread-0] - 正在执行...cn.itcast.n8.TestPool$$Lambda$2/2109957412@6bdf28bb
14:36:24.490 c.TestPool [main] - 2
14:36:24.490 c.TestPool [Thread-0] - 0
14:36:25.492 c.TestPool [main] - 3
14:36:25.492 c.ThreadPool [Thread-0] - 正在执行...cn.itcast.n8.TestPool$$Lambda$2/2109957412@49e4cb85
14:36:26.498 c.TestPool [Thread-0] - 1
14:36:27.502 c.ThreadPool [Thread-0] - worker 被移除Thread[Thread-0,5,main]

Process finished with exit code 0

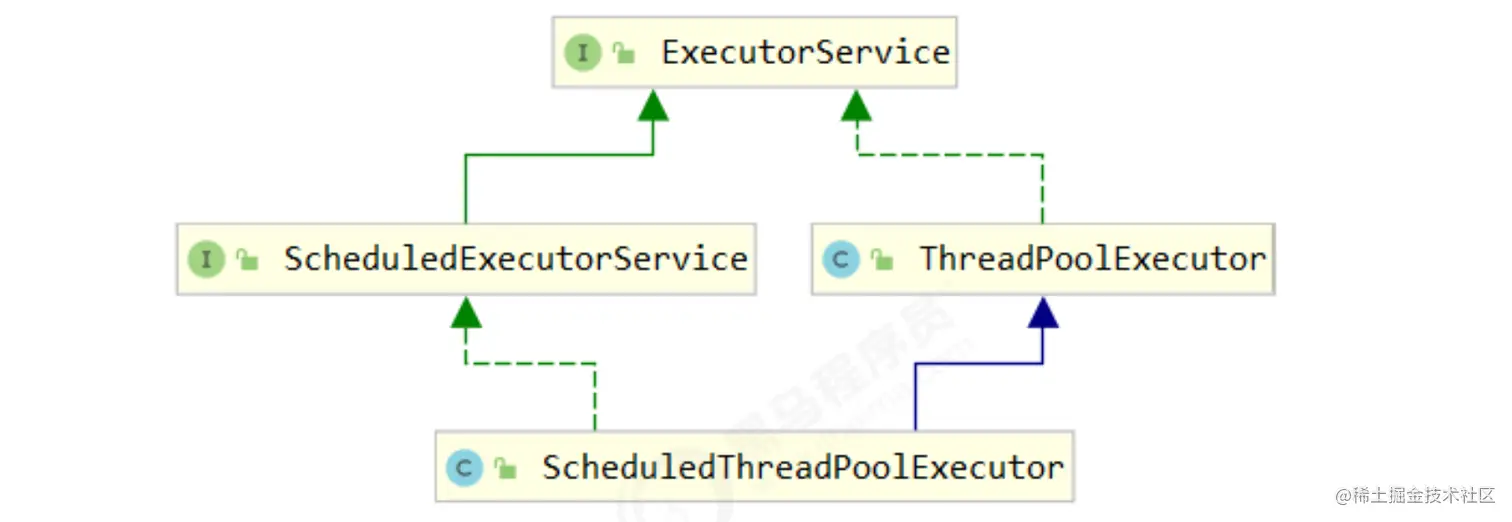

ThreadPoolExecutor

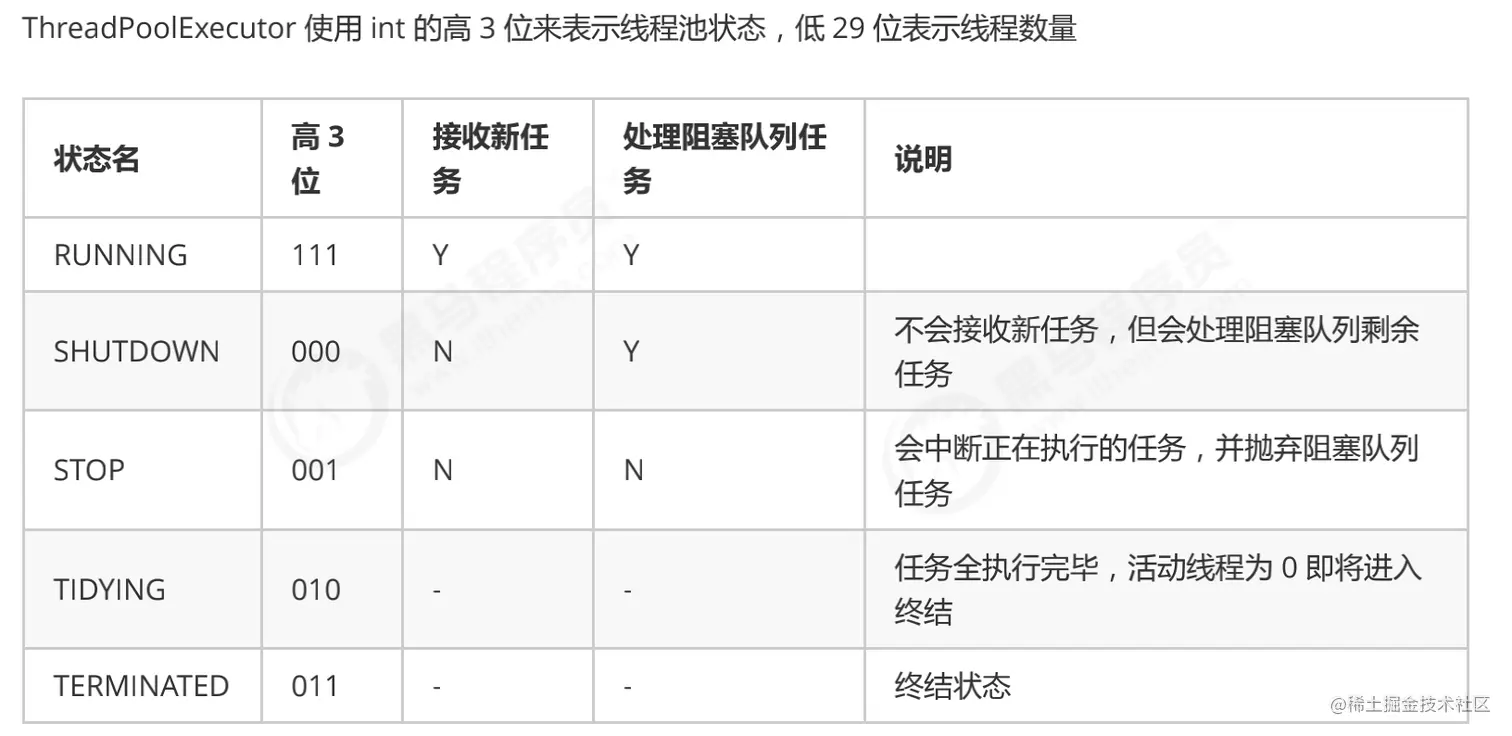

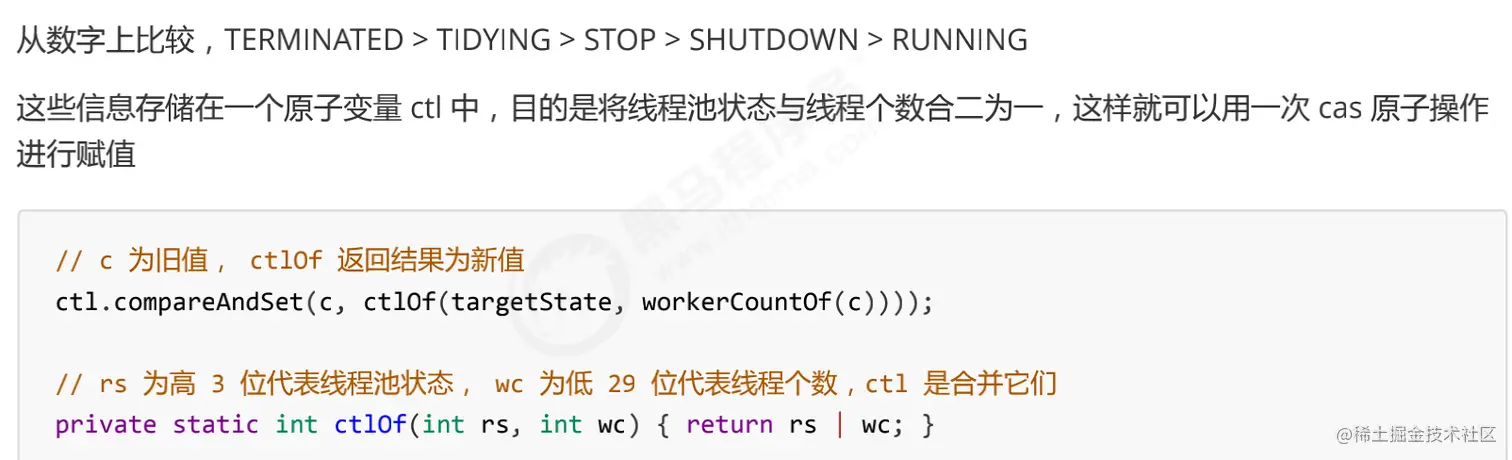

线程池状态

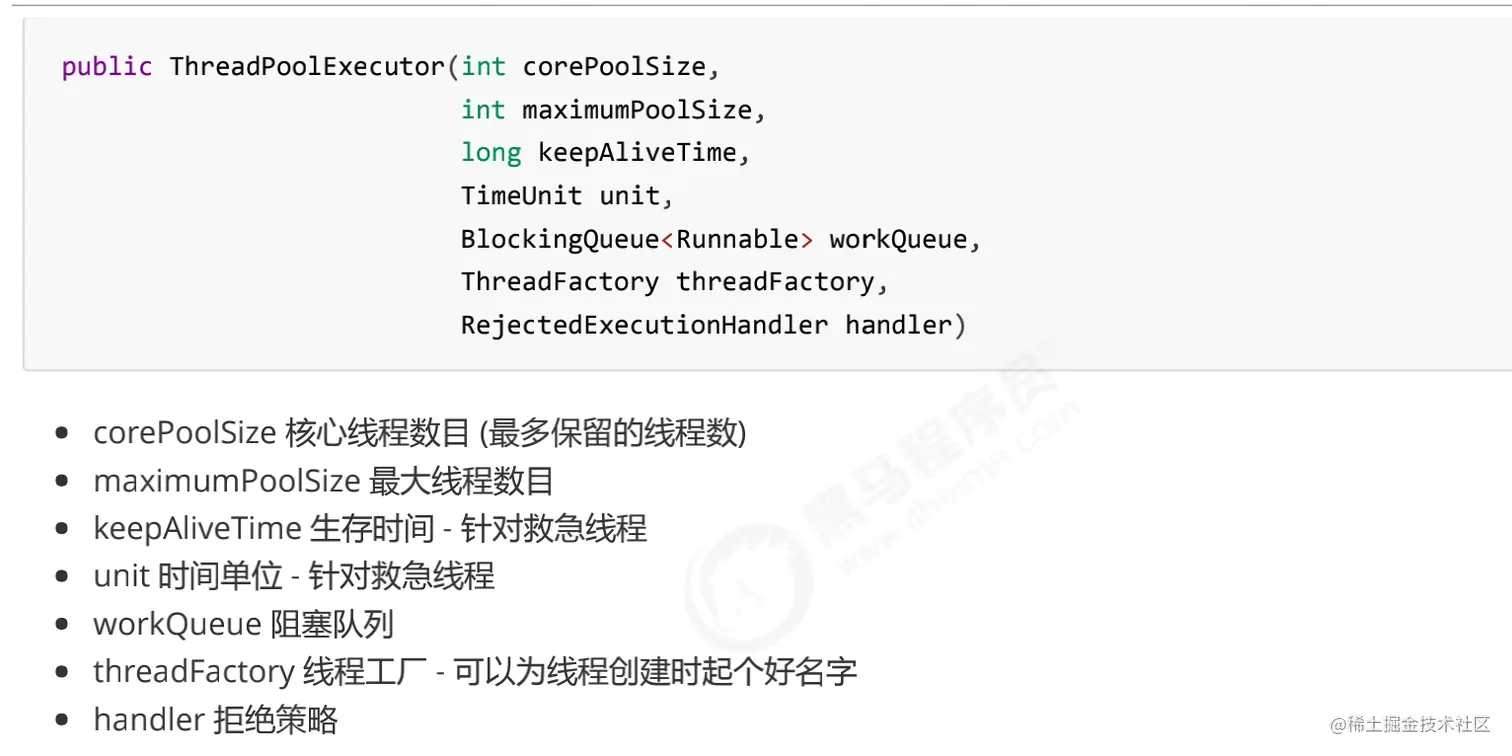

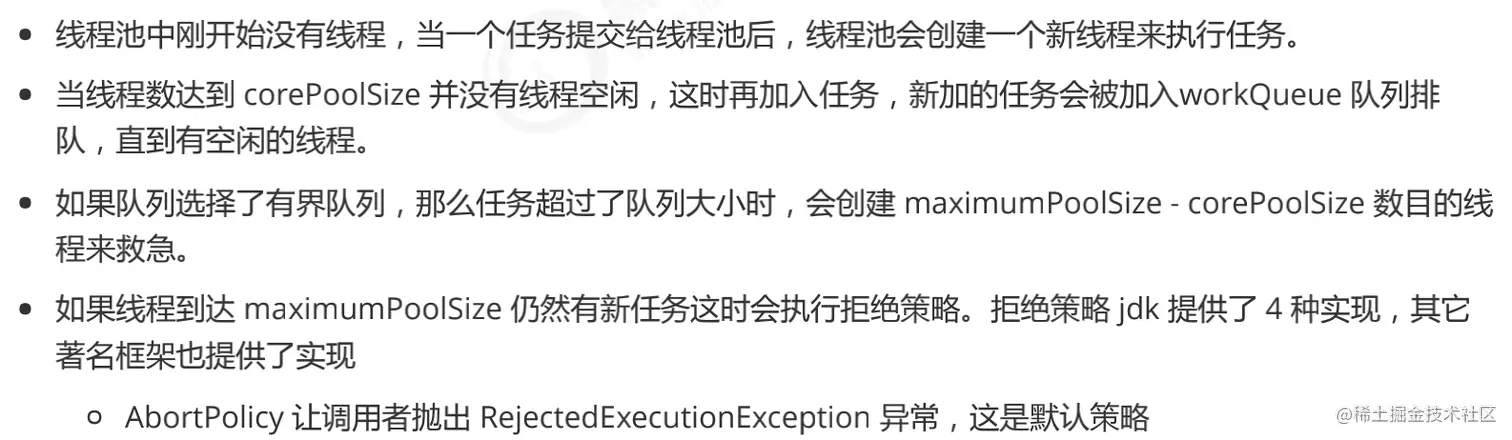

构造方法




newFixedThreadPool

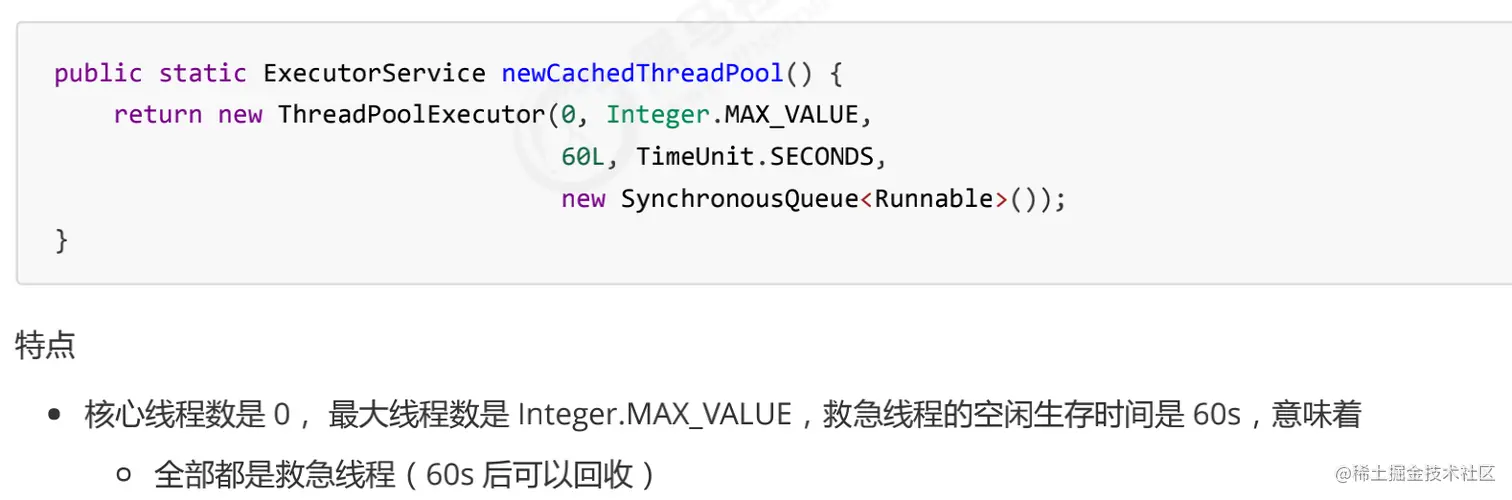

newCachedThreadPool



评价 整个线程池表现为线程数会根据任务量不断增长，没有上限，当任务执行完毕，空闲 1分钟后释放线

程。 适合任务数比较密集，但每个任务执行时间较短的情况

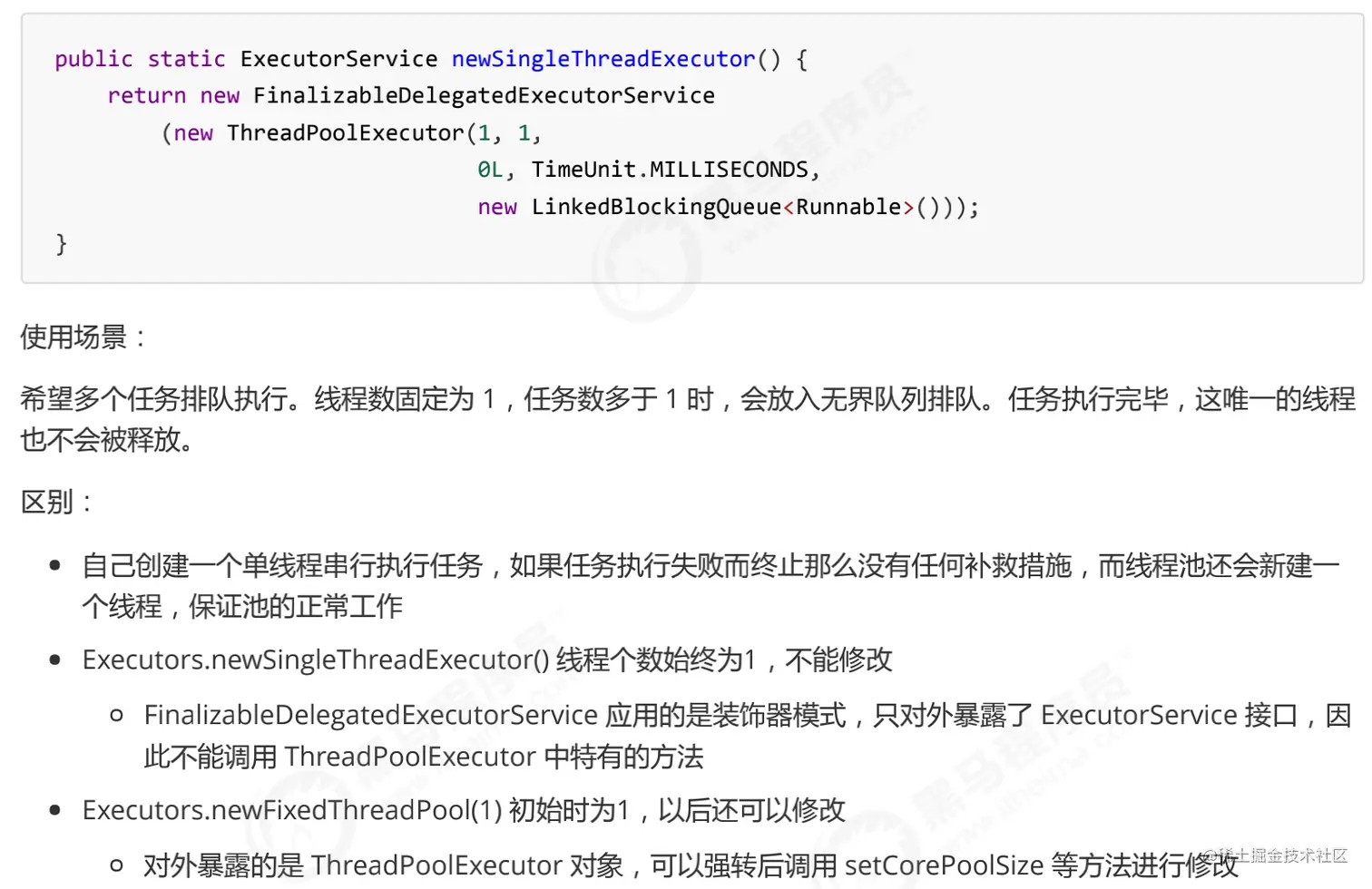

newSingleThreadPool

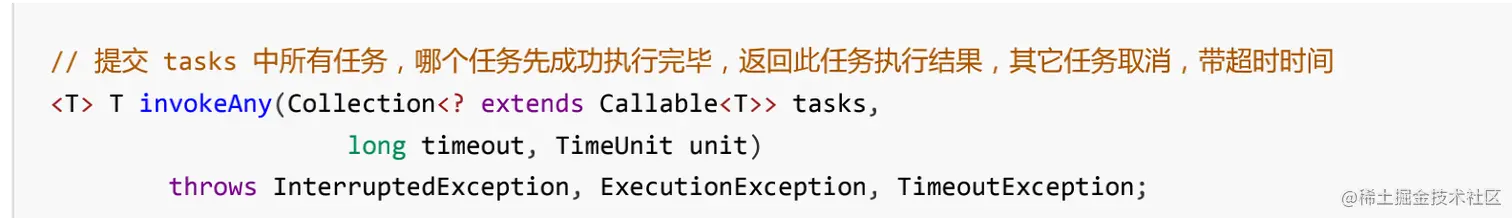

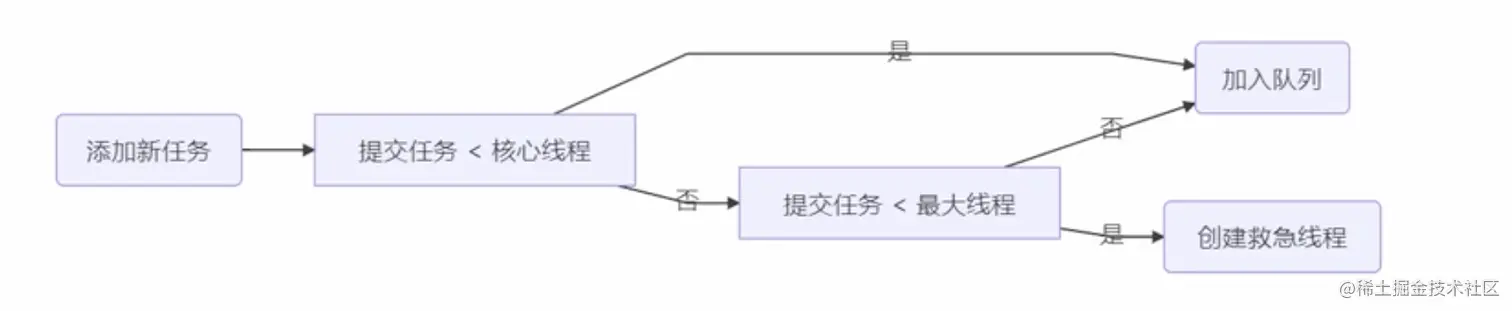

提交任务



关闭线程池

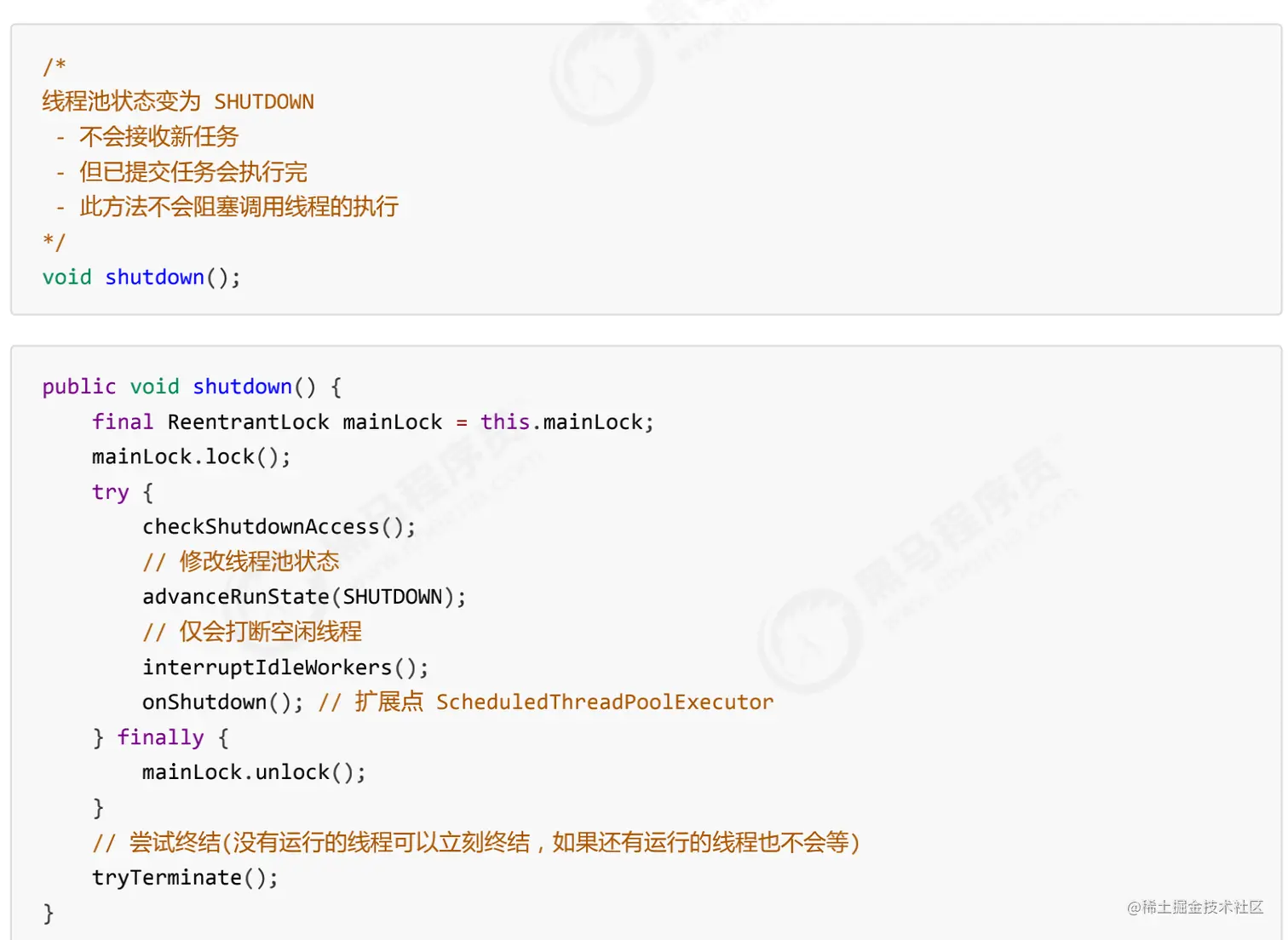

shutdown


shutdownNow


public List<Runnable> shutdownNow() {
    List<Runnable> tasks;
    final ReentrantLock mainLock = this.mainLock;
    mainLock.lock();
    try {
        checkShutdownAccess();
        // 修改线程池状态
        advanceRunState(STOP);
        // 打断所有线程
        interruptWorkers();
        // 获取队列中剩余任务
        tasks = drainQueue();
    } finally {
        mainLock.unlock();
    }
    // 尝试终结
    tryTerminate();
    return tasks;
}

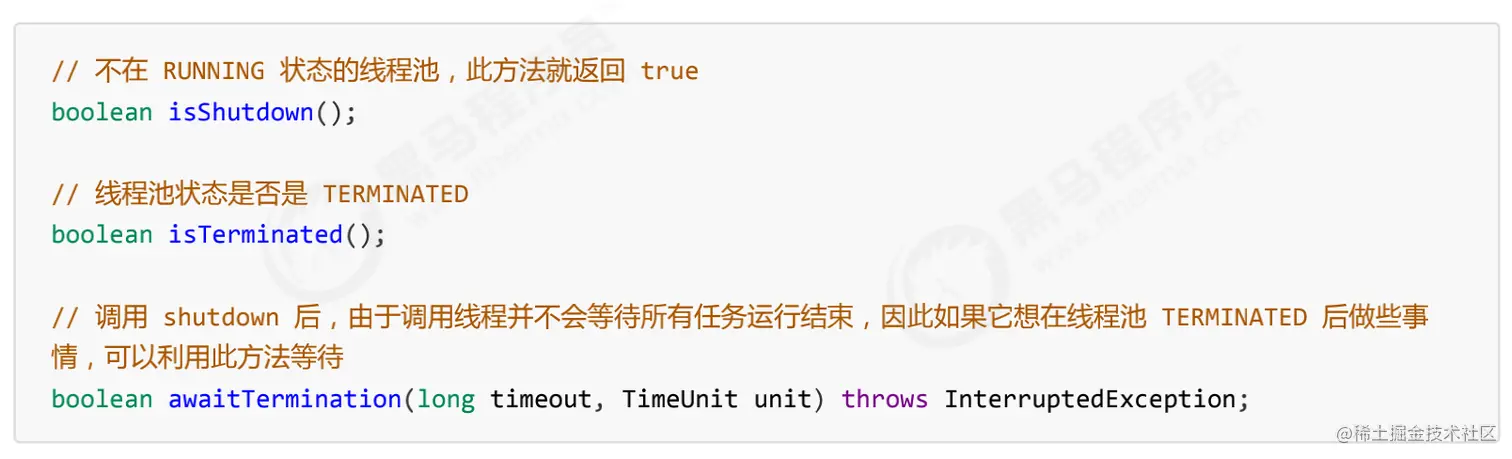

其他方法


任务调度线程池

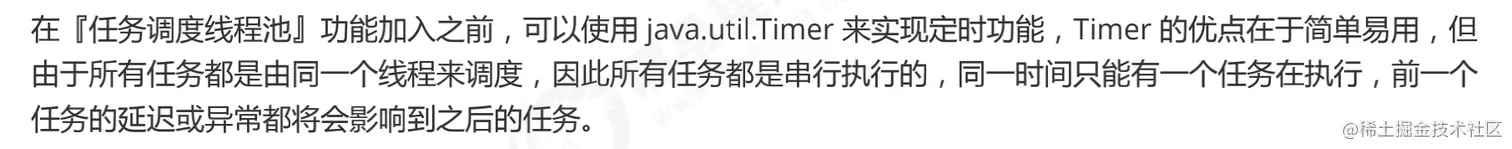

Timer


private static void method1() {
    Timer timer = new Timer();
    TimerTask task1 = new TimerTask() {
        @Override
        public void run() {
            log.debug("task 1");
            sleep(2);
        }
    };
    TimerTask task2 = new TimerTask() {
        @Override
        public void run() {
            log.debug("task 2");
        }
    };

    log.debug("start...");
    // 使用 timer 添加两个任务，希望它们都在 1s 后执行
    // 但由于 timer 内只有一个线程来顺序执行队列中的任务，因此『任务1』的延时，影响了『任务2』的执行
    timer.schedule(task1, 1000);
    timer.schedule(task2, 1000);
}


22:13:22.938 c.TestTimer [main] - start...
22:13:23.946 c.TestTimer [Timer-0] - task 1
22:13:25.950 c.TestTimer [Timer-0] - task 2

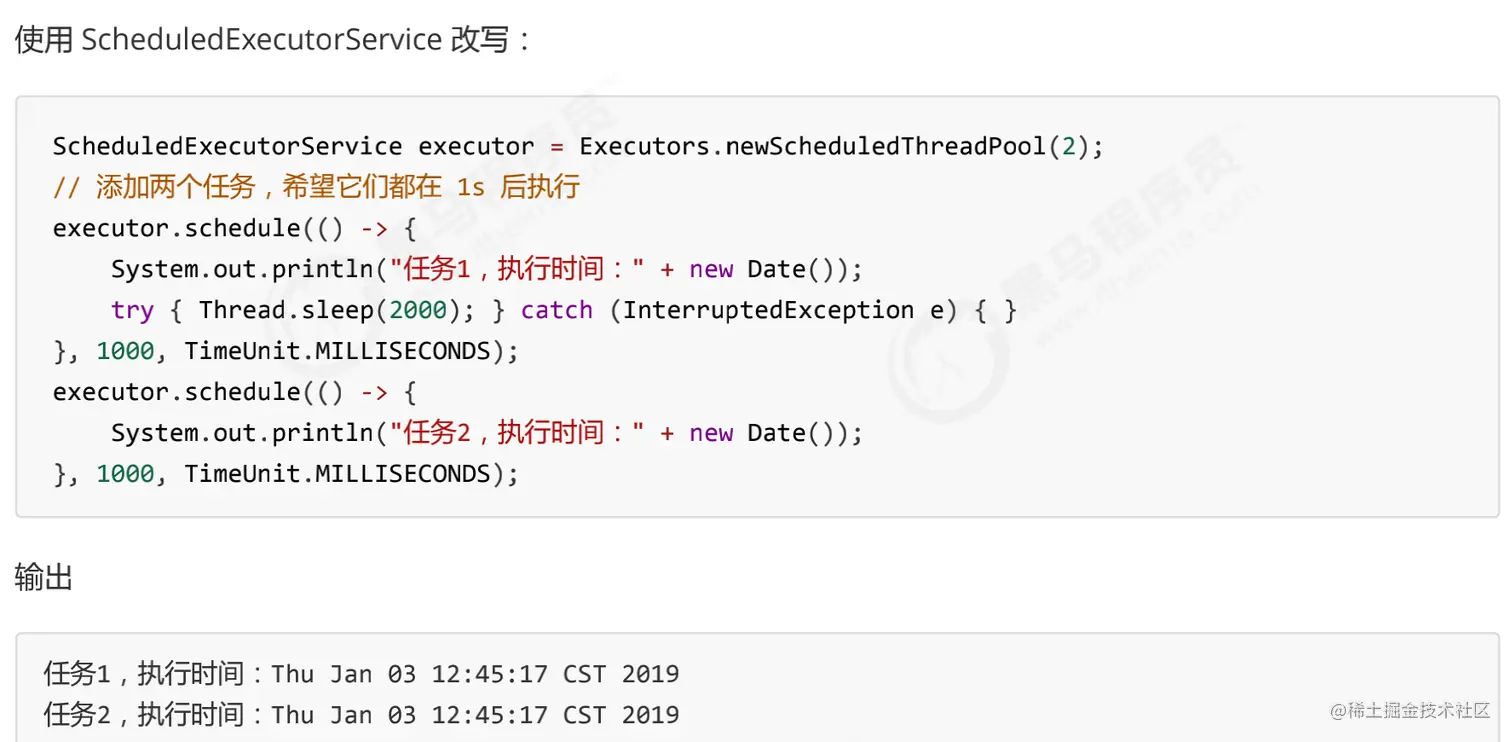

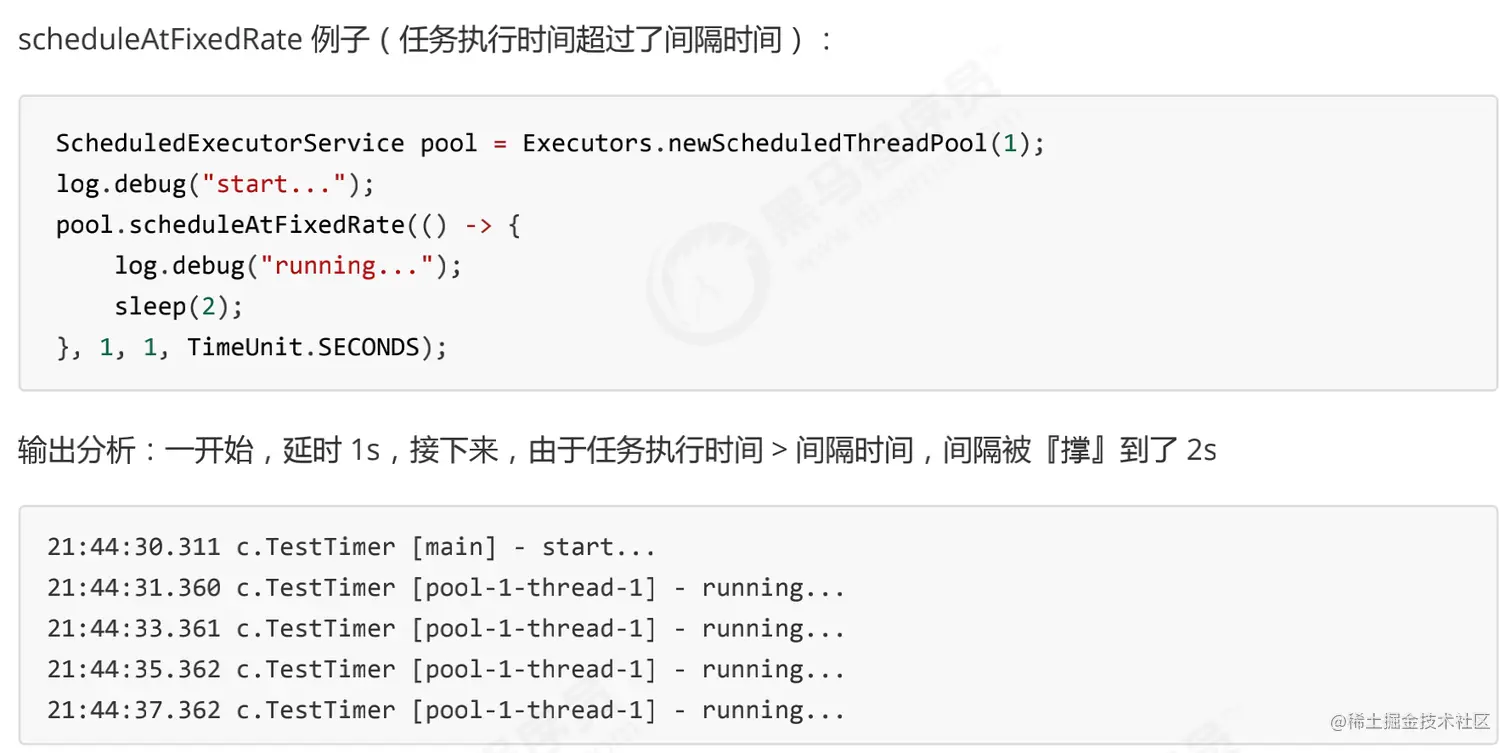

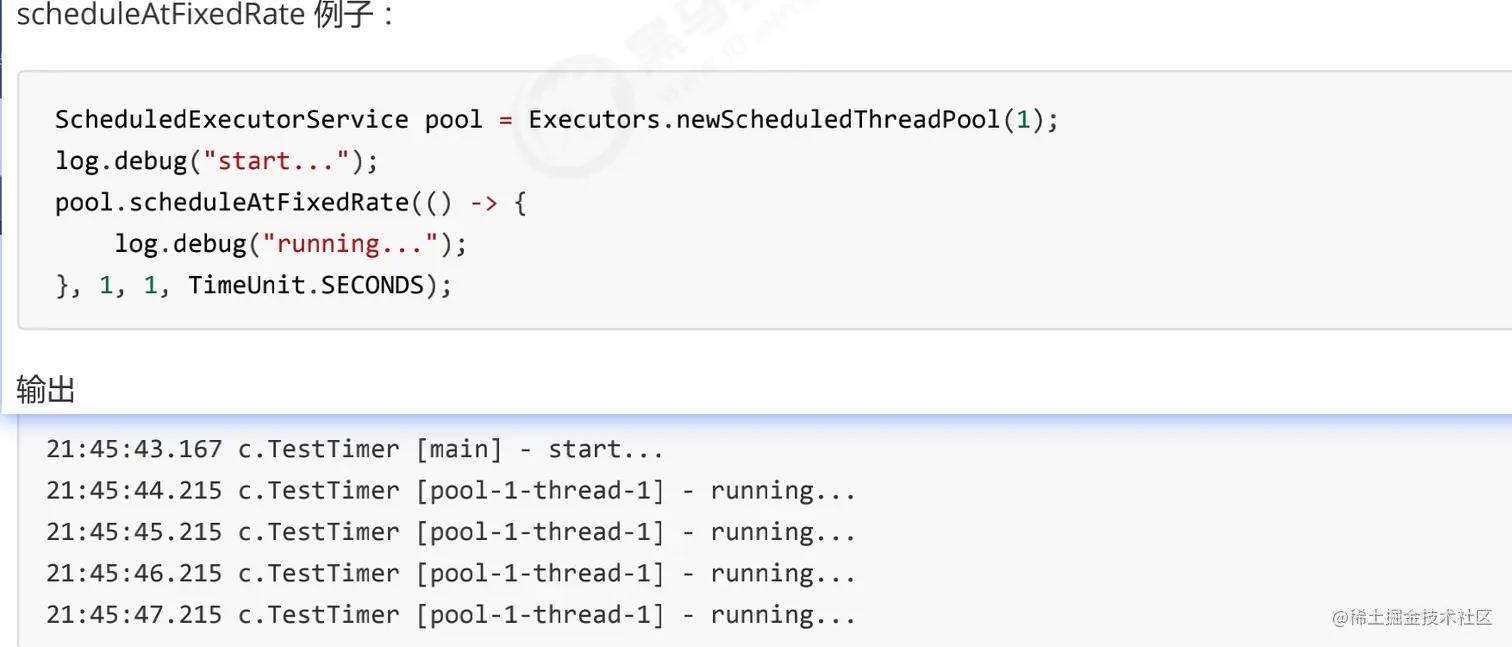

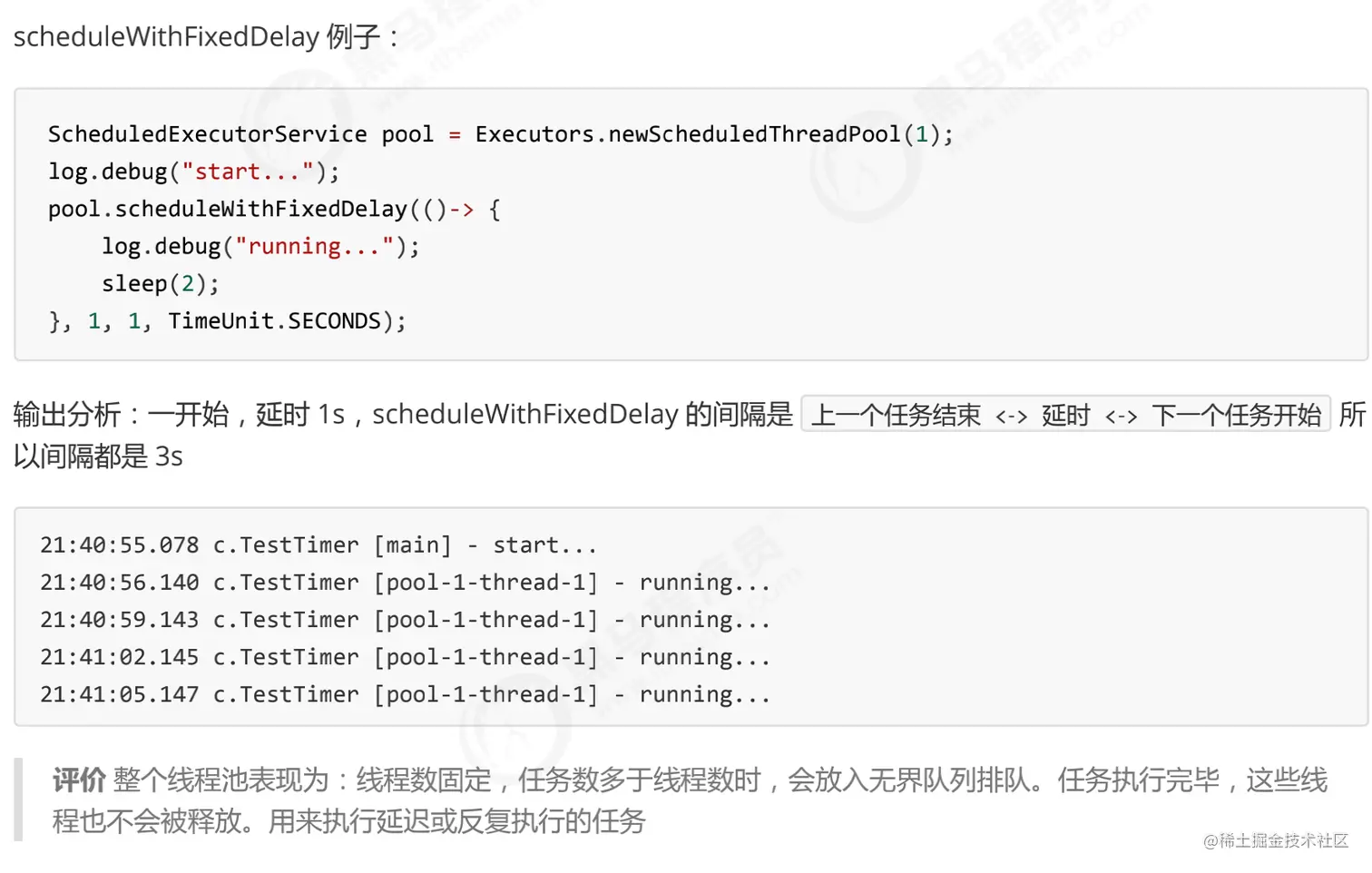

ScheduledExecutorService改写

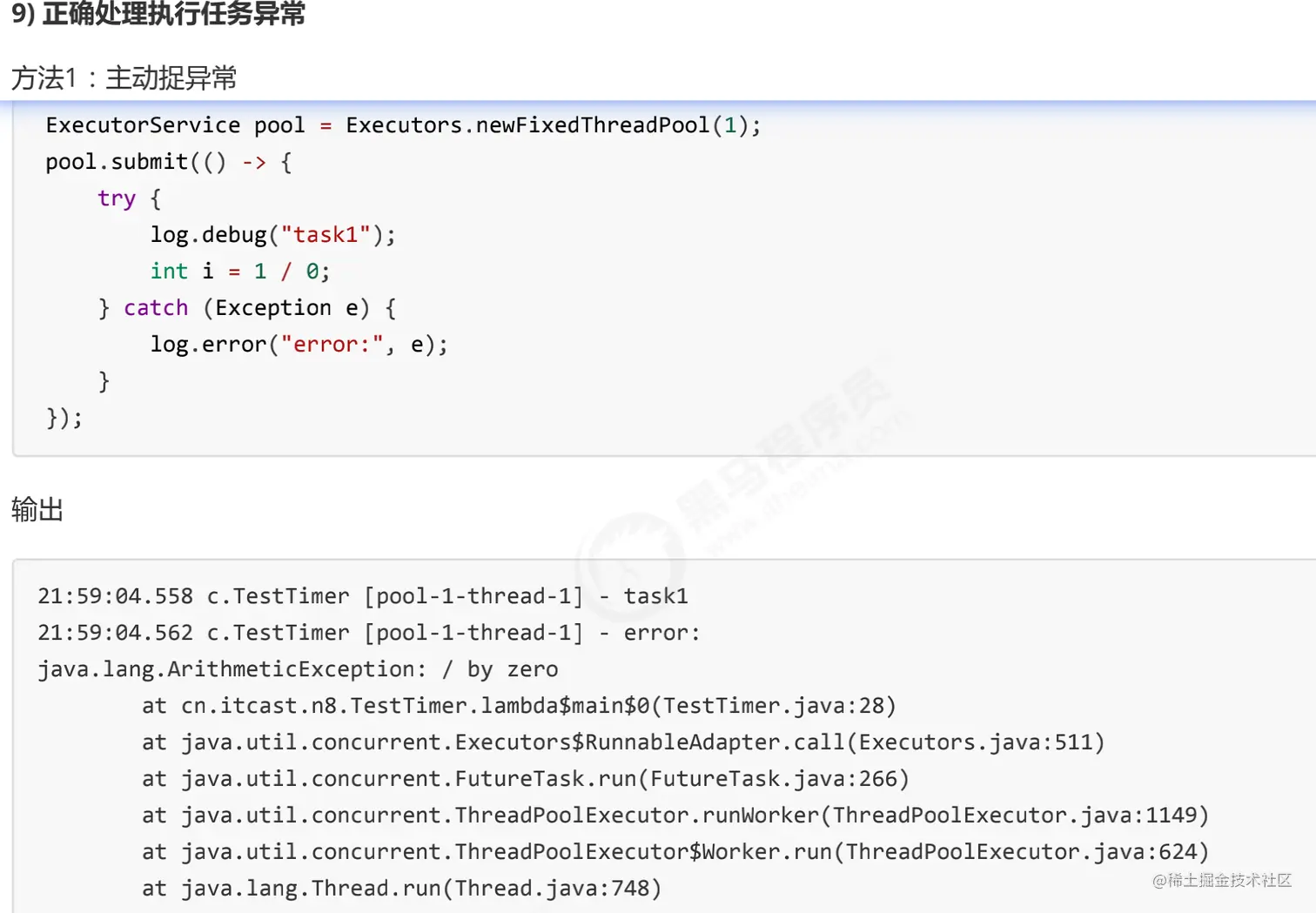

正确处理异常



应用之定时任务

如何让每周四 18:00:00 定时执行任务？


public class TestSchedule {

    // 如何让每周四 18:00:00 定时执行任务？
    public static void main(String[] args) {
        //  获取当前时间
        LocalDateTime now = LocalDateTime.now();
        System.out.println(now);
        // 获取周四时间
        LocalDateTime time = now.withHour(18).withMinute(0).withSecond(0).withNano(0).with(DayOfWeek.THURSDAY);
        // 如果 当前时间 > 本周周四，必须找到下周周四
        if(now.compareTo(time) > 0) {
            time = time.plusWeeks(1);
        }
        System.out.println(time);
        // initailDelay 代表当前时间和周四的时间差
        // period 一周的间隔时间
        long initailDelay = Duration.between(now, time).toMillis();
        long period = 1000 * 60 * 60 * 24 * 7;
        ScheduledExecutorService pool = Executors.newScheduledThreadPool(1);
        pool.scheduleAtFixedRate(() -> {
            System.out.println("running...");
        }, initailDelay, period, TimeUnit.MILLISECONDS);
    }
}

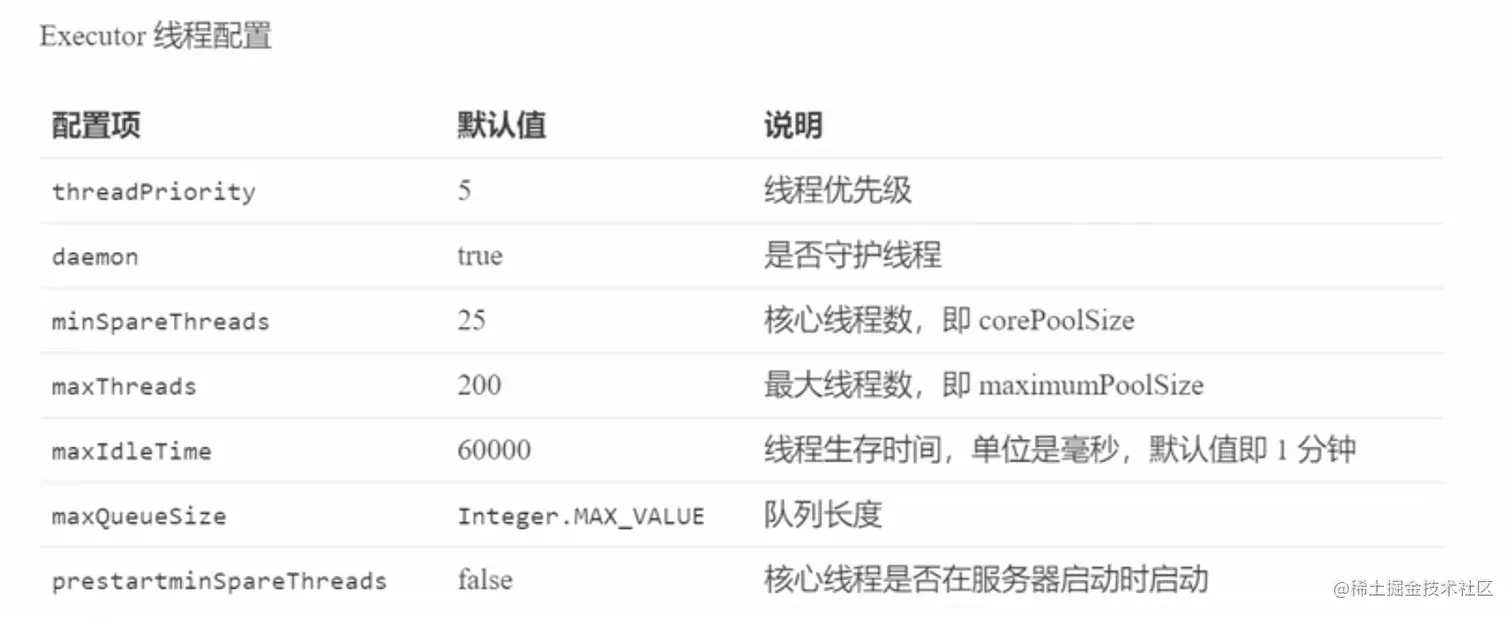

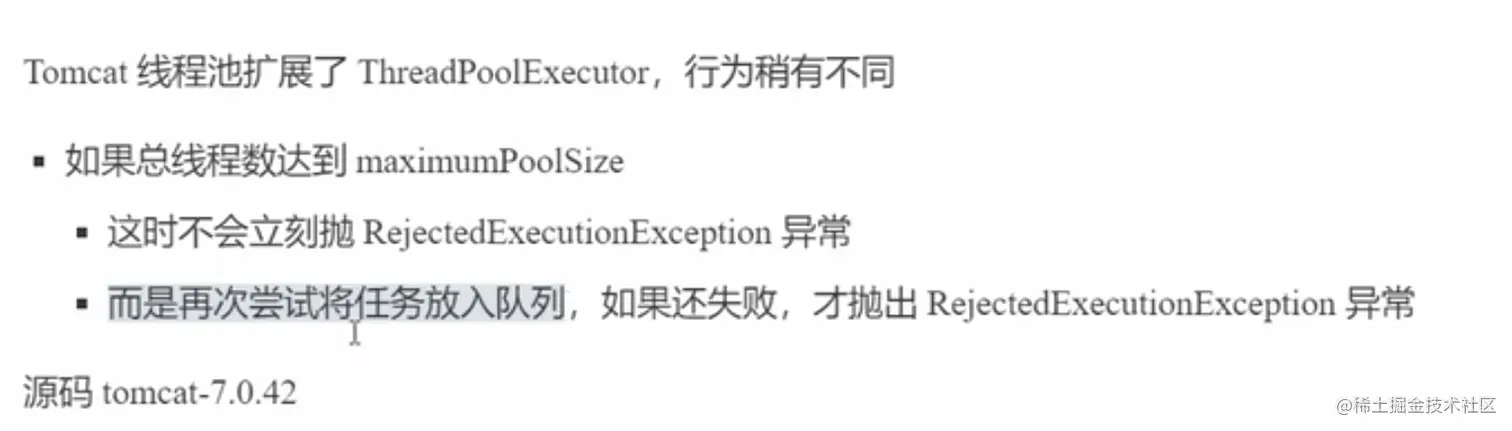

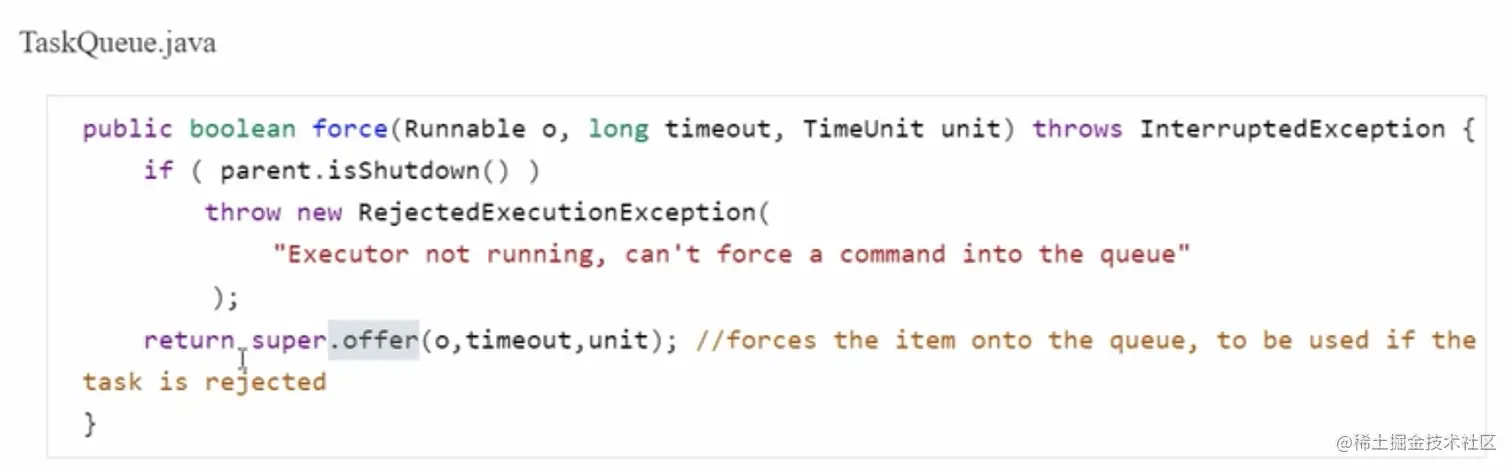

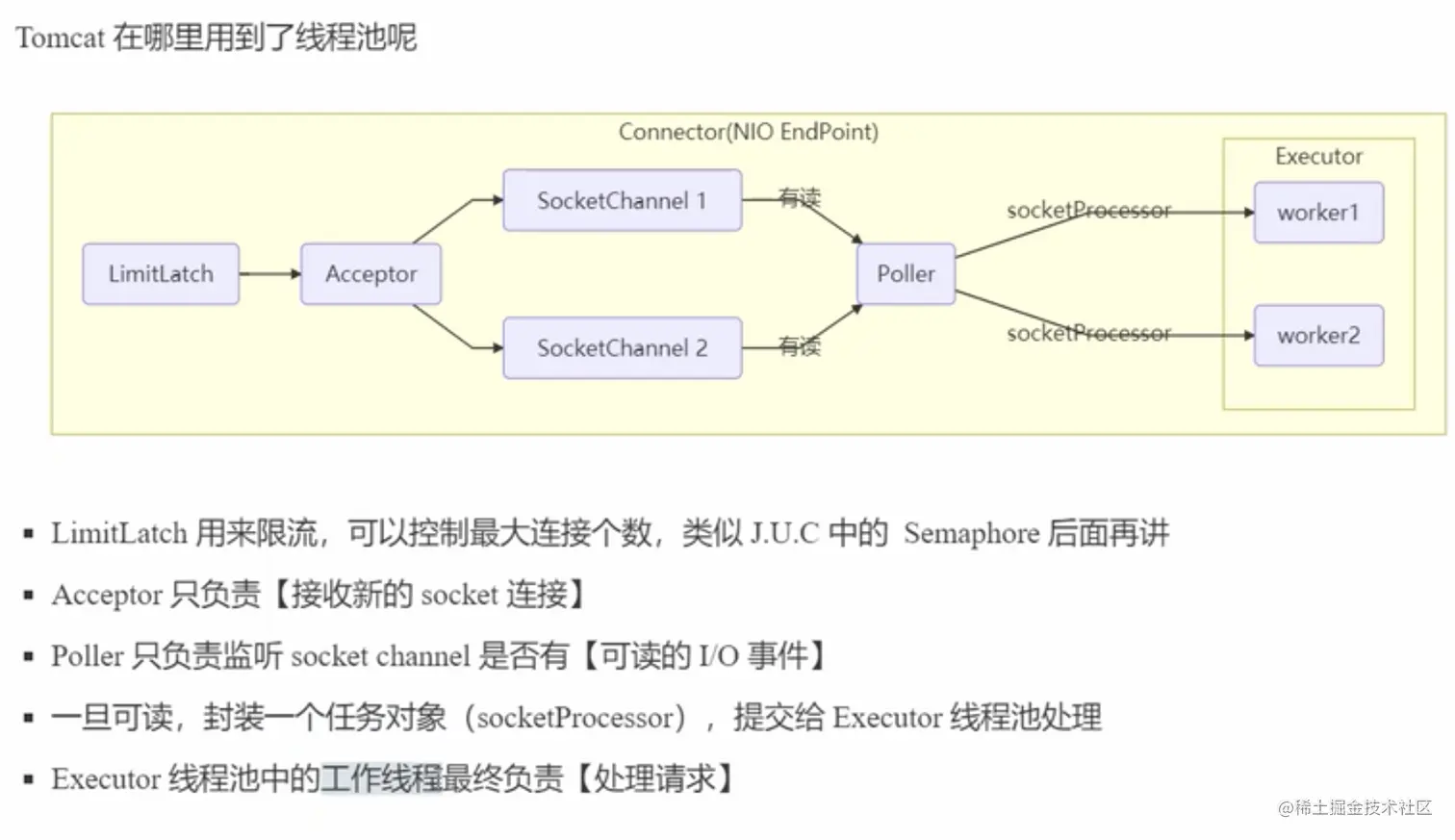

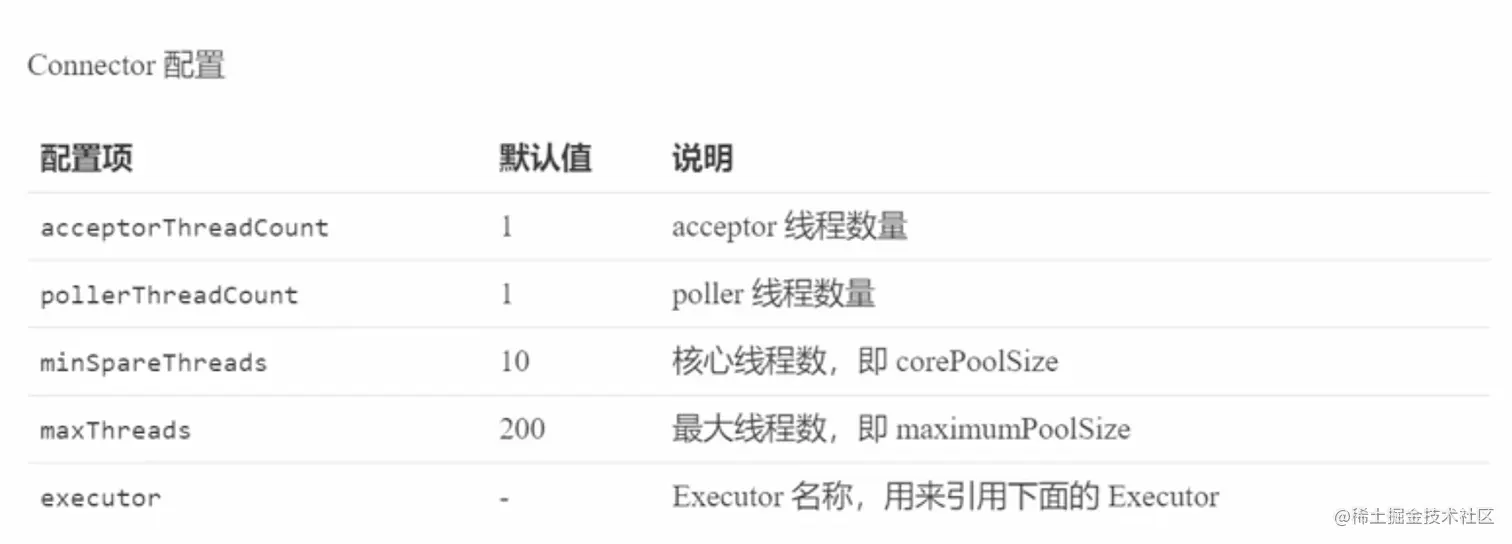

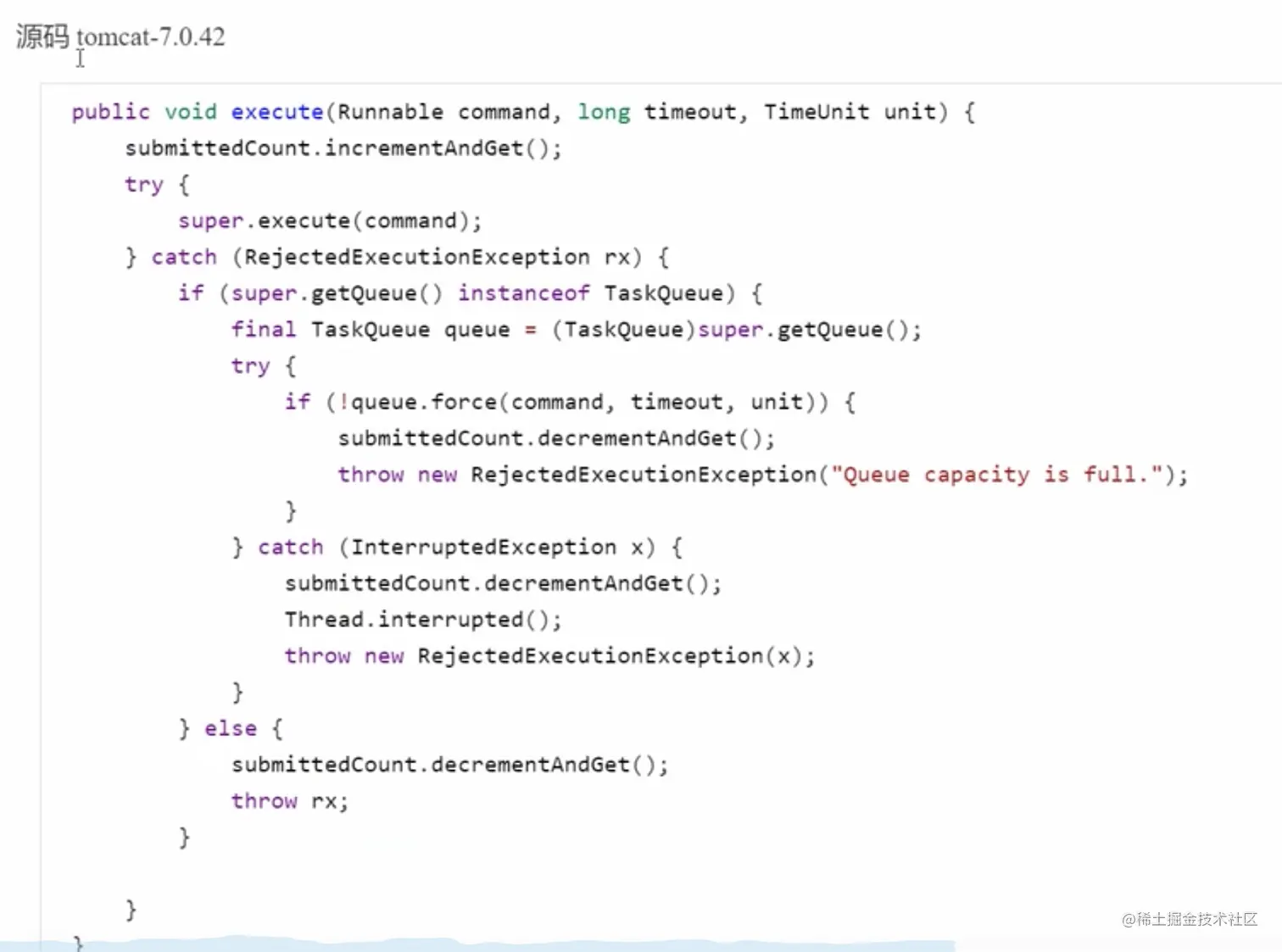

tomcat线程池









Fork/Join

概念

Fork/Join 是 JDK 1.7 加入的新的线程池实现，它体现的是一种分治思想，适用于能够进行任务拆分的 cpu 密集型运算

所谓的任务拆分，是将一个大任务拆分为算法上相同的小任务，直至不能拆分可以直接求解。跟递归相关的一些计 算，如归并排序、斐波那契数列、都可以用分治思想进行求解

Fork/Join 在分治的基础上加入了多线程，可以把每个任务的分解和合并交给不同的线程来完成，进一步提升了运算效率

Fork/Join 默认会创建与 cpu 核心数大小相同的线程池

  1. 使用

提交给 Fork/Join 线程池的任务需要继承 RecursiveTask（有返回值）或 RecursiveAction（没有返回值），例如下面定义了一个对 1~n 之间的整数求和的任务


public class TestForkJoin {

    public static void main(String[] args) {
        ForkJoinPool pool = new ForkJoinPool(4);
        System.out.println(pool.invoke(new AddTask1(5)));
    }
}

@Slf4j(topic = "c.AddTask")
class AddTask1 extends RecursiveTask<Integer> {

    int n;

    public AddTask1(int n) {
        this.n = n;
    }

    @Override
    public String toString() {
        return "{" + n + '}';
    }

    @Override
    protected Integer compute() {
        if (n == 1) {
            log.debug("join() {}", n);
            return n;
        }
        AddTask1 t1 = new AddTask1(n - 1);

        t1.fork();
        log.debug("fork() {} + {}", n, t1);
        int result = n + t1.join();
        log.debug("join() {} + {} = {}", n, t1, result);
        return result;
    }
}

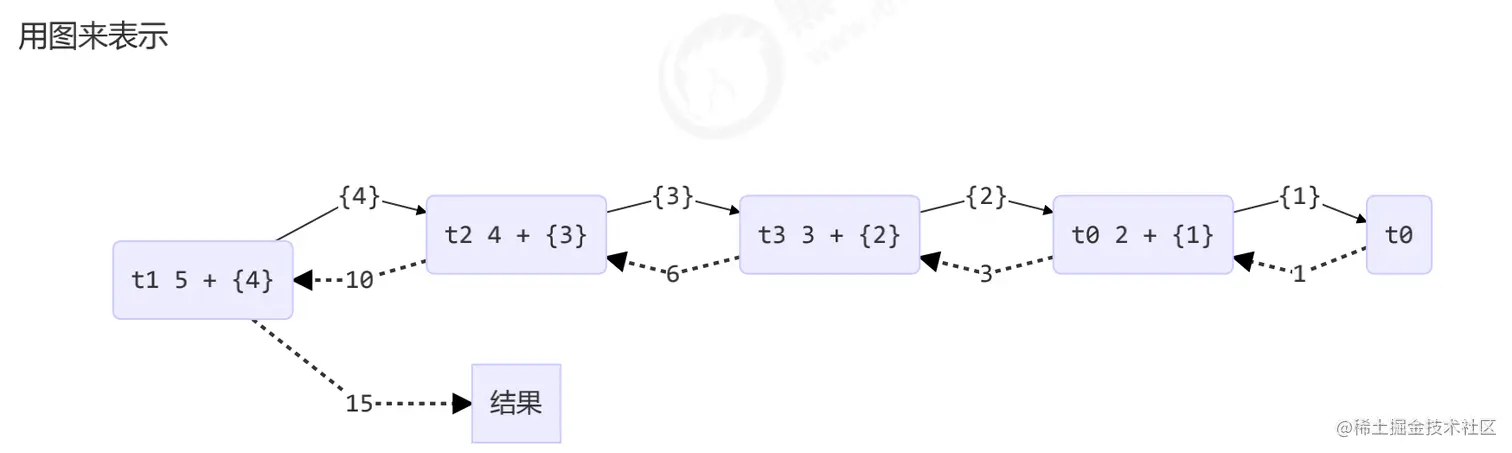

14:32:52.823 c.AddTask [ForkJoinPool-1-worker-1] - fork() 5 + {4}
14:32:52.823 c.AddTask [ForkJoinPool-1-worker-3] - fork() 3 + {2}
14:32:52.823 c.AddTask [ForkJoinPool-1-worker-0] - fork() 2 + {1}
14:32:52.823 c.AddTask [ForkJoinPool-1-worker-2] - fork() 4 + {3}
14:32:52.830 c.AddTask [ForkJoinPool-1-worker-3] - join() 1
14:32:52.830 c.AddTask [ForkJoinPool-1-worker-0] - join() 2 + {1} = 3
14:32:52.830 c.AddTask [ForkJoinPool-1-worker-3] - join() 3 + {2} = 6
14:32:52.830 c.AddTask [ForkJoinPool-1-worker-2] - join() 4 + {3} = 10
14:32:52.830 c.AddTask [ForkJoinPool-1-worker-1] - join() 5 + {4} = 15
15

Process finished with exit code 0

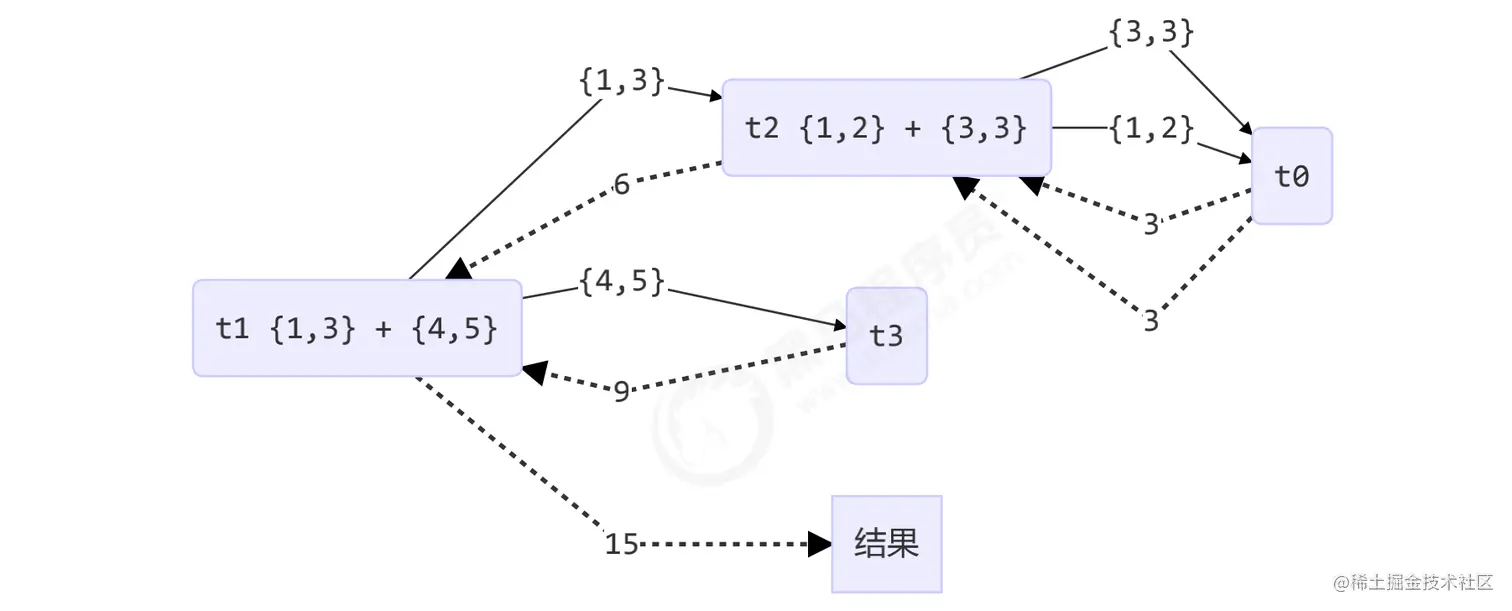

改进


public class TestForkJoin {

    public static void main(String[] args) {
        ForkJoinPool pool = new ForkJoinPool(4);
        System.out.println(pool.invoke(new AddTask3(1, 5)));
    }
}


@Slf4j(topic = "c.AddTask")
class AddTask3 extends RecursiveTask<Integer> {

    int begin;
    int end;

    public AddTask3(int begin, int end) {
        this.begin = begin;
        this.end = end;
    }

    @Override
    public String toString() {
        return "{" + begin + "," + end + '}';
    }

    @Override
    protected Integer compute() {
        if (begin == end) {
            log.debug("join() {}", begin);
            return begin;
        }
        if (end - begin == 1) {
            log.debug("join() {} + {} = {}", begin, end, end + begin);
            return end + begin;
        }
        int mid = (end + begin) / 2;

        AddTask3 t1 = new AddTask3(begin, mid);
        t1.fork();
        AddTask3 t2 = new AddTask3(mid + 1, end);
        t2.fork();
        log.debug("fork() {} + {} = ?", t1, t2);

        int result = t1.join() + t2.join();
        log.debug("join() {} + {} = {}", t1, t2, result);
        return result;
    }
}


14:39:03.966 c.AddTask [ForkJoinPool-1-worker-3] - join() 4 + 5 = 9
14:39:03.966 c.AddTask [ForkJoinPool-1-worker-2] - fork() {1,2} + {3,3} = ?
14:39:03.966 c.AddTask [ForkJoinPool-1-worker-1] - fork() {1,3} + {4,5} = ?
14:39:03.966 c.AddTask [ForkJoinPool-1-worker-0] - join() 1 + 2 = 3
14:39:03.970 c.AddTask [ForkJoinPool-1-worker-3] - join() 3
14:39:03.971 c.AddTask [ForkJoinPool-1-worker-2] - join() {1,2} + {3,3} = 6
14:39:03.971 c.AddTask [ForkJoinPool-1-worker-1] - join() {1,3} + {4,5} = 15
15

Process finished with exit code 0


J.U.C

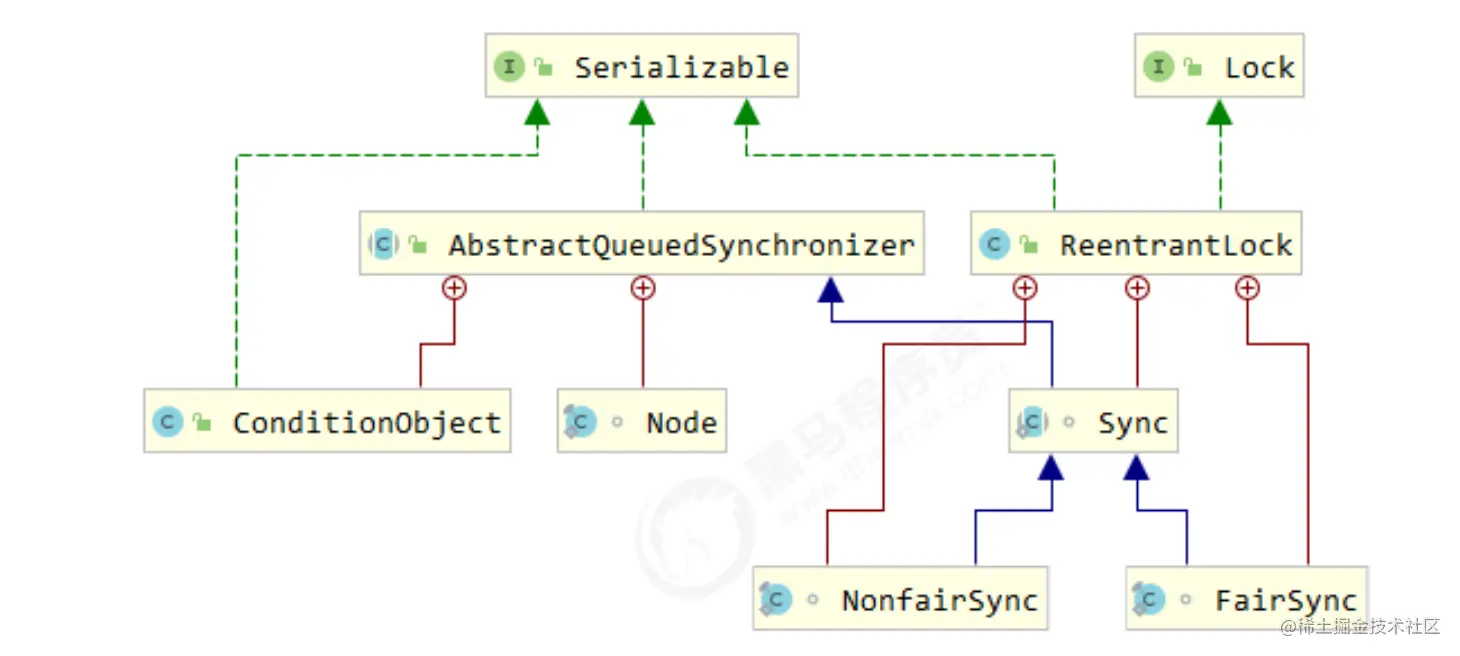

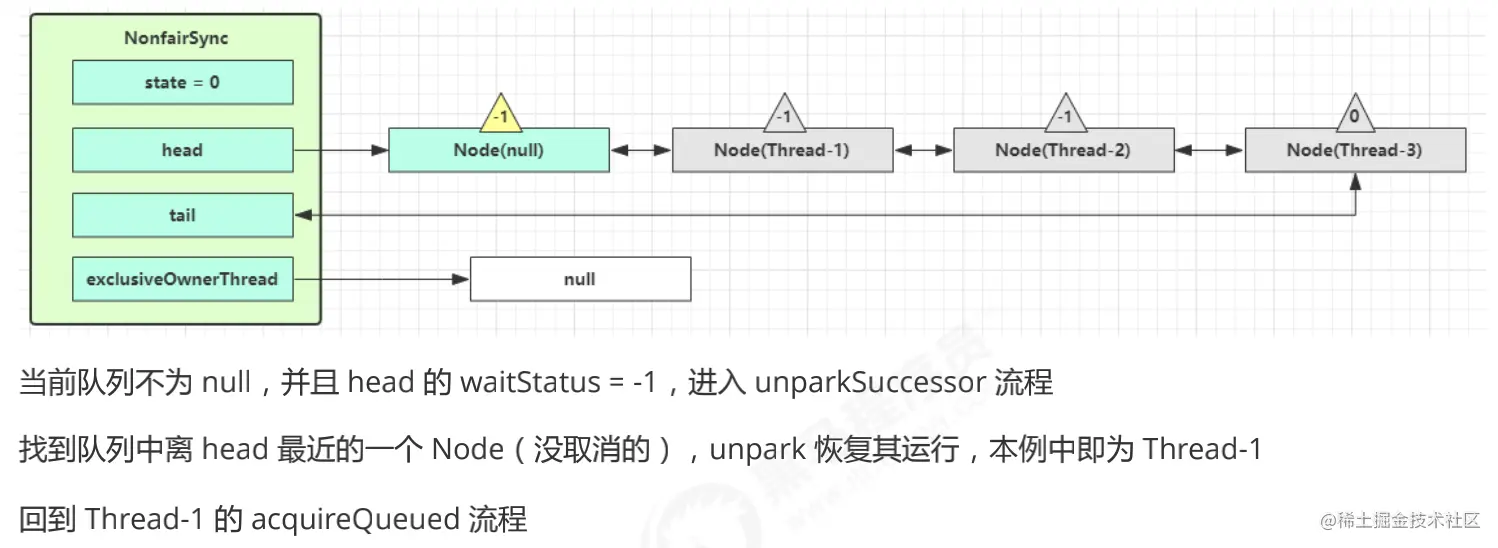

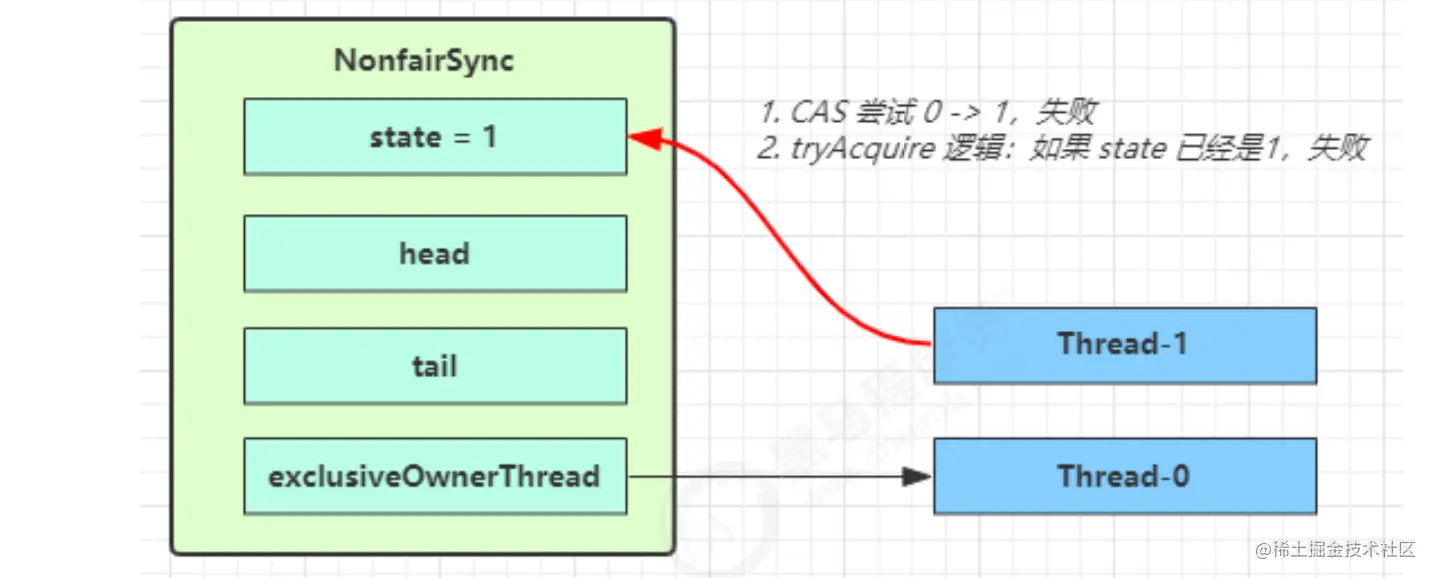

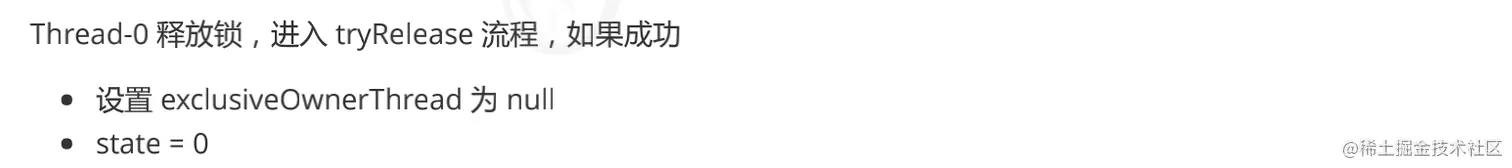

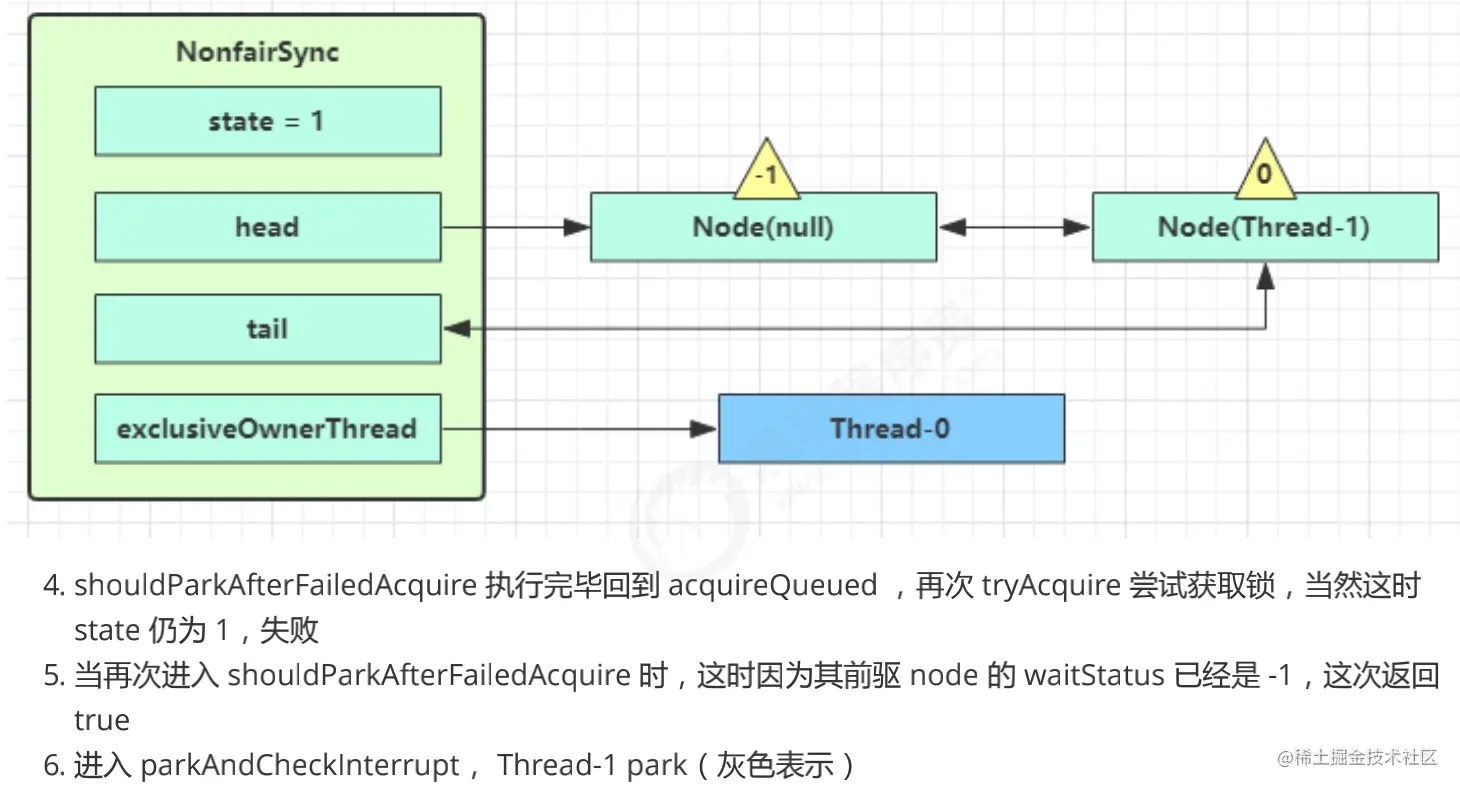

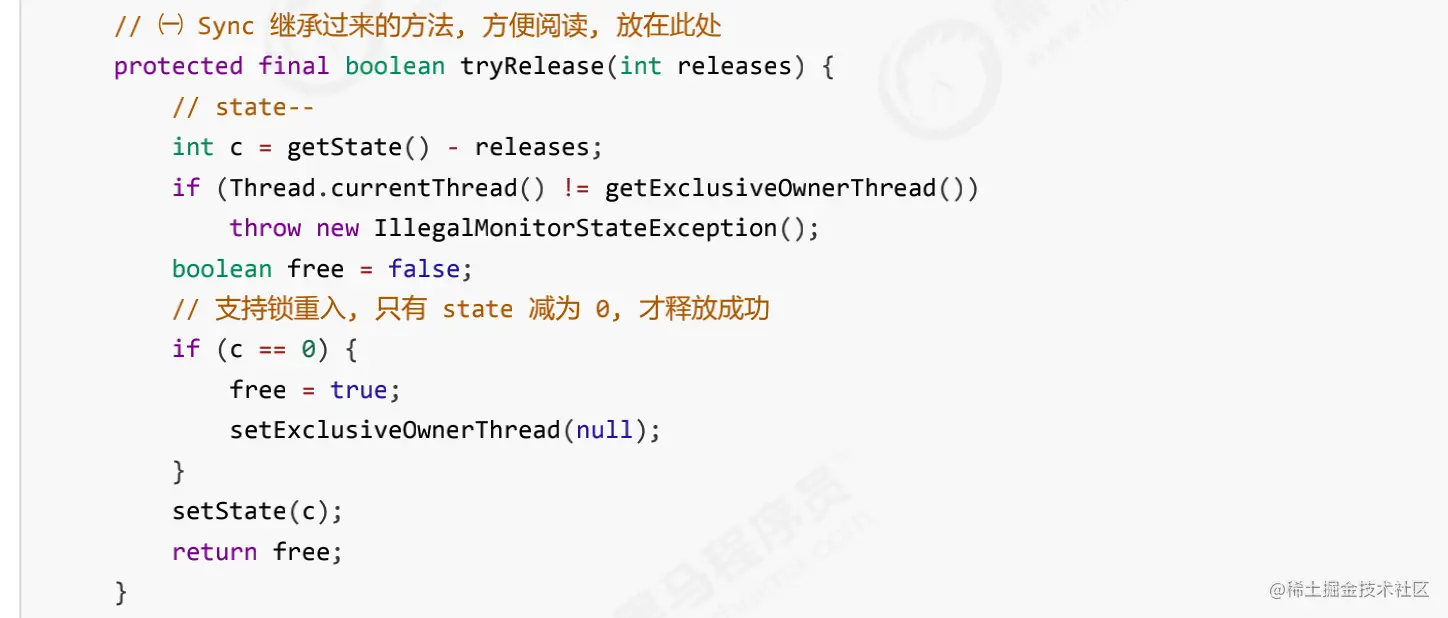

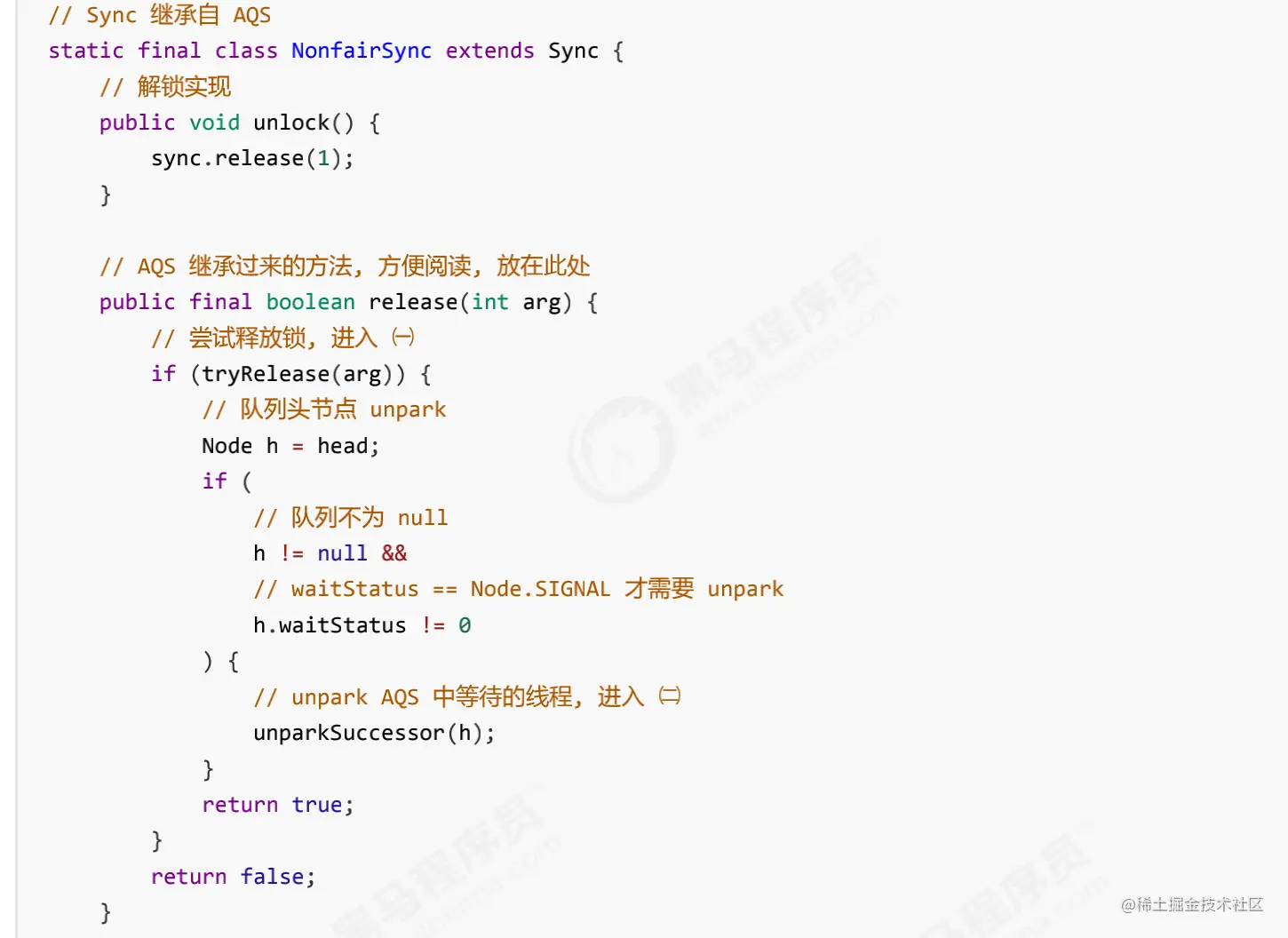

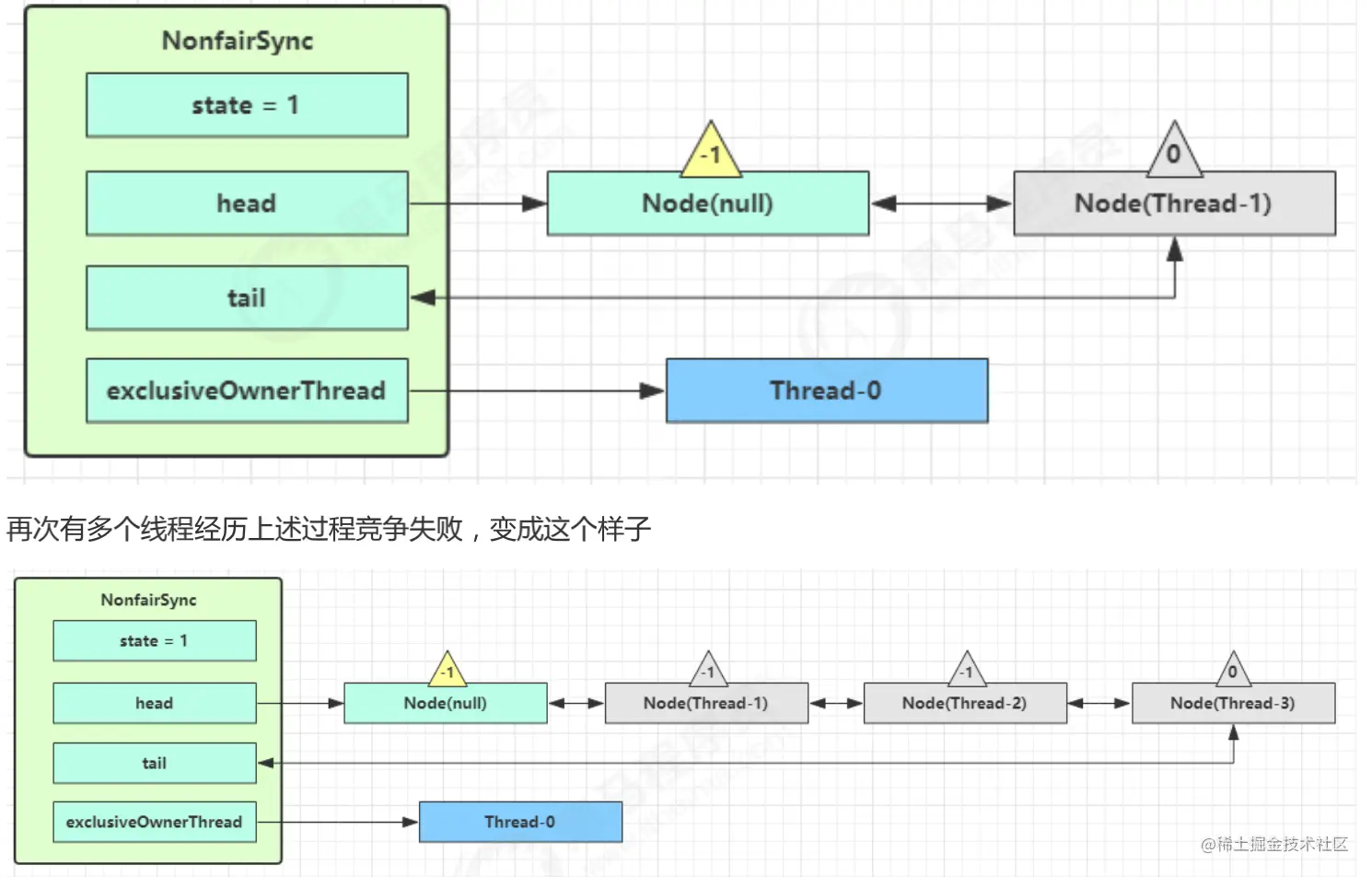

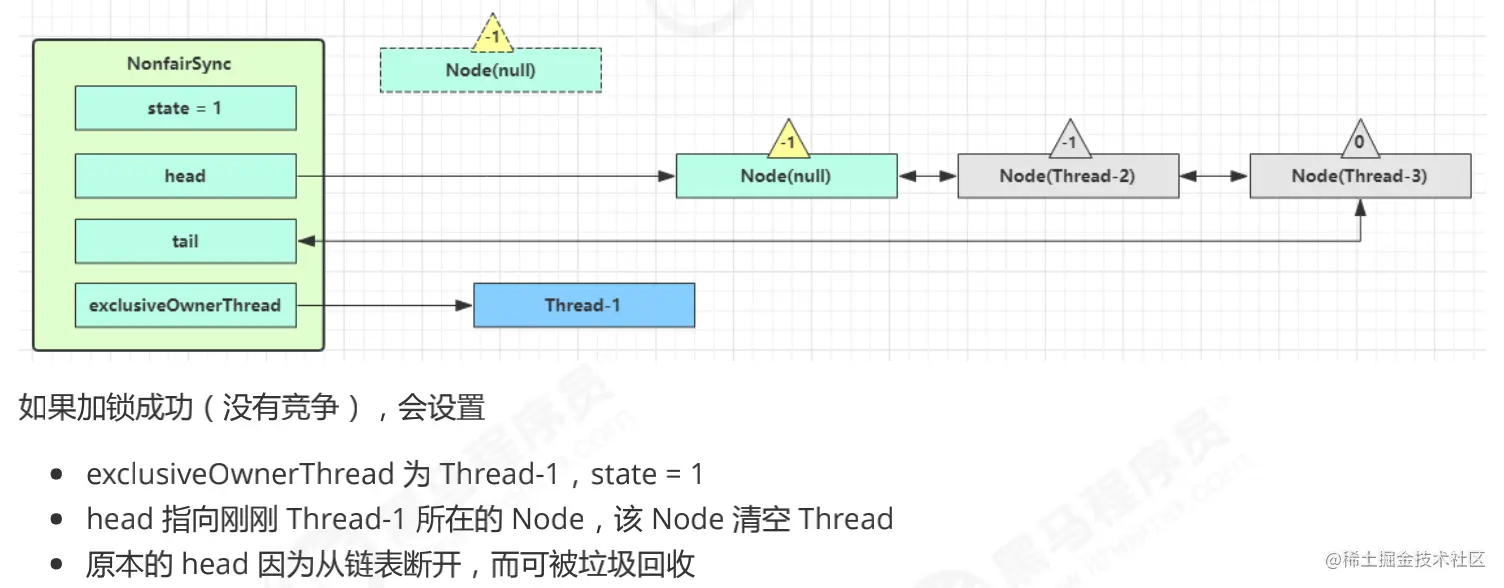

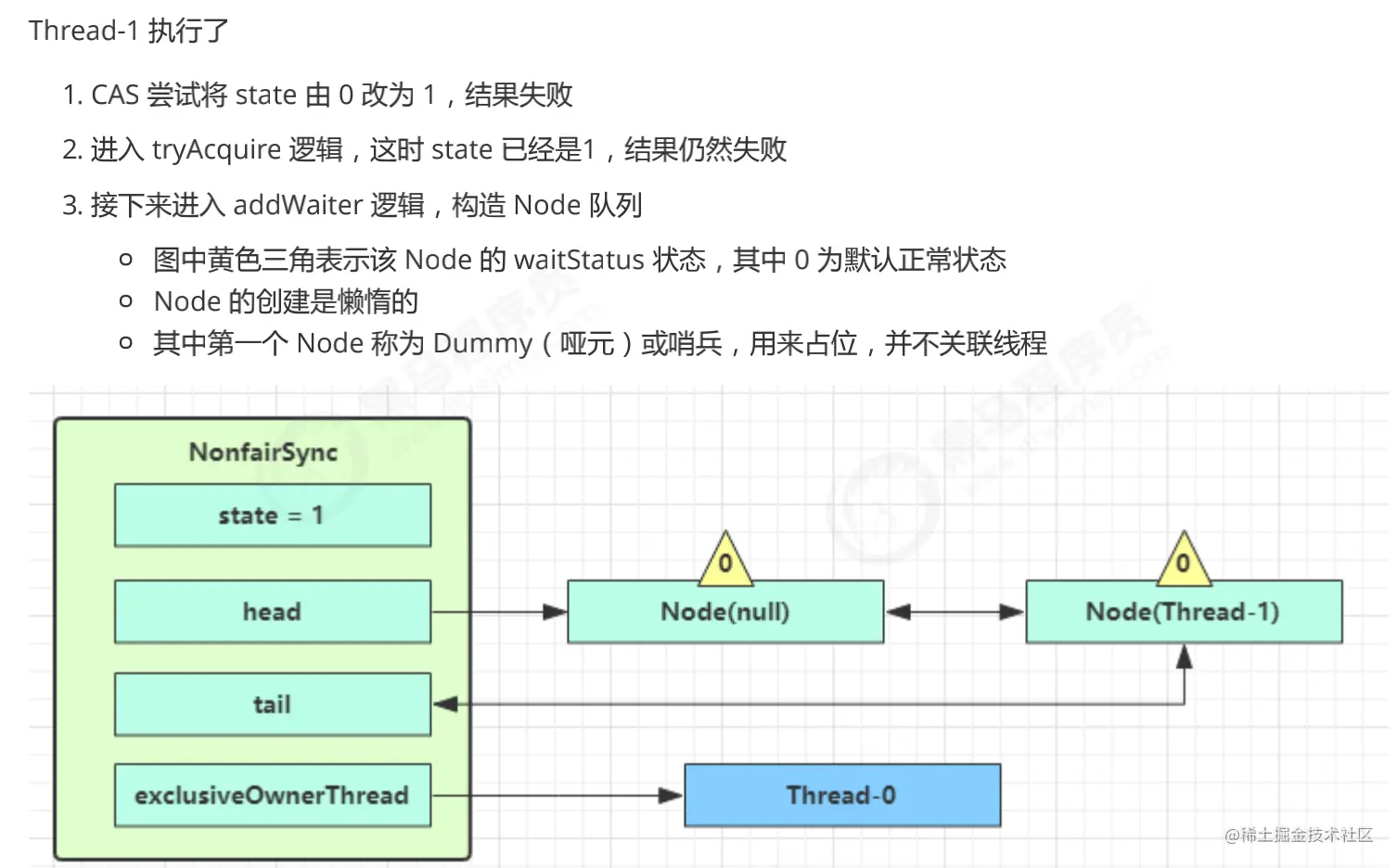

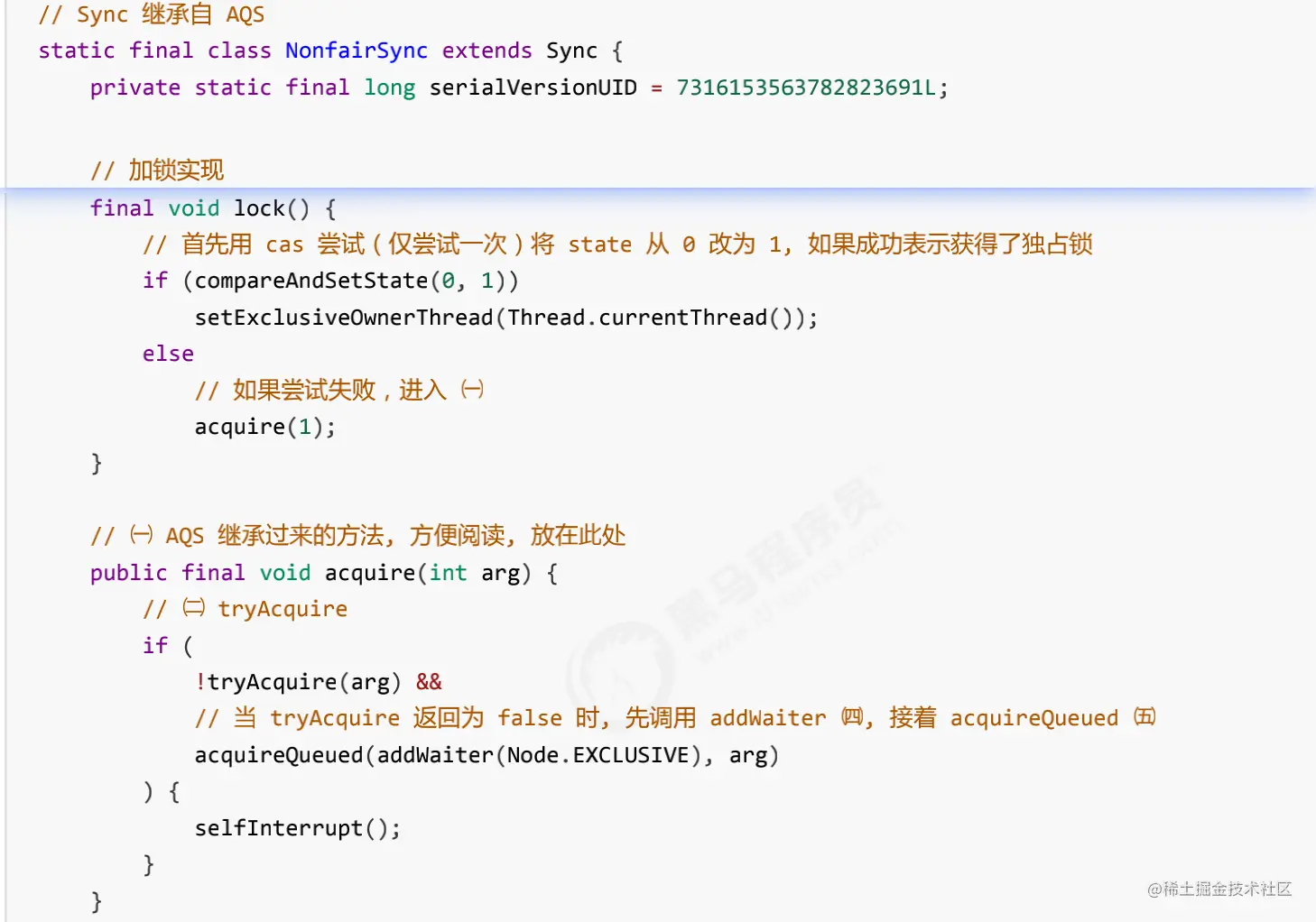

AQS

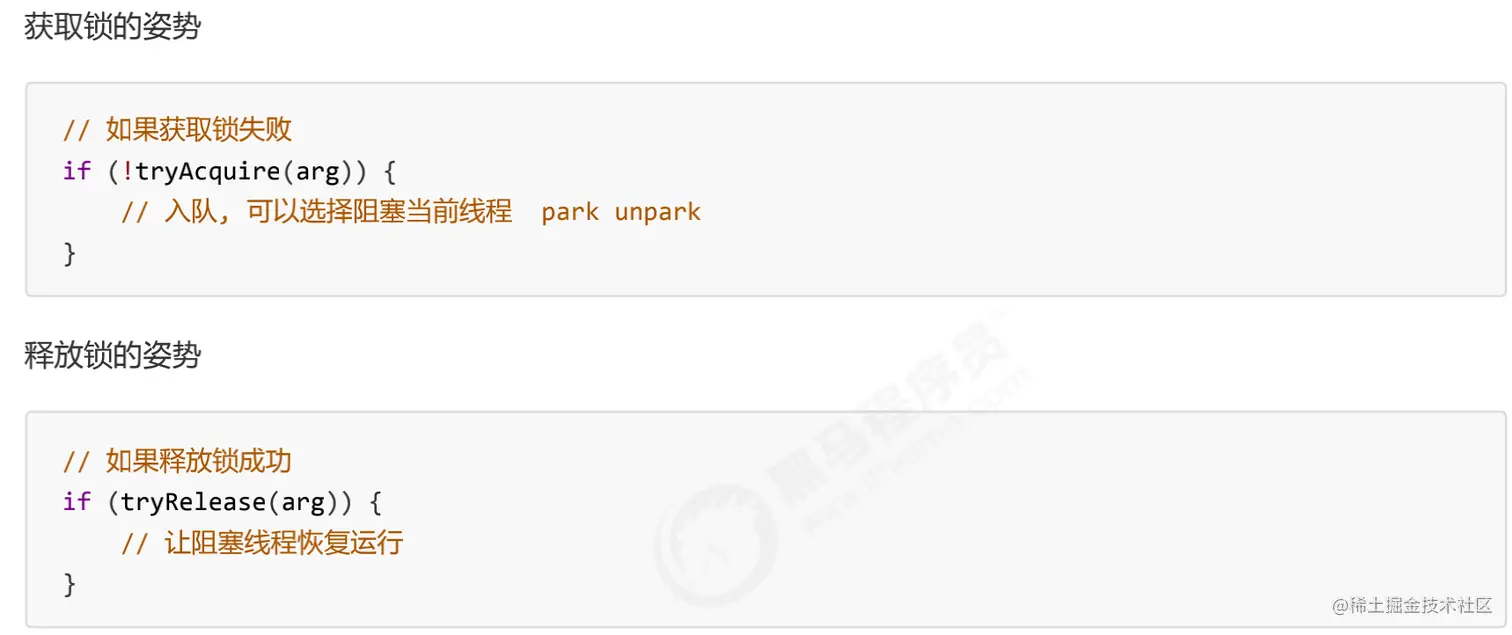

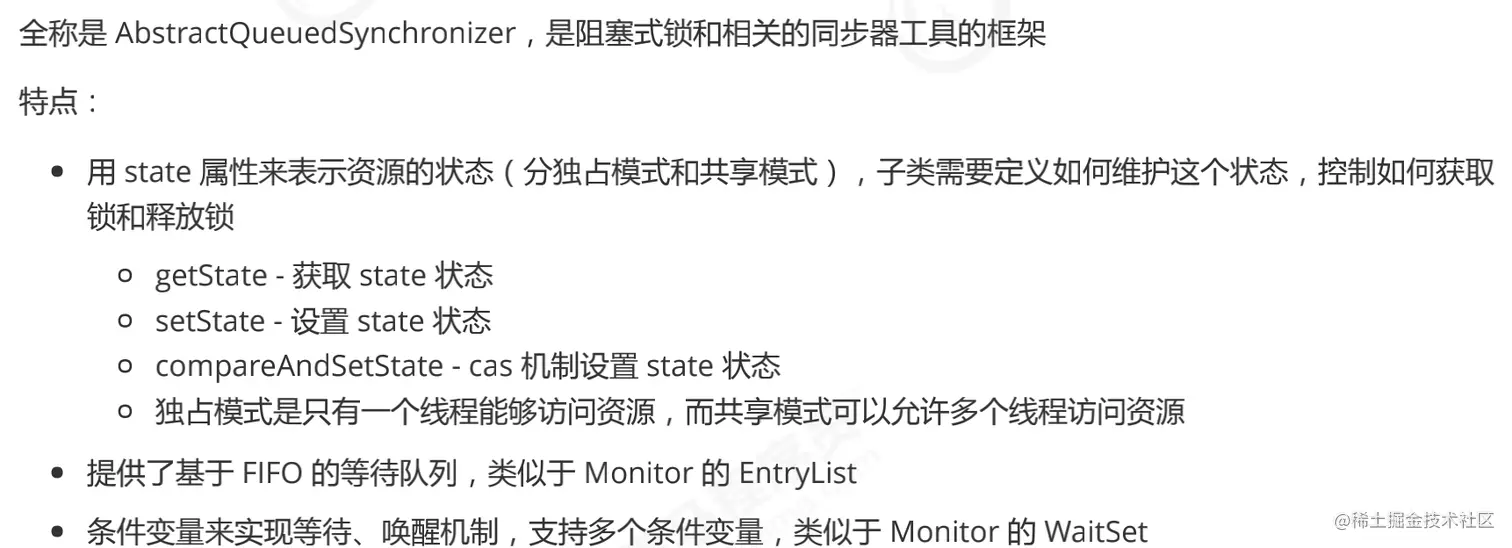

概念




实现不可重入锁

自定义同步器


// 自定义锁（不可重入锁）
class MyLock implements Lock {

    // 独占锁  同步器类
    class MySync extends AbstractQueuedSynchronizer {
        @Override
        protected boolean tryAcquire(int arg) {
            if(compareAndSetState(0, 1)) {
                // 加上了锁，并设置 owner 为当前线程
                setExclusiveOwnerThread(Thread.currentThread());
                return true;
            }
            return false;
        }

        @Override
        protected boolean tryRelease(int arg) {
            setExclusiveOwnerThread(null);
            setState(0);
            return true;
        }

        @Override // 是否持有独占锁
        protected boolean isHeldExclusively() {
            return getState() == 1;
        }

        public Condition newCondition() {
            return new ConditionObject();
        }
    }

    private MySync sync = new MySync();

    @Override // 加锁（不成功会进入等待队列）
    public void lock() {
        sync.acquire(1);
    }

    @Override // 加锁，可打断
    public void lockInterruptibly() throws InterruptedException {
        sync.acquireInterruptibly(1);
    }

    @Override // 尝试加锁（一次）
    public boolean tryLock() {
        return sync.tryAcquire(1);
    }

    @Override // 尝试加锁，带超时
    public boolean tryLock(long time, TimeUnit unit) throws InterruptedException {
        return sync.tryAcquireNanos(1, unit.toNanos(time));
    }

    @Override // 解锁
    public void unlock() {
        sync.release(1);
    }

    @Override // 创建条件变量
    public Condition newCondition() {
        return sync.newCondition();
    }
}


@Slf4j(topic = "c.TestAqs")
public class TestAqs {
    public static void main(String[] args) {
        MyLock lock = new MyLock();
        new Thread(() -> {
            lock.lock();
            try {
                log.debug("locking...");
                sleep(1);
            } finally {
                log.debug("unlocking...");
                lock.unlock();
            }
        },"t1").start();

        new Thread(() -> {
            lock.lock();
            try {
                log.debug("locking...");
            } finally {
                log.debug("unlocking...");
                lock.unlock();
            }
        },"t2").start();
    }
}



15:02:53.358 c.TestAqs [t1] - locking...
15:02:54.364 c.TestAqs [t1] - unlocking...
15:02:54.365 c.TestAqs [t2] - locking...
15:02:54.365 c.TestAqs [t2] - unlocking...

Process finished with exit code 0

ReentrantLock原理


非公平锁实现原理

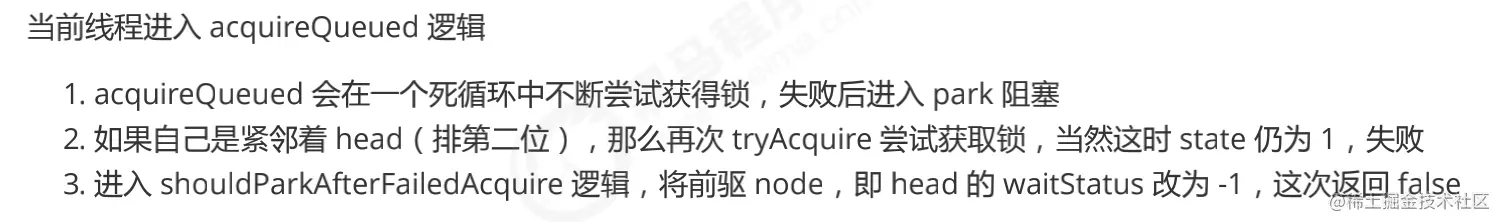

加锁解锁流程

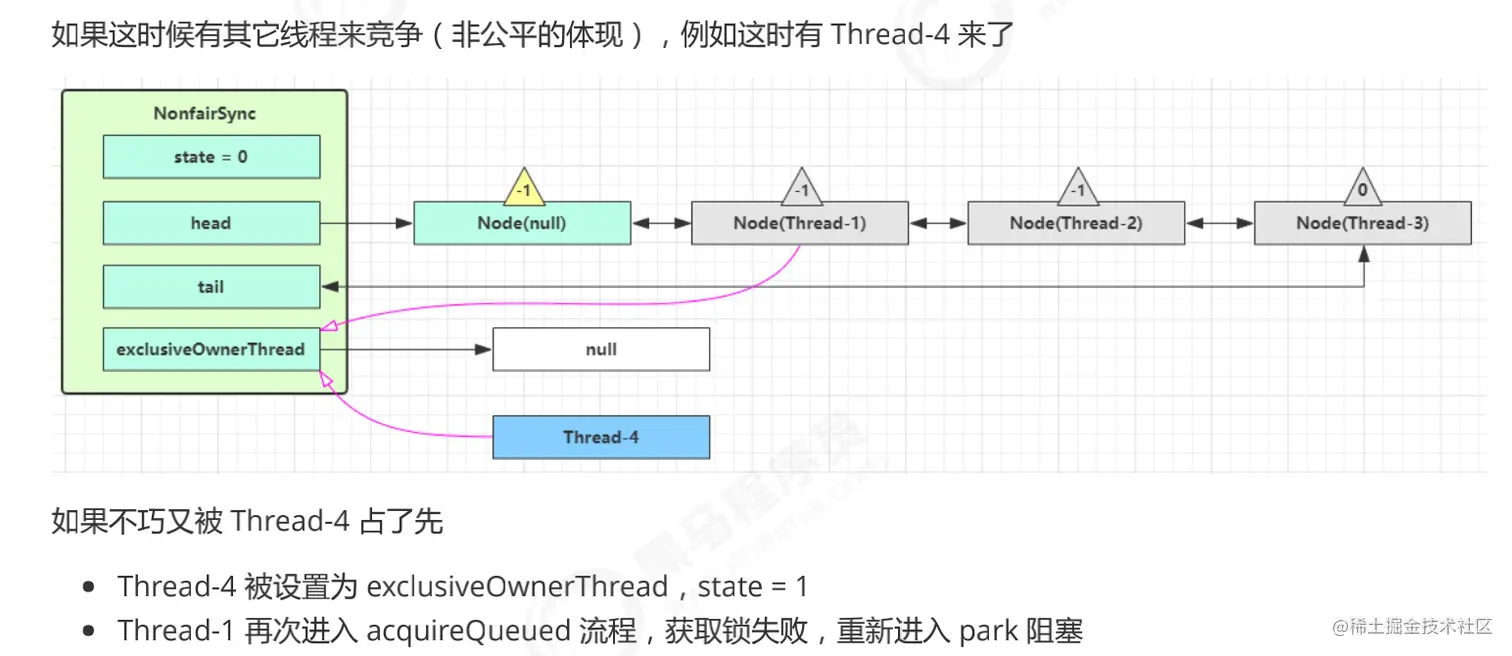

第一个竞争出现时：

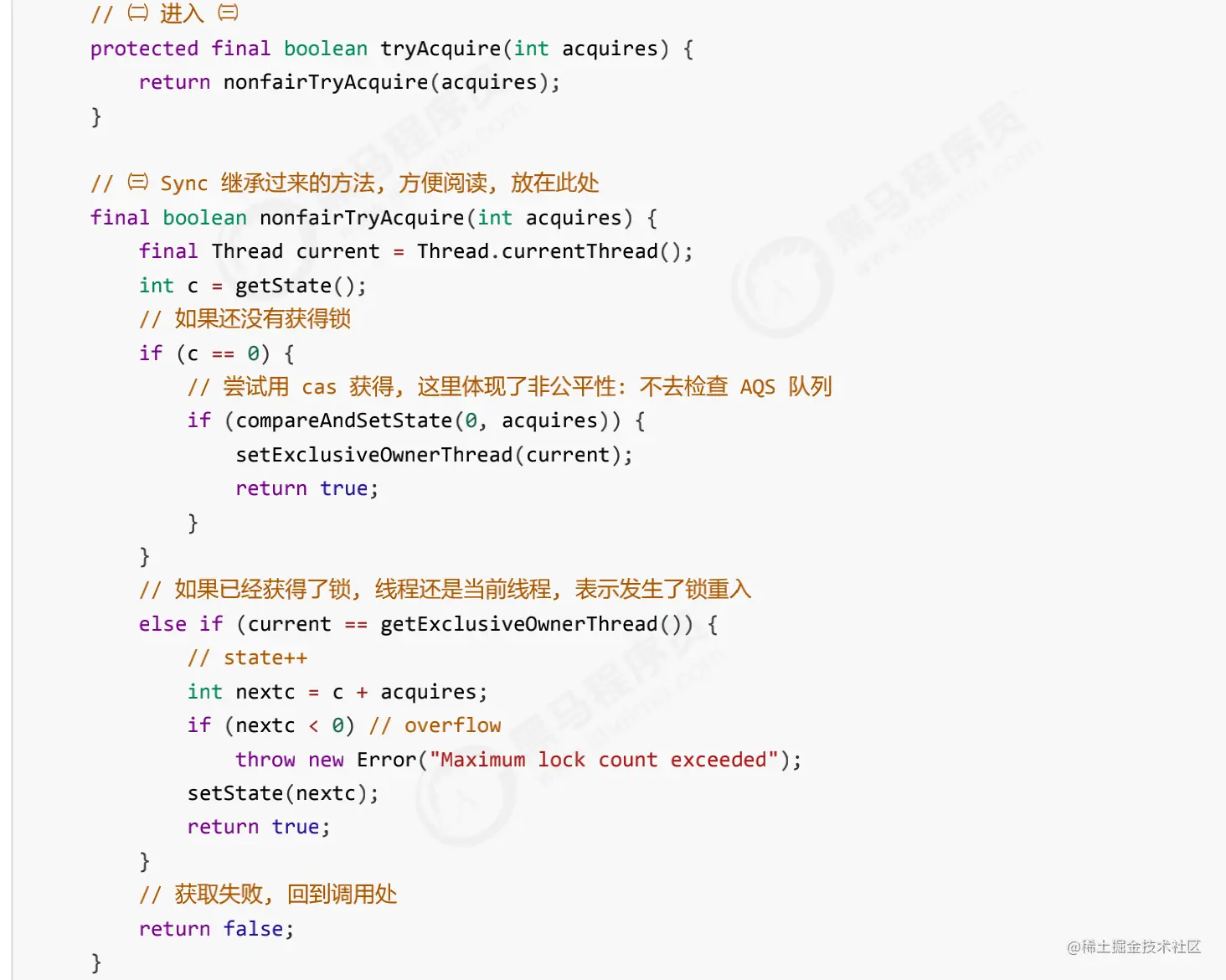

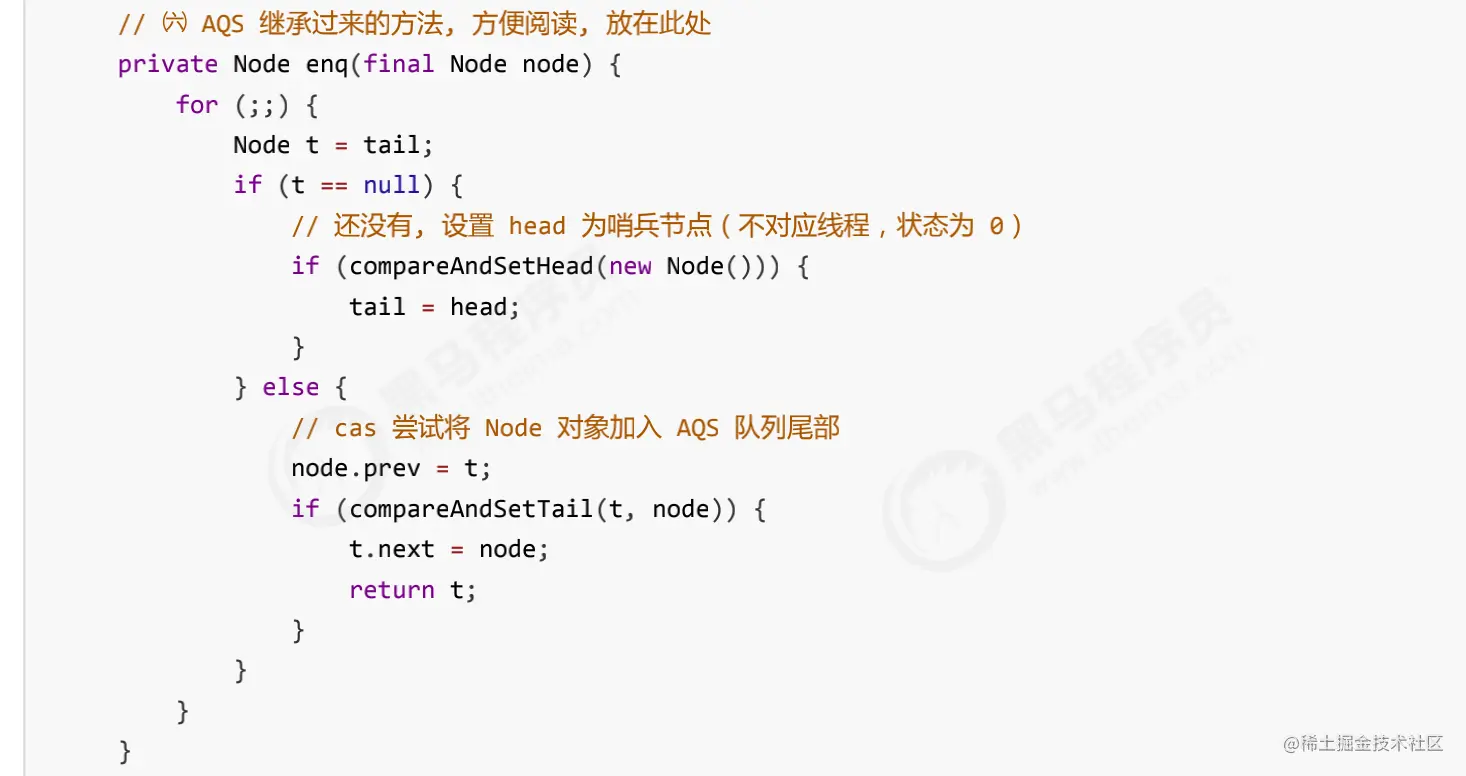

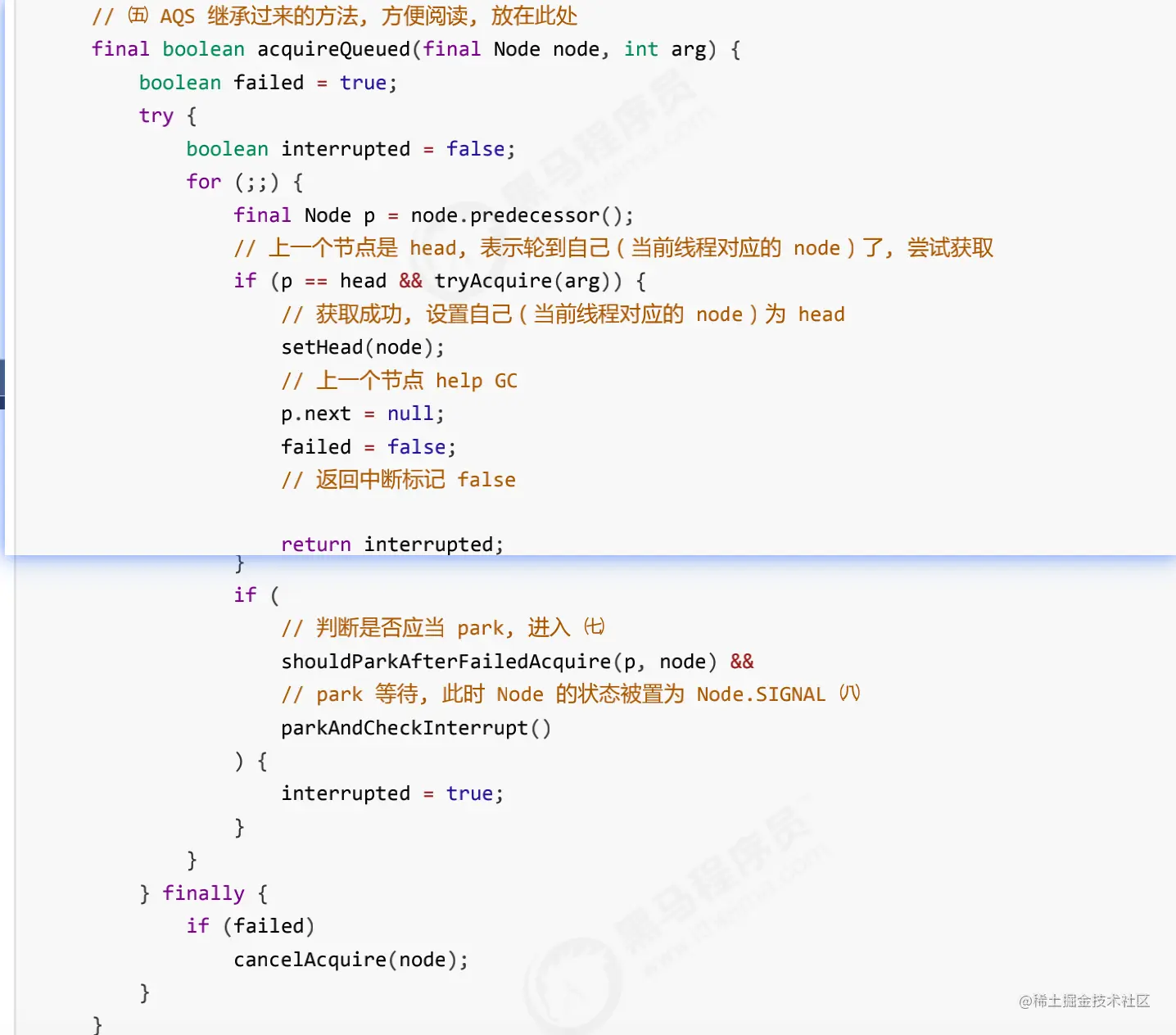

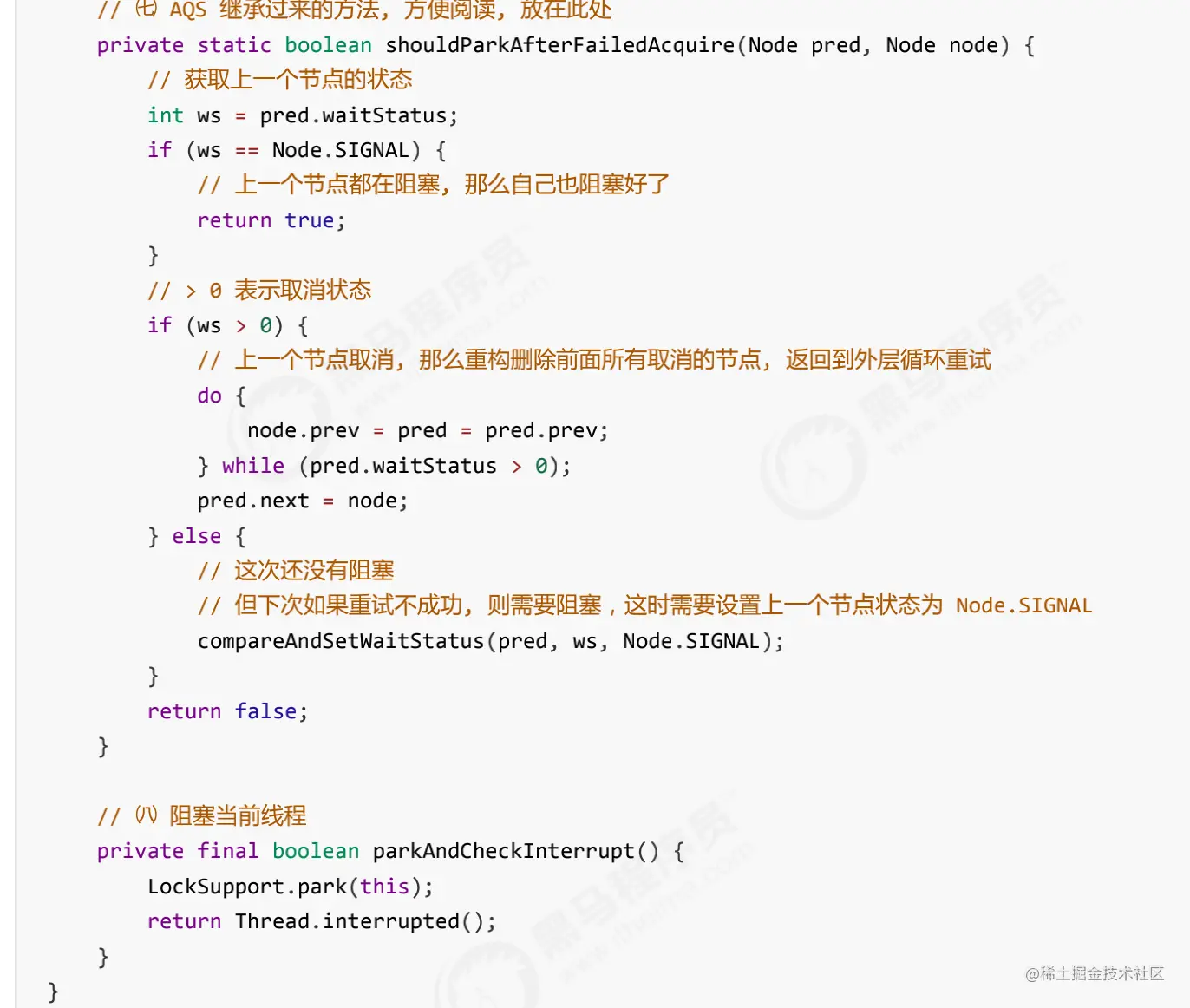

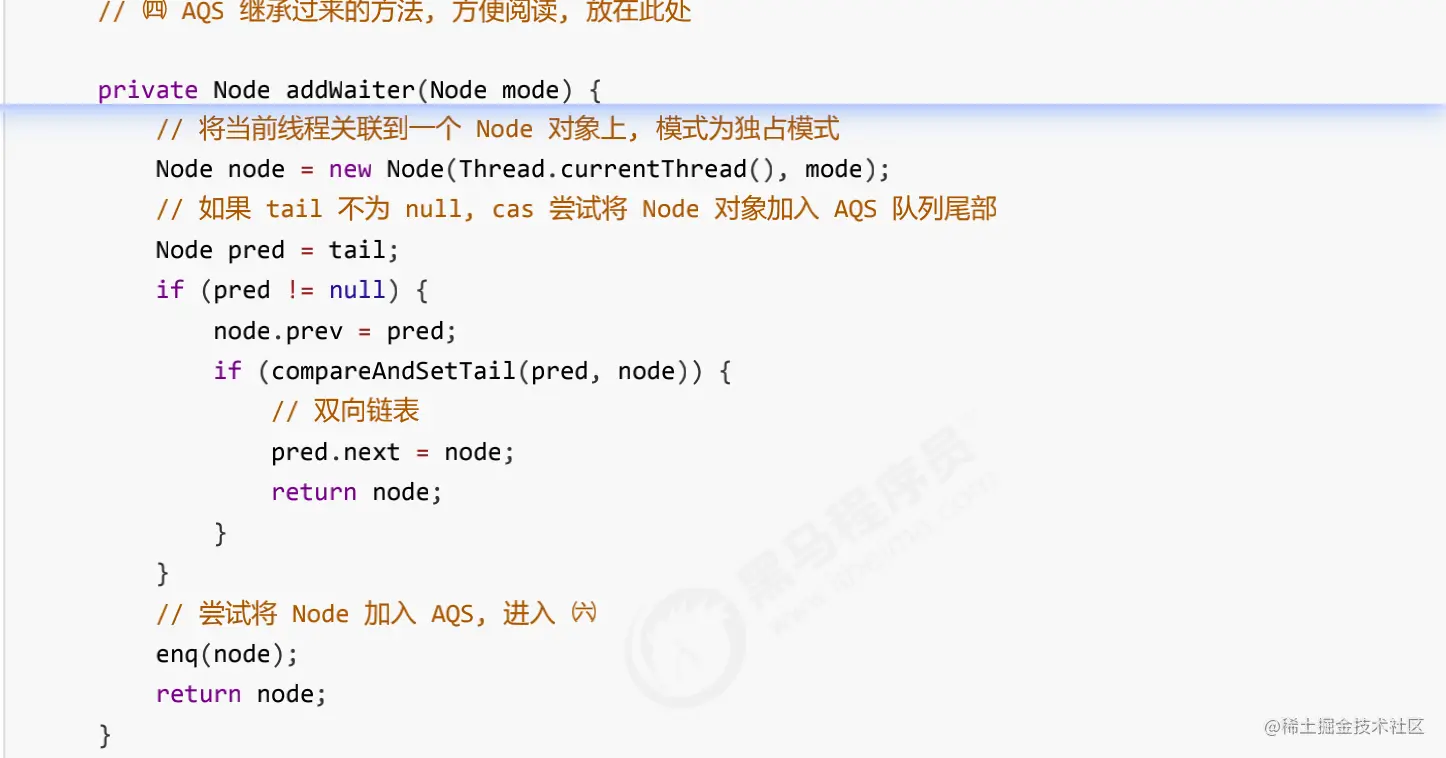

加锁源码








解锁源码




可重入原理

。。。

avatar
文章
阅读
粉丝
