实习技术总结(三)CSS 实现新功能引导

1,324 阅读4分钟

项目新版本会在“拼写错误卡片”有新功能引导展示,用户可以点击引导上方的关闭 icon,或者点击切换其他任何卡片实现引导的关闭,引导的样式设计运用了 CSS 实现动画、边框三角形

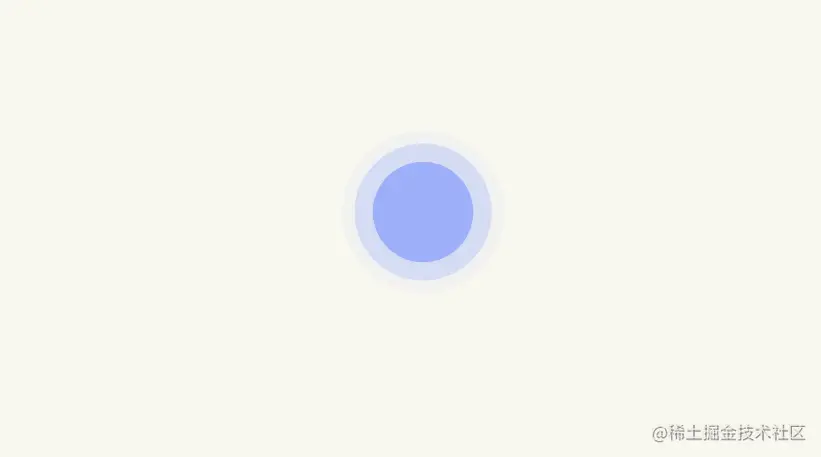

同心圆动画

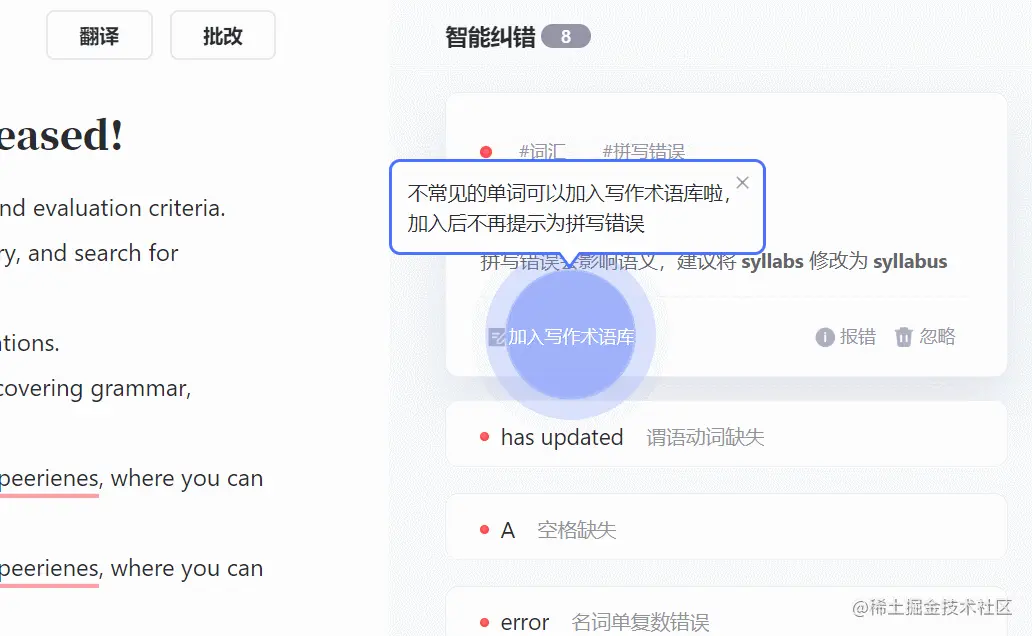

项目新版本的新功能引导的样式如下:

GIF 2022-7-19 14-47-21.gif


需要用 css 实现同心圆向外扩大,颜色透明度变低的动画,先复习一遍animation的属性有:

  • name 动画名:同 @keyframes 后面的关键帧名
  • duration 动画的持续时间(秒)
  • timing-function 动画的过渡类型:linear、ease(默认)、ease-in、ease-out
  • delay 动画延迟时间(秒)
  • iteration-count 循环次数:infinite(默认无限次执行)、可指定具体次数
  • direction 是否反向运动:normal(默认,正常播放)、reverse(反向)
  • play-state 动画的状态:running(默认)

代码如下:

<body>
<div class="container">
  <div class="item">
    <div class="ring"></div>
    <div class="ring"></div>
    <div class="ring"></div>
  </div>
</div>
</body>
* {
  margin:0;
  padding:0;
}
.container {
  position:relative;
  width:100%;
  height: 400px;
  background-color: rgb(250, 250, 240);
}

.item {
   position:absolute;
   top:0;
   left:0;
   right:0;
   bottom:0;
   margin:auto;
   background-color: rgba(147, 167, 250, 0.6);
   width:100px;
   height:100px;
   border-radius: 100%;
}
.ring {
  position: absolute;
  background-color: inherit;
  height: 100%;
  width: 100%;
  border-radius: 100%;
  -webkit-animation: pulsing 3s ease-out infinite;
  animation: pulsing 3s ease-out infinite;
}
.ring:nth-of-type(1) {
  -webkit-animation-delay: -1s;
  animation-delay: -1s;
}
.ring:nth-of-type(2) {
  -webkit-animation-delay: -2s;
  animation-delay: -2s;
}
@-webkit-keyframes pulsing {
  100% {
      transform: scale(1.75);
      opacity: 0;
  }
}
@keyframes pulsing {
  100% {
      transform: scale(1.75);
      opacity: 0;
  }
}

@keyframes后的pulsing是关键帧的名字,大括号里面是一系列动画规则,webkit表示这个动画效果只适用于webkit内核的浏览器。0%和100%表示这个动画从开始到结束。

其他关于 CSS 动画的详细内容整理在这里

预览链接:jsbin.com/lehizoxequ/…

边框三角形

简单三角形

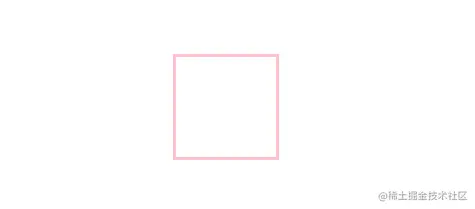

我们曾经认为 border 是由矩形边框组成。

.triangle {
  width: 100px;
  height: 100px;
  border: 3px solid pink;
}

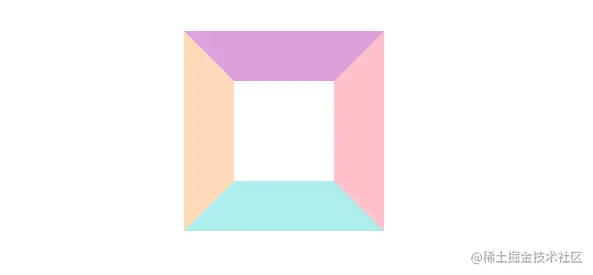

实际上,元素的border是由三角形组合而成,我们可以增大border的宽度,并为各border边设置不同的颜色:

.triangle {
  width: 100px;
  height: 100px;
  border: 50px solid;
  border-color: plum pink paleturquoise peachpuff;
}


再将div宽高置为0时:

.triangle {
  width: 0px;
  height: 0px;
  border: 50px solid;
  border-color: plum pink paleturquoise peachpuff;
}

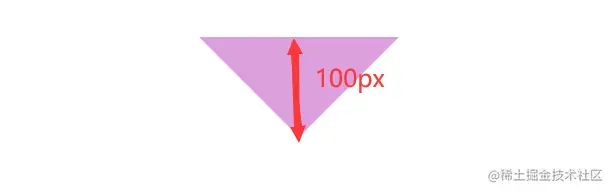

可以看到,此时的元素由四个三角形拼接而成,我们可以只保留一边,将剩余三边的边框设置成透明色。

.triangle {
  width: 0px;
  height: 0px;
  border-width: 100px 100px 100px 100px;
  border-style: solid;
  border-color: plum transparent transparent transparent;
}

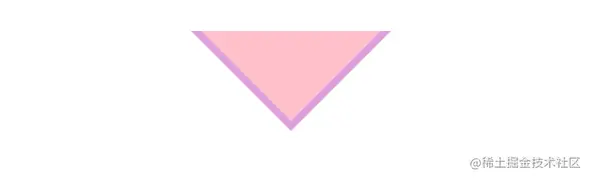

边框三角形

采用绝对定位和相对定位来实现如下效果。

大三角形采用绝对定位,小三角形需要参照大三角形的位置,所以采用相对定位,之后利用相对定位的四个属性top、bottom、left、right来调整小三角形的位置。

.triangle1 {
  width: 0px;
  height: 0px;
  border-width: 100px 100px 100px 100px;
  border-style: solid;
  border-color: plum transparent transparent transparent;
  position: relative;
}
.triangle2 {
  width: 0px;
  height: 0px;
  border-width: 90px 90px 90px 90px;
  border-style: solid;
  border-color: pink transparent transparent transparent;
  position: absolute;
  top: -100px;
  left: -90px;
}


预览链接:jsbin.com/kuxetesuno/…

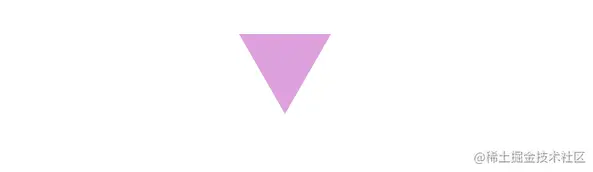

等边三角形

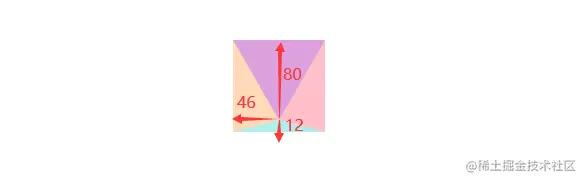

以上这些都是直角三角形,可以通过设置border-width来绘制等边三角形。


再将其他三个三角形设置为透明色

.triangle {
  width: 0px;
  height: 0px;
  border-width: 80px 46px 12px 46px;
  border-style: solid;
  border-color: plum transparent transparent transparent;
  position: relative;
}


复习完以上知识,就可以画边框三角形了

实际需求


代码:

<body>
<div class="container">
  <div class="item">
    <div class="read-float">
      <p>
        不常见的单词可以加入写作术语库啦,加入后不再提示为拼写错误
      </p>
    </div>
  </div>
</div>
</body>
.container {
  position:relative;
  width:100%;
  height: 400px;
  background-color: rgb(250, 250, 240);
}

.read-float {
  position: absolute;
  top: 0px;
  left: 0px;
  right: 0;
  bottom: 0;
  margin: auto;
  width: 268px;
  height: 68px;
  background-color: rgb(255, 255, 255);
  border-radius: 8px;
  border: 2.5px solid rgba(77, 113, 255, 1);
}
.read-float::before {
  content: '';
  position: absolute;
  border-left: 7px solid transparent;
  border-right: 7px solid transparent;
  border-top: 12px solid white;
  border-bottom: 7px solid transparent;
  top: 66px;
  left: 119px;
  z-index: 1;
}
.read-float::after {
  content: '';
  position: absolute;
  top: 69px;
  left: 117px;
  border-left: 9px solid transparent;
  border-right:9px solid transparent;
  border-top: 12.5px solid rgb(77, 113, 255);
  border-bottom:9px solid transparent;
}
p {
  margin: 12px;
  font-size: 14px;
  line-height: 21px;
}

预览链接:jsbin.com/ligadapuqu/…
