树莓派安装Debian-Pi-Aarch64桌面全功能版

317 阅读1分钟

持续创作,加速成长!这是我参与「掘金日新计划 · 6 月更文挑战」的第17天,点击查看活动详情

在上一篇文章中安装了Debian-Pi-Aarch64无桌面增强版系统:树莓派安装Debian-Pi-Aarch64无桌面增强版系统 - 掘金 (juejin.cn),现在试试桌面全功能版。

系统下载

安装系统

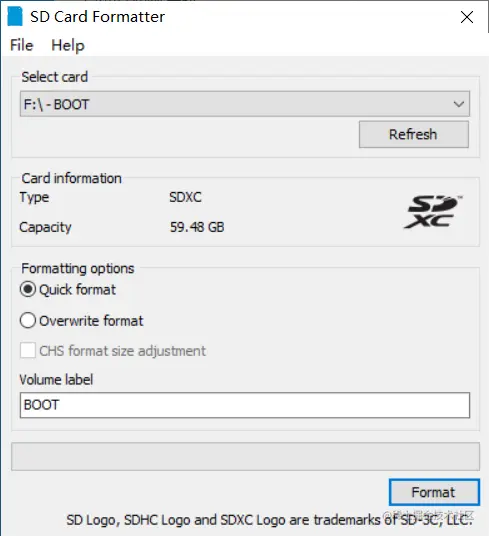

  1. 将安装系统的TF使用【SD Card Formatter】格式化。

    image-20220227133241254

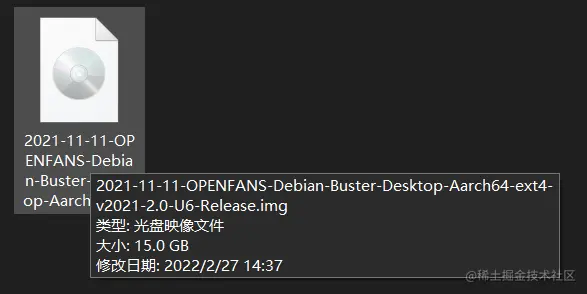

  2. 下载最新的无桌面增强版系统镜像。

    image-20220227143958465

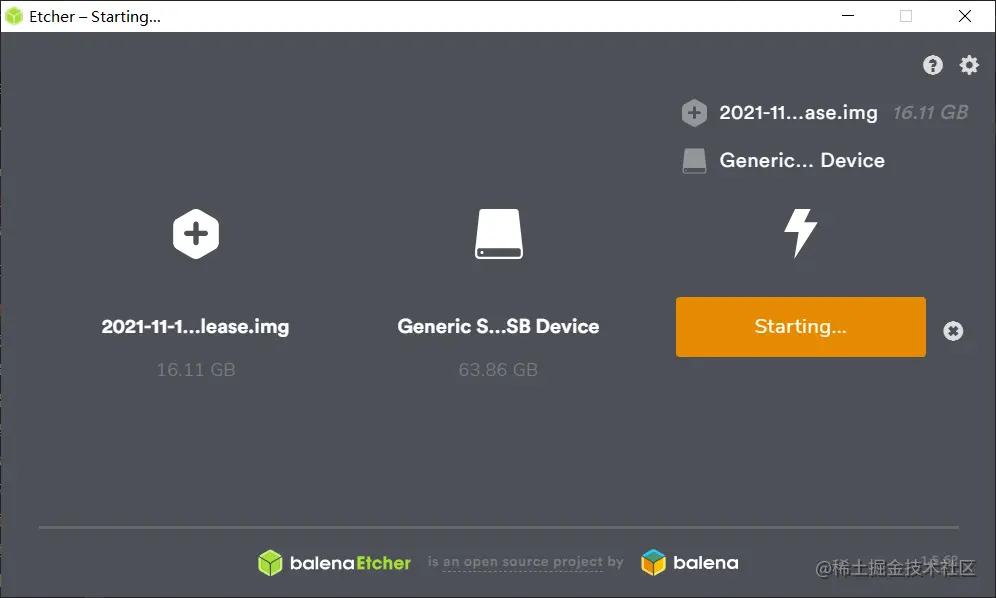

  3. 使用【balenaEtcher】刻录镜像,等待完成。

    image-20220227144111813

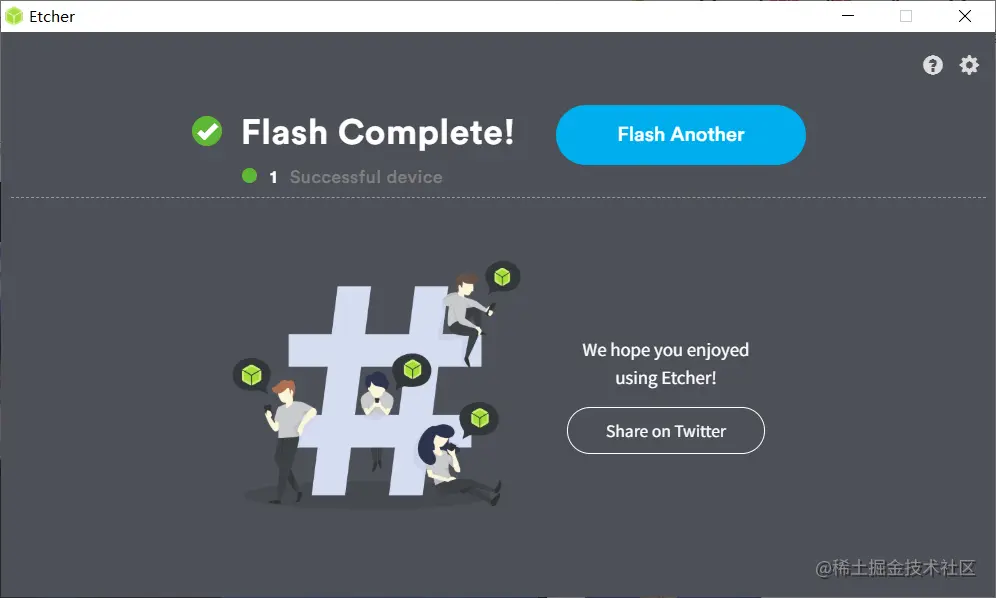

  4. 刻录完成

image-20220227134053721

  1. 进入BOOT分区,修改【wpa_supplicant.conf】文件。如果没有BOOT分区则重新插拔一下TF卡即可。

    ## To use this file, you should run command "systemctl disable network-manager" and reboot system. (Do not uncomment this line!) ##

    country=CN
    ctrl_interface=DIR=/var/run/wpa_supplicant GROUP=netdev
    update_config=1


    ## WIFI 1 (Do not uncomment this line!)

    network={
        ssid="your-wifi1-ssid"
        psk="wifi1-password"
        priority=1
        id_str="wifi-1"
    }


    ## WIFI 2 (Do not uncomment this line!)

    #network={
    #    ssid="your-wifi2-ssid"
    #    psk="wifi2-password"
    #    priority=2
    #    id_str="wifi-2"
    #}

  2. 将TF卡插入树莓派启动,在此期间,树莓派会自动重启几次。

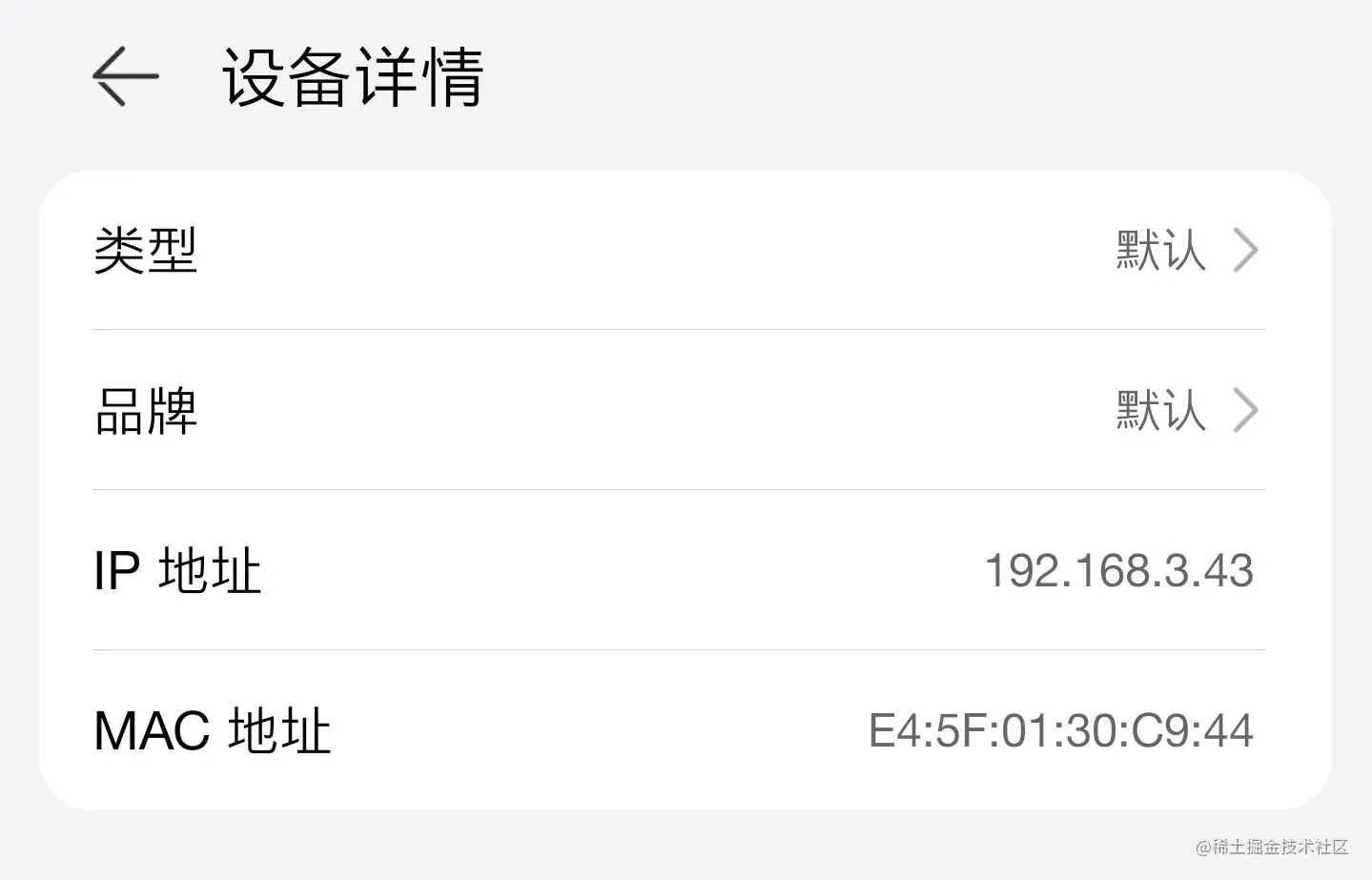

  3. 树莓派启动成功后,通过路由器查看树莓派的ip

    image-20220227135853149

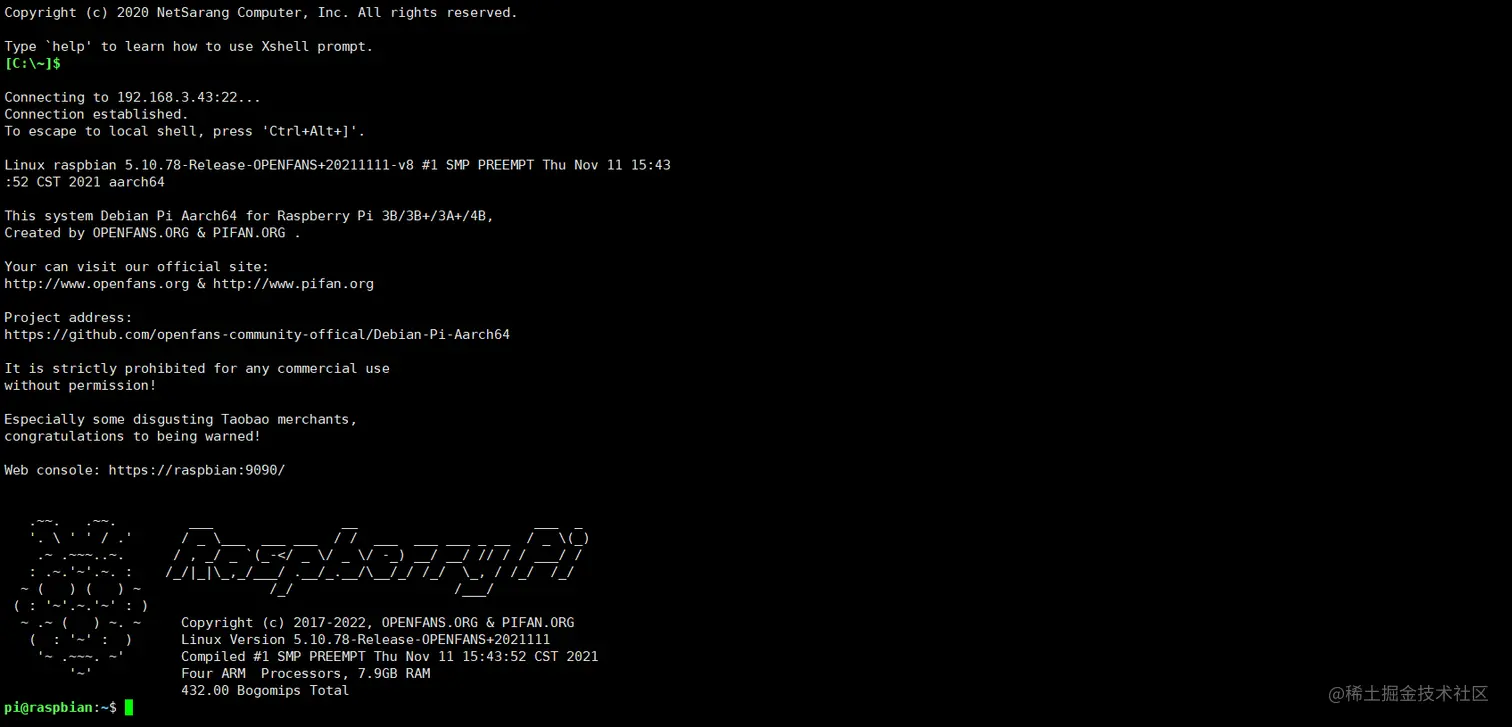

  4. 使用Xshell7连接树莓派,默认用户名密码为【pi】、【raspberry】

    image-20220227151613097

VNC远程桌面访问Web界面

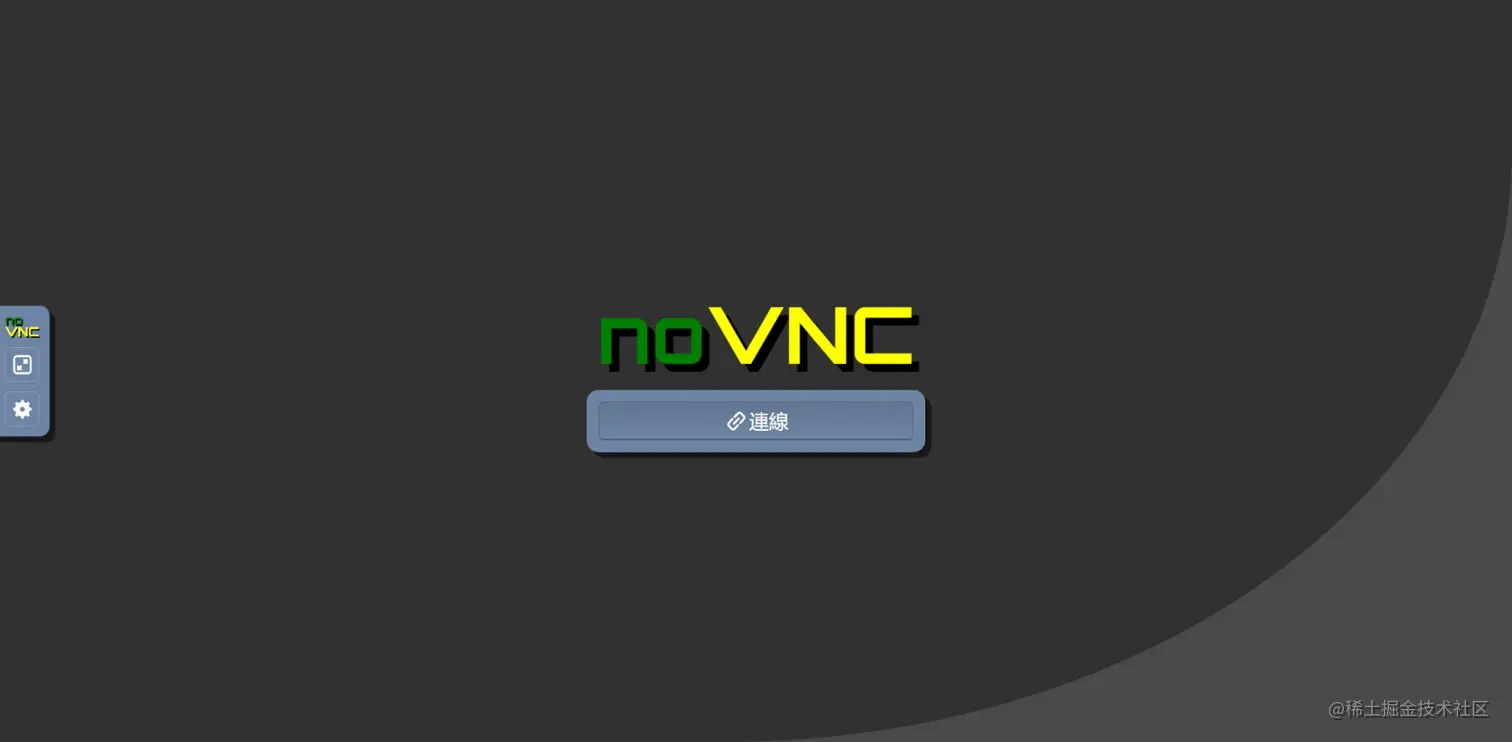

  1. 浏览器访问【http://ip:5901/】

    image-20220227151932527

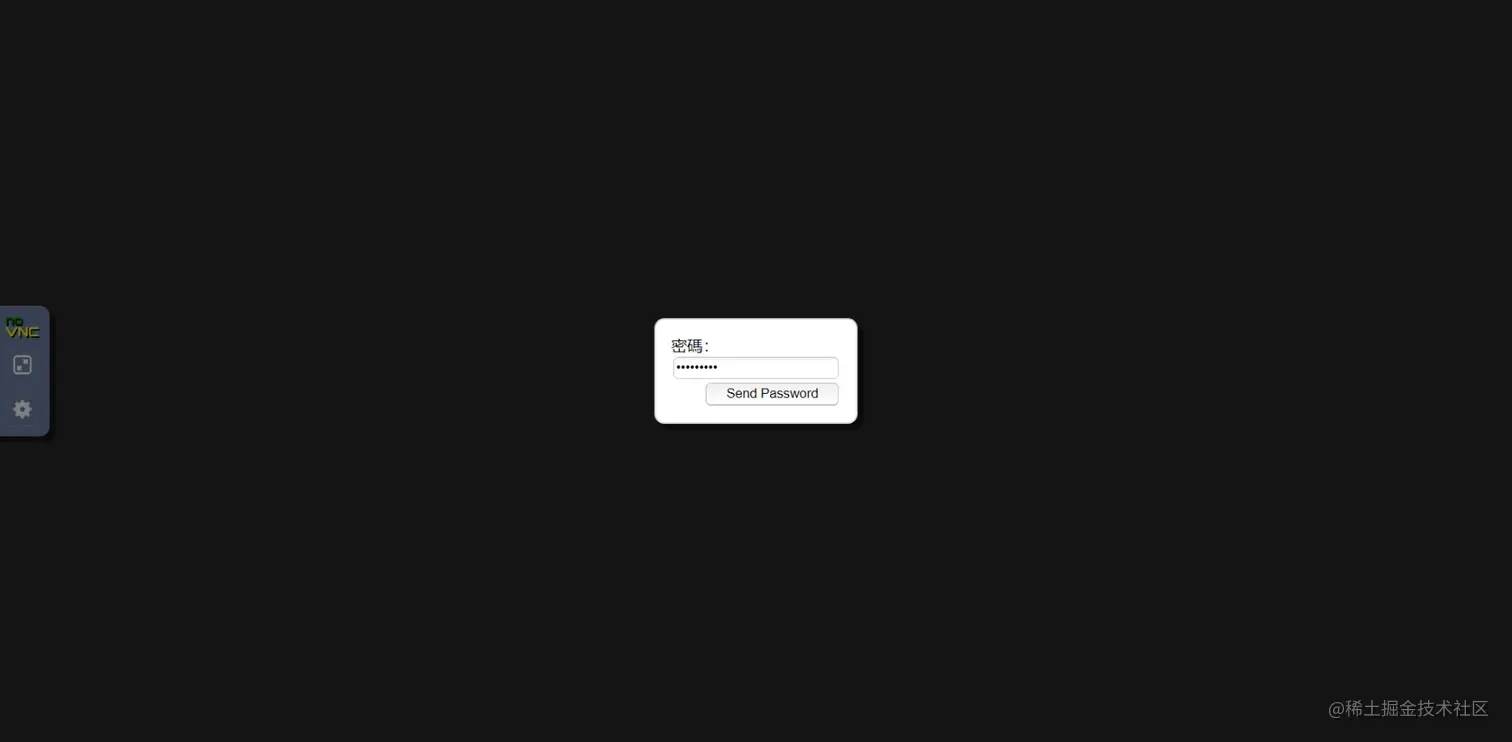

  2. 点击【连线】,输入密码,默认为【raspberry】

    image-20220227152020978

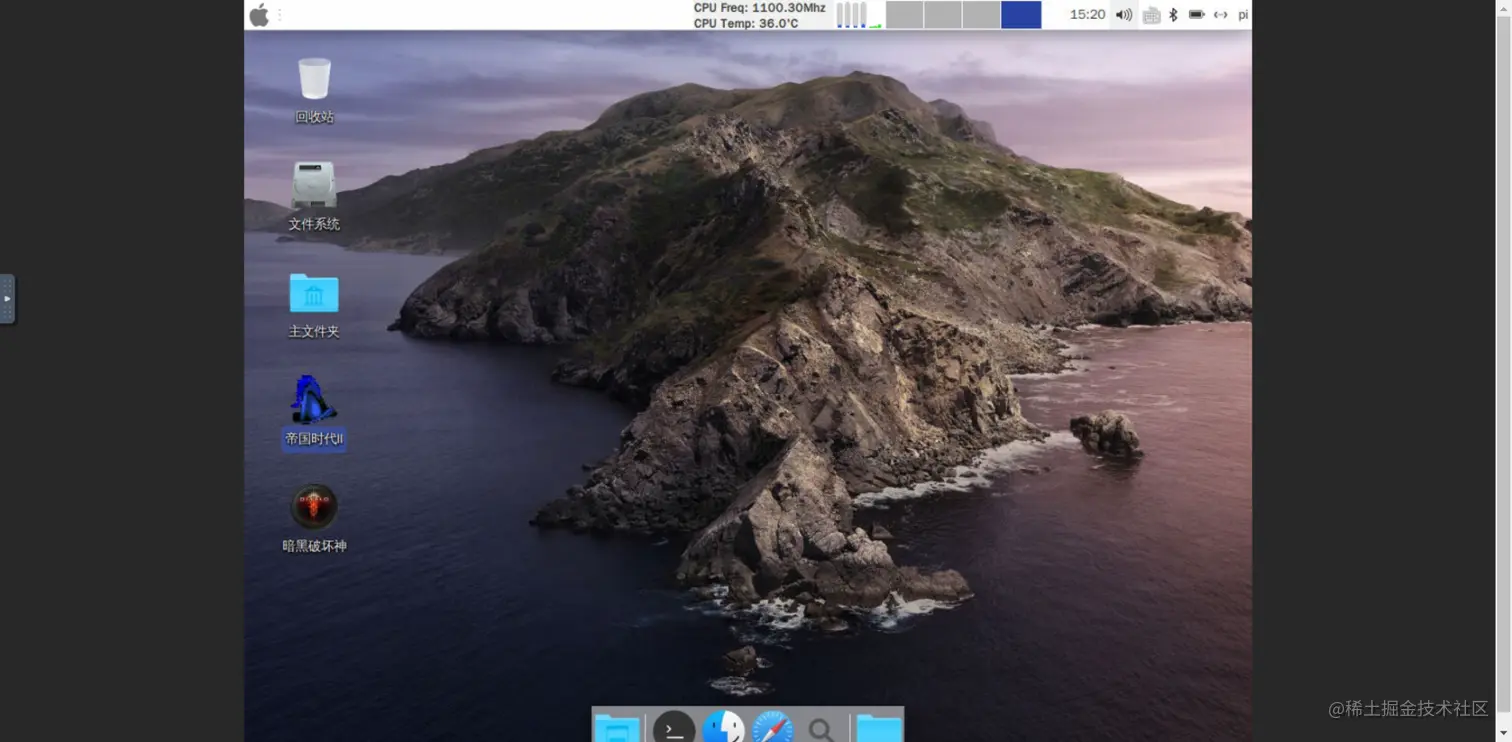

  3. 点击【Send Password】

    在这里插入图片描述
