css之flex布局,语法详解

221 阅读4分钟

持续创作,加速成长!这是我参与「掘金日新计划 · 6 月更文挑战」的第1天,点击查看活动详情

1、常见fiex面试题

  1. flex是那三个属性的简写?
  2. 说下flex一些常用的属性。
  3. 实现指定的布局效果。

2、flex 布局是什么?

Flex 是 Flexible Box 的缩写,意为"弹性布局", 给一个容器设置Flex布局。

.container {
   display: flex;
}

采用Flex布局的元素,称为 Flex 容器(父级)。它的所有子元素自动成为容器成员(子级).

3、容器(父级)的属性

6个属性

属性
flex-directionrow |row-reverse | column | column-reverse
flex-wrapnowrap | wrap | wrap-reverse
flex-flowflex-direction | flex-wrap (简写形式)
justify-contentflex-start | flex-end | center | space-between | space-around
align-itemsflex-start | flex-end | center | baseline | stretch
align-contentflex-start | flex-end | center | space-between | space-around | stretch

flex-direction

flex-direction属性决定子级排列方向。

.box {
   flex-direction: row |row-reverse | column | column-reverse;
}

row(默认值):x轴方向,起点在左端。


row-reverse:x轴方向,起点在右端。

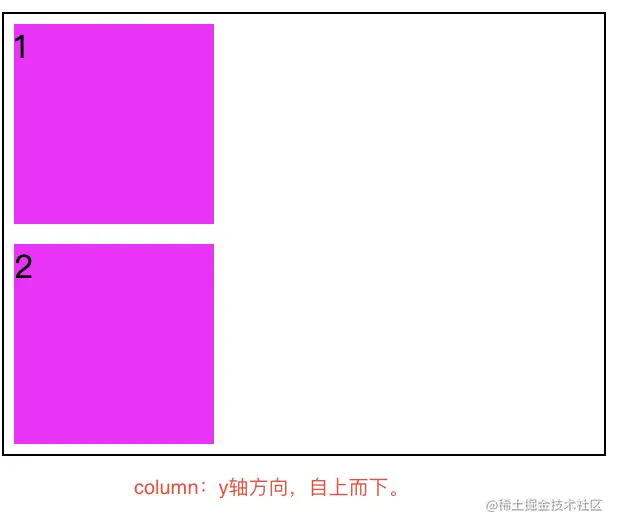

column:y轴方向,自上而下。

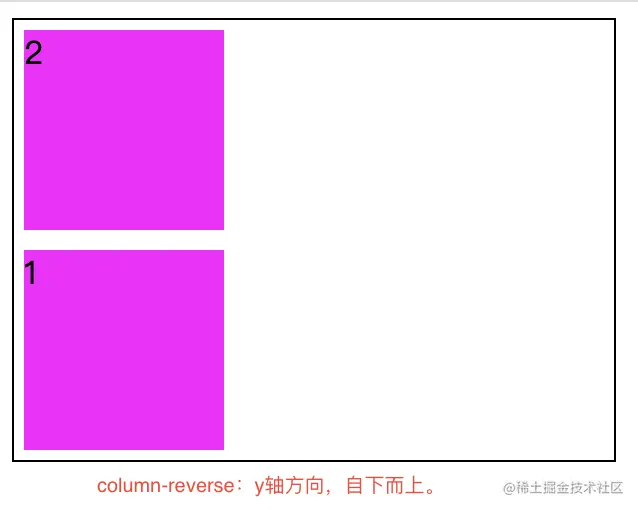

column-reverse:y轴方向,自下而上。


flex-wrap

.box{
  flex-wrap: nowrap | wrap | wrap-reverse;
}

默认情况下,子级都排在一行, 当子级过多宽度超过父级时候子级将会被挤压。flex-wrap属性定义,如果一行排不下,如何换行。

.container {
  display: flex;
  width: 300px;
  border: 1px solid;
}
.box {
    margin: 5px;
    width: 200px;
    height: 100px;
    background: magenta;
}

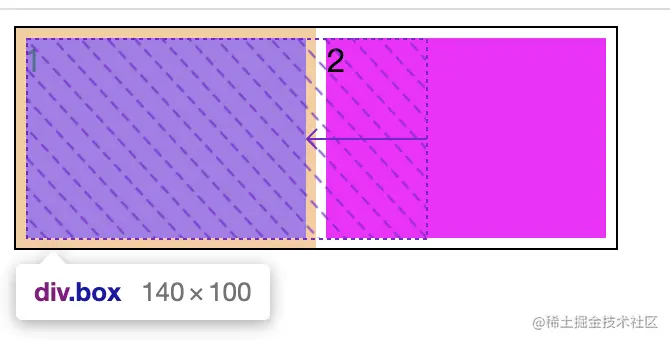

nowrap(默认):不换行。.box 被挤压成140px

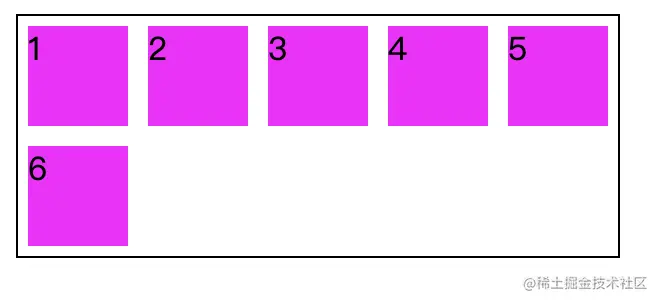

wrap:换行

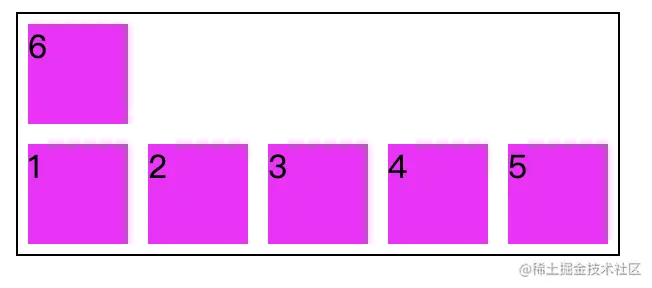

wrap-reverse:换行颠倒。


flex-flow

flex-flow属性是flex-direction属性和flex-wrap属性的简写形式,默认值为row nowrap

justify-content

.box {
  justify-content: flex-start | flex-end | center | space-between | space-around;
}

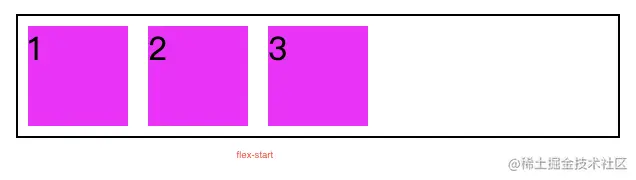

flex-start

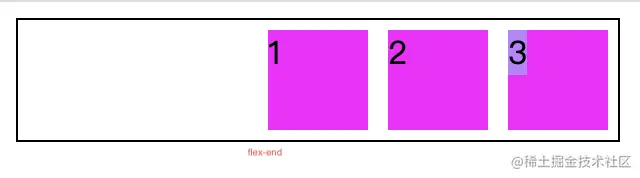

flex-end

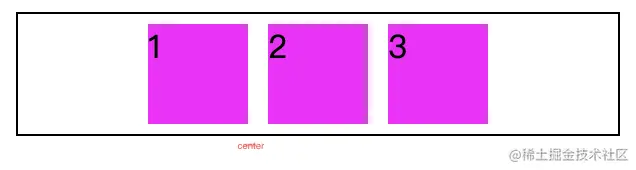

center

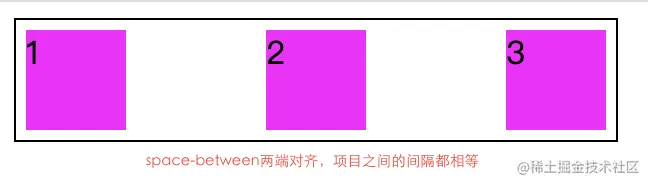

space-between


space-around


align-items

align-items属性定义子级在容器内的对齐方式。

.box {
  align-items: flex-start | flex-end | center | baseline | stretch;
}

flex-start


flex-end


center

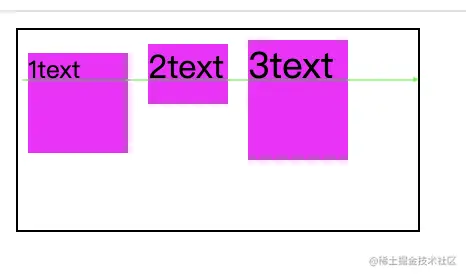

baseline

子级的第一行文字的基线对齐

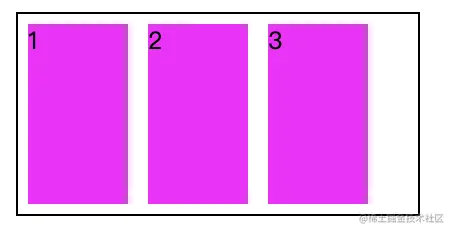

stretch

如果子级未设置高度,将占满整个容器的高度。 image.png

align-content

align-content属性定义了子级在容器内Y轴上下的对齐方式, 与flex-wrap: wrap;配合使用。

.box {
  align-content: flex-start | flex-end | center | space-between | space-around | stretch;
}

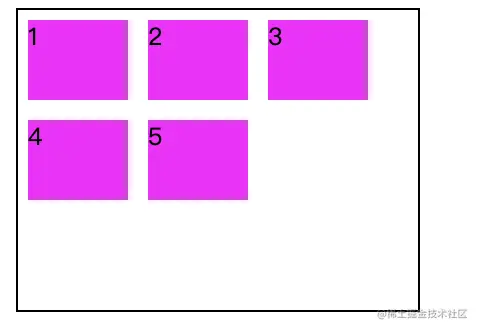

flex-start

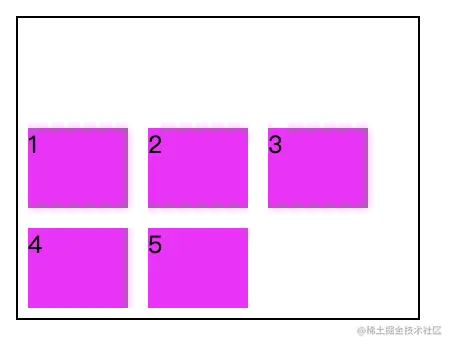

flex-end

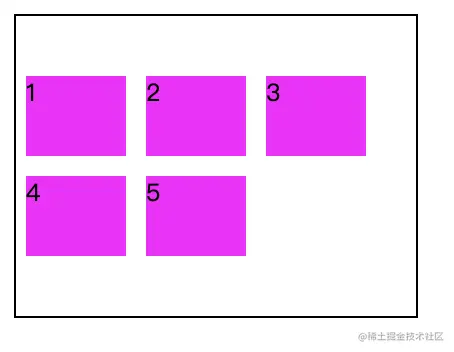

center

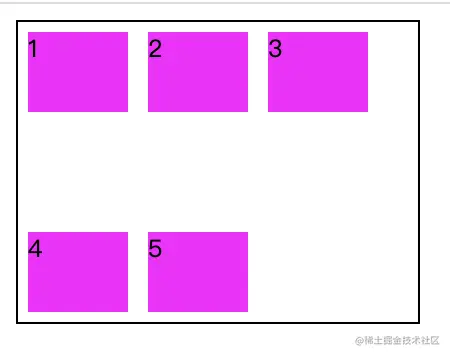

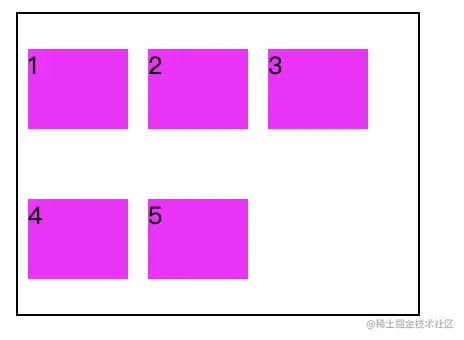

space-between


space-around


stretch(默认值)

如果子级未设置高度,将自动占满整个容器的高度。


4、元素(子级)的属性

6个属性

属性
ordertype: number(排列顺序:数字类数值越小越靠前)
flex-growtype: number(放大比例:默认为0)
flex-shrinktype: number(缩小比例:默认为1)
flex-basispx子级占据固定空间
flexflex-growflex-shrink 和 flex-basis的简写
align-selfauto | flex-start | flex-end | center | baseline | stretch

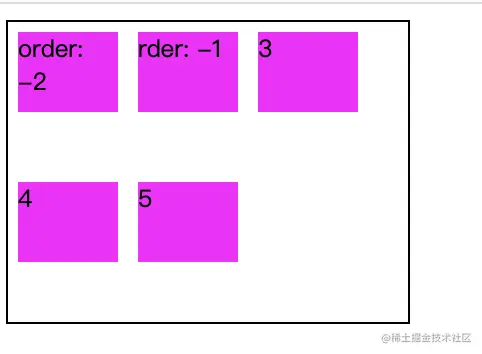

order

排列顺序。数值越小,排列越靠前,默认为0。 image.png

flex-grow

放大比例,默认为0,即如果存在剩余空间,也不放大,常用于子级不设置width宽度自适应。

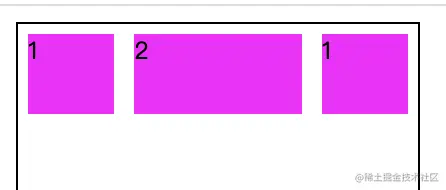

如果所有项目的flex-grow或flex属性都为1,则它们将等分剩余空间。如果一个项目的flex-grow属性为2,其他项目都为1,则前者占据的剩余空间将比其他项多一倍。 image.png

注意:flex-grow 优先级大与width,flex-grow设为1,width为固定值,当有剩余空间时候width将加上剩余空间。

flex-shrink

缩小比例,默认为1,即如果空间不足,该项目将缩小。

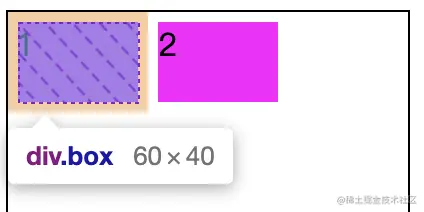

flex-basis

属性定义了在分配多余空间之前,子级占据的宽度,相当于width属性,但优先级大与width,默认值为auto

.box {
    margin: 5px;
    height: 40px;
    width: 50px;
    background: magenta;
    flex-basis: 60px;
}


flex

flex属性是flex-growflex-shrink 和 flex-basis的简写,默认值为0 1 auto。后两个属性可选。

align-self

align-self属性允许单个子级与其他子级不一样的对齐方式,可覆盖父级align-items属性。默认值为auto,表示继承父元素的align-items属性,如果没有父元素,则等同于stretch

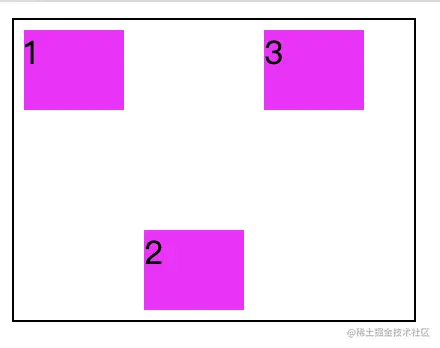

父级 align-items: flex-start; 子级2 align-self: flex-end;

5、总结、解答面试题

  1. flex是那三个属性的简写?
    flex属性是flex-growflex-shrink 和 flex-basis的简写
  2. 说下flex一些常用的属性。
    能说多少就多少
  3. 实现指定的布局效果。
    各种居中、圣杯布局、骰子的布局看需求实现。
