生活的本质是变化，而人类的本性是抗拒变化

概述

本文主要讲解下SpringBoot的一个关键扩展点BeanPostProcessor, 他有很多的子接口，这里我们一并做了一个介绍。

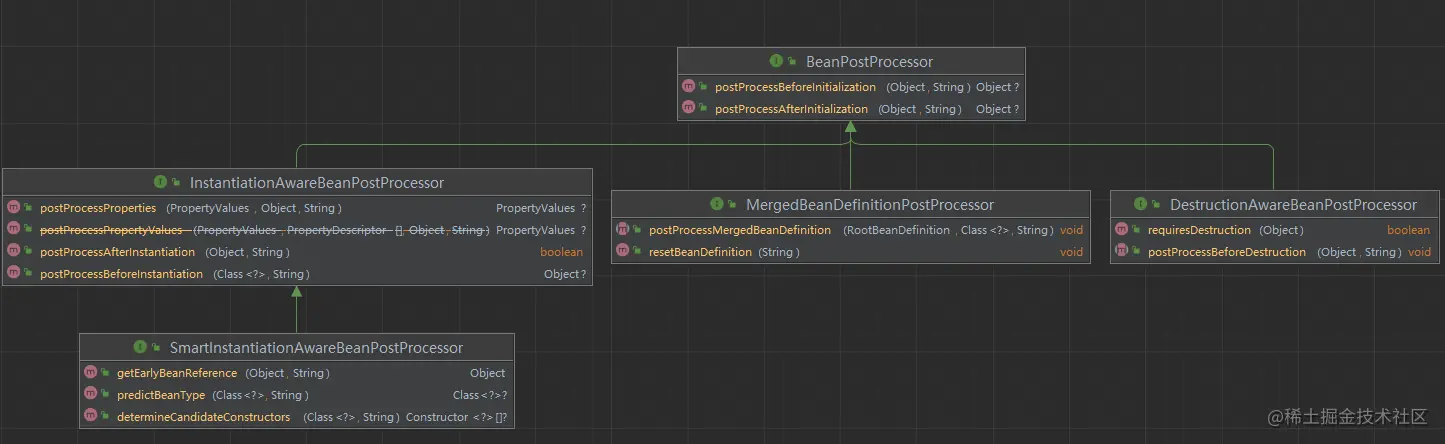

BeanPostProcessor家族介绍

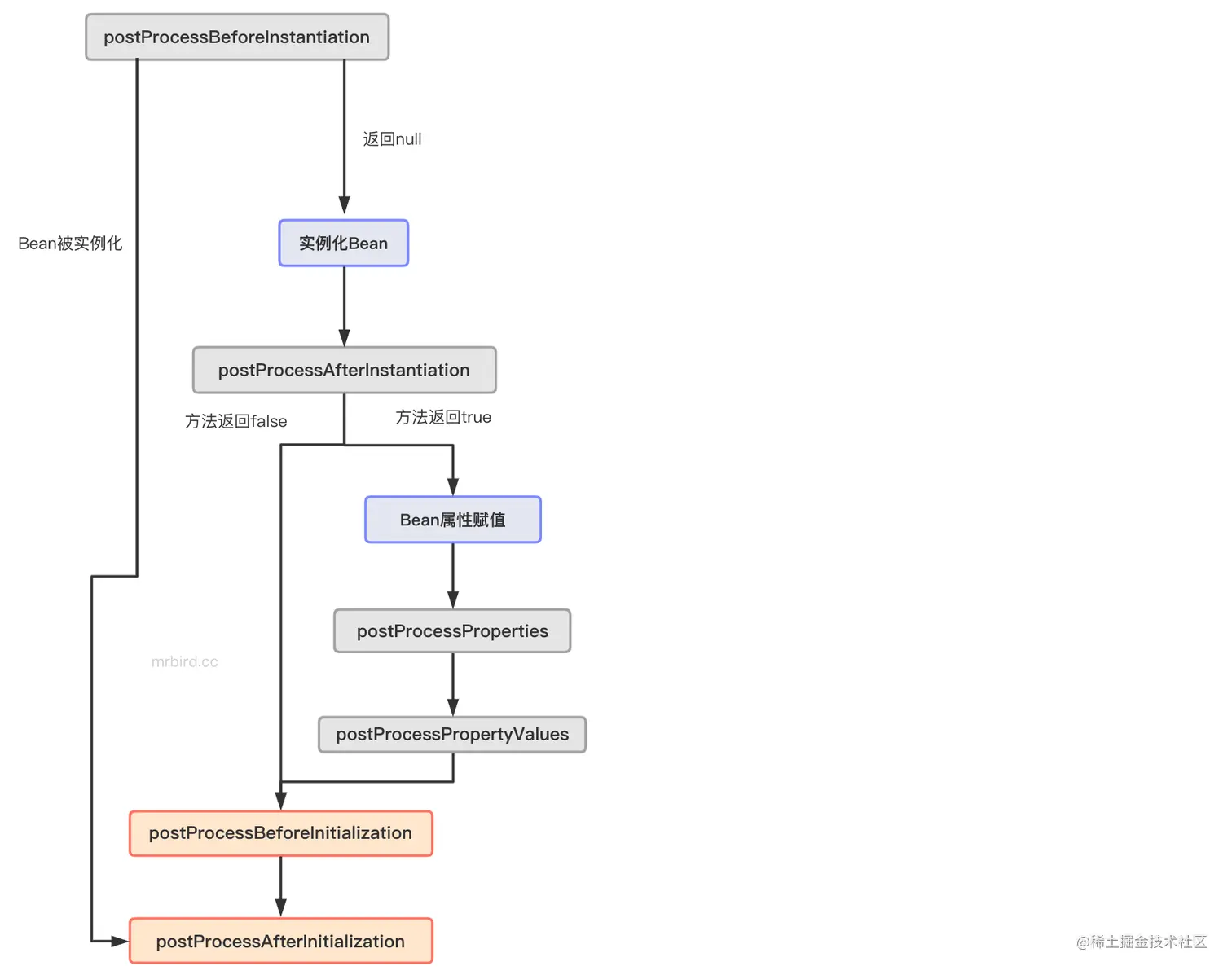

BeanPostProcessor处理器分别在Bean生命周期的不同阶段起作用，Bean的实例化阶段先于Bean初始化阶段，最后是Bean的销毁阶段，主要规类如下：

Bean实例化阶段

在Spring Bean生命周期中，Bean实例化指的是创建Bean的过程, 此时Bean的属性还没有赋值。

1. InstantiationAwareBeanPostProcessor

作用： BeanPostProcessor的子接口，它可以在实例化之前回调，也可以在实例化之后但是属性设置或者自动装配发生之前回调。

使用场景： 可以用来修改特定Bean默认的实例化，比如创建代理类，或者实现额外的注册策略。

接口方法：

1). Object postProcessBeforeInstantiation(Class<?> beanClass, String beanName)

  • 在目标bean被实例化之前调用，返回值是Object类型,可以返回目标实例的一个代理用来代替目标实例。
  • 返回值如果不是null, 后续不会再进行实例化，只会执行postProcessAfterInitialization这个回调，其他方法不调用。否则按照正常的流程走。

2). boolean postProcessAfterInstantiation(Object bean, String beanName)

  • 在目标对象被实例化后并且属性值还没有被设置的时候调用。
  • 返回值是boolean类型，返回true时，表示Bean属性需要被赋值；返回false表示跳过Bean属性赋值，并且InstantiationAwareBeanPostProcessor的postProcessProperties方法不会被调用。

3). PropertyValues postProcessProperties(PropertyValues pvs, Object bean, String beanName)

  • 方法的作用在属性中被设置到目标实例之前调用，对属性值进行修改。

2. SmartInstantiationAwareBeanPostProcessor

作用： 继承于InstantiationAwareBeanPostProcessor接口，主要作用也是在于目标对象的实例化过程中需要处理的事情。它是InstantiationAwareBeanPostProcessor接口的一个扩展。主要在Spring框架内部使用，不是重点。

接口方法：

1). Class predictBeanType(Class beanClass, String beanName)

  • 用于预测Bean的类型，返回第一个预测成功的Class类型，如果不能预测返回null。主要在于BeanDefinition无法确定Bean类型的时候调用该方法来确定类型。

2). Constructor[] determineCandidateConstructors(Class beanClass, String beanName)

  • 用于选择合适的构造器，比如类有多个构造器，可以实现这个方法选择合适的构造器并用于实例化对象。
  • 该方法在postProcessBeforeInstantiation方法和postProcessAfterInstantiation方法之间调用，如果postProcessBeforeInstantiation方法返回了一个新的实例代替了原本该生成的实例，那么该方法会被忽略。

3). Object getEarlyBeanReference(Object bean, String beanName)

  • getEarlyBeanReference主要用于解决循环引用问题。比如ReferenceA实例内部有ReferenceB的引用，ReferenceB实例内部有ReferenceA的引用。首先先实例化ReferenceA，实例化完成之后提前把这个bean暴露在ObjectFactory中，然后populate属性，这个时候发现需要ReferenceB。然后去实例化ReferenceB，在实例化ReferenceB的时候它需要ReferenceA的实例才能继续，这个时候就会去ObjectFactory中找出了ReferenceA实例，ReferenceB顺利实例化。ReferenceB实例化之后，ReferenceA的populate属性过程也成功完成，注入了ReferenceB实例。提前把这个bean暴露在ObjectFactory中，这个ObjectFactory获取的实例就是通过getEarlyBeanReference方法得到的。

Bean初始化阶段

Bean初始化阶段是指Bean创建后，对其属性进行赋值（populate bean）、后置处理等操作的过程。

1. MergedBeanDefinitionPostProcessor

作用： 继承BeanPostProcessor, 在合并Bean定义之后调用。

接口方法：

1). postProcessMergedBeanDefinition(RootBeanDefinition beanDefinition, Class<?> beanType, String beanName)

  • 该方法是在合并Bean定义之后调用。

2. BeanPostProcessor

作用： 该方法是核心方法，主要是在Bean初始化前后调用。

接口方法：

1).Object postProcessBeforeInitialization(Object bean, String beanName)

  • 在bean初始化之前调用的方法

2).Object postProcessAfterInitialization(Object bean, String beanName)

  • 在bean初始化之后调用的方法

Bean销毁阶段

1. DestructionAwareBeanPostProcessor

作用： 继承BeanPostProcessor接口，Bean在容器被销毁之前调用

接口方法：

1).postProcessBeforeDestruction(Object bean, String beanName)

  • bean在销毁之前调用

2).boolean requiresDestruction(Object bean)

  • 在bean销毁之前调用，决定bean是否要被销毁
  • 返回值未boolean类型，如果返回true，则先调用postProcessBeforeDestruction回调，如果返回false, 不进行销毁。

实战演练

  1. 定义Bean
@Data
@Slf4j
public class BeanLifeCycle {

    private String prop ;

    public BeanLifeCycle() {
        log.info("#################BeanLifeCycle 实例化");
    }

    public void init() {
        log.info("#################BeanLifeCycle 初始化");
    }

    public void destroy() {
        log.info("#################BeanLifeCycle 销毁");
    }
}

@Configuration
public class LifeCycleConfig {

    @Bean(name = "beanLifeCycle", initMethod = "init", destroyMethod = "destroy")
    public BeanLifeCycle createBeanLifeCycle() {
        BeanLifeCycle beanLifeCycle = new BeanLifeCycle();
        return beanLifeCycle;
    }
}
  1. 创建InstantiationAwareBeanPostProcessor
@Component
@Slf4j
public class TestInstantiationAwareBeanPostProcessor implements InstantiationAwareBeanPostProcessor {

    @Override
    public Object postProcessBeforeInstantiation(Class<?> beanClass, String beanName) throws BeansException {
        if("beanLifeCycle".equals(beanName)) {
            log.info("################InstantiationAwareBeanPostProcessor before instant: [{}]", beanName);
            // 如果返回一个bean,则后续只会调用BeanPostProcessor的 postProcessAfterInitialization方法
            //return new BeanLifeCycle().setProp("aaa");
        }
        // 如果返回null,正常实例化
        return null;
    }

    @Override
    public boolean postProcessAfterInstantiation(Object bean, String beanName) throws BeansException {
        if("beanLifeCycle".equals(beanName)) {
            log.info("################InstantiationAwareBeanPostProcessor after instant: bean: [{}], beanName: [{}]", bean, beanName);
        }
        // 返回true,表示Bean属性需要被赋值，否则不会
        return true;
    }

    @Override
    public PropertyValues postProcessProperties(PropertyValues pvs, Object bean, String beanName) throws BeansException {
        if("beanLifeCycle".equals(beanName)) {
            log.info("################InstantiationAwareBeanPostProcessor postProcessProperties: pvs: [{}], bean: [{}], beanName: [{}]", pvs, bean, beanName);
        }
        return pvs;
    }
}
  1. 创建普通的BeanPostProcessor
@Component
@Slf4j
public class TestBeanPostProcessor implements BeanPostProcessor {

    @Override
    public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
        if("beanLifeCycle".equals(beanName)) {
            log.info("################BeanPostProcessor before init: bean:[{}], beanName: [{}]", bean, beanName);
        }
        return bean;
    }

    @Override
    public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
        if("beanLifeCycle".equals(beanName)) {
            log.info("################BeanPostProcessor after init: bean:[{}], beanName: [{}]", bean, beanName);
        }
        return bean;
    }
}
  1. 创建DestructionAwareBeanPostProcessor
@Slf4j
@Component
public class TestDestructionAwareBeanPostProcessor implements DestructionAwareBeanPostProcessor {
    @Override
    public void postProcessBeforeDestruction(Object obj, String beanName) throws BeansException {
        if("beanLifeCycle".equals(beanName)) {
            log.info("################DestructionAwareBeanPostProcessor before destroy: bean:[{}], beanName: [{}]", obj, beanName);
        }
    }

    @Override
    public boolean requiresDestruction(Object bean) {
        if(bean instanceof BeanLifeCycle) {
            log.info("################DestructionAwareBeanPostProcessor requiresDestruction: bean:[{}]", bean);
        }
        // true表示销毁， false表示不销毁，也不会执行postProcessBeforeDestruction方法了
        return true;
    }
}

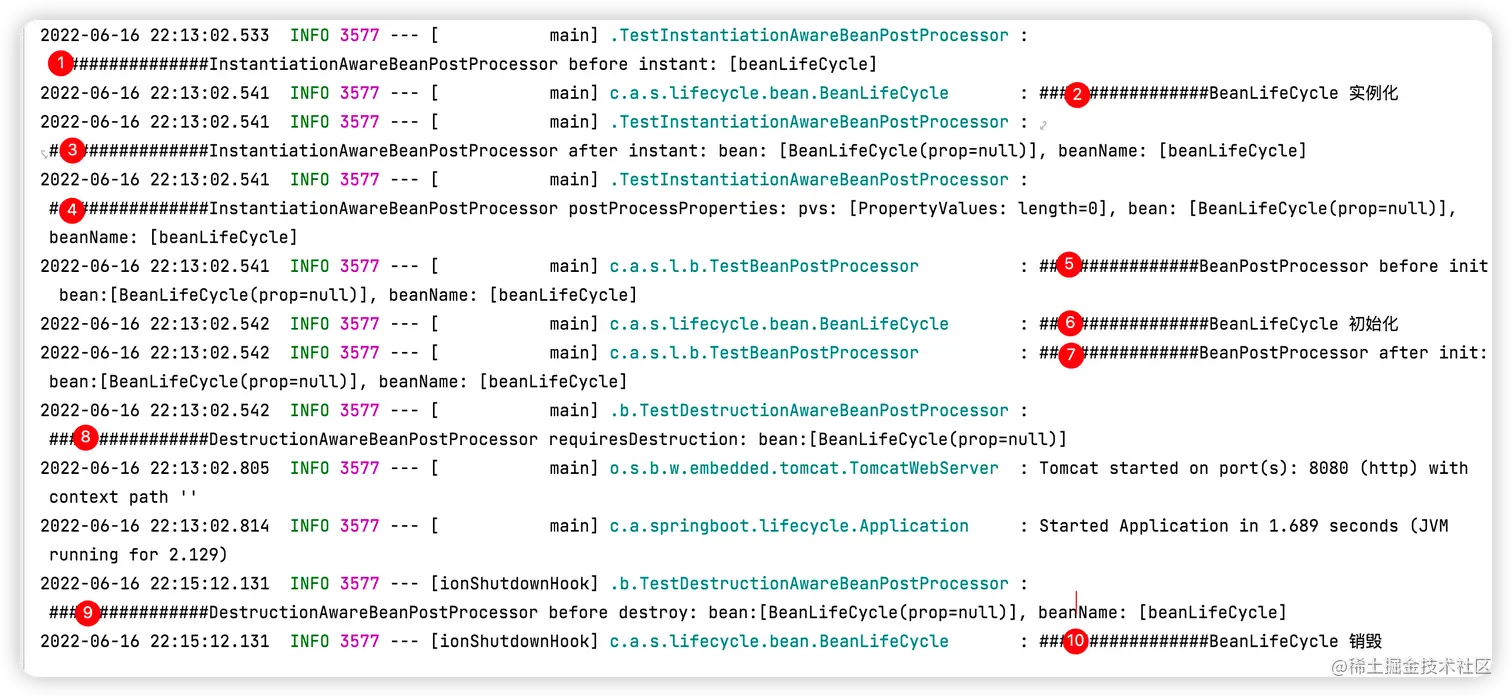

  1. 执行结果

如图所示执行结果，得出结论如下：

  1. InstantiationAwareBeanPostProcessor是在类的实例化前后进行回调，如上图序号的1，3，4
  2. BeanPostProcessor是在类的初始化前后进行回调，如上图中的5，7

代码地址： github.com/alvinlkk/sp…

源码解析

源码解析这块我们重点主要关注在InstantiationAwareBeanPostProcessor和BeanPostProcessor这两个相对比较中的扩展点。

以上的扩展接口都是围绕着Bean的创建，而Bean创建的入口AbstractAutowireCapableBeanFactory的createBean方法：

@Override
	protected Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
			throws BeanCreationException {

		if (logger.isTraceEnabled()) {
			logger.trace("Creating instance of bean '" + beanName + "'");
		}
		RootBeanDefinition mbdToUse = mbd;

		// Make sure bean class is actually resolved at this point, and
		// clone the bean definition in case of a dynamically resolved Class
		// which cannot be stored in the shared merged bean definition.
		Class<?> resolvedClass = resolveBeanClass(mbd, beanName);
		if (resolvedClass != null && !mbd.hasBeanClass() && mbd.getBeanClassName() != null) {
			mbdToUse = new RootBeanDefinition(mbd);
			mbdToUse.setBeanClass(resolvedClass);
		}

		// Prepare method overrides.
		try {
			mbdToUse.prepareMethodOverrides();
		}
		catch (BeanDefinitionValidationException ex) {
			throw new BeanDefinitionStoreException(mbdToUse.getResourceDescription(),
					beanName, "Validation of method overrides failed", ex);
		}

		try {
			// resolveBeforeInstantiation方法主要是给InstantiationAwareBeanPostProcessor后置处理器一个Bean实例代理的机会.
			Object bean = resolveBeforeInstantiation(beanName, mbdToUse);
			// 如果返回的不为空，说明已经实例化了，则直接返回，为空的话，继续走下面的正常流程doCreateBean
            if (bean != null) {
				return bean;
			}
		}
		catch (Throwable ex) {
			throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName,
					"BeanPostProcessor before instantiation of bean failed", ex);
		}

		try {
			Object beanInstance = doCreateBean(beanName, mbdToUse, args);
			if (logger.isTraceEnabled()) {
				logger.trace("Finished creating instance of bean '" + beanName + "'");
			}
			return beanInstance;
		}
		catch (BeanCreationException | ImplicitlyAppearedSingletonException ex) {
			// A previously detected exception with proper bean creation context already,
			// or illegal singleton state to be communicated up to DefaultSingletonBeanRegistry.
			throw ex;
		}
		catch (Throwable ex) {
			throw new BeanCreationException(
					mbdToUse.getResourceDescription(), beanName, "Unexpected exception during bean creation", ex);
		}
	}

参考上面源码中的注释，我们重点关注resolveBeforeInstantiation方法。

@Nullable
	protected Object resolveBeforeInstantiation(String beanName, RootBeanDefinition mbd) {
		Object bean = null;
        // beforeInstantiationResolved属性值默认为false, 如果bean实例前置操作还未执行
		if (!Boolean.FALSE.equals(mbd.beforeInstantiationResolved)) {
			// Make sure bean class is actually resolved at this point.
			// 判断是否有InstantiationAwareBeanPostProcessor处理器
            if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
				Class<?> targetType = determineTargetType(beanName, mbd);
				if (targetType != null) {
                    // 执行InstantiationAwareBeanPostProcessor处理器中的postProcessBeforeInstantiation方法
					bean = applyBeanPostProcessorsBeforeInstantiation(targetType, beanName);
					if (bean != null) {
                         // 如果bean已经被上述的前置处理器实例化了，
                         // 则跳过其他步骤，直接执行BeanPostProcessor处理器中的postProcessAfterInitialization方法进行初始化
						bean = applyBeanPostProcessorsAfterInitialization(bean, beanName);
					}
				}
			}
            // 如果bean不为null,设置beforeInstantiationResolved属性值为true
			mbd.beforeInstantiationResolved = (bean != null);
		}
		return bean;
	}

如果没有对bean进行代理增量，返回null的情况，则走标准的流程，执行后面的doCreateBean方法。

protected Object doCreateBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
			throws BeanCreationException {

		// Instantiate the bean.实例化bean开始
		BeanWrapper instanceWrapper = null;
		if (mbd.isSingleton()) {
			instanceWrapper = this.factoryBeanInstanceCache.remove(beanName);
		}
		if (instanceWrapper == null) {
            // 实例化bean
			instanceWrapper = createBeanInstance(beanName, mbd, args);
		}
		Object bean = instanceWrapper.getWrappedInstance();
		Class<?> beanType = instanceWrapper.getWrappedClass();
		if (beanType != NullBean.class) {
			mbd.resolvedTargetType = beanType;
		}
        // 实例化bean结束

		// Allow post-processors to modify the merged bean definition.
		synchronized (mbd.postProcessingLock) {
			if (!mbd.postProcessed) {
				try {
					applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName);
				}
				catch (Throwable ex) {
					throw new BeanCreationException(mbd.getResourceDescription(), beanName,
							"Post-processing of merged bean definition failed", ex);
				}
				mbd.postProcessed = true;
			}
		}

		// Eagerly cache singletons to be able to resolve circular references
		// even when triggered by lifecycle interfaces like BeanFactoryAware.
		boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences &&
				isSingletonCurrentlyInCreation(beanName));
		if (earlySingletonExposure) {
			if (logger.isTraceEnabled()) {
				logger.trace("Eagerly caching bean '" + beanName +
						"' to allow for resolving potential circular references");
			}
			addSingletonFactory(beanName, () -> getEarlyBeanReference(beanName, mbd, bean));
		}

		// Initialize the bean instance.
		Object exposedObject = bean;
		try {
            // 为bean属性赋值
			populateBean(beanName, mbd, instanceWrapper);
            // 初始化bean
			exposedObject = initializeBean(beanName, exposedObject, mbd);
		}
        .......
	}

重点关注这里的populateBean和initializeBean方法，后置处理器就是在这两个方法中起作用。

populateBean方法代码如下：

protected void populateBean(String beanName, RootBeanDefinition mbd, @Nullable BeanWrapper bw) {
	    .....
        // 获取所有的InstantiationAwareBeanPostProcessor
		if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
			for (InstantiationAwareBeanPostProcessor bp : getBeanPostProcessorCache().instantiationAware) {
				// 调用postProcessAfterInstantiation方法，如果返回false, 则populateBean方法直接返回，后续赋值操作不再进行
                if (!bp.postProcessAfterInstantiation(bw.getWrappedInstance(), beanName)) {
					return;
				}
			}
		}

       // 开始为属性赋值，比如@Autowired注解的
		PropertyValues pvs = (mbd.hasPropertyValues() ? mbd.getPropertyValues() : null);

		int resolvedAutowireMode = mbd.getResolvedAutowireMode();
		if (resolvedAutowireMode == AUTOWIRE_BY_NAME || resolvedAutowireMode == AUTOWIRE_BY_TYPE) {
			MutablePropertyValues newPvs = new MutablePropertyValues(pvs);
			// Add property values based on autowire by name if applicable.
			if (resolvedAutowireMode == AUTOWIRE_BY_NAME) {
				autowireByName(beanName, mbd, bw, newPvs);
			}
			// Add property values based on autowire by type if applicable.
			if (resolvedAutowireMode == AUTOWIRE_BY_TYPE) {
				autowireByType(beanName, mbd, bw, newPvs);
			}
			pvs = newPvs;
		}

		boolean hasInstAwareBpps = hasInstantiationAwareBeanPostProcessors();
		boolean needsDepCheck = (mbd.getDependencyCheck() != AbstractBeanDefinition.DEPENDENCY_CHECK_NONE);

		PropertyDescriptor[] filteredPds = null;
		if (hasInstAwareBpps) {
			if (pvs == null) {
				pvs = mbd.getPropertyValues();
			}
			for (InstantiationAwareBeanPostProcessor bp : getBeanPostProcessorCache().instantiationAware) {
				PropertyValues pvsToUse = bp.postProcessProperties(pvs, bw.getWrappedInstance(), beanName);
				if (pvsToUse == null) {
					if (filteredPds == null) {
						filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);
					}
					pvsToUse = bp.postProcessPropertyValues(pvs, filteredPds, bw.getWrappedInstance(), beanName);
					if (pvsToUse == null) {
						return;
					}
				}
				pvs = pvsToUse;
			}
		}
		if (needsDepCheck) {
			if (filteredPds == null) {
				filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);
			}
			checkDependencies(beanName, mbd, filteredPds, pvs);
		}

		if (pvs != null) {
			applyPropertyValues(beanName, mbd, bw, pvs);
		}
	}

接着查看initializeBean方法源码：

protected Object initializeBean(String beanName, Object bean, @Nullable RootBeanDefinition mbd) {
		if (System.getSecurityManager() != null) {
			AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
				invokeAwareMethods(beanName, bean);
				return null;
			}, getAccessControlContext());
		}
		else {
			invokeAwareMethods(beanName, bean);
		}

		Object wrappedBean = bean;
		if (mbd == null || !mbd.isSynthetic()) {
            // 执行BeanPostProcessor的postProcessBeforeInitialization初始化前置处理器
			wrappedBean = applyBeanPostProcessorsBeforeInitialization(wrappedBean, beanName);
		}

		try {
            //执行初始化操作

			invokeInitMethods(beanName, wrappedBean, mbd);
		}
		catch (Throwable ex) {
			throw new BeanCreationException(
					(mbd != null ? mbd.getResourceDescription() : null),
					beanName, "Invocation of init method failed", ex);
		}
		if (mbd == null || !mbd.isSynthetic()) {
            // 执行BeanPostProcessor的postProcessBeforeInitialization初始化后置处理器
			wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);
		}

		return wrappedBean;
	}

上面我们通过源码的角度，针对关键的InstantiationAwareBeanPostProcessor和BeanPostProcessor两个接口做了一个分析，在源码阅读的时候，可以打上断点，一步一步调试，整体的一个执行流程如下图所示：

参考

fangjian0423.github.io/2017/06/20/…

mrbird.cc/%E6%B7%B1%E…

avatar
文章
阅读
粉丝
