1. 二叉树定义

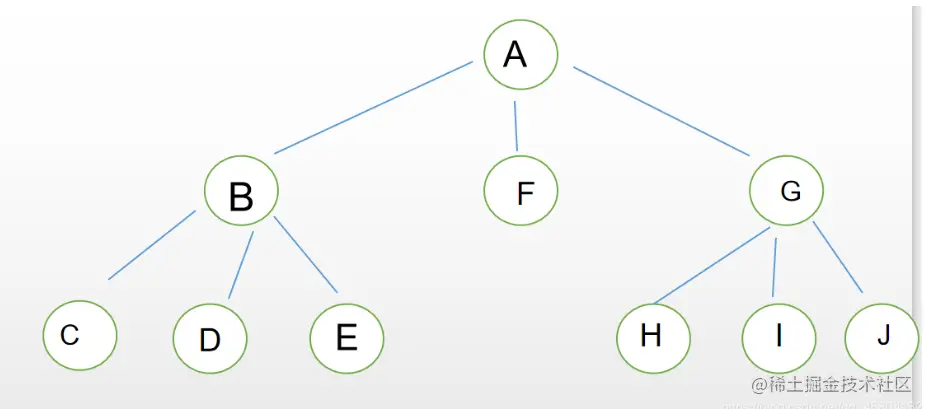

树的遍历是树的一种重要的运算。所谓遍历是指对树中所有结点的信息的访问,即依次对树中每个结点访问一次且仅访问一次。,一般情况下树的遍历有四种情况,而对二叉树来说有四种情况,这里主要阐述三种情况。我们用一个树结构来举例子。


  • 先序遍历 所谓先序遍历,也就是前序遍历,是从根节点开始,在左,在右,不断递归,该树的前序遍历为: ABCDEFGHIJ
  • 中序遍历 中序遍历,从左节点开始,在根,在右。遍历为: CBDEAFHGIJ
  • 后序遍历 从左节点开始,在右,在根,遍历为: CDEBFHIJGA

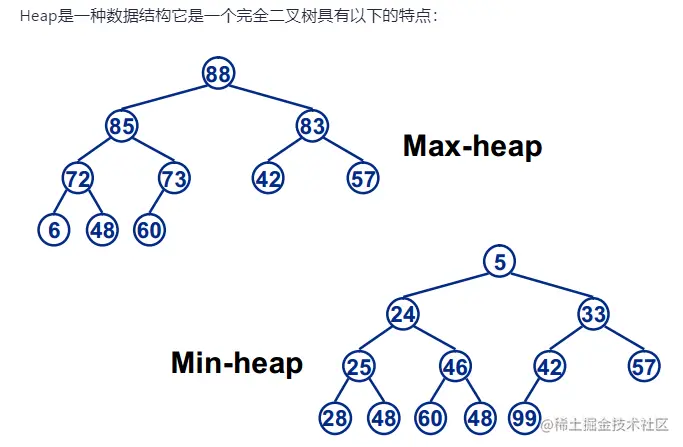

2. 小根堆和大根堆


  • Min-heap: 父节点的值小于或等于子节点的值;

  • Max-heap: 父节点的值大于或等于子节点的值;

    public class HeapManager {
        private Queue<Integer> minHeap = new PriorityQueue<>(new Comparator<Integer>() {
            @Override
            public int compare(Integer o1, Integer o2) {
                return o1 - o2;
            }
        });
    ​
        private Queue<Integer> maxHeap = new PriorityQueue<>(new Comparator<Integer>() {
            @Override
            public int compare(Integer o1, Integer o2) {
                return o2 - o1;
            }
        });
    ​
        public void test(){
            int[] arrForHeap = { 3, 5, 2, 7, 0, 1, 6, 4 };
            for(int data:arrForHeap){
                minHeap.offer(data);
                maxHeap.offer(data);
            }
    ​
            System.out.println("print the minHeap:");
            while (!minHeap.isEmpty()){
                System.out.print(" "+minHeap.poll());
            }
            System.out.println();
            System.out.println("print the maxHeap:");
    ​
            while (!maxHeap.isEmpty()){
                System.out.print(" "+maxHeap.poll());
            }
        }
    }


打印结果:

print the minHeap: 0 1 2 3 4 5 6 7 print the maxHeap: 7 6 5 4 3 2 1 0 Process finished with exit code 0

3. 二分搜索树

一、概念及其介绍

二分搜索树(英语:Binary Search Tree),也称为 二叉查找树 、二叉搜索树 、有序二叉树或排序二叉树。满足以下几个条件:

  • 若它的左子树不为空,左子树上所有节点的值都小于它的根节点。
  • 若它的右子树不为空,右子树上所有的节点的值都大于它的根节点。
  • 它的左、右子树也都是二分搜索树。
