前言

seata是一款分布式事务解决框架，由阿里巴巴团队开发并开源的项目，目前在分布式系统中应用广泛。
分布式事务是什么呢？seata的源码是怎么实现分布式事务的呢？

分布式事务

针对多个系统、多个数据库要保证数据的原子性、一致性、隔离性、持久性，就是分布式事务。举个例子说：一个购物系统，分为商品服务、订单服务、用户积分服务。用户下单需要先保存订单服务--->扣减商品库存--->累积用户积分。如果只是使用本地事务，则一个服务回滚了其它服务则仍旧会保存成功，所以需要用到分布式事务来处理。

seata源码

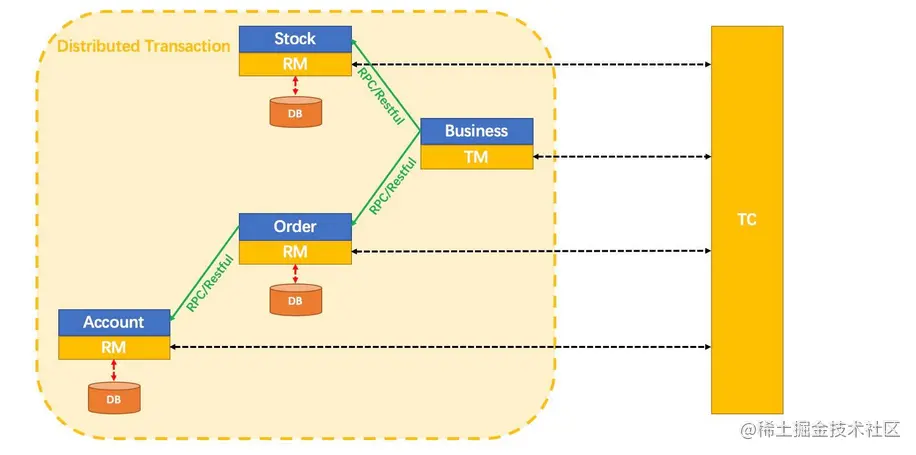

首先看下seata的架构

可见seata中的角色分为三种：

TC:事务协调者，维护全局和分支事务的状态，驱动全局事务提交或者回滚。
TM：事务管理器，定义全局事务的范围，开始全局事务、提交或回滚全局事务。
RM：资源管理器，管理分支事务处理的资源，与TC交谈以注册分支事务和报告分支事务的状态，并驱动分支事务提交或者回滚。

代码实现

首先看下seata的挂载入口 seata是怎样注入进项目中的呢？

在spring中，会将spring.factories文件中的类自动加载进spring容器内

org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
com.alibaba.cloud.seata.rest.SeataRestTemplateAutoConfiguration,\
com.alibaba.cloud.seata.web.SeataHandlerInterceptorConfiguration,\
com.alibaba.cloud.seata.GlobalTransactionAutoConfiguration,\
com.alibaba.cloud.seata.feign.SeataFeignClientAutoConfiguration,\
com.alibaba.cloud.seata.feign.hystrix.SeataHystrixAutoConfiguration

其中GlobalTransactionAutoConfiguration是seata的分布式事务的主要配置类，在这个类中创建了GlobalTransactionScanner，从这个类名都可以看出，它和seata分布式事务的注解扫描有关，这个类的主要功能就是实现InitializingBean，初始化Rmclient、TmClient。它的重点方法wrapIfNecessary

@Override
protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
    if (disableGlobalTransaction) {
        return bean;
    }
    try {
        synchronized (PROXYED_SET) {
            if (PROXYED_SET.contains(beanName)) {
                return bean;
            }
            interceptor = null;
            //check TCC proxy
            if (TCCBeanParserUtils.isTccAutoProxy(bean, beanName, applicationContext)) {
                //TCC interceptor, proxy bean of sofa:reference/dubbo:reference, and LocalTCC
                interceptor = new TccActionInterceptor(TCCBeanParserUtils.getRemotingDesc(beanName));
            } else {
                Class<?> serviceInterface = SpringProxyUtils.findTargetClass(bean);
                Class<?>[] interfacesIfJdk = SpringProxyUtils.findInterfaces(bean);

                if (!existsAnnotation(new Class[]{serviceInterface})
                    && !existsAnnotation(interfacesIfJdk)) {
                    return bean;
                }

                if (interceptor == null) {
                    interceptor = new GlobalTransactionalInterceptor(failureHandlerHook);
                    ConfigurationFactory.getInstance().addConfigListener(ConfigurationKeys.DISABLE_GLOBAL_TRANSACTION, (ConfigurationChangeListener) interceptor);
                }
            }

            LOGGER.info("Bean[{}] with name [{}] would use interceptor [{}]", bean.getClass().getName(), beanName, interceptor.getClass().getName());
            if (!AopUtils.isAopProxy(bean)) {
                bean = super.wrapIfNecessary(bean, beanName, cacheKey);
            } else {
                AdvisedSupport advised = SpringProxyUtils.getAdvisedSupport(bean);
                Advisor[] advisor = buildAdvisors(beanName, getAdvicesAndAdvisorsForBean(null, null, null));
                for (Advisor avr : advisor) {
                    advised.addAdvisor(0, avr);
                }
            }
            PROXYED_SET.add(beanName);
            return bean;
        }
    } catch (Exception exx) {
        throw new RuntimeException(exx);
    }
}

就是对类进行注解扫描，如果含有seata相关的注解则添加代理并绑定一个GlobalTransactionalInterceptor，这个拦截器的重点方法invoke

获取全局事务
向seataServer发送消息，获取xid、开始事务
提交或回滚事务

public Object invoke(final MethodInvocation methodInvocation) throws Throwable {
    Class<?> targetClass = methodInvocation.getThis() != null ? AopUtils.getTargetClass(methodInvocation.getThis())
        : null;
    Method specificMethod = ClassUtils.getMostSpecificMethod(methodInvocation.getMethod(), targetClass);
    final Method method = BridgeMethodResolver.findBridgedMethod(specificMethod);

    final GlobalTransactional globalTransactionalAnnotation = getAnnotation(method, GlobalTransactional.class);
    final GlobalLock globalLockAnnotation = getAnnotation(method, GlobalLock.class);
    if (!disable && globalTransactionalAnnotation != null) {
        return handleGlobalTransaction(methodInvocation, globalTransactionalAnnotation);
    } else if (!disable && globalLockAnnotation != null) {
        return handleGlobalLock(methodInvocation);
    } else {
        return methodInvocation.proceed();
    }
}

而seata是怎么进行事务提交及回滚的呢？实际上seata是对PreparedStatement进行了代理，在sql提交时会对它增强处理执行语句前先备份原始数据，插入undo_log，保存前置镜像、后置镜像方便回滚。

public static <T, S extends Statement> T execute(SQLRecognizer sqlRecognizer,
                                                 StatementProxy<S> statementProxy,
                                                 StatementCallback<T, S> statementCallback,
                                                 Object... args) throws SQLException {

    if (!RootContext.inGlobalTransaction() && !RootContext.requireGlobalLock()) {
        // Just work as original statement
        return statementCallback.execute(statementProxy.getTargetStatement(), args);
    }

    if (sqlRecognizer == null) {
        sqlRecognizer = SQLVisitorFactory.get(
                statementProxy.getTargetSQL(),
                statementProxy.getConnectionProxy().getDbType());
    }
    Executor<T> executor;
    if (sqlRecognizer == null) {
        executor = new PlainExecutor<>(statementProxy, statementCallback);
    } else {
        switch (sqlRecognizer.getSQLType()) {
            case INSERT:
                executor = new InsertExecutor<>(statementProxy, statementCallback, sqlRecognizer);
                break;
            case UPDATE:
                executor = new UpdateExecutor<>(statementProxy, statementCallback, sqlRecognizer);
                break;
            case DELETE:
                executor = new DeleteExecutor<>(statementProxy, statementCallback, sqlRecognizer);
                break;
            case SELECT_FOR_UPDATE:
                executor = new SelectForUpdateExecutor<>(statementProxy, statementCallback, sqlRecognizer);
                break;
            default:
                executor = new PlainExecutor<>(statementProxy, statementCallback);
                break;
        }
    }
    T rs;
    try {
        rs = executor.execute(args);
    } catch (Throwable ex) {
        if (!(ex instanceof SQLException)) {
            // Turn other exception into SQLException
            ex = new SQLException(ex);
        }
        throw (SQLException)ex;
    }
    return rs;
}
