首页背景利用HTML5 CANVAS画布布局点状连线动画

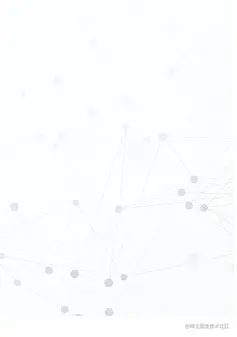

因业务需求,首页背景虚化添加点状布局连接动画(部分截图)

animation子组件

const initAnimation = () => {
  // 可调参数
  const BACKGROUND_COLOR = 'rgba(255,255,255,1)'; // 背景颜色
  const POINT_NUM = 80; // 星星数目
  const POINT_COLOR = 'rgba(38,148,185,0.4)'; // 点的颜色
  const LINE_LENGTH = 20000; // 点之间连线长度(的平方)

  // 创建背景画布
  const cvs = document.createElement('canvas');
  cvs.width = window.innerWidth;
  cvs.height = window.innerHeight;
  cvs.style.cssText = '\
position:fixed;\
top:0px;\
left:0px;\
z-index:-1;\
opacity:1.0;\
';
  document.querySelector('.homePage').appendChild(cvs);

  const ctx = cvs.getContext('2d');

  const startTime = new Date().getTime();

  // 随机数函数
  function randomInt(min, max) {
    return Math.floor((max - min + 1) * Math.random() + min);
  }

  function randomFloat(min, max) {
    return (max - min) * Math.random() + min;
  }

  // 构造点类
  function Point() {
    this.x = randomFloat(0, cvs.width);
    this.y = randomFloat(0, cvs.height);

    const speed = randomFloat(0.3, 1.4);
    const angle = randomFloat(0, 2 * Math.PI);

    this.dx = Math.sin(angle) * speed;
    this.dy = Math.cos(angle) * speed;

    this.r = 10;

    this.color = POINT_COLOR;
  }

  Point.prototype.move = function () {
    this.x += this.dx;
    if (this.x < 0) {
      this.x = 0;
      this.dx = -this.dx;
    } else if (this.x > cvs.width) {
      this.x = cvs.width;
      this.dx = -this.dx;
    }
    this.y += this.dy;
    if (this.y < 0) {
      this.y = 0;
      this.dy = -this.dy;
    } else if (this.y > cvs.height) {
      this.y = cvs.height;
      this.dy = -this.dy;
    }
  };

  Point.prototype.draw = function () {
    ctx.fillStyle = this.color;
    ctx.beginPath();
    ctx.arc(this.x, this.y, this.r, 0, Math.PI * 2);
    ctx.closePath();
    ctx.fill();
  };

  const points = [];

  function initPoints(num) {
    for (let i = 0; i < num; ++i) {
      points.push(new Point());
    }
  }

  const p0 = new Point(); // 鼠标
  p0.dx = p0.dy = 0;
  let degree = 2.5;
  document.onmousemove = function (ev) {
    p0.x = ev.clientX;
    p0.y = ev.clientY;
  };
  document.onmousedown = function (ev) {
    degree = 5.0;
    p0.x = ev.clientX;
    p0.y = ev.clientY;
  };
  document.onmouseup = function (ev) {
    degree = 2.5;
    p0.x = ev.clientX;
    p0.y = ev.clientY;
  };
  window.onmouseout = function () {
    p0.x = null;
    p0.y = null;
  };

  function drawLine(p1, p2, deg) {
    const dx = p1.x - p2.x;
    const dy = p1.y - p2.y;
    const dis2 = dx * dx + dy * dy;
    if (dis2 < 2 * LINE_LENGTH) {
      if (dis2 > LINE_LENGTH) {
        if (p1 === p0) {
          p2.x += dx * 0.03;
          p2.y += dy * 0.03;
        } else return;
      }
      const t = (1.05 - dis2 / LINE_LENGTH) * 0.2 * deg;
      ctx.strokeStyle = `rgba(38,148,185,${t})`;
      ctx.beginPath();
      ctx.lineWidth = 1.5;
      ctx.moveTo(p1.x, p1.y);
      ctx.lineTo(p2.x, p2.y);
      ctx.closePath();
      ctx.stroke();
    }
  }

  // 绘制每一帧
  function drawFrame() {
    cvs.width = window.innerWidth;
    cvs.height = window.innerHeight;
    ctx.fillStyle = BACKGROUND_COLOR;
    ctx.fillRect(0, 0, cvs.width, cvs.height);

    const arr = p0.x == null ? points : [p0].concat(points);
    for (let i = 0; i < arr.length; ++i) {
      for (let j = i + 1; j < arr.length; ++j) {
        drawLine(arr[i], arr[j], 1.0);
      }
      arr[i].draw();
      arr[i].move();
    }

    window.requestAnimationFrame(drawFrame);
  }

  initPoints(POINT_NUM);
  drawFrame();
};
export default initAnimation;

父组件

import animation from './animation';
  mounted(): void {
    animation();
  }
