简介
flyway 用来做数据库版本控制，也可以说是数据迁移。
场景
以前公司里面有关于数据库表或者数据更新的情况时，使用手动执行某段SQL，或者某段脚本来进行数据库变更，现在我们可以用过flyway自动执行，省去中间一些容易出现问题的环节。
使用
导入flyway包
// gradle 方式
// https://mvnrepository.com/artifact/org.flywaydb/flyway-core
implementation group: 'org.flywaydb', name: 'flyway-core', version: '8.5.12'
// maven 方式
<dependency>
<groupId>org.flywaydb</groupId>
<artifactId>flyway-core</artifactId>
<version>8.5.12</version>
</dependency>
spring boot 配置文件
spring:
datasource:
driver-class-name: org.postgresql.Driver
type: com.zaxxer.hikari.HikariDataSource
url: jdbc:postgresql://127.0.0.1:54322/postgres
username: postgres
password: 123456
flyway:
# 开启flyway，也可以关闭
enabled: true
# 默认位置 /db/migrations, 可以自行设置文件夹, 多个路径用逗号分割
locations: classpath:/db/migrations
# 开发开启，生产关闭
out-of-order: true
# 设置flyway在数据库中迁移的表名, 默认flyway_schema_history
table: flyway_schema_history
# 设置受到flyway 管理的schema，可以是多个，但是只会在datasrouce url连接上的schema执行迁移脚本
schemas: public

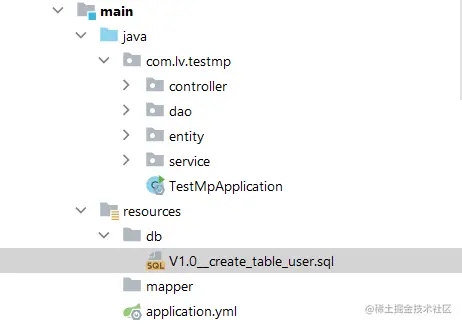

添加sql脚本
除了SQL脚本，还支持Java文件方式，不做讨论
迁移文件版本号规则,前缀还支持 U、R 不做讨论
我们来看一下SQL脚本
create table users (
id bigint not null,
name varchar(50) not null,
email varchar(50) not null,
mobile varchar(20) not null,
age int2 not null,
address varchar(50) not null,
create_time timestamp not null,
last_update_time timestamp not null,
constraint users_pkey primary key (id)
);
create unique index idx_users_01 on users(name);
insert into users values (1, 'test', 'test@163.com', '18000001111', 18, 'Beijing', current_timestamp, current_timestamp);
启动服务
2022-06-13 14:23:40.059 INFO 28640 --- [ main] com.lv.testmp.TestMpApplication : The following 1 profile is active: "local"
2022-06-13 14:23:41.408 WARN 28640 --- [ main] o.m.s.mapper.ClassPathMapperScanner : No MyBatis mapper was found in '[com.lv.testmp.dao.mapper]' package. Please check your configuration.
2022-06-13 14:23:42.193 INFO 28640 --- [ main] o.s.b.w.embedded.tomcat.TomcatWebServer : Tomcat initialized with port(s): 9001 (http)
2022-06-13 14:23:42.209 INFO 28640 --- [ main] o.apache.catalina.core.StandardService : Starting service [Tomcat]
2022-06-13 14:23:42.209 INFO 28640 --- [ main] org.apache.catalina.core.StandardEngine : Starting Servlet engine: [Apache Tomcat/9.0.63]
2022-06-13 14:23:42.476 INFO 28640 --- [ main] o.a.c.c.C.[Tomcat].[localhost].[/] : Initializing Spring embedded WebApplicationContext
2022-06-13 14:23:42.476 INFO 28640 --- [ main] w.s.c.ServletWebServerApplicationContext : Root WebApplicationContext: initialization completed in 2291 ms
_ _ |_ _ _|_. ___ _ | _
| | |\/|_)(_| | |_\ |_)||_|_\
/ |
3.5.2
2022-06-13 14:23:45.270 INFO 28640 --- [ main] o.f.c.internal.license.VersionPrinter : Flyway Community Edition 8.5.12 by Redgate
2022-06-13 14:23:45.270 INFO 28640 --- [ main] o.f.c.internal.license.VersionPrinter : See what's new here: https://flywaydb.org/documentation/learnmore/releaseNotes#8.5.12
2022-06-13 14:23:45.270 INFO 28640 --- [ main] o.f.c.internal.license.VersionPrinter :
2022-06-13 14:23:45.270 INFO 28640 --- [ main] com.zaxxer.hikari.HikariDataSource : HikariPool-1 - Starting...
2022-06-13 14:23:45.478 INFO 28640 --- [ main] com.zaxxer.hikari.HikariDataSource : HikariPool-1 - Start completed.
2022-06-13 14:23:45.501 INFO 28640 --- [ main] o.f.c.i.database.base.BaseDatabaseType : Database: jdbc:postgresql://127.0.0.1:54322/postgres (PostgreSQL 14.3)
2022-06-13 14:23:45.562 INFO 28640 --- [ main] o.f.core.internal.command.DbValidate : Successfully validated 1 migration (execution time 00:00.028s)
2022-06-13 14:23:45.581 INFO 28640 --- [ main] o.f.core.internal.command.DbMigrate : Current version of schema "public": << Empty Schema >>
2022-06-13 14:23:45.582 WARN 28640 --- [ main] o.f.core.internal.command.DbMigrate : outOfOrder mode is active. Migration of schema "public" may not be reproducible.
2022-06-13 14:23:45.607 INFO 28640 --- [ main] o.f.core.internal.command.DbMigrate : Migrating schema "public" to version "1.0 - create table user"
2022-06-13 14:23:45.673 INFO 28640 --- [ main] o.f.core.internal.command.DbMigrate : Successfully applied 1 migration to schema "public", now at version v1.0 (execution time 00:00.103s)
2022-06-13 14:23:45.831 INFO 28640 --- [ main] o.s.b.w.embedded.tomcat.TomcatWebServer : Tomcat started on port(s): 9001 (http) with context path ''
2022-06-13 14:23:45.852 INFO 28640 --- [ main] com.lv.testmp.TestMpApplication : Started TestMpApplication in 6.828 seconds (JVM running for 9.341)
可以看到这行日志：Successfully applied 1 migration to schema "public", now at version v1.0 (execution time 00:00.103s)
注意
迁移脚本命名一定要遵循命名规则，大部分人倒在了这一步
