【文件仓库】使用Docker快速搭建fastDFS并配置防盗链

313 阅读2分钟

背景

因为不想购买对象储存服务(要收费,公司不让),把文件直接放在后端服务器上好像又不是那么方便的管理

so

直接使用开源的文件管理系统,我用的是fastDFS(我这边是使用单台storage示例)

搭建fastDFS

这里我使用的是docker进行搭建,当然也可以使用二进制去make然后再运行对应的linux程序

pull docker image

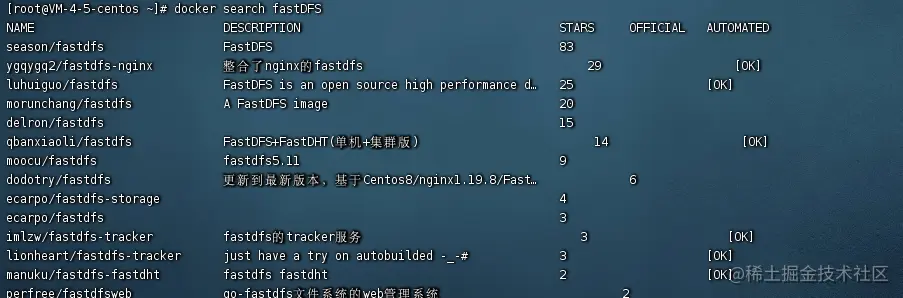

docker search fastdfs


这里我使用的是 delron/fastdfs

docker pull delron/fastdfs

创建挂载的文件夹

mkdir /usr/fdfs/tracker
mkdir /usr/fdfs/storage

运行镜像

先运行tracker,tracker 是跟踪服务器,起调度作用

docker run -dti --network=host --name fdfs-tracker -v /var/fdfs/tracker:/var/fdfs -v /etc/localtime:/etc/localtime delron/fastdfs tracker

使用 --network=host,此时,Docker 容器的网络会附属在主机上,两者是互通的。

运行storage

docker run -dti  --network=host --name fdfs-storage -e TRACKER_SERVER={{IP}}:22122 -v /var/fdfs/storage:/var/fdfs  -v /etc/localtime:/etc/localtime delron/fastdfs storage

-v /etc/localtime:/etc/localtime 的目的是让容器时区和宿主时区一致

确认时间是否一致,开启防盗链之后需要时间有效期

docker exec -it {{storageImageId}} /bin/bash
date

修改storage内的开启防盗链并配置过期时间、加密key

docker exec -it {{storageImageId}} /bin/bash
vi /etc/fdfs/http.conf

修改其中的

http.anti_steal.check_token=true
http.anti_steal.token_ttl=1800
http.anti_steal.secret_key=FastDFS1234567890
http.anti_steal.token_check_fail=/var/fdfs/data/00/00/error.png

需要先上传一个文件到 挂载的data仓库内去

  • check_token 修改false -> true,启动token确认

  • token_ttl 防盗链时效

  • secret_key 加密key

  • token_check_fail 校验失败时,返回的文件

这时候访问文件如果没携带?token=xxx&ts=xxxx会返回nginx的400 badRequest,如果token验证失败,会返回配置的token_check_fail文件

java生成访问token

<dependency>
    <groupId>org.csource</groupId>
    <artifactId>fastdfs-client-java</artifactId>
    <version>1.29-SNAPSHOT</version>
</dependency>

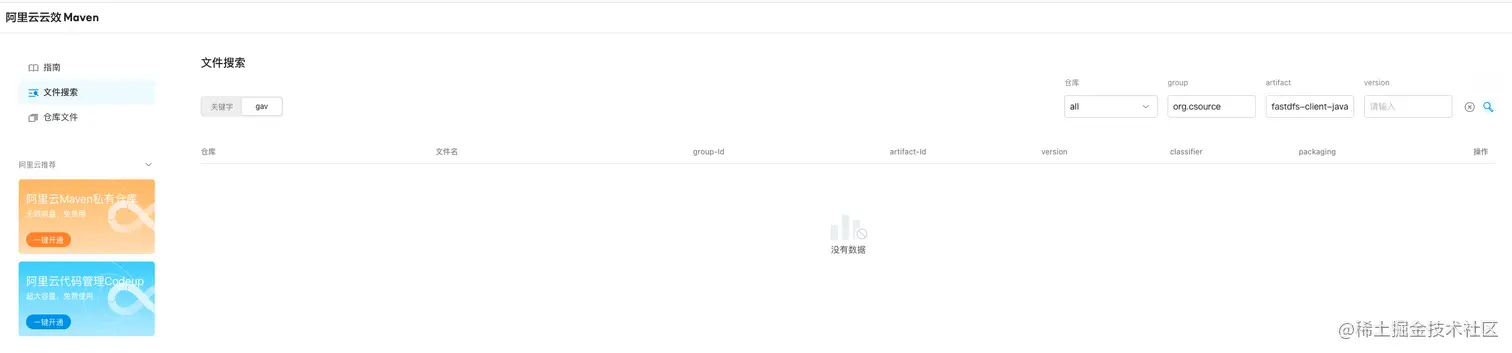

这时候你会发现,拉不到包 不要怀疑,阿里仓库也没有


解决方案: git clone github.com/happyfish10…

(超时的话,就去下载zip 然后解压,并且需要账号jdk配置好maven)

进到下载的文件中 mvn clean install

如果报错 6或7版本啥的,在pom里将

<jdk.version>1.6</jdk.version>
修改成
<jdk.version>1.8</jdk.version>

然后可以选择打入私服或者本地引用(放lib systemPath)

ProtoCommon.getToken(fileUrl, ts, secretKey);

其中file url是指上传完后 bucket(group1)后的地址 M00/00/00/xxxx.xx

private static String secretKey="FastDFS1234567890";

//容器默认的nginx的端口是8888
private static String remoteUrl="http://xxx.xxx.xxx.xxx:8888";

public static String getTokenUrl(String group, String remoteFile) throws UnsupportedEncodingException, NoSuchAlgorithmException, MyException {
    int ts = (int) (System.currentTimeMillis()/1000);
    String token = ProtoCommon.getToken(remoteFile, ts, secretKey);
    StringBuffer url = new StringBuffer(remoteUrl);
    url.append("/")
            .append(group)
            .append("/")
            .append(remoteFile)
            .append("?")
            .append("token=")
            .append(token)
            .append("&ts=")
            .append(ts);
    return url.toString();
}

然后赶紧把任务todo打上勾☑️,日报写上可以 开始合理休(mo)息(yu)了 ~
