使用步骤
1 引入: import barlineCharts from "@/views/carbon/components/DataEcharts/barlineCharts.vue";
2 注册： components: { barlineCharts },
3 页面引用 : <barlineCharts ref="blCharts" />
4 调用方法将值传入组件：`this.$refs.blCharts.initPage(data);`
5 组件接受参数 1: ChartsWidth 图表宽度 (字符串类型)默认 100%; 2:ChartsHeight 图表高度 (字符串类型)默认 500px
调用组件代码
<template>
<div>
<barlineCharts ref="blCharts" />
</div>
</template>
<script>
import barlineCharts from "@/views/carbon/components/DataEcharts/barlineCharts.vue";
export default {
components: { barlineCharts },
mounted() {
this.initCharts();
},
methods: {
initCharts() {
let testData = {
message: "SUCCESS",
data: {
xlist: [2001, 2002, 2003, 2004, 2005],
dataList: [
{
ylist: ["-", "666", "199", "213", "-"],
name: "第一消费产业(hwh)"
},
{
ylist: ["200", "-112", "12", "333", "45"],
name: "第二消费产业(kWh)"
},
{
ylist: ["110", "122", "-132", "112", "123"],
name: "人均社会用电量(hwh)"
}
]
}
};
this.$refs.blCharts.initPage(testData.data); //调用组件内方法且传值
}
}
};
</script>
<style></style>

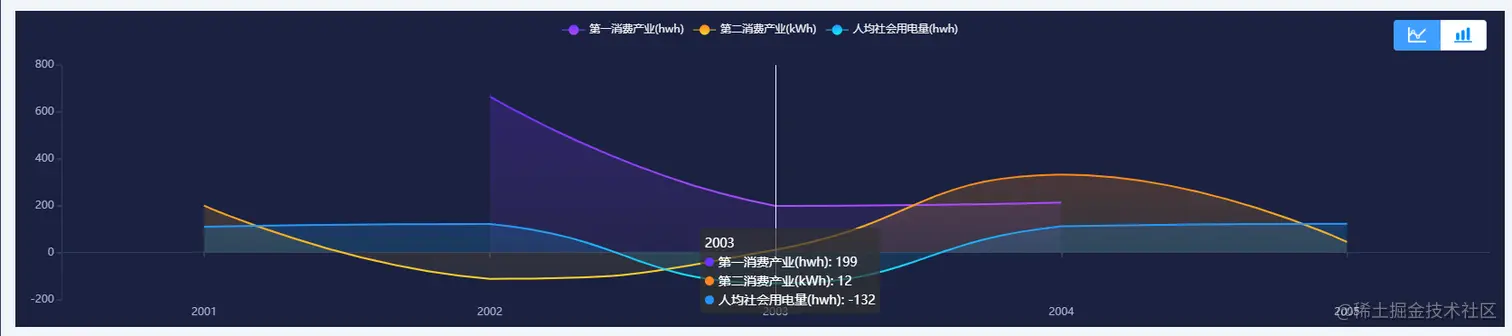

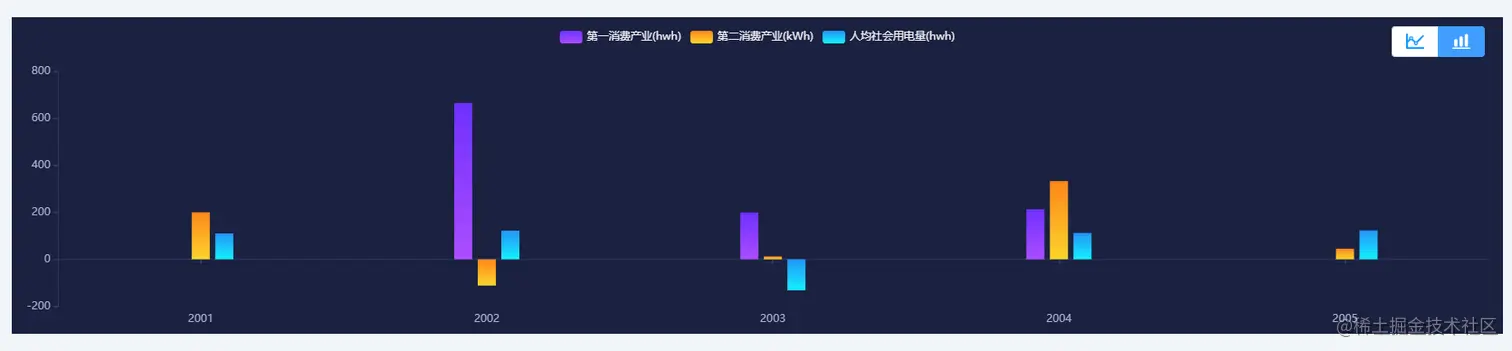

组件代码包含图片,如不需要可以看下面简洁版
<template>
<!-- // 柱状图和折线图切换的图标组件 -->
<div class="chartsbox ">
<el-radio-group
v-model="chartVal"
size="mini"
class="changeChart"
@change="onChange"
>
<el-radio-button label="line"
><img class="iconImg" v-if="chartVal == 'line'" :src="lines"/><img
v-else
class="iconImg"
:src="line"
/></el-radio-button>
<el-radio-button label="bar"
><img class="iconImg" v-if="chartVal == 'bar'" :src="bar"/><img
v-else
class="iconImg"
:src="bars"
/></el-radio-button>
</el-radio-group>
<div
ref="barLineDom"
:style="{ width: ChartsWidth, height: ChartsHeight + 'px' }"
></div>
</div>
</template>
<script>
import echarts from "echarts";
export default {
name: "barlineCharts",
props: {
// 组件宽度 100%
ChartsWidth: {
type: String,
default: "100%"
},
// 组件高度 默认500
ChartsHeight: {
type: String,
default: "350"
}
},
data() {
return {
myChart: "",
line: require("@/assets/images/zxt22.png"),
bar: require("@/assets/images/zzt22.png"),
lines: require("@/assets/images/zxt11.png"),
bars: require("@/assets/images/zzt11.png"),
chartVal: "bar",
sysData: ""
};
},
// beforeDestroy() {
// this.myChart && echarts.dispose(this.myChart);
// this.myChart = null;
// },
methods: {
onChange(e) {
this.initPage(this.sysData, this.chartVal);
},
// 初始化页面&处理数据
initPage(sysData, type = "bar") {
this.sysData = sysData;
// console.log(data);
console.log(sysData);
let legendData = [];
let seriesData = [];
let color1 = ["#6F30FF", "#FF861B", "#2393FA"];
let color2 = ["#AB4DFF", "#FAD52C", "#15F1FC"];
const hexToRgba = (hex, opacity) => {
let rgbaColor = "";
let reg = /^#[\da-f]{6}$/i;
if (reg.test(hex)) {
rgbaColor = `rgba(${parseInt("0x" + hex.slice(1, 3))},${parseInt(
"0x" + hex.slice(3, 5)
)},${parseInt("0x" + hex.slice(5, 7))},${opacity})`;
}
return rgbaColor;
};
sysData.dataList.forEach((element, index) => {
legendData.push(element.name);
let seriesDataItem = {
name: element.name,
type: type,
barWidth: 20,
smooth: true, //折现平滑的曲线
symbol: "none",
data: element.ylist,
color: new echarts.graphic.LinearGradient(0, 0, 0, 1, [
{
offset: 0,
color: color1[index % color1.length]
},
{
offset: 1,
color: color2[index % color2.length]
}
]),
areaStyle: {
// 折现下是否填充
color: {
type: "linear",
x: 0,
y: 0,
x2: 0,
y2: 1,
colorStops: [
{
offset: 0,
color: hexToRgba(color1[index % color1.length], 0.3)
},
{
offset: 1,
color: hexToRgba(color2[index % color2.length], 0.1)
}
],
global: false
}
}
};
seriesData.push(seriesDataItem);
this.initCharts(legendData, sysData.xlist, seriesData);
});
},
// 初始化echarts
initCharts(legendData, xAxisData, seriesData) {
// legendData 图例数据 xAxisData X轴数据 seriesData数据
let chartsColorType = "dark"; //图表颜色类型默认暗色系
//获取dom初始化echarts
this.myChart = echarts.init(this.$refs.barLineDom, chartsColorType);
let option = {
color: ["#8640FF", "#FCA103", "#4CB2FC"],
backgroundColor: "#1A2140",
// 鼠标悬停
tooltip: {
trigger: "axis",
//触发类型；轴触发，axis则鼠标hover到一条柱状图显示全部数据，item则鼠标hover到折线点显示相应数据
xisPointer: {
//坐标轴指示器，坐标轴触发有效，
type: "line" //默认为line，line直线，cross十字准星，shadow阴影
}
},
legend: {
top: 10,
data: legendData
},
grid: {
left: "1%",
right: "1%",
bottom: "3%",
containLabel: true
},
xAxis: {
type: "category",
data: xAxisData,
axisTick: {
//x轴刻度值配置
show: true,
alignWithLabel: true, //柱状图在刻度值上剧中显示
lineStyle: {
color: "#2F3961",
width: 2
}
},
axisLine: {
//x轴线的颜色
show: true,
lineStyle: {
color: "#2F3961"
}
},
axisLabel: {
//x轴文字颜色
textStyle: {
show: true,
color: "#A9B0CE"
}
}
},
yAxis: {
type: "value",
splitLine: {
show: false
},
axisLine: {
//x轴线的颜色
show: true,
lineStyle: {
color: "#2F3961"
}
},
axisLabel: {
// y轴文字颜色
textStyle: {
show: true,
color: "#A9B0CE"
}
},
axisTick: {
//y轴刻度线的颜色
show: true,
alignWithLabel: true,
lineStyle: {
color: "#2F3961",
width: 2
}
}
},
series: seriesData
};
this.myChart.setOption(option);
}
}
};
</script>
<style lang="scss" scoped>
.chartsbox {
position: relative;
.chartBox {
width: 100%;
height: 400px;
padding-right: 55px;
}
.noData {
line-height: 400px;
text-align: center;
color: #ccc;
font-size: 16px;
}
.changeChart {
position: absolute;
right: 20px;
top: 10px;
z-index: 100;
}
.iconImg {
width: 20px;
height: 17px;
}
}
</style>
简单版 去掉切换图片
<template>
<!-- // 柱状图和折线图切换的图标组件 -->
<div>
<div
ref="barLineDom"
:style="{ width: ChartsWidth, height: ChartsHeight + 'px' }"
></div>
</div>
</template>
<script>
import echarts from "echarts";
export default {
name: "barlineCharts",
props: {
// 组件宽度 100%
ChartsWidth: {
type: String,
default: "100%"
},
// 组件高度 默认350
ChartsHeight: {
type: String,
default: "350"
}
},
data() {
return {
myChart: "",
};
},
methods: {
// 初始化页面&处理数据
initPage(sysData) {
let legendData = [];
let seriesData = [];
let color1 = ["#6F30FF", "#FF861B", "#2393FA"];
let color2 = ["#AB4DFF", "#FAD52C", "#15F1FC"];
const hexToRgba = (hex, opacity) => {
let rgbaColor = "";
let reg = /^#[\da-f]{6}$/i;
if (reg.test(hex)) {
rgbaColor = `rgba(${parseInt("0x" + hex.slice(1, 3))},${parseInt(
"0x" + hex.slice(3, 5)
)},${parseInt("0x" + hex.slice(5, 7))},${opacity})`;
}
return rgbaColor;
};
sysData.dataList.forEach((element, index) => {
legendData.push(element.name);
let seriesDataItem = {
name: element.name,
type: 'bar',
barWidth: 20,
smooth: true, //折现平滑的曲线
symbol: "none",
data: element.ylist,
color: new echarts.graphic.LinearGradient(0, 0, 0, 1, [
{
offset: 0,
color: color1[index % color1.length]
},
{
offset: 1,
color: color2[index % color2.length]
}
]),
areaStyle: {
// 折现下是否填充
color: {
type: "linear",
x: 0,
y: 0,
x2: 0,
y2: 1,
colorStops: [
{
offset: 0,
color: hexToRgba(color1[index % color1.length], 0.3)
},
{
offset: 1,
color: hexToRgba(color2[index % color2.length], 0.1)
}
],
global: false
}
}
};
seriesData.push(seriesDataItem);
this.initCharts(legendData, sysData.xlist, seriesData);
});
},
// 初始化echarts
initCharts(legendData, xAxisData, seriesData) {
// legendData 图例数据 xAxisData X轴数据 seriesData数据
let chartsColorType = "dark"; //图表颜色类型默认暗色系
//获取dom初始化echarts
this.myChart = echarts.init(this.$refs.barLineDom, chartsColorType);
let option = {
color: ["#8640FF", "#FCA103", "#4CB2FC"],
backgroundColor: "#1A2140",
// 鼠标悬停
tooltip: {
trigger: "axis",
//触发类型；轴触发，axis则鼠标hover到一条柱状图显示全部数据，item则鼠标hover到折线点显示相应数据
xisPointer: {
//坐标轴指示器，坐标轴触发有效，
type: "line" //默认为line，line直线，cross十字准星，shadow阴影
}
},
legend: {
top: 10,
data: legendData
},
grid: {
left: "1%",
right: "1%",
bottom: "3%",
containLabel: true
},
xAxis: {
type: "category",
data: xAxisData,
axisTick: {
//x轴刻度值配置
show: true,
alignWithLabel: true, //柱状图在刻度值上剧中显示
lineStyle: {
color: "#2F3961",
width: 2
}
},
axisLine: {
//x轴线的颜色
show: true,
lineStyle: {
color: "#2F3961"
}
},
axisLabel: {
//x轴文字颜色
textStyle: {
show: true,
color: "#A9B0CE"
}
}
},
yAxis: {
type: "value",
splitLine: {
show: false
},
axisLine: {
//x轴线的颜色
show: true,
lineStyle: {
color: "#2F3961"
}
},
axisLabel: {
// y轴文字颜色
textStyle: {
show: true,
color: "#A9B0CE"
}
},
axisTick: {
//y轴刻度线的颜色
show: true,
alignWithLabel: true,
lineStyle: {
color: "#2F3961",
width: 2
}
}
},
series: seriesData
};
this.myChart.setOption(option);
}
}
};
</script>
<style>
</style>
