自动化流程初始创建

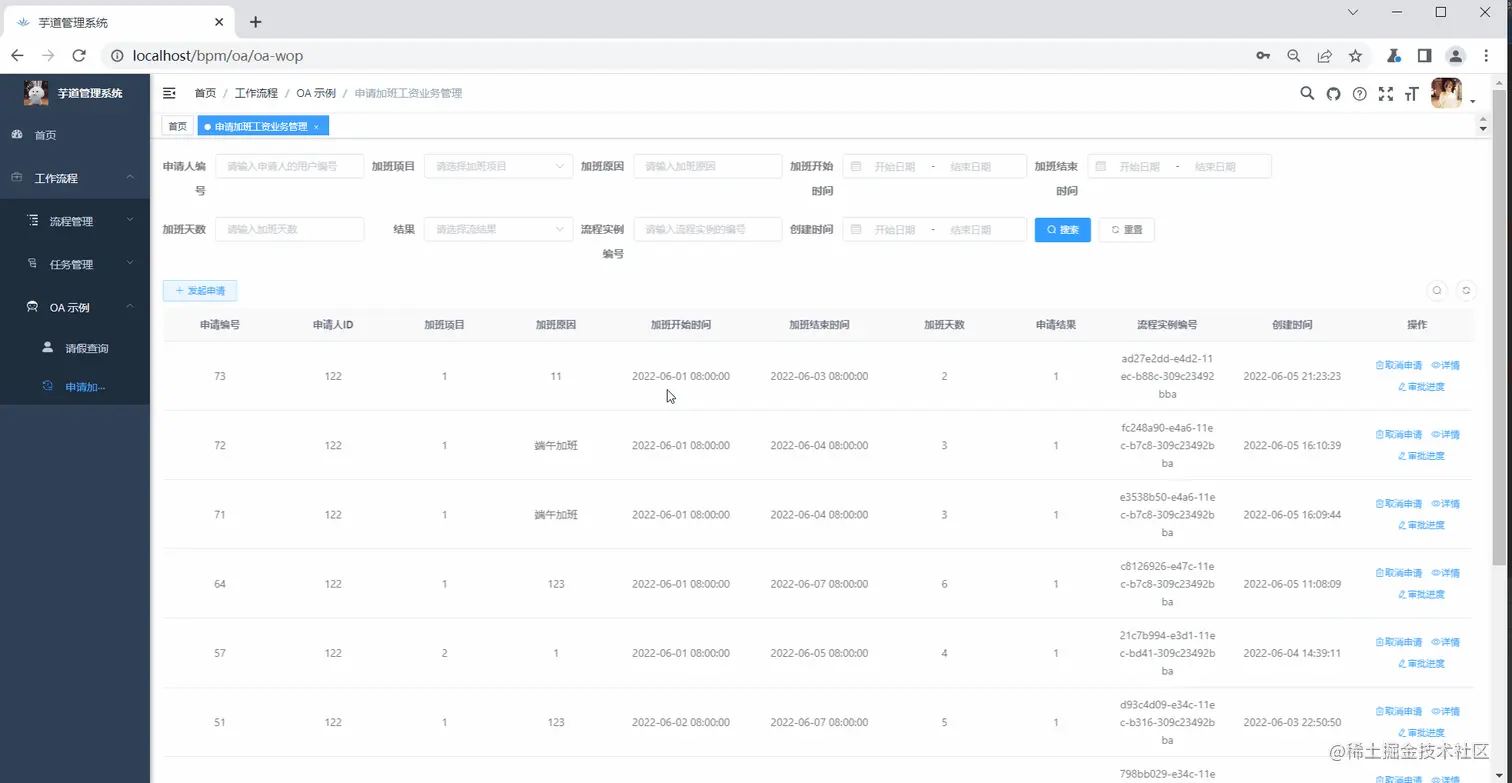

登录研发角色账号，进行流程的申请创建，下面是调用审批接口的业务代码。主要利用flowable的api runtimeService发起流程实例，然后更新业务拓展表。这里有flowable的api文档，感兴趣的也可以参考下。
private String createProcessInstance0(Long userId, ProcessDefinition definition,
Map<String, Object> variables, String businessKey) {
// 校验流程定义
if (definition == null) {
throw exception(PROCESS_DEFINITION_NOT_EXISTS);
}
if (definition.isSuspended()) {
throw exception(PROCESS_DEFINITION_IS_SUSPENDED);
}
// 创建流程实例
ProcessInstance instance = runtimeService.startProcessInstanceById(definition.getId(), businessKey, variables);
// 设置流程名字
runtimeService.setProcessInstanceName(instance.getId(), definition.getName());
// 补全流程实例的拓展表
processInstanceExtMapper.updateByProcessInstanceId(new BpmProcessInstanceExtDO().setProcessInstanceId(instance.getId())
.setFormVariables(variables));
return instance.getId();
}
runtimeService.startProcessInstanceById 这个是基于流程定义ID和自定义业务Key以及流程过程中使用的变量（会持久化表中）进行创建新的流程实例，debug看下这个方法如何创建一个新的实例. debug的时候AcquireTimerJobsRunnable
@Bean
public EngineConfigurationConfigurer<SpringProcessEngineConfiguration> bpmProcessEngineConfigurationConfigurer(
ObjectProvider<FlowableEventListener> listeners,
BpmActivityBehaviorFactory bpmActivityBehaviorFactory) {
return configuration -> {
// 注册监听器，例如说 BpmActivitiEventListener
configuration.setEventListeners(ListUtil.toList(listeners.iterator()));
// 设置 ActivityBehaviorFactory 实现类，用于流程任务的审核人的自定义
configuration.setActivityBehaviorFactory(bpmActivityBehaviorFactory);
configuration.setAsyncExecutorActivate(false); // 关掉异步定时调度
};
}
创建流程源码分析

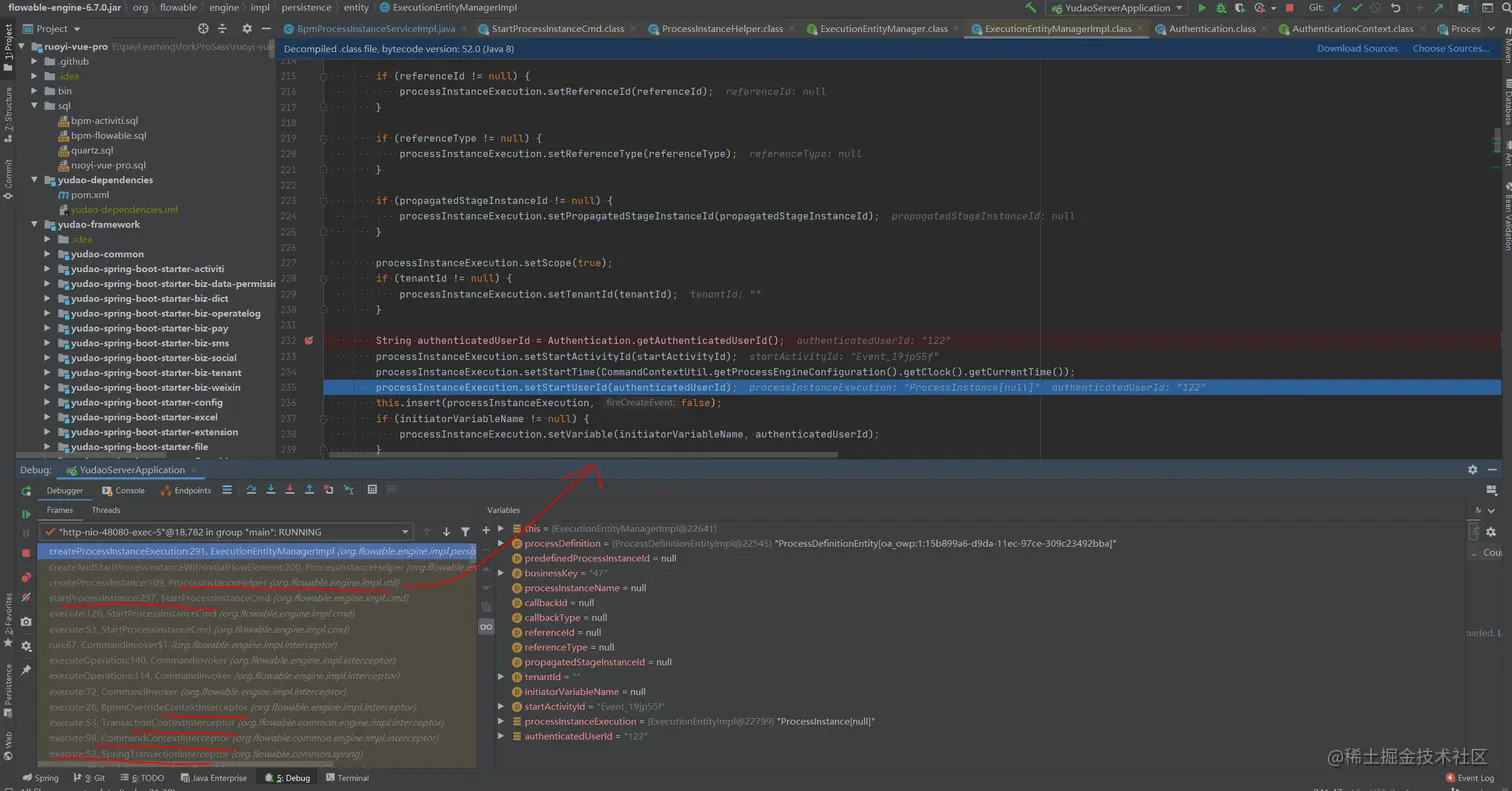

造好申请数据，debug进入startProcessInstanceById 这个方法的流程，首先，所有的api都会被CommandExecutorImpl被当作命令去执行，经过设初始化好的拦截器。第一是进入设定的拦截器，包括LogInterceptor（打印日志）、SpringTransactionInterceptor （spring事务设置和继承）、CommandContextInterceptor（api执行上下文）、TransactionContextInterceptor、BpmnOverrideContextInterceptor（真正的命令执行调用）。这里也可以自定义拦截器。
初步执行完拦截器后会进行真正的命令调用，命令调用由agenda来控制流程命令api调用
// 队列命令执行流程操作 很多命令都是调用上面这一套来初始化上下文 这里首先是StartProcessInstanceCmd@21584
protected void executeOperations(CommandContext commandContext) {
FlowableEngineAgenda agenda = CommandContextUtil.getAgenda(commandContext);
while(!agenda.isEmpty()) {
Runnable runnable = agenda.getNextOperation();
this.executeOperation(commandContext, runnable);
}
}
然后，真正进行创建流程实例，调用ProcessInstanceHelper的createAndStartProcessInstanceWithInitialFlowElement来创建实例，如下所示，里面逻辑较多
public ProcessInstance createAndStartProcessInstanceWithInitialFlowElement(ProcessDefinition processDefinition...) {
CommandContext commandContext = Context.getCommandContext();
...
// 1.创建开始事件context
StartProcessInstanceBeforeContext startInstanceBeforeContext = new StartProcessInstanceBeforeContext(businessKey..);
...
ProcessEngineConfigurationImpl processEngineConfiguration = CommandContextUtil.getProcessEngineConfiguration(commandContext);
...
// 2.插入开始节点的流程实例数据 先保存在jvm缓存中 后续在ACT_RU_EXECUTION表中插入
ExecutionEntity processInstance = processEngineConfiguration.getExecutionEntityManager().createProcessInstanceExecution(startInstanceBeforeContext.getProcessDefinition()...);
// 3.记录实例历史节点数据 先保存在jvm缓存中 后续在ACT_HI_PROCINST表中插入
processEngineConfiguration.getHistoryManager().recordProcessInstanceStart(processInstance);
if (processEngineConfiguration.isLoggingSessionEnabled()) {
BpmnLoggingSessionUtil.addLoggingData("processStarted", "Started process instance with id " + processInstance.getId(), processInstance);
}
// 4.分发事件给自定义的监听器（代码自定义） 实现了AbstractFlowableEngineEventListener类 这里时PROCESS_CREATED 事件
FlowableEventDispatcher eventDispatcher = processEngineConfiguration.getEventDispatcher();
boolean eventDispatcherEnabled = eventDispatcher != null && eventDispatcher.isEnabled();
if (eventDispatcherEnabled) {
eventDispatcher.dispatchEvent(FlowableEventBuilder.createEntityEvent(FlowableEngineEventType.PROCESS_CREATED, processInstance), processEngineConfiguration.getEngineCfgKey());
}
// 5.存下创建流程时自定义的变量 会存入对应的流程变量表中ACT_RU_VARIABLE 创建变量时也有变量通知事件
processInstance.setVariables(this.processDataObjects(process.getDataObjects()));
if (startInstanceBeforeContext.getVariables() != null) {
Iterator var24 = startInstanceBeforeContext.getVariables().keySet().iterator();
while(var24.hasNext()) {
String varName = (String)var24.next();
processInstance.setVariable(varName, startInstanceBeforeContext.getVariables().get(varName));
}
}
// 6.临时变量，不落表保存
if (startInstanceBeforeContext.getTransientVariables() != null) {
Object eventInstance = startInstanceBeforeContext.getTransientVariables().get("eventInstance");
if (eventInstance instanceof EventInstance) {
EventInstanceBpmnUtil.handleEventInstanceOutParameters(processInstance, startInstanceBeforeContext.getInitialFlowElement(), (EventInstance)eventInstance);
}
Iterator var29 = startInstanceBeforeContext.getTransientVariables().keySet().iterator();
while(var29.hasNext()) {
String varName = (String)var29.next();
processInstance.setTransientVariable(varName, startInstanceBeforeContext.getTransientVariables().get(varName));
}
}
// 7. 分发ENTITY_INITIALIZED事件给FlowableEventBuilder监听器，这个是创建流程的时候设置的监听器
if (eventDispatcherEnabled) {
eventDispatcher.dispatchEvent(FlowableEventBuilder.createEntityWithVariablesEvent(FlowableEngineEventType.ENTITY_INITIALIZED, processInstance, startInstanceBeforeContext.getVariables(), false), processEngineConfiguration.getEngineCfgKey());
}
// 8.创建一个子流程实例，其中父流程实例ID会被记录 为什么要创建一个子流程实例呢？留下一个疑问，后续继续看源码
ExecutionEntity execution = processEngineConfiguration.getExecutionEntityManager().createChildExecution(processInstance);
execution.setCurrentFlowElement(startInstanceBeforeContext.getInitialFlowElement());
processEngineConfiguration.getActivityInstanceEntityManager().recordActivityStart(execution);
// 9.因为是开始节点，所以会接着寻找下一节点
// 会通过 CommandContextUtil.getAgenda(commandContext).planContinueProcessOperation(execution);来继续执行下一节点
// 简单来说是加入一个执行队列，不断从里面那任务来执行，前面有提到
if (startProcessInstance) {
this.startProcessInstance(processInstance, commandContext, startInstanceBeforeContext.getVariables());
}
if (callbackId != null) {
this.callCaseInstanceStateChangeCallbacks(commandContext, processInstance, (String)null, "running");
}
if (processEngineConfiguration.getStartProcessInstanceInterceptor() != null) {
StartProcessInstanceAfterContext startInstanceAfterContext = new StartProcessInstanceAfterContext(processInstance, execution, startInstanceBeforeContext.getVariables(), startInstanceBeforeContext.getTransientVariables(), startInstanceBeforeContext.getInitialFlowElement(), startInstanceBeforeContext.getProcess(), startInstanceBeforeContext.getProcessDefinition());
processEngineConfiguration.getStartProcessInstanceInterceptor().afterStartProcessInstance(startInstanceAfterContext);
}
return processInstance;
}
落表的数据为什么要保存在缓存中，不直接执行sql操作呢？而后续在 CommandContextInterceptor的finally提交？好处在于落表数据提交管理，事务的控制以及代码的耦合性提高
// CommandContextInterceptor 需要插入的缓存数据
protected Map<Class<? extends Entity>, Map<String, Entity>> insertedObjects = new HashMap(); // sqlSession自定义sql缓存map
public void insert(Entity entity, IdGenerator idGenerator) {
if (entity.getId() == null) {
String id = idGenerator.getNextId();
if (this.dbSqlSessionFactory.isUsePrefixId()) {
id = entity.getIdPrefix() + id;
}
entity.setId(id);
}
Class<? extends Entity> clazz = entity.getClass();
if (!this.insertedObjects.containsKey(clazz)) {
this.insertedObjects.put(clazz, new LinkedHashMap());
}
((Map)this.insertedObjects.get(clazz)).put(entity.getId(), entity);
this.entityCache.put(entity, false);
entity.setInserted(true);
}
// CommandContextInterceptor 拦截器finally提交
try {
Context.setCommandContext(commandContext);
Object var7 = this.next.execute(config, command, commandExecutor);
return var7;
} catch (Exception var33) {
commandContext.exception(var33);
} finally {
try {
if (!contextReused) {
commandContext.close();
}
commandContext.setReused(originalContextReusedState);
} finally {
Context.removeCommandContext();
}
}
创建完节点的实例后，下一步操作是初始化ContinueProcessOperation，该操作被添加到ageneda队列中，ageneda的从队列中继续循环拿取任务执行。事件开始节点的FlowNodeActivityBehavior行为执行函数执行的Leava操作，离开该节点，继续流程，leave紧接着又调用了aganda的planOperation，添加了TakeOutgoingSequenceFlowsOperation，继续执行该操作 ，进行handleActivityEnd，对开始节点进行一个结束处理，记录到sql缓存中，然后分发节点完成事件。最后执行leaveFlowNode，寻找下一个节点，可以重点看下这个leaveFlowNode方法，这里的情景时离开开始节点，到下一节点，也就是研发审批任务节点
protected void leaveFlowNode(FlowNode flowNode) {
LOGGER.debug("Leaving flow node {} with id '{}' by following it's {} outgoing sequenceflow", new Object[]{flowNode.getClass(), flowNode.getId(), flowNode.getOutgoingFlows().size()});
String defaultSequenceFlowId = null;
if (flowNode instanceof Activity) {
defaultSequenceFlowId = ((Activity)flowNode).getDefaultFlow();
} else if (flowNode instanceof Gateway) {
defaultSequenceFlowId = ((Gateway)flowNode).getDefaultFlow();
}
List<SequenceFlow> outgoingSequenceFlows = new ArrayList();
// 获取节点下一个处理节点
Iterator var4 = flowNode.getOutgoingFlows().iterator();
while(true) {
SequenceFlow sequenceFlow;
label101:
do {
while(var4.hasNext()) {
sequenceFlow = (SequenceFlow)var4.next();
// 是否跳过处理 这里的业务场景是只有一个箭头，即getOutgoingFlows.siza() = 1
String skipExpressionString = sequenceFlow.getSkipExpression();
if (!SkipExpressionUtil.isSkipExpressionEnabled(skipExpressionString, sequenceFlow.getId(), this.execution, this.commandContext)) {
continue label101;
}
if (flowNode.getOutgoingFlows().size() == 1 || SkipExpressionUtil.shouldSkipFlowElement(skipExpressionString, sequenceFlow.getId(), this.execution, this.commandContext)) {
outgoingSequenceFlows.add(sequenceFlow);
}
}
if (outgoingSequenceFlows.size() == 0 && this.evaluateConditions && defaultSequenceFlowId != null) {
var4 = flowNode.getOutgoingFlows().iterator();
// outgoingSequenceFlows 添加下一个节点 一个节点指向多个节点 （多人审批）
while(var4.hasNext()) {
sequenceFlow = (SequenceFlow)var4.next();
if (defaultSequenceFlowId.equals(sequenceFlow.getId())) {
outgoingSequenceFlows.add(sequenceFlow);
break;
}
}
}
if (outgoingSequenceFlows.size() == 0) {
.......
} else {
......
// 添加这个节点的执行操作
outgoingExecutions.add(this.execution);
ExecutionEntity outgoingExecution;
// 一个节点指向多个节点 （多人审批）
if (outgoingSequenceFlows.size() > 1) {
.....
outgoingExecutions.add(this.execution);
}
Iterator var15 = outgoingExecutions.iterator();
while(var15.hasNext()) {
outgoingExecution = (ExecutionEntity)var15.next();
// 添加下一步ContinueProcessOperation操作
this.agenda.planContinueProcessOperation(outgoingExecution);
if (processEngineConfiguration.isLoggingSessionEnabled()) {
BpmnLoggingSessionUtil.addSequenceFlowLoggingData("sequenceFlowTake", outgoingExecution);
}
}
}
return;
} while(this.evaluateConditions && (!this.evaluateConditions || !ConditionUtil.hasTrueCondition(sequenceFlow, this.execution) || defaultSequenceFlowId != null && defaultSequenceFlowId.equals(sequenceFlow.getId())));
outgoingSequenceFlows.add(sequenceFlow);
}
}
从上面逻辑可以知道开始节点离开后找到了下一个流程节点，也就是那个箭头，然后添加了一个ContinueProcessOperation，该操作又找到了流程节点的目标节点，也就是研发审批任务节点，然后又添加了一个ContinueProcessOperation（无限套娃^_^）审批任务节点，走不同逻辑分支，重要的还是获取到ActivityBehavior行为函数，这里是自定义的BpmUserTaskActivityBehavior类，继承了UserTaskActivityBehavior，这个自定义类主要是根据分配的规则计算任务节点的分配人，终于又回到业务上了，来看下这个TaskActivityBehavior专门为任务型节点指定的行为函数
public void execute(DelegateExecution execution, MigrationContext migrationContext) {
......
if (processEngineConfiguration.isEnableProcessDefinitionInfoCache()) {
......
} else {
activeTaskName = this.userTask.getName();
//初始化任务节点
......
}
CreateUserTaskBeforeContext beforeContext = new CreateUserTaskBeforeContext(this.userTask, execution, activeTaskName, activeTaskDescription, activeTaskDueDate, activeTaskPriority, activeTaskCategory, activeTaskFormKey, activeTaskSkipExpression, activeTaskAssignee, activeTaskOwner, activeTaskCandidateUsers, activeTaskCandidateGroups);
if (processEngineConfiguration.getCreateUserTaskInterceptor() != null) {
processEngineConfiguration.getCreateUserTaskInterceptor().beforeCreateUserTask(beforeContext);
}
//初始化任务节点 属性 包括任务名字 描述 任务过期 任务优先级 任务分类 任务表单
this.handleName(beforeContext, expressionManager, task, execution);
this.handleDescription(beforeContext, expressionManager, task, execution);
this.handleDueDate(beforeContext, expressionManager, task, execution, processEngineConfiguration, activeTaskDueDate);
this.handlePriority(beforeContext, expressionManager, task, execution, activeTaskPriority);
this.handleCategory(beforeContext, expressionManager, task, execution);
this.handleFormKey(beforeContext, expressionManager, task, execution);
boolean skipUserTask = SkipExpressionUtil.isSkipExpressionEnabled(beforeContext.getSkipExpression(), this.userTask.getId(), execution, commandContext) && SkipExpressionUtil.shouldSkipFlowElement(beforeContext.getSkipExpression(), this.userTask.getId(), execution, commandContext);
// 插入任务
TaskHelper.insertTask(task, (ExecutionEntity)execution, !skipUserTask, !skipUserTask && processEngineConfiguration.isEnableEntityLinks());
// 不跳过任务
if (!skipUserTask) {
if (processEngineConfiguration.isLoggingSessionEnabled()) {
BpmnLoggingSessionUtil.addLoggingData("userTaskCreate", "User task '" + task.getName() + "' created", task, execution);
}
// 重要-设置任务审批人 这里自定义类BpmUserTaskActivityBehavior决定了审批人的生成 ，没有利用自带的api
this.handleAssignments(taskService, beforeContext.getAssignee(), beforeContext.getOwner(), beforeContext.getCandidateUsers(), beforeContext.getCandidateGroups(), task, expressionManager, execution, processEngineConfiguration);
......
} else {
TaskHelper.deleteTask(task, (String)null, false, false, false);
this.leave(execution);
}
}
创建流程总结
1）设计模式
- 拦截链，利用定义好的拦截器初始化事务，统一进行事务提交处理，管理不同事务的优先级，管理上下文的初始化和清理等
- api执行队列，统一进行api调用，动态添加api操纵，解耦不同操作，串起整个流程
-
protected void executeOperations(CommandContext commandContext) { FlowableEngineAgenda agenda = CommandContextUtil.getAgenda(commandContext); while(!agenda.isEmpty()) { Runnable runnable = agenda.getNextOperation(); this.executeOperation(commandContext, runnable); } } public void executeOperation(CommandContext commandContext, Runnable runnable) { if (runnable instanceof AbstractOperation) { AbstractOperation operation = (AbstractOperation)runnable; if (operation.getExecution() == null || !operation.getExecution().isEnded()) { if (LOGGER.isDebugEnabled()) { LOGGER.debug("Executing operation {}", operation.getClass()); } this.agendaOperationRunner.executeOperation(commandContext, operation); } } else { if (LOGGER.isDebugEnabled()) { LOGGER.debug("Executing operation {}", runnable.getClass()); } runnable.run(); } } - 事件监听模式，节点的生命周期、流程实例的生命周期、变量的生命周期、自定义节点监听事件等都会发布相应事件。提供二次开发接口
- ActivityBehavior，也就是节点具体行为执行的模式，不同的节点有不同的ActivityBehavior，讲节点的执行动作和执行流程解耦，同时提供二次开发
2）业务流程
- 流程中不同的节点具有不同的性质，包括任务节点、序列节点、事件节点（开始、结束）、网关节点，针对不同的节点有不同的流程控制
- 对于一个普通的流程拉说，创建实例是基于bpmn的xmL定义的流程定义，（部署的作用可以更新流程定义）创建流程实例（会创建子流程实例），创建实例父流程中会保存业务key、创建流程时带的变量到表中，然后执行流程过程，期间走到到任务节点会创建节点任务，创建节点任务，分发给审批人，流程的创建至此差不多。
3）注意的问题
-

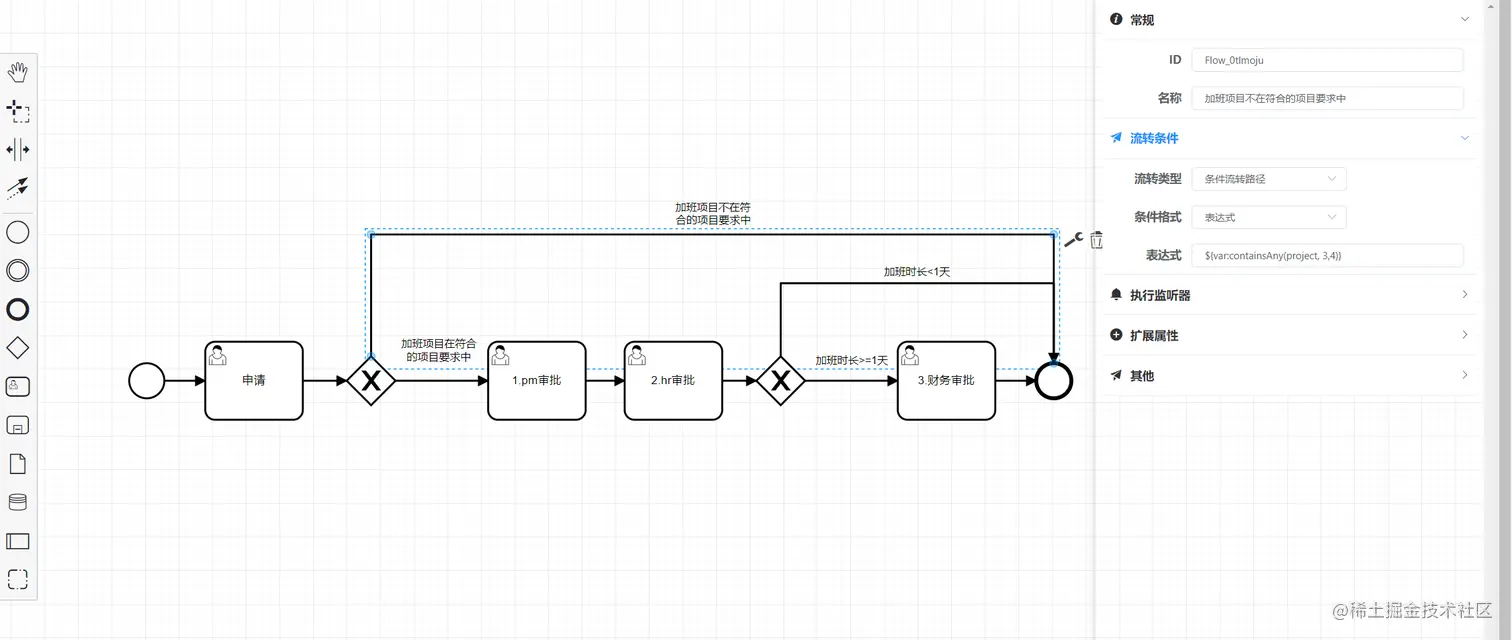

变量的创建表达式，注意变量类型要与表达式相对应，以及变量名称要与表达式一致，不能带空格以及一些特殊符号
// ${var:containsAny(project, 3,4)} 传入的list变量是否包含 3 4 List<Integer> vars = new ArrayList<>(); vars.add(createReqVO.getType()); processInstanceVariables.put("project", vars);
\
