MapReduce之排序及序列化案例的代码实现

QYHuiiQ
120 阅读3分钟

持续创作，加速成长！这是我参与「掘金日新计划 · 6 月更文挑战」的第6天，点击查看活动详情 ​

 这里我们要实现的案例是先对学生姓名进行排序（字典排序），如果遇到姓名重名的情况，再对年龄进行排序（升序）。

  • 将原始数据文件上传至HDFS
[root@hadoop01 test_data]# hdfs dfs -mkdir /test_comparation_input
[root@hadoop01 test_data]# hdfs dfs -put test_comparation.txt /test_comparation_input

这里会对原始的5行数据先按照姓名的ascii值进行字典排序，对于重名的Bob，会对第2行和第4行的两个Bob按照年龄进行二次排序。

​

新建project：

  • 引入pom依赖
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>wyh.test</groupId>
    <artifactId>test_comparation</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>

    <packaging>jar</packaging>
    <dependencies>
        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-common</artifactId>
            <version>2.7.5</version>
        </dependency>
        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-client</artifactId>
            <version>2.7.5</version>
        </dependency>
        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-hdfs</artifactId>
            <version>2.7.5</version>
        </dependency>
        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-mapreduce-client-core</artifactId>
            <version>2.7.5</version>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>RELEASE</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.1</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-shade-plugin</artifactId>
                <version>2.4.3</version>
                <executions>
                    <execution>
                        <phase>package</phase>
                        <goals>
                            <goal>shade</goal>
                        </goals>
                        <configuration>
                            <minimizeJar>true</minimizeJar>
                        </configuration>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>

</project>
  • 自定义实现排序及序列化的Bean类
package wyh.test.comparation;

import org.apache.hadoop.io.WritableComparable;

import java.io.DataInput;
import java.io.DataOutput;
import java.io.IOException;

public class ComparationBean implements WritableComparable<ComparationBean> {

    //定义Bean对象中要包含的属性
    private String studentName;
    private int age;

    public String getStudentName() {
        return studentName;
    }

    public void setStudentName(String studentName) {
        this.studentName = studentName;
    }

    @Override
    public String toString() {
        //这里没有使用它原来的格式，我们自己重新定义了toString的格式
        return studentName + "\t" + age;
    }

    public int getAge() {
        return age;
    }

    public void setAge(int age) {
        this.age = age;
    }

    //定义排序规则，我们只需要定义比较规则即可，不需要我们关心如何调用
    @Override
    public int compareTo(ComparationBean comparationBean) {
        //先用String类中自带的compareTo()实现字符串studentName的排序
        int compareResult = this.studentName.compareTo(comparationBean.getStudentName());
        //当studentName比较结果是0时，说明重名，此时再比较age的值
        if(compareResult == 0){
            return this.age - comparationBean.getAge();
        }
        return compareResult;
    }

    //该方法用于实现序列化，即将原始数据转换为字节流
    @Override
    public void write(DataOutput dataOutput) throws IOException {
        //将Bean对象中的第一个属性实现序列化，对于字符串的序列化，使用的是writeUTF()
        dataOutput.writeUTF(studentName);
        //将Bean对象中的第二个属性实现序列化，对于int类型的序列化，使用的是writeInt()
        dataOutput.writeInt(age);
    }

    //该方法用于实现反序列化
    @Override
    public void readFields(DataInput dataInput) throws IOException {
        //将反序列化的值赋给成员变量
        this.studentName = dataInput.readUTF();
        this.age = dataInput.readInt();

    }
}
  • 自定义Mapper类
package wyh.test.comparation;

import org.apache.hadoop.io.LongWritable;
import org.apache.hadoop.io.NullWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Mapper;

import java.io.IOException;

//这里的K2类型是我们自定义的Bean（因为要实现排序及序列化），这个Bean对象中的属性来自于V1.
public class ComparationMapper extends Mapper<LongWritable, Text, ComparationBean, NullWritable> {
    @Override
    protected void map(LongWritable key, Text value, Mapper<LongWritable, Text, ComparationBean, NullWritable>.Context context) throws IOException, InterruptedException {
        //将V1的行数据拆分提取为两个属性，赋给自定义Bean对象
        String[] split = value.toString().split(",");
        ComparationBean comparationBean = new ComparationBean();
        comparationBean.setStudentName(split[0]);
        comparationBean.setAge(Integer.parseInt(split[1]));
        //将K2,V2写入context对象
        context.write(comparationBean, NullWritable.get());
    }
}
  • 自定义Reducer类
package wyh.test.comparation;

import org.apache.hadoop.io.NullWritable;
import org.apache.hadoop.mapreduce.Reducer;

import java.io.IOException;

//在我们的案例中reduce不需要对K2,V2做进一步的处理，所以这里直接将K2,V2赋值给K3,V3即可
public class ComparationReducer extends Reducer<ComparationBean, NullWritable, ComparationBean, NullWritable> {
    @Override
    protected void reduce(ComparationBean key, Iterable<NullWritable> values, Context context) throws IOException, InterruptedException {
        context.write(key, NullWritable.get());
    }
}
  • 自定义JobMain类
package wyh.test.comparation;

import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.conf.Configured;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.io.NullWritable;
import org.apache.hadoop.mapreduce.Job;
import org.apache.hadoop.mapreduce.OutputFormat;
import org.apache.hadoop.mapreduce.lib.input.TextInputFormat;
import org.apache.hadoop.mapreduce.lib.output.TextOutputFormat;
import org.apache.hadoop.util.Tool;
import org.apache.hadoop.util.ToolRunner;

public class ComparationJobMain extends Configured implements Tool {
    @Override
    public int run(String[] strings) throws Exception {
        Job job = Job.getInstance(super.getConf(), "test_comparation_job");
        job.setJarByClass(ComparationJobMain.class);
        job.setInputFormatClass(TextInputFormat.class);
        TextInputFormat.addInputPath(job, new Path("hdfs://192.168.126.132:8020/test_comparation_input"));
        job.setMapperClass(ComparationMapper.class);
        job.setMapOutputKeyClass(ComparationBean.class);
        job.setMapOutputValueClass(NullWritable.class);
        job.setReducerClass(ComparationReducer.class);
        job.setOutputKeyClass(ComparationBean.class);
        job.setOutputValueClass(NullWritable.class);
        job.setOutputFormatClass(TextOutputFormat.class);
        TextOutputFormat.setOutputPath(job, new Path("hdfs://192.168.126.132:8020/test_comparation_output"));
        boolean status = job.waitForCompletion(true);
        return status?0:1;
    }

    public static void main(String[] args) throws Exception {
        Configuration configuration = new Configuration();
        //启动job任务
        int runStatus = ToolRunner.run(configuration, new ComparationJobMain(), args);
        System.exit(runStatus);
    }
}

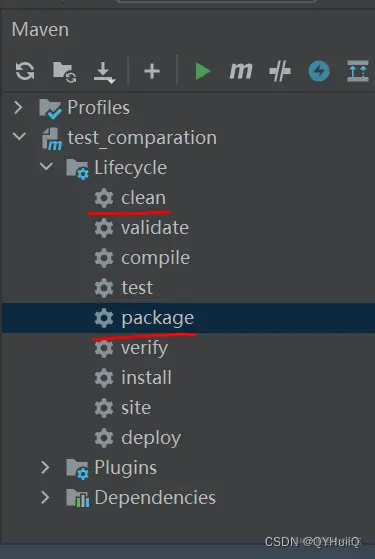

  • 打包project

clean---package

​

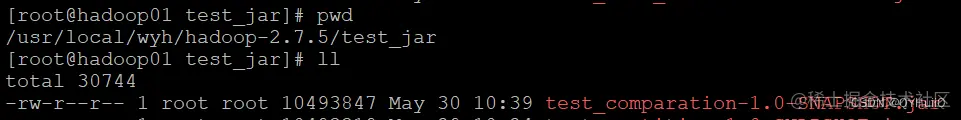

  • 将jar上传至服务器

​

  •  运行jar
[root@hadoop01 test_jar]# hadoop jar test_comparation-1.0-SNAPSHOT.jar wyh.test.comparation.ComparationJobMain
  • 查看HDFS目录树

​

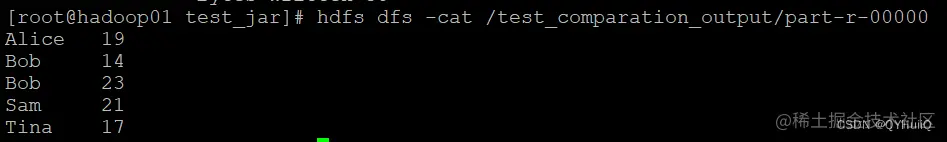

  •  查看输出结果文件
[root@hadoop01 test_jar]# hdfs dfs -cat /test_comparation_output/part-r-00000

可以看到姓名先做了排序，然后重名的Bob会按照年龄的升序进行二次排序：

​

 这样就简单地实现了MapReduce中的排序及序列化功能。

​
