@FeignClient

1. 使用

启动类加上@EnableDiscoveryClient

demo类HelloFeign

@FeignClient(name = "service-hello")
public interface HelloFeign {
    @GetMapping("/name")
    String hello1(@RequestParam("name")String name);
}

2. 原理

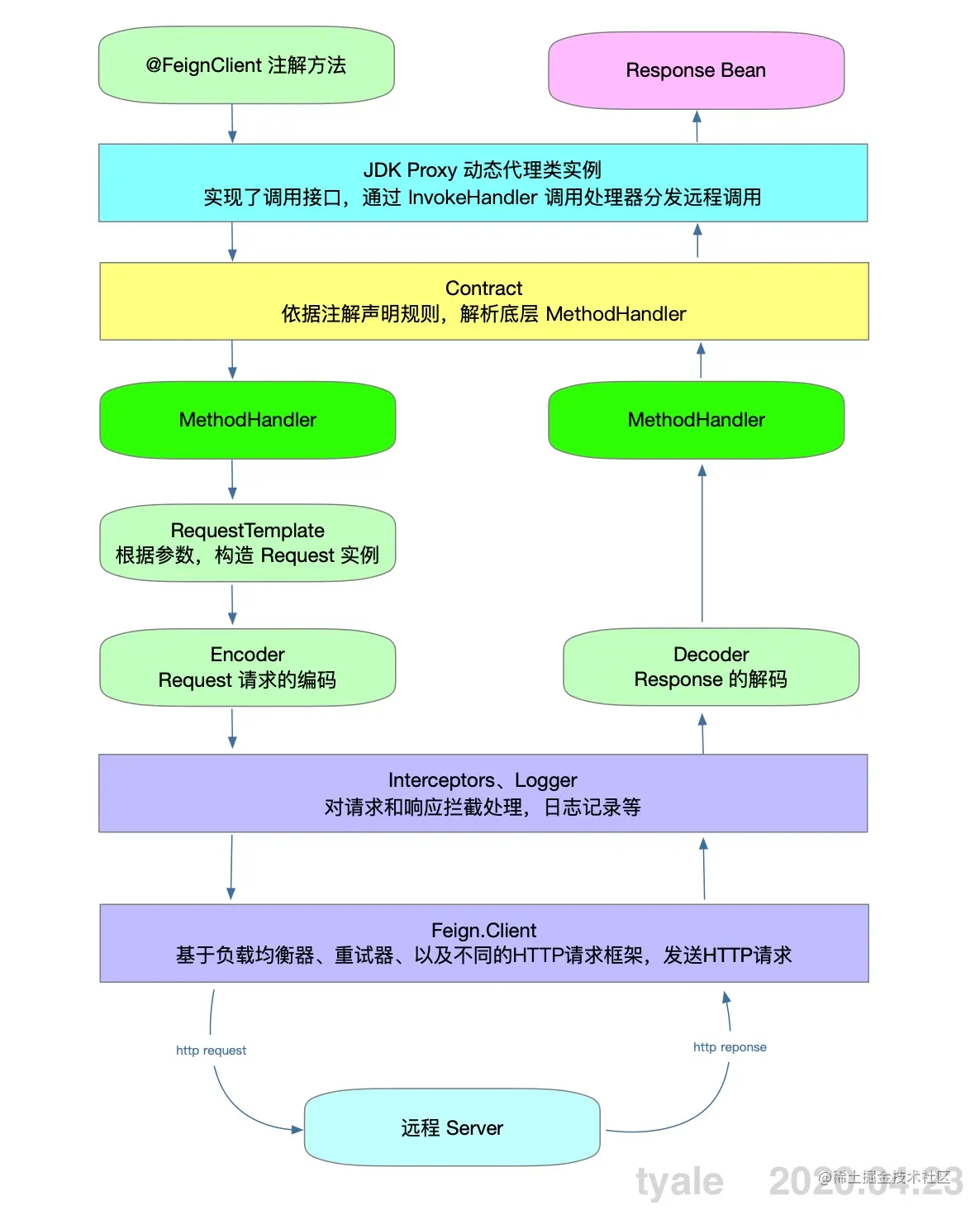

图片来源于网上，具体出处不知。

再看本文之前，可以先看看这篇文章Spring如何扫描第三方自定义注解，并注入成Bean

先看看启动类@EnableFeignClients

@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.TYPE)
@Documented
@Import(FeignClientsRegistrar.class)
public @interface EnableFeignClients {
}

里面有个@Import(FeignClientsRegistrar.class)

class FeignClientsRegistrar
      implements ImportBeanDefinitionRegistrar, ResourceLoaderAware, EnvironmentAware {

    @Override
	public void registerBeanDefinitions(AnnotationMetadata metadata,
			BeanDefinitionRegistry registry) {
		// 注册配置
		registerDefaultConfiguration(metadata, registry);
		// 主要看这个：注册FeignClients
		registerFeignClients(metadata, registry);
	}

		public void registerFeignClients(AnnotationMetadata metadata,
			BeanDefinitionRegistry registry) {
		// 修改spring默认的扫描器，添加自定义注解@FeignClient
		ClassPathScanningCandidateComponentProvider scanner = getScanner();
		scanner.setResourceLoader(this.resourceLoader);

		Set<String> basePackages;

		Map<String, Object> attrs = metadata
				.getAnnotationAttributes(EnableFeignClients.class.getName());
		AnnotationTypeFilter annotationTypeFilter = new AnnotationTypeFilter(
				FeignClient.class);
		final Class<?>[] clients = attrs == null ? null
				: (Class<?>[]) attrs.get("clients");
		if (clients == null || clients.length == 0) {
			scanner.addIncludeFilter(annotationTypeFilter);
			basePackages = getBasePackages(metadata);
		}
		else {
			final Set<String> clientClasses = new HashSet<>();
			basePackages = new HashSet<>();
			for (Class<?> clazz : clients) {
				basePackages.add(ClassUtils.getPackageName(clazz));
				clientClasses.add(clazz.getCanonicalName());
			}
			AbstractClassTestingTypeFilter filter = new AbstractClassTestingTypeFilter() {
				@Override
				protected boolean match(ClassMetadata metadata) {
					String cleaned = metadata.getClassName().replaceAll("\\$", ".");
					return clientClasses.contains(cleaned);
				}
			};
			scanner.addIncludeFilter(
					new AllTypeFilter(Arrays.asList(filter, annotationTypeFilter)));
		}

		for (String basePackage : basePackages) {
			Set<BeanDefinition> candidateComponents = scanner
					.findCandidateComponents(basePackage);
			for (BeanDefinition candidateComponent : candidateComponents) {
				if (candidateComponent instanceof AnnotatedBeanDefinition) {
					// verify annotated class is an interface
					AnnotatedBeanDefinition beanDefinition = (AnnotatedBeanDefinition) candidateComponent;
					AnnotationMetadata annotationMetadata = beanDefinition.getMetadata();
					Assert.isTrue(annotationMetadata.isInterface(),
							"@FeignClient can only be specified on an interface");

					Map<String, Object> attributes = annotationMetadata
							.getAnnotationAttributes(
									FeignClient.class.getCanonicalName());

					String name = getClientName(attributes);
					registerClientConfiguration(registry, name,
							attributes.get("configuration"));

					registerFeignClient(registry, annotationMetadata, attributes);
				}
			}
		}
	}

扫描带有FeignClient注解的类，将其注册成Spring Bean,类型为FactoryBean。

# org.springframework.cloud.openfeign.FeignClientsRegistrar#registerFeignClient
	private void registerFeignClient(BeanDefinitionRegistry registry,
			AnnotationMetadata annotationMetadata, Map<String, Object> attributes) {
		String className = annotationMetadata.getClassName();
		// 类型为FeignClientFactoryBean
		BeanDefinitionBuilder definition = BeanDefinitionBuilder
				.genericBeanDefinition(FeignClientFactoryBean.class);
		validate(attributes);
		definition.addPropertyValue("url", getUrl(attributes));
		definition.addPropertyValue("path", getPath(attributes));
		String name = getName(attributes);
		definition.addPropertyValue("name", name);
		String contextId = getContextId(attributes);
		definition.addPropertyValue("contextId", contextId);
		definition.addPropertyValue("type", className);
		definition.addPropertyValue("decode404", attributes.get("decode404"));
		definition.addPropertyValue("fallback", attributes.get("fallback"));
		definition.addPropertyValue("fallbackFactory", attributes.get("fallbackFactory"));
		definition.setAutowireMode(AbstractBeanDefinition.AUTOWIRE_BY_TYPE);

		String alias = contextId + "FeignClient";
		AbstractBeanDefinition beanDefinition = definition.getBeanDefinition();

		boolean primary = (Boolean) attributes.get("primary"); // has a default, won't be
																// null

		beanDefinition.setPrimary(primary);

		String qualifier = getQualifier(attributes);
		if (StringUtils.hasText(qualifier)) {
			alias = qualifier;
		}

		BeanDefinitionHolder holder = new BeanDefinitionHolder(beanDefinition, className,
				new String[] { alias });
		BeanDefinitionReaderUtils.registerBeanDefinition(holder, registry);
	}

再看看FeignClientFactoryBean,该类封装了原生的feign，生成一个代理对象。后续的调用其实就是feign的调用。

	@Override
	public Object getObject() throws Exception {
		return getTarget();
	}

	/**
	 * @param <T> the target type of the Feign client
	 * @return a {@link Feign} client created with the specified data and the context
	 * information
	 */
	<T> T getTarget() {
		FeignContext context = this.applicationContext.getBean(FeignContext.class);
		Feign.Builder builder = feign(context);

		if (!StringUtils.hasText(this.url)) {
			if (!this.name.startsWith("http")) {
				this.url = "http://" + this.name;
			}
			else {
				this.url = this.name;
			}
			this.url += cleanPath();
			return (T) loadBalance(builder, context,
					new HardCodedTarget<>(this.type, this.name, this.url));
		}
		if (StringUtils.hasText(this.url) && !this.url.startsWith("http")) {
			this.url = "http://" + this.url;
		}
		String url = this.url + cleanPath();
		Client client = getOptional(context, Client.class);
		if (client != null) {
			if (client instanceof LoadBalancerFeignClient) {
				// not load balancing because we have a url,
				// but ribbon is on the classpath, so unwrap
				client = ((LoadBalancerFeignClient) client).getDelegate();
			}
			if (client instanceof FeignBlockingLoadBalancerClient) {
				// not load balancing because we have a url,
				// but Spring Cloud LoadBalancer is on the classpath, so unwrap
				client = ((FeignBlockingLoadBalancerClient) client).getDelegate();
			}
			builder.client(client);
		}
		Targeter targeter = get(context, Targeter.class);
		return (T) targeter.target(this, builder, context,
				new HardCodedTarget<>(this.type, this.name, url));
	}


	protected <T> T loadBalance(Feign.Builder builder, FeignContext context,
			HardCodedTarget<T> target) {

		Client client = getOptional(context, Client.class);
		if (client != null) {
			builder.client(client);
			Targeter targeter = get(context, Targeter.class);
			return targeter.target(this, builder, context, target);
		}

		throw new IllegalStateException(
				"No Feign Client for loadBalancing defined. Did you forget to include spring-cloud-starter-netflix-ribbon?");
	}

上面Client client = getOptional(context, Client.class);

获取org.springframework.cloud.openfeign.ribbon.LoadBalancerFeignClient

这个client负责将服务名转化成对应服务的ip+port。

这里的LoadBalancerFeignClient是怎么来的呢？这肯定是有一个自动配置类，全局搜索一下，发现类org.springframework.cloud.openfeign.ribbon.FeignRibbonClientAutoConfiguration

@Import({ HttpClientFeignLoadBalancedConfiguration.class,
		OkHttpFeignLoadBalancedConfiguration.class,
		DefaultFeignLoadBalancedConfiguration.class })
public class FeignRibbonClientAutoConfiguration {
···
}

什么都不配置，默认加载DefaultFeignLoadBalancedConfiguration,可以看到这里注入了LoadBalancerFeignClient

@Configuration(proxyBeanMethods = false)
class DefaultFeignLoadBalancedConfiguration {

	@Bean
	@ConditionalOnMissingBean
	public Client feignClient(CachingSpringLoadBalancerFactory cachingFactory,
			SpringClientFactory clientFactory) {
		return new LoadBalancerFeignClient(new Client.Default(null, null), cachingFactory,
				clientFactory);
	}

}
