案例的仓库地址：gitee.com/mayxue/vue2…

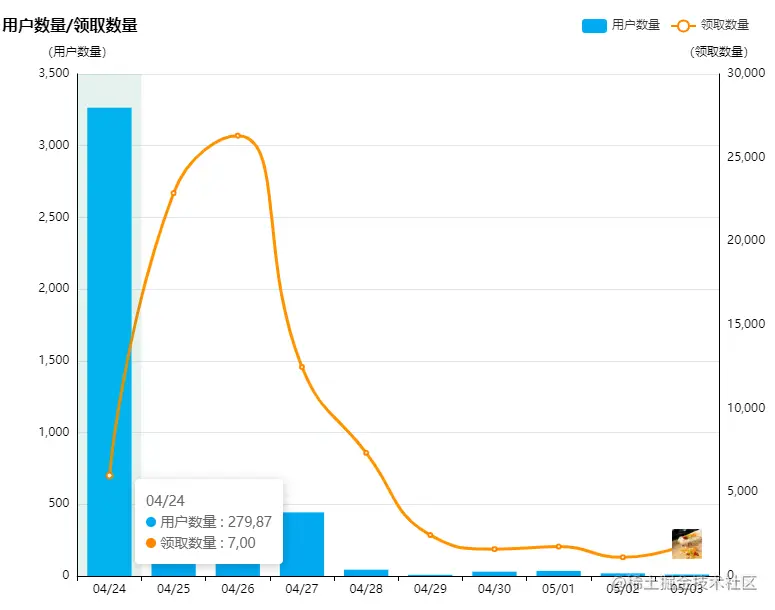

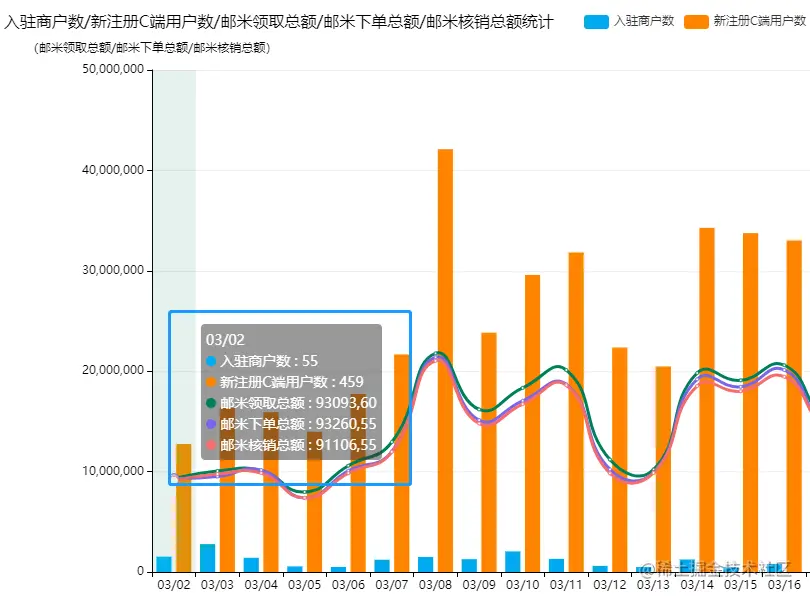

效果：
实现的功能：
- 修改鼠标经过拐点tooltip展示数据的规则，例如：给数字的最后两位前面加逗号
- 给折线图的拐点替换成图片
- 让图表自适应浏览器大小
一、安装
1. 安装echarts依赖
npm install echarts -S
2. 使用国内的淘宝镜像安装依赖
//1.先安装淘宝镜像
npm install -g cnpm --registry=<https://registry.npm.taobao.org>
//2.安装echarts依赖
cnpm install echarts -S
二、全局引入
1. 在main.js中引入
import * as echarts from 'echarts' // 高版本的echarts需要这样引用才不会报错
Vue.prototype.$echarts = echarts
三、在页面中使用echarts
1. template代码
<template>
<div class="echart">
<el-card :body-style="{ padding: '20px', minHeight: 'calc(100vh - 100px)' }">
<div id="statistics_eharts" ref="chart"></div>
</el-card>
</div>
</template>
2. echart必须要设置宽高才可以正常渲染
<style lang="scss" scoped>
#statistics_eharts {
width: calc(100vw - 260px);
height: 600px;
}
</style>
3. script代码：
<script>
export default {
name: "echart",
components: {},
data() {
return {
option: {
title: {
text: "用户数量/领取数量",
textStyle: {
color: "#000",
fontSize: 16
}
},
tooltip: {
trigger: "axis",
axisPointer: {
// 坐标轴指示器，坐标轴触发有效
type: "shadow" // 默认为直线，可选为：'line' | 'shadow'
},
textStyle: {
align: "left" //文本左对齐
},
//改变鼠标移上去，修改图表数据的显示格式（数据的百位的时候加‘,’）
formatter: function(params, ticket, callback) {
console.log("params", params);
var res = "" + params[0].name;
for (var i = 0; i < params.length; i++) {
console.log("i", i);
let oSpan =
'<span style="background:' +
params[i].color +
';width:10px;height:10px;border-radius: 50%;display: inline-block;marign-right:5px;marign-bottom:5px"></span>';
res +=
"<br/>" +
oSpan +
" " +
params[i].seriesName +
" : " +
params[i].value.toString().replace(/(?=(\B)(\d{2})$)/, ",$1");
}
return res;
}
},
legend: {
left: "580",
data: ["用户数量", "领取数量"] //统计的数据
},
grid: {
bottom: "3%",
left: "5%",
right: "7%",
containLabel: true
},
xAxis: [
{
type: "category",
//x轴字体颜色
axisLine: {
lineStyle: {
color: "#000"
}
},
splitLine: {
show: false //隐藏网格
},
data: [], //x轴的数据
axisPointer: {
type: "shadow",
shadowStyle: {
// 阴影指示器样式设置
color: "rgba(1,127,90,0.1)" // 阴影颜色
},
splitLine: {
show: false //隐藏网格
},
splitArea: {
show: false //隐藏网格
}
},
axisLabel: {
show: true
}
}
],
//如果要用到2个y轴，就需要配置两个y轴
yAxis: [
{
type: "value",
x: "center",
name: "（用户数量）",
min: 0,
// max: 100,
show: true,
//y轴颜色
axisLine: {
show: true,
lineStyle: {
color: "#000"
}
},
splitLine: {
show: true //隐藏网格
},
splitArea: {
show: false //隐藏网格背景
}
},
{
type: "value",
name: "（领取数量）",
x: "center",
min: 0,
// max: 100,
//y轴颜色
axisLine: {
show: true, //是否显示y轴的竖线
lineStyle: {
color: "#000"
}
},
splitLine: {
show: false //隐藏网格
},
splitArea: {
show: false //隐藏网格背景
}
}
],
series: [] //图表的数据
}
};
},
methods: {
chartsInfo() {
this.option.series = [];
let timeData = [],
userData = [],
receiveData = [],
//模拟后台返回的数据
res = {
xAxis: [
"04/24",
"04/25",
"04/26",
"04/27",
"04/28",
"04/29",
"04/30",
"05/01",
"05/02",
"05/03"
],
userData: [
{
name: "用户数量",
data: [27987, 4352, 4278, 3802, 377, 70, 260, 300, 158, 89]
}
],
//symbol--给拐点设置图片
receiveData: [
{
name: "领取数量",
data: [
700,
2670,
3070,
1458,
859,
285,
187,
205,
130,
{
value: 221,
symbol:
"image://https://fuss10.elemecdn.com/3/63/4e7f3a15429bfda99bce42a18cdd1jpeg.jpeg?imageMogr2/thumbnail/360x360/format/webp/quality/100",
symbolSize: 30
}
]
}
]
};
timeData = res.xAxis; //x轴的数据：日期
userData = res.userData[0].data; //
receiveData = res.receiveData[0].data; //
this.option.xAxis[0].data = res.xAxis; //x轴的数据：日期
let echartData = [
{
name: "用户数量",
data: userData,
color: "#02a9f1",
echartType: "bar",
yIndex: 1
},
{
name: "领取数量",
data: receiveData,
color: "#ff8400",
echartType: "line",
yIndex: 0
}
];
for (let i = 0; i < echartData.length; i++) {
this.option.series.push({
name: echartData[i].name,
type: echartData[i].echartType,
itemStyle: {
normal: {
lineStyle: {
width: 3 //折线图的粗细
}
}
},
// barWidth: 6,
smooth: true, //让曲线平滑
yAxisIndex: echartData[i].yIndex, //用的第几个y轴
color: echartData[i].color,
data: echartData[i].data
});
}
let chartDom = this.$refs.chart;
let myChart = this.$echarts.init(chartDom); //初始化echarts实例
myChart.setOption(this.option, true); //设置为true的话，就是notMerge，不合并；false的话，就Merge，之前的东西还保留~
window.onresize = myChart.resize; //图表自适应浏览器大小
//给echart添加点击事件
myChart.on("click", function(params) {
console.log(params.name); //获取x轴的值
});
}
},
mounted() {
this.chartsInfo();
}
};
</script>
四、功能点拆分
1. 修改鼠标移到图表上，显示格式的修改
1.1 统一改变数据的显示格式：valueFormatter
官方api：echarts.apache.org/zh/option.h…
option = {
tooltip: {
trigger: 'axis',
valueFormatter: (value) => value.toString().replace(/(\d{2})$/, ",$1")
},
};
2.改变部分数据的显示格式：tooltip-->formatter
option = {
tooltip: {
trigger: "axis",
axisPointer: {
// 坐标轴指示器，坐标轴触发有效
type: "shadow" // 默认为直线，可选为：'line' | 'shadow'
},
//改变鼠标移上去，图表数据的显示格式（邮米领取总额，邮米下单总额，邮米核销总额）百位的时候加‘,’
formatter: function(params, ticket, callback) {
var res = "" + params[0].name;
for (var i = 0; i < params.length; i++) {
let oSpan =
'<span style="background:' +
params[i].color +
';width:10px;height:10px;border-radius: 50%;display: inline-block;marign-right:5px;marign-bottom:5px"></span>';
if (i > 1) {
res +=
"<br/>" +
oSpan +
" " +
params[i].seriesName +
" : " +
params[i].value.toString().replace(/(\d{2})$/, ",$1") +
"";
} else {
res +=
"<br/>" +
oSpan +
" " +
params[i].seriesName +
" : " +
params[i].value;
}
}
return res;
}
},
};
2. 图表有不同维度的数据，用2个不同的y轴显示
option: {
//如果要用到2个y轴，就需要配置两个y轴
yAxis: [
{
type: "value",
x: "center",
name: "（用户数量）",
min: 0,
// max: 100,
show: true,
//y轴颜色
axisLine: {
show: true,
lineStyle: {
color: "#000"
}
},
splitLine: {
show: true //隐藏网格
},
splitArea: {
show: false //隐藏网格背景
}
},
{
type: "value",
name: "（领取数量）",
x: "center",
min: 0,
// max: 100,
//y轴颜色
axisLine: {
show: true, //是否显示y轴的竖线
lineStyle: {
color: "#000"
}
},
splitLine: {
show: false //隐藏网格
},
splitArea: {
show: false //隐藏网格背景
}
}
],
}
3. 给折线图的拐点设置图片--利用symbol
// data的格式：
data: [
700,
2670,
3070,
1458,
859,
285,
187,
205,
130,
{
value: 221,
symbol:
"image://https://fuss10.elemecdn.com/3/63/4e7f3a15429bfda99bce42a18cdd1jpeg.jpeg?imageMogr2/thumbnail/360x360/format/webp/quality/100",
symbolSize: 30
}
]
4. 让图表自适应浏览器大小
window.onresize = myChart.resize; //图表自适应浏览器大小
5. 给echart添加点击事件
myChart.on("click", function(params) {
console.log(params.name); //获取x轴的值
});
