1、创建项目，导入依赖

在pom.xml 中导入依赖（junit、mybatis、mysql-connector-java、spring相关、aspectJ AOP 织入器、mybatis-spring整合包【重点】、lombok工具）

<dependencies>
  <dependency>
    <groupId>junit</groupId>
    <artifactId>junit</artifactId>
    <version>4.13.2</version>
    <scope>test</scope>
  </dependency>

  <dependency>
    <groupId>org.mybatis</groupId>
    <artifactId>mybatis</artifactId>
    <version>3.5.2</version>
  </dependency>

  <dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <version>5.1.47</version>
  </dependency>

  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-webmvc</artifactId>
    <version>5.1.10.RELEASE</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-jdbc</artifactId>
    <version>5.1.10.RELEASE</version>
  </dependency>

  <dependency>
    <groupId>org.aspectj</groupId>
    <artifactId>aspectjweaver</artifactId>
    <version>1.9.4</version>
  </dependency>

  <dependency>
    <groupId>org.mybatis</groupId>
    <artifactId>mybatis-spring</artifactId>
    <version>2.0.2</version>
  </dependency>
  <dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
    <version>RELEASE</version>
    <scope>compile</scope>
  </dependency>
    </dependencies>

注意：配置maven静态资源过滤问题！

上述文件追加

<build>
  <resources>
    <resource>
      <directory>src/main/java</directory>
      <includes>
        <include>**/*.properties</include>
        <include>**/*.xml</include>
      </includes>
      <filtering>true</filtering>
    </resource>
  </resources>
    </build>

2、建包建类写接口

实体类 pojo

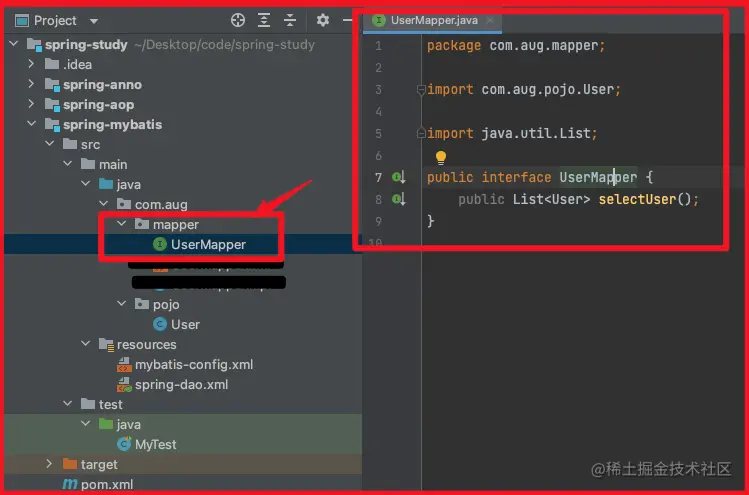

写接口 mapper

3、编写mybatis核心配置文件

3.1 xml头，约束，根标签

区别于原来导入mybatis文件，因为通过spring托管，可以保留老配置文件mybatis-config.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

  <!-- 配置别名: 作用就是方便!-->
  <typeAliases>
      <package name="com.aug.pojo"/>
  </typeAliases>

  <!--&lt;!&ndash;settings标签用来配置MyBatis的运行环境&ndash;&gt;-->
    <!--<settings>-->
    <!--    <setting name="" value="" />-->
    <!--</settings>-->

</configuration>

**## 3.2 整合mybatis

配置数据源
sqlSessionFactory
sqlSessionTemplate**

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/aop https://www.springframework.org/schema/aop/spring-aop.xsd">

<!--    DataSource:使用spring的数据源替换mybati的配置:druid c3p0 dbcp
        这里使用spring提供的JDBC：org.springframework.jdbc.datasource-->
    <bean id="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
        <property name="driverClassName" value="com.mysql.jdbc.Driver"/>
        <property name="url" value="jdbc:mysql://172.18.45.188:3306/ail?useSSL=false"/>
        <property name="username" value="root"/>
        <property name="password" value="****"/>
    </bean>

    <!--sqlSessionFactory-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource" />
        <!--绑定mybatis-->
        <property name="configLocation" value="classpath:mybatis-config.xml"/>
        <property name="mapperLocations" value="classpath:com/aug/mapper/*.xml"/>
    </bean>

    <!--sqlSessionTemplate:就是我们使用的sqlSession-->
    <bean id="sqlSession" class="org.mybatis.spring.SqlSessionTemplate">
        <!--只能使用构造器注入sqlSessionFactory,因为他没有set方法-->
        <constructor-arg index="0" ref="sqlSessionFactory"/>
    </bean>

</beans>

4 编写mybatis的ORM配置（实体类、数据库、mapper文件）

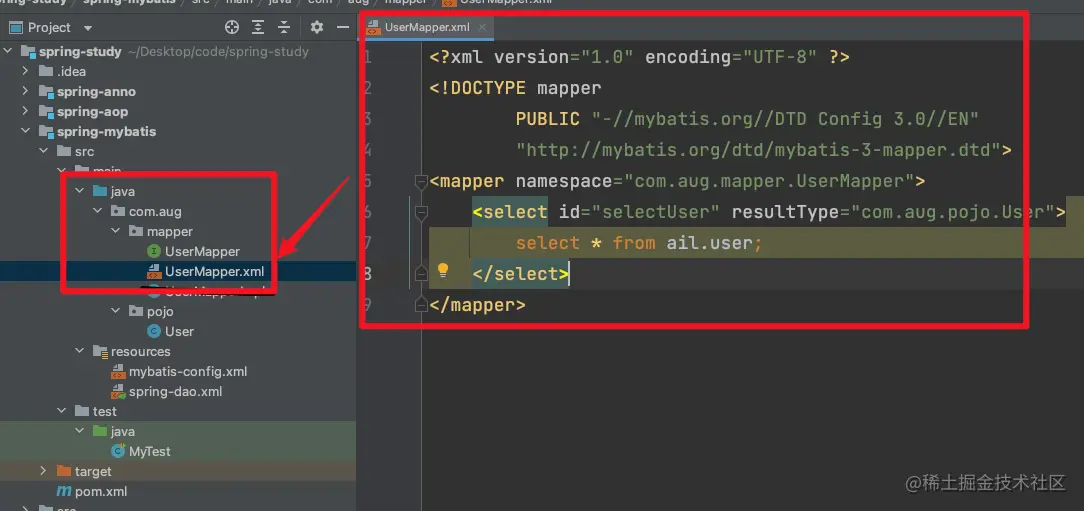

4.1 编写Mapper.xml文件（sql语句）

<?xml version="1.0" encoding="UTF-8" ?>
    <!DOCTYPE mapper
    PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
    "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<!--configuration核心配置文件-->
<mapper namespace="com.aug.mapper.UserMapper">

    <select id="selectUser" resultType="com.aug.pojo.User">
    select * from ail.user;
    </select>
</mapper>

4.2 实现类

UserMapperImpl

增加Dao接口的实现类；私有化sqlSessionTemplate

方法一：

package com.aug.mapper;

import com.aug.pojo.User;
import org.mybatis.spring.SqlSessionTemplate;

import java.util.List;

public class UserMapperImpl implements UserMapper{

//    所有的操作都使用sqlSession来执行，在原来，现在都使用SqlSessionTemplate
    private SqlSessionTemplate sqlSession;

    public void setSqlSession(SqlSessionTemplate sqlSession) {
        this.sqlSession = sqlSession;
    }

    @Override
    public List<User> selectUser() {
        return sqlSession.getMapper(UserMapper.class).selectUser();
    }
}

方法二：

package com.aug.mapper;

import com.aug.pojo.User;
import org.mybatis.spring.SqlSessionTemplate;

import java.util.List;


public class UserMapperImpl extends SqlSessionDaoSupport implements UserMapper {

    @Override
    public List<User> selectUser() {
        return getSqlSession().getMapper(UserMapper.class).selectUser();
    }
}

4.3 数据库

略

5、Spring容器配置文件 applicationContext.xml

头文件
加载外部properties文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/aop https://www.springframework.org/schema/aop/spring-aop.xsd">

    <import resource="spring-dao.xml"/>

    <!--bean-->
    <bean id="userMapper" class="com.aug.mapper.UserMapperImpl">
        <property name="sqlSessionFactory" ref="sqlSessionFactory"/>
    </bean>
</beans>

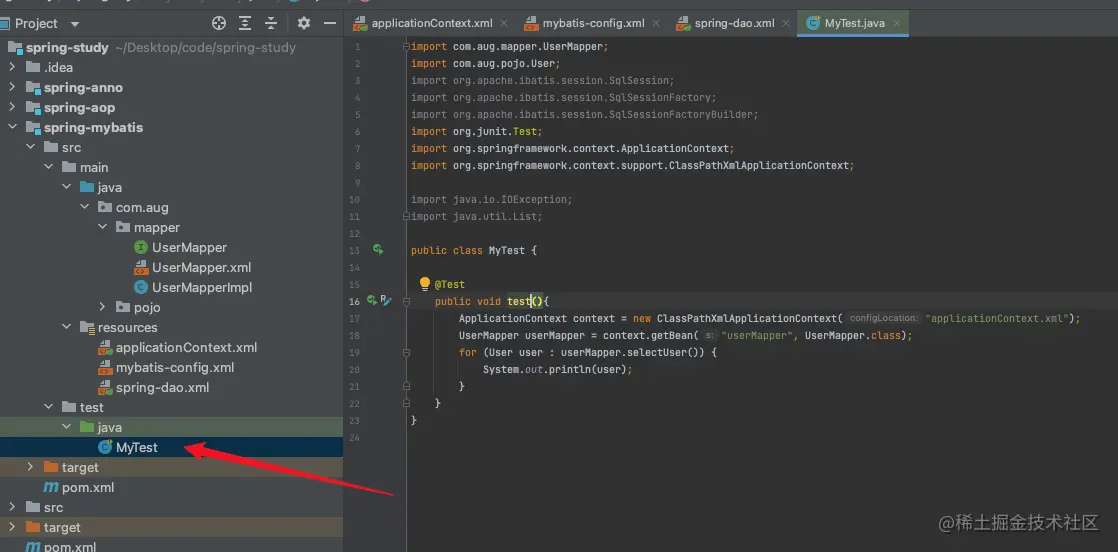

6、测试

import com.aug.mapper.UserMapper;
import com.aug.pojo.User;
import org.junit.Test;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

public class MyTest {

    @Test
    public void test(){
        ApplicationContext context = new ClassPathXmlApplicationContext("applicationContext.xml");
        UserMapper userMapper = context.getBean("userMapper", UserMapper.class);
        for (User user : userMapper.selectUser()) {
            System.out.println(user);
        }
    }
}

spring 整合mybatis 详细步骤
