1 RabbitMQ提供的通讯方式

Hello World--最基本的通讯方式，为了入门操作
Work queues--一个队列被多个消费者消费
Publish/Subscribe--手动创建交换机（FANOUT）
Routing--手动创建交换机（FANOUT）
Topic--手动创建Exchange（DIRECT）
RPC--RPC方式
Publisher Confirms--保证消息可靠性

2 构建Connection类

2.1 导入依赖：amqp-client

<dependency>
    <groupId>com.rabbitmq</groupId>
    <artifactId>amqp-client</artifactId>
    <version>5.9.0</version>
</dependency>

2.2 构建工具类

public class RabbitMQConnectionUtil {
    //RabbitMQ的地址
    public static final String RABBITMQ_HOST = "139.155.78.166";
    //端口
    public static final int RABBITMQ_PORT = 5672;
    //用户名
    public static final String RABBITMQ_USERNAME = "guest";
    //密码
    public static final String RABBITMQ_PASSWORD = "guest";
    //virtual host
    public static final String RABBITMQ_VIRTUAL_HOST = "/";

    //构建RabbitMQ的连接对象
    public static Connection getConnection() throws Exception {
        //1. 创建Connection工厂
        ConnectionFactory factory = new ConnectionFactory();

        //2. 设置RabbitMQ的连接信息
        factory.setHost(RABBITMQ_HOST);
        factory.setPort(RABBITMQ_PORT);
        factory.setUsername(RABBITMQ_USERNAME);
        factory.setPassword(RABBITMQ_PASSWORD);
        factory.setVirtualHost(RABBITMQ_VIRTUAL_HOST);

        //3. 返回连接对象
        Connection connection = factory.newConnection();
        return connection;
    }

}

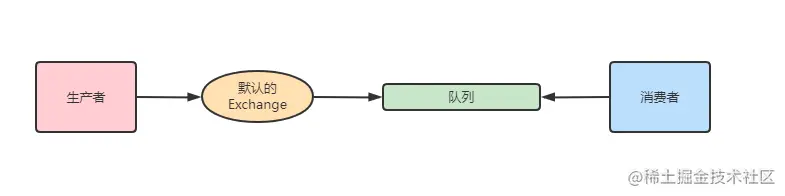

3 Hello World

在这种最简单的通讯模式下只有一个生产者，一个消费者，用的是默认的交换机，队列是自己创建的

3.1 生产者

public class Publisher {

    public static final String QUEUE_NAME = "hello";

    @Test
    public void publish() throws Exception {
        //1. 获取连接对象
        Connection connection = RabbitMQConnectionUtil.getConnection();

        //2. 构建Channel
        Channel channel = connection.createChannel();

        //3. 构建队列
        channel.queueDeclare(QUEUE_NAME,false,false,false,null);

        //4. 发布消息
        String message = "Hello World!";
        channel.basicPublish("",QUEUE_NAME,null,message.getBytes());
        System.out.println("消息发送成功！");
    }

}

构建队列时 channel.queueDeclare(QUEUE_NAME,false,false,false,null); 参数解读：

queue队列名称
durable是否需要持久化，若为true，则当服务重启的时候，队列将重新创建
exclusive是否是一个排外的队列，当前队列只允许一个消费者消费
autoDelete自动删除，当一个队列长时间没有使用的时候，会被删掉
arguments其他参数 发布消息时channel.basicPublish("",QUEUE_NAME,null,message.getBytes());参数解读
交换机的名称默认交换机，就是""
路由规则 routingKey是什么就路由到哪个队列，所以这里也是队列名称
消息的其他参数
消息内容

3.2 消费者

public class Consumer {

    @Test
    public void consume() throws Exception {
        //1. 获取连接对象
        Connection connection = RabbitMQConnectionUtil.getConnection();

        //2. 构建Channel
        Channel channel = connection.createChannel();

        //3. 构建队列
        channel.queueDeclare(Publisher.QUEUE_NAME, false, false, false, null);

        //4. 监听消息
        DefaultConsumer callback = new DefaultConsumer(channel) {
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                System.out.println("消费者获取到消息：" + new String(body, "UTF-8"));
            }
        };
        channel.basicConsume(Publisher.QUEUE_NAME, true, callback);
        System.out.println("开始监听队列");

        System.in.read();
    }
}

消费者构建队列时，参数需要与生产者一致。

监听消息channel.basicConsume(Publisher.QUEUE_NAME, true, callback);参数详解

监听的队列名称
autoACK
回调函数

4 Work Queues

生产者还是通过默认的交换机把消息推送到队列中，但是有多个消费者同时消费这一个队列中的消息。

RabbitMQ有一个特点，一个队列中的消息只会被一个消费者成功的消费。
默认情况下，RabbitMQ会将消息以轮询的方式交给不同的消费者。
消费者拿到消息之后，需要给RabbitMQ一个ack，只有当RabbitMQ收到这个ack,RabbitMQ才会认为消费者已经拿到消息了。当消费者拿到了消息，却没有发送ack的时候，则RabbitMQ将会把这条消息标记为unack的状态，并发送给其他消费者消费。

4.1 生产者

生产者和Hello World的形式是一样的，都是将消息推送到默认交换机。

public class Publisher {

    public static final String QUEUE_NAME = "work";

    @Test
    public void publish() throws Exception {
        //1. 获取连接对象
        Connection connection = RabbitMQConnectionUtil.getConnection();

        //2. 构建Channel
        Channel channel = connection.createChannel();

        //3. 构建队列
        channel.queueDeclare(QUEUE_NAME,false,false,false,null);

        //4. 发布消息
        for (int i = 0; i < 10; i++) {
            String message = "Hello World!" + i;
            channel.basicPublish("",QUEUE_NAME,null,message.getBytes());
        }

        System.out.println("消息发送成功！");
    }

}

4.2 消费者

让消费者关闭自动ack，并且设置消息的流控，最终实现消费者可以尽可能去多消费消息

public class Consumer {

    @Test
    public void consume1() throws Exception {
        //1. 获取连接对象
        Connection connection = RabbitMQConnectionUtil.getConnection();

        //2. 构建Channel
        Channel channel = connection.createChannel();

        //3. 构建队列
        channel.queueDeclare(Publisher.QUEUE_NAME, false, false, false, null);

        //3.5 设置消息的流控
        channel.basicQos(3);

        //4. 监听消息
        DefaultConsumer callback = new DefaultConsumer(channel) {
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                try {
                    Thread.sleep(100);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
                System.out.println("消费者1号-获取到消息：" + new String(body, "UTF-8"));
                channel.basicAck(envelope.getDeliveryTag(), false);
            }
        };
        channel.basicConsume(Publisher.QUEUE_NAME, false, callback);
        System.out.println("开始监听队列");

        System.in.read();
    }

    @Test
    public void consume2() throws Exception {
        //1. 获取连接对象
        Connection connection = RabbitMQConnectionUtil.getConnection();

        //2. 构建Channel
        Channel channel = connection.createChannel();

        //3. 构建队列
        channel.queueDeclare(Publisher.QUEUE_NAME, false, false, false, null);

        channel.basicQos(3);

        //4. 监听消息
        DefaultConsumer callback = new DefaultConsumer(channel) {
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                try {
                    Thread.sleep(1000);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
                System.out.println("消费者2号-获取到消息：" + new String(body, "UTF-8"));
                channel.basicAck(envelope.getDeliveryTag(), false);
            }
        };
        channel.basicConsume(Publisher.QUEUE_NAME, false, callback);
        System.out.println("开始监听队列");

        System.in.read();
    }
}

5 Publish/Subscribe

自行构建Exchange并绑定指定队列（FANOUT类型）

5.1 生产者

那么如何构建一个自定义的交换机并指定类型为FANOUT呢？并且交换机需要和指定队列绑定在一起。

使用以下代码可以设定交换机类型

channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.FANOUT);

绑定交换机和队列

channel.queueBind(QUEUE_NAME1,EXCHANGE_NAME,"");

当同一个交换机绑定两个队列的时候，交换机将把同样的数据在两个队列都放一份。

public class Publisher {

    public static final String EXCHANGE_NAME = "pubsub";
    public static final String QUEUE_NAME1 = "pubsub-one";
    public static final String QUEUE_NAME2 = "pubsub-two";
    @Test
    public void publish() throws Exception {
        //1. 获取连接对象
        Connection connection = RabbitMQConnectionUtil.getConnection();

        //2. 构建Channel
        Channel channel = connection.createChannel();

        //3. 构建交换机
        channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.FANOUT);

        //4. 构建队列
        channel.queueDeclare(QUEUE_NAME1,false,false,false,null);
        channel.queueDeclare(QUEUE_NAME2,false,false,false,null);

        //5. 绑定交换机和队列，使用的是FANOUT类型的交换机，绑定方式是直接绑定
        channel.queueBind(QUEUE_NAME1,EXCHANGE_NAME,"");
        channel.queueBind(QUEUE_NAME2,EXCHANGE_NAME,"");

        //6. 发消息到交换机
        channel.basicPublish(EXCHANGE_NAME,"",null,"publish/subscribe!".getBytes());
        System.out.println("消息成功发送！");
    }
}

6 Routing

在绑定Exchange和Queue时，需要指定好routingKey，同时在发送消息时，也需指定routingKey，只有routingKey一致时，才会把指定的消息路由到指定的Queue

6.1 生产者

绑定交换机和队列,并指定routingkey,当一个队列需要绑定多个routingkey的时候，多绑定几次即可。

channel.queueBind(QUEUE_NAME1,EXCHANGE_NAME,"ORANGE");

当指定的routingkey没有对应的队列的时候，则数据会直接丢失。

public class Publisher {

    public static final String EXCHANGE_NAME = "routing";
    public static final String QUEUE_NAME1 = "routing-one";
    public static final String QUEUE_NAME2 = "routing-two";
    @Test
    public void publish() throws Exception {
        //1. 获取连接对象
        Connection connection = RabbitMQConnectionUtil.getConnection();

        //2. 构建Channel
        Channel channel = connection.createChannel();

        //3. 构建交换机
        channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.DIRECT);

        //4. 构建队列
        channel.queueDeclare(QUEUE_NAME1,false,false,false,null);
        channel.queueDeclare(QUEUE_NAME2,false,false,false,null);

        //5. 绑定交换机和队列
        channel.queueBind(QUEUE_NAME1,EXCHANGE_NAME,"ORANGE");
        channel.queueBind(QUEUE_NAME2,EXCHANGE_NAME,"BLACK");
        channel.queueBind(QUEUE_NAME2,EXCHANGE_NAME,"GREEN");

        //6. 发消息到交换机
        channel.basicPublish(EXCHANGE_NAME,"ORANGE",null,"大橙子！".getBytes());
        channel.basicPublish(EXCHANGE_NAME,"BLACK",null,"黑布林大狸子".getBytes());
        channel.basicPublish(EXCHANGE_NAME,"WHITE",null,"小白兔！".getBytes());
        System.out.println("消息成功发送！");


    }

}

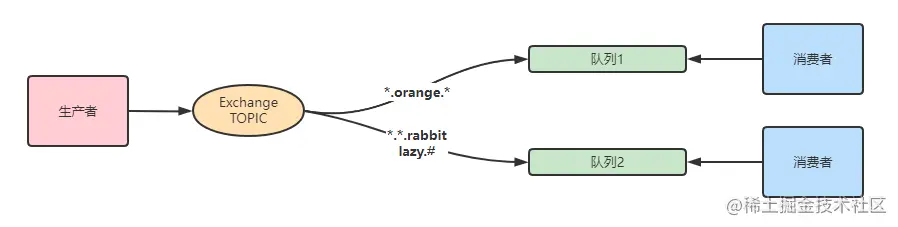

7 Topic

TOPIC类型可以编写带有特殊意义的routingKey的绑定方式

TOPIC类型的交换机在和队列绑定时，需要以aaa.bbb.ccc..方式编写routingkey
其中有两个特殊字符：*（相当于占位符），#（相当通配符）

7.1 生产者

public class Publisher {

    public static final String EXCHANGE_NAME = "topic";
    public static final String QUEUE_NAME1 = "topic-one";
    public static final String QUEUE_NAME2 = "topic-two";
    @Test
    public void publish() throws Exception {
        //1. 获取连接对象
        Connection connection = RabbitMQConnectionUtil.getConnection();

        //2. 构建Channel
        Channel channel = connection.createChannel();

        //3. 构建交换机
        channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.TOPIC);

        //4. 构建队列
        channel.queueDeclare(QUEUE_NAME1,false,false,false,null);
        channel.queueDeclare(QUEUE_NAME2,false,false,false,null);

        //5. 绑定交换机和队列，
        channel.queueBind(QUEUE_NAME1,EXCHANGE_NAME,"*.orange.*");
        channel.queueBind(QUEUE_NAME2,EXCHANGE_NAME,"*.*.rabbit");
        channel.queueBind(QUEUE_NAME2,EXCHANGE_NAME,"lazy.#");

        //6. 发消息到交换机
        channel.basicPublish(EXCHANGE_NAME,"big.orange.rabbit",null,"大橙兔子！".getBytes());
        channel.basicPublish(EXCHANGE_NAME,"small.white.rabbit",null,"小白兔".getBytes());
        channel.basicPublish(EXCHANGE_NAME,"lazy.dog.dog.dog.dog.dog.dog",null,"懒狗狗狗狗狗狗".getBytes());
        System.out.println("消息成功发送！");
    }
}

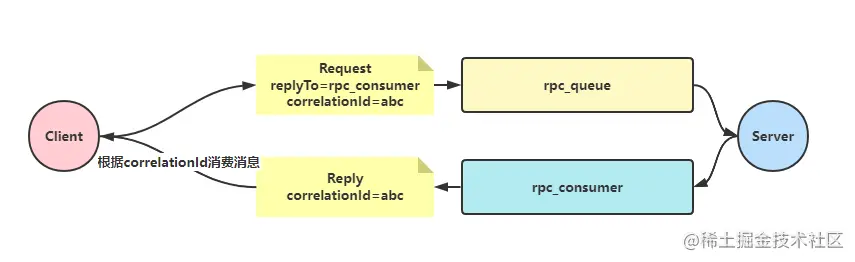

8 RPC

因为两个服务在交互时，可以尽量做到Client和Server的解耦，通过RabbitMQ进行解耦操作

客户端可以发送一个消息到MQ队列中，之后server会监听这个队列，拿到消息后会返回一个响应给客户端，但这个响应也不是直接给客户端的，而是把响应交给RabbitMQ,生产者会监听相应队列的消息，最终完成请求的闭环。

需要让Client发送消息时，携带两个属性：

replyTo告知Server将相应信息放到哪个队列
correlationId告知Server发送相应消息时，需要携带位置标示来告知Client响应的信息

8.1 客户端：

public class Publisher {

    public static final String QUEUE_PUBLISHER = "rpc_publisher";
    public static final String QUEUE_CONSUMER = "rpc_consumer";

    @Test
    public void publish() throws Exception {
        //1. 获取连接对象
        Connection connection = RabbitMQConnectionUtil.getConnection();
        //2. 构建Channel
        Channel channel = connection.createChannel();
        //3. 构建队列
        channel.queueDeclare(QUEUE_PUBLISHER,false,false,false,null);
        channel.queueDeclare(QUEUE_CONSUMER,false,false,false,null);
        //4. 发布消息
        String message = "Hello RPC!";
        String uuid = UUID.randomUUID().toString();
        AMQP.BasicProperties props = new AMQP.BasicProperties()
                .builder()
                .replyTo(QUEUE_CONSUMER)
                .correlationId(uuid)
                .build();
        channel.basicPublish("",QUEUE_PUBLISHER,props,message.getBytes());
        channel.basicConsume(QUEUE_CONSUMER,false,new DefaultConsumer(channel){
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                String id = properties.getCorrelationId();
                if(id != null && id.equalsIgnoreCase(uuid)){
                    System.out.println("接收到服务端的响应：" + new String(body,"UTF-8"));
                }
                channel.basicAck(envelope.getDeliveryTag(),false);
            }
        });
        System.out.println("消息发送成功！");
        System.in.read();
    }
}

8.2 服务端

package com.luke.rabbitmqdemo.rpc;

import com.luke.rabbitmqdemo.helloworld.Publisher;
import com.luke.rabbitmqdemo.util.RabbitMQConnectionUtil;
import com.rabbitmq.client.*;
import org.junit.Test;

import java.io.IOException;

public class Consumer {

    public static final String QUEUE_PUBLISHER = "rpc_publisher";
    public static final String QUEUE_CONSUMER = "rpc_consumer";

    @Test
    public void consume() throws Exception {
        //1. 获取连接对象
        Connection connection = RabbitMQConnectionUtil.getConnection();

        //2. 构建Channel
        Channel channel = connection.createChannel();

        //3. 构建队列
        channel.queueDeclare(QUEUE_PUBLISHER,false,false,false,null);
        channel.queueDeclare(QUEUE_CONSUMER,false,false,false,null);


        //4. 监听消息
        DefaultConsumer callback = new DefaultConsumer(channel){
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                System.out.println("消费者获取到消息：" + new String(body,"UTF-8"));
                String resp = "获取到了client发出的请求，这里是响应的信息";
                String respQueueName = properties.getReplyTo();
                String uuid = properties.getCorrelationId();
                AMQP.BasicProperties props = new AMQP.BasicProperties()
                        .builder()
                        .correlationId(uuid)
                        .build();
                channel.basicPublish("",respQueueName,props,resp.getBytes());
                channel.basicAck(envelope.getDeliveryTag(),false);
            }
        };
        channel.basicConsume(QUEUE_PUBLISHER,false,callback);
        System.out.println("开始监听队列");

        System.in.read();
    }

}

RabbitMQ通讯方式
