进行GCD底层原理探索前，我们需要到Apple官网的 Source Browser 下载GCD源码
1、main_queue
主队列通过dispatch_get_main_queue()获取，那么我们从两条路径探索一下：
-
第一条路径是源码搜索 dispatch_get_main_queue(
DISPATCH_INLINE DISPATCH_ALWAYS_INLINE DISPATCH_CONST DISPATCH_NOTHROW dispatch_queue_main_t dispatch_get_main_queue(void) { return DISPATCH_GLOBAL_OBJECT(dispatch_queue_main_t, _dispatch_main_q); }通过查找 DISPATCH_GLOBAL_OBJECT 会发现这是一个宏定义，而且在多处有同名定义，想要继续探索是调用的哪个宏定义可以借助堆栈，但是更值得探索的是 dispatch_queue_main_t 和 _dispatch_main_q 这两个参数
-

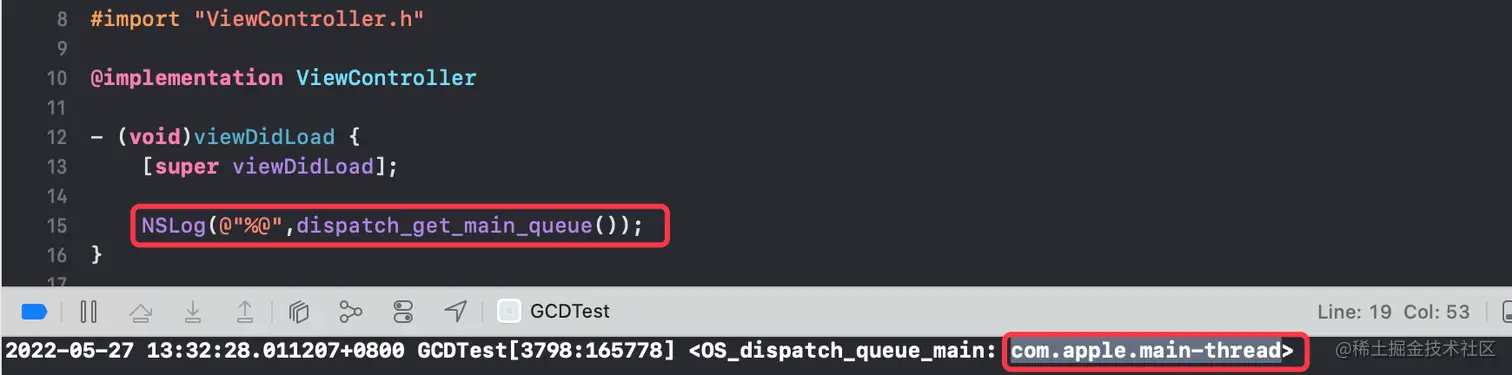

第二条路径是直接打印一下看看会输出什么
- 主线程名称为 com.apple.main-thread，那么我们就搜一下这个名字是在什么位置被赋值的
// init.c文件 // 6618342 Contact the team that owns the Instrument DTrace probe before // renaming this symbol struct dispatch_queue_static_s _dispatch_main_q = { DISPATCH_GLOBAL_OBJECT_HEADER(queue_main), #if !DISPATCH_USE_RESOLVERS .do_targetq = _dispatch_get_default_queue(true), #endif .dq_state = DISPATCH_QUEUE_STATE_INIT_VALUE(1) | DISPATCH_QUEUE_ROLE_BASE_ANON, .dq_label = "com.apple.main-thread", // DQF_WIDTH(1) 与 .dq_serialnum = 1 为重要内容 .dq_atomic_flags = DQF_THREAD_BOUND | DQF_WIDTH(1), .dq_serialnum = 1, };_dispatch_main_q：正巧是主队列源码2个参数之一DQF_WIDTH(1)：标识了这个队列是串行队列dq_serialnum：通过这个内容的值区分队列类型// dq_serialnum 是用这个方式赋值的 dq->dq_serialnum = os_atomic_inc_orig(&_dispatch_queue_serial_numbers, relaxed);// skip zero // 1 - main_q // 2 - mgr_q // 3 - mgr_root_q // 4,5,6,7,8,9,10,11,12,13,14,15 - global queues // 17 - workloop_fallback_q // we use 'xadd' on Intel, so the initial value == next assigned #define DISPATCH_QUEUE_SERIAL_NUMBER_INIT 17 extern unsigned long volatile _dispatch_queue_serial_numbers;
- 主线程名称为 com.apple.main-thread，那么我们就搜一下这个名字是在什么位置被赋值的
2、dispatch_queue_create()
我们来看一下创建队列的方法底层是怎么实现的
dispatch_queue_t
dispatch_queue_create(const char *label, dispatch_queue_attr_t attr)
{
return _dispatch_lane_create_with_target(label, attr,
DISPATCH_TARGET_QUEUE_DEFAULT, true);
}
dispatch_lane_create_with_target
DISPATCH_NOINLINE
static dispatch_queue_t
_dispatch_lane_create_with_target(const char *label, dispatch_queue_attr_t dqa,
dispatch_queue_t tq, bool legacy)
{
//将用户设置的队列类型传入并封装为 dispatch_queue_attr_info_t 类型
dispatch_queue_attr_info_t dqai = _dispatch_queue_attr_to_info(dqa);
//
// Step 1: Normalize arguments (qos, overcommit, tq)
//
……
dispatch_lane_t dq = _dispatch_object_alloc(vtable,
sizeof(struct dispatch_lane_s));
// 创建队列,用到了上边封装成 dispatch_queue_attr_info_t 类型时里边设置的 dqai_concurrent 参数
_dispatch_queue_init(dq, dqf, dqai.dqai_concurrent ?
DISPATCH_QUEUE_WIDTH_MAX : 1, DISPATCH_QUEUE_ROLE_INNER |
(dqai.dqai_inactive ? DISPATCH_QUEUE_INACTIVE : 0));
//用户设置的队列名称
dq->dq_label = label;
dq->dq_priority = _dispatch_priority_make((dispatch_qos_t)dqai.dqai_qos,
dqai.dqai_relpri);
if (overcommit == _dispatch_queue_attr_overcommit_enabled) {
dq->dq_priority |= DISPATCH_PRIORITY_FLAG_OVERCOMMIT;
}
if (!dqai.dqai_inactive) {
_dispatch_queue_priority_inherit_from_target(dq, tq);
_dispatch_lane_inherit_wlh_from_target(dq, tq);
}
_dispatch_retain(tq);
dq->do_targetq = tq;
_dispatch_object_debug(dq, "%s", __func__);
return _dispatch_trace_queue_create(dq)._dq;
}
_dispatch_queue_attr_to_info
将用户设置的串行、并发队列参数传入，并以此设置 dqai_concurrent 标识为true或false作为标记
dispatch_queue_attr_info_t
_dispatch_queue_attr_to_info(dispatch_queue_attr_t dqa)
{
dispatch_queue_attr_info_t dqai = { };
if (!dqa) return dqai;
#if DISPATCH_VARIANT_STATIC
// 如果传过来的是concurrent则把这个参数设置为true
if (dqa == &_dispatch_queue_attr_concurrent) {
dqai.dqai_concurrent = true;
return dqai;
}
#endif
......
return dqai;
}
_dispatch_queue_init
// Note to later developers: ensure that any initialization changes are
// made for statically allocated queues (i.e. _dispatch_main_q).
static inline dispatch_queue_class_t
_dispatch_queue_init(dispatch_queue_class_t dqu, dispatch_queue_flags_t dqf,
uint16_t width, uint64_t initial_state_bits)
{
uint64_t dq_state = DISPATCH_QUEUE_STATE_INIT_VALUE(width);
dispatch_queue_t dq = dqu._dq;
dispatch_assert((initial_state_bits & ~(DISPATCH_QUEUE_ROLE_MASK |
DISPATCH_QUEUE_INACTIVE)) == 0);
if (initial_state_bits & DISPATCH_QUEUE_INACTIVE) {
dq_state |= DISPATCH_QUEUE_INACTIVE + DISPATCH_QUEUE_NEEDS_ACTIVATION;
dq->do_ref_cnt += 2; // rdar://8181908 see _dispatch_lane_resume
if (dx_metatype(dq) == _DISPATCH_SOURCE_TYPE) {
dq->do_ref_cnt++; // released when DSF_DELETED is set
}
}
dq_state |= (initial_state_bits & DISPATCH_QUEUE_ROLE_MASK);
dq->do_next = DISPATCH_OBJECT_LISTLESS;
// 队列宽度,为1时就是串行队列
dqf |= DQF_WIDTH(width);
os_atomic_store2o(dq, dq_atomic_flags, dqf, relaxed);
dq->dq_state = dq_state;
// 队列类型
dq->dq_serialnum =
os_atomic_inc_orig(&_dispatch_queue_serial_numbers, relaxed);
return dqu;
}
- 重点关注 dqf |= DQF_WIDTH(width) 这行代码，因为它设置了队列宽度
3、死锁原理
- 在
当前线程(线程执行的任务是从同一队列中取出的)，同步的向串行队列中添加任务，就会死锁
3.1、__DISPATCH_WAIT_FOR_QUEUE__

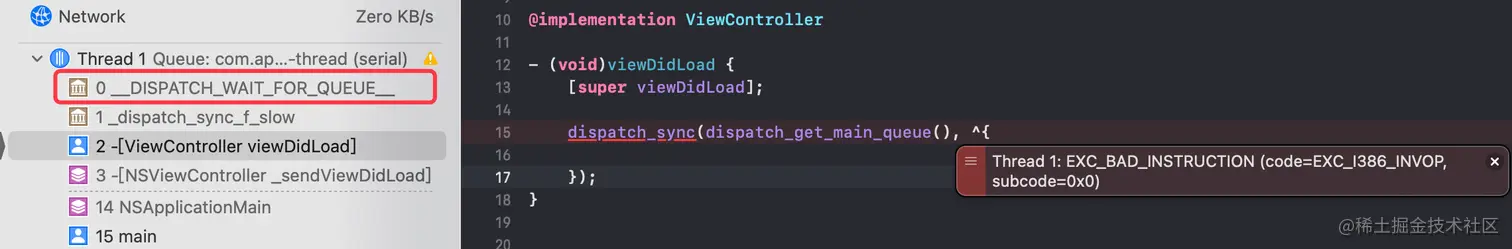

可以看到崩在了一个 DISPATCH_WAIT_FOR_QUEUE 符号中，那么我们找到这个符号的内容：
DISPATCH_NOINLINE
static void
__DISPATCH_WAIT_FOR_QUEUE__(dispatch_sync_context_t dsc, dispatch_queue_t dq)
{
uint64_t dq_state = _dispatch_wait_prepare(dq);
//unlikely:小概率执行
//返回内容为true时触发死锁
if (unlikely(_dq_state_drain_locked_by(dq_state, dsc->dsc_waiter))) {
//抛出CRASH报错
DISPATCH_CLIENT_CRASH((uintptr_t)dq_state,
"dispatch_sync called on queue "
"already owned by current thread");
}
......
}
3.2、_dq_state_drain_locked_by --> _dispatch_lock_is_locked_by
DISPATCH_ALWAYS_INLINE
static inline bool
_dispatch_lock_is_locked_by(dispatch_lock lock_value, dispatch_tid tid)
{
// equivalent to _dispatch_lock_owner(lock_value) == tid
// lock_value:当前队列
// tid:当前线程id
return ((lock_value ^ tid) & DLOCK_OWNER_MASK) == 0;
}
- DLOCK_OWNER_MASK 是一个很大的数，
(lock_value ^ tid)这个式子为 0 时才使 return 内容肯定为 true，所以可知为 lock_value == tid 时
示例
1. - (void)viewDidLoad {
2. [super viewDidLoad];
// 串行队列
3. dispatch_queue_t queue = dispatch_queue_create("LZ",DISPATCH_QUEUE_SERIAL);
// 与第6行都是向 queue 中添加任务后再取到同一线程调度
4. dispatch_async(queue, ^{
5. NSLog(@"%@",[NSThread currentThread]);
// 同步添加
6. dispatch_sync(queue, ^{
7. NSLog(@"此处死锁");
8. });
9. });
10. }
- 第4行是sync或async无关紧要，是sync就不开辟线程，死锁在主线程；是async就开辟一条新线程，死锁在这条新线程
死锁3个条件小结
- 串行队列：通道够窄，后边的任务得等着
- 同步添加：任务只能等这条线程，不能跑去别的线程
- 相同线程：任务来源的队列得一致，因为队列会找一条
空闲的线程执行任务，如果任务来自不同队列，队列1的任务都还没执行完变空闲，队列2调度的线程怎么可能和队列1的相同，线程都不同，还谈什么死锁？
4、同步、异步函数
4.1、同步函数
//sync
DISPATCH_NOINLINE
void
dispatch_sync(dispatch_queue_t dq, dispatch_block_t work)
{
uintptr_t dc_flags = DC_FLAG_BLOCK;
// unlikely:小概率执行
if (unlikely(_dispatch_block_has_private_data(work))) {
return _dispatch_sync_block_with_privdata(dq, work, dc_flags);
}
// _dispatch_Block_invoke(work)执行block
_dispatch_sync_f(dq, work, _dispatch_Block_invoke(work), dc_flags);
}
#endif // __BLOCKS__
//_dispatch_Block_invoke将任务封装为 Block_layout 结构体
#ifdef __BLOCKS__
#define _dispatch_Block_invoke(bb) \
((dispatch_function_t)((struct Block_layout *)bb)->invoke)
4.2、异步函数
//async
#ifdef __BLOCKS__
void
dispatch_async(dispatch_queue_t dq, dispatch_block_t work)
{
dispatch_continuation_t dc = _dispatch_continuation_alloc();
uintptr_t dc_flags = DC_FLAG_CONSUME;
dispatch_qos_t qos;
// 任务block封装为qos,同时在里边进行了copy保存
qos = _dispatch_continuation_init(dc, dq, work, 0, dc_flags);
//
_dispatch_continuation_async(dq, dc, qos, dc->dc_flags);
}
#endif
_dispatch_continuation_init
DISPATCH_ALWAYS_INLINE
static inline dispatch_qos_t
_dispatch_continuation_init(dispatch_continuation_t dc,
dispatch_queue_class_t dqu, dispatch_block_t work,
dispatch_block_flags_t flags, uintptr_t dc_flags)
{
// copy了一份任务block
void *ctxt = _dispatch_Block_copy(work);
dc_flags |= DC_FLAG_BLOCK | DC_FLAG_ALLOCATED;
if (unlikely(_dispatch_block_has_private_data(work))) {
dc->dc_flags = dc_flags;
//将copy的任务进行赋值存储
dc->dc_ctxt = ctxt;
// will initialize all fields but requires dc_flags & dc_ctxt to be set
return _dispatch_continuation_init_slow(dc, dqu, flags);
}
dispatch_function_t func = _dispatch_Block_invoke(work);
if (dc_flags & DC_FLAG_CONSUME) {
func = _dispatch_call_block_and_release;
}
return _dispatch_continuation_init_f(dc, dqu, ctxt, func, flags, dc_flags);
}
_dispatch_continuation_async
DISPATCH_ALWAYS_INLINE
static inline void
_dispatch_continuation_async(dispatch_queue_class_t dqu,
dispatch_continuation_t dc, dispatch_qos_t qos, uintptr_t dc_flags)
{
#if DISPATCH_INTROSPECTION
if (!(dc_flags & DC_FLAG_NO_INTROSPECTION)) {
_dispatch_trace_item_push(dqu, dc);
}
#else
(void)dc_flags;
#endif
// 这里使用了qos
return dx_push(dqu._dq, dc, qos);
}
#define dx_push(x, y, z) dx_vtable(x)->dq_push(x, y, z)

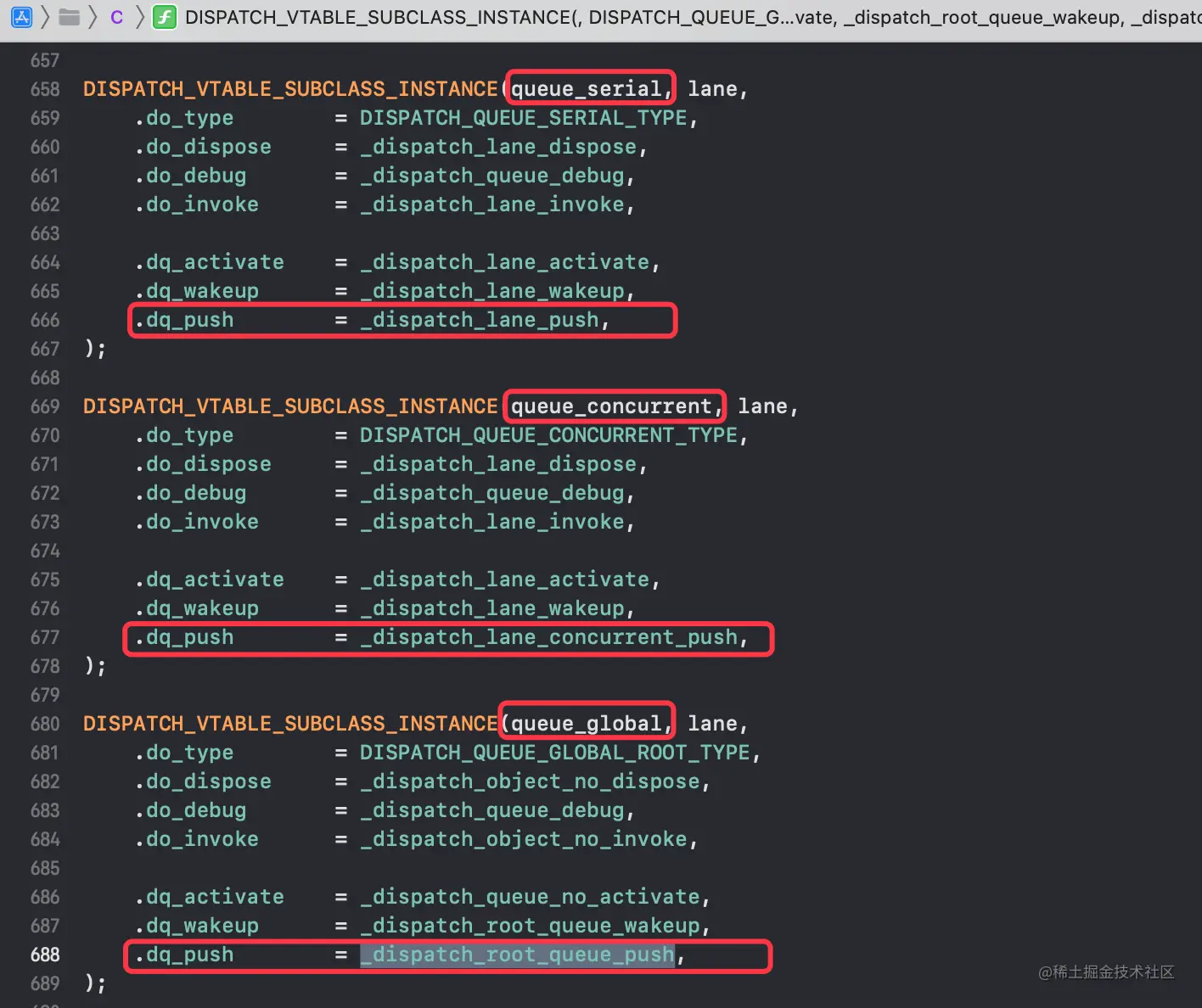

- 根据队列串行、并发、全局等类型，.dq_push 会被赋不同的值

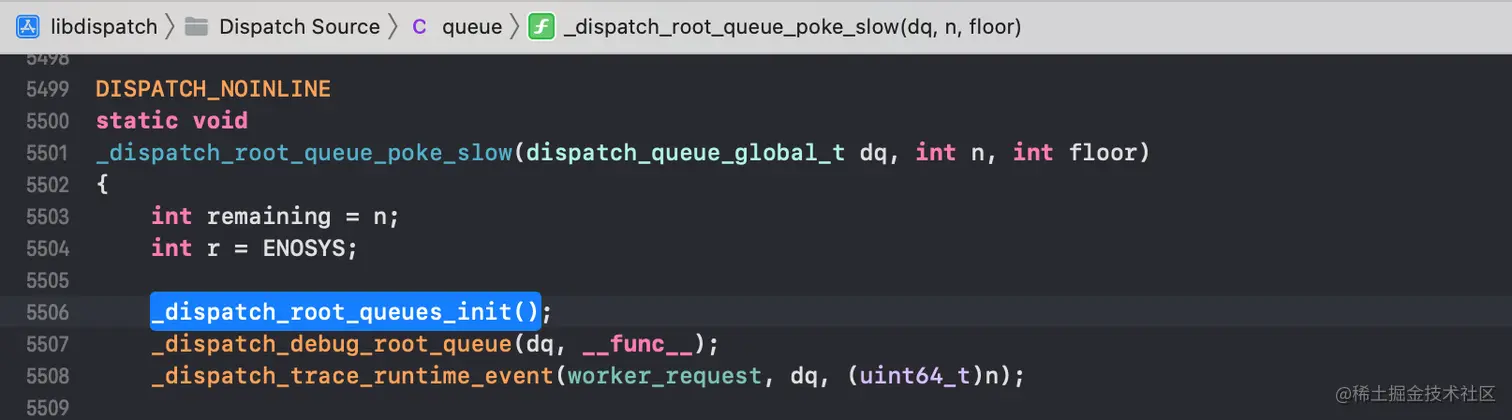

- 以全局队列为例，方法顺序：_dispatch_root_queue_push --> _dispatch_root_queue_poke --> _dispatch_root_queue_poke_slow
- 操作了线程相关内容
- 异步底层调用使用大量宏与复杂逻辑，我们主要关注与同步函数的不同
小结
_dispatch_client_callout:最后通过这个方法执行任务block- dispatch_sync：没有保存任务、没有线程相关信息、直接执行
- dispatch_async：对任务block做了保存，操作了线程，在适当位置执行
