可拖拽工作台实战

需求背景

公司营销管理后台，工作台首页不支持可配置，页面布局写死了，现产品想实现工作台首页支持可配置。需要实现以下几点功能:

1. 添加卡片:包含我的项目、我完成的、我的待办、我创建的、我完成的、今日统计、我的审批等卡片
2. 可实现自由拖拽卡片进行位置布局&保存更新首页布局
3. 恢复默认工作台布局

实现效果图

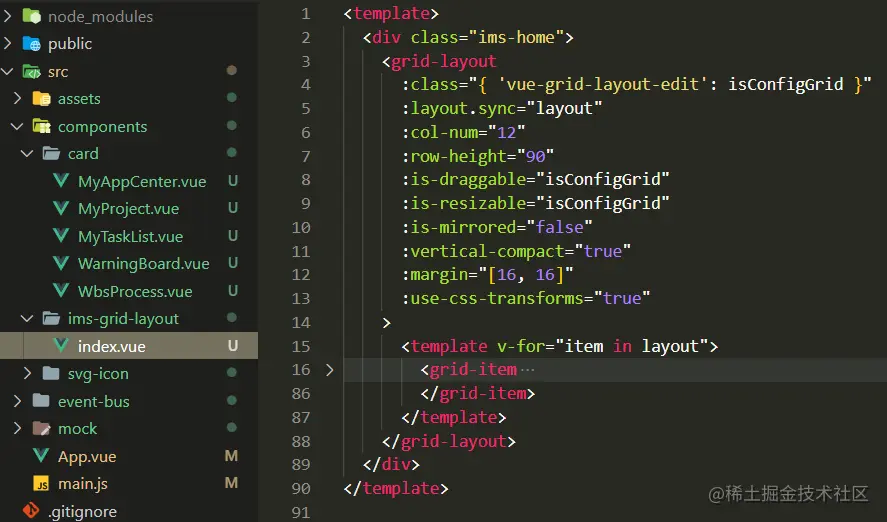

代码结构目录

基本使用

引入

import ImsGridLayout from '@/components/ims-grid-layout/index.vue'
export default {
  components: {
    ImsGridLayout,
  },
}

使用

   <ims-grid-layout
      ref="gridLayout"
      :gridData="list"
      :isConfigGrid="isConfigGrid"
      :isConfigCardBtn.sync="isConfigCardBtn"
    ></ims-grid-layout>

属性

gridData

Type: Array
Required: false
Default: []

// example
{
  businessType: 1,
  button: '[]',
  buttons: [],
  cardCode: 'MyTaskList',
  cardId: '1438872418653044771',
  extField: '',
  h: 5,
  i: 1,
  id: '1529662881589579780',
  isExistence: '',
  minH: 5,
  minW: 6,
  moduleDesc: '',
  moduleDescEn: '',
  moreLink: '',
  name: '我的工作待办',
  nameEn: '我的工作待办',
  orderIndex: 1,
  path: '/card/my-task-list',
  status: null,
  tag: '',
  tenantId: '',
  thumbnail: '',
  thumbnailUrl: '1507623361088696322',
  w: 8,
  x: 0,
  y: 0,
  componentPath: 'src/components/card/MyTaskList.vue',
}

isConfigGrid

Type: Boolean
Required: true
Default: false

卡片是否可以拖拽

isConfigCardBtn

Type: Boolean
Required: true
Default: true 工作台配置卡片按钮是否显示

vue-grid-layout踩坑记录

npm ...扩展运算符编译报错

解决办法: 修改babel-loader配置;默认babel-loader是exclude node_modules目录的;但是旧的项目，不支持es6部分语法;所以要包含 node_modules下报错的目录

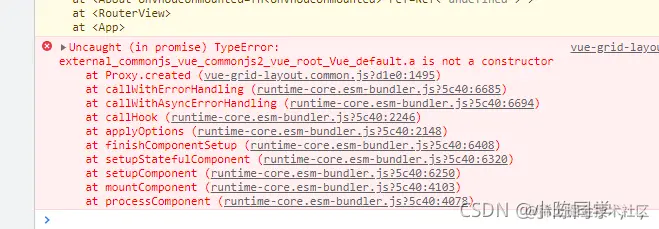

vue3引入vue-grid-layout报错

解决办法: yarn add vue-grid-layout@3.0.0-beta1

import VueGridLayout from 'vue-grid-layout'
createApp(App).use(VueGridLayout)

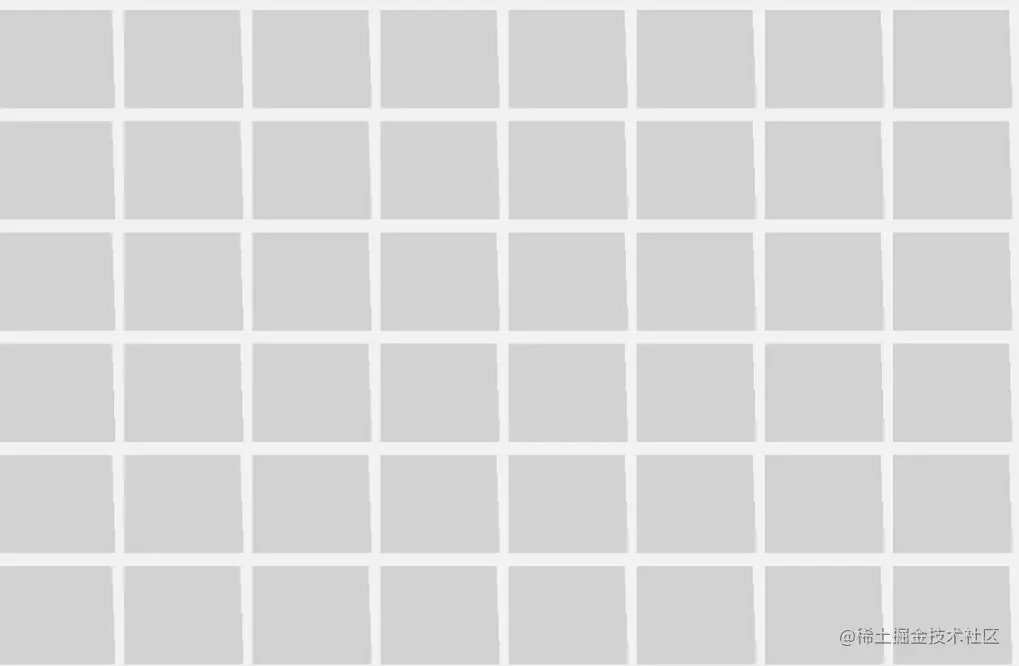

linear-gradient实现vue-grid-layout方格背景

 background: #d2d2d2;
  background-image: linear-gradient(90deg, #f2f2f2 10px, transparent 0),
    linear-gradient(#f2f2f2 10px, transparent 0);
  background-size: calc(8.33333% - 0.8px) 110px;

核心代码

<template>
  <div class="ims-home">
    <grid-layout
      :class="{ 'vue-grid-layout-edit': isConfigGrid }"
      :layout.sync="layout"
      :col-num="12"
      :row-height="90"
      :is-draggable="isConfigGrid"
      :is-resizable="isConfigGrid"
      :is-mirrored="false"
      :vertical-compact="true"
      :margin="[16, 16]"
      :use-css-transforms="true"
    >
      <template v-for="item in layout">
        <grid-item
          :x="item.x"
          :y="item.y"
          :w="item.w"
          :h="item.h"
          :i="item.i"
          :key="item.i"
          :minW="item.minW || 4"
          :minH="item.minH || 4"
        >
          <div v-if="cardComponents[item.cardCode]" class="card-item">
            <div class="vue-grid-item-header">
              <div class="title">{{ item.name }}</div>
              <div class="setting" v-if="!isConfigGrid">
                <svg-icon
                  title="点击刷新此卡片"
                  class="card-icon icon-refresh"
                  name="refresh"
                  @click.native="handleRefresh(item)"
                ></svg-icon>
                <!-- <template v-for="(_item, _index) in item.buttons">
                  <i :key="_index + '_split'" class="icon-split"></i>
                  <i
                    :key="_index"
                    :class="[
                      _item.icon,
                      (_item.icon === item.activeIcon ||
                        (!item.activeIcon && _index === 0)) &&
                        'active',
                    ]"
                    :title="_item.name"
                    @click="execCardFunction(item, _item.icon, _item.func)"
                  ></i>
                </template> -->
                <i class="icon-split"></i>
                <svg-icon
                  v-if="isConfigCardBtn"
                  title="点击放大此卡片"
                  name="zoom-in"
                  class="card-icon"
                  @click.native="handleZoomIn(item)"
                ></svg-icon>
                <svg-icon
                  v-else
                  title="点击缩小此卡片"
                  class="card-icon"
                  name="zoom-out"
                  @click.native="handleZoomOut(item)"
                ></svg-icon>
              </div>
            </div>
            <div class="vue-grid-item-body">
              <component
                v-bind="{
                  w: item.w,
                  h: item.h,
                }"
                :is="cardComponents[item.cardCode]"
              ></component>
            </div>
          </div>
          <template v-else>
            {{ item.i }}
          </template>
          <svg-icon
            v-if="isConfigGrid"
            class="vue-grid-item-close"
            name="close"
            @click.native="handleRemove(item.i)"
          ></svg-icon>
        </grid-item>
      </template>
    </grid-layout>
  </div>
</template>

<script>
import { GridLayout, GridItem } from 'vue-grid-layout'
import _ from 'lodash'

export default {
  name: 'ims-grid-layout',
  components: {
    GridLayout: GridLayout,
    GridItem: GridItem,
  },
  props: {
    isConfigGrid: {
      type: Boolean,
      default: false,
      required: true,
    },
    isConfigCardBtn: {
      type: Boolean,
      default: true,
      required: true,
    },
    gridData: {
      type: Array,
      default: () => [],
    },
  },
  watch: {
    gridData(newVal) {
      this.layout = _.cloneDeep(newVal)
      this.renderComponent()
    },
  },
  computed: {
    existCardCode() {
      return this.layout.map((item) => item.cardCode)
    },
    latestCardIndex() {
      return _.last(this.layout)?.i
    },
  },
  data() {
    return {
      layout: _.cloneDeep(this.gridData),
      cardComponents: {},
    }
  },
  mounted() {
    this.renderComponent()
  },
  methods: {
    getComponentPath(path) {
      const strArr = path.split('components/')
      if (strArr && strArr.length) {
        return strArr[strArr.length - 1]
      }
      return path
    },
    // 渲染组件
    renderComponent() {
      const cardCodes = this.layout.filter((item) => item.cardCode)
      const resultComponent = (item) => {
        let result = null
        let pathStr = this.getComponentPath(item.componentPath)
        console.log(pathStr, 'path===')
        result = import(`@/components/${pathStr}`).catch(() =>
          import(`@/components/${pathStr}`).catch(() =>
            import(`../card/${item.cardCode}`)
          )
        )
        return result
      }
      cardCodes.forEach((item) => {
        this.cardComponents[item.cardCode] = () => {
          return resultComponent(item)
        }
      })
    },
    handleRemove(gridIndex) {
      this.layout = this.layout.filter(
        (item) => Number(item.i) !== Number(gridIndex)
      )
    },
    handleRefresh(item) {
      const cardCode = _.camelCase(item.cardCode)
      // myProject-refresh
      this.$bus.$emit(`${cardCode}-refresh`, item)
    },
    handleZoomIn(item) {
      const list = _.cloneDeep(this.layout)
      list.forEach((gridItem) => {
        gridItem.x = 0
        gridItem.y = 0
        gridItem.w = gridItem.i === item.i ? 12 : 0
      })
      this.layout = [...list]
      this.$emit('update:isConfigCardBtn', false)
    },
    handleZoomOut() {
      this.layout = [...this.gridData]
      this.$emit('update:isConfigCardBtn', true)
    },
    resetGrid() {
      this.layout = [...this.gridData]
    },
  },
}
</script>

<style lang="scss" scoped>
.ims-home {
  padding-top: 56px;
  .vue-grid-layout-edit {
    background: #e5e6e8;
    background-image: linear-gradient(90deg, #f2f3f4 16px, transparent 0),
      linear-gradient(#f2f3f4 16px, transparent 0);
    background-size: calc(8.33333% - 1.69px) 106px;
    .vue-grid-item {
      border-radius: 0;
    }
  }
  .vue-grid-item {
    background: #ffffff;
    border-radius: 12px;
    box-shadow: 0 1px 4px 0 rgba(39, 45, 54, 0.1);
    .vue-grid-item-close {
      right: -5px;
      top: -5px;
      position: absolute;
      cursor: pointer;
      color: #cccccc;
      font-size: 20px;
    }
  }
  .card-item {
    height: 100%;
    overflow: hidden;
  }
  .vue-grid-item-header {
    display: flex;
    line-height: 20px;
    padding: 24px 24px 8px 24px;
    .title {
      flex: 1;
      color: rgba(0, 0, 0, 0.85);
      font-size: 16px;
      text-align: left;
    }
    .setting {
      display: flex;
      justify-content: flex-end;
      align-items: center;
      width: 30%;
      text-align: right;
      color: rgba(0, 0, 0, 0.45);
      font-size: 0;
      .card-icon {
        cursor: pointer;
        font-size: 16px;
        &:last-child {
          margin-right: 0;
        }
        &.active {
          color: #3d6af2;
        }
        &:hover {
          color: darken(#3d6af2, 20%);
        }
      }
      .icon-split {
        width: 1px;
        height: 8px;
        background: #f2f3f4;
        font-size: 0;
        display: inline-block;
        margin: 0 12px;
      }
    }
  }
  .vue-grid-item-body {
    padding: 0 24px 24px;
    height: calc(100% - 65px);
    overflow-y: hidden;
    &:hover {
      overflow-y: scroll;
      padding: 0 18px 24px 24px;
    }
  }
}
</style>

参考资料

vue动态组件&异步导入
