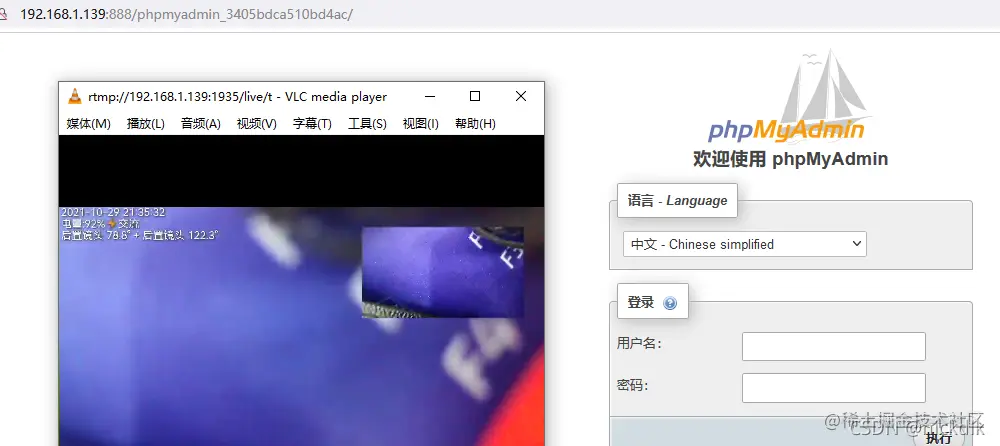

因为要用rtmp，所以重装了Nginx，导致Nginx的配置丢失了。 而且rtmp占用了原本phpMyAdmin的1935端口，修改过后也没用。 服务器内查询端口，没有发现修改过后的端口。 在这里插入图片描述

原本的配置是

user  www www;
worker_processes auto;
error_log  /www/wwwlogs/nginx_error.log  crit;
pid        /www/server/nginx/logs/nginx.pid;
worker_rlimit_nofile 51200;

events
    {
        use epoll;
        worker_connections 51200;
        multi_accept on;
    }

http
    {
        include       mime.types;
		#include luawaf.conf;

		include proxy.conf;

        default_type  application/octet-stream;

        server_names_hash_bucket_size 512;
        client_header_buffer_size 32k;
        large_client_header_buffers 4 32k;
        client_max_body_size 50m;

        sendfile   on;
        tcp_nopush on;

        keepalive_timeout 60;

        tcp_nodelay on;

        fastcgi_connect_timeout 300;
        fastcgi_send_timeout 300;
        fastcgi_read_timeout 300;
        fastcgi_buffer_size 64k;
        fastcgi_buffers 4 64k;
        fastcgi_busy_buffers_size 128k;
        fastcgi_temp_file_write_size 256k;
		fastcgi_intercept_errors on;

        gzip on;
        gzip_min_length  1k;
        gzip_buffers     4 16k;
        gzip_http_version 1.1;
        gzip_comp_level 2;
        gzip_types     text/plain application/javascript application/x-javascript text/javascript text/css application/xml;
        gzip_vary on;
        gzip_proxied   expired no-cache no-store private auth;
        gzip_disable   "MSIE [1-6]\.";

        limit_conn_zone $binary_remote_addr zone=perip:10m;
		limit_conn_zone $server_name zone=perserver:10m;

        server_tokens off;
        access_log off;

server
    {
        listen 888;
        server_name phpmyadmin;
        index index.html index.htm index.php;
        root  /www/server/phpmyadmin;
            location ~ /tmp/ {
                return 403;
            }

        #error_page   404   /404.html;
        include enable-php.conf;

        location ~ .*\.(gif|jpg|jpeg|png|bmp|swf)$
        {
            expires      30d;
        }

        location ~ .*\.(js|css)?$
        {
            expires      12h;
        }

        location ~ /\.
        {
            deny all;
        }

        access_log  /www/wwwlogs/access.log;
    }
include /www/server/panel/vhost/nginx/*.conf;
}

重装后的配置是：

user  www www;
worker_processes auto;
error_log  /www/wwwlogs/nginx_error.log  crit;
pid        /www/server/nginx/logs/nginx.pid;
worker_rlimit_nofile 51200;

rtmp {
    server {
        listen 1939;


        application live {
            live on;
            hls on;
            hls_path /www/wwwroot/rtmp.com;
        }
    }
}

stream {
    log_format tcp_format '$time_local|$remote_addr|$protocol|$status|$bytes_sent|$bytes_received|$session_time|$upstream_addr|$upstream_bytes_sent|$upstream_bytes_received|$upstream_connect_time';

    access_log /www/wwwlogs/tcp-access.log tcp_format;
    error_log /www/wwwlogs/tcp-error.log;
    include /www/server/panel/vhost/nginx/tcp/*.conf;
}

events
    {
        use epoll;
        worker_connections 51200;
        multi_accept on;
    }

http
    {
        include       mime.types;
		#include luawaf.conf;

		include proxy.conf;

        default_type  application/octet-stream;

        server_names_hash_bucket_size 512;
        client_header_buffer_size 32k;
        large_client_header_buffers 4 32k;
        client_max_body_size 50m;

        sendfile   on;
        tcp_nopush on;

        keepalive_timeout 60;

        tcp_nodelay on;

        fastcgi_connect_timeout 300;
        fastcgi_send_timeout 300;
        fastcgi_read_timeout 300;
        fastcgi_buffer_size 64k;
        fastcgi_buffers 4 64k;
        fastcgi_busy_buffers_size 128k;
        fastcgi_temp_file_write_size 256k;
		fastcgi_intercept_errors on;

        gzip on;
        gzip_min_length  1k;
        gzip_buffers     4 16k;
        gzip_http_version 1.1;
        gzip_comp_level 2;
        gzip_types     text/plain application/javascript application/x-javascript text/javascript text/css application/xml;
        gzip_vary on;
        gzip_proxied   expired no-cache no-store private auth;
        gzip_disable   "MSIE [1-6]\.";

        limit_conn_zone $binary_remote_addr zone=perip:10m;
		limit_conn_zone $server_name zone=perserver:10m;

        server_tokens off;
        access_log off;

server
    {
        listen 1939;


        server_name phpmyadmin;
        index index.html index.htm index.php;
        root  /www/server/phpmyadmin;
            location ~ /tmp/ {
                return 403;
            }

        #error_page   404   /404.html;
        include enable-php.conf;

        location ~ .*\.(gif|jpg|jpeg|png|bmp|swf)$
        {
            expires      30d;
        }

        location ~ .*\.(js|css)?$
        {
            expires      12h;
        }

        location ~ /\.
        {
            deny all;
        }

        access_log  /www/wwwlogs/access.log;
      location /stat {
        rtmp_stat all;
        rtmp_stat_stylesheet stat.xsl;
      }

      location /stat.xsl {
        root /root/nginx-rtmp-module/;
      }

      location /live {
        types {
         application/vnd.apple.mpegurl m3u8;
        video/mp2t ts;
        }
        root /www/wwwroot/test.sshouxin.xyz;
        add_header Cache-Control no-cache;
  	    add_header Access-Control-Allow-Origin *;
  	}
  }
include /www/server/panel/vhost/nginx/*.conf;
}

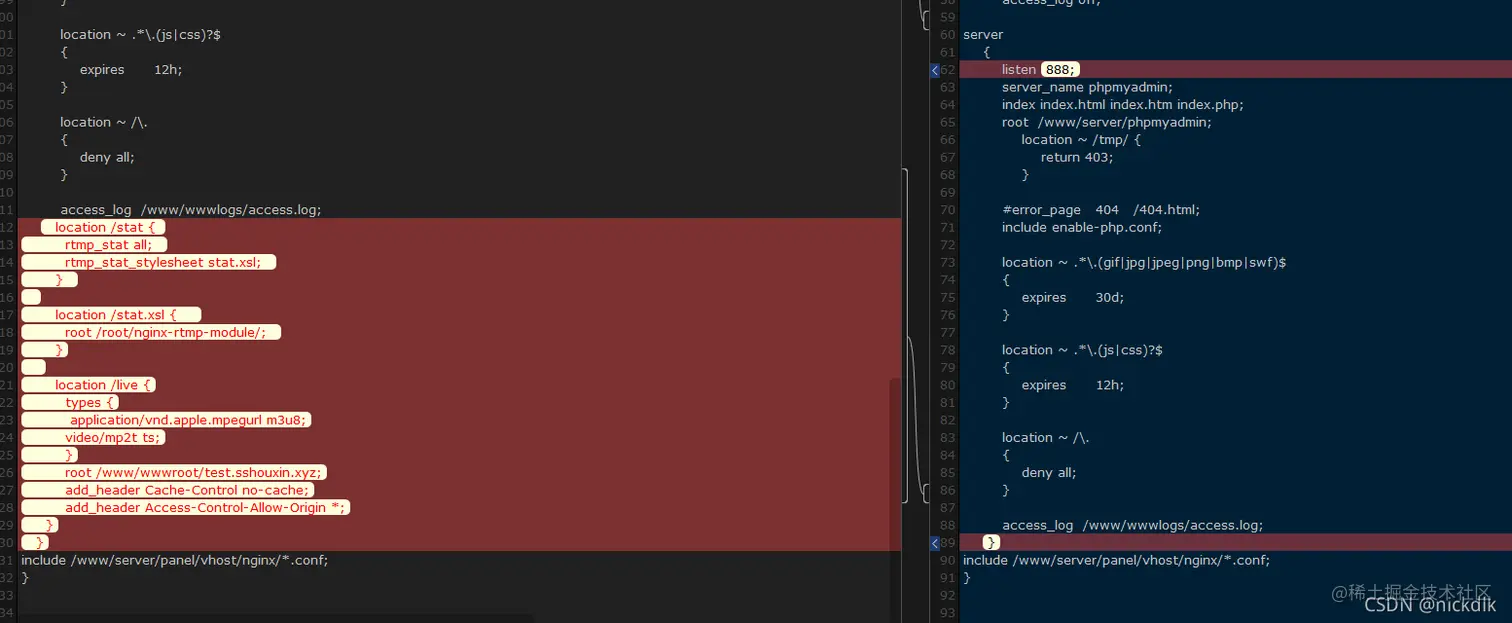

在这里插入图片描述左边是用了rtmp的 右边是原来的 用回原来的配置就能进去了。

原因出在修改的时候把phpMyAdmin的端口挪用了。 修改phpMyAdmin的端口会把配置的端口弄乱。

最终处理：

基于宝塔nginx安装Nginx-rtmp-module搭建hls直播 - Linux面板 - 宝塔面板论坛 www.bt.cn/bbs/thread-…

在原来的配置上添加

events块下面： include rtmp.conf; server块下面： include hls.conf;

两个新增的文件在： /www/server/nginx/conf

rtmp.conf:

rtmp_auto_push on;
rtmp {
    server {
        listen 1935;
        ping 30s;
        chunk_size 4000;
        notify_method get;

        application hls {
            live on;
            hls on;
            hls_path  /www/wwwroot/rtmp.com; //这个是通过宝塔新建的网站的目录
            hls_sync 100ms;
            hls_fragment 5s;
        }
        application live {
                        live on;
        }
        # Video on demand
        #application vod {
        #    play /www/tmp/Videos;
        #}
        # Video on demand over HTTP
        #application vod_http {
        #    play http://localhost:8080/vod/;
        #}
    }
}

hls.conf：

server {
    listen  1936;
    location /hls {
        # Serve HLS fragments
        types {
            application/vnd.apple.mpegurl m3u8;
            video/mp2t ts;
        }
        root html;
        expires -1;
    }
}

推流地址: rtmp://192.168.1.139:1935/live/room 其中live是rtmp.conf里面application的名称

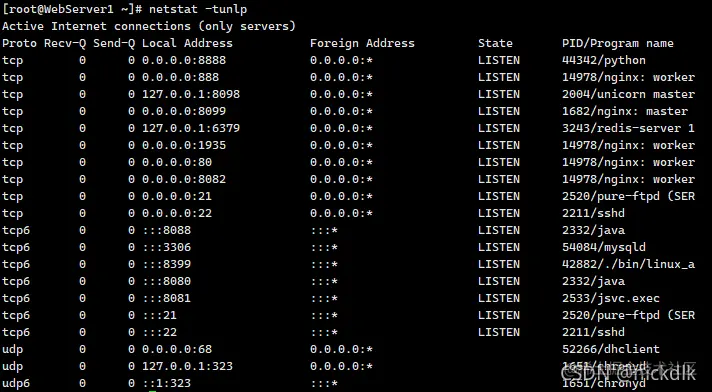

记得打开1935端口 nginx -s reload 重载配置 就都能用了 在这里插入图片描述

错误

重启服务器后Nginx不能启动

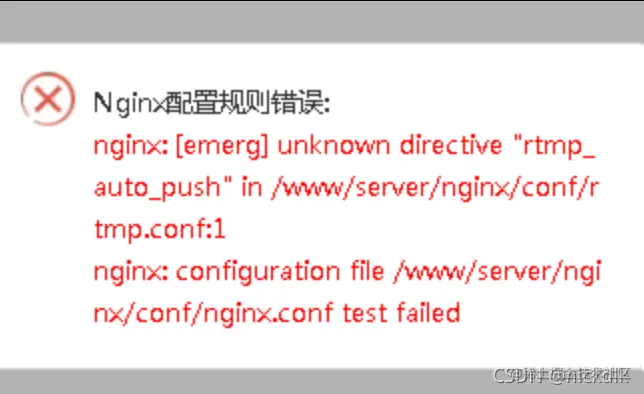

手动重启提示： 在这里插入图片描述删掉rtmp配置的第一行还是报错

不引用rtmp模块则可以启动nginx

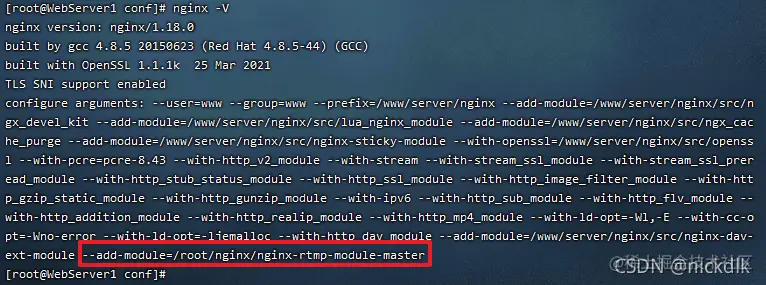

检查一下rtmp模块是否还存在 nginx -V

在这里插入图片描述
