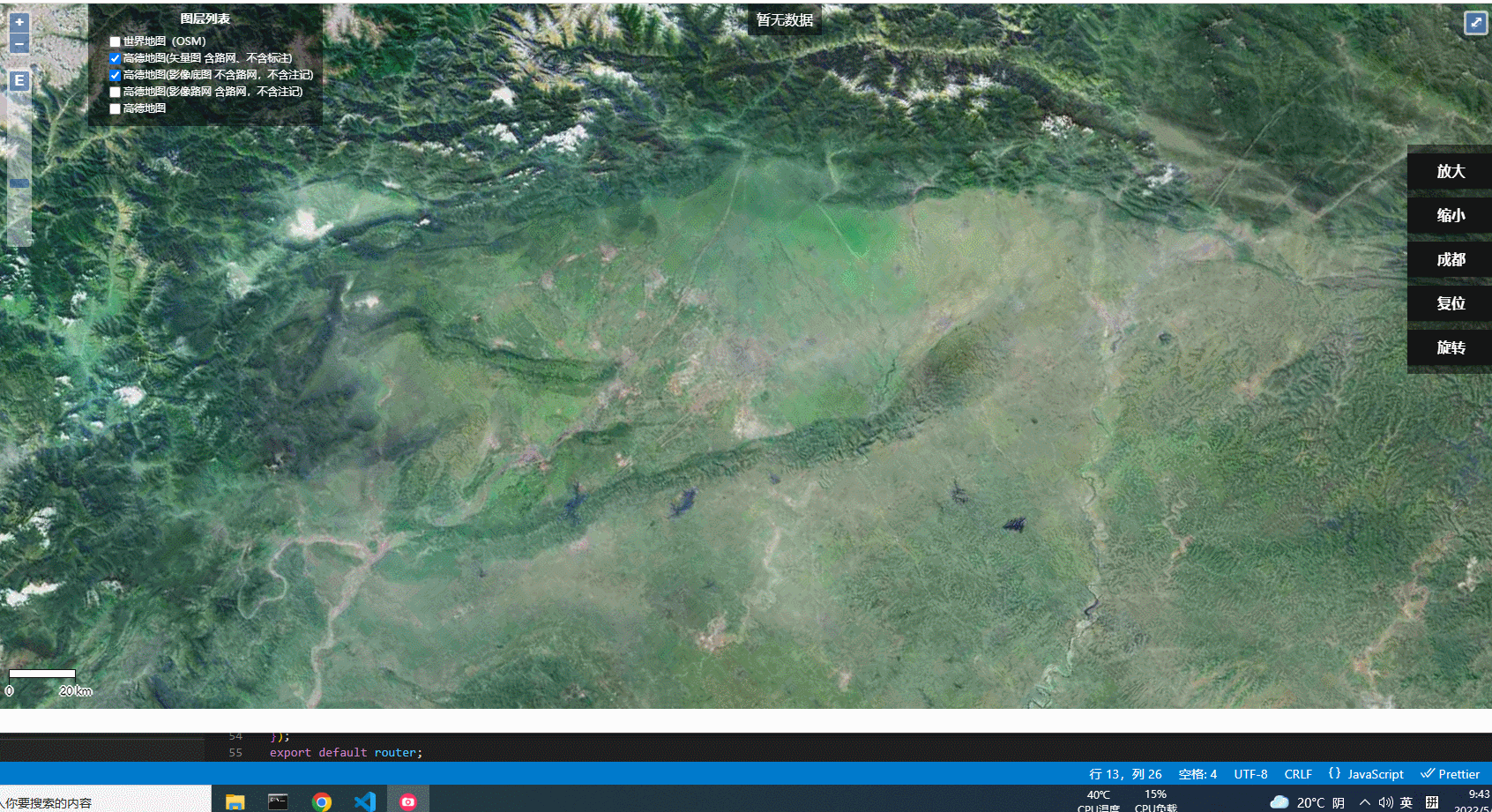

效果展示
公共文件方法
- utils/MapLayer.js
//高德瓦片
const gaodeMapLayer = new TileLayer({
source: new XYZ({
url: "http://webst0{1-4}.is.autonavi.com/appmaptile?lang=zh_cn&size=1&scale=1&style=7&x={x}&y={y}&z={z}",
}),
name: "高德地图",
});
const gaodeGrid = new TileLayer({
source: new TileDebug({
projection: "EPSG:3857",
tileGrid: new XYZ({
url: "http://webst0{1-4}.is.autonavi.com/appmaptile?lang=zh_cn&size=1&scale=1&style=7&x={x}&y={y}&z={z}",
}).getTileGrid(),
}),
});
//OSM
const osmMapLayer = new TileLayer({
source: new OSM(),
name: "世界地图（OSM）",
});
// OSM
const OsmOverviewMap = new TileLayer({
source: new OSM({
url: "http://{a-c}.tile.opencyclemap.org/cycle/{z}/{x}/{y}.png",
}),
});
const osmGrid = new TileLayer({
source: new TileDebug({
projection: "EPSG:3857",
tileGrid: new OSM().getTileGrid(),
}),
});
//高德地图
const gaodeMapLayer2 = new TileLayer({
source: new XYZ({
url: "http://wprd0{1-4}.is.autonavi.com/appmaptile?x={x}&y={y}&z={z}&lang=zh_cn&size=1&scl=2&style=7",
}),
name: "高德地图(矢量图 含路网、不含标注)",
});
//影像底图 不含路网，不含注记
const gaodeMapLayer3 = new TileLayer({
source: new XYZ({
url: "http://webst0{1-4}.is.autonavi.com/appmaptile?style=6&x={x}&y={y}&z={z}",
}),
name: "高德地图(影像底图 不含路网，不含注记)",
});
//影像路网 含路网，不含注记
const gaodeMapLayer4 = new TileLayer({
source: new XYZ({
url: "http://wprd0{1-4}.is.autonavi.com/appmaptile?x={x}&y={y}&z={z}&lang=zh_cn&size=1&scl=2&style=8",
}),
name: "高德地图(影像路网 含路网，不含注记)",
});
//google地图
const googleMapLayer = new TileLayer({
source: new XYZ({
url: "http://www.google.cn/maps/vt/pb=!1m4!1m3!1i{z}!2i{x}!3i{y}!2m3!1e0!2sm!3i380072576!3m8!2szh-CN!3scn!5e1105!12m4!1e68!2m2!1sset!2sRoadmap!4e0!5m1!1e0",
}),
name: "google地图",
});
const BingMapRoad = new TileLayer({
source: new BingMaps({
key: "AuUKioHoVzV-16Ep0yv6ay21ixWZ5OZ7jDs-k7g03fiUMbN6GSH97IpRcQ_s_s3-",
imagerySet: "Road",
}),
name: "BingMap的道路图层",
});
const BingMapAerial = new TileLayer({
source: new BingMaps({
key: "AuUKioHoVzV-16Ep0yv6ay21ixWZ5OZ7jDs-k7g03fiUMbN6GSH97IpRcQ_s_s3-",
imagerySet: "Aerial",
}),
name: "BingMap的影像图层",
});
HTML 结构
<div id="appMap" style="width: 100%" class="dynamic-component-demo">
<!-- 比例尺 -->
<div class="scale-line" id="scale-line"></div>
<!-- 鼠标位置 -->
<div class="mouse-postions" id="mouse-postions"></div>
<!-- 功能操作 -->
<div class="openrate">
<div @click="zoomIn">放大</div>
<div @click="zoomOut">缩小</div>
<div @click="pamto">成都</div>
<div @click="restore">复位</div>
<div @click="Rote">旋转</div>
</div>
<!-- 瓦片图 -->
<div class="tree">
<div class="title">图层列表</div>
<ul>
<li v-for="(item, index) in layerMessage" :key="index">
<input
type="checkbox"
:name="item.name"
:value="item.name"
:checked="item.isVisibility"
@click="layerChange(item)"
/>{{ item.name }}
</li>
</ul>
</div>
</div>
- utils/control.js
const slider = new ZoomSlider();
const ToExtent = new ZoomToExtent({
extent: [13100000, 429000, 13200000, 5210000],
});
let MousePositionControl = (target) => {
return new MousePosition({
className: "qc-mouse-position",
coordinateFormat: createStringXY(4),
projection: "EPSG:4326",
target,
undefinedHTML: "暂无数据",
});
};
/**
*
* @param {比例尺单位} type degrees、imperial、us、nautical、metric
* @returns
*/
const scale = (units, target) => {
return new ScaleLine({
className: "qc-scale-line",
//设置比例尺单位，（度量单位）
units,
target,
bar: true,
steps: 1,
});
};
const full = (target) => {
return new FullScreen({
target,
});
};
Map 实例化
mounted() {
let map = new Map({
// 设置地图图层
layers: [
osmMapLayer,
gaodeMapLayer2,
gaodeMapLayer3,
gaodeMapLayer4,
gaodeMapLayer,
],
// 设置显示地图的视图
view: new View({
center: transform([104.06, 30.67], "EPSG:4326", "EPSG:3857"),
zoom: 9,
minZoom: 1,
maxZoom: 21,
// projection: "EPSG:4326",
rotation: 0,
}),
// 让id为map的div作为地图的容器
target: "appMap",
controls: defaults().extend([
MousePositionControl(document.getElementById("mouse-postions")),
slider,
ToExtent,
scale("metric", document.getElementById("scale-line")),
full(),
]),
});
//计算layer数量
this.loadLayerControl(map);
//当前的地图参数
var view = map.getView();
this.view = map.getView();
this.Zoom = view.getZoom();
this.rotation = view.getRotation();
this.center = view.getCenter();
this.map = map;
},
事件监听方法
methods：{
//添加Control
addSilder(map) {
map.addControl(slider);
map.addControl(ToExtent);
map.addControl(
MousePositionControl(document.getElementById("mouse-postions"))
);
},
//图层变化的事件监听
layerChange(layer) {
let { layerMessage } = this;
layerMessage.forEach((element, index) => {
if (element.id == layer.id) {
//console.log(element,index)
layer.item.setVisible(!element.isVisibility);
//改变data原始数据
this.$set(
this.layerMessage[index],
"isVisibility",
!element.isVisibility
);
}
});
},
//渲染层级计算
loadLayerControl(map, id) {
var layerMessage = [],
layers = map.getLayers();
for (let i = 0, len = layers.getLength(); i < len; i++) {
layerMessage.push({
id: Symbol(layers.item(i).get("name")),
item: layers.item(i),
name: layers.item(i).get("name"),
isVisibility: layers.item(i).getVisible(),
});
}
this.layerMessage = layerMessage;
},
//选择
Rote() {
let { map } = this,
rote = Math.random() * 9;
map.getView().setRotation(Math.PI / rote);
},
zoomIn() {
let { map } = this;
map.getView().setZoom(map.getView().getZoom() + 1);
},
zoomOut() {
let { map } = this;
map.getView().setZoom(map.getView().getZoom() - 1);
},
restore() {
let { map, center, Zoom, rotation } = this;
map.getView().setZoom(Zoom);
map.getView().setCenter(center);
map.getView().setRotation(rotation);
},
pamto() {
let { map } = this;
map
.getView()
.setCenter(transform([104.06, 30.67], "EPSG:4326", "EPSG:3857"));
},
},
}
特别提醒：这些都是openlayers 基础api ,使用这些API的时候应该关注options参数的含义和各参数展现的前端界面效果，让自己吃透API的用法，运用自如
