@[TOC](JComponent JLabel 的 setBorder)

前言

setBorder(Border 边框) 实现自JComponent java.awt.Insets用于获取和包装Border的上左下右, 但不能设置 javax.swing.border.Border 是一个接口 javax.swing.border.AbstractBorder 是 implements Border, Serializable 的抽象类具体实现基本在在javax.swing.border包中, 如TitledBorder , MatteBorder 可以new 也可以通过 BorderFactory 的静态方法获得

用例 2205262241

package jcomponent;

import java.awt.*;
import java.awt.event.*;
import javax.swing.*;
import javax.swing.border.BevelBorder;
import javax.swing.border.EtchedBorder;
import javax.swing.border.SoftBevelBorder;
import javax.swing.border.TitledBorder;

public class SetBorder方法测试2205262241 {


	static Frame frame = new Frame("SetBorder方法测试2205262241");

	static JLabel jlb;

	static {
		frame.addWindowListener(new WindowAdapter() {@Override public void windowClosing(WindowEvent event) {frame.dispose();System.exit(0);}});
		frame.setBounds(100,50,1800,900);
		frame.setLayout(new GridLayout(0, 3, 5, 5));

		jlb = new JLabel("BorderFactory.createBevelBorder(BevelBorder.LOWERED, Color.red, Color.blue)"); frame.add(jlb);
		jlb.setBorder(BorderFactory.createBevelBorder(BevelBorder.LOWERED, Color.red, Color.blue));

		jlb = new JLabel("BorderFactory.createBevelBorder(BevelBorder.RAISED, Color.red, Color.blue)"); frame.add(jlb);
		jlb.setBorder(BorderFactory.createBevelBorder(BevelBorder.RAISED, Color.red, Color.blue));

		jlb = new JLabel("""
				<html>
					<div>BorderFactory.createEmptyBorder(60, 200, 0, 0)</div><hr/>
					<div>EmptyBorder不可见,但缩小了文字区域</div>
					<div>可以用于移动文字</div>
				</html>
				"""); frame.add(jlb);
		jlb.setBorder(BorderFactory.createEmptyBorder(60, 200, 0, 0)); jlb.setBackground(Color.yellow); jlb.setOpaque(true);

		jlb = new JLabel("BorderFactory.createEtchedBorder(EtchedBorder.LOWERED, Color.YELLOW, Color.GREEN)"); frame.add(jlb);
		jlb.setBorder(BorderFactory.createEtchedBorder(EtchedBorder.LOWERED, Color.YELLOW, Color.GREEN));

		jlb = new JLabel("BorderFactory.createEtchedBorder(EtchedBorder.RAISED, Color.YELLOW, Color.GREEN)"); frame.add(jlb);
		jlb.setBorder(BorderFactory.createEtchedBorder(EtchedBorder.RAISED, Color.YELLOW, Color.GREEN));

		jlb = new JLabel("BorderFactory.createLineBorder(Color.BLACK, 30, true)"); frame.add(jlb);
		jlb.setBorder(BorderFactory.createLineBorder(Color.BLACK, 30, true)); //true是圆角

		jlb = new JLabel("BorderFactory.createLineBorder(Color.BLACK, 30, false)"); frame.add(jlb);
		jlb.setBorder(BorderFactory.createLineBorder(Color.BLACK, 30, false));

		jlb = new JLabel("BorderFactory.createLoweredBevelBorder()"); frame.add(jlb);
		jlb.setBorder(BorderFactory.createLoweredBevelBorder());

		jlb = new JLabel("BorderFactory.createLoweredSoftBevelBorder()"); frame.add(jlb);
		jlb.setBorder(BorderFactory.createLoweredSoftBevelBorder());

		jlb = new JLabel("BorderFactory.createRaisedBevelBorder()"); frame.add(jlb);
		jlb.setBorder(BorderFactory.createRaisedBevelBorder());

		jlb = new JLabel("BorderFactory.createRaisedSoftBevelBorder()"); frame.add(jlb);
		jlb.setBorder(BorderFactory.createRaisedSoftBevelBorder());

		jlb = new JLabel("BorderFactory.createSoftBevelBorder(SoftBevelBorder.LOWERED, Color.ORANGE, Color.CYAN)"); frame.add(jlb);
		jlb.setBorder(BorderFactory.createSoftBevelBorder(SoftBevelBorder.LOWERED, Color.ORANGE, Color.CYAN));

		jlb = new JLabel("BorderFactory.createSoftBevelBorder(SoftBevelBorder.RAISED, Color.ORANGE, Color.CYAN)"); frame.add(jlb);
		jlb.setBorder(BorderFactory.createSoftBevelBorder(SoftBevelBorder.RAISED, Color.ORANGE, Color.CYAN));

		jlb = new JLabel("BorderFactory.createCompoundBorder()"); frame.add(jlb);
		jlb.setBorder(BorderFactory.createCompoundBorder());

		jlb = new JLabel("BorderFactory.createMatteBorder(10, 20, 30, 40, Color.BLACK)"); frame.add(jlb);
		jlb.setBorder(BorderFactory.createMatteBorder(10, 20, 30, 40, Color.BLACK));

		jlb = new JLabel("BorderFactory.createTitledBorder(\"如同Html的FieldSet\")"); frame.add(jlb);
		jlb.setBorder(BorderFactory.createTitledBorder("如同Html的FieldSet"));

		jlb = new JLabel("BorderFactory.createTitledBorder(BorderFactory.createMatteBorder(10, 20, 30, 40, Color.BLACK) , \"如同Html的FieldSet\")"); frame.add(jlb);
		jlb.setBorder(BorderFactory.createTitledBorder(BorderFactory.createMatteBorder(10, 20, 30, 40, Color.BLACK) , "如同Html的FieldSet"));

		jlb = new JLabel("""
				<html>
					<pre>
					BorderFactory.createTitledBorder(
						BorderFactory.createMatteBorder(5, 10, 15, 20, Color.DARK_GRAY)
						, "如同Html的FieldSet", TitledBorder.CENTER, TitledBorder.BOTTOM
						, new Font("宋体",Font.BOLD,20), Color.RED
					)
					</pre>
				</html>
				"""); frame.add(jlb);
		jlb.setBorder(
				BorderFactory.createTitledBorder(
					BorderFactory.createMatteBorder(5, 10, 15, 20, Color.DARK_GRAY)
					, "如同Html的FieldSet"
					, TitledBorder.CENTER, TitledBorder.BOTTOM
					, new Font("宋体",Font.BOLD,20), Color.RED
				)
			);


	}

	public static void main(String...arguments) {
		frame.setVisible(true);
	}

}

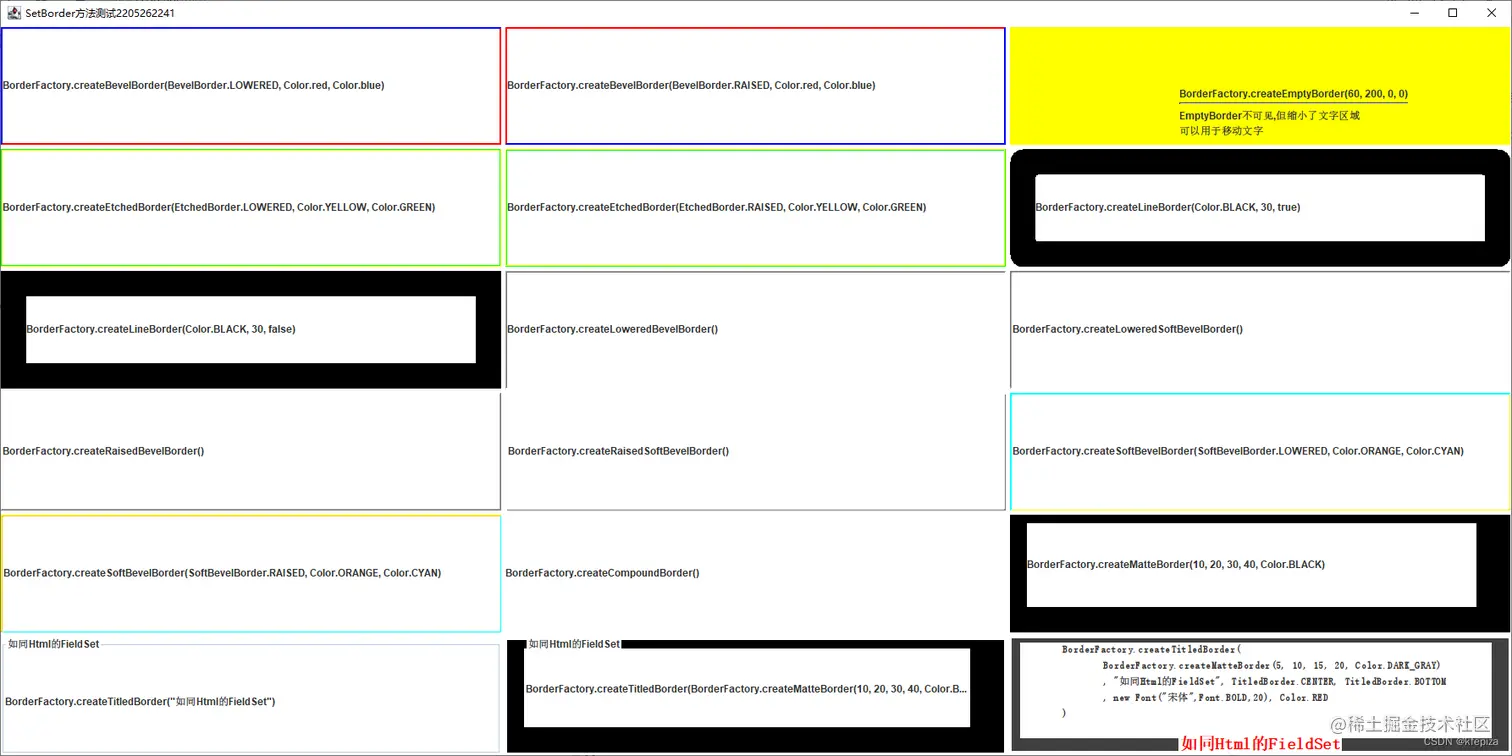

在这里插入图片描述

JavaAwtSwing笔记之 JComponent JLabel 的 setBorder(Border 边框) 用例

前言

用例 2205262241
