这次带来的是 RStudio 的 ggplot2 绘图系统的讲解，超详细！！！
文中提到的代码在导入 ggplot2 和 tidyverse 包后，均可直接运行，所有数据集均为 R 自带数据集。
文末还为大家准备了习题和讲解哦，感兴趣的大伙们可以做一做呀！
ggplot2 绘图系统：分面
有时我们需要基于数据的各个子集上画出同类图形, 以便于观察和展示各个子集的异同点, 分面 facet 将这种工作变得很简单.
facet_grid网格化的分面facet_wrap按行排列的分面
library(ggplot2)
str(diamonds)
dsmall = diamonds[sample(nrow(diamonds),1000),]
p = ggplot(dsmall, aes(x = carat, y = price)) +
geom_point()
p
p + facet_grid(cut ~ .)
p + facet_grid(.~ cut)
p + facet_grid(color ~ cut)
p + facet_wrap(cut ~.)
p + facet_wrap(.~ cut )
p + facet_wrap(.~ cut, ncol=2)
p + facet_wrap(.~ cut, ncol=3)
ggplot2 绘图系统：标注
我们经常需要在图像上标注一些信息, 这些信息经常可以通过一些字符或者额外的几何图形来展示。annotate 和 geom_text 可用于完成这项任务。
- text
- math formula
- region
- line
- arrows, segment
p + annotate("text", x = 0.5, y = 5000, label = "small diamonds")
p + annotate("text", x = 0.5, y = 5000, label = "small diamonds", color = "blue")
p +
annotate("text", x = 0.5, y = 5000, label = "small \n diamonds", color = "blue", size = 5) +
annotate("text", x = 2, y = 16000, label = "large \n diamonds", color = "red", size = 5)
p + annotate("rect", xmin = 1, xmax = 1.5, ymin = 0, ymax = 19000,
fill = "blue", alpha = 0.1)
p + annotate("rect", xmin = 1, xmax = 1.5, ymin = -Inf, ymax = Inf,
fill = "purple", alpha = 0.1)
p + geom_abline(intercept = 0, slope = 5000)
p + geom_vline(xintercept = 1, color = "blue")
p + geom_hline(yintercept = 10000, color = "orange")
ggplot2 绘图系统：坐标变换
dsmall %>%
ggplot(aes(x = carat, y = price, group = color, color = color)) +
geom_point()
dsmall %>%
ggplot(aes(x = carat, y = price, group = color, color = color)) +
geom_point() +
coord_flip()
dsmall %>%
ggplot(aes(x = carat, y = price, group = color, color = color)) +
geom_point() +
coord_polar(theta = "x")
dsmall %>%
ggplot(aes(x = carat, y = price, group = color, color = color)) +
geom_point() +
coord_trans(y = "log")
ggplot(data = mtcars, mapping = aes(x = factor(cyl), fill = factor(cyl))) +
geom_bar()
ggplot(data = mtcars, mapping = aes(x = factor(cyl), fill = factor(cyl))) +
geom_bar() +
coord_polar(theta = "x")
ggplot(data = mtcars, mapping = aes(x = 1, fill = factor(cyl))) +
geom_bar(position = "fill")
ggplot(data = mtcars, mapping = aes(x = 1, fill = factor(cyl))) +
geom_bar(position = "fill") +
coord_polar(theta = "y")
ggplot2 绘图系统：其它常用图形
ggplot(dsmall, aes(x = carat)) + geom_histogram()
ggplot(dsmall, aes(x = carat)) + geom_density()
ggplot(dsmall, aes(x = carat)) + geom_line(stat = "density")
ggplot(dsmall, aes(x = carat, color = cut)) + geom_line(stat = "density")
ggplot(dsmall, aes(x = carat)) + geom_area(stat = "count")
ggplot(dsmall, aes(x = carat)) + stat_bin(geom = "area", bins = 30)
ggplot(dsmall, aes(x = carat, fill = cut)) +
stat_bin(geom = "area", bins = 50, position = "stack") +
facet_wrap(~cut)
ggplot(dsmall, aes(x = carat, fill = cut)) +
stat_bin(geom = "area", bins = 50, position = "stack")
习题
在掌握了以上知识后，并结合 可视化：RStudio ggplot2绘图系统讲解（一） 所学到的，我们可以轻松复现以下图形：
这里应用的是自带的 diamonds 数据集。
习题答案讲解
下面是这四副图的相关代码，大家可以如果做完了的话可以看一看，有什么问题可以及时提出来哦！
# 导入必要包：
library(tidyverse)
library(ggplot2)
# 数据预处理
dsmall = diamonds[sample(nrow(diamonds), 1000),]

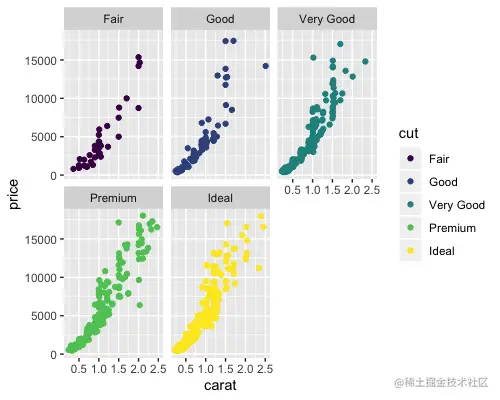

# 图一：
ggplot(dsmall, aes(x = carat, y = price, color = cut)) +
geom_point() -> p
p+facet_wrap(cut ~ .)

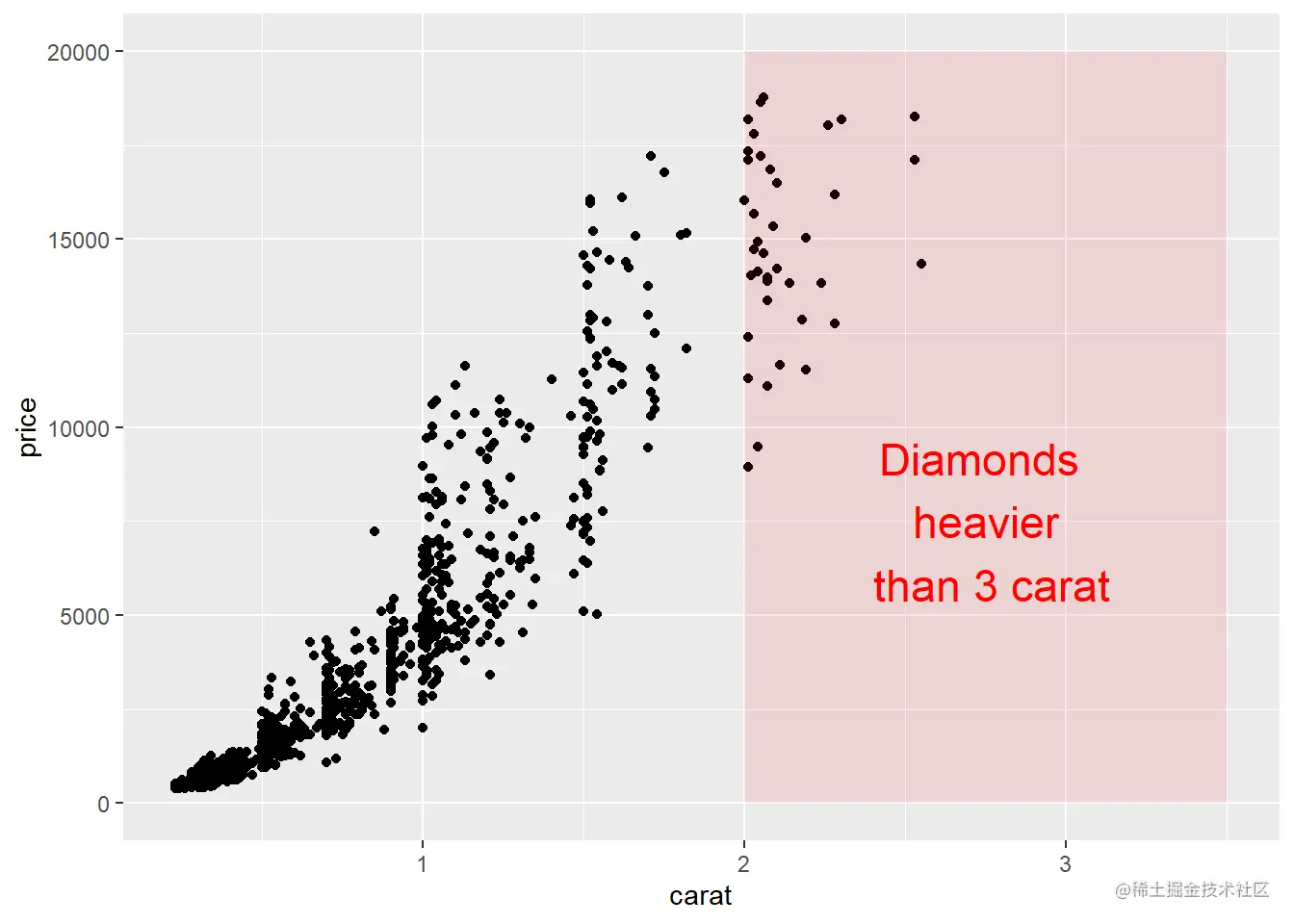

# 图二：
ggplot(dsmall, aes(x = carat, y = price)) +
geom_point() -> p
p+annotate('text', x = 2.75, y = 7500, label = 'Diamonds \n heavier \n than 3 carat', color = 'red', size = 6) +
annotate('rect', xmin = 2, xmax = 3.5, ymin = 0, ymax = 20000, fill = 'red', alpha = 0.1)
# 图三：
ggplot(dsmall, aes(x = price / carat, fill = cut)) +
stat_bin(geom = 'area', bins = 40, position = 'stack')
# 图四：
dsmall %>%
mutate(density = carat / (x * y * z)) -> dsmall2
ggplot(dsmall2, aes(x = price / carat, fill = cut)) +
stat_density(geom = 'area', bins = 40, position = 'stack')
