前言
大家好，我是小郭，在前面一篇的文章，我们已经完成了RocketMQ在docker环境下的搭建，接下来主要从五个方面学习NameServer，分别是架构设计、启动流程、路由注册、故障删除、路由发现。
NameServer是什么？
-
从RocketMQ的架构图中，多个NameServer节点组成集群提高RocketMQ的可用性
-
NameServer节点是无状态的，节点间不通信，所以需要Broker轮询去进行注册
主要做两件事：
- 对Topic进行保存和管理，为消息客户端根据Topic提供路由信息服务
- 对Broker进行保存和管理，保存Broker注册信息，同时保持长连接
- NameServer是一个几乎无状态节点，可集群部署，节点之间无任何信息同步。

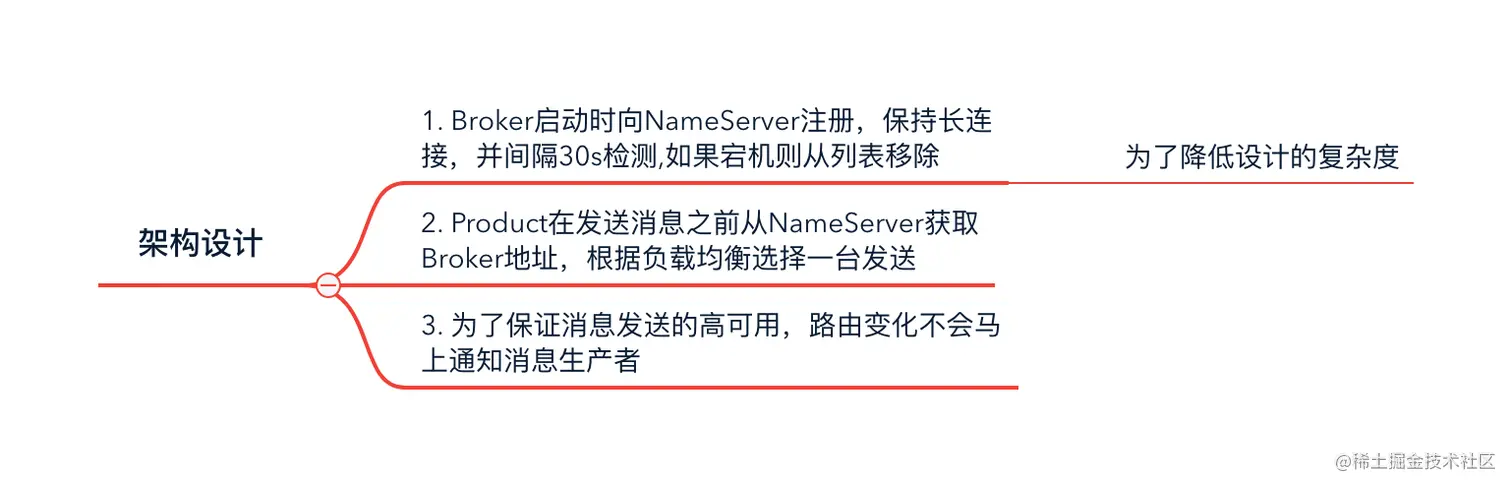

NameServer的架构设计
从源码入手，看启动流程
思考问题：
- 如果是你设计启动流程，怎么设计最简单的启动方式？
入口：org.apache.rocketmq.namesrv.NamesrvStartup#main0
STEP1：解析配置文件 ，填充NamesrvConfig、NettyServerConfig，返回NamesrvController实例
我们在启动NameServer的时候通常会使用./mqbaneserver -c configFile -p，那-c和-p主要有什么作用呢？
-
通过-c 带上指定 文件，我们可以通过文件读取配置
// 通过-c指令指定配置文件地址
if (commandLine.hasOption('c')) {
String file = commandLine.getOptionValue('c');
if (file != null) {
InputStream in = new BufferedInputStream(new FileInputStream(file));
properties = new Properties();
properties.load(in);
MixAll.properties2Object(properties, namesrvConfig);
MixAll.properties2Object(properties, nettyServerConfig);
namesrvConfig.setConfigStorePath(file);
System.out.printf("load config properties file OK, %s%n", file);
in.close();
}
}
-
利用-p 可以输出当前加载的配置信息
if (commandLine.hasOption('p')) {
InternalLogger console = InternalLoggerFactory.getLogger(LoggerName.NAMESRV_CONSOLE_NAME);
MixAll.printObjectProperties(console, namesrvConfig);
MixAll.printObjectProperties(console, nettyServerConfig);
System.exit(0);
}
-
NamesrvConfig主要配置信息
// 获取RocketMq主目录
private String rocketmqHome = System.getProperty(MixAll.ROCKETMQ_HOME_PROPERTY, System.getenv(MixAll.ROCKETMQ_HOME_ENV));
// 存储KV配置属性的持久化路径
private String kvConfigPath = System.getProperty("user.home") + File.separator + "namesrv" + File.separator + "kvConfig.json";
// 配置文件路径，启动时候使用 -c 选项
private String configStorePath = System.getProperty("user.home") + File.separator + "namesrv" + File.separator + "namesrv.properties";
private String productEnvName = "center";
private boolean clusterTest = false;
//是否支持顺序消息
private boolean orderMessageEnable = false;
STEP2：根据属性创建NamesrvController 实例，并初始化该实例
入口：NamesrvStartup#start
-
加载Kv配置
public void load() {
String content = null;
try {
// 通过存储KV配置属性的持久化路径获取内容
content = MixAll.file2String(this.namesrvController.getNamesrvConfig().getKvConfigPath());
} catch (IOException e) {
log.warn("Load KV config table exception", e);
}
if (content != null) {
// 序列化转换
KVConfigSerializeWrapper kvConfigSerializeWrapper =
KVConfigSerializeWrapper.fromJson(content, KVConfigSerializeWrapper.class);
if (null != kvConfigSerializeWrapper) {
this.configTable.putAll(kvConfigSerializeWrapper.getConfigTable());
log.info("load KV config table OK");
}
}
}
-
定时任务 每10s扫描一次Broker，移除失活Broker
// 定时任务 每10s扫描一次Broker，移除失活Broker
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
NamesrvController.this.routeInfoManager.scanNotActiveBroker();
}
}, 5, 10, TimeUnit.SECONDS);
超过120s，则从NameServer移除，直接移除是为了降低设计的复杂度
//超过120s失联，移除
if ((last + BROKER_CHANNEL_EXPIRED_TIME) < System.currentTimeMillis()) {
RemotingUtil.closeChannel(next.getValue().getChannel());
it.remove();
log.warn("The broker channel expired, {} {}ms", next.getKey(), BROKER_CHANNEL_EXPIRED_TIME);
this.onChannelDestroy(next.getKey(), next.getValue().getChannel());
}
-
定时任务 每隔10分钟，打印一次Kv配置信息
// 每隔10分钟，打印一次Kv配置信息
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
NamesrvController.this.kvConfigManager.printAllPeriodically();
}
}, 1, 10, TimeUnit.MINUTES);
STEP3：NameServer停止流程，利用JVM钩子函数，监听Broker
钩子函数的作用也大多数用来收尾的，在JVM进程关闭之前，进行一些清理工作比如关闭资源或者同步等。
Runtime.getRuntime().addShutdownHook(new ShutdownHookThread(log, new Callable<Void>() {
@Override
public Void call() throws Exception {
controller.shutdown();
return null;
}
}));
最后，基于Netty实现的RPC服务端，NettyRemotingServer通过nettyServerConfig配置进行启动
通过上面对源码的分析，现在可以来回答思考的问题，我们只需要配置NamesrvConfig和nettyServerConfig，就能利用netty启动NameServer。
路由注册
上面提过NameServer对路由信息管理，主要是进行路由的注册、故障剔除和路由信息存储。
问题：
- 路由信息如何注册到NameServer？
- Broker出现故障是如何发现和解决的？
STEP 1: 利用线程池，遍历NameServer依次发送心跳包
入口：BrokerController#start#registerBrokerAll#doRegisterBrokerAll
-
开启一个线程池定时任务，每隔30s向集群中所有NameServer发送心跳包
只有当调度任务来的时候，线程池才会去启动一个线程
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
try {
BrokerController.this.registerBrokerAll(true, false, brokerConfig.isForceRegister());
} catch (Throwable e) {
log.error("registerBrokerAll Exception", e);
}
}
}, 1000 * 10, Math.max(10000, Math.min(brokerConfig.getRegisterNameServerPeriod(), 60000)), TimeUnit.MILLISECONDS);
- 遍历所有NameServer列表，封装请求头 RegisterBrokerRequestHeader进行发送
获取全部的Address地址
List<String> nameServerAddressList = this.remotingClient.getNameServerAddressList();
封装请求头
final RegisterBrokerRequestHeader requestHeader = new RegisterBrokerRequestHeader();
requestHeader.setBrokerAddr(brokerAddr);
requestHeader.setBrokerId(brokerId);
requestHeader.setBrokerName(brokerName);
requestHeader.setClusterName(clusterName);
requestHeader.setHaServerAddr(haServerAddr);
requestHeader.setCompressed(compressed);
遍历所有NameServer
for (final String namesrvAddr : nameServerAddressList) {
brokerOuterExecutor.execute(new Runnable() {
@Override
public void run() {
try {
RegisterBrokerResult result = registerBroker(namesrvAddr, oneway, timeoutMills, requestHeader, body);
if (result != null) {
registerBrokerResultList.add(result);
}
log.info("register broker[{}]to name server {} OK", brokerId, namesrvAddr);
} catch (Exception e) {
log.warn("registerBroker Exception, {}", namesrvAddr, e);
} finally {
countDownLatch.countDown();
}
}
});
}
try {
countDownLatch.await(timeoutMills, TimeUnit.MILLISECONDS);
} catch (InterruptedException e) {
}
STEP2：心跳包处理
入口：RouteInfoManager#registerBroker
public RegisterBrokerResult registerBroker(
final String clusterName,
final String brokerAddr,
final String brokerName,
final long brokerId,
final String haServerAddr,
final TopicConfigSerializeWrapper topicConfigWrapper,
final List<String> filterServerList,
final Channel channel)
-
判断 Broker所属集群是否存在，无则创建，然后将brokerName加入到集群Broker集群中
将集群信息对应的Broker信息 保存到 clusterAddrTable Map容器中
Set<String> brokerNames = this.clusterAddrTable.get(clusterName);
if (null == brokerNames) {
brokerNames = new HashSet<String>();
this.clusterAddrTable.put(clusterName, brokerNames);
}
brokerNames.add(brokerName);
-
维护BrokerData信息，如果没有则初始化BrokerData信息，主要做维护集群名称，broker名称
将Broker名称与对应的BrokerData信息，保存到 brokerAddrTable Map容器中
BrokerData brokerData = this.brokerAddrTable.get(brokerName);
if (null == brokerData) {
registerFirst = true;
brokerData = new BrokerData(clusterName, brokerName, new HashMap<Long, String>());
this.brokerAddrTable.put(brokerName, brokerData);
}
-
如果 brokerId为Master，并且Topic配置信息发生变化或者第一次注册，需要更新元数据
// brokerId为Master
if (null != topicConfigWrapper && MixAll.MASTER_ID == brokerId) {
// Topic配置信息发生变化或者第一次注册
if (this.isBrokerTopicConfigChanged(brokerAddr, topicConfigWrapper.getDataVersion())|| registerFirst) {
ConcurrentMap<String, TopicConfig> tcTable = topicConfigWrapper.getTopicConfigTable();
if (tcTable != null) {
// 更新元数据
for (Map.Entry<String, TopicConfig> entry : tcTable.entrySet()) {
this.createAndUpdateQueueData(brokerName, entry.getValue());
}
}
}
}
-
更新BrokerLiveInfo
将Broker地址与对应的Broker信息 保存到 brokerLiveTable Map容器中
BrokerLiveInfo prevBrokerLiveInfo = this.brokerLiveTable.put(brokerAddr,
new BrokerLiveInfo(
System.currentTimeMillis(),
topicConfigWrapper.getDataVersion(),
channel,
haServerAddr));
if (null == prevBrokerLiveInfo) {
log.info("new broker registered, {} HAServer: {}", brokerAddr, haServerAddr);
}
-
注册Broker的过滤器Server的地址列表
if (filterServerList != null) {
if (filterServerList.isEmpty()) {
this.filterServerTable.remove(brokerAddr);
} else {
this.filterServerTable.put(brokerAddr, filterServerList);
}
}
-
如果不是master，则查询出master信息更新到对应的masterAddr
if (MixAll.MASTER_ID != brokerId) {
// 从BrokerAddrs中查询master信息
String masterAddr = brokerData.getBrokerAddrs().get(MixAll.MASTER_ID);
if (masterAddr != null) {
BrokerLiveInfo brokerLiveInfo = this.brokerLiveTable.get(masterAddr);
if (brokerLiveInfo != null) {
result.setHaServerAddr(brokerLiveInfo.getHaServerAddr());
result.setMasterAddr(masterAddr);
}
}
}
在注册 Broker中 ，为了防止并发修改路由信息，整体加上了一个写锁。
STEP3：同一时刻NameServer只处理一个Broker心跳包，多个心跳包串行执行
故障剔除
NameServer每隔10s扫描一下Broker，当BrokerLive的最后更新时间差距超过120s，则认为失效
遍历Broker相关的集合，移除失效的Broker信息
入口：RouteInfoManager#scanNotActiveBroker
移除失活Broker
// 定时任务 每10s扫描一次Broker，移除失活Broker
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
NamesrvController.this.routeInfoManager.scanNotActiveBroker();
}
}, 5, 10, TimeUnit.SECONDS);
//扫描失活Broker
public void scanNotActiveBroker() {
Iterator<Entry<String, BrokerLiveInfo>> it = this.brokerLiveTable.entrySet().iterator();
while (it.hasNext()) {
Entry<String, BrokerLiveInfo> next = it.next();
long last = next.getValue().getLastUpdateTimestamp();
//超过120s失联，移除
if ((last + BROKER_CHANNEL_EXPIRED_TIME) < System.currentTimeMillis()) {
RemotingUtil.closeChannel(next.getValue().getChannel());
it.remove();
log.warn("The broker channel expired, {} {}ms", next.getKey(), BROKER_CHANNEL_EXPIRED_TIME);
this.onChannelDestroy(next.getKey(), next.getValue().getChannel());
}
}
}
移除brokerAddr
Iterator<Entry<Long, String>> it = brokerData.getBrokerAddrs().entrySet().iterator();
while (it.hasNext()) {
Entry<Long, String> entry = it.next();
Long brokerId = entry.getKey();
String brokerAddr = entry.getValue();
if (brokerAddr.equals(brokerAddrFound)) {
brokerNameFound = brokerData.getBrokerName();
it.remove();
log.info("remove brokerAddr[{}, {}] from brokerAddrTable, because channel destroyed",
brokerId, brokerAddr);
break;
}
}
移除BrokerName
Iterator<Entry<String, Set<String>>> it = this.clusterAddrTable.entrySet().iterator();
while (it.hasNext()) {
Entry<String, Set<String>> entry = it.next();
String clusterName = entry.getKey();
Set<String> brokerNames = entry.getValue();
boolean removed = brokerNames.remove(brokerNameFound);
if (removed) {
log.info("remove brokerName[{}], clusterName[{}] from clusterAddrTable, because channel destroyed",
brokerNameFound, clusterName);
if (brokerNames.isEmpty()) {
log.info("remove the clusterName[{}] from clusterAddrTable, because channel destroyed and no broker in this cluster",
clusterName);
it.remove();
}
break;
}
}
移除Topic
Iterator<Entry<String, List<QueueData>>> itTopicQueueTable =
this.topicQueueTable.entrySet().iterator();
while (itTopicQueueTable.hasNext()) {
Entry<String, List<QueueData>> entry = itTopicQueueTable.next();
String topic = entry.getKey();
List<QueueData> queueDataList = entry.getValue();
Iterator<QueueData> itQueueData = queueDataList.iterator();
while (itQueueData.hasNext()) {
QueueData queueData = itQueueData.next();
if (queueData.getBrokerName().equals(brokerNameFound)) {
itQueueData.remove();
log.info("remove topic[{} {}], from topicQueueTable, because channel destroyed",
topic, queueData);
}
}
if (queueDataList.isEmpty()) {
itTopicQueueTable.remove();
log.info("remove topic[{}] all queue, from topicQueueTable, because channel destroyed",
topic);
}
}
路由发现
路由发现并不是实时的，当Topic发生变动时，NameServer不主动推送给客户端。
入口：DefaultRequestProcessor#getRouteInfoByTopic
-
从路由表topicQueueTable、brokerAddrTable、filterServerTable获取填充TopicRouteData的数据
TopicRouteData topicRouteData = this.namesrvController.getRouteInfoManager().pickupTopicRouteData(requestHeader.getTopic());
-
判断是否开启顺序消息，有则则从kv配置中获取关于顺序消息相关的配置填充路由信息
//是否为顺序消息
if (this.namesrvController.getNamesrvConfig().isOrderMessageEnable()) {
// 则从kv配置中获取关于顺序消息相关的配置填充路由信息
String orderTopicConf = this.namesrvController.getKvConfigManager().getKVConfig(NamesrvUtil.NAMESPACE_ORDER_TOPIC_CONFIG,
requestHeader.getTopic());
topicRouteData.setOrderTopicConf(orderTopicConf);
}
-
TopicRouteData为空则返回未找到对应路由，有则返回
总结
通过对NameServer源码的阅读，进行一些总结
- NameServer通过构建NamesrvConfig和nettyServerConfig配置，调用NettyRemotingServer进行启动。
- Broker向NameServer注册，NameServer对Broker信息进行维护，然后每隔30s向NameServer发送心跳包。
- NameServer每隔10s扫描一次Broker，检测活跃Broker，当LastUpdateTime失联超过120s，则判定为不可用，并进行移除broker相关信息。
- 在一些关键的地方，进行配置信息、错误信息的日志输出这一点是我们可以学习的。
- 学习JVM钩子函数Hook的实战使用，在关闭资源或者其他的清理工作上，可以成为一种选择。
