wifi6-Qualcomm-IPQ6010-IPQ6018-FAMILY-2T2R-2.5G-ETH-port-CP01-802-11AX-MU-MIMO-OFDMA Qualcomm-Atheros [IPQ6018] Quad-core ARM 64bit A53 @1.8GHz Processor
1GB DDRL3L System Memory
32MB NOR Flash, 256MB NAND Flash
Supports Dynamic Frequency Selection (DFS)
2x2 On-board 2.4GHz radio, up to 573Mbps physical Data Rate
2x2 On-board 5GHz radio, up to 1201Mbps physical Data Rate
-
Absolute Maximum Rating -
\
-
Parameter**** Rating**** Unit**** Supply Voltage 24V~48 V Operating Temperature Range -40 to +70 ºC Storage Temperature Range -45 to +105 ºC Operating Humidity Range 5 to +95 (non-condensing) % -
\
-
****Hardware Specifications -
\
-

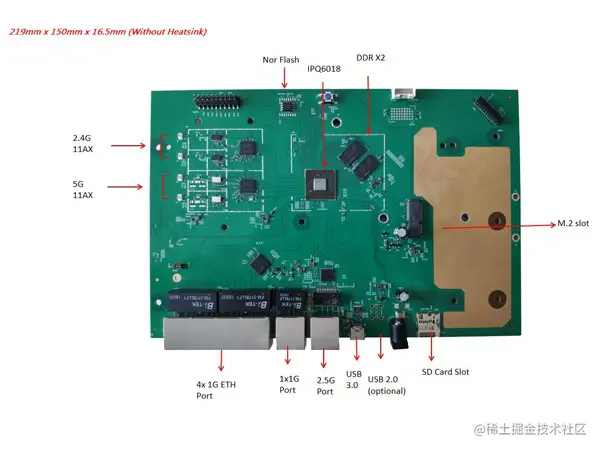

Symbol**** Parameter**** CPU Qualcomm-Atheros IPQ6018 CPU Frequency Quad-core ARM 64 bit A53 @1.8 GHz processor System Memory 1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design Ethernet Port 5x 1Gbps Ethernet Ports , 1x 2.5Gbps Ethernet Port NGFF Slot M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0 SD Card Slot 1x SD Card Slot USB /header 1x USB 2.0 Port, 1x USB 3.0 Type-C Port POE 24V~48V passive POE DC Jack 12V power supply LED header FFC/FPC Connector Serial Port 1x Serial Port 12 Pin Connector Wireless On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 23dBm per chain On-board 2x2 5GHz MU-MIMO OFDMA 802.11a/802.11n/[802.11ac]/802.11ax, max 20dBm per chain 4x U.FL Connectors Nor Flash 32MB Nand Flash 256MB DDR 256MB~512MB Dimension (W x H x D) 219mm x 150mm x 16.5mm (Without Heatsink) -
\
-
Radio TX Specifications(5180MHz-5825MHz) -
\
-
Operating Mode Data Rate Power Tolerance 1 Chain**** 2 Chains**** 5Ghz 802.11ax HE20 MCS0 20dBm 23dbm ±2dB MCS1 20dBm 23dBm ±2dB MCS2 20dBm 23dBm ±2dB MCS3 20dBm 23dBm ±2dB MCS4 19dBm 22dBm ±2dB MCS5 18dBm 21dBm ±2dB MCS6 17dBm 20dBm ±2dB MCS7 16dBm 19dBm ±2dB MCS8 15dBm 18dBm ±2dB MCS9 14dBm 17dBm ±2dB MCS10 13dBm 16dBm ±2dB MCS11 13dBm 16dbm ±2dB 5Ghz 802.11ax HE400 MCS0 20dBm 23dbm ±2dB MCS1 20dBm 23dBm ±2dB MCS2 20dBm 23dBm ±2dB MCS3 20dBm 23dBm ±2dB MCS4 19dBm 22dBm ±2dB MCS5 18dBm 21dBm ±2dB MCS6 17dBm 20dBm ±2dB MCS7 16dBm 19dBm ±2dB MCS8 15dBm 18dBm ±2dB MCS9 14dBm 17dBm ±2dB MCS10 13dBm 16dBm ±2dB MCS11 13dBm 16dbm ±2dB 5Ghz 802.11ax HE80 MCS0 20dBm 23dbm ±2dB MCS1 20dBm 23dBm ±2dB MCS2 20dBm 23dBm ±2dB MCS3 20dBm 23dBm ±2dB MCS4 19dBm 22dBm ±2dB MCS5 18dBm 21dBm ±2dB MCS6 17dBm 20dBm ±2dB MCS7 16dBm 19dBm ±2dB MCS8 15dBm 18dBm ±2dB MCS9 14dBm 17dBm ±2dB MCS10 13dBm 16dBm ±2dB MCS11 13dBm 16dbm ±2dB -
\
