中文NER
输入的文本数据往往采用BIO标注
革 O
命 O
先 O
烈 O
张 B_PER
太 I_PER
雷 I_PER
之 O
女 O
、 O
新 B_ORG
四 I_ORG
军 I_ORG
老 O
战 O
士 O
张 B_PER
西 I_PER
蕾 I_PER
老 O
人 O
在 O
我 O
们 O
收 O
藏 O
的 O
命名实体识别即是从文本数据中识别出命名实体的位置与类型。
ERNIE-BiLSTM-CRF
模型架构
ERNIE层
采用预训练语言模型ERNIE对输入的文本数据进行向量化表示
BiLSTM
通过双向循环神经网络(BiLSTM)进行特征提取提取编码得到一个得分矩阵

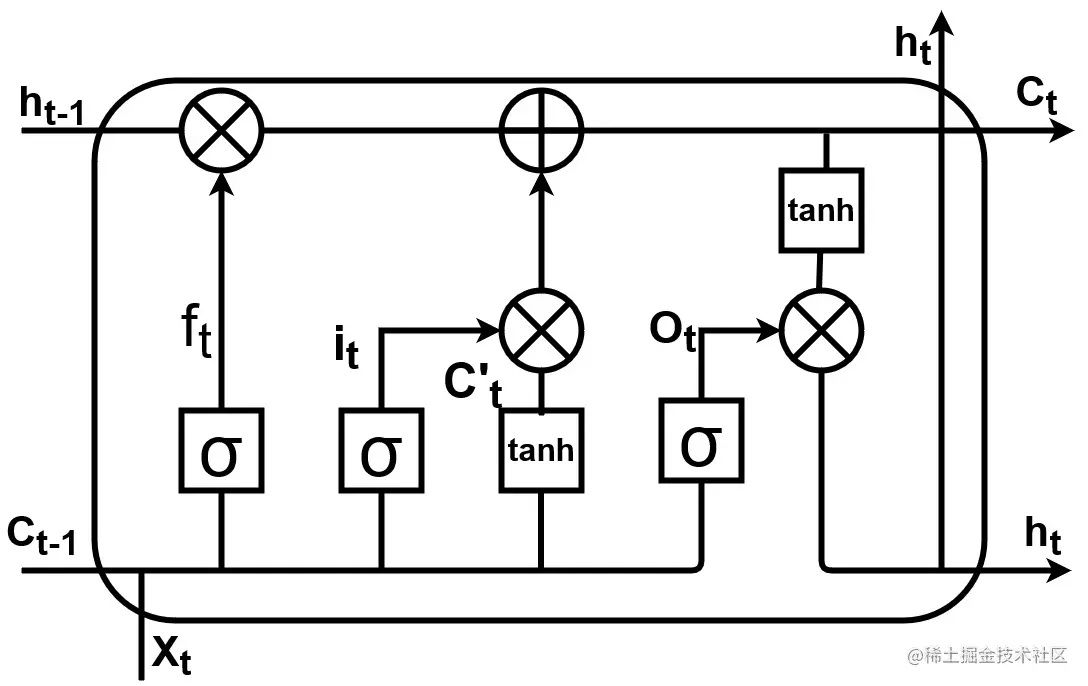

LSTM细胞结构：
计算如式：

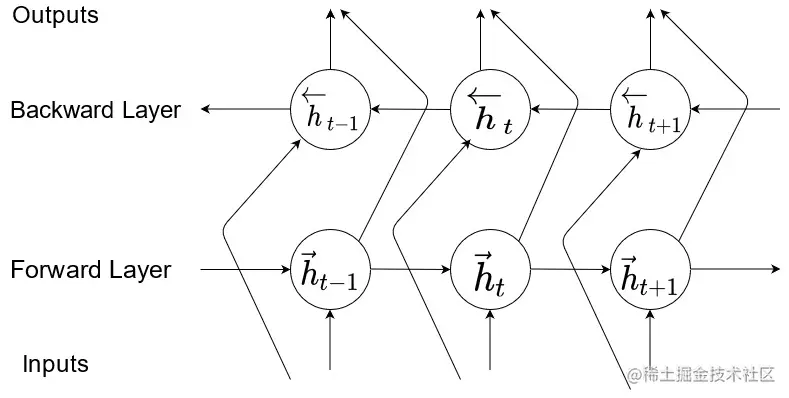

BiLSTM细胞结构:
CRF
通过条件随机场(CRF)进行解码，再用维特比算法得到概率最大的一组标签作为算法的输出
计算如式：
BERT-BiLSTM-CRF
模型架构
除了向量化采用BERT，其他与前者相同
实验
环境

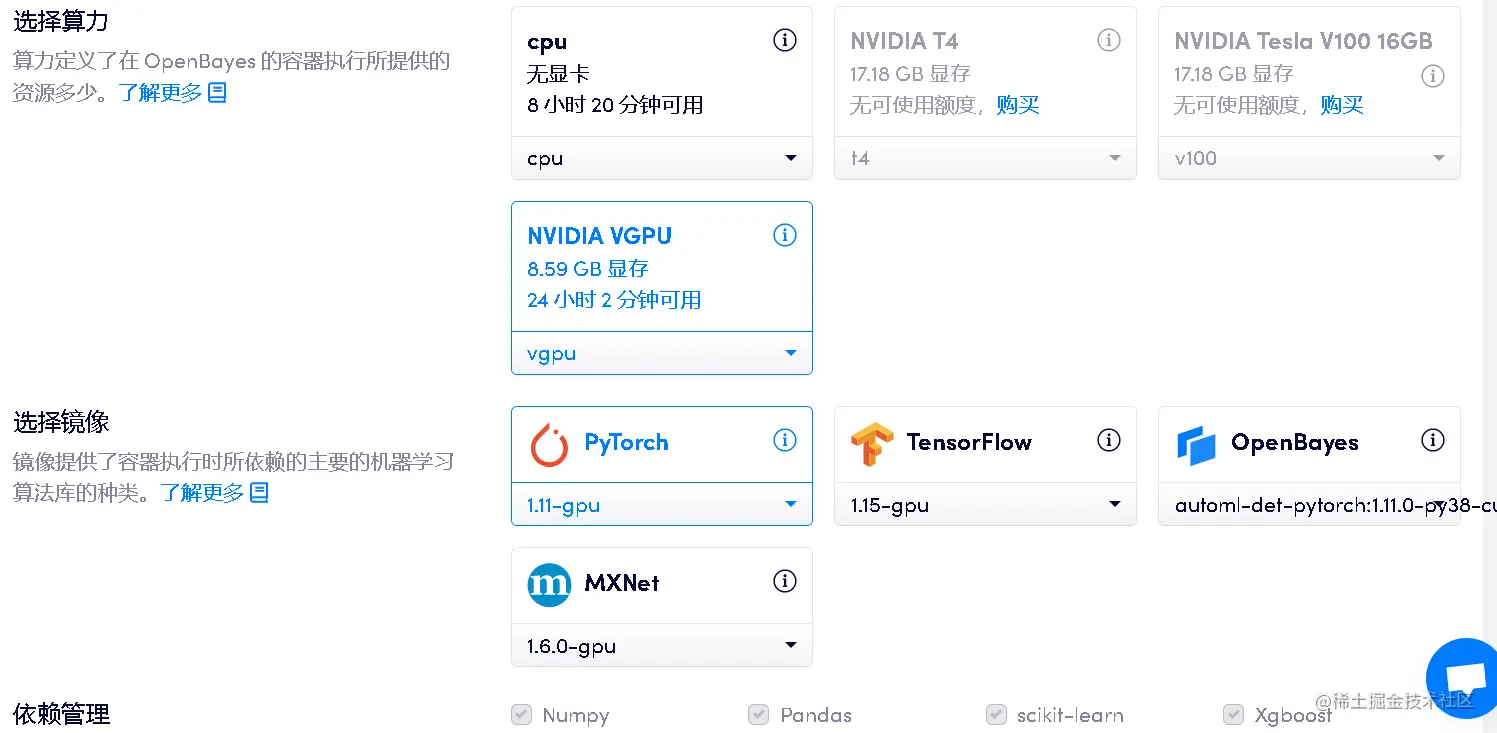

使用此平台openbayes的容器可以省去搭环境的麻烦，数据会保存。
每次需要安装依赖
pip3 install pytorch-crf -i pypi.mirrors.ustc.edu.cn/simple/
pip3 install transformers -i pypi.mirrors.ustc.edu.cn/simple/
pip3 install fire -i pypi.mirrors.ustc.edu.cn/simple/
pip3 install seqeval -i pypi.mirrors.ustc.edu.cn/simple/
运行命令
python main.py train --use_cuda=True --batch_size=50
结果
PEOPLE
step: 2600 | epoch: 6| loss: 0.03466796875
eval epoch: 6| f1_score: 0.9739056729430284| loss: 1.22955077121708|
No optimization for a long time, auto-stopping...
Bert-BiLSTM-CRF on PeopleDaliy dataset is done
Test Loss: 1.7, Test Acc:99.20%
Test Precision:0.9659206207102358, Test Recall:0.9723039951937519, Test F1_Socre:0.9691017964071856
Cllassification Report:
precision recall f1-score support
LOC 0.9445 0.9431 0.9438 3430
ORG 0.8693 0.8957 0.8823 2147
PER 0.9814 0.9694 0.9754 1796
eos> 1.0000 1.0000 1.0000 4636
start> 1.0000 1.0000 1.0000 4636
micro avg 0.9693 0.9715 0.9704 16645
macro avg 0.9591 0.9616 0.9603 16645
weighted avg 0.9697 0.9715 0.9706 16645
start_time:2022-04-13 03:12:32.875
end_time:2022-04-13 03:44:08.855
BERT-BiLSTM-CRF on PeopleDaliy spend times ：1895980ms
eval epoch: 5| f1_score: 0.9800169553106455| loss: 1.0503978200573871|
No optimization for a long time, auto-stopping...
处理测试集数据第4600到第4650条...
ERNIE-BiLSTM-CRF on PeopleDaliy dataset is done
Test Loss: 1.4, Test Acc:99.35%
Test Precision:0.9692895978968752, Test Recall:0.9746470411534995, Test F1_Socre:0.9719609370319334
Cllassification Report:
precision recall f1-score support
LOC 0.9453 0.9417 0.9435 3430
ORG 0.8786 0.9166 0.8972 2147
PER 0.9685 0.9766 0.9726 1796
eos> 1.0000 0.9998 0.9999 4636
start> 0.9998 1.0000 0.9999 4636
micro avg 0.9691 0.9746 0.9719 16645
macro avg 0.9584 0.9669 0.9626 16645
weighted avg 0.9696 0.9746 0.9721 16645
start_time:2022-04-12 10:55:04.588
end_time:2022-04-12 11:22:19.073
ERNIE-BiLSTM-CRF on PeopleDaliy spend times ：1634484
MASA
step: 2950 | epoch: 3| loss: 0.54973965883255
eval epoch: 3| f1_score: 0.9797556513014225| loss: 0.8674196546586851|
No optimization for a long time, auto-stopping...处理测试集数据第2350到第2400条...
Bert-BiLSTM-CRF on MASA dataset is done
Test Loss: 0.87, Test Acc:99.45%
Test Precision:0.9798500468603561, Test Recall:0.9796205200281096, Test F1_Socre:0.9797352700011713
Cllassification Report:
precision recall f1-score support
_LOC 0.9644 0.9649 0.9646 1851
_ORG 0.9365 0.9409 0.9387 1082
_PER 0.9793 0.9769 0.9781 823
eos> 0.9992 0.9992 0.9992 2391
start> 1.0000 1.0000 1.0000 2391
micro avg 0.9820 0.9824 0.9822 8538
macro avg 0.9759 0.9764 0.9761 8538
weighted avg 0.9820 0.9824 0.9822 8538
start_time:2022-04-13 04:10:30.619
end_time:2022-04-13 04:46:29.236
ERNIE-BiLSTM-CRF on MASA spend times ：2158616ms
step: 3650 | epoch: 4| loss: 0.1283474713563919
eval epoch: 4| f1_score: 0.9846754629903556| loss: 0.7818139177785876|
No optimization for a long time, auto-stopping...
理测试集数据第2350到第2400条...
ERNIE-BiLSTM-CRF on MASA dataset is done
Test Loss: 0.79, Test Acc:99.60%
Test Precision:0.9851288056206089, Test Recall:0.985359568985711, Test F1_Socre:0.9852441737908422
Cllassification Report:
precision recall f1-score support
_LOC 0.9695 0.9789 0.9742 1851
_ORG 0.9342 0.9187 0.9264 1082
_PER 0.9843 0.9891 0.9867 823
eos> 1.0000 1.0000 1.0000 2391
start> 1.0000 1.0000 1.0000 2391
micro avg 0.9836 0.9841 0.9838 8538
macro avg 0.9776 0.9773 0.9774 8538
weighted avg 0.9835 0.9841 0.9838 8538
start_time:2022-04-12 11:48:15.936
end_time:2022-04-12 12:32:24.776
ERNIE-BiLSTM-CRF on MASA spend times ：2648840
BOSON
step: 1495 | epoch: 8| loss: 1.1240458488464355
step: 1500 | epoch: 8| loss: 1.8254204988479614
eval epoch: 8| f1_score: 0.9000338104361546| loss: 6.462216214700178|
No optimization for a long time, auto-stopping...
处理测试集数据第0到第50条...
处理测试集数据第1050到第1100条...
Bert-BiLSTM-CRF on Boson dataset is done
Test Loss: 7.0, Test Acc:96.82%
Test Precision:0.8852934612809641, Test Recall:0.9170134073046694, Test F1_Socre:0.9008743045304871
Cllassification Report:
precision recall f1-score support
_COM 0.7324 0.7156 0.7239 218
_LOC 0.7721 0.8210 0.7958 458
_ORG 0.7410 0.7875 0.7635 287
_PER 0.9500 0.9438 0.9469 463
_PRO 0.6190 0.7647 0.6842 323
_TIM 0.7835 0.8649 0.8222 385
eos> 1.0000 1.0000 1.0000 1096
start> 1.0000 1.0000 1.0000 1096
micro avg 0.8853 0.9170 0.9009 4326
macro avg 0.8248 0.8622 0.8421 4326
weighted avg 0.8921 0.9170 0.9037 4326
start_time:2022-04-29 12:45:16.060
end_time:2022-04-29 13:01:20.169
BERT-BiLSTM-CRF on Boson spend times ：964109ms
step: 1700 | epoch: 9| loss: 0.7510769367218018
eval epoch: 9| f1_score: 0.902540937323546| loss: 6.62023774060336|
No optimization for a long time, auto-stopping...
处理测试集数据第0到第50条...
处理测试集数据第1050到第1100条...
ERNIE-BiLSTM-CRF on Boson dataset is done
Test Loss: 7.0, Test Acc:97.00%
Test Precision:0.8999322340185227, Test Recall:0.9209431345353676, Test F1_Socre:0.9103164629269964
Cllassification Report:
precision recall f1-score support
_COM 0.8308 0.7661 0.7971 218
_LOC 0.7894 0.8755 0.8302 458
_ORG 0.7458 0.7666 0.7560 287
_PER 0.9403 0.9525 0.9464 463
_PRO 0.6040 0.7461 0.6676 323
_TIM 0.7908 0.8442 0.8166 385
eos> 1.0000 1.0000 1.0000 1096
start> 1.0000 1.0000 1.0000 1096
micro avg 0.8909 0.9216 0.9060 4326
macro avg 0.8376 0.8689 0.8517 4326
weighted avg 0.8977 0.9216 0.9087 4326
start_time:2022-04-29 13:44:39.430
end_time:2022-04-29 14:02:25.155
test ERNIE-BiLSTM-CRF on Boson spend times ：1065725ms
WEIBO
eval epoch: 9| f1_score: 0.8382978723404255| loss: 7.672243356704712|
step: 255 | epoch: 9| loss: 1.0741403102874756
step: 260 | epoch: 9| loss: 1.288889765739441
step: 265 | epoch: 9| loss: 1.1143728494644165
step: 270 | epoch: 9| loss: 0.9143328666687012
处理测试集数据第0到第50条...
处理测试集数据第50到第100条...
处理测试集数据第100到第150条...
处理测试集数据第150到第200条...
处理测试集数据第200到第250条...
处理测试集数据第250到第300条...
Bert-BiLSTM-CRF on Weibo dataset is done
Test Loss: 9.0, Test Acc:96.52%
Test Precision:0.8148914167528438, Test Recall:0.8427807486631016, Test F1_Socre:0.8286014721345951
Cllassification Report:
precision recall f1-score support
GPE.NAM 0.7021 0.7500 0.7253 44
GPE.NOM 0.0000 0.0000 0.0000 2
LOC.NAM 0.3200 0.4211 0.3636 19
LOC.NOM 0.1538 0.2500 0.1905 8
ORG.NAM 0.3878 0.4872 0.4318 39
ORG.NOM 0.3478 0.5000 0.4103 16
PER.NAM 0.7320 0.6698 0.6995 106
PER.NOM 0.6185 0.6646 0.6407 161
eos> 1.0000 1.0000 1.0000 270
start> 1.0000 1.0000 1.0000 270
micro avg 0.8149 0.8428 0.8286 935
macro avg 0.5262 0.5743 0.5462 935
weighted avg 0.8300 0.8428 0.8354 935
start_time:2022-04-30 02:34:45.820
end_time:2022-04-30 02:37:25.067
Spend times ：159247ms
eval epoch: 9| f1_score: 0.8486842105263157| loss: 6.780091285705566| *
step: 255 | epoch: 9| loss: 3.4152257442474365
step: 260 | epoch: 9| loss: 3.636118173599243
step: 265 | epoch: 9| loss: 4.719958305358887
step: 270 | epoch: 9| loss: 3.588787078857422
处理测试集数据第0到第50条...
处理测试集数据第50到第100条...
处理测试集数据第100到第150条...
处理测试集数据第150到第200条...
处理测试集数据第200到第250条...
处理测试集数据第250到第300条...
ERNIE-BiLSTM-CRF on Weibo dataset is done
Test Loss: 8.3, Test Acc:96.37%
Test Precision:0.8186528497409327, Test Recall:0.8449197860962567, Test F1_Socre:0.8315789473684211
Cllassification Report:
precision recall f1-score support
GPE.NAM 0.6452 0.9091 0.7547 44
GPE.NOM 0.0000 0.0000 0.0000 2
LOC.NAM 0.0000 0.0000 0.0000 19
LOC.NOM 0.0000 0.0000 0.0000 8
ORG.NAM 0.2027 0.3846 0.2655 39
ORG.NOM 0.0000 0.0000 0.0000 16
PER.NAM 0.6697 0.6887 0.6791 106
PER.NOM 0.6778 0.7578 0.7155 161
eos> 1.0000 1.0000 1.0000 270
start> 1.0000 1.0000 1.0000 270
micro avg 0.8187 0.8449 0.8316 935
macro avg 0.4195 0.4740 0.4415 935
weighted avg 0.8090 0.8449 0.8243 935
start_time:2022-04-30 01:49:20.517
end_time:2022-04-30 01:51:52.726
spend times ：152208ms
总体结果三个维度(Precision、Recall、F1)ERNIE相对BERT均有提升
| 数据集 | P(%) | R(%) | F1(%) | |
|---|---|---|---|---|
| 人民日报数据集 | BERT-BiLSTM-CRF | 96.592 | 97.230 | 96.910 |
| 人民日报数据集 | ERNIE-BiLSTM-CRF | 96.928 | 97.464 | 97.196 |
| MASA数据集 | BERT-BiLSTM-CRF | 97.985 | 97.962 | 97.973 |
| MASA数据集 | ERNIE-BiLSTM-CRF | 98.512 | 98.525 | 98.524 |
| Boson数据集 | BERT-BiLSTM-CRF | 88.529 | 91.701 | 90.087 |
| Boson数据集 | ERNIE-BiLSTM-CRF | 89.993 | 92.094 | 91.031 |
| Weibo数据集 | BERT-BiLSTM-CRF | 81.489 | 84.248 | 82.860 |
| Weibo数据集 | ERNIE-BiLSTM-CRF | 81.865 | 84.491 | 83.157 |
相关链接
因为只找到pytorch对应bin格式的ERNIE开源文件，没找到tensorflow对应ft格式的ERNIE开源文件，实现的环境是基于pytorch的
感谢网友StevenRogers在Gitee分享的源码，虽与其素昧平生，基准模型BERT-BiLSTM-CRF
本文对其修改后的源码
ERNIE-BiLSTM-CRF
预训练模型BERT ERNIE1.0
数据集 人民日报 MASA Boson Weibo 当然根据项目的需要对其进行了一定的预处理操作，而不是原始格式的数据
