1. 推导公式

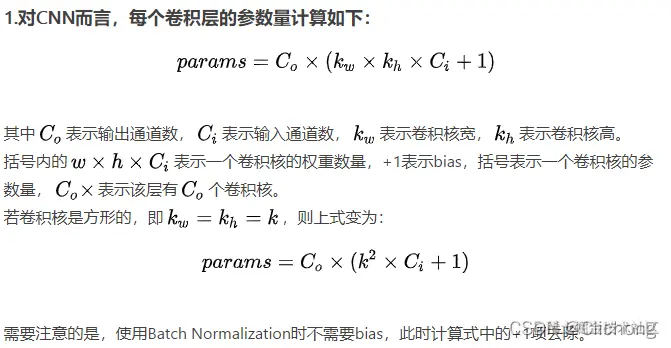

1.1 CNN Params

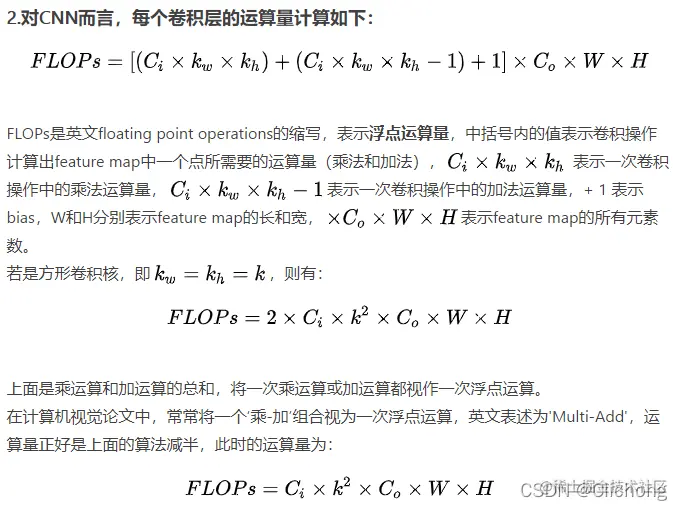

1.2 CNN Flops

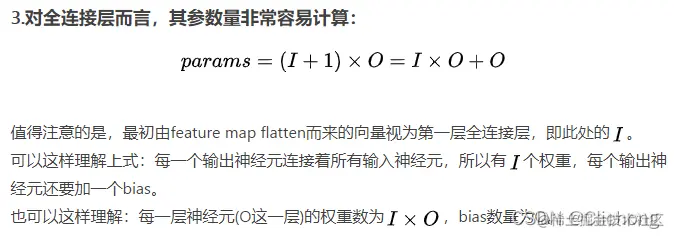

1.3 Linear Params

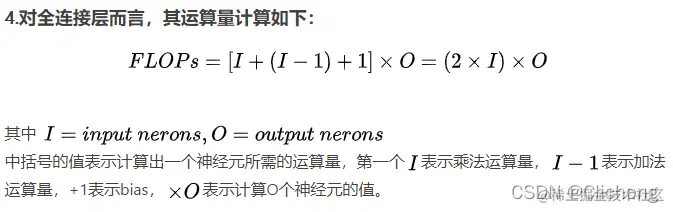

1.4 Linear Flops
2. 计算方法
2.1 parameters法
通过遍历模型的parameters获取结构以及参数：
model = 你自己的模型，eg:CNN() ResNet() SegNet()....
params = list(model.parameters())
k = 0
for i in params:
l = 1
print("该层的结构：" + str(list(i.size())))
for j in i.size():
l *= j
print("该层参数和：" + str(l))
k = k + l
print("总参数数量和：" + str(k))

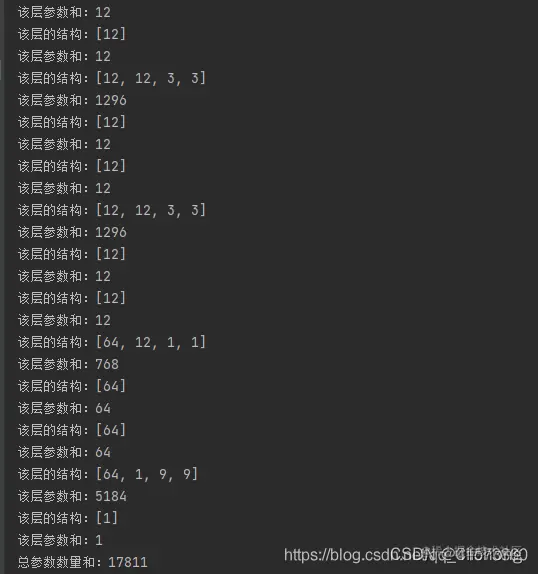

效果如下：
2.2 thop法
thop是一个库，可以通过pip install thop进行安装，安装后通过里面的profile可以获取参数量params以及计算量flops
from thop import profile
model = 自己的模型实例化
flops, params = profile(model, inputs=传入模型的输入shape，这个必须要填)
以resnet18进行测试：
import torch
from torchvision.models import resnet18
from thop import profile
model = resnet18()
input = torch.randn(1, 3, 128, 128)
flops, params = profile(model, inputs=(input, ))
print('flops:{}'.format(flops))
print('params:{}'.format(params))
2.3 torchstat法
还是一样，没有的先pip install torchstat即可，还是以restnet18为例：
from torchstat import stat
from torchvision.models import resnet18
model = resnet18()
stat(model, (3, 224, 224))
输出：
[MAdd]: AdaptiveAvgPool2d is not supported!
[Flops]: AdaptiveAvgPool2d is not supported!
[Memory]: AdaptiveAvgPool2d is not supported!
module name input shape output shape params memory(MB) MAdd Flops MemRead(B) MemWrite(B) duration[%] MemR+W(B)
0 conv1 3 224 224 64 112 112 9408.0 3.06 235,225,088.0 118,013,952.0 639744.0 3211264.0 6.25% 3851008.0
1 bn1 64 112 112 64 112 112 128.0 3.06 3,211,264.0 1,605,632.0 3211776.0 3211264.0 1.09% 6423040.0
2 relu 64 112 112 64 112 112 0.0 3.06 802,816.0 802,816.0 3211264.0 3211264.0 0.28% 6422528.0
3 maxpool 64 112 112 64 56 56 0.0 0.77 1,605,632.0 802,816.0 3211264.0 802816.0 5.61% 4014080.0
4 layer1.0.conv1 64 56 56 64 56 56 36864.0 0.77 231,010,304.0 115,605,504.0 950272.0 802816.0 4.61% 1753088.0
5 layer1.0.bn1 64 56 56 64 56 56 128.0 0.77 802,816.0 401,408.0 803328.0 802816.0 0.25% 1606144.0
6 layer1.0.relu 64 56 56 64 56 56 0.0 0.77 200,704.0 200,704.0 802816.0 802816.0 0.09% 1605632.0
7 layer1.0.conv2 64 56 56 64 56 56 36864.0 0.77 231,010,304.0 115,605,504.0 950272.0 802816.0 3.72% 1753088.0
8 layer1.0.bn2 64 56 56 64 56 56 128.0 0.77 802,816.0 401,408.0 803328.0 802816.0 0.21% 1606144.0
9 layer1.1.conv1 64 56 56 64 56 56 36864.0 0.77 231,010,304.0 115,605,504.0 950272.0 802816.0 3.63% 1753088.0
10 layer1.1.bn1 64 56 56 64 56 56 128.0 0.77 802,816.0 401,408.0 803328.0 802816.0 0.20% 1606144.0
11 layer1.1.relu 64 56 56 64 56 56 0.0 0.77 200,704.0 200,704.0 802816.0 802816.0 0.09% 1605632.0
12 layer1.1.conv2 64 56 56 64 56 56 36864.0 0.77 231,010,304.0 115,605,504.0 950272.0 802816.0 3.68% 1753088.0
13 layer1.1.bn2 64 56 56 64 56 56 128.0 0.77 802,816.0 401,408.0 803328.0 802816.0 0.20% 1606144.0
14 layer2.0.conv1 64 56 56 128 28 28 73728.0 0.38 115,505,152.0 57,802,752.0 1097728.0 401408.0 3.13% 1499136.0
15 layer2.0.bn1 128 28 28 128 28 28 256.0 0.38 401,408.0 200,704.0 402432.0 401408.0 0.19% 803840.0
16 layer2.0.relu 128 28 28 128 28 28 0.0 0.38 100,352.0 100,352.0 401408.0 401408.0 0.07% 802816.0
17 layer2.0.conv2 128 28 28 128 28 28 147456.0 0.38 231,110,656.0 115,605,504.0 991232.0 401408.0 4.24% 1392640.0
18 layer2.0.bn2 128 28 28 128 28 28 256.0 0.38 401,408.0 200,704.0 402432.0 401408.0 0.19% 803840.0
19 layer2.0.downsample.0 64 56 56 128 28 28 8192.0 0.38 12,744,704.0 6,422,528.0 835584.0 401408.0 1.59% 1236992.0
20 layer2.0.downsample.1 128 28 28 128 28 28 256.0 0.38 401,408.0 200,704.0 402432.0 401408.0 0.22% 803840.0
21 layer2.1.conv1 128 28 28 128 28 28 147456.0 0.38 231,110,656.0 115,605,504.0 991232.0 401408.0 3.54% 1392640.0
22 layer2.1.bn1 128 28 28 128 28 28 256.0 0.38 401,408.0 200,704.0 402432.0 401408.0 0.19% 803840.0
23 layer2.1.relu 128 28 28 128 28 28 0.0 0.38 100,352.0 100,352.0 401408.0 401408.0 0.07% 802816.0
24 layer2.1.conv2 128 28 28 128 28 28 147456.0 0.38 231,110,656.0 115,605,504.0 991232.0 401408.0 3.50% 1392640.0
25 layer2.1.bn2 128 28 28 128 28 28 256.0 0.38 401,408.0 200,704.0 402432.0 401408.0 0.17% 803840.0
26 layer3.0.conv1 128 28 28 256 14 14 294912.0 0.19 115,555,328.0 57,802,752.0 1581056.0 200704.0 3.33% 1781760.0
27 layer3.0.bn1 256 14 14 256 14 14 512.0 0.19 200,704.0 100,352.0 202752.0 200704.0 0.17% 403456.0
28 layer3.0.relu 256 14 14 256 14 14 0.0 0.19 50,176.0 50,176.0 200704.0 200704.0 0.08% 401408.0
29 layer3.0.conv2 256 14 14 256 14 14 589824.0 0.19 231,160,832.0 115,605,504.0 2560000.0 200704.0 5.48% 2760704.0
30 layer3.0.bn2 256 14 14 256 14 14 512.0 0.19 200,704.0 100,352.0 202752.0 200704.0 0.21% 403456.0
31 layer3.0.downsample.0 128 28 28 256 14 14 32768.0 0.19 12,794,880.0 6,422,528.0 532480.0 200704.0 1.37% 733184.0
32 layer3.0.downsample.1 256 14 14 256 14 14 512.0 0.19 200,704.0 100,352.0 202752.0 200704.0 0.17% 403456.0
33 layer3.1.conv1 256 14 14 256 14 14 589824.0 0.19 231,160,832.0 115,605,504.0 2560000.0 200704.0 4.35% 2760704.0
34 layer3.1.bn1 256 14 14 256 14 14 512.0 0.19 200,704.0 100,352.0 202752.0 200704.0 0.17% 403456.0
35 layer3.1.relu 256 14 14 256 14 14 0.0 0.19 50,176.0 50,176.0 200704.0 200704.0 0.08% 401408.0
36 layer3.1.conv2 256 14 14 256 14 14 589824.0 0.19 231,160,832.0 115,605,504.0 2560000.0 200704.0 3.91% 2760704.0
37 layer3.1.bn2 256 14 14 256 14 14 512.0 0.19 200,704.0 100,352.0 202752.0 200704.0 0.17% 403456.0
38 layer4.0.conv1 256 14 14 512 7 7 1179648.0 0.10 115,580,416.0 57,802,752.0 4919296.0 100352.0 5.84% 5019648.0
39 layer4.0.bn1 512 7 7 512 7 7 1024.0 0.10 100,352.0 50,176.0 104448.0 100352.0 0.21% 204800.0
40 layer4.0.relu 512 7 7 512 7 7 0.0 0.10 25,088.0 25,088.0 100352.0 100352.0 0.09% 200704.0
41 layer4.0.conv2 512 7 7 512 7 7 2359296.0 0.10 231,185,920.0 115,605,504.0 9537536.0 100352.0 9.87% 9637888.0
42 layer4.0.bn2 512 7 7 512 7 7 1024.0 0.10 100,352.0 50,176.0 104448.0 100352.0 0.25% 204800.0
43 layer4.0.downsample.0 256 14 14 512 7 7 131072.0 0.10 12,819,968.0 6,422,528.0 724992.0 100352.0 1.76% 825344.0
44 layer4.0.downsample.1 512 7 7 512 7 7 1024.0 0.10 100,352.0 50,176.0 104448.0 100352.0 0.18% 204800.0
45 layer4.1.conv1 512 7 7 512 7 7 2359296.0 0.10 231,185,920.0 115,605,504.0 9537536.0 100352.0 7.26% 9637888.0
46 layer4.1.bn1 512 7 7 512 7 7 1024.0 0.10 100,352.0 50,176.0 104448.0 100352.0 0.23% 204800.0
47 layer4.1.relu 512 7 7 512 7 7 0.0 0.10 25,088.0 25,088.0 100352.0 100352.0 0.08% 200704.0
48 layer4.1.conv2 512 7 7 512 7 7 2359296.0 0.10 231,185,920.0 115,605,504.0 9537536.0 100352.0 6.57% 9637888.0
49 layer4.1.bn2 512 7 7 512 7 7 1024.0 0.10 100,352.0 50,176.0 104448.0 100352.0 0.23% 204800.0
50 avgpool 512 7 7 512 1 1 0.0 0.00 0.0 0.0 0.0 0.0 0.25% 0.0
51 fc 512 1000 513000.0 0.00 1,023,000.0 512,000.0 2054048.0 4000.0 0.71% 2058048.0
total 11689512.0 25.65 3,638,757,912.0 1,821,399,040.0 2054048.0 4000.0 100.00% 101756992.0
=================================================================================================================================================================
Total params: 11,689,512
-----------------------------------------------------------------------------------------------------------------------------------------------------------------
Total memory: 25.65MB
Total MAdd: 3.64GMAdd
Total Flops: 1.82GFlops
Total MemR+W: 97.04MB
Process finished with exit code 0
弊端：shape只能是3维的
assert isinstance(input_size, (tuple, list)) and len(input_size) == 3
2.4 torchsummary法
还是一样，用pip install torchsummay进行安装，通过下方例子进行调用。
from torchsummary import summary
model = resnet18()
device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
summary(model.to(device), input_size=(3, 224, 224), batch_size=8)
输出：
----------------------------------------------------------------
Layer (type) Output Shape Param #
================================================================
Conv2d-1 [8, 64, 112, 112] 9,408
BatchNorm2d-2 [8, 64, 112, 112] 128
ReLU-3 [8, 64, 112, 112] 0
MaxPool2d-4 [8, 64, 56, 56] 0
Conv2d-5 [8, 64, 56, 56] 36,864
BatchNorm2d-6 [8, 64, 56, 56] 128
ReLU-7 [8, 64, 56, 56] 0
Conv2d-8 [8, 64, 56, 56] 36,864
BatchNorm2d-9 [8, 64, 56, 56] 128
ReLU-10 [8, 64, 56, 56] 0
BasicBlock-11 [8, 64, 56, 56] 0
Conv2d-12 [8, 64, 56, 56] 36,864
BatchNorm2d-13 [8, 64, 56, 56] 128
ReLU-14 [8, 64, 56, 56] 0
Conv2d-15 [8, 64, 56, 56] 36,864
BatchNorm2d-16 [8, 64, 56, 56] 128
ReLU-17 [8, 64, 56, 56] 0
BasicBlock-18 [8, 64, 56, 56] 0
Conv2d-19 [8, 128, 28, 28] 73,728
BatchNorm2d-20 [8, 128, 28, 28] 256
ReLU-21 [8, 128, 28, 28] 0
Conv2d-22 [8, 128, 28, 28] 147,456
BatchNorm2d-23 [8, 128, 28, 28] 256
Conv2d-24 [8, 128, 28, 28] 8,192
BatchNorm2d-25 [8, 128, 28, 28] 256
ReLU-26 [8, 128, 28, 28] 0
BasicBlock-27 [8, 128, 28, 28] 0
Conv2d-28 [8, 128, 28, 28] 147,456
BatchNorm2d-29 [8, 128, 28, 28] 256
ReLU-30 [8, 128, 28, 28] 0
Conv2d-31 [8, 128, 28, 28] 147,456
BatchNorm2d-32 [8, 128, 28, 28] 256
ReLU-33 [8, 128, 28, 28] 0
BasicBlock-34 [8, 128, 28, 28] 0
Conv2d-35 [8, 256, 14, 14] 294,912
BatchNorm2d-36 [8, 256, 14, 14] 512
ReLU-37 [8, 256, 14, 14] 0
Conv2d-38 [8, 256, 14, 14] 589,824
BatchNorm2d-39 [8, 256, 14, 14] 512
Conv2d-40 [8, 256, 14, 14] 32,768
BatchNorm2d-41 [8, 256, 14, 14] 512
ReLU-42 [8, 256, 14, 14] 0
BasicBlock-43 [8, 256, 14, 14] 0
Conv2d-44 [8, 256, 14, 14] 589,824
BatchNorm2d-45 [8, 256, 14, 14] 512
ReLU-46 [8, 256, 14, 14] 0
Conv2d-47 [8, 256, 14, 14] 589,824
BatchNorm2d-48 [8, 256, 14, 14] 512
ReLU-49 [8, 256, 14, 14] 0
BasicBlock-50 [8, 256, 14, 14] 0
Conv2d-51 [8, 512, 7, 7] 1,179,648
BatchNorm2d-52 [8, 512, 7, 7] 1,024
ReLU-53 [8, 512, 7, 7] 0
Conv2d-54 [8, 512, 7, 7] 2,359,296
BatchNorm2d-55 [8, 512, 7, 7] 1,024
Conv2d-56 [8, 512, 7, 7] 131,072
BatchNorm2d-57 [8, 512, 7, 7] 1,024
ReLU-58 [8, 512, 7, 7] 0
BasicBlock-59 [8, 512, 7, 7] 0
Conv2d-60 [8, 512, 7, 7] 2,359,296
BatchNorm2d-61 [8, 512, 7, 7] 1,024
ReLU-62 [8, 512, 7, 7] 0
Conv2d-63 [8, 512, 7, 7] 2,359,296
BatchNorm2d-64 [8, 512, 7, 7] 1,024
ReLU-65 [8, 512, 7, 7] 0
BasicBlock-66 [8, 512, 7, 7] 0
AdaptiveAvgPool2d-67 [8, 512, 1, 1] 0
Linear-68 [8, 1000] 513,000
================================================================
Total params: 11,689,512
Trainable params: 11,689,512
Non-trainable params: 0
----------------------------------------------------------------
Input size (MB): 4.59
Forward/backward pass size (MB): 502.34
Params size (MB): 44.59
Estimated Total Size (MB): 551.53
----------------------------------------------------------------
Process finished with exit code 0
弊端：需要比较大的显存空间才能使用
综上：我觉得thop方法比较好用
